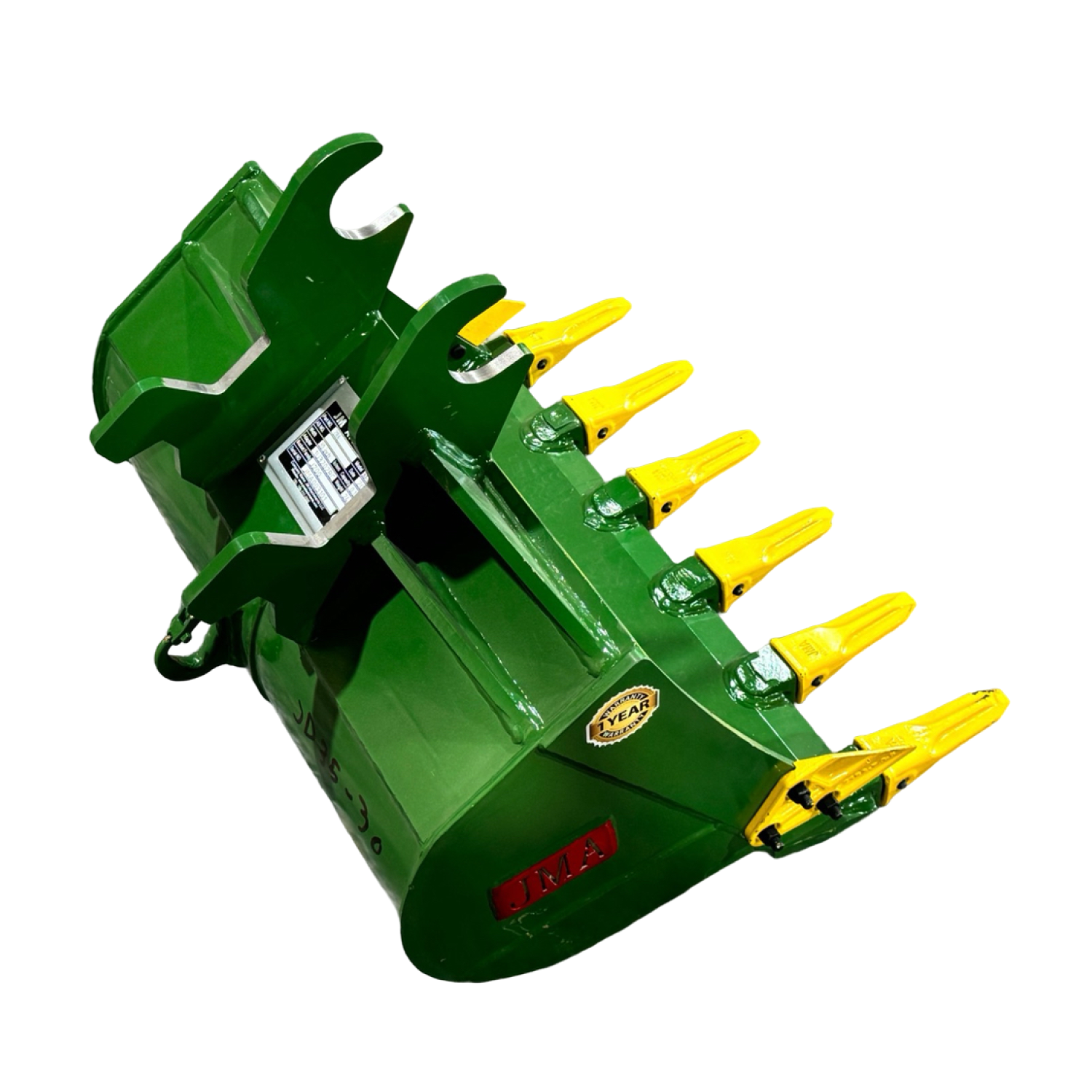

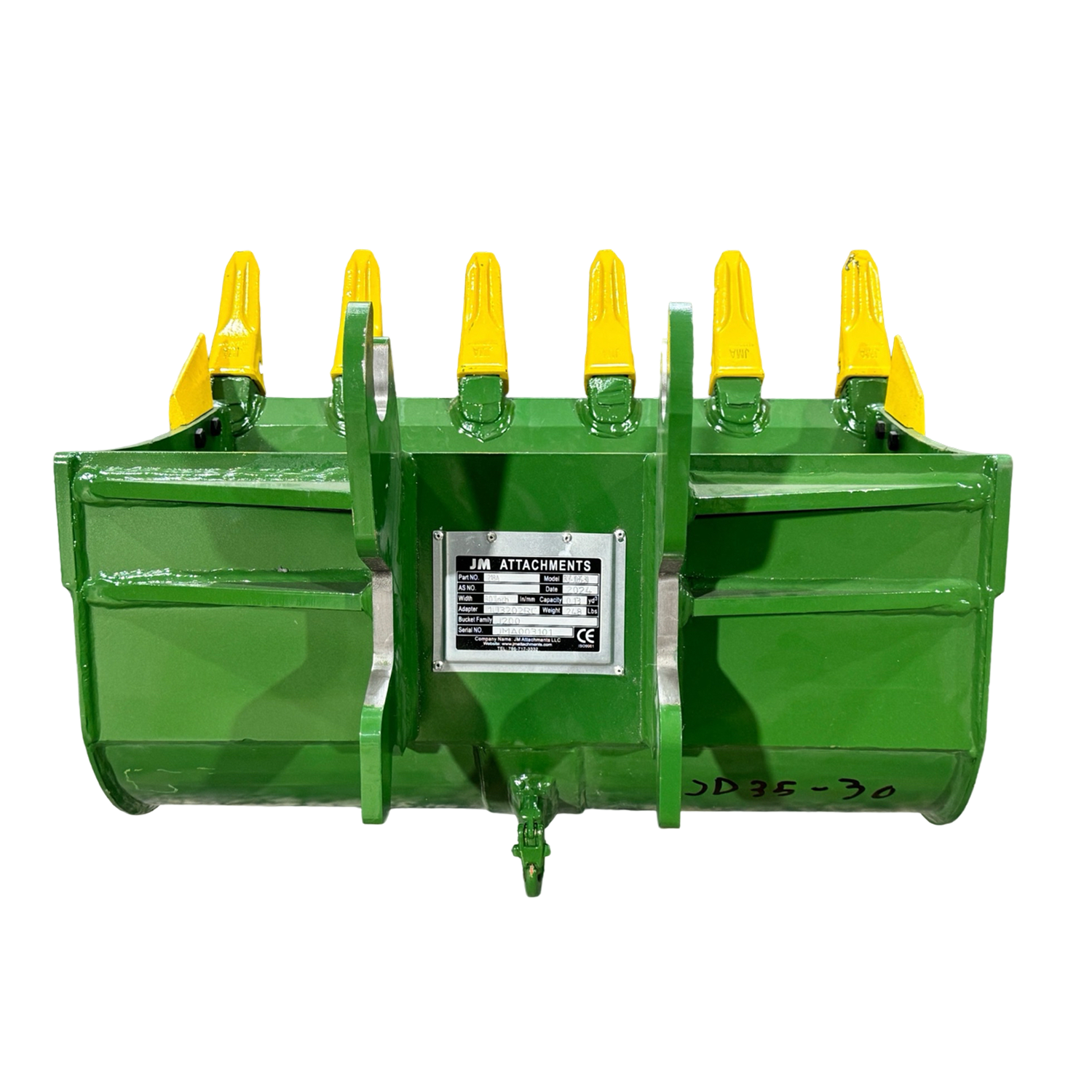

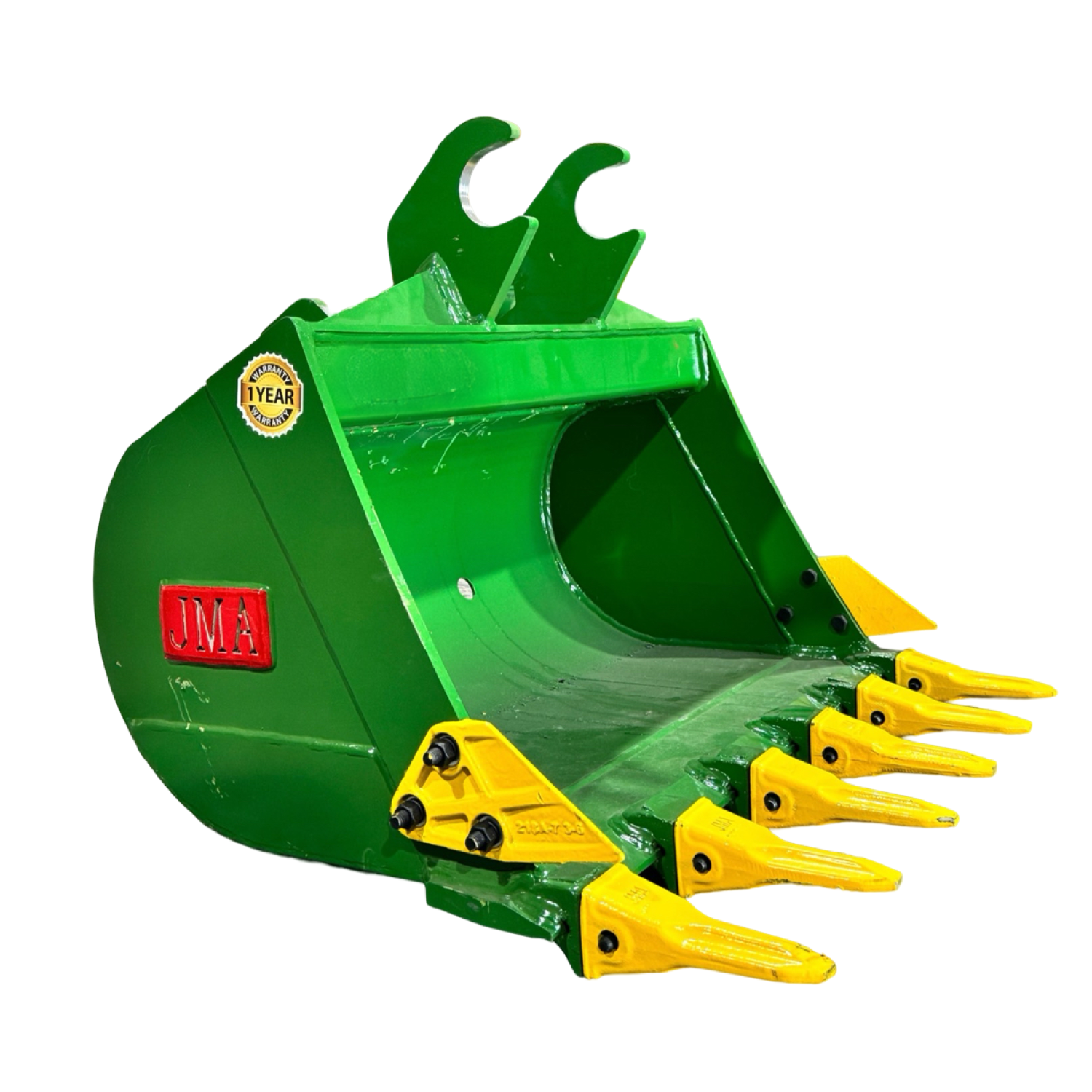

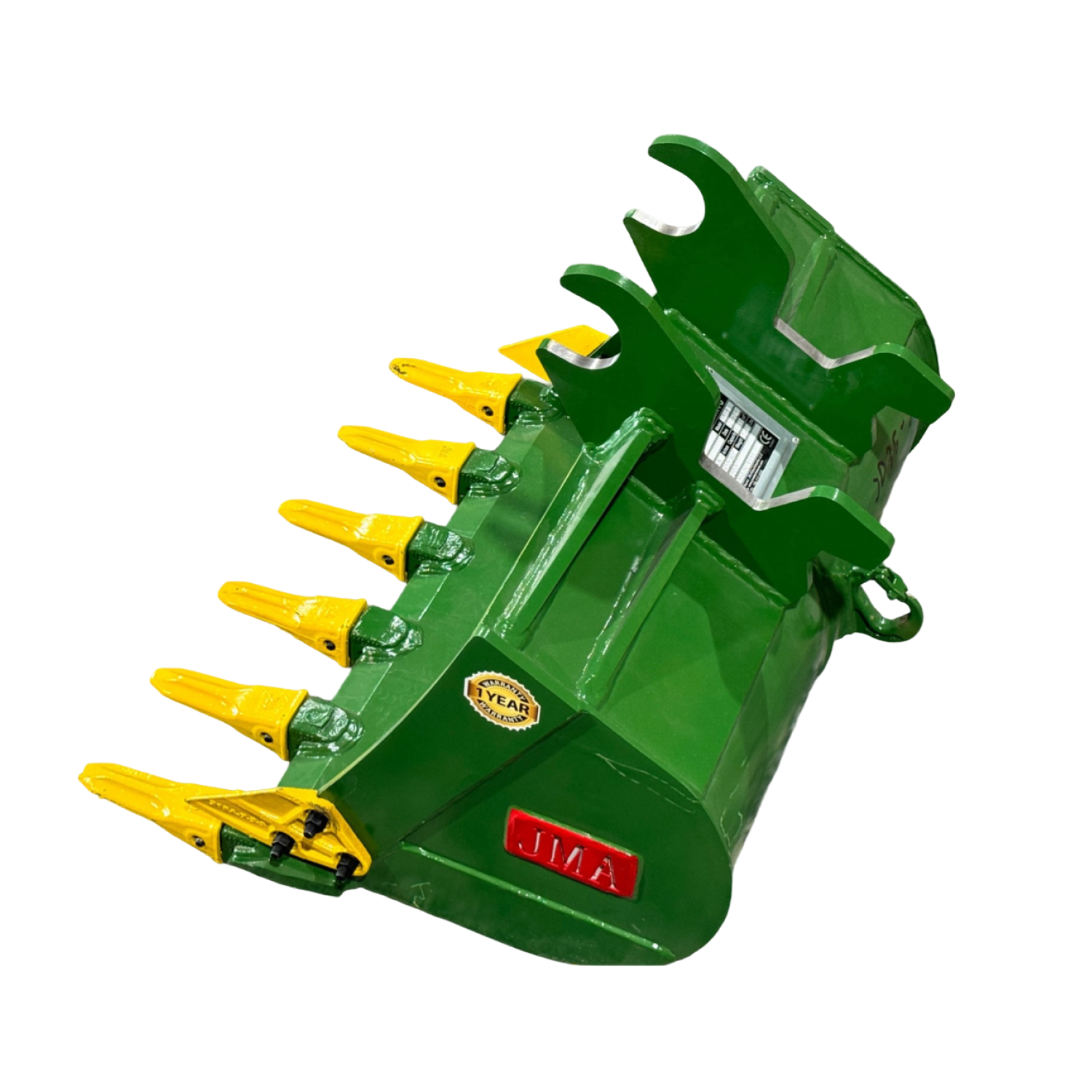

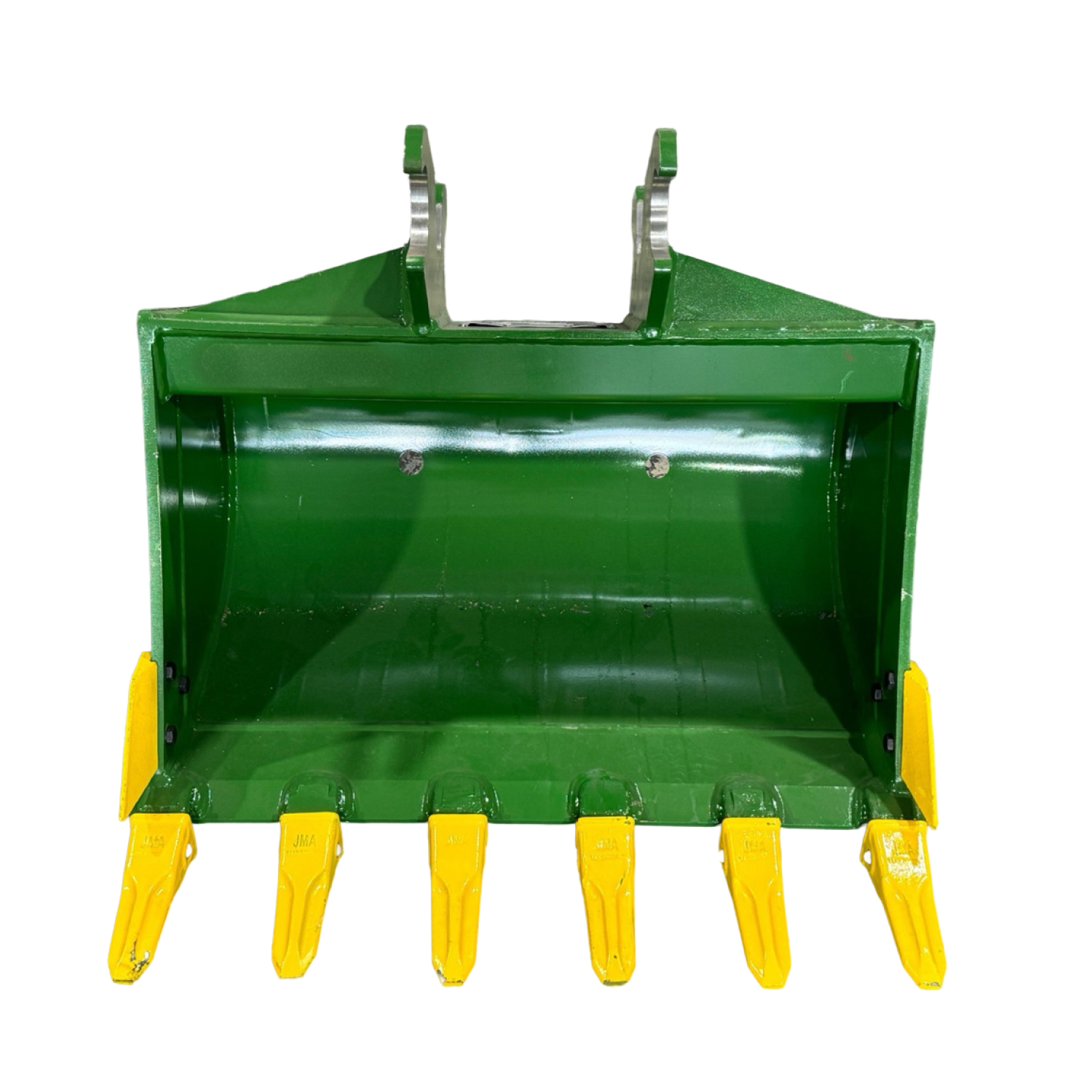

30″ Digging Bucket John Deere Wedge Lock Coupler Style for 2.6 – 3.7 Tons

Sale!
Specifications
Details
Carrier Weight Class (tn) 2.6 - 3.7 Tons
Bucket Width (mm) 762 mm
Bucket Width (in) 30"
Inner Bucket Height (mm) 480 mm
Bucket Side Wall Thickness (mm) 12 mm
Bucket Depth (mm) 340 mm
Capacity (yd³) 0.34 yd³
Capacity (m³) 0.26 m³
Bucket Tooth Series J200
Tooth Style Rock Chisel Bucket Tooth
Tooth (ct.) 6 Teeth
Tooth Part Number 1U3202RC
Tooth Pin Part Number 9W7112
Tooth Retainer Part Number 8E6209
Material Type AR400 Steel
Finish Powder-Coated Green
Add-on included AMH 3 Ton Weld-on Bucket Hook
Left Side Cutter Part Number CLZ-01-L
Right Side Cutter Part Number CLZ-01-D
Front Ear to Ear Distance (mm) 204 mm
Rear Ear to Ear Distance (mm) 204 mm
Carrier Weight Class (lbs) 5,200 - 7,400 lbs
Drain Holes (ct) 2
Features 3x Reinforced Side Plates
Product Weight (lbs) 253.53 lb
Product Weight (kg) 115 kg
Product Overview

Introducing the 30" Digging Bucket John Deere Wedge Lock Coupler Style for 2.6 - 3.7 Tons – where power meets precision in earthmoving. This 0.26 m³ m³ powerhouse is set to transform the way you approach excavation and site preparation.


Key Features:

  • Capacity Champion: 0.26 m³ m³ volume ensures rapid and efficient material handling, saving you time and effort on every project.
  • Durability Defined: Forged from top-grade AR400 Steel for years of reliable service in the toughest conditions.
  • Tooth Technology: Equipped with 6 Teeth Rock Chisel Bucket Tooth teeth (J200 series) for superior ground penetration and wear resistance.
  • Mini Excavator Enhanced: Engineered to work in perfect harmony with your mini excavator, maximizing its capabilities and your investment.
  • Versatility Unleashed: Comes with a AMH 3 Ton Weld-on Bucket Hook to adapt to various excavation challenges with ease.

Experience the future of excavation. With the 30" Digging Bucket John Deere Wedge Lock Coupler Style for 2.6 - 3.7 Tons, you're not just digging – you're crafting the perfect foundation for more efficient and productive job sites.

Fits To John Deere
Brand
Model
John Deere 30G, 110TLB ZTS, 110TLB, 35 ZTS, 35ZT, 35G, 35D ZTS, 35D, 35CT, 35C ZTS, 35C, 35, 25, 27 ZTS, 27D ZTS, 27D, 27C ZTS, 27CT, 27C, 26G, 25E, 25D, 30
