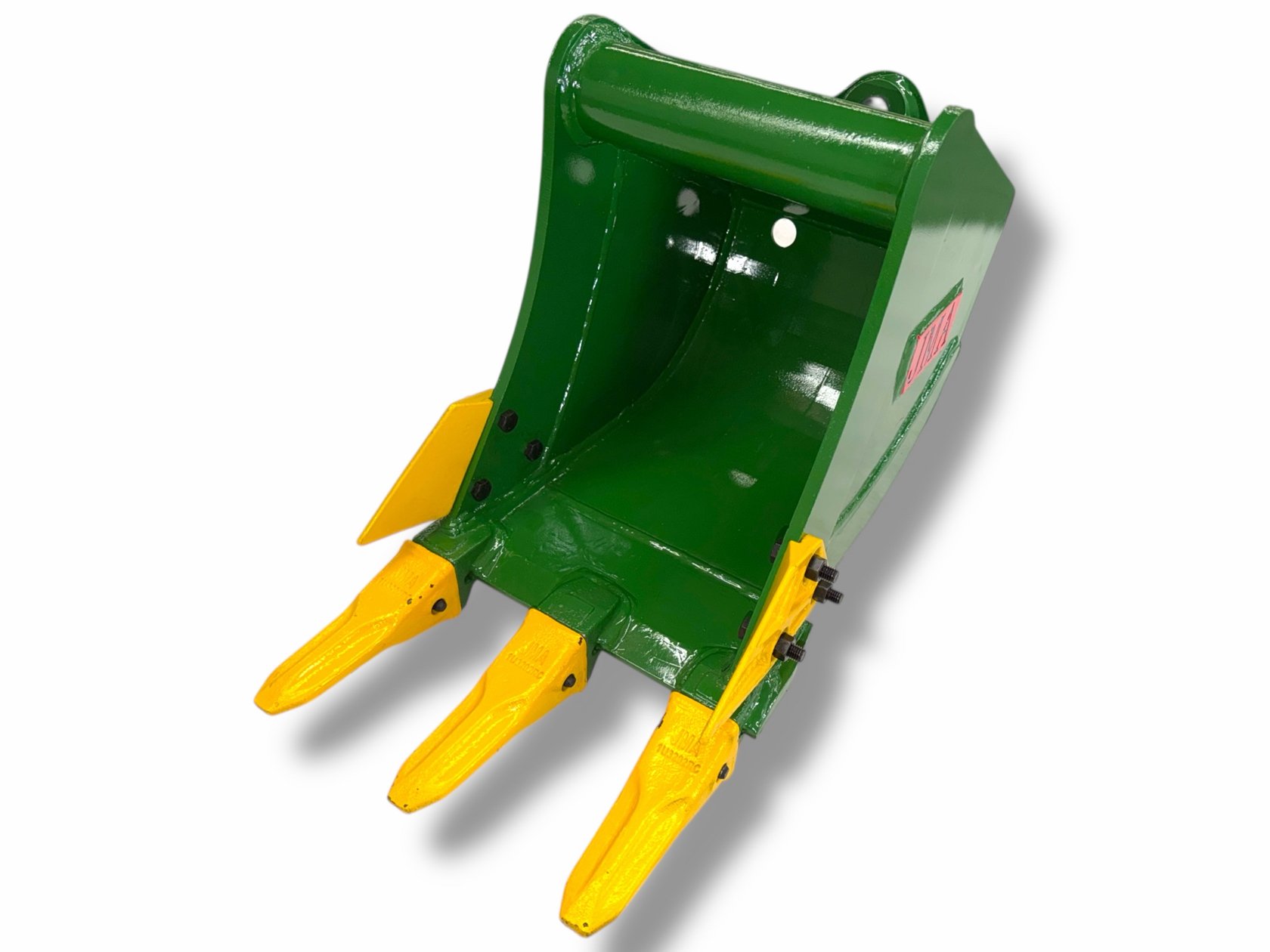

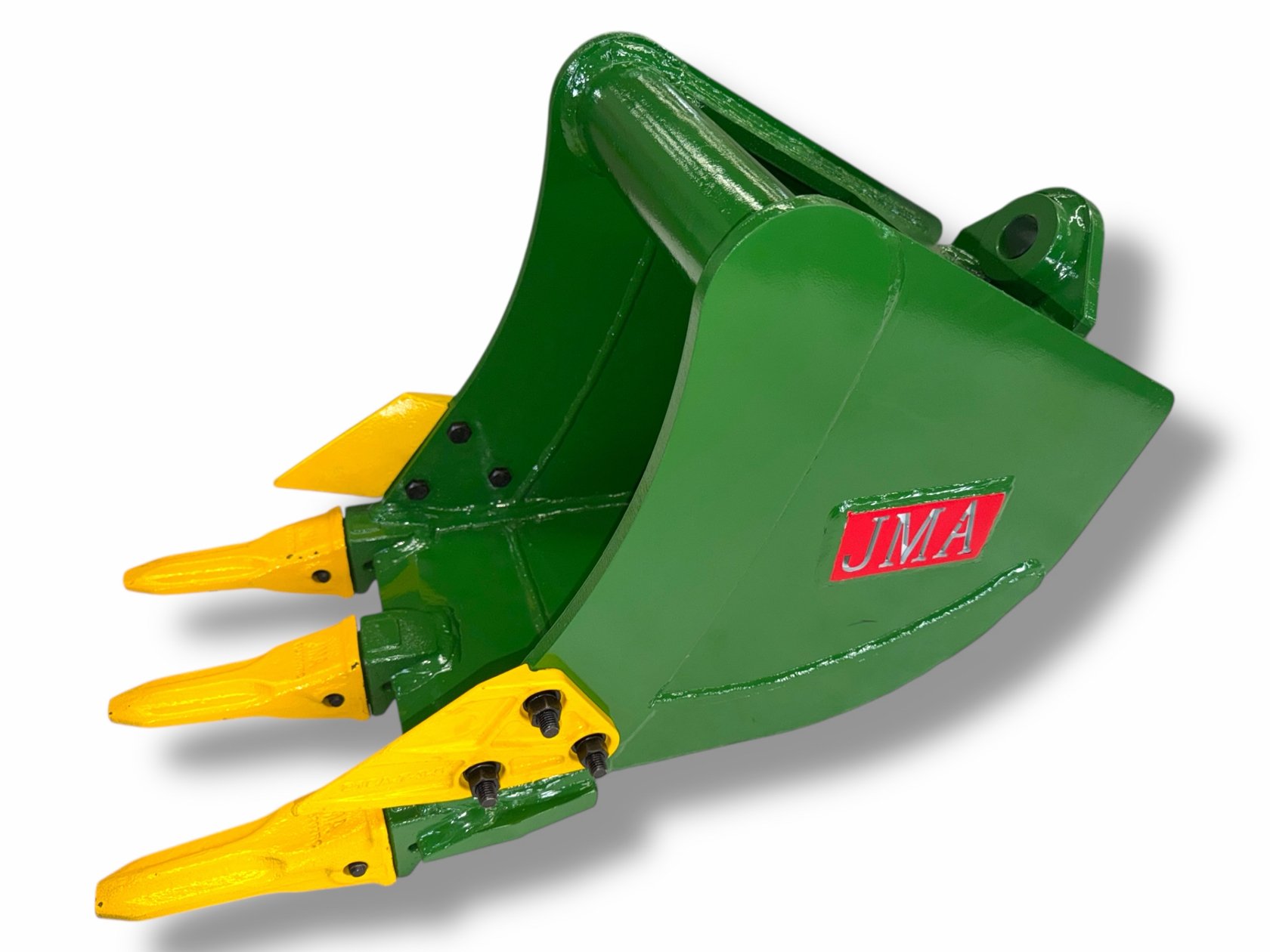

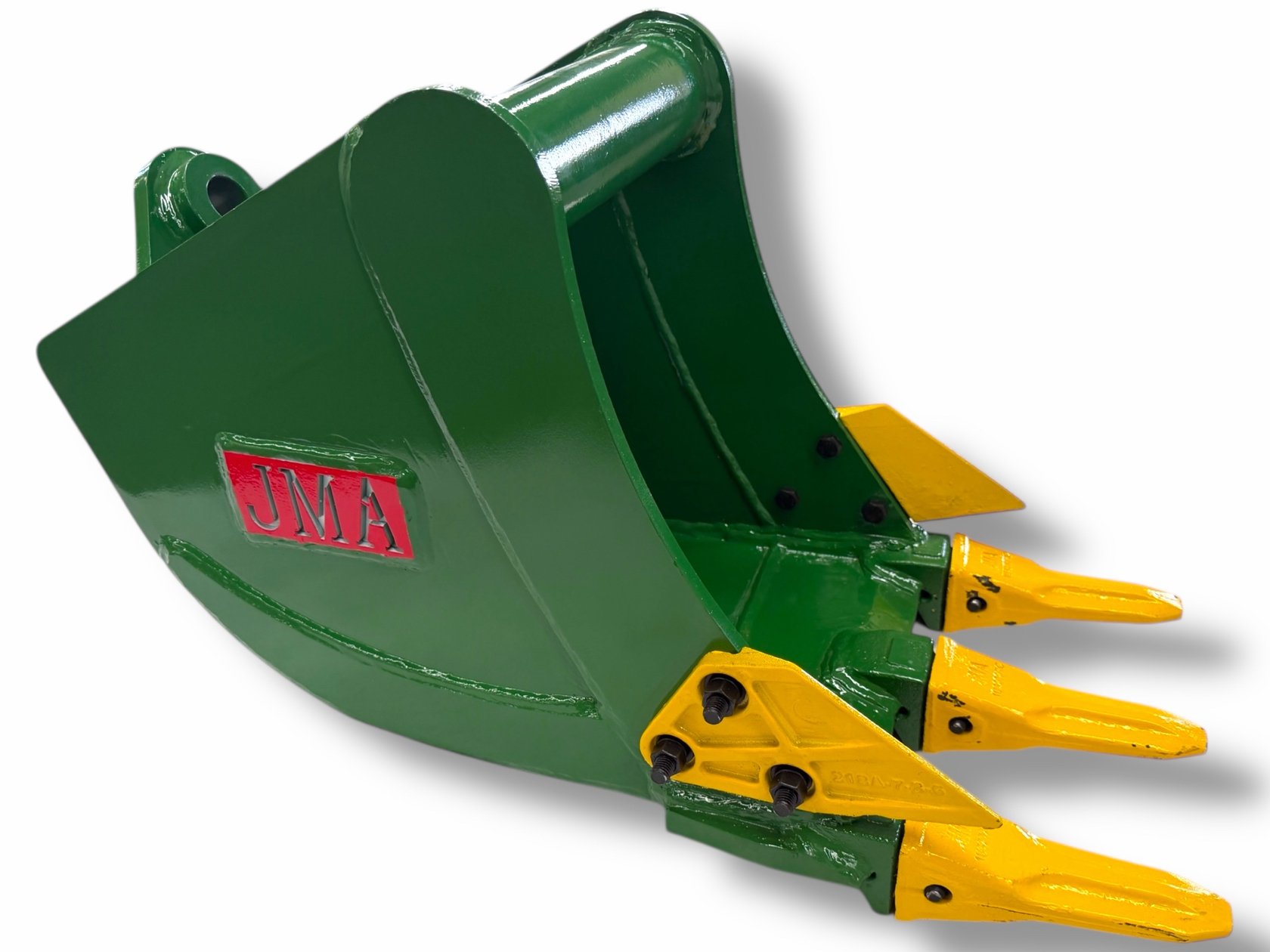

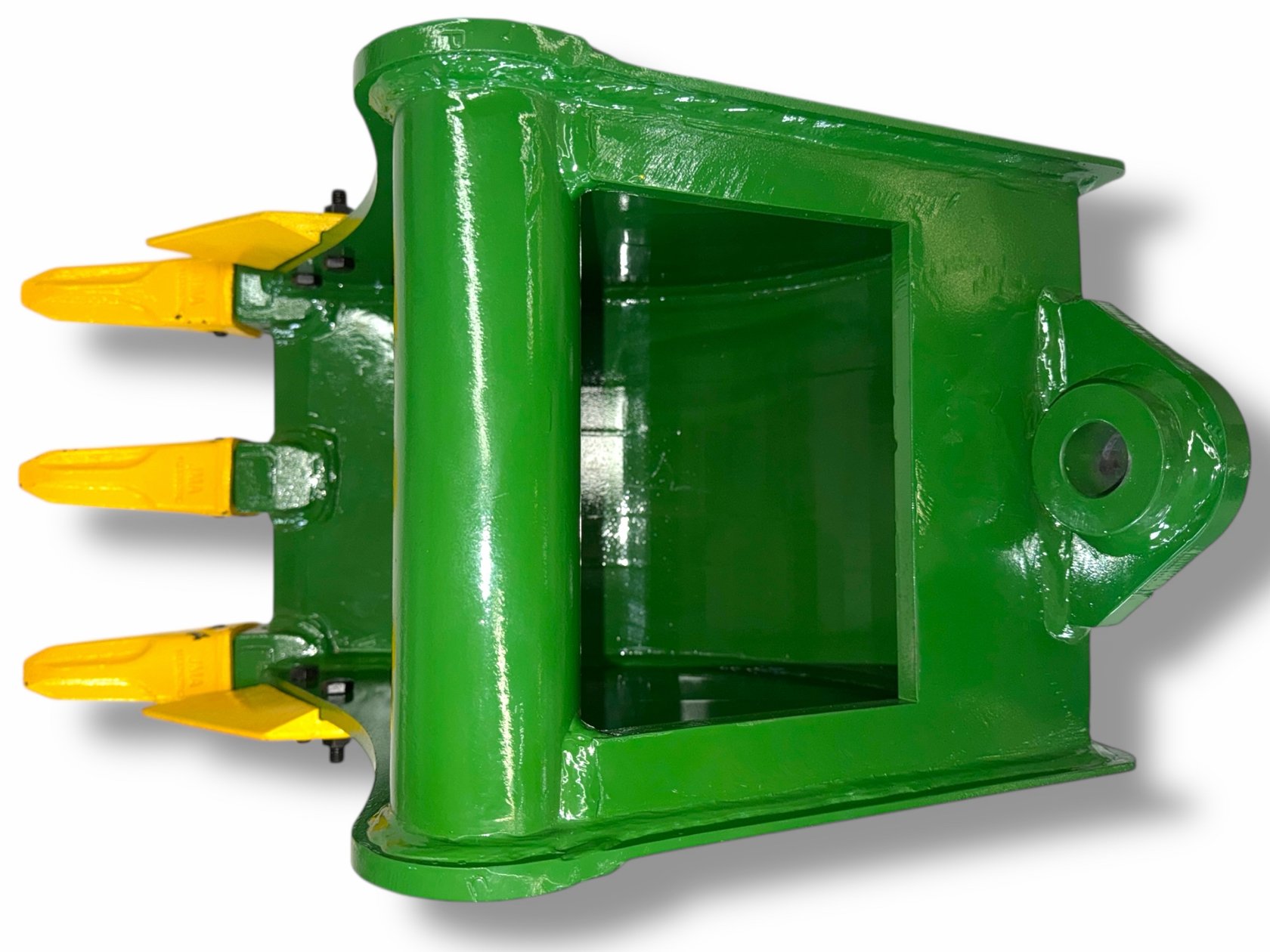

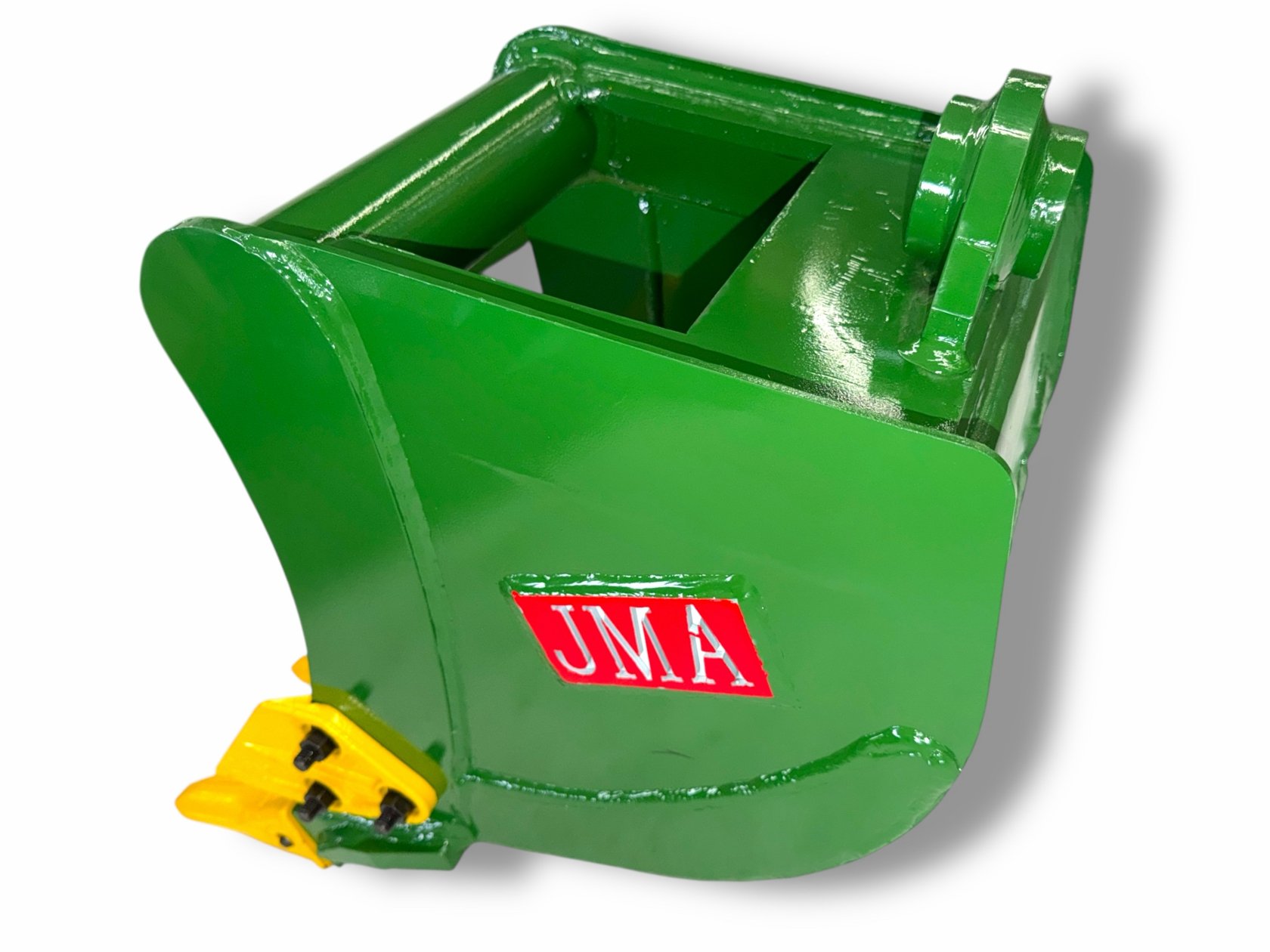

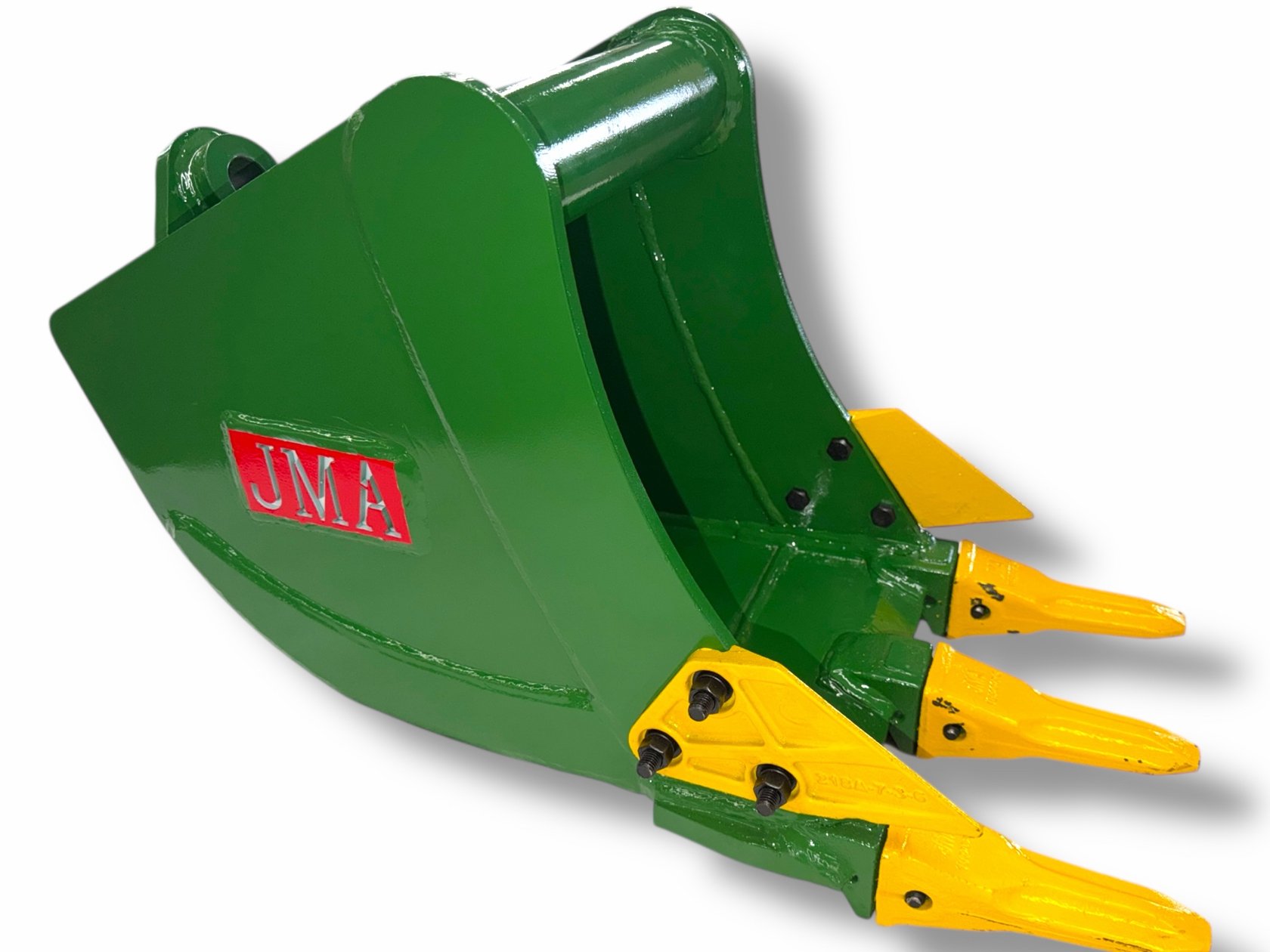

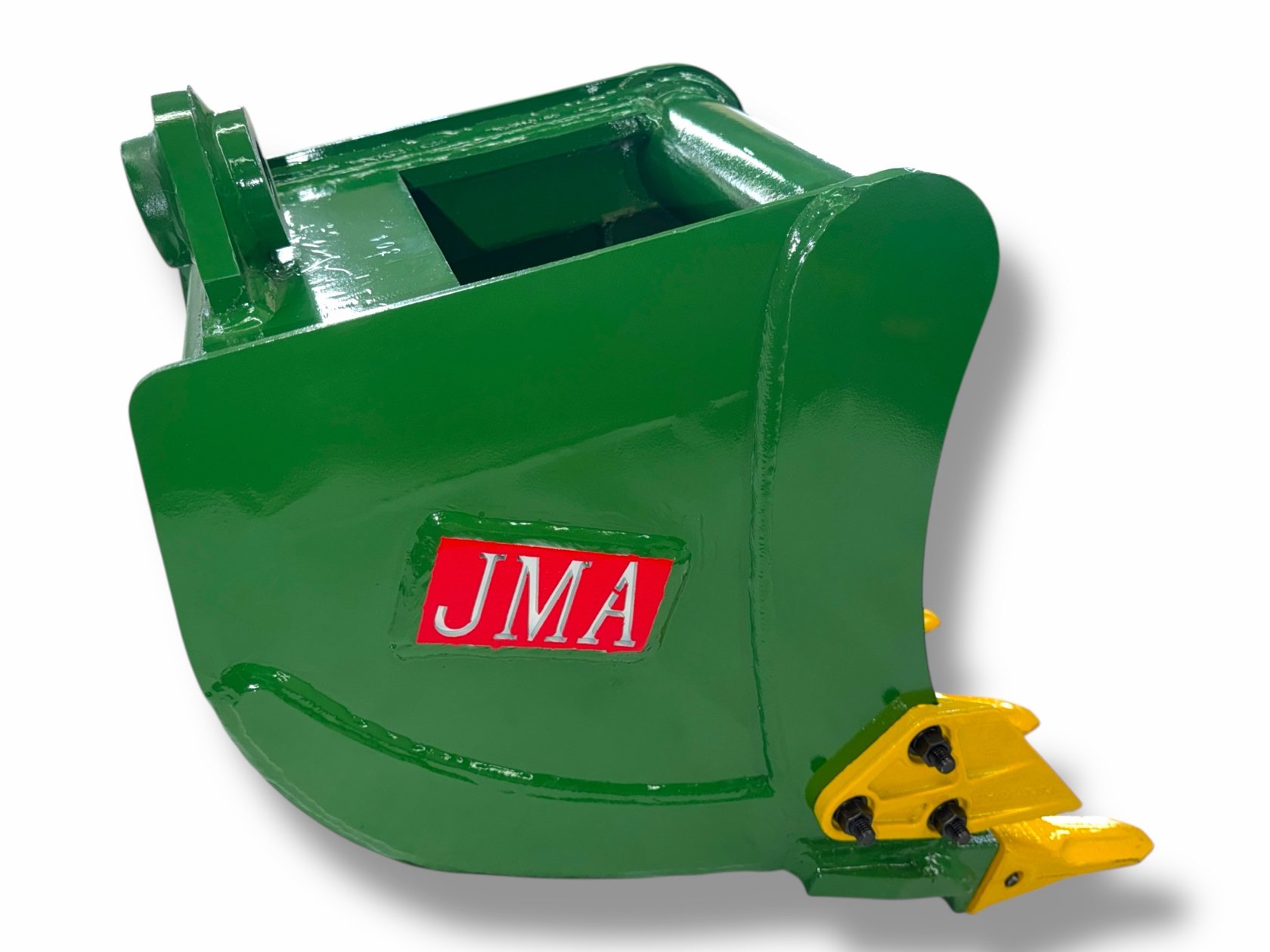

Wain Roy 3-Ton Style 12″ Mini Excavator Trenching Bucket
- Wain Roy 3-ton style coupler
- 12" wide (305 mm) · 0.13 yd³ capacity · 3 teeth · AR400 steel body · 12 mm side walls · 128 lb
- Ships from Miami, FL the same business day when ordered before 2 PM ET · US-based support
- 2-year warranty · lifetime warranty on structural welds
Bucket Size: 12"
Frequently Bought Together
| Coupler Type | Wain-Roy Style |
|---|---|
| Carrier Weight Class (tn) | 1 - 8 tons |
| Carrier Weight Class (lb) | 2,000 - 16,000 lb |
| Rear Pin Diameter (mm) | 32 mm |
| Bucket Depth (mm) | 313 mm |
| Capacity (m³) | 0.10 m³ |
| Capacity (yd³) | 0.13 yd³ |
| Tooth Retainer Part Number | 8E6209 |
| Left Side Cutter Part Number | CLZ-01-L |
| Right Side Cutter Part Number | CLZ-01-D |
| Drain Holes (ct.) | 2 ct. |
| Material Type | AR400 Steel |
| Finish | Powder-Coated Green |
| Features | 3x Reinforced Side Plates |
| Bucket Side Wall Thickness (mm) | 12 mm |
| Bucket Tooth Series | J200 |
| Bucket Width (mm) | 305 mm |
| Inner Bucket Height (mm) | 480 mm |
| Tooth (ct.) | 3 Teeth |
| Bucket Size | 12" |
| Product Width (in) | 12" |
| Tooth Number | 1U3202RC |
| Tooth Pin Part Number | 9W7112 |
| Tooth Style | Rock Chisel Bucket Tooth |
| Airman | AX15-2, AX17U-4, AX17U-5, AX17U-6, AX20U, AX20U-3, AX22, AX22U-4, AX25, AX30, AX30-U2, AX30U-4, AX30U-5F, AX30UC-4, AX30UC-5, AX33Mu, AX33U-5A, AX35, AX35U-4, AX35U-5F, AX38U-5A, AX40, AX40U, AX40U-4, AX40U-5F, AX45, AX48U-5A, AX50, AX50-2, AX50U-4, AX50U-5F, AX55U-5A, AX55U-6A |
|---|---|
| Bobcat | E08, 334, 334D, 334G, 341, 341D, 341G, E10Z, 418, 418A, 418AA, E10, X120, E10E, E14, X319K, M444, X220, 430, 430AG, 430AG ZHS, 430CD, 430D, 430D ZHS, 430E, 430G, 430GZHS, 430H, 430HAG, 430HGZHS, 430ZHS, 435, 435AG, 435AGZHS, 435DZHS, 435EG, 435G, 435GZHS, 435H, 435HAG, 435HEGZHS, 435HG, 435ZHS, 442, 442A, 442B, 442C, 442D, 442E, 442G, 442R, 442X, 323, E16, E16AEM, X320, X322, X324, X324M, E17, E17Z, E323, X319, X322D, X322G, X323, X323J, E19, E19E, E20, E20Z, E25EM, 425, 425EG, E32, E32EM, E32I, E32M, E32R, E32R2, E34, E35, E35EM, E35ER2, E35I, E35M, E35R, E35R2, E35Z, E37, E38, E40, E42, E42M, E42R2, E45, E45EM, E45M, E48, E48R2, E50, E50EM, E50M, E50R2, E50Z, E55, E55EM, E55M, E55R2, E55W, E55Z, E57W, E58, E60, E60A, E60EA, E60R2, E62, E62EM, E63, E63M, E65W, 425ZHS, E25, 425G, E26, E26C, E26EM, E26GAM, E26GM, E27, E27Z, X425, X425G, X325, X328, 428, 428EG, 428G, X331, X331C, X331D, X331E, X331G, X332, X334, X335, X337, X337D, X337G, X341, X341D, X341G, 428U, X328G, X428, X435, X435G, X435HAG, X435ZHS |
| John Deere | 110TLB, 310C, 310, 310A, 310B, 315C, 310D, 310L EP, 315D, 410A, 410B, 410C, 310L, 310SK, 315E, 315SE, 315SG, 310E, 315S, 410D, 310F, 310SE, 410E, 410G, 310EK, 310EL, 310EX, 310G, 310J, 410J, 310K, 310SL, 310SG, 410SE, 410SG, 310SJ, 315SJ, 315SK, 410K, 315SL, 17G, 17P, 25, 25D, 25E, 26G, 26P, 27 ZTS, 27C, 27C ZTS, 27CT, 27D, 27D ZTS, 30, 30G, 30P, 35, 35 ZTS, 35C, 35C ZTS, 35CT, 35D, 35D ZTS, 35G, 35P, 35ZT, 50, 50C, 50P, 50 ZTS, 50C ZTS, 50D, 50D ZTS, 50G, 55 ZTS, 60D, 60G, 60P, 70D, 70, 80C, 80G, 80, 75, 75C, 75D, 190E |
| JCB | MINI CX, MIDI CX, 260, 210 II, 210SU, 210S, 210S III, 260T, 212, 212 III, 212B, 212F, 212S, 212SL, 212SU, 2DS, 2DX, 2CX12, 210SL, 3CLL, 2125, 3CX COMPACT, 3CX COMPACT PLUS, 3CX COMPACT PRO, 2CXL, 2CXS, 2CXSM, 3C, 3C II, 3C III, 3C PLUS, 1330, 1400B, 214E, 1450, 1400, 1500, 1515, 1550, 1550B, 1600, 1600B, 215E, 215E I, 215E II, 215E III, 1700, 1700B, 3 III, 216, 1750, 1CX, 2CX, 2010, 214, 214 II, 214 III, 214IV, 214K, 214L, 214S, 214S III, 215, 215 I, 215 II, 215 III, 215 SM, 15C-1, 16C-1, 18, 18Z, 18Z-1, 19C-1, 35Z-1, 45Z, 45Z-1, 48Z, 48Z-1, 50Z-1, 50Z-2, 51R-1, 55Z, 55Z-1, 56Z-2, 57C-1, 60C-2, 65R, 65R-1, 67C, 67C-1, 215B, 215C, 221, 222, 1900, 2400, 217, 4CX, 801, 801.4, 801.5, 801.6, 802, 802 Super, 802.4, 802.4 Super, 802.7, 802.7 ZTS, 803, 803 Plus, 803 Super, 805.2, 8008 CTS, 8010 CTS, 8014, 8014 CTS, 8015, 8016, 8016 CTS, 8018, 8018 CTS, 8020, 8020 CTS, 8025, 8025 ZTS, 8025 ZTSLC, 8026, 8026 CTS, 8027 ZTS, 8029, 8029 CTS, 8030, 8030 ZTS, 8032 ZTS, 8035, 8035 C, 8035 CTS, 8035 ZTS, 8040, 8040 ZTS, 8045, 8045 ZTS, 8052, 8052C, 8055, 8055 RTS, 8055 ZTS, 8060, 8060C, 8065, 8065 RTS, JCB MICRO |
| Nagano | NS45, NS15-2, NS16-3, NS25-3, NS35, NS35R-3, NS45-3, NS55-3, NS55R-5, NS75-3 |
| Case | 530CK, 530D, 530E, 530TC, 580, 545, 580B, 480, 480B, 480C, 480CK, 480D, 480F, 480LL, 480E, 480H, 480K, 480L, 480LE, 480SM, 580C, 580SD, 580SE, 580E, 580F, 580D, 580G, 580L, 580LE, 570NXT, 580H, 580L II, 580L TURBO, 550, 570LXT, 580L II TURBO, 580L XT, 570MXT, 550L, 580K, 580M, 580SK, 580M TURBO, 580SK TURBO, 550E, 550G, 550LT, 550H, 580M II, 580M III, 580M TURBO II, 580V, CX12D, CX14, CX15, CX17, CX17B, CX17C, CX20, CX20B, CX22, CX22B, CX23, CX25, CX27B, CX31B, CX33, CX36B, CX37, CX37C, CX40, CX40B, CX47, CX50, CX50B, CX55, CX55B, CX57, CX57C, CX58, CX60, CX60C, CX65D, CX75, CX75 CSR, CX75 LR, CX75 MSR, CX75 SR, CX80, 580SL, 580SL II, 580SLE, 590SD, 590SE, 580SV, 590SK, 590SK TURBO, 590SL, 590SL II, 590SLE, 590SM, 590SM II, 590SM III, 590SM PLUS, 590SM PLUS II, 590SM PLUS III, 580SM, 590, 590B, 590C, 590D, 590E, 590F, 590G, 590H, 590K, 590M TURBO, 590M TURBO II, 580SM II, 570SV, 580SM III, 580SM PLUS, 580SM PLUS II, 580SM PLUS III, 510C, 520K, 560E, 560M, 570N EP, 590M III, 570ST, 570T, 575SV, 590L, 590L TURBO, 590LE, 580N, 580N II, 580SN, 580SN I, 590N, 590N II, 590SN, 590SN I |
| Caterpillar | 300.9D, 301, 301 CR, 301.4, 301.4C, 301.5, 301.5 CR, 301.5 SR, 301.5C, 301.6, 301.6C, 301.6D, 301.7 CR, 301.7D, 301.7D CR, 301.8, 301.8C, 301.8D, 302, 302 CR, 302.2D, 302.4D, 302.5, 302.5C, 302.5C CR, 302.7, 302.7 CR, 302.7D, 302.7D CR, 302C CR, 302E SR, 303, 303 CR, 303 CR2, 303 SR, 303.4C, 303.5, 303.5 CR, 303.5C, 303.5C CR, 303.5D, 303.5D2 CR, 303.5D CR, 303.5E, 303.5E2 CR, 303.5E CR, 303C2 CR, 303C CR, 303E CR, 303E SR, 303GR, 304, 304 CR, 304.5, 304C CR, 304D CR, 304E2, 304E2 CR, 305, 305 CR, 305 CR2, 305 SR, 305 SR II, 305.5, 305.5 SR, 305.5D CR, 305.5E, 305.5E2 CR, 305.5E CR, 305BR, 305C, 305C CR, 305D, 305D CR, 305E, 305E2 CR, 305E CR, 306, 306 CR, 306.5, 306D, 306E, 307, 307 CR, 307.5, 307B, 307B2, 307C, 307D, 307E, 307S SR, 307S SR-V2, 308B, E70, E70B, 416, 416 II, 426, 426 II, 426B, 416B, 426C, 426C II, 430F, 436C, 430F IT, 430E, 430E IT, 430E ST, 436, 436 II, 415, 415F2, 416C, 416D, 416F2, 416F2 ST, 420D, 430D, 430D IT, 436B, 438, 438 II, 416C IT, 416E, 416E ST, 416F, 416F ST, 424D, 426 IT, 428 II, 428B, 428E, 436C IT, 442D, 428D, 438B, 438D, 424B, 430F2, 432D, 432E, 432F, 432F2, 424B2, 430F2 IT, 442E, 420, 420D IT, 428C |
| New Holland | 555E, 575E, 675E, B110, LB75, LB75.B, LB90, LB90.B, B95, E15, E18, E18B, E18SR, E25-2SR, E27-2SR, E33, E33C, E35B, E37, E37C, E50.2SR, EH50 BSR, EH50.B |
| Volvo | BL60, BL60P3, BL70, BL60B, EC13, EC13XR, EC13XTV, EC15, EC15B, EC15C, EC15D, EC15E, EC25, EC35, EC35C, EC50, EC50/W, EC55, EC55B, EC55B PRO, EC55C, EC55D, EC60BLC, EC60C, EC60D, EC60E, EC70, EC70V, EC70VV, EC75C, EC75D, EC75E, ECR35, ECR35D, ECR38, ECR58, ECR58D, ECR58F, MX55/W, SE50-3, ECR40 |
| Daewoo | S15, S018 VT, S030, S035, S35, S50, S50 V, S055, S55 V PLUS, S55-V, S55V-G, S55W V, S75LC V, S75-V, Solar 035, Solar 55, Solar 55-V, Solar 75-V |
| Develon | DX19Z-7B, DX20Z-7, DX20ZE, DX27Z-7, DX35Z-7, DX42-7, DX50Z-7, DX55, DX55R-7, DX57W-7, DX60WN ECO, DX63-7 |
| Doosan | D20Z, DH35, DH55, DH55-7, DH55-V, DH60-7, DH70, DH70-7, DH80, DH80-7, DX10Z, DX15, DX17Z, DX17Z-7, DX18, DX19, DX19-7, DX20Z, DX27, DX27Z, DX27Z-7, DX30Z, DX35, DX35-5, DX35Z, DX35Z-7, DX42, DX42-5, DX42-5K, DX50, DX50-5, DX50-5K, DX50Z, DX50Z-7, DX53W, DX55, DX55-5B, DX55-5K, DX55-9C, DX55-9CN ACE, DX55A, DX55E, DX55MT ACE, DX55MT-5, DX55R-7, DX55W, DX55W-5, DX55W-5K, DX55W-5L, DX55WA, DX55WACE, DX55WK, DX57W-5, DX57W-7, DX60, DX60-9C, DX60-9CN, DX60E-9C, DX60E-9CN, DX60E-10N, DX60R, DX60W, DX60W ECO, DX60W-9C, DX60WN ECO, DX62, DX62R-3, DX62R-7, DX63, DX63-3, DX65-9C, DX70-9C, DX75, DX75-5B, DX75-9C, DX75-9CN, DX75E-9CN, DX80, S015, S015 PLUS, S018, S018 VT, S30, S030 PLUS, S55, S55 V PLUS, S55-V, S55W V, S70, S75, S75-V, SL018VT, SL55, Solar 018-VT, Solar 030, Solar 030 Plus, Solar 70-III |
| Ford | 550, 555, 555A, 555B, 555C, 555D, 655, 655A, 655C, 655D |
| HItachi | ZX50 |
| Hanix | 20S, H12A, H12B, H15A, H15B, H15B-2, H22A, H22B, H24A, H25B, H26B, H26C, H29A, H30A, H35A, H36A, H36B, H36B-R, H36C, H45, H50, H50B, H50C, H56B, H56C, H75C |
| Hitachi | EX10U, EX10U-1B, EX15, EX15-2, EX15U, EX15U-1B, EX15U-3, EX15UR, EX17, EX17U, EX18-2, EX20U, EX20U-3, EX20UR, EX20UR-2, EX20UR-3, EX22-2, EX25-2, EX27U, EX30, EX30-2, EX30U, EX30UR, EX30UR-2, EX30UR-2C, EX30UR-3, EX33MU, EX33U, EX35, EX35-2, EX35U, EX40, EX40-2, EX40U, EX40UR, EX40UR-2, EX40UR-2C, EX40UR-3, EX45, EX45-2, EX50, EX50U, EX50UR, EX50URG, EX55UR, EX55UR-3, EX58, EX58MU, EX60-1, EX60-2, EX60-3, EX60-5, EX60LC, EX60UR, EX60WD, EX75UR, EX75UR-3, EX75US, EX75US-5, EX75UU, EX80, EX80-5, EX 12-2, UE02, UE20, ZX16, ZX17U, ZX17U-2, ZX19U, ZX22U-2, ZX26U, ZX26U-5A, ZX27U-2, ZX30, ZX30U-2, ZX30U, ZX33U-2, ZX33U-2 -3, ZX33U-3, ZX33U-3F, ZX33U-5A, ZX35, ZX35U, ZX35U-2, ZX35U-3, ZX35U-3F, ZX35U-5A, ZX38U-2, ZX38U-2 -3, ZX38U-3, ZX38U-3F, ZX38U-5A, ZX40U, ZX40U-2, ZX40U-3, ZX40U-5A, ZX48U-2, ZX48U-2 -3, ZX48U-3, ZX48U-5A, ZX50-2, ZX50U, ZX50U-2, ZX50U-3, ZX50U-3F, ZX50U-5A, ZX55U-2, ZX55U-2 -3, ZX55U-3, ZX55U-5A, ZX55UR-3, ZX60, ZX60-2, ZX60-3, ZX60-5A, ZX60U, ZX60US, ZX60USB, ZX60USBLC, ZX60USB-3, ZX60USB-3CLR, ZX60USB-3F, ZX60USB-5, ZX60USB-5N, ZX60USBNA-3, ZX65USB-3, ZX65USB-3F, ZX65USB-5, ZX65USB-5A, ZX65USB-5A CLP, ZX65USB-5A CLR, ZX65USB-5ALC, ZX65USB-6, ZX70, ZX70LC, ZX70LC-2, ZX70LC-3, ZX70 LCN-3, ZX70-3, ZX70-5A, ZX70-5G, ZX70BL, ZX75, ZX75UR, ZX75UR-5B, ZX75US, ZX75US A, ZX75US-2, ZX75US-3, ZX75US-3LC, ZX75US-5, ZX75US-5A, ZX75US-5B, ZX75US-5N, ZX75US-7, ZX75USBL, ZX75USK-5B, ZX75USL-3, ZX80, ZX80SB |
| Hyundai | R15-5, R15-7, R16-7, R16-9, R17Z-9A, R25-5, R27Z-9, R27Z-9A, R28-5, R30-9A, R35-5, R35-7, R35Z-9, R35Z-9A, R55-3, R55-7, R55-9, R55-9A, R60CR-9, R60CR-9A, R60W-9S, R75-5, R80 |
| Ihi | 9VX, 15NX, 15NX-2, 20JX, 20NX, 20VX, 25NX, 25NX-2, 28G, 28J, 28N, 28N-2, 28NX, 30NX, 30NX-2, 32J, 50NX, 50VX, 55N, 55N-2, 55NX, 65NX, 80NX, 80NX-3, IS15, IS25, IS27, IS28, IS28J, IS30, IS30J, IS35, IS35N, IS35NX-2, IS35VX-2, IS40, IS40-JX, IS45, IS50, IS50G, IS55, IS55J, IS55N, IS65, IS75 |
| Kato | 180G, 250SE, HD140SE, HD307, HD307-308, HD307US, HD308us, HD308USV |
| Kobelco | K903, K903C, SK13SR, SK014, SK015, SK15SR, SK15SR-1, SK17SR, SK17SR-3, SK17SR-5E, SK17SR-6E, SK20SR, SK20SR-1, SK20SR-3, SK20SR-5, SK025, SK25SR-1, SK25SR-2, SK25SR-3, SK25SR-5, SK25SR-6E, SK027, SK27SR-3, SK27SR-5, SK27SR-6E, SK030, SK30SR, SK30SR-1, SK30SR-2, SK30SR-3, SK30SR-4, SK30SR-5, SK30SR-6E, SK032, SK035, SK35SR-1, SK35SR-2, SK35SR-3, SK35SR-4, SK35SR-5, SK35SR-6, SK35SR-6E, SK40SR, SK40SR-1, SK40SR-2, SK040SR-3, SK40SR-3, SK040SR-5, SK40SR-5, SK042, SK045, SK045-1, SK045-2, SK045-3, SK045SR, SK45SR-1, SK45SR-2, SK45SRX-6E, SK050, SK050SR-3, SK50SR-3, SK050SR-5, SK50SR-5, SK50UR, SK50UR-2, SK55SR-5, SK55SRX-6, SK55SRX-6E, SK60-2, SK60-3, SK60-5, SK60MK5, SK60SR, SK070SR, SK70SR, SK70SR-1, SK70SR-1E, SK070SR-2, SK70SR-2, SK075 SR, SK75SR, SK75SR-3, SK75SR-3E, SK75UR, SK75UR-3, SK80, SK80CS, SK80MSR-1E |
| Komatsu | PC05, PC05-1, PC05-6, PC05-7, PC07, PC07-1, PC07-2, PC09, PC09-1, PC10, PC10-6, PC10-7, PC12, PC12UU-1, PC12UU-2, PC14R-3, PC15, PC15MRX-1, PC18, PC18MR, PC18MR-2, PC18MR-3, PC20-6, PC20MR-2, PC25, PC26, PC27, PC27 MRX-1, PC27MR-2, PC27MR-3, PC27R-8, PC28UU-1, PC28UU-2, PC30, PC30 MR, PC30 MRX-1, PC30 MRX-2, PC30-6, PC30-7, PC30MR-2, PC30MR-3, PC35, PC35MR-2, PC35MR-3, PC35MRX-1, PC35R-8, PC35RS, PC40-5, PC40-7, PC40MR-2, PC40MR-3, PC40MRC-2, PC40MRX, PC40MRX-1, PC40R-8, PC45, PC45 MRX-1, PC45-1, PC45R-8, PC50 MR, PC50 MRX-2, PC50MR-2, PC50UU-1, PC50UU-2, PC50UU-3, PC50UUT, PC50UUT-2, PC55, PC55MR-3, PC58SF-1, PC58UU-3, PC60, PC60LC, PC60LC-5, PC60-1, PC60-2, PC60-3, PC60-4, PC60-5, PC60-6, PC60-6B, PC60-6BL, PC60-6S, PC60-7, PC60-7A, PC60-7B, PC60-7BE, PC60-7BH, PC60-7BK, PC60-7BL, PC60-7C, PC60-7C BL, PC60-7E, PC60-7S, PC60-8, PC60-9, PC60B, PC60B-7, PC60BL, PC60L, PC60L-1, PC60L-2, PC60L-3, PC60L-5, PC60L-6, PC60S, PC60SC-7, PC60SS, PC60SS-1, PC60U, PC60U-1, PC60U-2, PC60U-3, PC60U-5, PC60U-8, PC60UU-5, PC70, PC70-1, PC70-4, PC70-6, PC70-7, PC70-7E, PC70-8, PC70FR, PC70FR-1, PC70FR-2B, PC71, PC75, PC75 HD, PC75LC-6, PC75-1, PC75-2, PC75-3, PC75R, PC75R HD, PC75R-1, PC75R-2, PC75R-2K, PC75R-8, PC75U, PC75U1, PC75U-2, PC75UL, PC75UR, PC75UR-2, PC75UR-3, PC75US, PC75US-1, PC75US-2, PC75US-3, PC75US-5, PC75US-6, PC75UU, PC75UU-1, PC75UU-2, PC75UU-2A, PC75UU-2B, PC75UU-2E, PC75UU-3, PC75UU-3AC, PC75UU-3C, PC75UU-3E, PC76UU-2, PC78, PC78LC, PC78R, PC78U, PC78US, PC78US-2, PC78US-5, PC78US-6, PC78US-6E, PC78US-6E0, PC78US-6N0, PC78US-6Y, PC78US-7, PC78US-8, PC78UU, PC78UU-6, PC78UU-6E, PC78UU-6E0, PC78UU-8, PC78UU-10, PC78UUT-6, PC80, PC80-1, PC80MR-3, WB91 |
| Kubota | K008-3, K045, KH15, KH16, KH16W, KH28, KH28L, KH51, KH90, KH191, KX018-4, KX030, KX030-4, KX033, KX033-4, KX36, KX36-2, KX36-3, KX040, KX040-4, KX41, KX41-2, KX41-3, KX41-3V, KX41-4, KX057, KX057-4, KX057-5, KX060, KX060-5, KX61, KX61-2, KX61-3, KX71, KX71-2, KX71-3, KX71-3S, KX75, KX91, KX91-2, KX91-3, KX91-3S2, KX101, KX101-3, KX121, KX121-2, KX121-3, KX121-4, KX121-5, KX151, KX161, KX161-2, KX161-3, RX302, U10, U10-3, U10-5, U15, U15-3, U17, U17-3, U20, U20-3, U25, U25-3, U27-4, U30 Import, U35, U35-3, U35-4, U36-4, U40, U45, U45-3, U48-4, U48-5, U50-3, U50-5, U55, U55-4, U56-6 |
| Link-Belt | 75 SPIN ACE, 75 X3, 75 X3 Spin Ace, ME15, MM20CR, MM40, MM55, MS035, MS070 |
| Liugong | 906D, 906F, 908D, 908E, 9018F, 9025, 9025F, 9027E, 9027F, 9027FZTS, 9035E, 9035EZTS, 9045D, 9045E, 9075, 9075F |
| Lonking | CDM6065, CDM6065E |
| Nissan | N350, N350-2 |
| Sany | SY16, SY16C, SY18, SY18C, SY18U, SY26, SY26U, SY27U, SY35, SY35C, SY35U, SY50, SY50C, SY50U, SY55C, SY55C PRO, SY55C-9, SY55U, SY60, SY60C, SY60C PRO, SY60C-9, SY65, SY65C, SY65W, SY70, SY75, SY75C, SY75C PRO, SY75C-9, SY80 |
| Sumitomo | S160, SH60, SH60-2, SH60B, SH60B-3, SH75U, SH75X-3B, SH75X-6A, SH75XU-3B, SH75XU-6A, SH80, SH80-2, SH80-3, SWE17U, SWE18U, SWE30, SWE30UF, SWE40U, SWE45, SWE50, SWE55 |
| Takeuchi | EH50B, TB014, TB14, TB015, TB15, TB016, TB16, TB23, TB23R, TB025, TB25, TB028, TB28FR, TB030, TB30, TB035, TB36, TB045, TB45, TB53FR, TB68, TB68S, TB070, TB70, TB120, TB125, TB135, TB138, TB138FR, TB145, TB153, TB153FR, TB175, TB175W, TB210, TB210R, TB215 R, TB216, TB219, TB228, TB230, TB235, TB235-2, TB240, TB250, TB250-2, TB260 |
| Terex | TC25, TC35, TC37, TC48, TC50, TC60, TC75 |
| Wacker Neuson | 28Z, 28Z3, 38Z, 38Z3, 50Z, 50Z3, 803, 1403, 1404, 1503, 1703, 1903, 2002, 2203, 2404, 2503, 3003, 3503, 3703, 6003, 6503, 8003, ET16, ET18, ET24, ET35, EZ17, EZ17E, EZ26, EZ35, EZ36, EZ38, EZ50, EZ53 |
| XCMG | XCG60-8, XE15U, XE18U, XE20E, XE80C |
| Yanmar | B08, B08-3, B15, B15-3, B25V, B27, B30V, B37, SV08, SV08-1, SV08-1A, SV08-1B, SV08-1C, SV08-1D, SV15, SV15VT, SV17, SV17EX, SV17VT, SV18, SV26, SV26-7, SV40, SV60, VIO10, VIO10-2A, VIO12, VIO12-2A, VIO15, VIO15-2, VIO17, VIO17-1E, VIO17-A, VIO20, VIO20-2, VIO20-3, VIO23, VIO23-6, VIO25, VIO25-6A, VIO25-6B, VIO26, VIO26-6, VIO27, VIO27-2, VIO27-6, VIO30, VIO30-1, VIO30-6B, VIO30-7, VIO35, VIO35-2, VIO35-3, VIO35-6A, VIO35-6B, VIO35-7, VIO38, VIO38-6, VIO38-7, VIO40, VIO40-2, VIO40-3, VIO40-7, VIO45-5, VIO45-5B, VIO45-6A, VIO45-6B, VIO50, VIO50-2, VIO50-6A, VIO50-6B, VIO50B50, VIO55, VIO55-5, VIO55-5B, VIO55-6A, VIO55-6B, VIO57, VIO57-6B, VIO70, VIO75, VIO75-A, YC15, YC18-2, YC18-3, YC25-2, YC30-2, YC35, YC45-7 |
Wain Roy 3-Ton Style 12" Mini Excavator Trenching Bucket. Fit: Wain Roy 3-ton style coupler. Price: $1,517.00, in stock, ships from Miami, FL the same business day when ordered before 2 PM ET.
This 12-inch trenching bucket rides the Wain-Roy QC-27 coupler, so it moves between mini excavators, larger excavators, and backhoe loaders rated from 1 to 8 tons. Narrow by design, it carves utility trenches at 0.13 yd³ per pass with rock-chisel teeth and an AR400 steel body reinforced by triple side plates. It ships from Miami, FL with US-based support and a 2-year warranty backed by a lifetime warranty on all welds.
Will it fit my machine?
Tell us your machine and your coupler, we confirm the fit before shipping. If we confirmed the fit from your accurate machine and coupler details and our recommendation is wrong, report it within 14 calendar days of delivery: the JMA Fitment Money-Back Promise gives a full product refund, outbound and return freight covered, no restocking fee.
How fast does it ship?
In-stock items ship from Miami, FL the same business day when ordered before 2 PM ET; orders after 2 PM ET, on weekends or on holidays ship the next business day. Carrier estimates for the lower 48, in business days from the ship date: parcels of 50 lb or less 5–7 standard or 2–4 expedited; LTL freight over 50 lb 7–10 standard or 4–6 expedited, usually with a delivery appointment and a signature. Outside the lower 48, shipping is quoted. Inspect it before you sign and note any damage on the delivery receipt.
What does the warranty cover?
Defects in materials and workmanship are covered for 2 years or 2,000 operating hours, whichever comes first: year 1 parts and pre-approved labor, year 2 parts only. Lifetime warranty on structural welds. Teeth, cutting edges, pins and bushings are wear items and are not covered. Get our written approval before any repair.
Can I return it?
Yes, for standard products: a refund within 14 calendar days of delivery, or store credit within 30, if it is unused, uninstalled, free of soil and grease, and in its original packaging with all hardware. Get a Return Authorization Number (RAN) from us first. The buyer pays return shipping unless the item was defective, damaged or wrong because of our error, or you can drop it off at our warehouse, 8068 NW 29th St, Doral, FL, Monday to Friday, 9 AM to 5 PM, with your RAN. A restocking fee applies to non-defective refunds; store credit has no restocking fee. Original outbound shipping is not refunded on change-of-mind returns. Installed or used attachments can't be returned.
DISCLAIMER
JMA Attachments provides heavy machinery attachments that must be used with care by
competent individuals under supervision, if necessary. Use of any equipment, including ours, involves
potential risk of injury. You accept and assume full responsibility for any and all injuries, damages
(both economic and non-economic), and losses of any type that may occur, and release JMA Attachments,
its insurers, employees, officers, directors, associates, and agents from all claims and liabilities
resulting from the use of said equipment.
Except for the written JMA Attachments Warranty (/warranty/), JMA Attachments makes no other warranty, express or implied, including merchantability or fitness for a particular purpose. BUYER ASSUMES ALL LIABILITY IN THE USE OF THE EQUIPMENT. The purchaser must ensure operators are properly trained and comply with all laws and regulations. You agree to be legally bound by this disclaimer by purchasing and using our products. If you disagree, do not proceed with purchasing or using the equipment.
