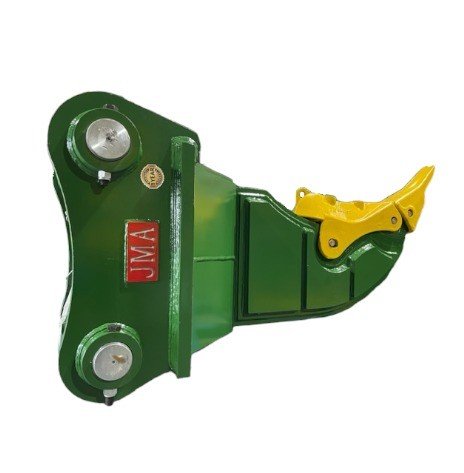

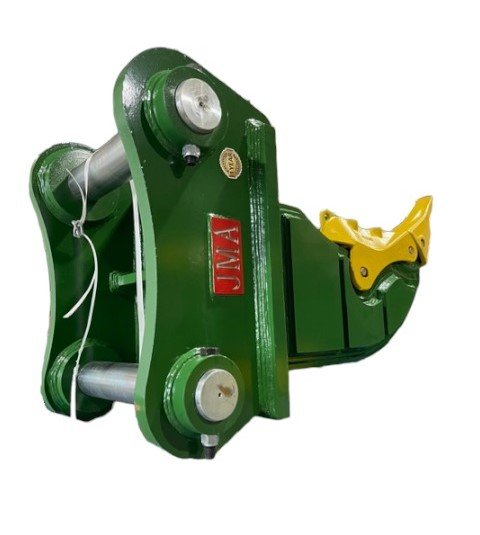

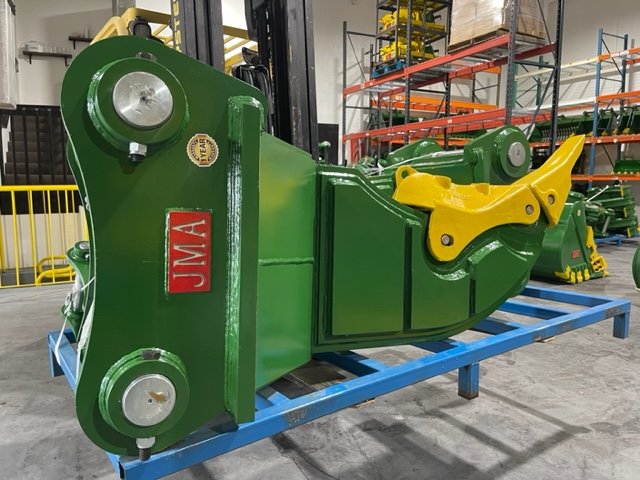

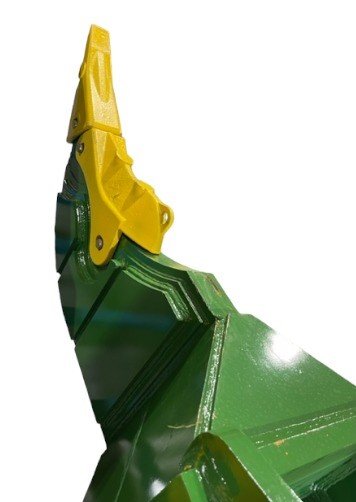

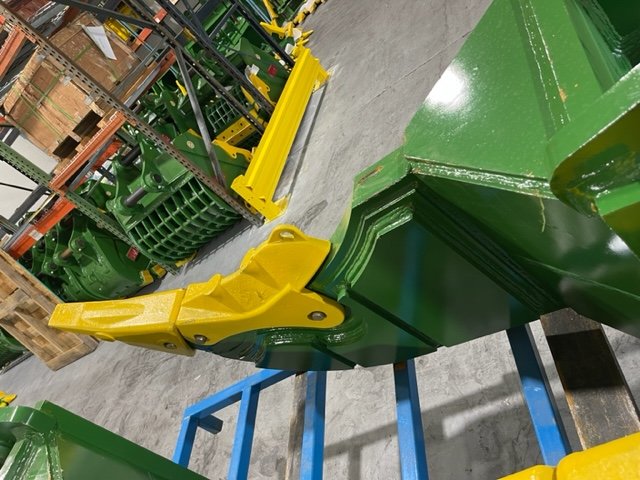

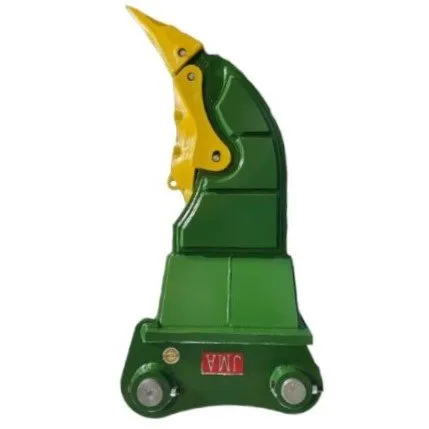

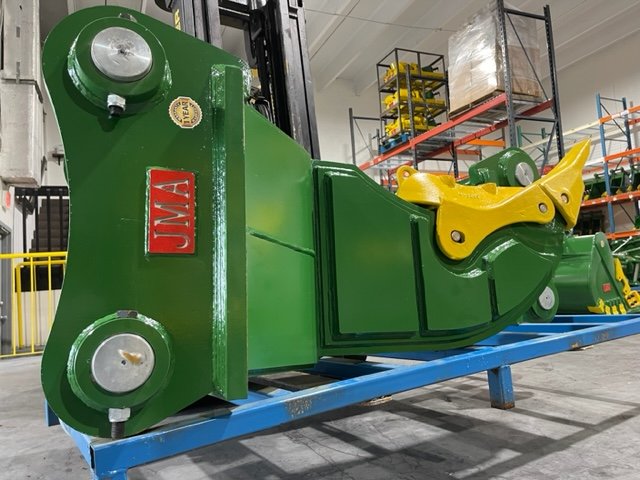

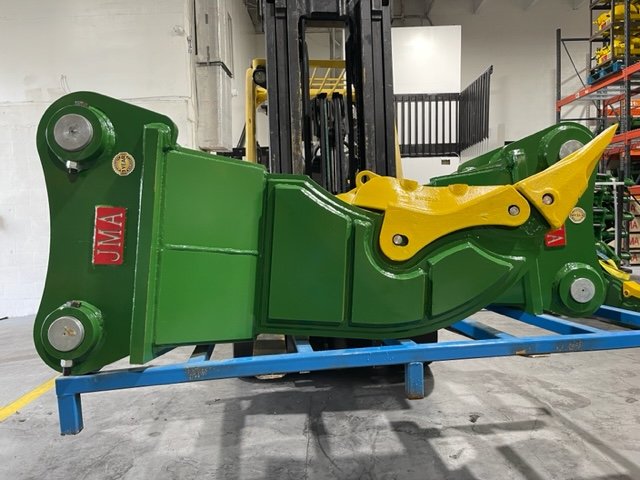

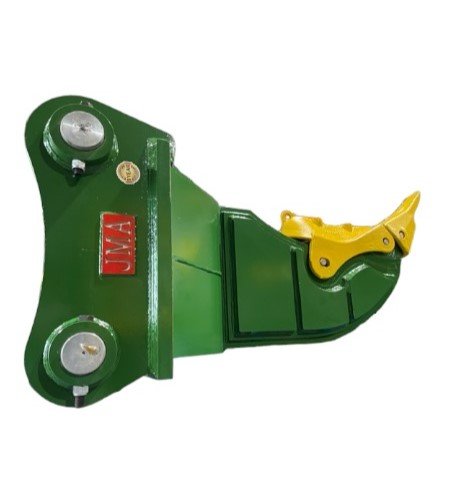

Ripper Tooth for 30 – 50 Tons Excavators. 90mm | 80mm Pins
- Fits 30–50 t excavators · 90 mm front / 80 mm rear pins · 387 mm ear to ear · 485 mm C-C
- 69.13″ penetration · rock chisel tooth 4T4501 · shank protector 9W8365 · AR450 steel · 2,006 lb
- Pins included
- Ships from Miami, FL the same business day when ordered before 2 PM ET · US-based support
- 2-year warranty · lifetime warranty on structural welds
Frequently Bought Together
| Coupler Type | Pin On Style |
|---|---|
| Carrier Weight Class (tn) | 30 - 50 tons |
| Carrier Weight Class (lb) | 60,000 - 100,000 lb |
| Front Pin Diameter (mm) | 90 mm |
| Rear Pin Diameter (mm) | 80 mm |
| Front Ear to Ear (mm) | 387 mm |
| Rear Ear to Ear (mm) | 387 mm |
| Center to Center (mm) | 485 mm |
| Front Pin Length (mm) | 615 mm |
| Material Type | AR450 Steel |
| Finish | Powder-Coated Green |
| Product Weight (kg) | 910 kg |
| Product Weight (lbs) | 2,006.20 lb |
| Rear Pin Length (mm) | 615 mm |
| Tooth Retainer Part Number | 4T4707 |
| Shank Protector Part Number | 9W8365 |
| Tooth (ct.) | 1 ct. |
| Penetration (in) | 69.13" |
| Penetration (mm) | 1,756 mm |
| Pin Size | 90mm |
| Tooth Number | 4T4501 |
| Tooth Pin Part Number | 6Y3909 |
| Tooth Style | Rock Chisel Bucket Tooth |
| Caterpillar | 324E LR, 324EL LR, 328 D, 328DL CR, 329D, 329D2L, 329D CS, 329DL, 329DL LR, 329DL ME, 329DL VA, 329DLN, 329DLN VA, 329E, 329E LR, 329E LRE, 329EL, 329ELN, 329FL, 330, 330BL, 330C, 330C L, 330D, 330D2, 330D2 L, 330D L, 330DL DB, 330F L, 335, 335FL CR, M325B |
|---|---|
| Kobelco | SK300, SK300 Mark IV, SK300LC, SK300LC Mark IV, SK320-VI, SK320LC-V1, SK320LC-VI, SK330-8, SK330-9, SK330-10, SK330-VI, SK330LC-8, SK330LC-9, SK330LC-10, SK330LC-V1, SK330LC-VI, SK330NLC-V1, SK330NLC-VI, SK350LC-8, SK350LC-9, SK350LC-10, SK350LC-11 |
| Komatsu | HB365LC-1, HB365LC-3, HB365LC-3EO, HB365 NLC-1, HB365 NLC-3, HB365-3, PC300, PC300 HD, PC300 HDLC-3, PC300 HDLC-5, PC300 HD-5, PC300 HD-5L, PC300 HD-6, PC300 HD-6E, PC300 HD-6L, PC300 HD-6LC, PC300 HD-6LE, PC300 HD-6SL, PC300 HD-7, PC300 HD-7E0, PC300 HD-7L, PC300 HD-8, PC300LC, PC300LC-2, PC300LC-3, PC300LC-4, PC300LC-5, PC300LC-5A, PC300LC-5K, PC300LC-5L, PC300LC-5LC, PC300LC-6, PC300LC-6A, PC300LC-6B, PC300LC-6C, PC300LC-6D, PC300LC-6E, PC300LC-6K, PC300LC-6L, PC300LC-6LC, PC300LC-6LE, PC300LC-6P, PC300LC-6Z, PC300LC-7, PC300LC-7E, PC300LC-7E0, PC300LC-7L, PC300LC-7LE, PC300LC-8L, PC300LC-8M0, PC300LC-10, PC300 LCSE-7, PC300 SE, PC300 SE-6, PC300 SE-7, PC300 SE-8, PC300-2, PC300-2C5, PC300-3, PC300-3B, PC300-4, PC300-5, PC300-5A, PC300-5C, PC300-5K, PC300-5L, PC300-6, PC300-6A, PC300-6E, PC300-6L, PC300-6Z, PC300-7, PC300-7E0, PC300-8, PC300-8M0, PC300L, PC300L-5, PC300LC-8, PC300LL-6, PC300LL-7, PC300N, PC300NLC, PC300NLC-3, PC300NLC-3K, PC300NLC-5, PC300NLC-5K, PC300NLC-6, PC308, PC308LC-3, PC308LC-7, PC308USLC, PC308USLC-3, PC308USLC-3E0, PC310, PC310LC, PC310LC-5, PC310-5, PC330LC, PC330-3, PC340, PC340 HRD-7E0, PC340LC, PC340LC-6, PC340LC-6K, PC340LC-6KJ, PC340LC-7, PC340LC-7E0, PC340LC-7K, PC340LC-8, PC340 LCD-7, PC340-6, PC340-6K, PC340-7, PC340NLC, PC340NLC-6, PC340NLC-6K, PC340NLC-6KJ, PC340NLC-7, PC340NLC-7E0, PC340NLC-7K, PC350, PC350 HD-8, PC350LC, PC350LC-6, PC350LC-6E, PC350LC-6Z, PC350LC-7, PC350LC-7E, PC350LC-7E0, PC350LC-8, PC350LC-8K, PC350LC-8M0, PC350LC-10, PC350LC-11, PC350-6, PC350-6E, PC350-6Z, PC350-7, PC350-7E0, PC350-8, PC350-8M0, PC350-10, PC350NLC-8, PC350NLC-8K, PC350NHRD-8, PC360, PC360LC, PC360LC-3, PC360LC-5K, PC360LC-6K, PC360LC-10, PC360LC-11, PC360LC-11E0, PC360 LCI-11, PC360 LCI-11EO, PC360-3, PC360-5, PC360-7, PC360-8M0, PC360-11M0, PC360LC-5, PC360NLC-10, PC360NLC-11, PC360NLC-11E0, PC380, PC380LC-6, PC380LC-6K, PC380LC-6KJ, PC380LC-7, PC380 LCD, PC380U, PC390LC-8M0, PC390LC-10, PC390LC-11, PC390 LCI-11, PC390HRD-11 |
| Liugong | 930, 930E, 930F, 933E |
| Sany | SY330, SY335 |
Ripper Tooth for 30 - 50 Tons Excavators. 90mm | 80mm Pins. Fits 30–50 t excavators, 90 mm front / 80 mm rear pins, 387 mm ear to ear, 485 mm C-C. Included: pins. Price: $8,837.45, in stock, ships from Miami, FL the same business day when ordered before 2 PM ET.
Unleash the power of superior ground breaking with the Ripper Tooth for 30 - 50 Tons Excavators. 90mm | 80mm Pins. Precision-engineered for professionals, this Ripper Tooth is the ultimate solution for conquering the most demanding excavation tasks.
Unrivaled Capabilities:
• Robust Material: Constructed from high-strength AR450 Steel to withstand extreme conditions.
• Exceptional Reach: Delivers 69.13" penetration for efficient ground breaking.
• Tailored Design: Specifically engineered for Excavators, ensuring optimal performance.
• Reliable Attachment: 90 mm front pin diameter provides a secure and stable connection.
• Multi-Functional: Ideal for pre-ripping frozen ground, pavement breaking, and root removal.
• Productivity Enhancer: Significantly reduces excavation time in tough conditions.
Take your excavation capabilities to the next level. With the Ripper Tooth for 30 - 50 Tons Excavators. 90mm | 80mm Pins, you're investing in an attachment that combines superior strength with intelligent design to deliver unmatched results in any challenging project.
Are pins included?
Yes. Pins are included.
Will it fit my machine?
Tell us your machine, we confirm the fit before shipping. Pin-on attachments are sized from your machine's pin diameter, pin-to-pin distance and ear width. If your machine has a quick coupler, is a long-reach model or was modified, measure those three and send them to us before you order. If we confirmed the fit from your accurate machine and coupler details and our recommendation is wrong, report it within 14 calendar days of delivery: the JMA Fitment Money-Back Promise gives a full product refund, outbound and return freight covered, no restocking fee.
How fast does it ship?
In-stock items ship from Miami, FL the same business day when ordered before 2 PM ET; orders after 2 PM ET, on weekends or on holidays ship the next business day. Carrier estimates for the lower 48, in business days from the ship date: parcels of 50 lb or less 5–7 standard or 2–4 expedited; LTL freight over 50 lb 7–10 standard or 4–6 expedited, usually with a delivery appointment and a signature. Outside the lower 48, shipping is quoted. Inspect it before you sign and note any damage on the delivery receipt.
What does the warranty cover?
Defects in materials and workmanship are covered for 2 years or 2,000 operating hours, whichever comes first: year 1 parts and pre-approved labor, year 2 parts only. Lifetime warranty on structural welds. Teeth, cutting edges, pins and bushings are wear items and are not covered. Get our written approval before any repair.
Can I return it?
Yes, for standard products: a refund within 14 calendar days of delivery, or store credit within 30, if it is unused, uninstalled, free of soil and grease, and in its original packaging with all hardware. Get a Return Authorization Number (RAN) from us first. The buyer pays return shipping unless the item was defective, damaged or wrong because of our error, or you can drop it off at our warehouse, 8068 NW 29th St, Doral, FL, Monday to Friday, 9 AM to 5 PM, with your RAN. A restocking fee applies to non-defective refunds; store credit has no restocking fee. Original outbound shipping is not refunded on change-of-mind returns. Installed or used attachments can't be returned.
DISCLAIMER
JMA Attachments provides heavy machinery attachments that must be used with care by
competent individuals under supervision, if necessary. Use of any equipment, including ours, involves
potential risk of injury. You accept and assume full responsibility for any and all injuries, damages
(both economic and non-economic), and losses of any type that may occur, and release JMA Attachments,
its insurers, employees, officers, directors, associates, and agents from all claims and liabilities
resulting from the use of said equipment.
Except for the written JMA Attachments Warranty (/warranty/), JMA Attachments makes no other warranty, express or implied, including merchantability or fitness for a particular purpose. BUYER ASSUMES ALL LIABILITY IN THE USE OF THE EQUIPMENT. The purchaser must ensure operators are properly trained and comply with all laws and regulations. You agree to be legally bound by this disclaimer by purchasing and using our products. If you disagree, do not proceed with purchasing or using the equipment.
