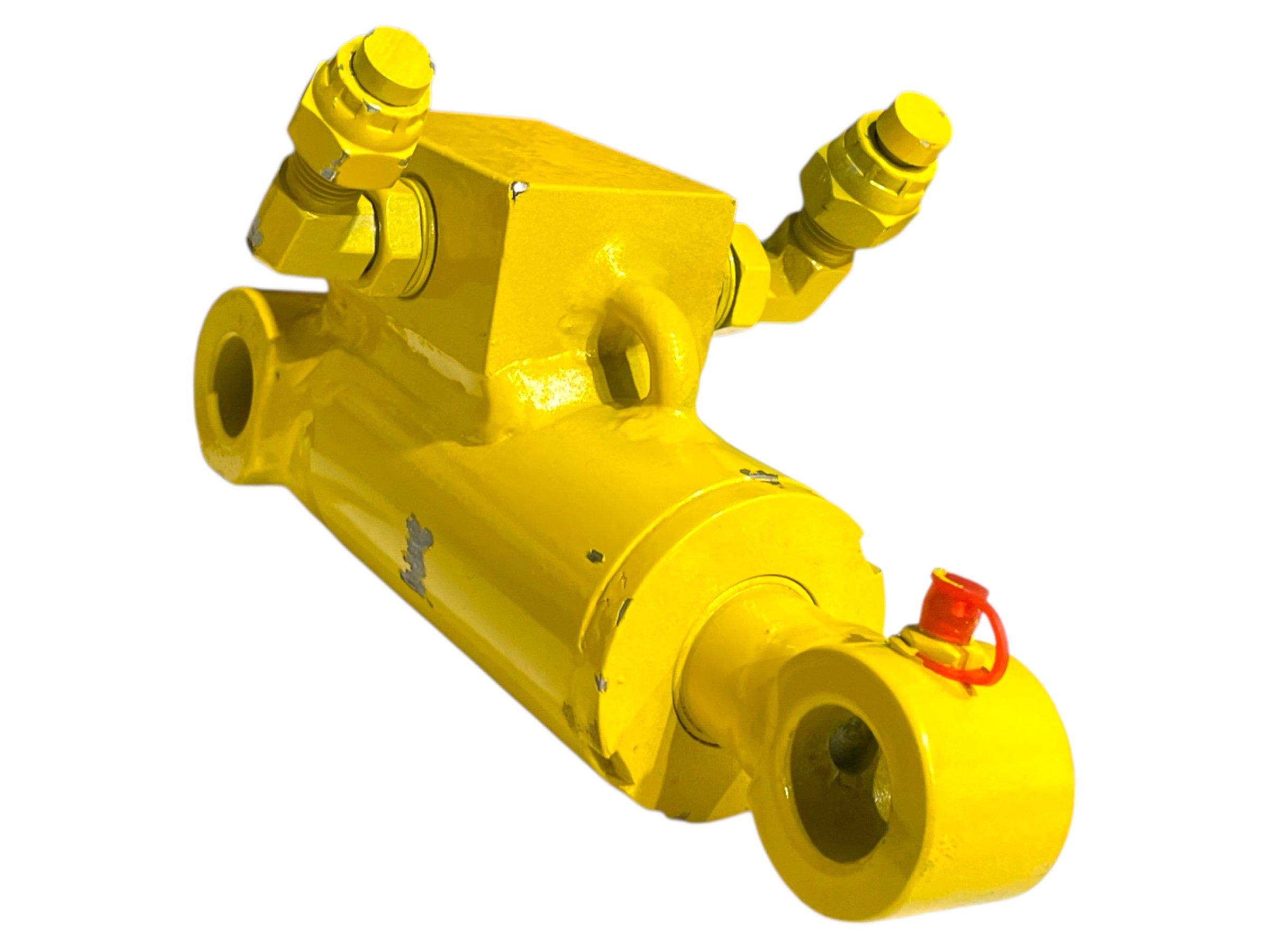

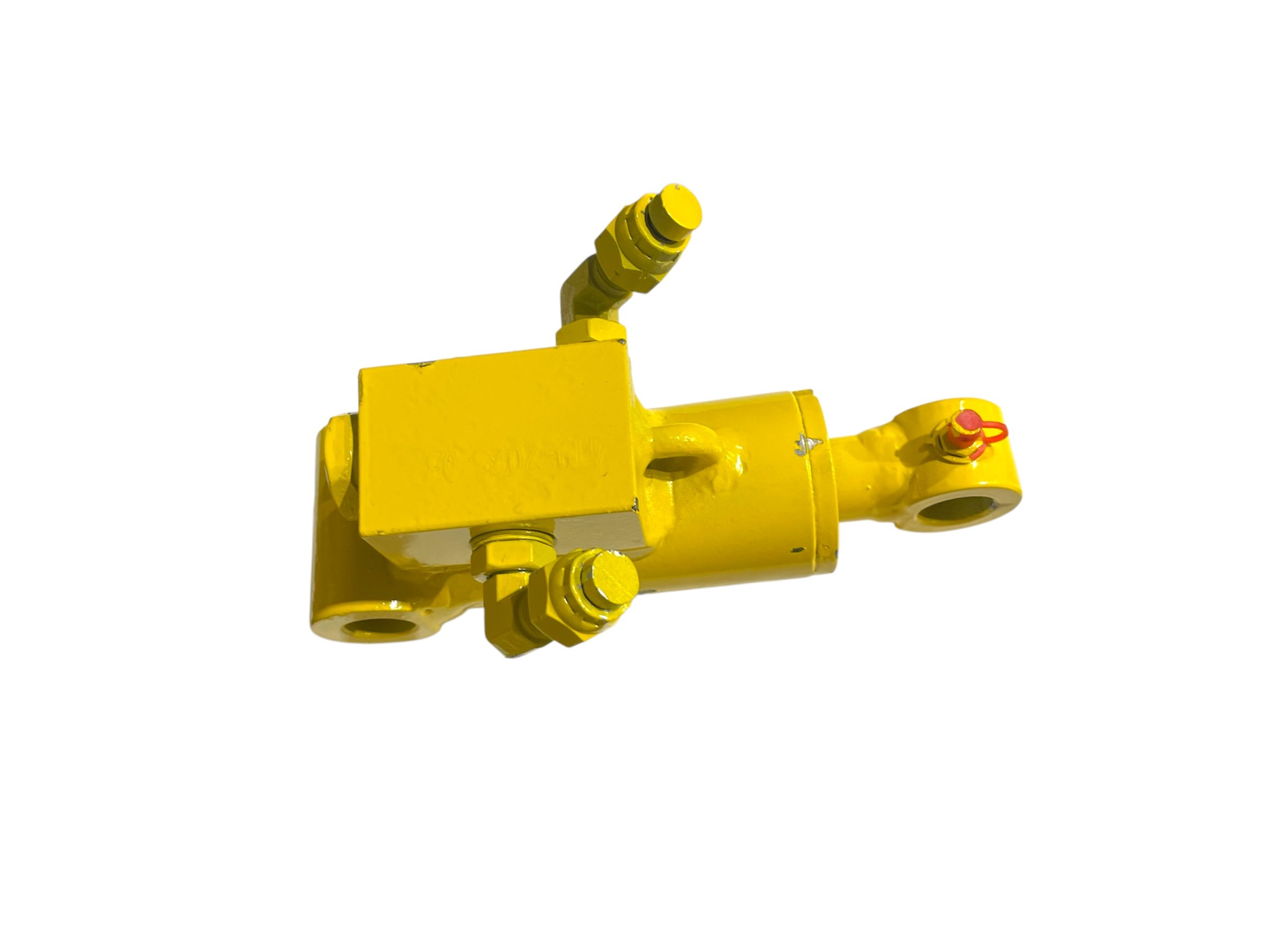

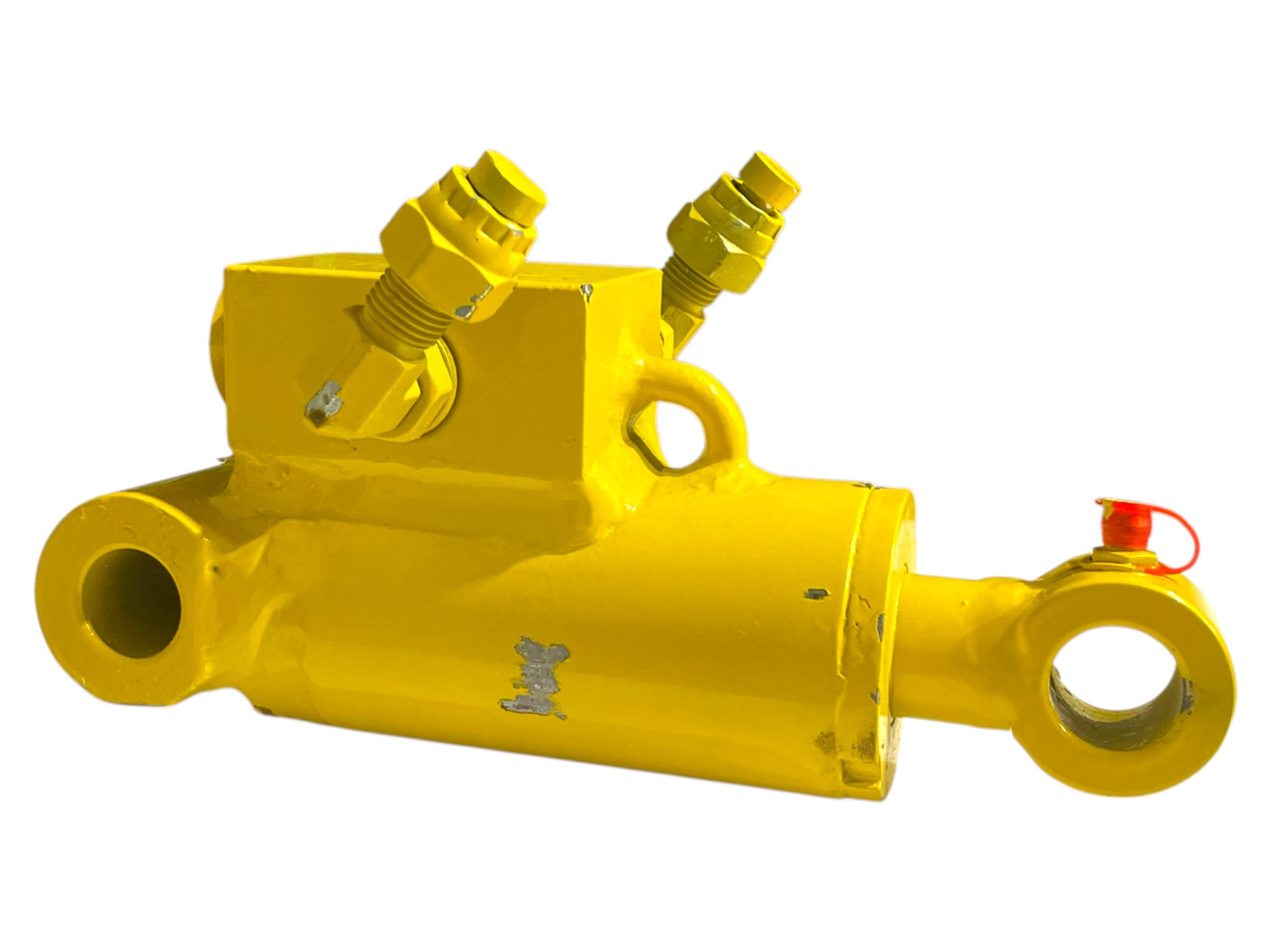

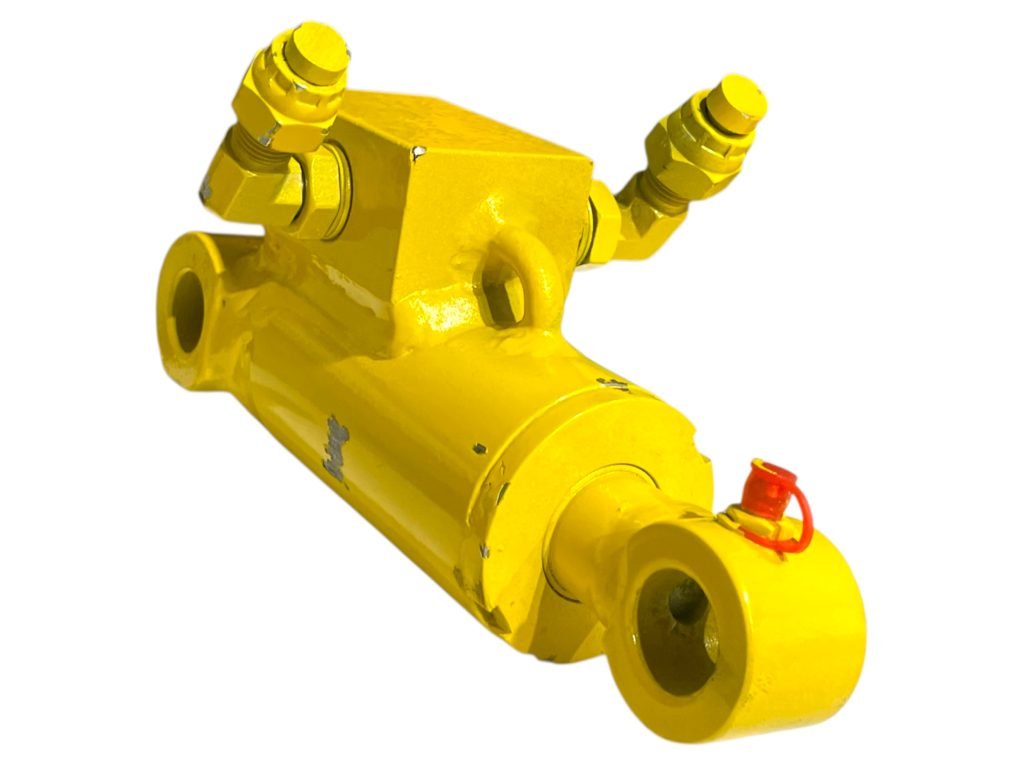

Hydraulic Cylinder Assembly for Quick Coupler Series (HCQS04)
- Lock cylinder for JMA 20 t class coupler 7297227 · 80 mm pins
- Double-acting hydraulic cylinder with check valve (safety lock valve)
- Ships from Miami, FL the same business day when ordered before 2 PM ET · US-based support
| Handling Unit | Shipping Box |
|---|---|
| Industries | General Construction, Material Handling |
| Product Weight (kg) | 20 kg |
| Product Weight (lbs) | 45 lbs |
| Shipping Weight (kg) | 21.15 kg |
| Shipping Weight (lbs) | 47 lbs |
| Actuator Type | Double-acting hydraulic cylinder |
| Compatible JMA Couplers (SKU) | 7297227 |
| Safety Feature | Integrated check valve (safety lock valve) |
Hydraulic Cylinder Assembly for Quick Coupler Series (HCQS04). Lock cylinder for JMA 20 t class coupler 7297227, 80 mm pins. Price: $1,907.00, in stock, ships from Miami, FL the same business day when ordered before 2 PM ET.
Big hydraulic couplers take a beating, and this hydraulic cylinder assembly is the part that gets them working again. This 45 lb rebuild cylinder replaces the worn unit inside heavy hydraulic quick hitches, recovering the clamping force needed to hold large attachments safely. It installs into the coupler's original housing without a full replacement. Ships from Miami, FL as a boxed part with US-based support to match it correctly, and it's covered by a 2-year warranty.
How do I know this part fits?
Wear parts fit by part number and series. Match the part number and series of the part you are replacing, or send us the pin diameter and length in mm, and we confirm the fit before shipping.
How fast does it ship?
In-stock items ship from Miami, FL the same business day when ordered before 2 PM ET; orders after 2 PM ET, on weekends or on holidays ship the next business day. Carrier estimates for the lower 48, in business days from the ship date: parcels of 50 lb or less go FedEx, UPS or USPS, tracked, 5–7 standard or 2–4 expedited; heavier parts go LTL freight, 7–10 standard or 4–6 expedited.
Is it covered by the warranty?
Wear items are not covered by any warranty: teeth, adapters, cutting edges, pins, bushings, seals and O-rings after the first 90 days, and paint. Replacing them is normal upkeep.
Can I return it?
Yes, if it is in the same condition we shipped it, or if it has a factory defect: a refund within 14 calendar days of delivery, or store credit within 30. Get a Return Authorization Number (RAN) from us first. A restocking fee applies to non-defective refunds. Ordered the wrong part number? You choose: an exchange, store credit, or a refund less the 25% restocking fee. Check the part number before you order, or send us the part number and we check it first.
