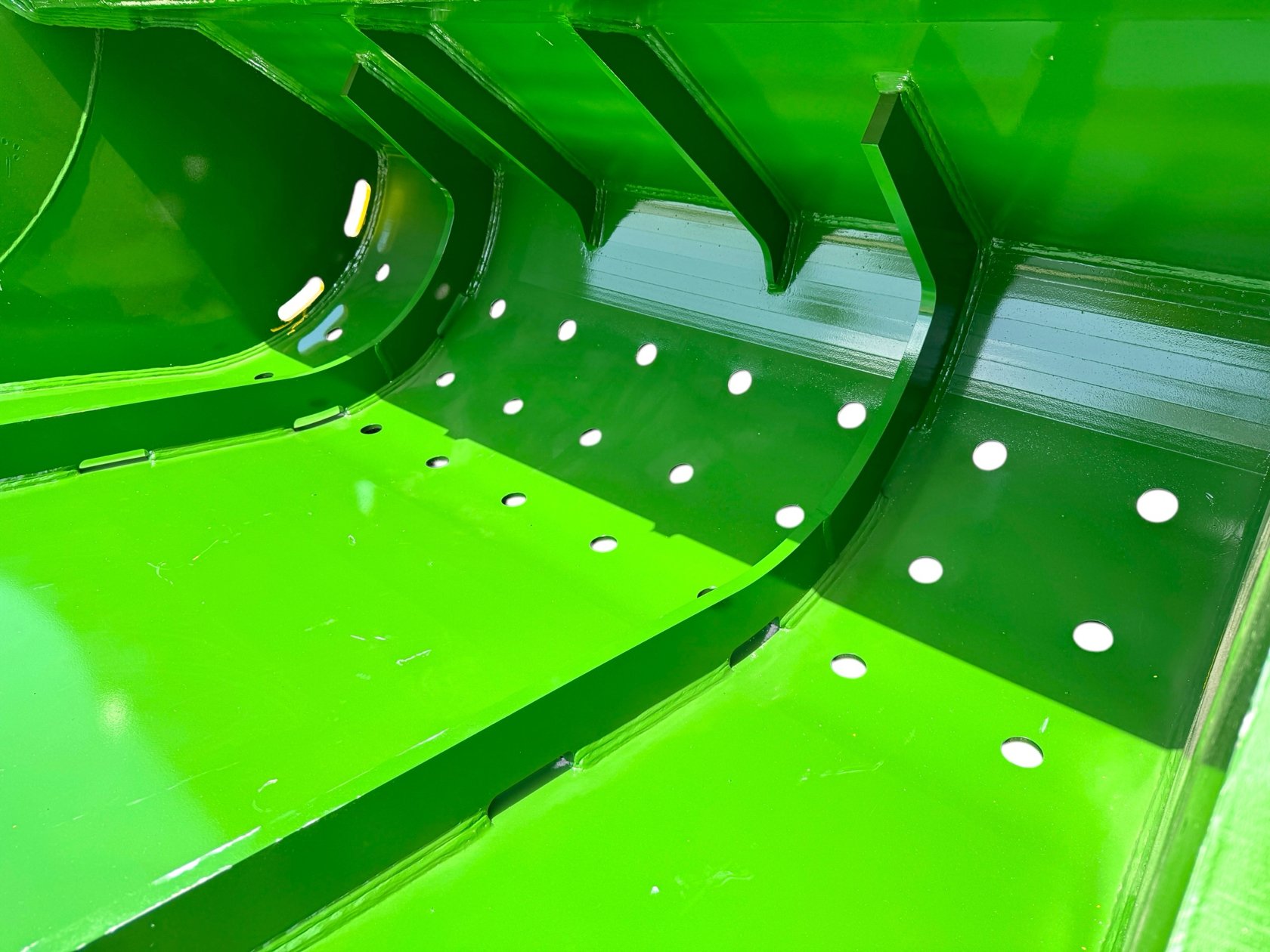

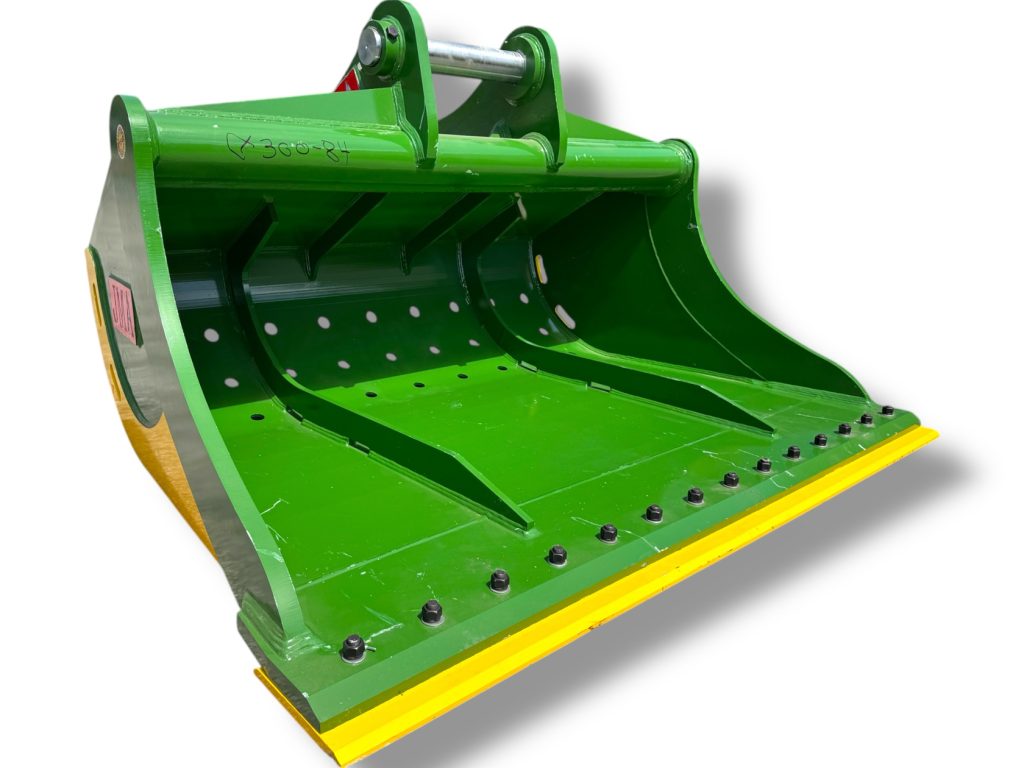

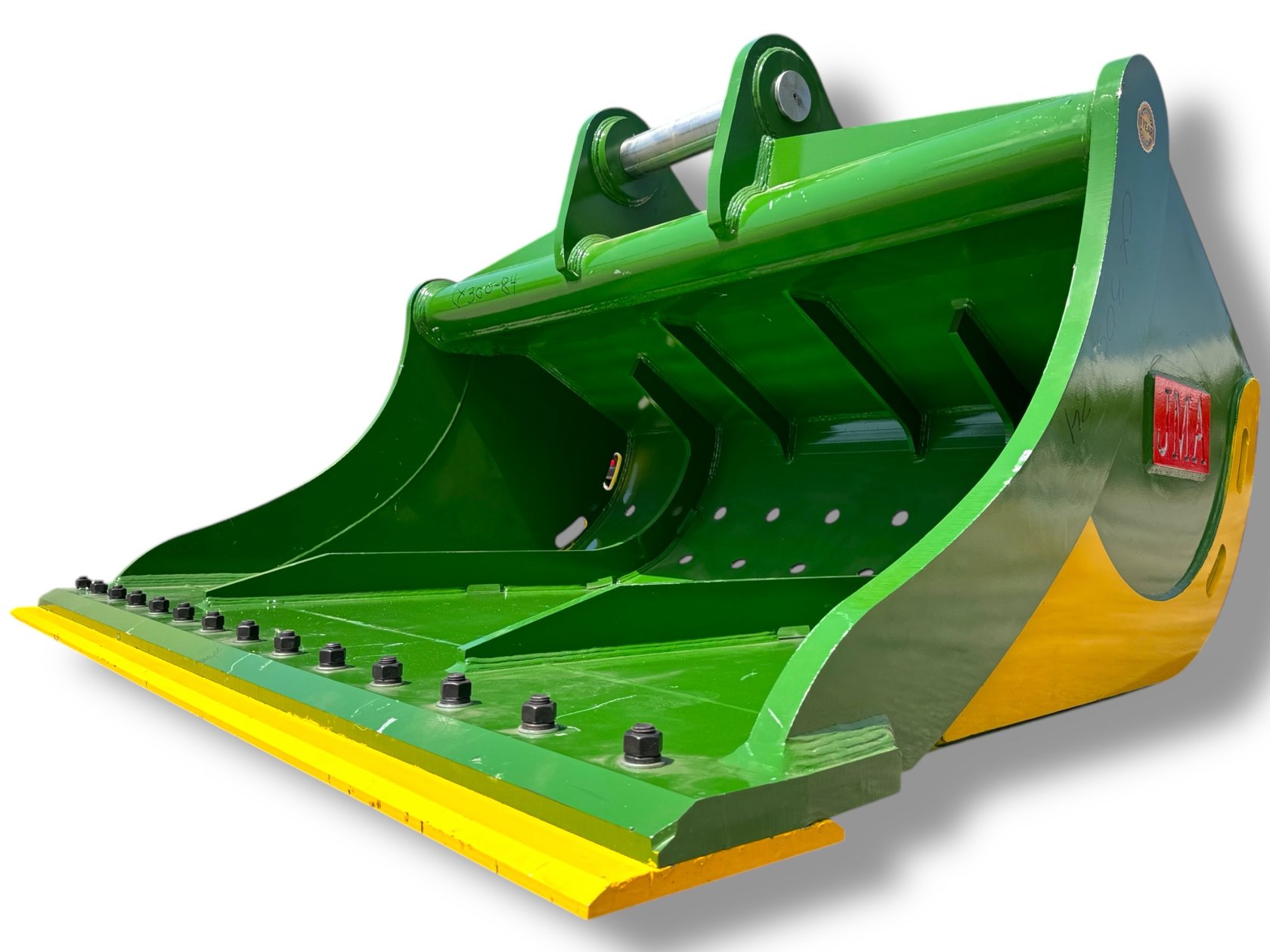

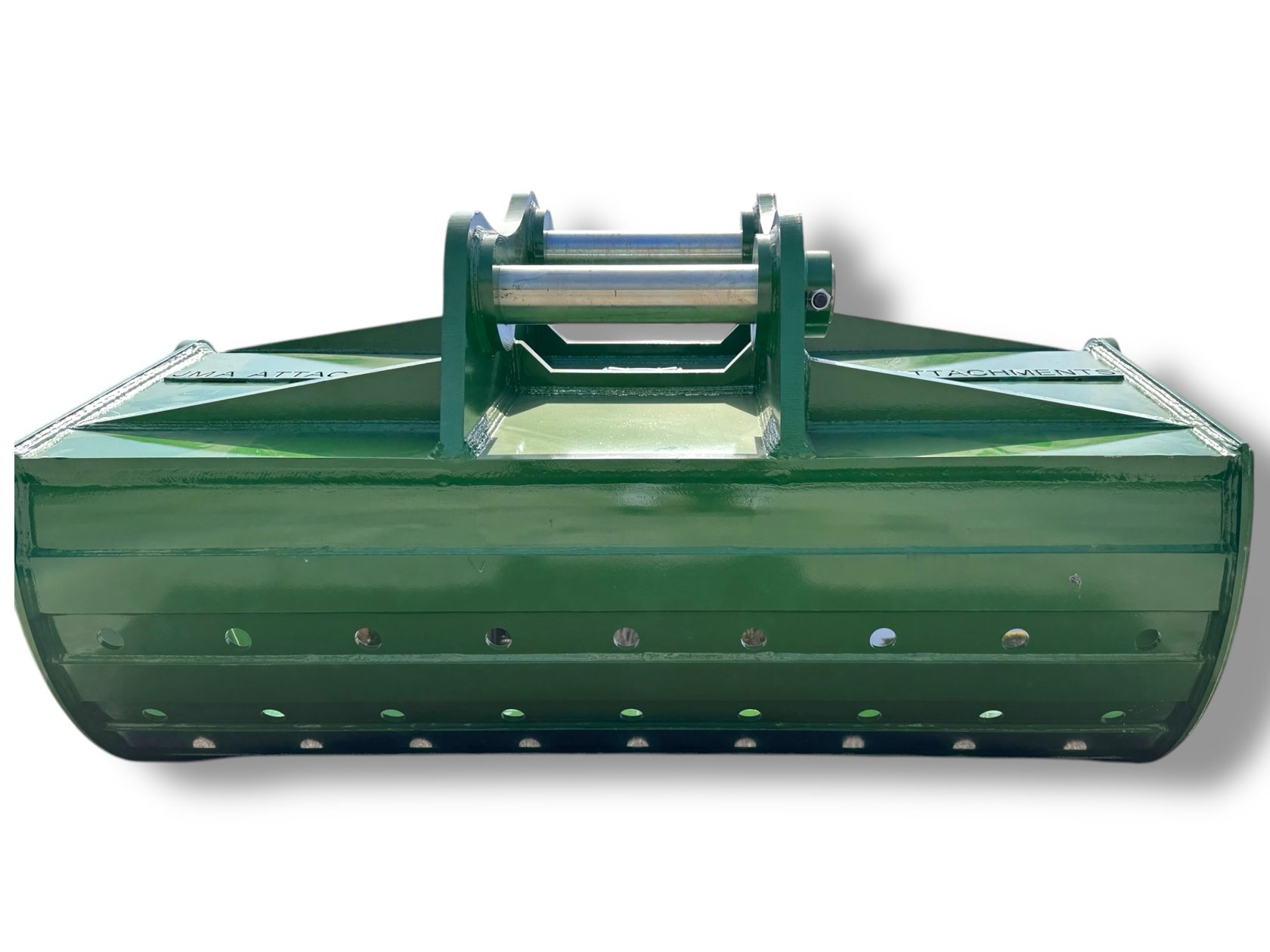

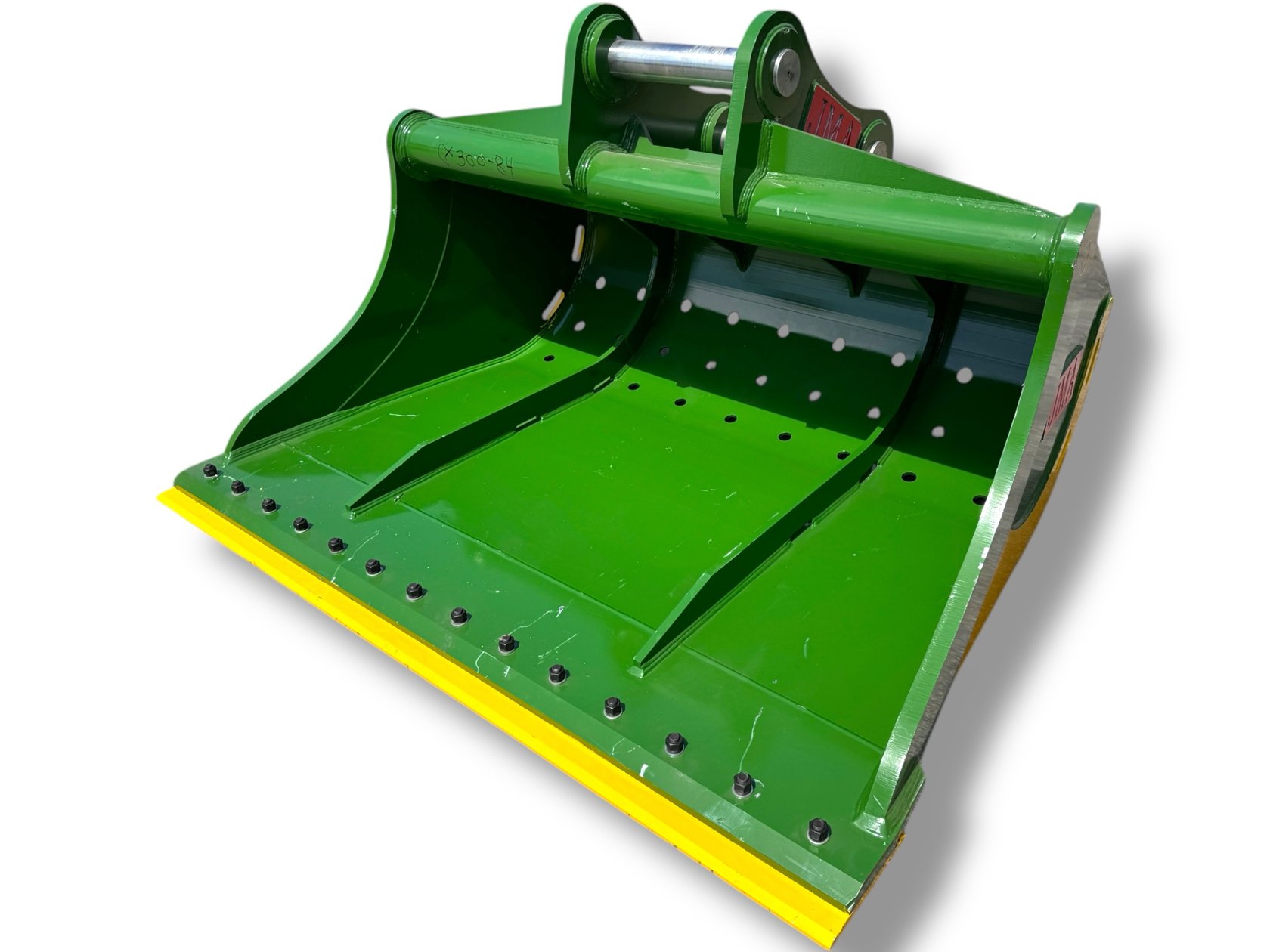

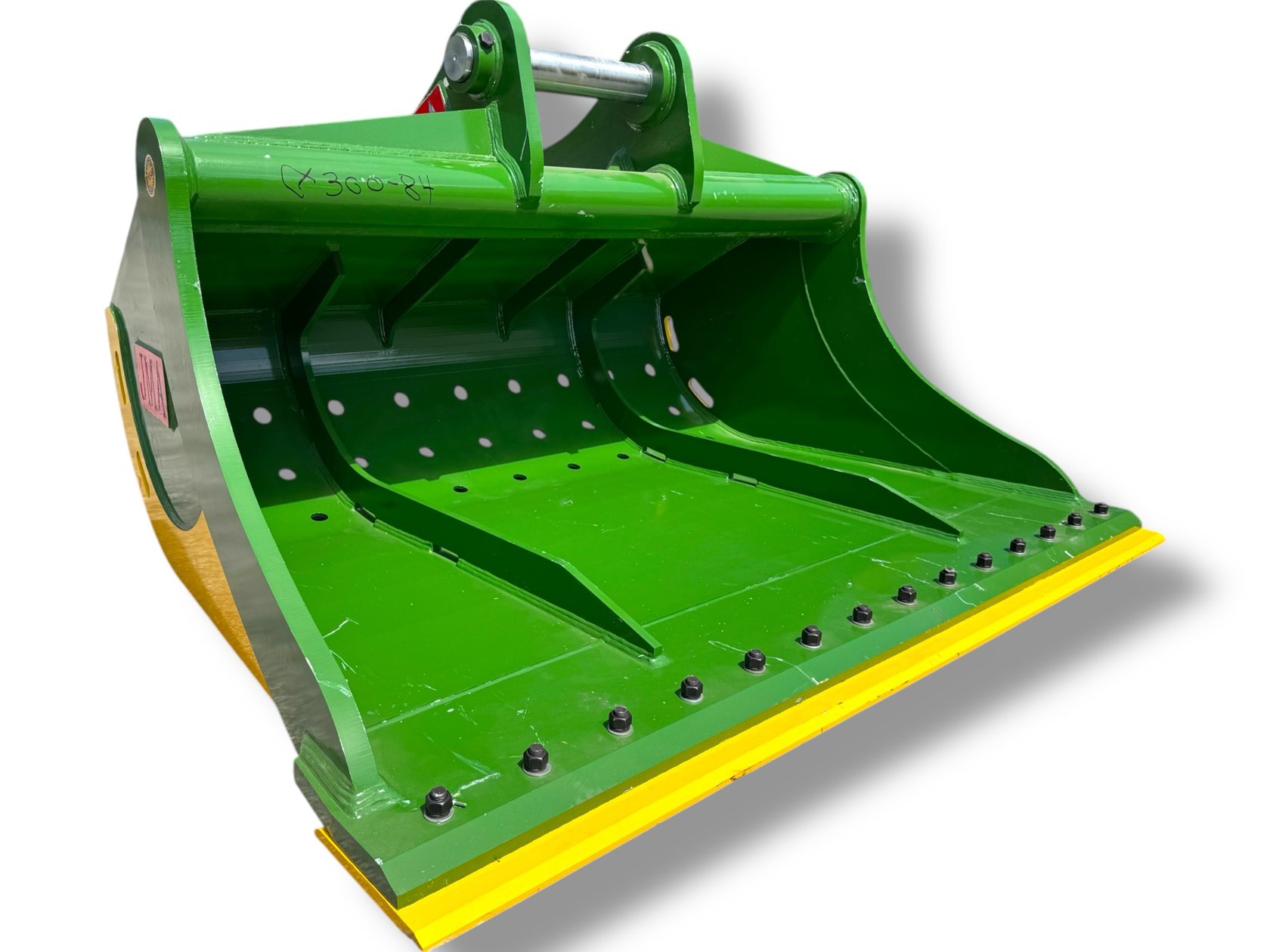

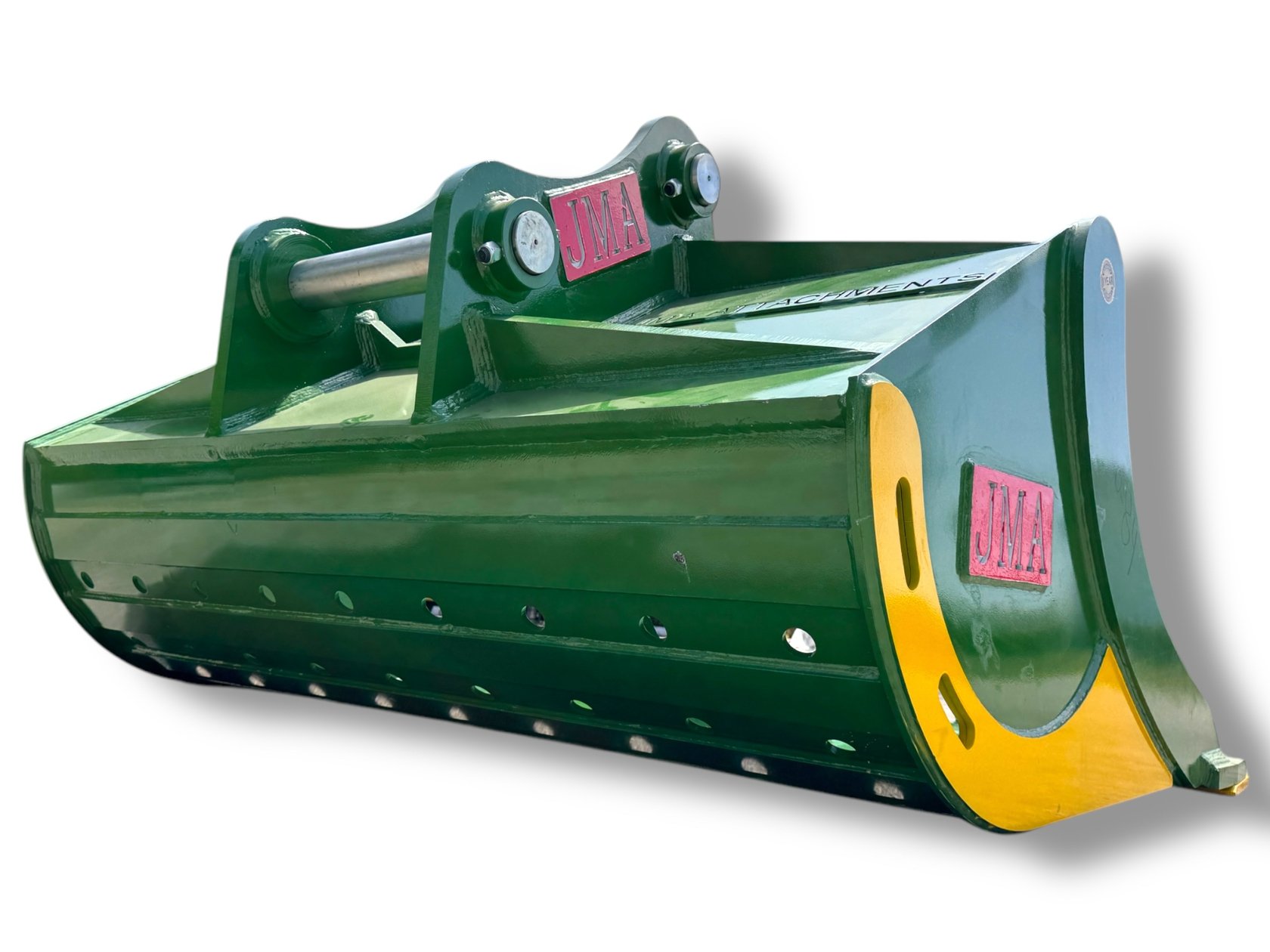

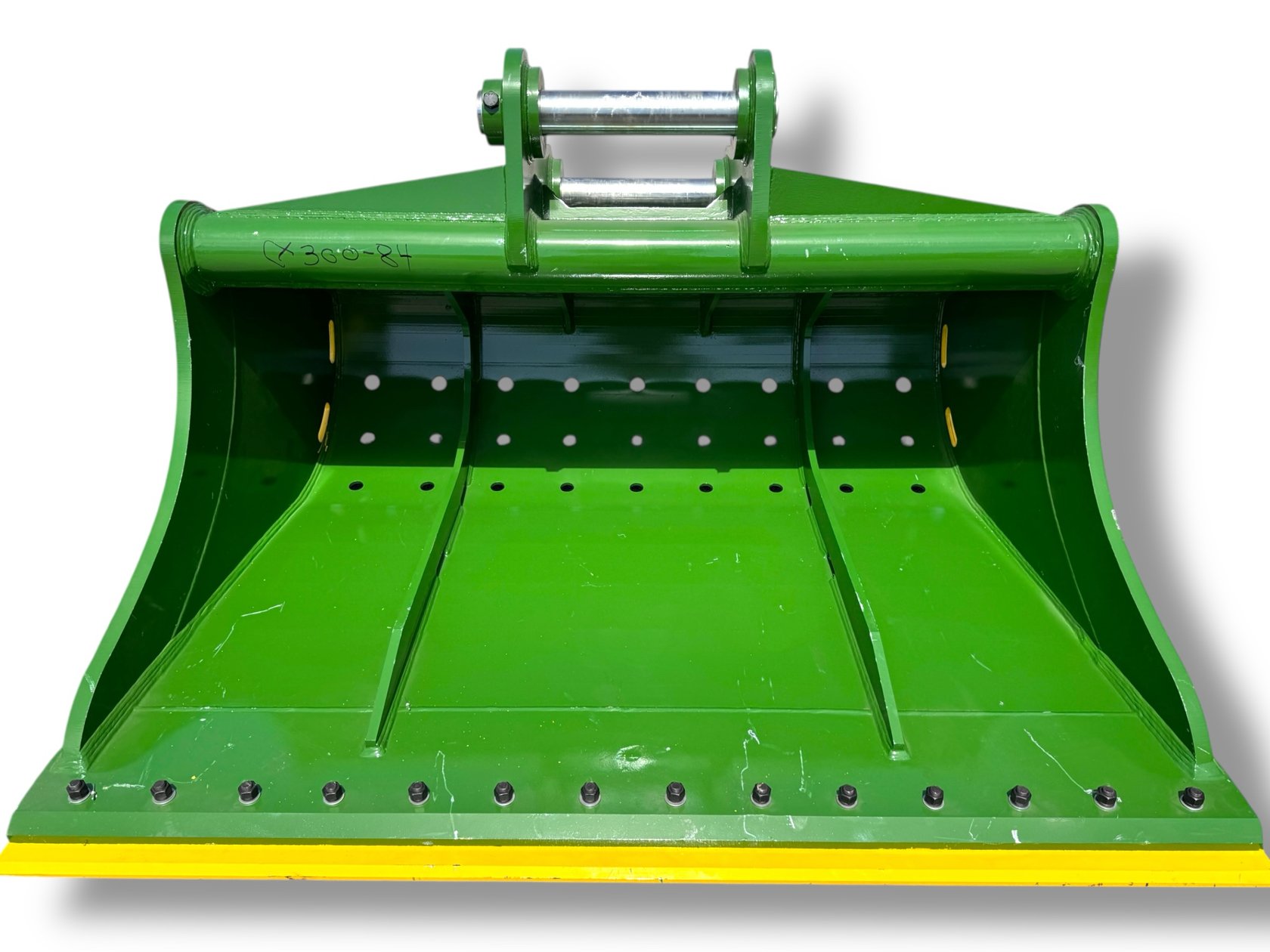

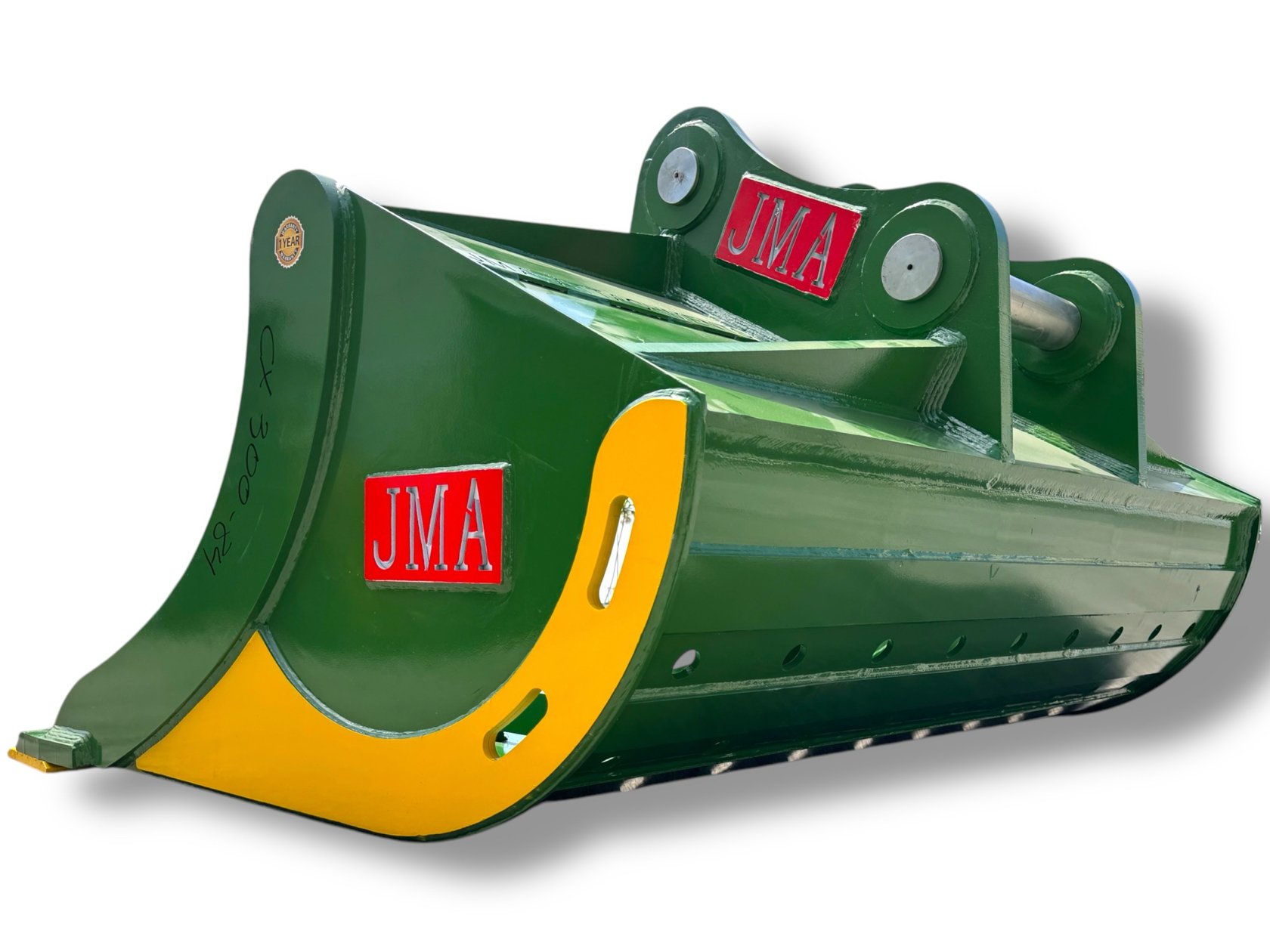

84″ Ditching Bucket for 23 – 36 Tons Excavators. 90mm Pins
- Fits 23–36 ton excavators · 90 mm pins · 400 mm ear to ear
- 84" wide (2133 mm) · AR450 steel body · 35 mm side walls · powder-coated green · 3,638 lb
- Pins included
- Ships from Miami, FL the same business day when ordered before 2 PM ET · US-based support
- 2-year warranty · lifetime warranty on structural welds
Bucket Size: 84"
Frequently Bought Together
| Front Pin Diameter (mm) | 90 mm |
|---|---|
| Rear Pin Diameter (mm) | 90 mm |
| Front Ear to Ear (mm) | 400 mm |
| Rear Ear to Ear (mm) | 400 mm |
| Center to Center (mm) | 535 mm |
| Front Pin Length (mm) | 615 mm |
| Rear Pin Length (mm) | 615 mm |
| Capacity (m³) | 1.96 m³ |
| Features | 3x Reinforced Side Plates |
| Product Weight (kg) | 1,650 kg |
| Product Weight (lbs) | 3,638 lb |
| Material Type | AR450 Steel |
| Bucket Depth (mm) | 754 mm |
| Finish | Powder-Coated Green |
| Bucket Width (mm) | 2,133 mm |
| Bucket Side Wall Thickness (mm) | 35 mm |
| Carrier Weight Class (tn) | 23 - 36 tons |
| Carrier Weight Class (lb) | 46,000 - 72,000 lb |
| Inner Bucket Height (mm) | 1,202 mm |
| Bucket Size | 84" |
| Pin Size | 90mm |
| Coupler Type | Pin On Style |
| Case | 9050, 9050B, CX300D, CX300E, CX330, CX330LC, CX330B, CX350, CX350LC, CX350B, CX350DNLC, CX360, CX365E SR |
|---|---|
| Caterpillar | 324CL, 324D FM, 324D LR, 324DL, 324DL LR, 324DL ME, 324DLN, 324DLN VA, 324E, 324E LN, 324E LR, 324EL, 324EL LR, 324FL, 325, 325 D, 325 GC, 325B L, 325C L, 325D L, 325D LN, 325FL CR, 325L D Linkage, 326, 326D2, 326D2L, 326DL, 326F, 326FL, 326FLN, 326 GC, 328 D, 328DL CR, 329D, 329D2, 329D2L, 329D CS, 329DL, 329DL LR, 329DL ME, 329DL VA, 329DLN, 329DLN VA, 329E, 329EL LR, 329E LR, 329E LRE, 329EL, 329ELN, 329F, 329FL, 330, 330BL, 330C, 330C L, 330D, 330D2, 330D2 L, 330D L, 330DL DB, 330F L, 335FL CR, M325B |
| Daewoo | S290, S300LC-V, Solar 290LC-V, Solar 300LC-V |
| Doosan | DX255LC, DX255LC-3, DX255LC-5, DX260LC, DX260LC-9C, DX260 LCA, DX300 Dem, DX300LC, S290LC, S290LL, S300, S 280LC III, Solar 290LC-V, Solar 290LL-V, Solar 300LC-V, Solar 300LC-V SLR |
| Hyundai | 280LC, R250LC-7, R250LC-9, R280LC-3, R290LC-7, R290LC-9, R305LC-7, R305LC-9 |
| Kobelco | SK300, SK300 Mark IV, SK300LC, SK300LC Mark IV, SK320-VI, SK320LC-V1, SK320LC-VI, SK330-8, SK330-9, SK330-10, SK330-VI, SK330LC-8, SK330LC-9, SK330LC-10, SK330LC-V1, SK330LC-VI, SK330NLC-V1, SK330NLC-VI, SK350LC-8 |
| Link-Belt | 290 LX, 290 X2, 290 X2 LF, 300 X3, 300 X4, 330 LX, 330 X4, 350 X2, 355 X4S, LB400Q, LS330LX, LS4300Q |
| Sany | SY245, SY255, SY265, SY285, SY305, SY305H, SY315 |
| Sumitomo | SH300-2, SH300-3, SH300-6, SH300LC-2, SH300LC-5, SH330-3, SH330-5, SH330-6, SH330LC-3, SH330LC-5, SH330LC-6 |
| Volvo | EC240, EC240 LR, EC240 NLC, EC240B, EC240B LR, EC240B NLC, EC240C, EC240C L, EC240C LR, EC240C NL, EC250, EC250D, EC250DL, EC250E, EC250E LR, EC250EL, MX255LS, SE240LC-3 |
84" Ditching Bucket for 23 - 36 Tons Excavators. 90mm Pins. Fits 23–36 ton excavators, 90 mm pins, 400 mm ear to ear. Included: pins. Price: $11,697.00, in stock, ships from Miami, FL the same business day when ordered before 2 PM ET.
Elevate your earthmoving capabilities with the 84" Ditching Bucket for 23 - 36 Tons Excavators. 90mm Pins. This isn't just a ditching bucket; it's your partner in creating more efficient and profitable drainage and grading projects.
Unbeatable Advantages:
* Volume Virtuoso: 1.96 m³ capacity allows you to handle more material per cycle, reducing overall project time.
* Engineered for Endurance: AR450 Steel construction ensures this bucket can handle whatever your job site throws at it, day after day.
* Edge Supremacy: Reversible Bolt-On Cutting Edge delivers exceptional cutting performance and longevity.
* Excavator Optimized: Designed specifically for 46,000 - 72,000 lbs class machines, ensuring seamless integration and enhanced performance.
* Precision Profile: Crafted to maintain clean lines and accurate grades, even in challenging soil conditions.
Ready to revolutionize your ditching process? The 84" Ditching Bucket for 23 - 36 Tons Excavators. 90mm Pins is your ticket to faster, more precise, and higher-quality earthmoving results.
Are pins included?
Yes. Pins are included.
Will it fit my machine?
Tell us your machine, we confirm the fit before shipping. Pin-on attachments are sized from your machine's pin diameter, pin-to-pin distance and ear width. If your machine has a quick coupler, is a long-reach model or was modified, measure those three and send them to us before you order. If we confirmed the fit from your accurate machine and coupler details and our recommendation is wrong, report it within 14 calendar days of delivery: the JMA Fitment Money-Back Promise gives a full product refund, outbound and return freight covered, no restocking fee.
How fast does it ship?
In-stock items ship from Miami, FL the same business day when ordered before 2 PM ET; orders after 2 PM ET, on weekends or on holidays ship the next business day. Carrier estimates for the lower 48, in business days from the ship date: parcels of 50 lb or less 5–7 standard or 2–4 expedited; LTL freight over 50 lb 7–10 standard or 4–6 expedited, usually with a delivery appointment and a signature. Outside the lower 48, shipping is quoted. Inspect it before you sign and note any damage on the delivery receipt.
What does the warranty cover?
Defects in materials and workmanship are covered for 2 years or 2,000 operating hours, whichever comes first: year 1 parts and pre-approved labor, year 2 parts only. Lifetime warranty on structural welds. Teeth, cutting edges, pins and bushings are wear items and are not covered. Get our written approval before any repair.
Can I return it?
Yes, for standard products: a refund within 14 calendar days of delivery, or store credit within 30, if it is unused, uninstalled, free of soil and grease, and in its original packaging with all hardware. Get a Return Authorization Number (RAN) from us first. The buyer pays return shipping unless the item was defective, damaged or wrong because of our error, or you can drop it off at our warehouse, 8068 NW 29th St, Doral, FL, Monday to Friday, 9 AM to 5 PM, with your RAN. A restocking fee applies to non-defective refunds; store credit has no restocking fee. Original outbound shipping is not refunded on change-of-mind returns. Installed or used attachments can't be returned.
