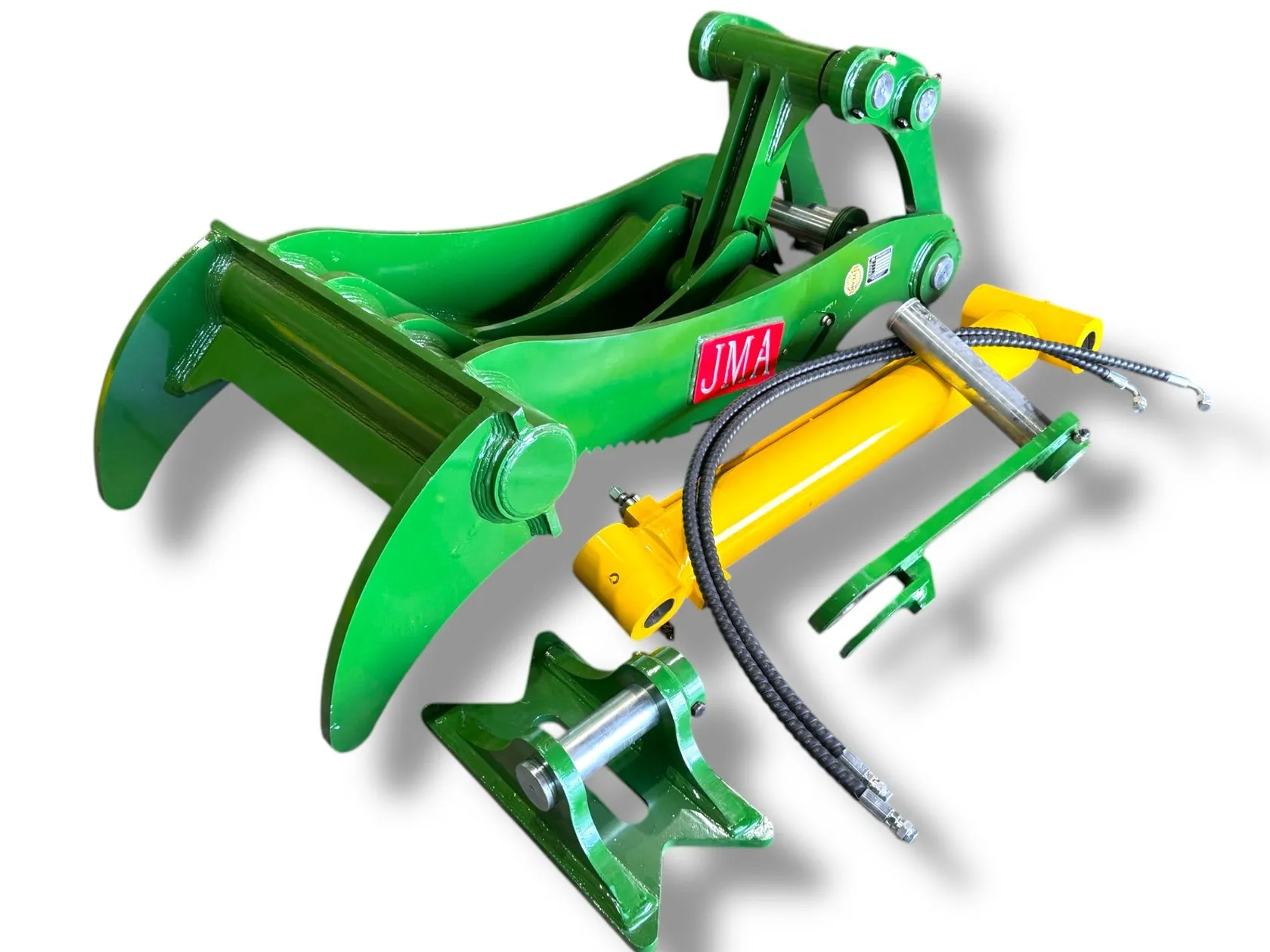

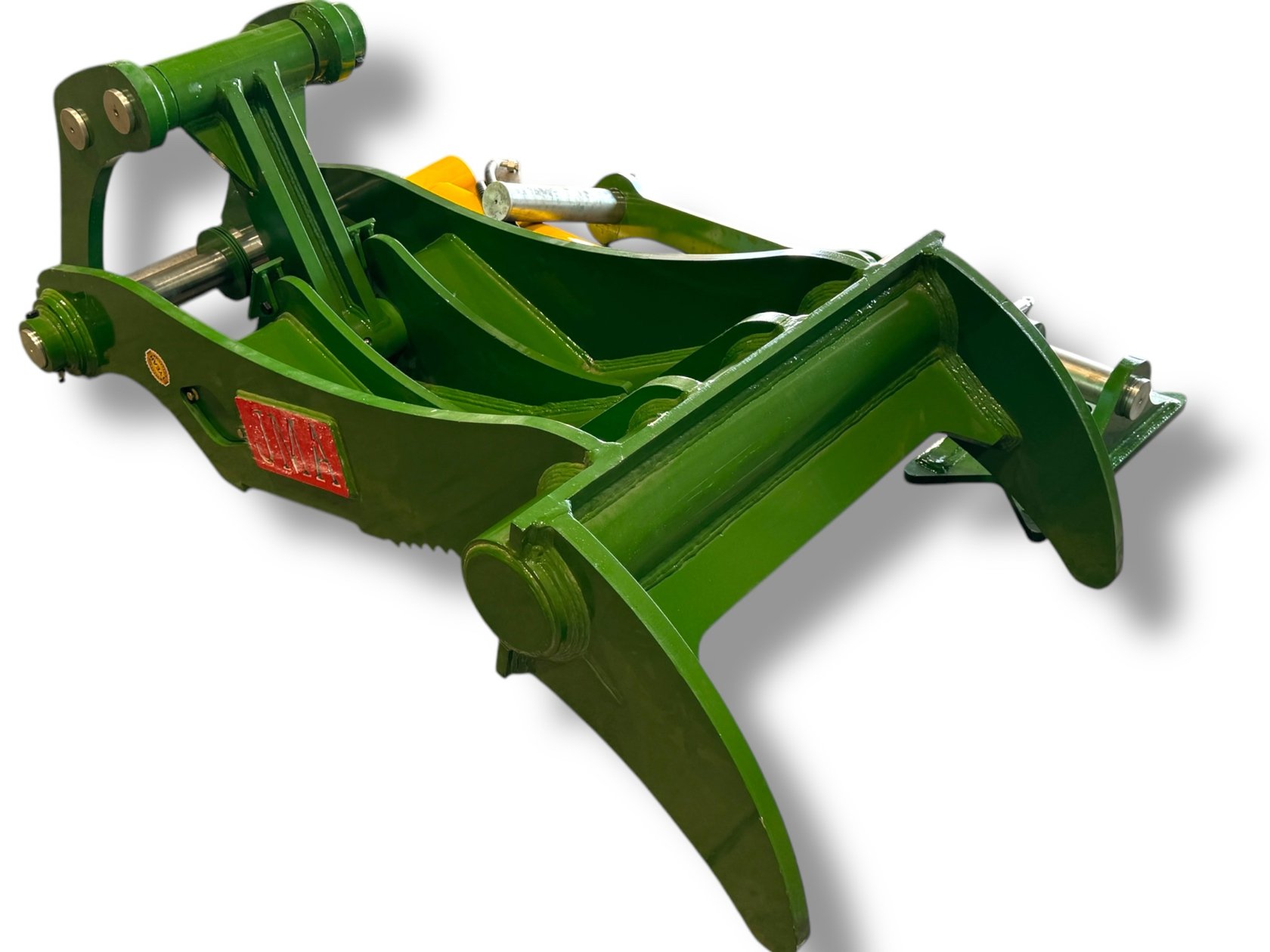

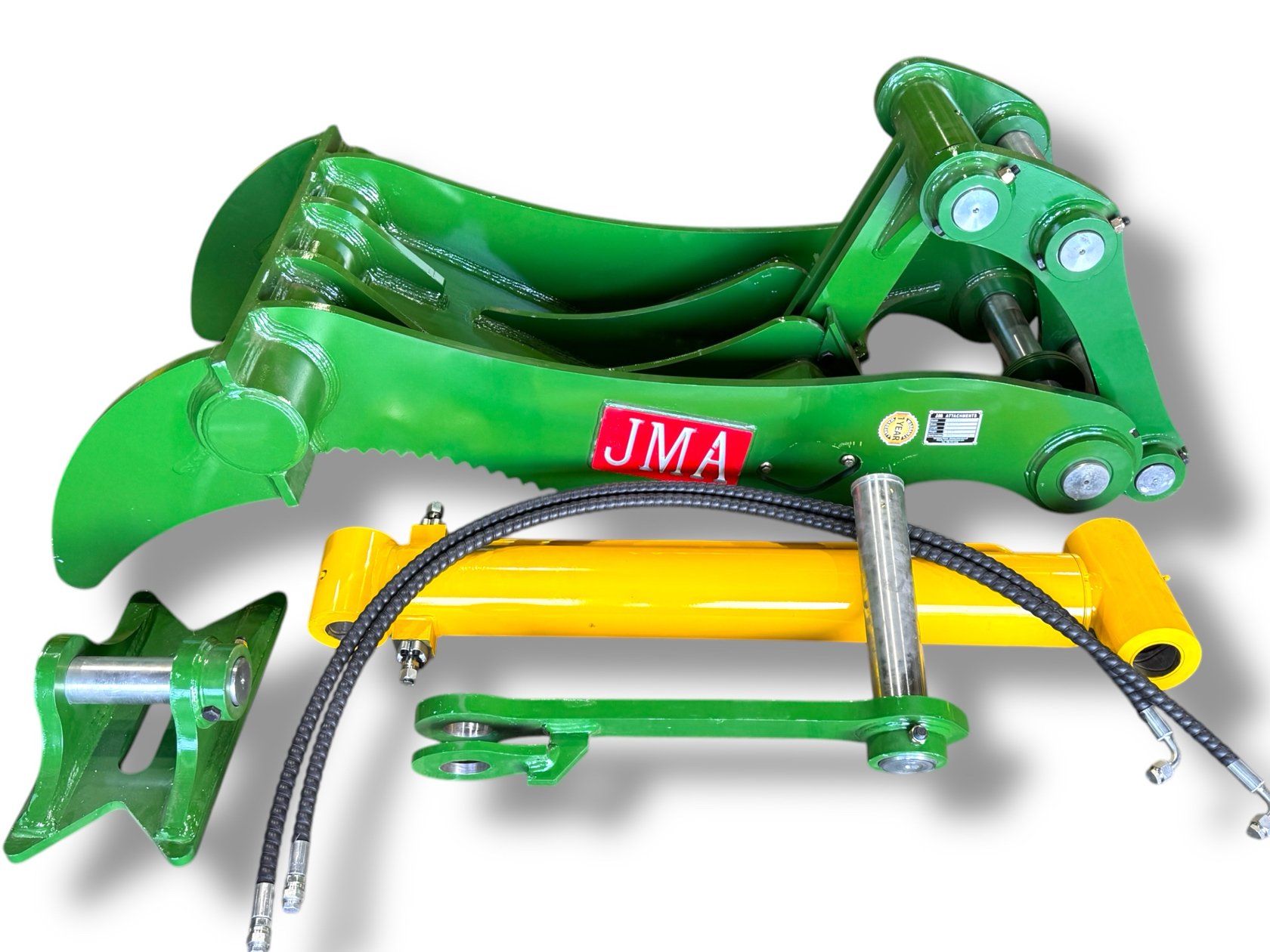

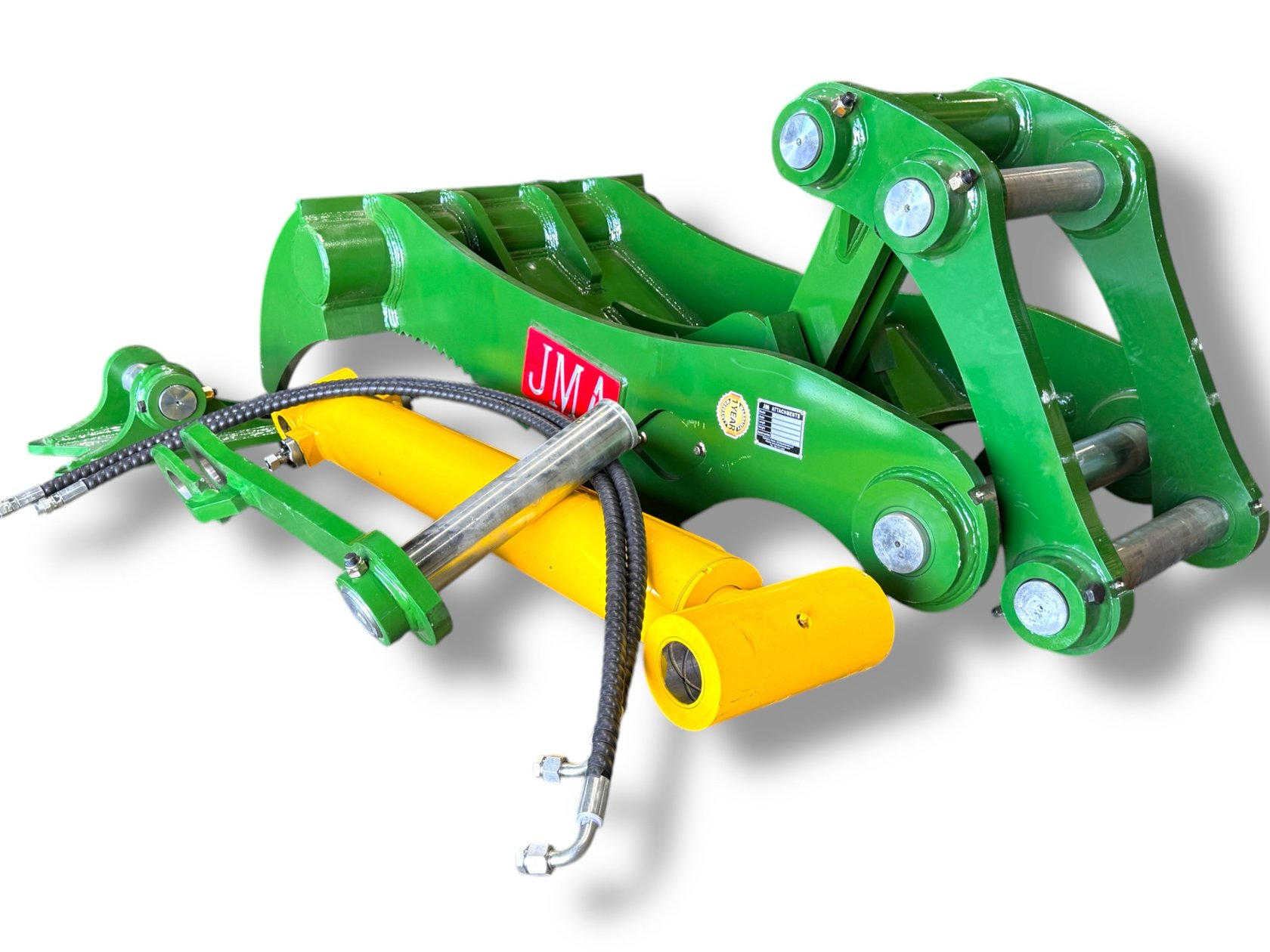

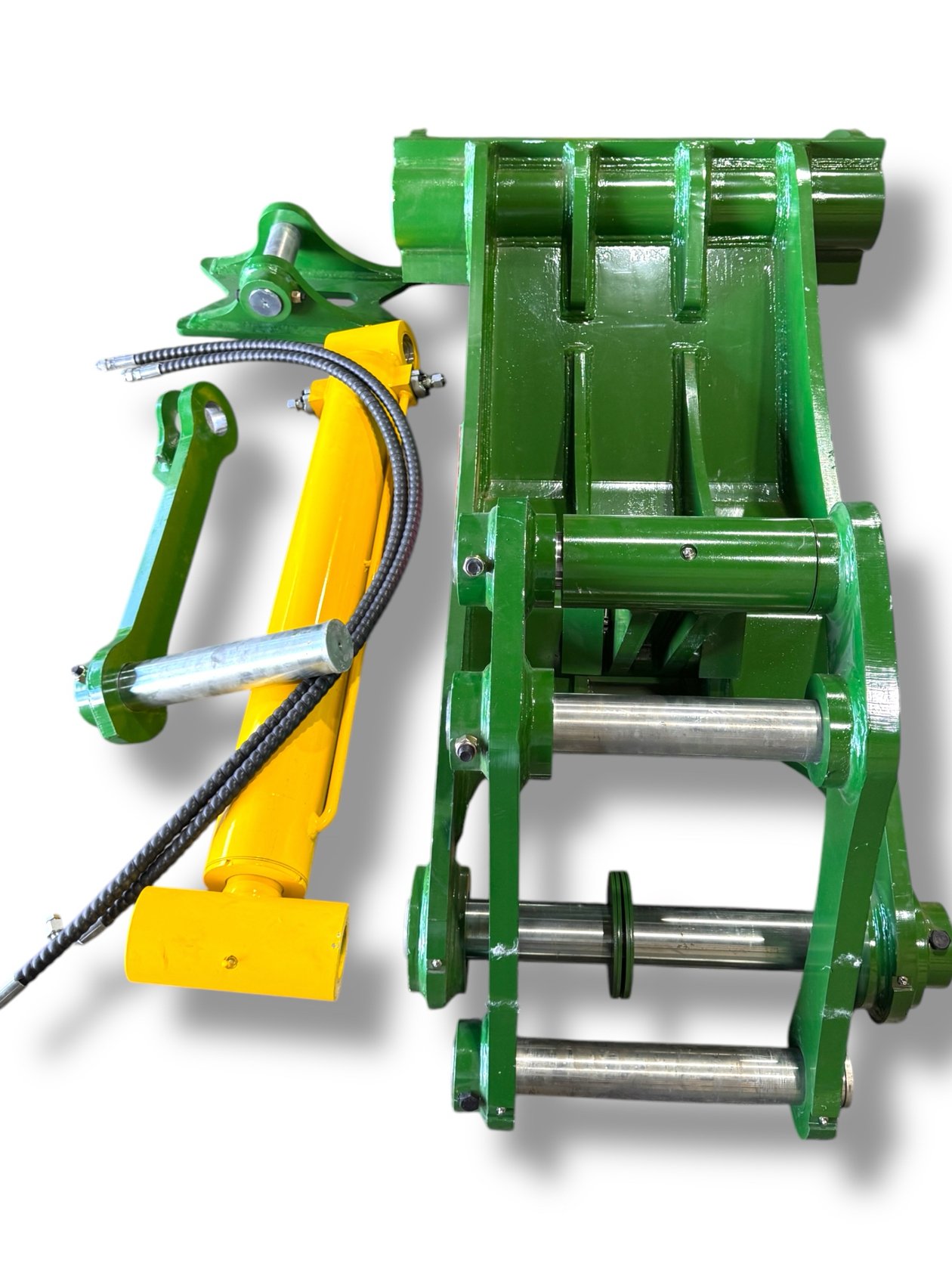

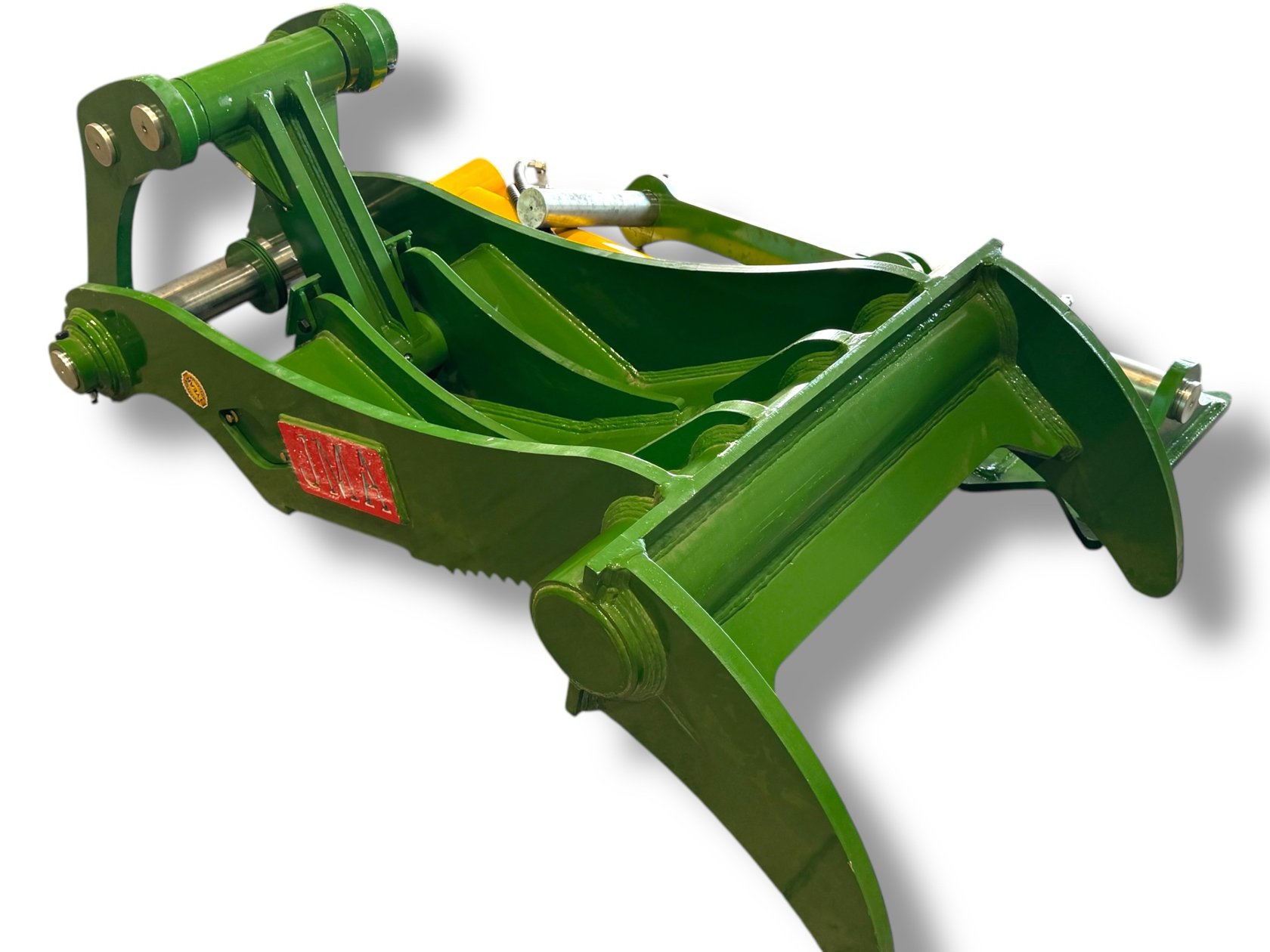

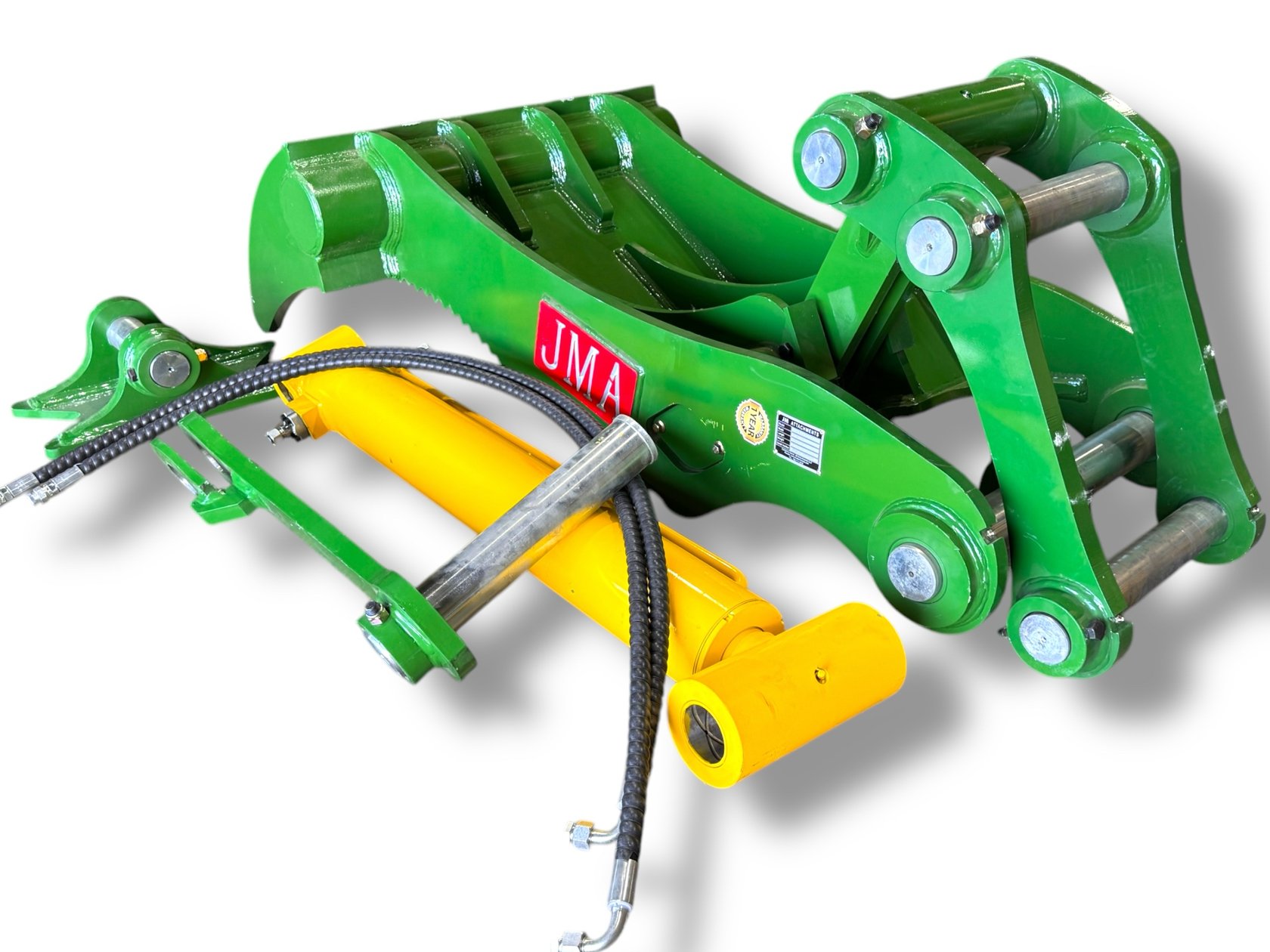

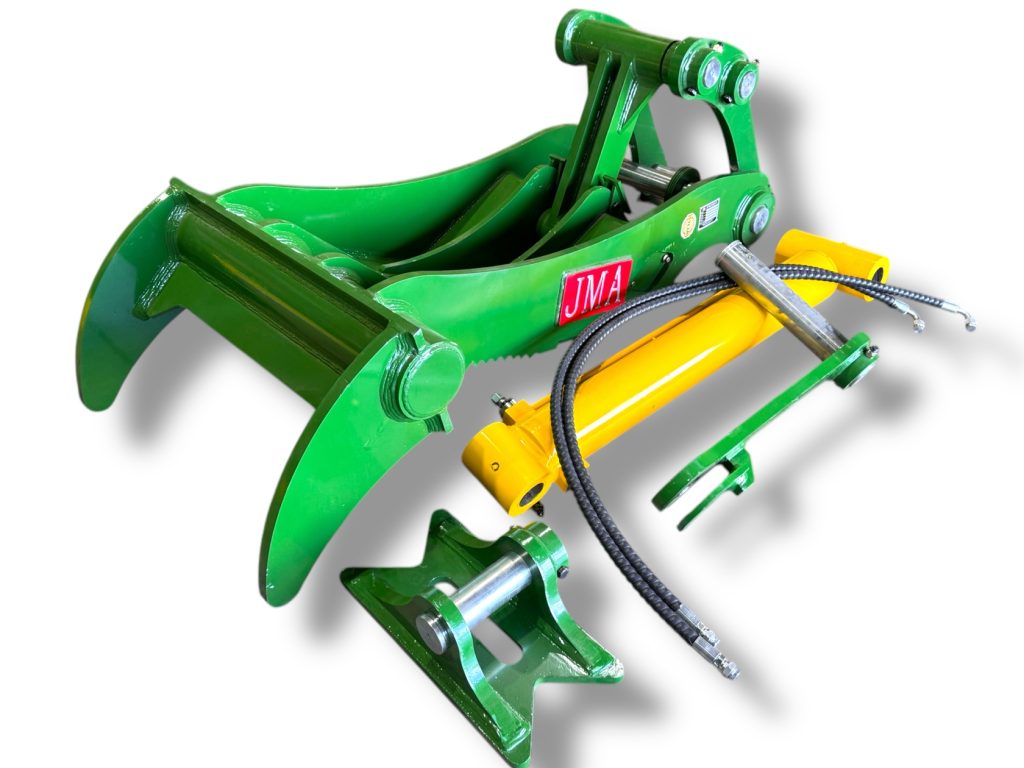

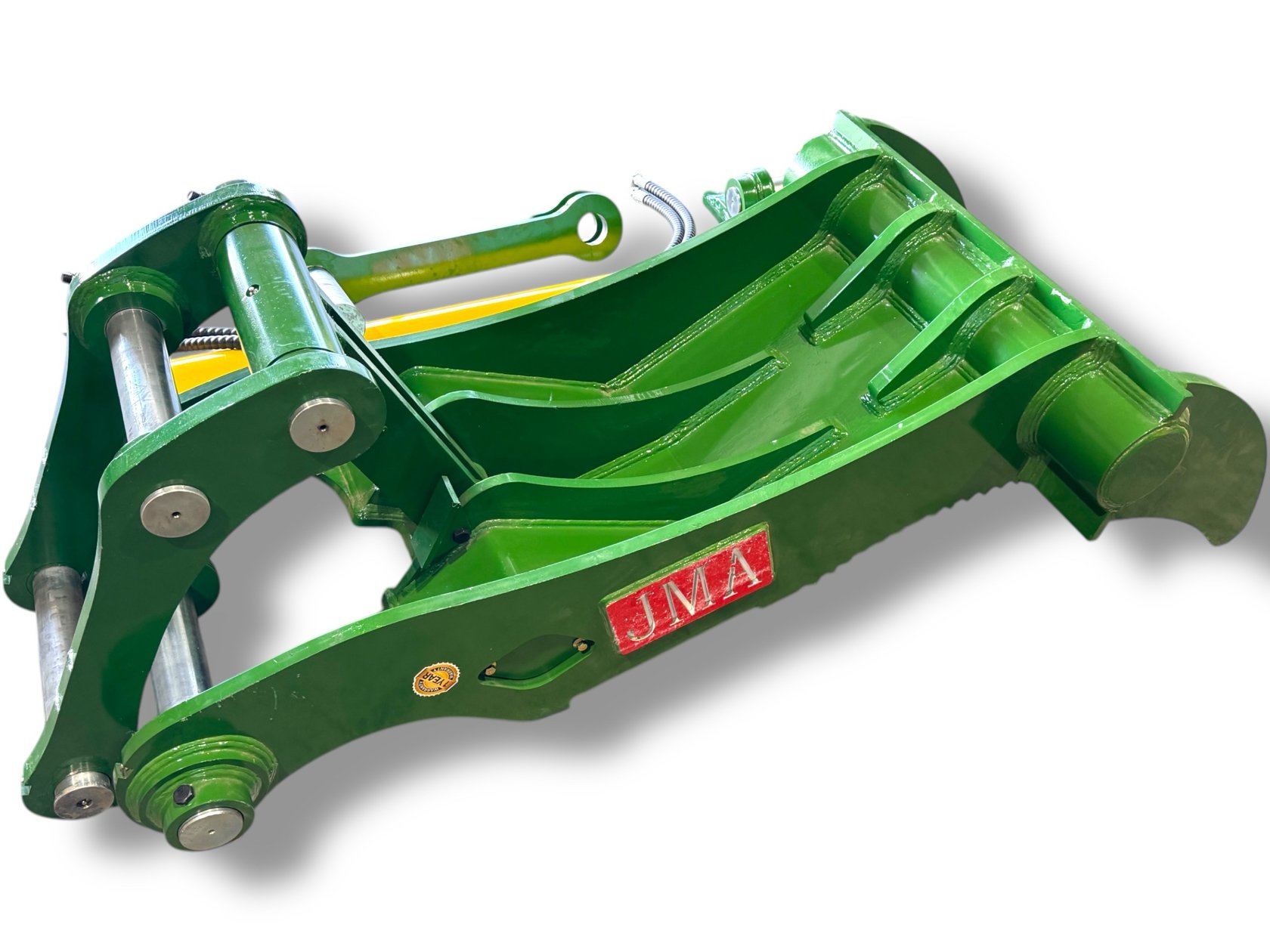

80mm Progressive Link Hydraulic Thumb for 16 – 25 Tons Excavators
- Fits 16–25 ton excavators · 80 mm main pin, 520 mm ear to ear
- Progressive link · 36.77″ wide · 2 tines · AR450 steel · powder-coated green · 1,896 lb
- Ships from Miami, FL the same business day when ordered before 2 PM ET · US-based support
- 2-year warranty · lifetime warranty on structural welds
Frequently Bought Together
| Coupler Type | Pin On Style |
|---|---|
| Carrier Weight Class (tn) | 16 - 25 tons |
| Carrier Weight Class (lb) | 32,000 - 50,000 lb |
| Main Pin Diameter (mm) | 80 mm |
| Bracket Ear to Ear (mm) | 332 mm |
| Thumb Width (mm) | 934 mm |
| Thumb Width (in) | 36.77" |
| Tines Thickness (in) | 1.18" |
| Tines Thickness (mm) | 30 mm |
| Material Type | AR450 Steel |
| Finish | Powder-Coated Green |
| Product Weight (kg) | 860 kg |
| Product Weight (lbs) | 1,895.97 lb |
| Center Pin Thumb Length (in) | 69.92" |
| Center Pin Thumb Length (mm) | 1,776.20 mm |
| Cylinder Extended | 184 mm, 2 |
| Cylinder Retracted | 1,270 mm |
| Overall Thumb Length | 78.58" |
| Pin Size | 80mm |
| Product Width (in) | 36.77" |
| Thumbs Type | Progressive Link Hydraulic Thumb |
| Tines (ct.) | 2 ct. |
| Tines Spacing (mm) | 814 mm |
| Case | CX160, CX160 CR, CX160LC, CX160B, CX160BLC, CX160C, CX160D, CX160E, CX160K, CX170E, CX180, CX180B, CX180C, CX180D, CX180E, CX190E, CX210, CX210 CR, CX210LC, CX210 LS, CX210B, CX210BLC, CX210BNLC, CX210C, CX210C LR, CX210D, CX210D LR, CX210E, CX210N, CX220, CX220B, CX220C, CX220CLC, CX220E, CX225, CX225 CR, CX225 MSR, CX225SR, CX225SRLC |
|---|---|
| Caterpillar | 318BL, 318C, 318CL, 318DL, 318EL, 318FL, 319, 319C, 319CLN, 319D, 319DLN, 320, 320L ME, 320 SVA, 320 V2, 320B, 320BL, 320BLN, 320BLU, 320C, 320C FM, 320C LC, 320C LU, 320C U, 320CL, 320CL ME, 320CLN, 320C LR, 320D, 320D2, 320D2 GC, 320D FM, 320DL ME, 320D GC, 320DL, 320E, 320EL, 320FL, 320 GC, 320GL, 320 GX, 320L, 321, 321B, 321B CR, 321BL CR, 321C, 321C CR, 321CL CR, 321CL, 321D CR, 321DL CR, 321DL, 322, 322 CR, 322B, 322BL, 322BL LR, 322BLN, 322C, 322C FM, 322C LCHD, 322CL, 322CL LR, 322CLM, 322L, 322LN, 322N, 323, 323D, 323D2, 323D2L, 323D3, 323DL, 323DL ME, 323DL VA, 323DLN, 323DS, 323E, 323EL, 323EL ME, 323ELN, 323FL, 323 GC, 324D, 324D ME, E180, E180A, E200B, EL180, EL200, EL200B, M318, M318B, M318C, M318D, M318F, M319, M319D, M320, M320D2, M320F, M322, M322C, M322D, M322D2, M322F, M323F |
| Daewoo | S175LC V, S175-V, S175W V, S180, S180W, S210W-V, S220LC V, S220-111, S220N V, S225LC-V |
| Develon | DX170W-7, DX190W-5, DX190W-7, DX200LC-7, DX210W-7, DX210WA, DX225LC-7, DX225LC-7X, DX235LCR-7 |
| Doosan | DH200, DH210W-7, DH215-7, DH215-9E, DH220LC-7, DH220LC-9, DH220LC-9E, DH225LC-7, DH225LC-9, DH225LC-9E, DX170LC-5, DX170W, DX170W-5, DX170W-7, DX175LC, DX180LC-3, DX180LC-5, DX180LC, DX190W, DX190W-3, DX190W-5, DX190W-7, DX190WA, DX200, DX200-9CN, DX200A, DX200LC, DX200LC-7, DX210, DX210LC, DX210LC-7, DX210W, DX210W SLR, DX210W-5, DX210W-7, DX210WA, DX215-9C, DX215-10N, DX220, DX220LC, DX220LC-9C, DX220 LCA, DX220 LCA-2, DX220A, DX225, DX225LC SLR, DX225LC-3, DX225LC-5, DX225LC-7M, DX225LC-9C, DX225 LCA, DX225 LCA-2, DX225 LCA-7M, DX225 LCB, DX225LL-5, DX225 NLC, DX225 RB, DX225LC, DX225LC-7, DX225LC-7X, DX235LC-5, DX235LCR-5, DX235 NLC, DX235 NLC-5, DX235LCR, DX235LCR-7, DX250LC, S175W V, S180W V, S 170LC V, S175LC-V, S 220LC V, S 225LC V, S 225LC-7, S 225NLC V |
| Hitachi | EX200, EX200-1, EX200-2, EX200-3, EX200-5, EX200LC, EX200LC-1, EX200LC-2, EX200LC-3, EX200LC-5, EX210, EX210H-5, EX210K-3, EX210K-5, EX210LC-5, EX225USR, EX225USRLC, UH07, UH07-3, UH07-5, UH07-7, UH055-7, UH081, UH083, UH083LC, ZX160, ZX160LC-3, ZX180, ZX180LC, ZX180LC-5, ZX180LC-5B, ZX180LC-5N, ZX180LC-6, ZX180LC-6N, ZX180LC-7, ZX180 LCH-3, ZX180 LCN, ZX180 LCN-3, ZX180 LCN-5G, ZX180LC-3, ZX190LC-6, ZX190LC-7, ZX190 LCN, ZX190 LCN-6, ZX190W-5B, ZX195D, ZX200, ZX200LC, ZX200LC-1, ZX200LC-3, ZX200LC-5, ZX200LC-5B, ZX200LC-5G, ZX200LC-6, ZX200LC-7, ZX200-2, ZX200-2LC, ZX200-3, ZX200-3F, ZX200-3G, ZX200-3LC, ZX200-5, ZX200-5A, ZX200-5B, ZX200-5G, ZX200-5LC, ZX200-6, ZX200C, ZX200CLC, ZX200DLC, ZX200E, ZX200ELC, ZX200X, ZX210, ZX210LC, ZX210LC U, ZX210LC-3, ZX210LC-3G, ZX210LC-5, ZX210LC-5 LR, ZX210LC-5B, ZX210LC-5G, ZX210LC-5N, ZX210LC-6, ZX210LC-6N, ZX210LC-7, ZX210LC-7H, ZX210 LCH, ZX210 LCH-3, ZX210 LCH-5A, ZX210 LCK, ZX210 LCK HG, ZX210 LCK-3, ZX210 LCN, ZX210 LCN-3, ZX210 LCN-5, ZX210 LCN-5B, ZX210 LCN-6, ZX210 LCN-7, ZX210 MF, ZX210-2, ZX210-3, ZX210-5, ZX210-6, ZX210F-3, ZX210H, ZX210H-3, ZX210H-3G, ZX210H-6, ZX210K, ZX210K HG, ZX210KLC, ZX210K-3, ZX210K-6, ZX210KB-5B, ZX210N, ZX210N-3, ZX220, ZX220LC, ZX220LC-GI, ZX225, ZX225LC, ZX225LC-2, ZX225HE, ZX225US, ZX225USLC, ZX225USLC-2, ZX225USLC-3, ZX225USLC-5B, ZX225USLC-6, ZX225USLC-7, ZX225US-3, ZX225US-5B, ZX225US-6, ZX225USR, ZX225USR - 2, ZX225USRLC, ZX225USRLC-5B, ZX225USRLC-6, ZX225USRLC-7, ZX225USR LCK, ZX225USR LCK-3, ZX225USR-3, ZX225USR-5B, ZX225USR-6, ZX225USRK, ZX225USRK-3, ZX225USRK-6, ZX225USRLC-3 |
| Hyundai | 220CC, 220LC, HW210, HW210A, R200W-7, R210LC-7, R210LC-9, R235LCR-9, R235LCR-9A |
| JCB | 220X, 245, 245X, JS160C, JS220, JS220LC, JS220 NC, JS220 SC |
| John Deere | 160, 160LC, 160 P-Tier, 160C, 160CLC, 160DLC, 160G, 160GLC, 180GLC, 200, 200LC, 200CLC, 200D, 200G, 210, 210 P-Tier, 210G, 210GLC, 220LC, 220CLC, 225LC, 225CLC, 225CLC RTS, 225DLC |
| Kato | HD820-3, HD820-5, HD820-7, HD820-111, HD820V, HD820x, HD1023III, HD1023X |
| Kobelco | K907, K907LC MARK II, K907C, K907D, K907DLC, SK200, SK200-2, SK200-6, SK200-8, SK200-10, SK200LC, SK200MK5, SK200MKVI, SK200SR, SK200SRLC, SK200V, SK210LC-6, SK210LC-8, SK210LC-10, SK210LC-11, SK210NLC-8, SK225SR, SK225SR-2, SK225SRLC, SK230LC-6, SK230SRLC, SK235SR, SK235SRLC |
| Komatsu | HB205-1, HB205LC-1, HB205LC-1M0, HB215LC-1, HB215LC-1M0, HB215LC-2, HB215LC-3, HB215-1, PC190LC, PC190LC-8, PC190NLC, PC200, PC200 HDLC-8, PC200 HD-8, PC200 L, PC200LC, PC200LC LE, PC200LC-1, PC200LC-2, PC200LC-2H, PC200LC-3, PC200LC-4, PC200LC-4LE, PC200LC-5, PC200LC-5L, PC200LC-5S, PC200LC-6, PC200LC-6A, PC200LC-6B, PC200LC-6C, PC200LC-6E, PC200LC-6K, PC200LC-6L, PC200LC-6LB, PC200LC-6LC, PC200LC-6LE, PC200LC-6SE, PC200LC-7, PC200LC-7B, PC200LC-7C, PC200LC-7K, PC200LC-7L, PC200LC-7LE, PC200LC-7Y, PC200LC-8, PC200LC-8E0, PC200LC-8L, PC200LC-8LE, PC200LC-8M0, PC200LC-8N1, PC200LL-6, PC200LL-7, PC200LN-6, PC200 SE-6, PC200 SL, PC200-1, PC200-2, PC200-3, PC200-5, PC200-5C, PC200-5L, PC200-5S, PC200-5Z, PC200-6, PC200-6A, PC200-6B, PC200-6C, PC200-6E, PC200-6EL, PC200-6EN, PC200-6H, PC200-6J, PC200-6K, PC200-6L, PC200-6LE, PC200-6M, PC200-6S, PC200-6Z, PC200-6ZE, PC200-7, PC200-7A, PC200-7B, PC200-7C, PC200-7E, PC200-7L, PC200-8, PC200-8E0, PC200-8M0, PC200-8N1, PC200-10, PC200-10M0, PC200-11, PC200-11M0, PC200B, PC200BLC, PC200DLC, PC200ELC, PC200ELC-6, PC200EL, PC200EL-6, PC200EL-6K, PC200EM-6K, PC200EN, PC200EN-6, PC200EN-6K, PC200I-10, PC200NC, PC200SC-6E, PC200Z, PC200Z-6, PC200Z-6LE, PC208LC, PC208USLC-3, PC210, PC210LC, PC210LC-3, PC210LC-3K, PC210LC-3KP, PC210LC-5, PC210LC-5K, PC210LC-5L, PC210LC-6, PC210LC-6A, PC210LC-6AP, PC210LC-6E, PC210LC-6G, PC210LC-6K, PC210LC-6L, PC210LC-7, PC210LC-7H, PC210LC-7K, PC210LC-7N, PC210LC-8, PC210LC-8K, PC210LC-8M0, PC210LC-10, PC210LC-10M0, PC210LC-11, PC210LC-11E0, PC210 LCD-7, PC210 LCD-8, PC210 LCD-10, PC210 LCI-10, PC210 LCI-11, PC210 LCI-11E0, PC210LL, PC210-3, PC210-3K, PC210-3KP, PC210-5, PC210-5K, PC210-6, PC210-6E, PC210-6ED, PC210-6K, PC210-7, PC210-7K, PC210-8, PC210-8K, PC210-8N1, PC210-10, PC210-10M0, PC210-11, PC210KLC-6, PC210LC-11 WH, PC210NLC-6, PC210NLC-7, PC210NLC-7K, PC210NLC-8, PC210NLC-8K, PC215LC, PC215-10M0, PC220, PC220LC, PC220LC-2, PC220LC-3, PC220LC-4, PC220LC-5, PC220LC-5D, PC220LC-5L, PC220LC-5LC, PC220LC-5LF, PC220LC-5S, PC220LC-6, PC220LC-6D, PC220LC-6E, PC220LC-6H, PC220LC-6K, PC220LC-6L, PC220LC-6LC, PC220LC-6LE, PC220LC-6LF, PC220LC-7, PC220LC-7L, PC220LC-7LE, PC220LC-8, PC220LC-8M0, PC220LC-11, PC220 PU-7L, PC220-1, PC220-2, PC220-3, PC220-5, PC220-5L, PC220-6, PC220-6E, PC220-6L, PC220-6LE, PC220-6Z, PC220-7, PC220-8, PC220-8M0, PC220-8N1, PC220SLC, PC228, PC228LC, PC228LC-2, PC228LC-3, PC228US, PC228USLC, PC228USLC-1, PC228USLC-2, PC228USLC-3, PC228USLC-3E0, PC228USLC-3L, PC228USLC-3N, PC228USLC-3N0, PC228USLC-6, PC228USLC-7, PC228USLC-8, PC228USLC-10, PC228USLC-11, PC228USLC-11E0, PC228US-1, PC228US-2, PC228US-3, PC228US-3E0, PC228US-3K, PC228US-3N0, PC228US-8, PC228US-10, PC228USLC-3EC, PC228UU, PC228UULC, PC228UULC-1, PC228UU-1, PC229-6R, PC230, PC230LC, PC230LC-6, PC230LC-6E, PC230LC-7, PC230 LE, PC230-6, PC230-6E, PC230-7, PC230N HD-7, PC230N HD-7K, PC230N HD-8, PC238LC, PC238USLC-11, PC240, PC240LC, PC240LC-3, PC240LC-3K, PC240LC-3KP, PC240LC-4, PC240LC-5, PC240LC-5K, PC240LC-6, PC240LC-6K, PC240LC-6N, PC240LC-7, PC240LC-7K, PC240LC-10, PC240LC-10K, PC240LC-11, PC240LC-11E0, PC240-3, PC240-5, PC240-5K, PC240-6, PC240-6K, PC240-7, PC240NLC, PC240NLC-3, PC240NLC-3KP, PC240NLC-5, PC240NLC-5K, PC240NLC-6, PC240NLC-6A, PC240NLC-6K, PC240NLC-7, PC240NLC-7K, PC240NLC-8, PC240NLC-8K, PC240NLC-10, PC240NLC-11, PC240NLC-11E0 |
| Liebherr | R918, R918 Compact, R920, R922 |
| Link-Belt | 160 LX, 160 X2, 160 X3, 160 X4, 170 X4S, 190 X4S, 210 LX, 210 LX DHP, 210 LX LF, 210 X2, 210 X2 LF, 210 X3, 210 X4, 210 X4 HN, 210 X4 LF, 220 X4S, 225 LX, 225 SPIN ACE |
| Liugong | 920, 920E, 920F, 921, 921E, 922, 922E, 922F, 923, 923F, 924, 924E, 924F, 925E |
| Lonking | CDM6225 |
| New Holland | E175, E175B, E175C, E200, E200SR, E210, E215, E215B, E215C, E235, E235B SR, E235C SR, E235SR |
| Sany | SY195, SY195C, SY200, SY200C, SY200C-6, SY205, SY205C, SY205H, SY205H DPC, SY210, SY210LC, SY210C, SY210C8E, SY210C-6, SY210C-9, SY215, SY215C, SY215CLC, SY215C PRO, SY215C-8, SY215C-9, SY215C-9LC, SY215C-9LCS, SY215C-10, SY215H, SY220C-9, SY220C-9HD, SY225C, SY225CLC, SY225C-9, SY230 |
| Sumitomo | SH160-5, SH160LC-5, SH160LX-2, SH200, SH200-2, SH200-3, SH200HD-3, SH200LC, SH200LC-2, SH200LC-3, SH210-5, SH210-6, SH210LC-5, SH210LC-6, SH220-3, SH225X-3, SH225X-3B |
| Volvo | EC200, EC200B, EC200BLC, EC200D, EC200DL, EC200E, EC200EL, EC210, EC210B, EC210BLC, EC210C, EC210CLC, EC210CL, EC210D, EC210DL, EC210EL, EC220D, EC220DL, EC220E, EC220EL, EC229, EC230, EC230LC, EC230B, EC235C, EC235CL, EC240LC, ECR235C, ECR235CL, ECR235D, ECR235D L, ECR235E, ECR235E L, MX225LS, SE210LC-3 |
| XCMG | XE210C, XE210U |
80mm Progressive Link Hydraulic Thumb for 16 - 25 Tons Excavators. Fits 16–25 ton excavators, 80 mm main pin, 520 mm ear to ear. Price: $10,997.00, in stock, ships from Miami, FL the same business day when ordered before 2 PM ET.
Dominate every grab with the 80mm Progressive Link Hydraulic Thumb for 16 - 25 Tons Excavators. Designed for 16–25 ton excavators, this Progressive Link Hydraulic Thumb combines brute strength with smooth articulation for high-performance job sites.
Elite Performance Features:
* Advanced Tine Configuration: 36" tines for superior grip and control across various materials.
* Extended Range Motion: Progressive link design delivers over 180° rotation and constant grip through the full stroke.
* Uncompromising Durability: Constructed from AR450 Steel to withstand the harshest job site conditions.
* Versatile Application: Excels in demolition, landscaping, and handling challenging objects.
* Enhanced Productivity: Seamlessly integrates with your excavator to maximize operational efficiency.
Transform your approach to material handling. With the 80mm Progressive Link Hydraulic Thumb for 16 - 25 Tons Excavators, you're not just adding an attachment – you're extending the full reach of your machine’s potential.
Will it fit my machine?
Tell us your machine, we confirm the fit before shipping. Pin-on attachments are sized from your machine's pin diameter, pin-to-pin distance and ear width. If your machine has a quick coupler, is a long-reach model or was modified, measure those three and send them to us before you order. If we confirmed the fit from your accurate machine and coupler details and our recommendation is wrong, report it within 14 calendar days of delivery: the JMA Fitment Money-Back Promise gives a full product refund, outbound and return freight covered, no restocking fee.
How fast does it ship?
In-stock items ship from Miami, FL the same business day when ordered before 2 PM ET; orders after 2 PM ET, on weekends or on holidays ship the next business day. Carrier estimates for the lower 48, in business days from the ship date: parcels of 50 lb or less 5–7 standard or 2–4 expedited; LTL freight over 50 lb 7–10 standard or 4–6 expedited, usually with a delivery appointment and a signature. Outside the lower 48, shipping is quoted. Inspect it before you sign and note any damage on the delivery receipt.
What does the warranty cover?
Defects in materials and workmanship are covered for 2 years or 2,000 operating hours, whichever comes first: year 1 parts and pre-approved labor, year 2 parts only. Lifetime warranty on structural welds. Hydraulic cylinders, motors and valves: 1 year or 1,000 hours. Hoses and fittings: 90 days. Pins, bushings and other wear items are not covered. Get our written approval before any repair.
Can I return it?
Yes, for standard products: a refund within 14 calendar days of delivery, or store credit within 30, if it is unused, uninstalled, free of soil and grease, and in its original packaging with all hardware. Get a Return Authorization Number (RAN) from us first. The buyer pays return shipping unless the item was defective, damaged or wrong because of our error, or you can drop it off at our warehouse, 8068 NW 29th St, Doral, FL, Monday to Friday, 9 AM to 5 PM, with your RAN. A restocking fee applies to non-defective refunds; store credit has no restocking fee. Original outbound shipping is not refunded on change-of-mind returns. Installed or used attachments can't be returned.
