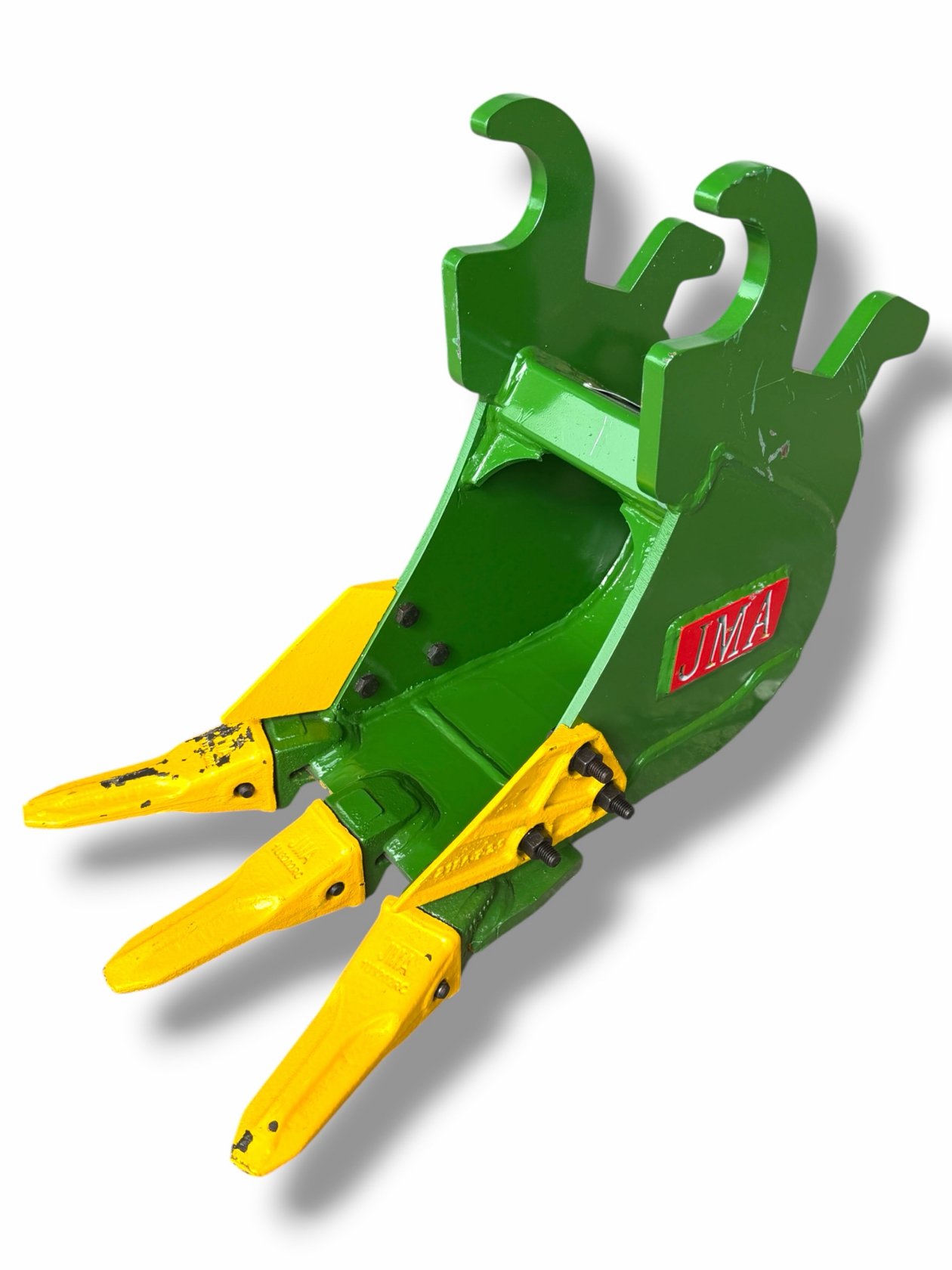

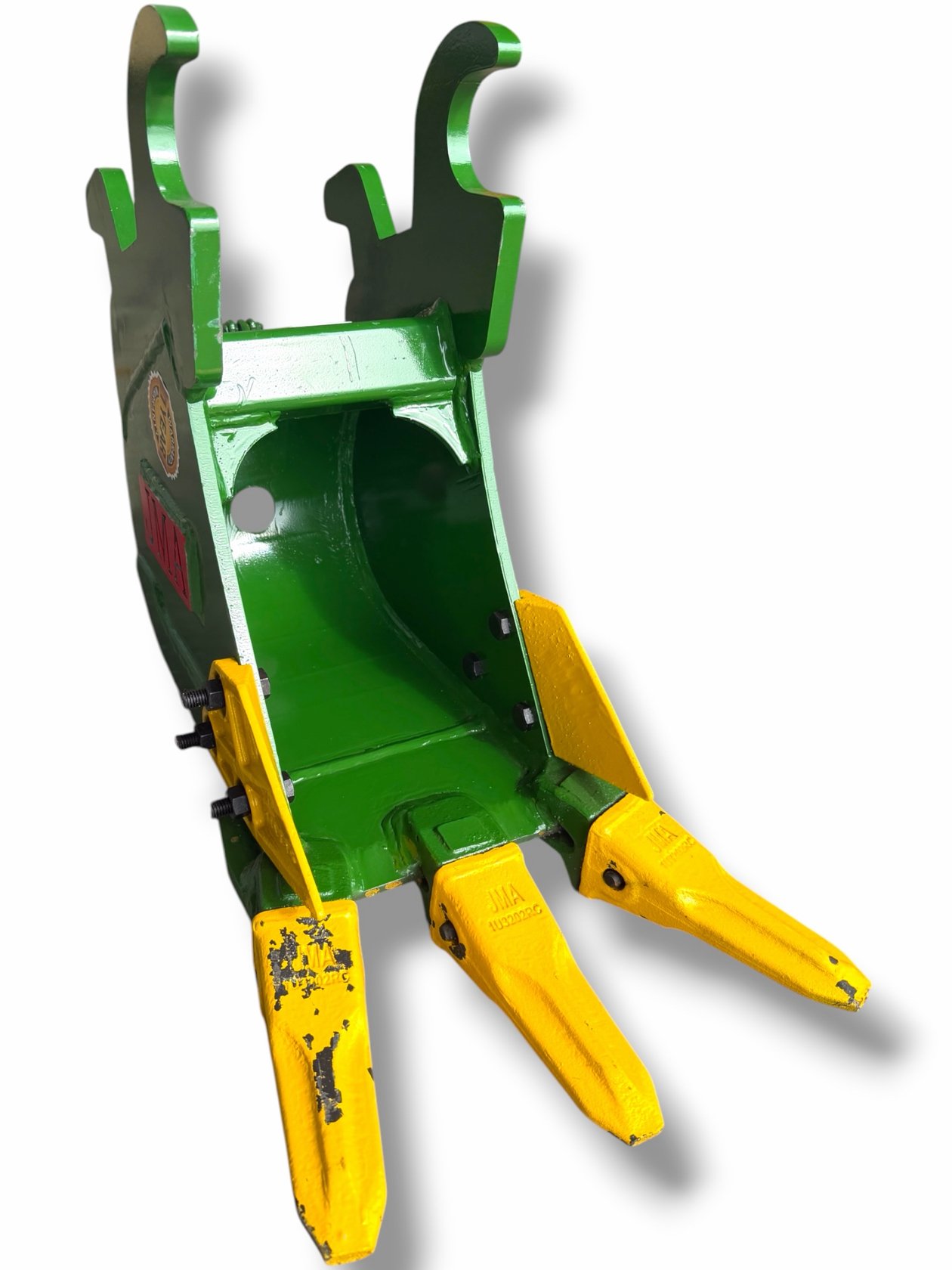

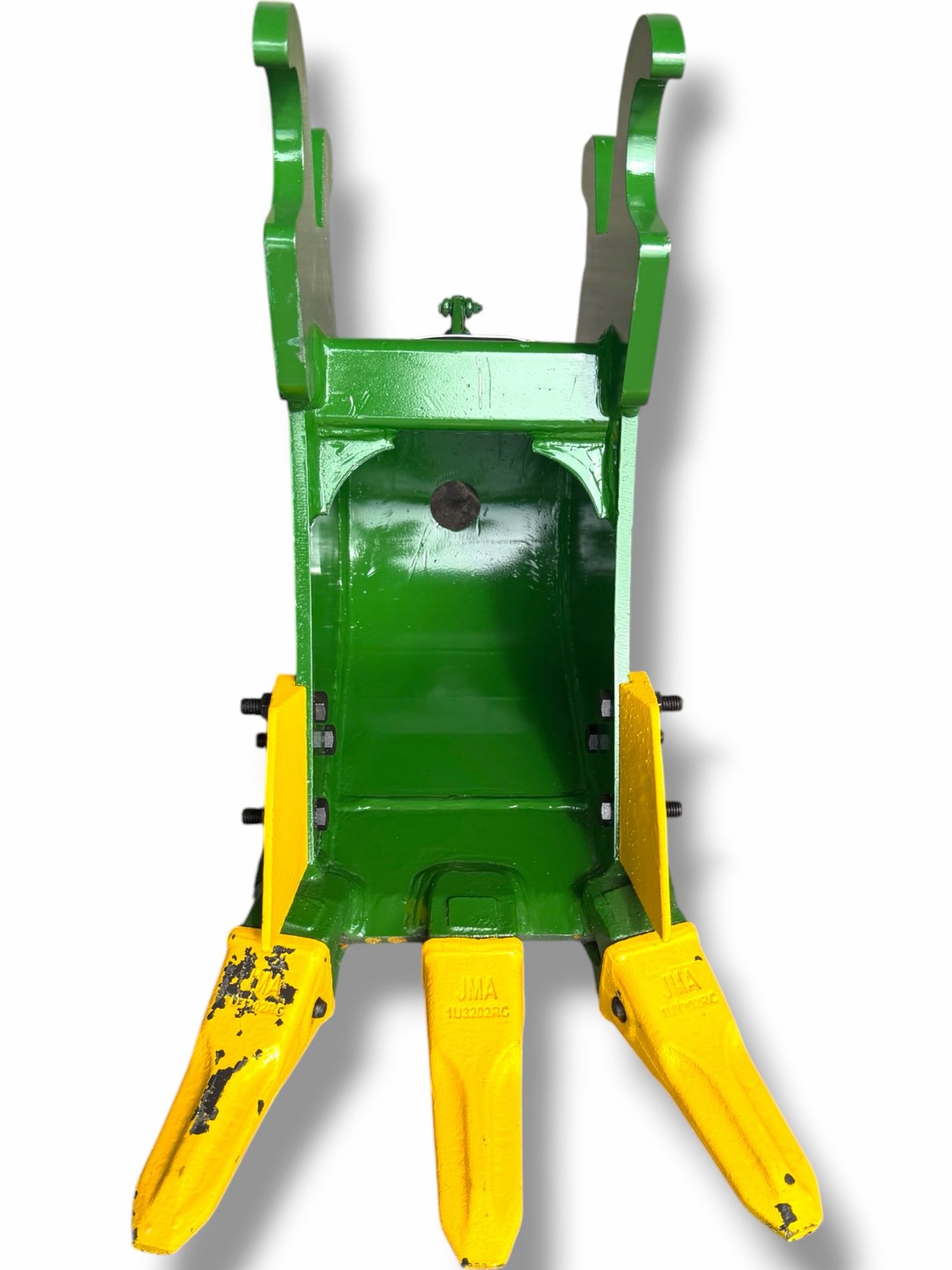

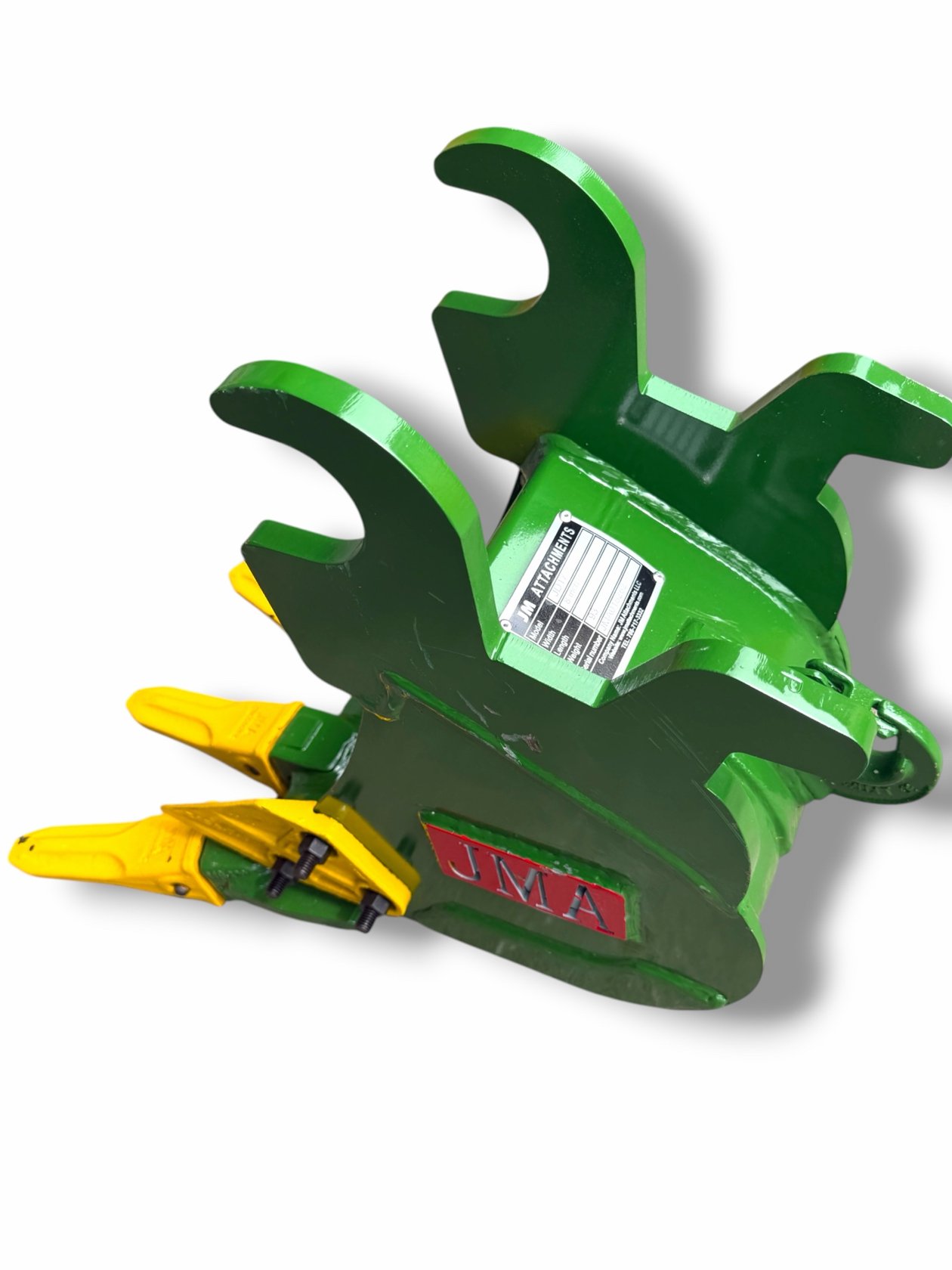

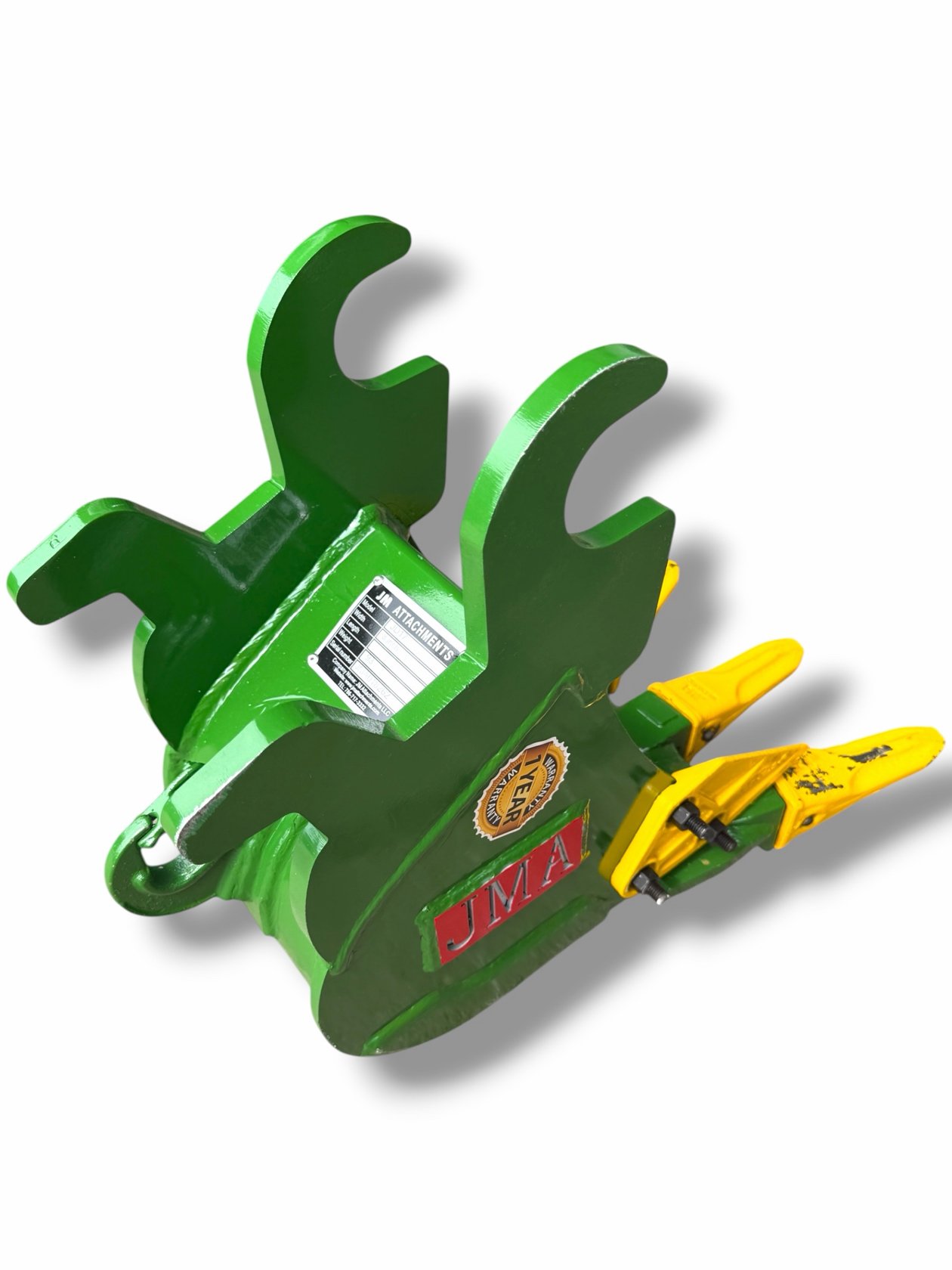

John Deere 17G 8″ Mini Excavator Trenching Bucket
- Sized for the John Deere 17G · John Deere-style coupler · 1–3 ton class
- 8" wide (203 mm) · 0.10 yd³ capacity · AR400 steel body · 10 mm side walls
- 3 teeth (1U3202RC) and 2 side cutters included
- Ships from Miami, FL the same business day when ordered before 2 PM ET · US-based support
- 2-year warranty · lifetime warranty on structural welds
Bucket Size: 8"
- 8"
- 12"
Frequently Bought Together
| Coupler Type | John Deere Style |
|---|---|
| Carrier Weight Class (tn) | 1 - 3 tons |
| Carrier Weight Class (lb) | 2,000 - 6,000 lb |
| Front Ear to Ear (mm) | 169 mm |
| Rear Ear to Ear (mm) | 169 mm |
| Bucket Depth (mm) | 245 mm |
| Capacity (m³) | 0.08 m³ |
| Capacity (yd³) | 0.10 yd³ |
| Tooth Retainer Part Number | 8E6209 |
| Drain Holes (ct.) | 2 ct. |
| Material Type | AR400 Steel |
| Features | 3x Reinforced Side Plates |
| Bucket Side Wall Thickness (mm) | 10 mm |
| Finish | Powder-Coated Green |
| Bucket Tooth Series | J200 |
| Bucket Width (mm) | 203 mm |
| Inner Bucket Height (mm) | 300 mm |
| Tooth (ct.) | 3 Teeth |
| Bucket Size | 8" |
| Tooth Number | 1U3202RC |
| Tooth Pin Part Number | 9W7112 |
| Tooth Style | Rock Chisel Bucket Tooth |
| Airman | AX15-2, AX17U-4, AX17U-5, AX17U-6, AX20U, AX20U-3, AX22, AX22U-4, AX25, AX30, AX30-U2 |
|---|---|
| Bobcat | E08, E10Z, 418, 418A, 418AA, E10, X120, E10E, E14, X319K, M444, X220, 323, E16, E16AEM, X320, X322, X324, X324M, E17, E17Z, E323, X319, X322D, X322G, X323, X323J, E19, E19E, E20, E20Z, E25EM, 425, 425EG, 425ZHS, E25, 425G, E26, E26C, E26EM, E26GAM, E26GM, E27, E27Z, X425, X425G, X325, X328, 428, 428EG, 428G, 428U, X328G, X428 |
| Case | CX12D, CX14, CX15, CX17, CX17B, CX17C, CX20, CX20B, CX22, CX22B, CX23, CX25, CX27B |
| Caterpillar | 300.9D, 301, 301 CR, 301.4, 301.4C, 301.5, 301.5 CR, 301.5 SR, 301.5C, 301.6, 301.6C, 301.6D, 301.7 CR, 301.7D, 301.7D CR, 301.8, 301.8C, 301.8D, 302, 302 CR, 302.2D, 302.4D, 302.5, 302.5C, 302.5C CR, 302.7, 302.7 CR, 302.7D, 302.7D CR, 302C CR, 302E SR |
| Daewoo | S15, S018 VT |
| Develon | DX19Z-7B, DX20Z-7, DX20ZE, DX27Z-7 |
| Doosan | DX10Z, DX15, DX17Z, DX17Z-7, DX18, DX19, DX19-7, DX20Z, DX27, DX27Z, DX27Z-7, S015, S015 PLUS, S018, S018 VT, S30, SL018VT, Solar 018-VT, Solar 030, Solar 030 Plus |
| Hanix | 20S, H12A, H12B, H15A, H15B, H15B-2, H22A, H22B, H24A, H25B, H26B, H26C, H29A, H30A |
| Hitachi | EX10U, EX10U-1B, EX15, EX15-2, EX15U, EX15U-1B, EX15U-3, EX15UR, EX17, EX17U, EX18-2, EX20U, EX20U-3, EX20UR, EX20UR-2, EX20UR-3, EX22-2, EX25-2, EX27U, EX30, EX30-2, EX30U, EX30UR, EX30UR-2, EX30UR-2C, EX30UR-3, EX 12-2, UE20, ZX16, ZX17U, ZX17U-2, ZX19U, ZX22U-2, ZX26U, ZX26U-5A, ZX27U-2, ZX30 |
| Hyundai | R15-5, R15-7, R16-7, R16-9, R17Z-9A, R25-5, R27Z-9, R27Z-9A, R28-5, R30-9A |
| Ihi | 9VX, 15NX, 15NX-2, 20JX, 20NX, 20VX, 25NX, 25NX-2, 28G, 28J, 28N, 28N-2, 28NX, 30NX, 30NX-2, IS15, IS25, IS27, IS28, IS28J, IS30, IS30J |
| JCB | 1CX, 15C-1, 16C-1, 18, 18Z, 18Z-1, 19C-1, 801, 801.4, 801.5, 801.6, 802, 802 Super, 802.4, 802.4 Super, 802.7, 802.7 ZTS, 803, 803 Plus, 803 Super, 8008 CTS, 8010 CTS, 8014, 8014 CTS, 8015, 8016, 8016 CTS, 8018, 8018 CTS, 8020, 8020 CTS, 8025, 8025 ZTS, 8025 ZTSLC, 8026, 8026 CTS, 8027 ZTS, 8029, 8029 CTS, JCB MICRO |
| John Deere | 17G, 17P, 25, 25D, 25E, 26G, 26P, 27 ZTS, 27C, 27C ZTS, 27CT, 27D, 27D ZTS |
| Kobelco | SK13SR, SK014, SK015, SK15SR, SK15SR-1, SK17SR, SK17SR-3, SK17SR-5E, SK17SR-6E, SK20SR, SK20SR-1, SK20SR-3, SK20SR-5, SK025, SK25SR-1, SK25SR-2, SK25SR-3, SK25SR-5, SK25SR-6E, SK027, SK27SR-3, SK27SR-5, SK27SR-6E |
| Komatsu | PC05, PC05-1, PC05-6, PC05-7, PC07, PC07-1, PC07-2, PC09, PC09-1, PC10, PC10-6, PC10-7, PC12, PC12UU-1, PC12UU-2, PC14R-3, PC15, PC15MRX-1, PC18, PC18MR, PC18MR-2, PC18MR-3, PC20-6, PC20MR-2, PC25, PC26, PC27, PC27 MRX-1, PC27MR-2, PC27MR-3, PC27R-8, PC28UU-1, PC28UU-2, PC30, PC30 MR, PC30-6, PC30-7 |
| Kubota | K008-3, KH15, KH16, KH28L, KH51, KX018-4, KX030, KX030-4, KX36, KX36-2, KX36-3, KX41, KX41-2, KX41-3, KX41-3V, KX41-4, KX61, KX61-2, KX61-3, KX71, KX71-2, KX71-3, KX71-3S, RX302, U10, U10-3, U10-5, U15, U15-3, U17, U17-3, U20, U20-3, U25, U25-3, U27-4 |
| Link-Belt | ME15, MM20CR |
| Liugong | 9018F, 9025, 9025F, 9027E, 9027F, 9027FZTS |
| Nagano | NS15-2, NS16-3, NS25-3 |
| New Holland | E15, E18, E18B, E18SR, E25-2SR, E27-2SR |
| Sany | SY16, SY16C, SY18, SY18C, SY18U, SY26, SY26U, SY27U |
| Sumitomo | SWE17U, SWE18U, SWE30, SWE30UF |
| Takeuchi | TB014, TB14, TB015, TB15, TB016, TB16, TB23, TB23R, TB025, TB25, TB028, TB030, TB30, TB120, TB125, TB210, TB210R, TB215 R, TB216, TB219, TB228, TB230 |
| Terex | TC25 |
| Volvo | EC13, EC13XR, EC13XTV, EC15, EC15B, EC15C, EC15D, EC15E, EC25 |
| Wacker Neuson | 28Z, 28Z3, 803, 1403, 1404, 1503, 1703, 1903, 2002, 2203, 2404, 2503, ET16, ET18, ET24, EZ17, EZ17E, EZ26 |
| XCMG | XE15U, XE18U, XE20E |
| Yanmar | B08, B08-3, B15, B15-3, B25V, B27, B30V, SV08, SV08-1, SV08-1A, SV08-1B, SV08-1C, SV08-1D, SV15, SV15VT, SV17, SV17EX, SV17VT, SV18, SV26, SV26-7, VIO10, VIO10-2A, VIO12, VIO12-2A, VIO15, VIO15-2, VIO17, VIO17-1E, VIO17-A, VIO20, VIO20-2, VIO20-3, VIO23, VIO23-6, VIO25, VIO25-6A, VIO25-6B, VIO26, VIO26-6, VIO27, VIO27-2, VIO27-6, VIO30, VIO30-1, VIO30-6B, YC15, YC18-2, YC18-3, YC25-2 |
John Deere 17G 8" Mini Excavator Trenching Bucket. Fit: Sized for the John Deere 17G, John Deere-style coupler, 1–3 ton class. Included: 3 teeth (1U3202RC) and 2 side cutters. Price: $877.00, in stock, ships from Miami, FL the same business day when ordered before 2 PM ET.
Digging clean, narrow trenches for cable, pipe, or irrigation is the job of this 8-inch trenching bucket. It mounts on the John Deere ZTS coupler for 17G-class mini excavators in the 1-3 ton range, and its AR400 steel build with rock-chisel teeth and three reinforced side plates cuts a tidy 0.10 yd³ profile.
Will it fit my machine?
Tell us your machine and your coupler, we confirm the fit before shipping. If we confirmed the fit from your accurate machine and coupler details and our recommendation is wrong, report it within 14 calendar days of delivery: the JMA Fitment Money-Back Promise gives a full product refund, outbound and return freight covered, no restocking fee.
How fast does it ship?
In-stock items ship from Miami, FL the same business day when ordered before 2 PM ET; orders after 2 PM ET, on weekends or on holidays ship the next business day. Carrier estimates for the lower 48, in business days from the ship date: parcels of 50 lb or less 5–7 standard or 2–4 expedited; LTL freight over 50 lb 7–10 standard or 4–6 expedited, usually with a delivery appointment and a signature. Outside the lower 48, shipping is quoted. Inspect it before you sign and note any damage on the delivery receipt.
What does the warranty cover?
Defects in materials and workmanship are covered for 2 years or 2,000 operating hours, whichever comes first: year 1 parts and pre-approved labor, year 2 parts only. Lifetime warranty on structural welds. Teeth, cutting edges, pins and bushings are wear items and are not covered. Get our written approval before any repair.
Can I return it?
Yes, for standard products: a refund within 14 calendar days of delivery, or store credit within 30, if it is unused, uninstalled, free of soil and grease, and in its original packaging with all hardware. Get a Return Authorization Number (RAN) from us first. The buyer pays return shipping unless the item was defective, damaged or wrong because of our error, or you can drop it off at our warehouse, 8068 NW 29th St, Doral, FL, Monday to Friday, 9 AM to 5 PM, with your RAN. A restocking fee applies to non-defective refunds; store credit has no restocking fee. Original outbound shipping is not refunded on change-of-mind returns. Installed or used attachments can't be returned.
