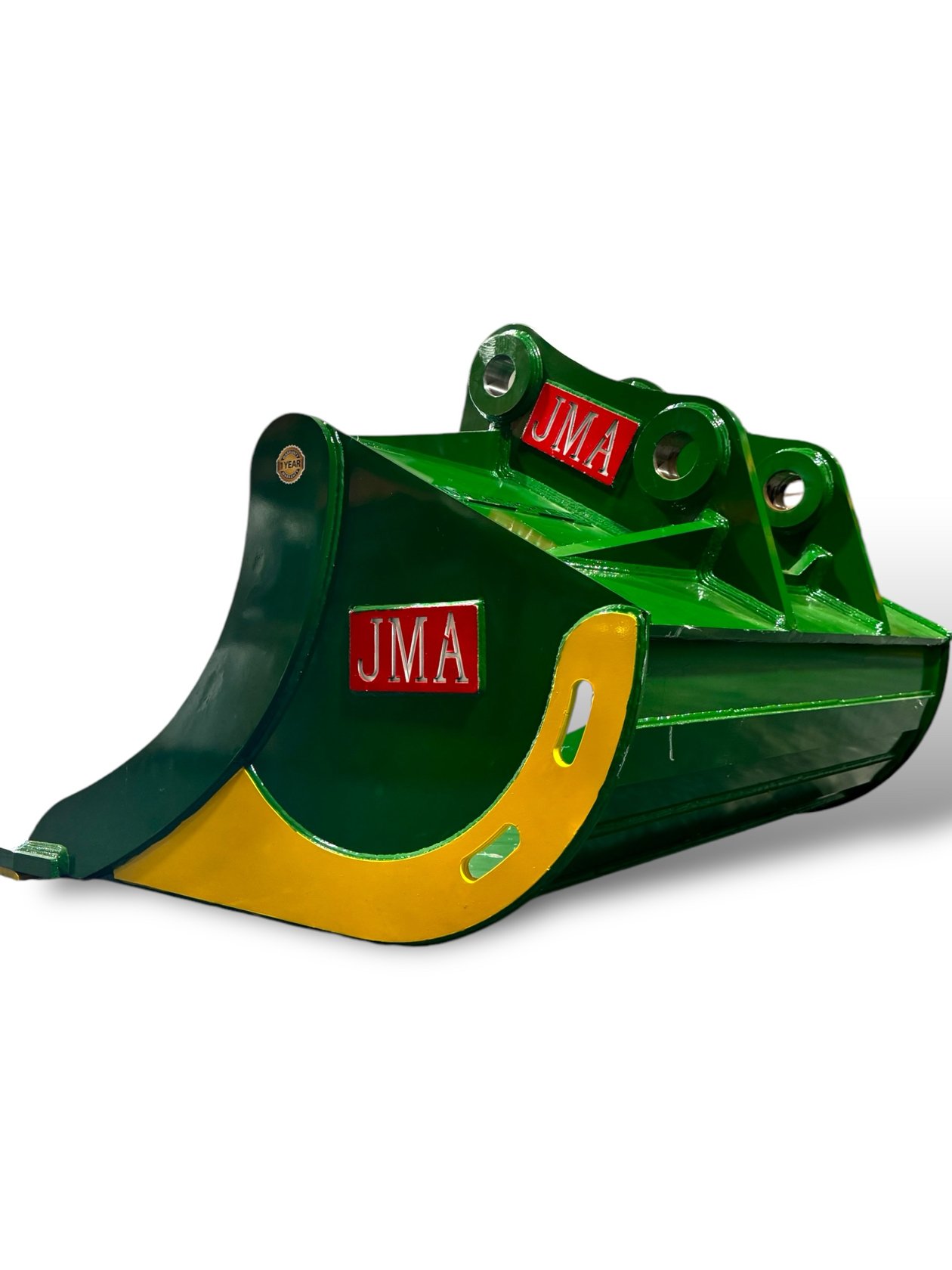

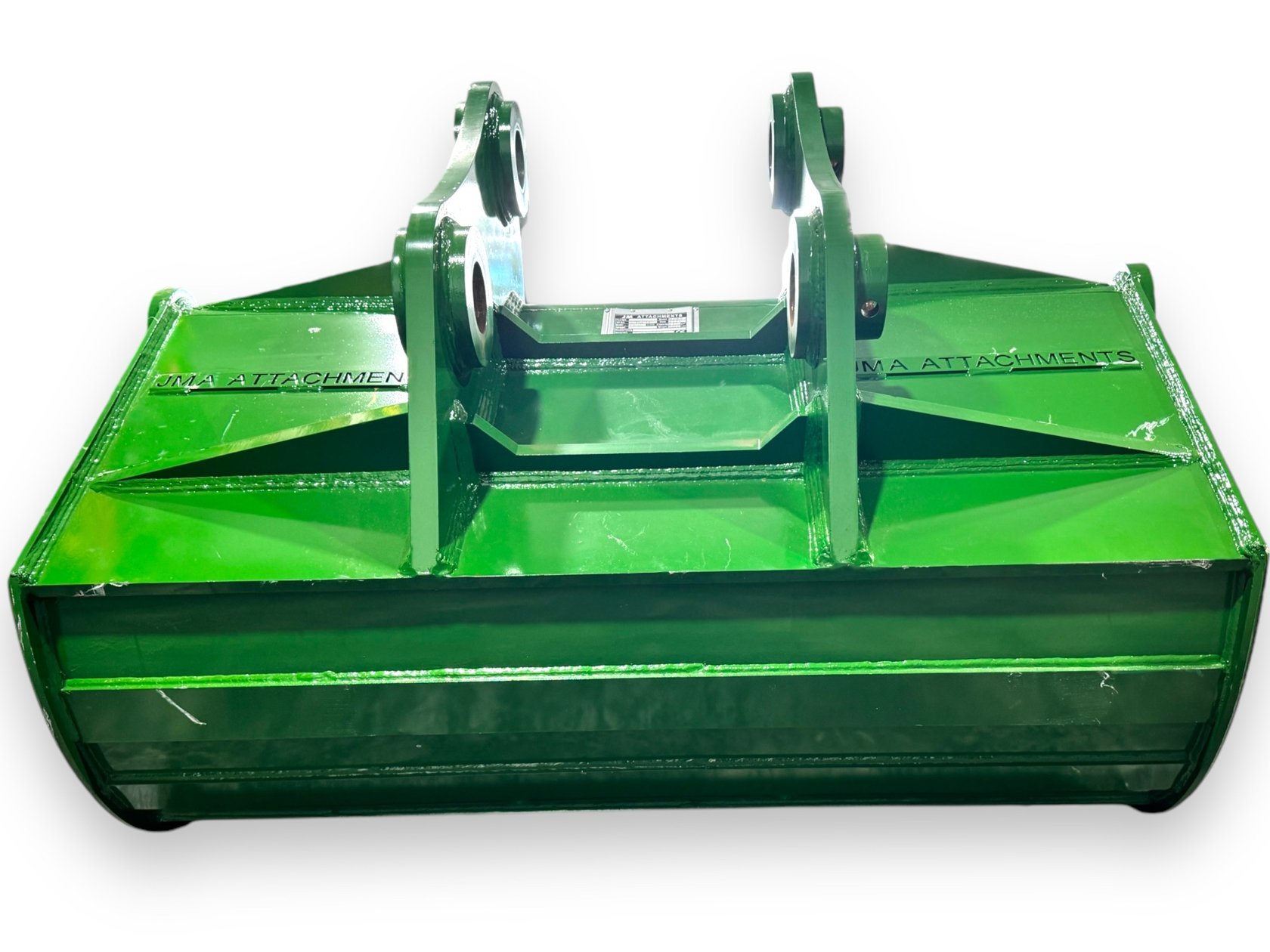

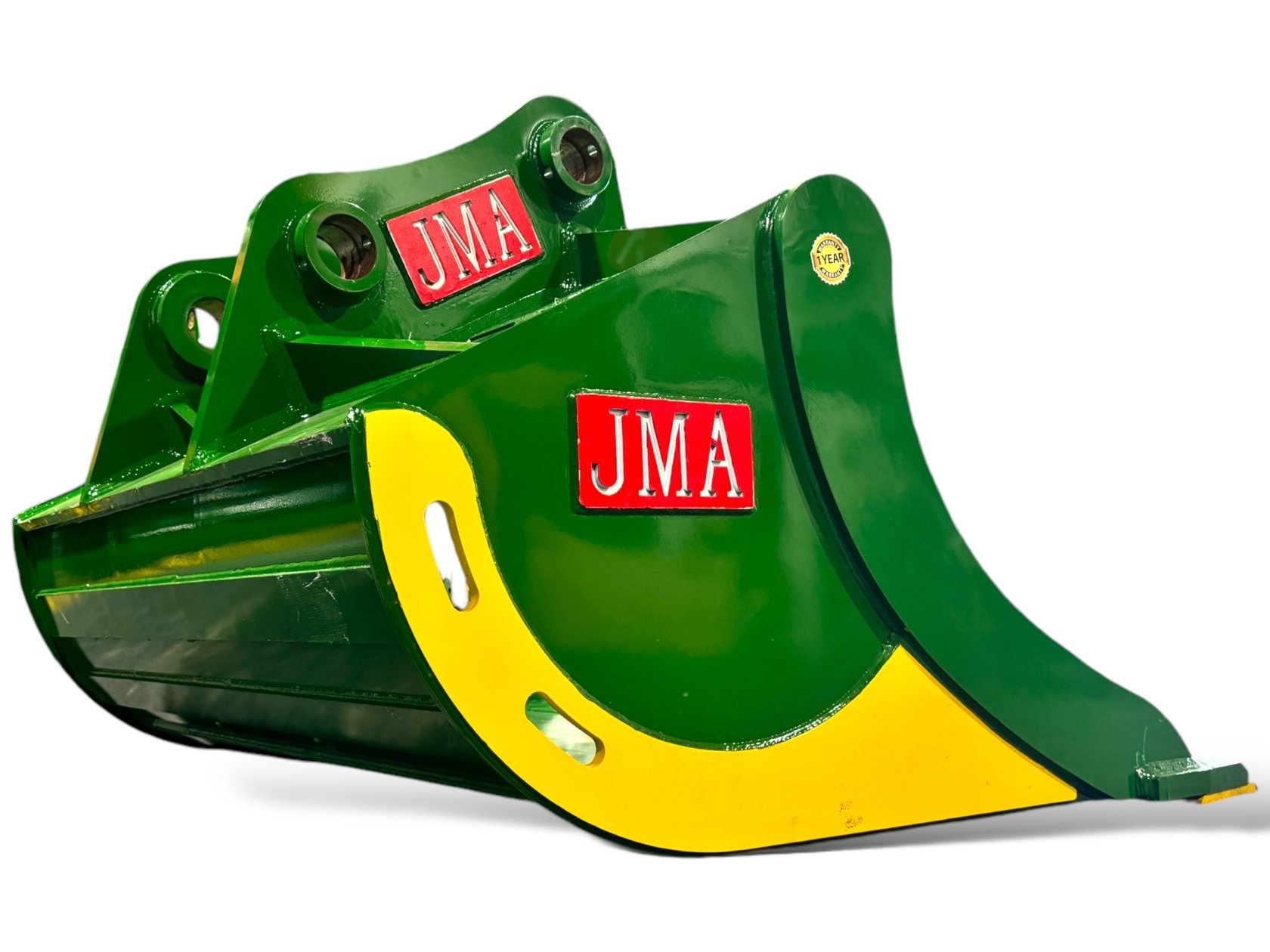

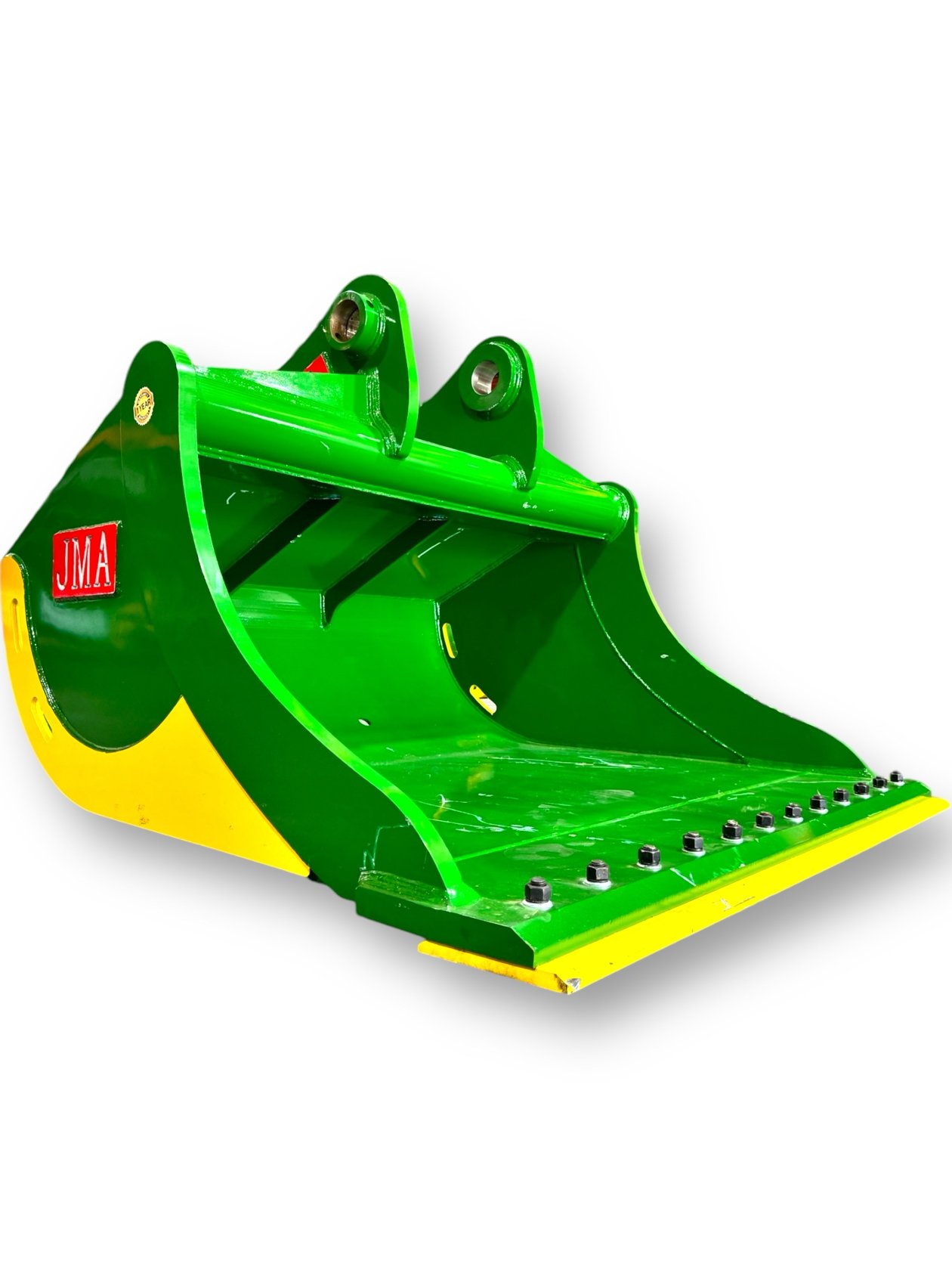

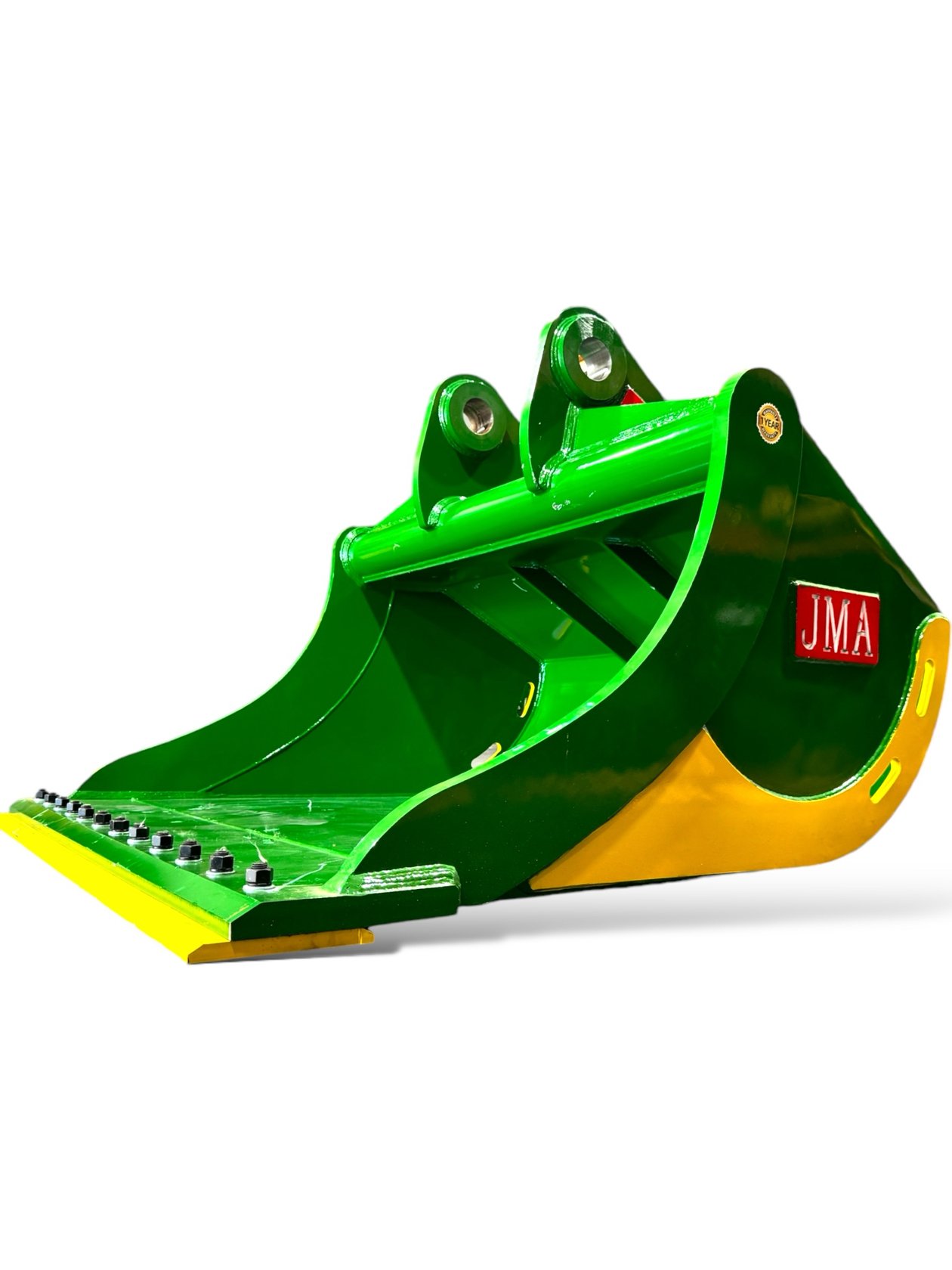

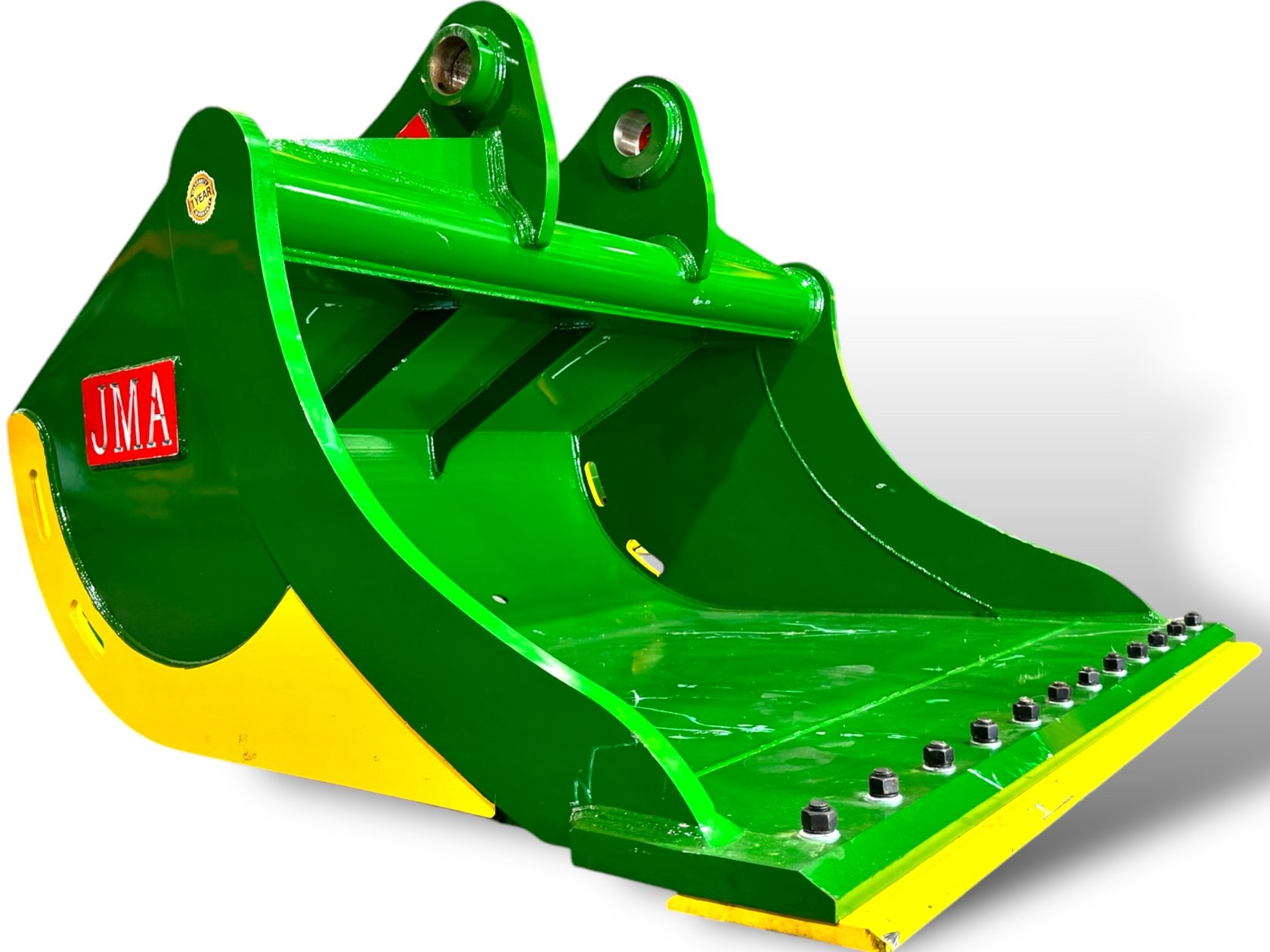

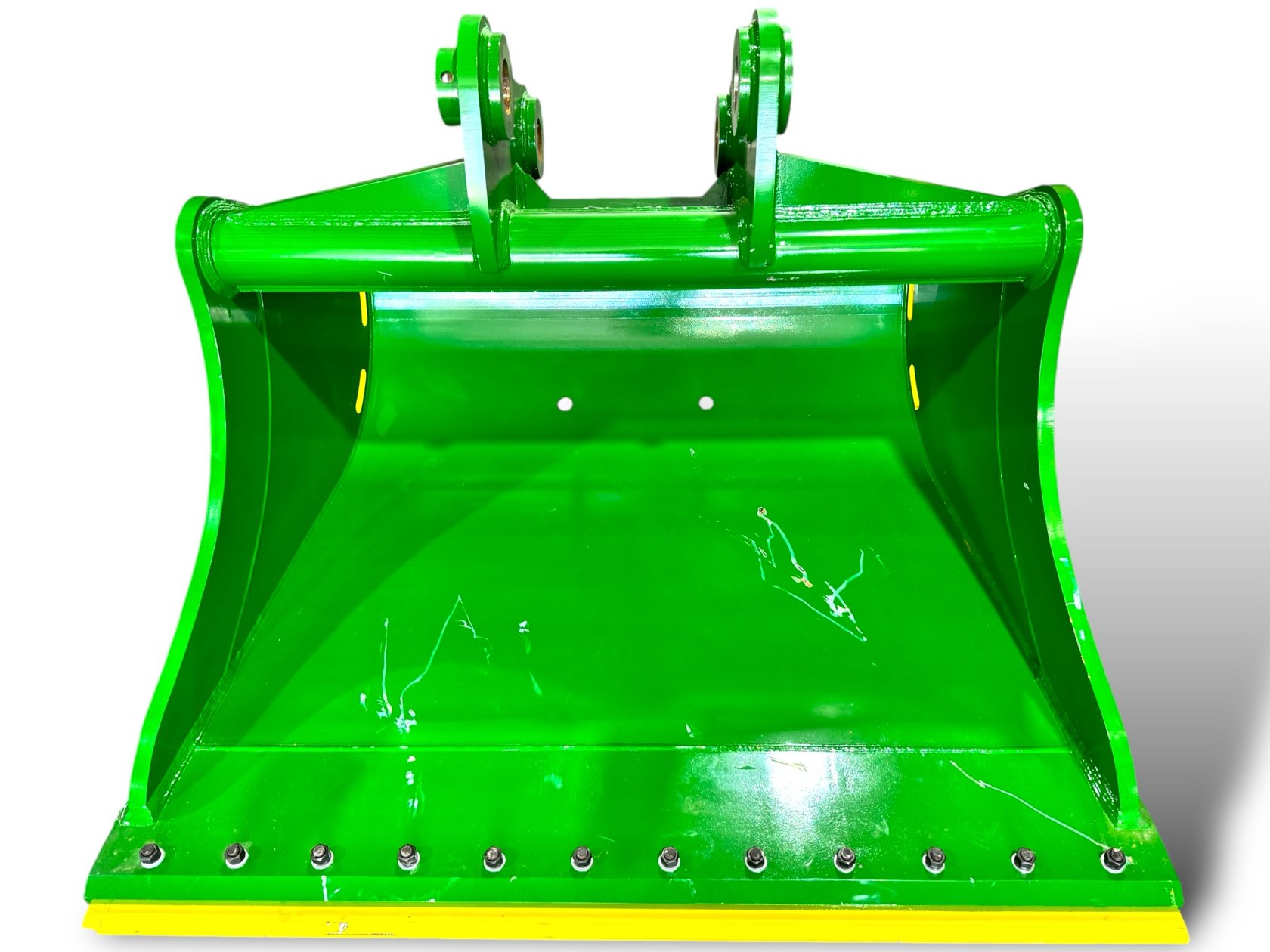

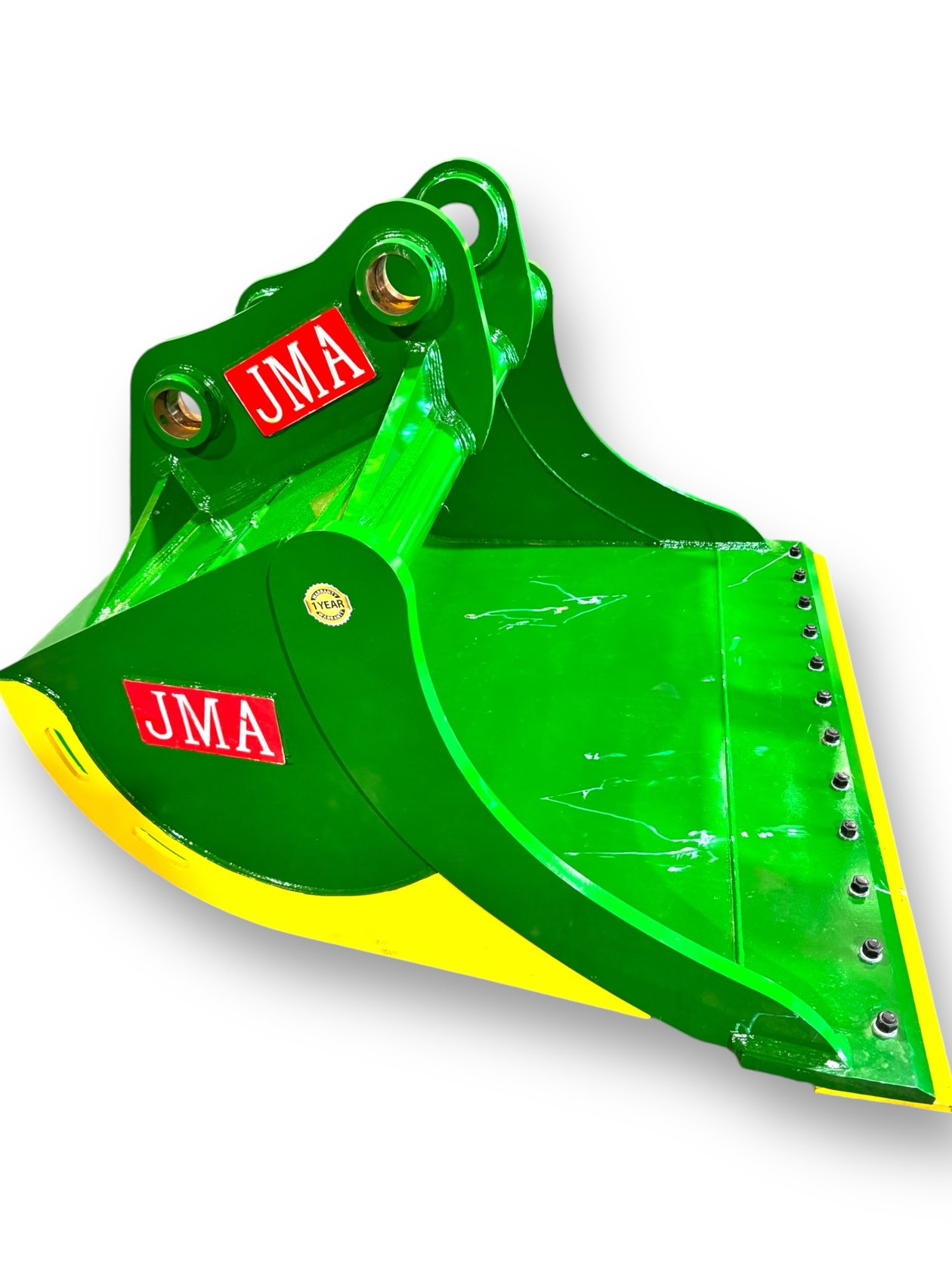

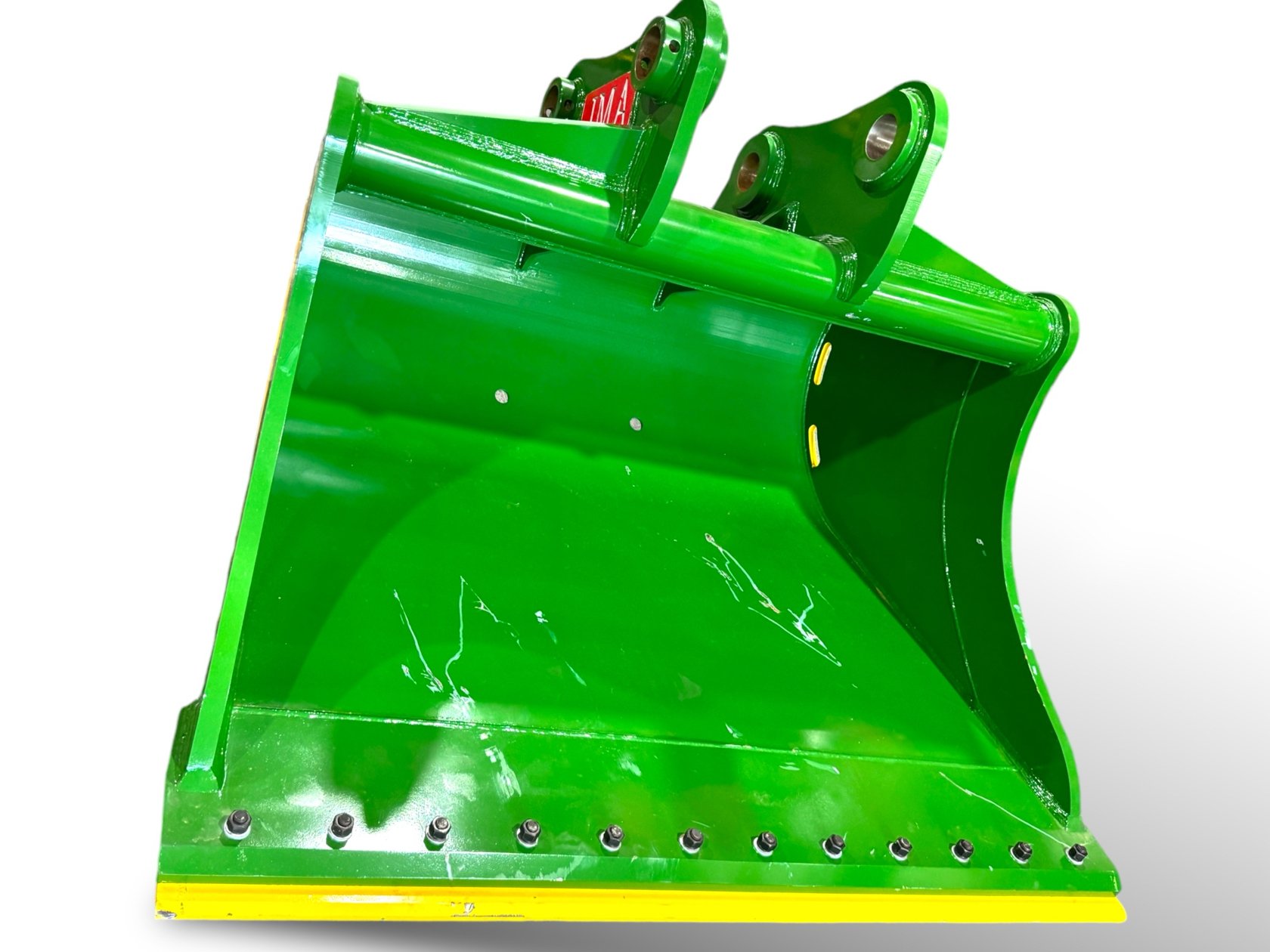

72″ Ditching Bucket for 23 – 36 Tons Excavators. 90mm Pins
- Fits 23–36 ton excavators · 90 mm pins · 411 mm ear to ear
- 72" wide (1829 mm) · AR450 steel body · 35 mm side walls · powder-coated green
- Pins included
- Ships from Miami, FL · US-based support
- 2-year warranty · lifetime warranty on structural welds
Bucket Size: 72"
Availability: Out of Stock
Frequently Bought Together
| Front Pin Diameter (mm) | 90 mm |
|---|---|
| Rear Pin Diameter (mm) | 90 mm |
| Front Ear to Ear (mm) | 411 mm |
| Rear Ear to Ear (mm) | 411 mm |
| Center to Center (mm) | 495 mm |
| Front Pin Length (mm) | 615 mm |
| Rear Pin Length (mm) | 615 mm |
| Capacity (m³) | 2.7 m³ |
| Features | 3x Reinforced Side Plates |
| Product Weight (kg) | 1,380 kg |
| Product Weight (lbs) | 3,042 lb |
| Material Type | AR450 Steel |
| Bucket Depth (mm) | 754 mm |
| Finish | Powder-Coated Green |
| Bucket Width (mm) | 1828.8 mm |
| Bucket Side Wall Thickness (mm) | 35 mm |
| Carrier Weight Class (tn) | 23 - 36 tons |
| Carrier Weight Class (lb) | 46,000 - 72,000 lb |
| Inner Bucket Height (mm) | 1,202 mm |
| Bucket Size | 72" |
| Pin Size | 90mm |
| Coupler Type | Pin On Style |
| Case | CX300D, CX300E, CX330, CX330LC, CX330B, CX350, CX350LC, CX350B, CX350DNLC, CX360, CX365E SR |
|---|---|
| Caterpillar | 324CL, 324D FM, 324D LR, 324DL, 324DL LR, 324DL ME, 324DLN, 324DLN VA, 324E, 324E LN, 324E LR, 324EL, 324EL LR, 324FL, 325, 325 D, 325 GC, 325B L, 325C L, 325D L, 325D LN, 325FL CR, 325L D Linkage, 326, 326D2, 326D2L, 326DL, 326F, 326FL, 326FLN, 326 GC, 328 D, 328DL CR, 329D, 329D2, 329D2L, 329D CS, 329DL, 329DL LR, 329DL ME, 329DL VA, 329DLN, 329DLN VA, 329E, 329EL LR, 329E LR, 329E LRE, 329EL, 329ELN, 329F, 329FL, 330, 330BL, 330C, 330C L, 330D, 330D2, 330D2 L, 330D L, 330DL DB, 330F L, 335FL CR, M325B |
| Daewoo | S280-111, S290, S300LC-V, S320, Solar 280LC-III, Solar 290LC-V, Solar 300LC-V, Solar 320LC-V |
| Doosan | DX255LC, DX255LC-3, DX255LC-5, DX260LC, DX260LC-9C, DX260 LCA, DX300 Dem, DX300LC, S290LC, S290LL, S300, S 280LC III, Solar 290LC-V, Solar 290LL-V, Solar 300LC-V, Solar 300LC-V SLR |
| Hitachi | EX230, EX230LC-5, EX270, EX270LC, ZX230LC, ZX230LC-5, ZX230 TN, ZX230CLC, ZX230LC - 2, ZX230LC-3, ZX240, ZX240LC, ZX240LC-3G, ZX240 LCH, ZX240 LCK, ZX240 LCN, ZX240-3, ZX240-3G, ZX240-5A, ZX240-5G, ZX240F-3, ZX240H, ZX240HG, ZX240K, ZX240LC-3, ZX240N, ZX240N-3, ZX240N-5B, ZX240N-6, ZX240NM-3, ZX245USLC-5, ZX245USLC-5N, ZX245USLC-6, ZX245USLC-6N, ZX245USLC-7, ZX245USLC-7H, ZX250, ZX250LC, ZX250LC-5, ZX250LC-5B, ZX250LC-5G, ZX250LC-5N, ZX250LC-6, ZX250LC-6N, ZX250 LCH-3, ZX250 LCH-3G, ZX250 LCH-5A, ZX250 LCK-3, ZX250 LCK-3G, ZX250 LCN, ZX250 LCN-3, ZX250 LCN-5, ZX250 LCN-5B, ZX250 LCN-6, ZX250-2, ZX250-3, ZX250-5B, ZX250-6N, ZX250H-3, ZX250H-3G, ZX250K-3, ZX250K-3G, ZX250LC-3, ZX250LC-7H, ZX260, ZX260LC, ZX260-3G, ZX260LC-5B, ZX270, ZX270LC, ZX270LC-2, ZX270LC-3, ZX270LC-5, ZX270-3, ZX270-5, ZX280, ZX280LC, ZX280LC-3, ZX280LC-5G, ZX280 LCH, ZX280 LCH-3, ZX280 LCN, ZX280 LCN-3, ZX280-5G, ZX280T |
| Hyundai | R250LC-7, R250LC-9, R290LC-7, R290LC-9, R305LC-7, R305LC-9 |
| John Deere | 230LC, 230C, 230CLC, 240, 240DLC, 250 P-Tier, 250GLC, 250GLCR, 250P, 270, 270LC, 270CLC, 270DLC |
| Kobelco | SK300, SK300 Mark IV, SK300LC, SK300LC Mark IV, SK320-VI, SK320LC-V1, SK320LC-VI, SK330-8, SK330-9, SK330-10, SK330-VI, SK330LC-8, SK330LC-9, SK330LC-10, SK330LC-V1, SK330LC-VI, SK330NLC-V1, SK330NLC-VI, SK350LC-8 |
| Link-Belt | 290 LX, 290 X2, 290 X2 LF, 300 X3, 300 X4, 330 LX, 350 X2, 355 X4S, LS330LX |
| Liugong | 925, 925F, 926D, 926E, 926F, 930, 930E, 930F, 933E |
| Samsung | SE280LC, SE280LC-2, SE280LC-3 |
| Sany | SY305, SY305H, SY315 |
| Sumitomo | SH330-3, SH330-5, SH330-6, SH330LC-3, SH330LC-5, SH330LC-6 |
| Volvo | EC240, EC240 LR, EC240 NLC, EC240B, EC240B LR, EC240B NLC, EC240C, EC240C L, EC240C LR, EC240C NL, EC250, EC250D, EC250DL, EC250E, EC250E LR, EC250EL, EC280, EC280LC, EC280 NLC, EC280N, EC290, EC290LC, EC290LC-3, EC290B, EC290BLC, EC290C, EC290C L, EC290CLC, EC300, EC300LC, EC300D, EC300DLC, EC300DL, EC300E, EC300E LR, EC300EL, ECR305C, ECR305C L, MX255LS, MX295LS, SE240LC-3, SE280LC-3 |
72" Ditching Bucket for 23 - 36 Tons Excavators. 90mm Pins. Fits 23–36 ton excavators, 90 mm pins, 411 mm ear to ear. Included: pins. Price: $7,197.60, out of stock right now.
Unlock the full potential of your Excavator with the 72" Ditching Bucket for 23 - 36 Tons Excavators. 90mm Pins. This 2.7 m³ capacity ditching marvel is your key to mastering drainage and grading challenges with unparalleled efficiency.
Superior Features:
* Volume Virtuoso: 2.7 m³ capacity ensures you move more material in fewer passes, dramatically improving job site productivity.
* Durability Redefined: Constructed from high-grade AR400 Steel to withstand the most demanding work environments.
* Edge Excellence: Equipped with a Reversible Bolt-On Cutting Edge for exceptional cutting performance and reduced maintenance needs.
* Fit Check: Designed for 46,000 - 72,000 lbs class Excavators; we confirm fit before shipping.
* Flow Optimization: Crafted to maintain smooth material handling and release, even in challenging soil conditions.
Step into the future of precision earthwork. With the 72" Ditching Bucket for 23 - 36 Tons Excavators, you're not just ditching – you're revolutionizing the way drainage and grading projects are completed.
Are you ready to set new standards in excavation efficiency?
Are pins included?
Yes. Pins are included.
Will it fit my machine?
Tell us your machine, we confirm the fit before shipping. Pin-on attachments are sized from your machine's pin diameter, pin-to-pin distance and ear width. If your machine has a quick coupler, is a long-reach model or was modified, measure those three and send them to us before you order. If we confirmed the fit from your accurate machine and coupler details and our recommendation is wrong, report it within 14 calendar days of delivery: the JMA Fitment Money-Back Promise gives a full product refund, outbound and return freight covered, no restocking fee.
How fast does it ship?
In-stock items ship from Miami, FL the same business day when ordered before 2 PM ET; orders after 2 PM ET, on weekends or on holidays ship the next business day. Carrier estimates for the lower 48, in business days from the ship date: parcels of 50 lb or less 5–7 standard or 2–4 expedited; LTL freight over 50 lb 7–10 standard or 4–6 expedited, usually with a delivery appointment and a signature. Outside the lower 48, shipping is quoted. Inspect it before you sign and note any damage on the delivery receipt.
What does the warranty cover?
Defects in materials and workmanship are covered for 2 years or 2,000 operating hours, whichever comes first: year 1 parts and pre-approved labor, year 2 parts only. Lifetime warranty on structural welds. Teeth, cutting edges, pins and bushings are wear items and are not covered. Get our written approval before any repair.
Can I return it?
Yes, for standard products: a refund within 14 calendar days of delivery, or store credit within 30, if it is unused, uninstalled, free of soil and grease, and in its original packaging with all hardware. Get a Return Authorization Number (RAN) from us first. The buyer pays return shipping unless the item was defective, damaged or wrong because of our error, or you can drop it off at our warehouse, 8068 NW 29th St, Doral, FL, Monday to Friday, 9 AM to 5 PM, with your RAN. A restocking fee applies to non-defective refunds; store credit has no restocking fee. Original outbound shipping is not refunded on change-of-mind returns. Installed or used attachments can't be returned.
DISCLAIMER
JMA Attachments provides heavy machinery attachments that must be used with care by
competent individuals under supervision, if necessary. Use of any equipment, including ours, involves
potential risk of injury. You accept and assume full responsibility for any and all injuries, damages
(both economic and non-economic), and losses of any type that may occur, and release JMA Attachments,
its insurers, employees, officers, directors, associates, and agents from all claims and liabilities
resulting from the use of said equipment.
Except for the written JMA Attachments Warranty (/warranty/), JMA Attachments makes no other warranty, express or implied, including merchantability or fitness for a particular purpose. BUYER ASSUMES ALL LIABILITY IN THE USE OF THE EQUIPMENT. The purchaser must ensure operators are properly trained and comply with all laws and regulations. You agree to be legally bound by this disclaimer by purchasing and using our products. If you disagree, do not proceed with purchasing or using the equipment.
