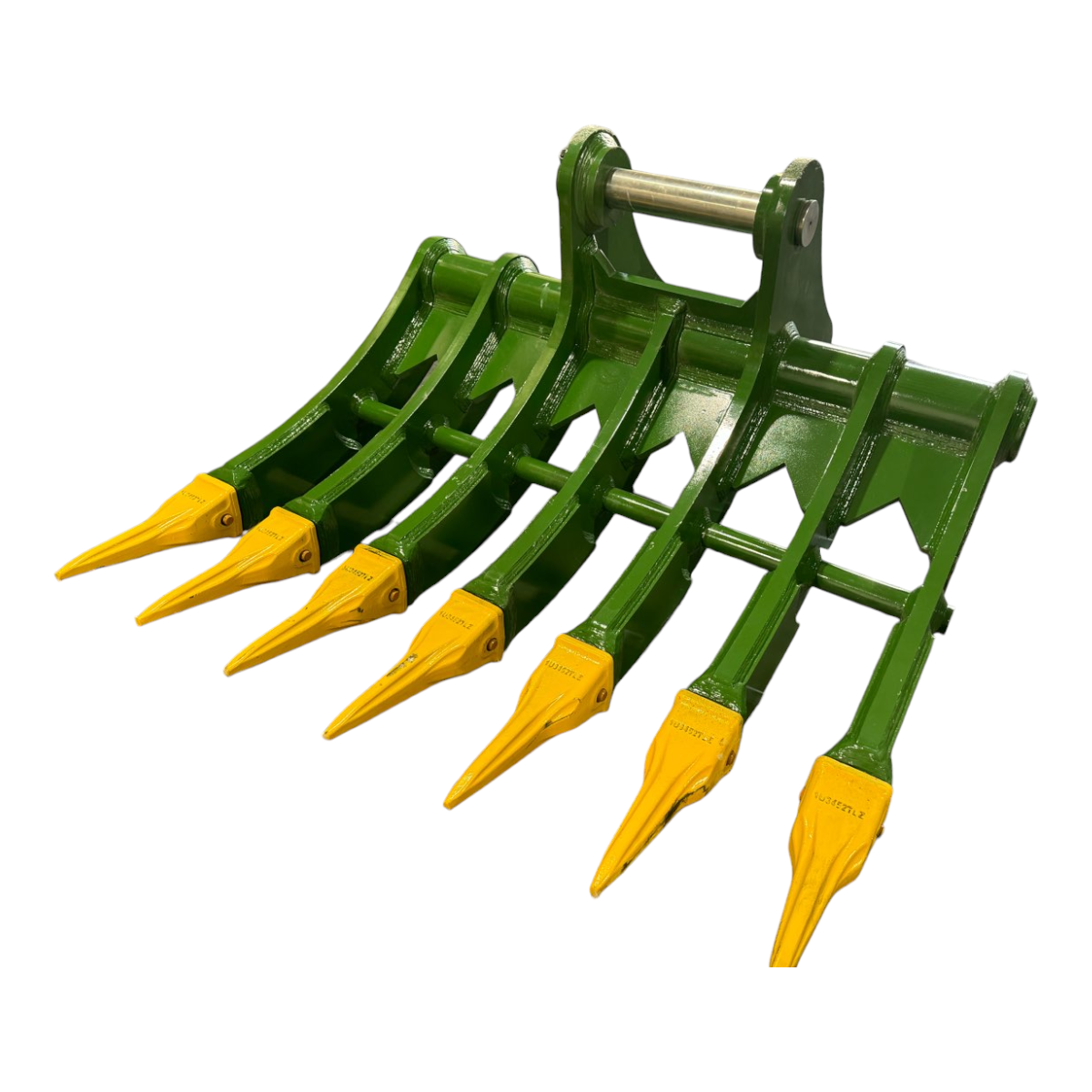

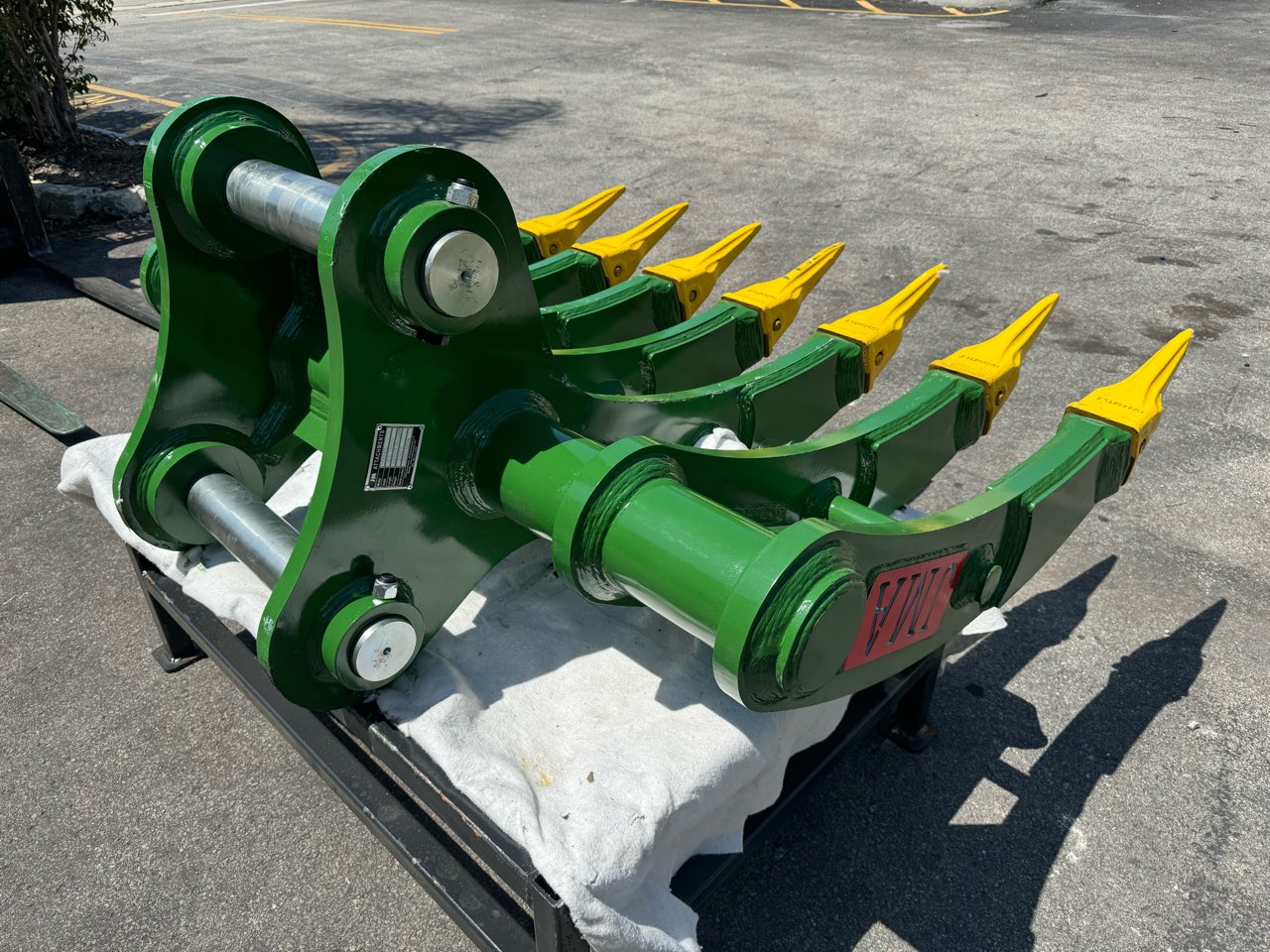

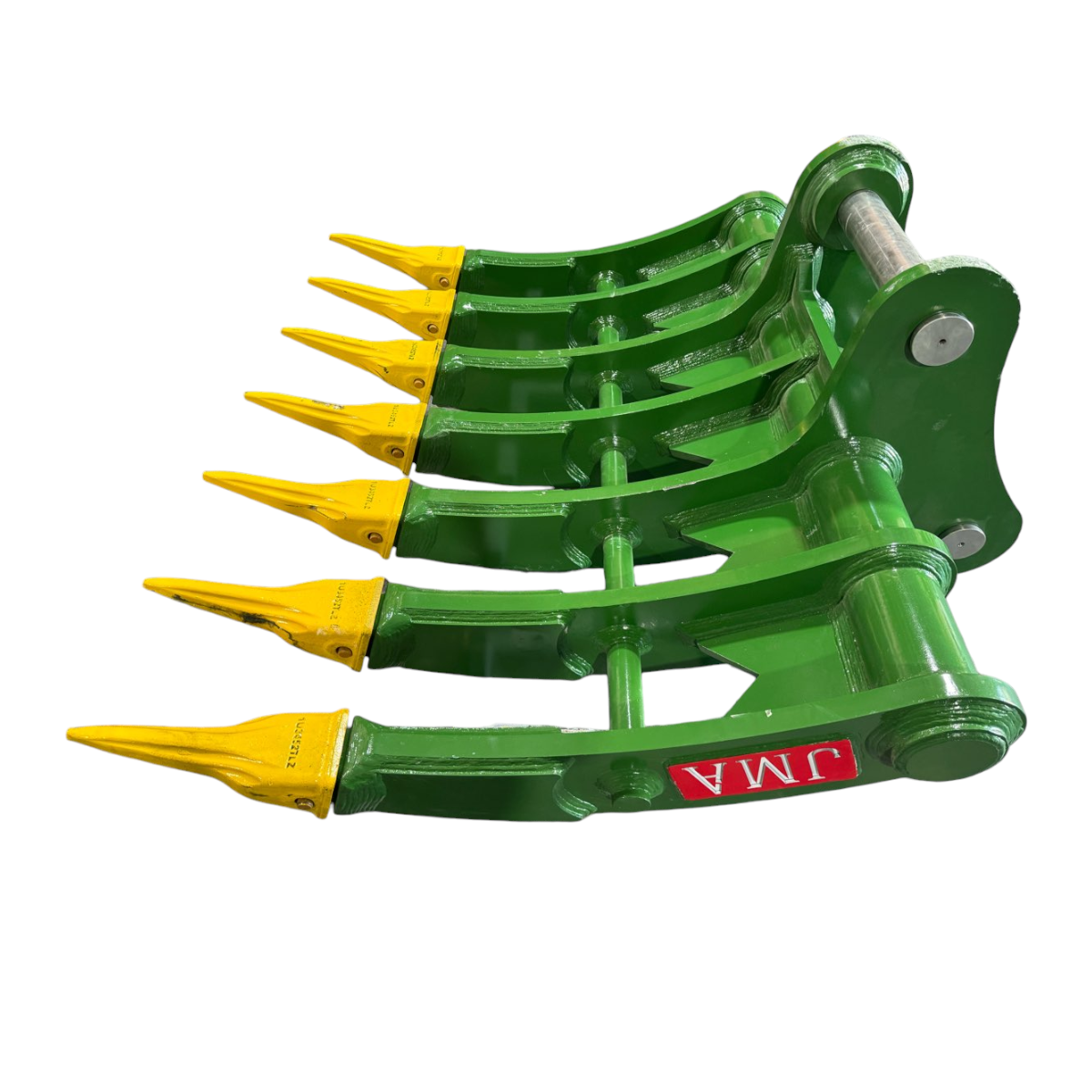

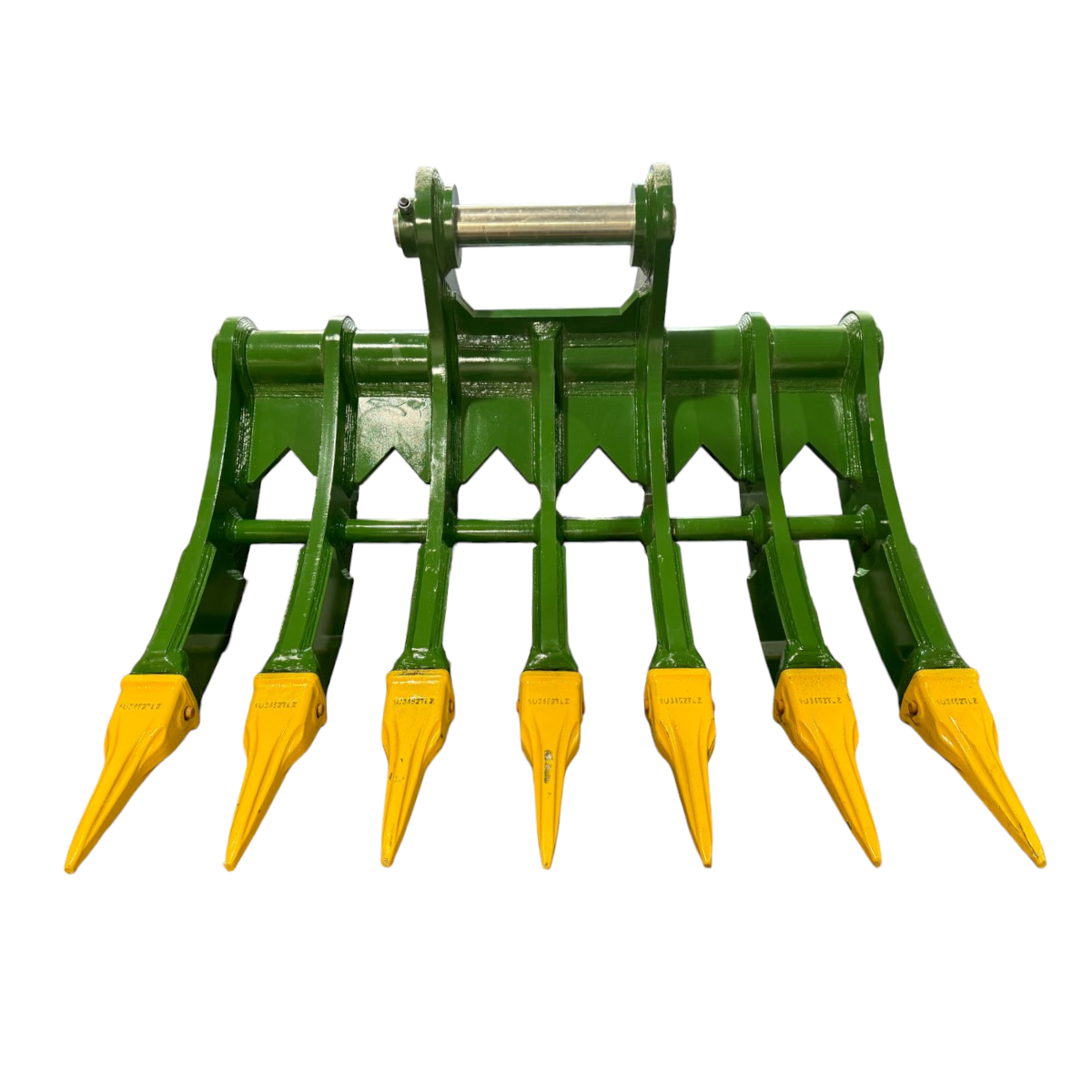

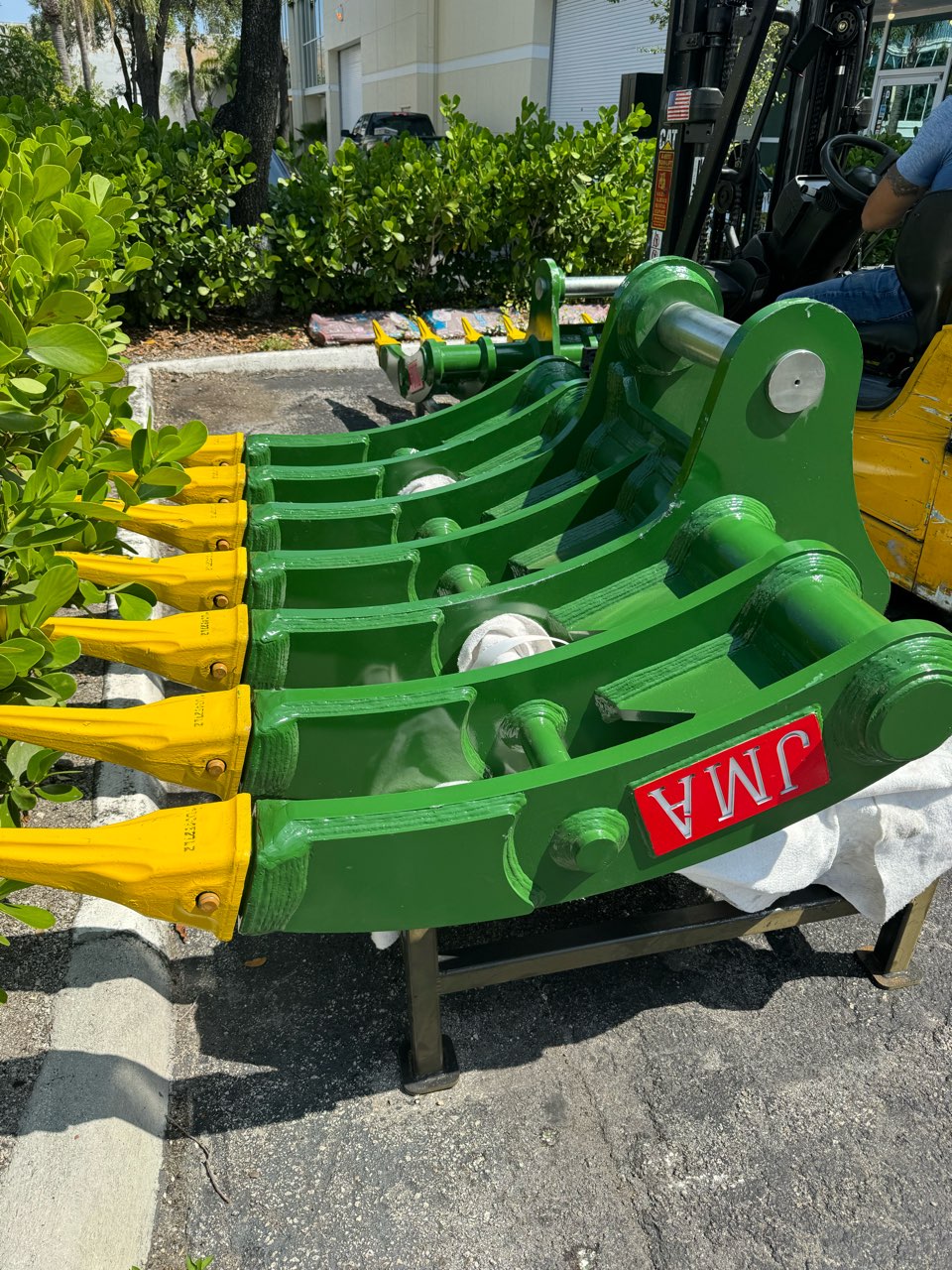

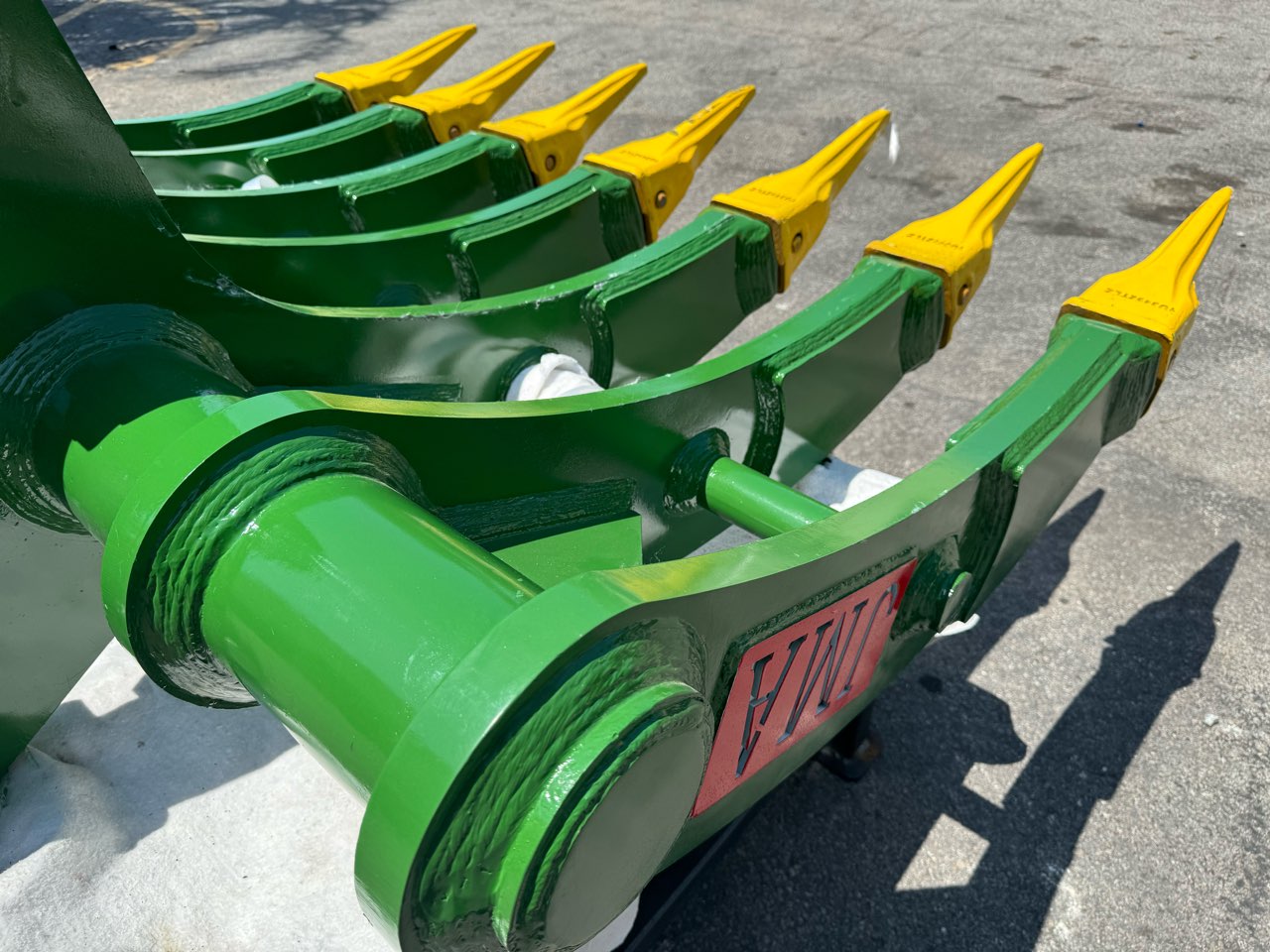

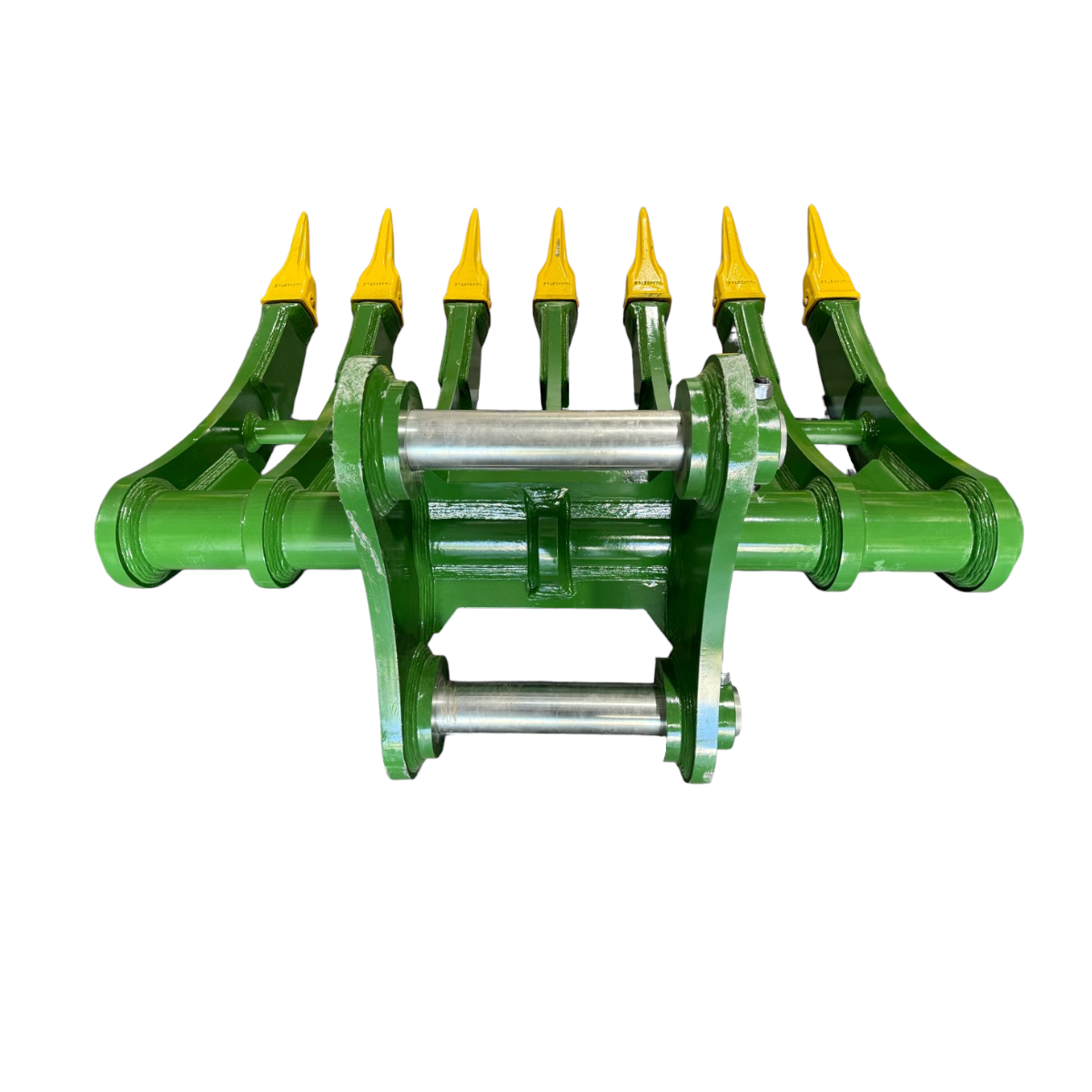

64″ Root Rake for 23 – 36 Tons Excavators. 90mm Pins
- Fits 23–36 t excavators · 90 mm pins · 400 mm ear to ear · 535 mm C-C
- 64″ wide · 7 tines · 228 mm spacing · AR450 steel · green powder coat
- Pins included
- Ships from Miami, FL the same business day when ordered before 2 PM ET · US-based support
- 2-year warranty · lifetime warranty on structural welds
Rake Size: 64"
Frequently Bought Together
| Carrier Weight Class (tn) | 23 - 36 tons |
|---|---|
| Carrier Weight Class (lb) | 46,000 - 72,000 lb |
| Coupler Type | Pin On Style |
| Front Pin Diameter (mm) | 90 mm |
| Rear Pin Diameter (mm) | 90 mm |
| Front Ear to Ear (mm) | 400 mm |
| Rear Ear to Ear (mm) | 400 mm |
| Center to Center (mm) | 535 mm |
| Front Pin Length (mm) | 615 mm |
| Finish | Powder-Coated Green |
| Bucket Tooth Series | J450 |
| Product Weight (kg) | 1,318 kg |
| Product Weight (lbs) | 2,905.69 lb |
| Rear Pin Length (mm) | 615 mm |
| Tooth Retainer Part Number | 8E6359 |
| Material Type | AR450 Steel |
| Tooth (ct.) | 7 ct. |
| Pin Size | 90mm |
| Tines (ct.) | 7 ct. |
| Tines Spacing (mm) | 228 mm |

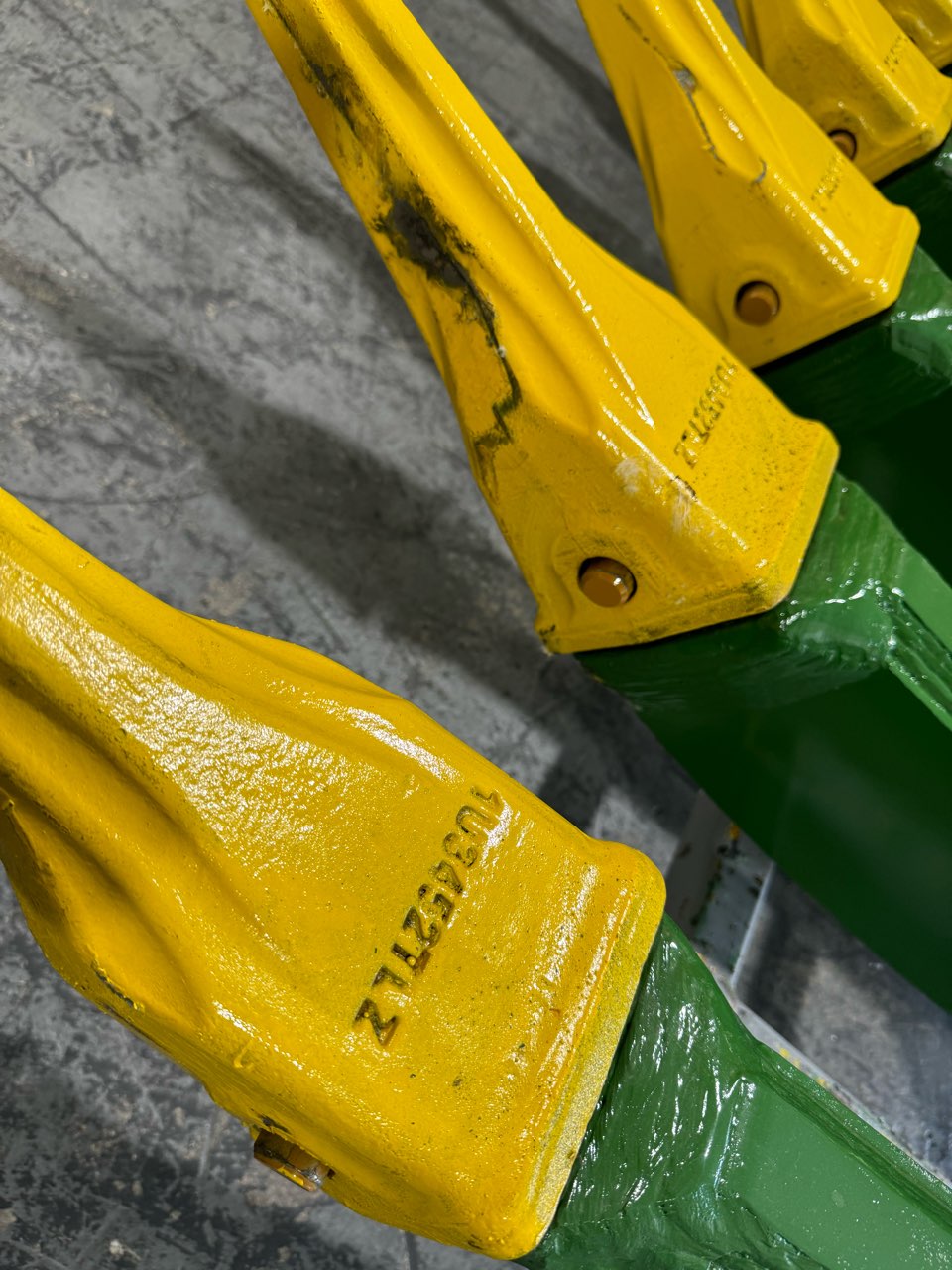

| Tooth Number | 1U3452TLZ |
| Tooth Pin Part Number | 1U1458 |
| Tooth Style | Single Tiger Tooth Style |
| Rake Width (in) | 64" |
| Case | 9050, 9050B, CX300D, CX300E, CX330, CX330LC, CX330B, CX350, CX350LC, CX350B, CX350DNLC, CX360, CX365E SR |
|---|---|
| Caterpillar | 324CL, 324D FM, 324D LR, 324DL, 324DL LR, 324DL ME, 324DLN, 324DLN VA, 324E, 324E LN, 324E LR, 324EL, 324EL LR, 324FL, 325, 325 D, 325 GC, 325B L, 325C L, 325D L, 325D LN, 325FL CR, 325L D Linkage, 326, 326D2, 326D2L, 326DL, 326F, 326FL, 326FLN, 326 GC, 328 D, 328DL CR, 329D, 329D2, 329D2L, 329D CS, 329DL, 329DL LR, 329DL ME, 329DL VA, 329DLN, 329DLN VA, 329E, 329EL LR, 329E LR, 329E LRE, 329EL, 329ELN, 329F, 329FL, 330, 330BL, 330C, 330C L, 330D, 330D2, 330D2 L, 330D L, 330DL DB, 330F L, 335FL CR, M325B |
| Daewoo | S290, S300LC-V, Solar 290LC-V, Solar 300LC-V |
| Doosan | DX255LC, DX255LC-3, DX255LC-5, DX260LC, DX260LC-9C, DX260 LCA, DX300 Dem, DX300LC, S290LC, S290LL, S300, S 280LC III, Solar 290LC-V, Solar 290LL-V, Solar 300LC-V, Solar 300LC-V SLR |
| Hyundai | 280LC, R250LC-7, R250LC-9, R280LC-3, R290LC-7, R290LC-9, R305LC-7, R305LC-9 |
| Kobelco | SK300, SK300 Mark IV, SK300LC, SK300LC Mark IV, SK320-VI, SK320LC-V1, SK320LC-VI, SK330-8, SK330-9, SK330-10, SK330-VI, SK330LC-8, SK330LC-9, SK330LC-10, SK330LC-V1, SK330LC-VI, SK330NLC-V1, SK330NLC-VI, SK350LC-8 |
| Link-Belt | 290 LX, 290 X2, 290 X2 LF, 300 X3, 300 X4, 330 LX, 330 X4, 350 X2, 355 X4S, LB400Q, LS330LX, LS4300Q |
| Sany | SY245, SY255, SY265, SY285, SY305, SY305H, SY315 |
| Sumitomo | SH300-2, SH300-3, SH300-6, SH300LC-2, SH300LC-5, SH330-3, SH330-5, SH330-6, SH330LC-3, SH330LC-5, SH330LC-6 |
| Volvo | EC240, EC240 LR, EC240 NLC, EC240B, EC240B LR, EC240B NLC, EC240C, EC240C L, EC240C LR, EC240C NL, EC250, EC250D, EC250DL, EC250E, EC250E LR, EC250EL, MX255LS, SE240LC-3 |
64" Root Rake for 23 - 36 Tons Excavators. 90mm Pins. Fits 23–36 t excavators, 90 mm pins, 400 mm ear to ear, 535 mm C-C. Included: pins. Price: $11,467.00, in stock, ships from Miami, FL the same business day when ordered before 2 PM ET.
Master the art of land clearing with the 64" Root Rake for 23 - 36 Tons Excavators. 90mm Pins. This robust Root Rake is your solution to the most challenging site preparation tasks in construction, landscaping, and forestry.
Elite Features:
• Optimized Tine Configuration: 7 heavy-duty tines, each 35 mm thick, for superior debris collection.
• Rugged Construction: Engineered from AR450 Steel to endure high-stress clearing environments.
• Deep Penetration: Achieves 52.60" ground penetration for effective root and rock removal.
• Broad Equipment Compatibility: Designed for use with a range of heavy excavation machinery.
• Efficient Debris Separation: Expertly spaced tines retain large debris while allowing soil to pass through.
• Professional Performance: Meets the stringent demands of commercial land clearing projects.
Transform your approach to challenging site preparations. The 64" Root Rake for 23 - 36 Tons Excavators. 90mm Pins isn't just a root rake – it's a game-changing tool that elevates your entire land clearing operation.
Are pins included?
Yes. Pins are included.
Will it fit my machine?
Tell us your machine, we confirm the fit before shipping. Pin-on attachments are sized from your machine's pin diameter, pin-to-pin distance and ear width. If your machine has a quick coupler, is a long-reach model or was modified, measure those three and send them to us before you order. If we confirmed the fit from your accurate machine and coupler details and our recommendation is wrong, report it within 14 calendar days of delivery: the JMA Fitment Money-Back Promise gives a full product refund, outbound and return freight covered, no restocking fee.
How fast does it ship?
In-stock items ship from Miami, FL the same business day when ordered before 2 PM ET; orders after 2 PM ET, on weekends or on holidays ship the next business day. Carrier estimates for the lower 48, in business days from the ship date: parcels of 50 lb or less 5–7 standard or 2–4 expedited; LTL freight over 50 lb 7–10 standard or 4–6 expedited, usually with a delivery appointment and a signature. Outside the lower 48, shipping is quoted. Inspect it before you sign and note any damage on the delivery receipt.
What does the warranty cover?
Defects in materials and workmanship are covered for 2 years or 2,000 operating hours, whichever comes first: year 1 parts and pre-approved labor, year 2 parts only. Lifetime warranty on structural welds. Teeth, cutting edges, pins and bushings are wear items and are not covered. Get our written approval before any repair.
Can I return it?
Yes, for standard products: a refund within 14 calendar days of delivery, or store credit within 30, if it is unused, uninstalled, free of soil and grease, and in its original packaging with all hardware. Get a Return Authorization Number (RAN) from us first. The buyer pays return shipping unless the item was defective, damaged or wrong because of our error, or you can drop it off at our warehouse, 8068 NW 29th St, Doral, FL, Monday to Friday, 9 AM to 5 PM, with your RAN. A restocking fee applies to non-defective refunds; store credit has no restocking fee. Original outbound shipping is not refunded on change-of-mind returns. Installed or used attachments can't be returned.
