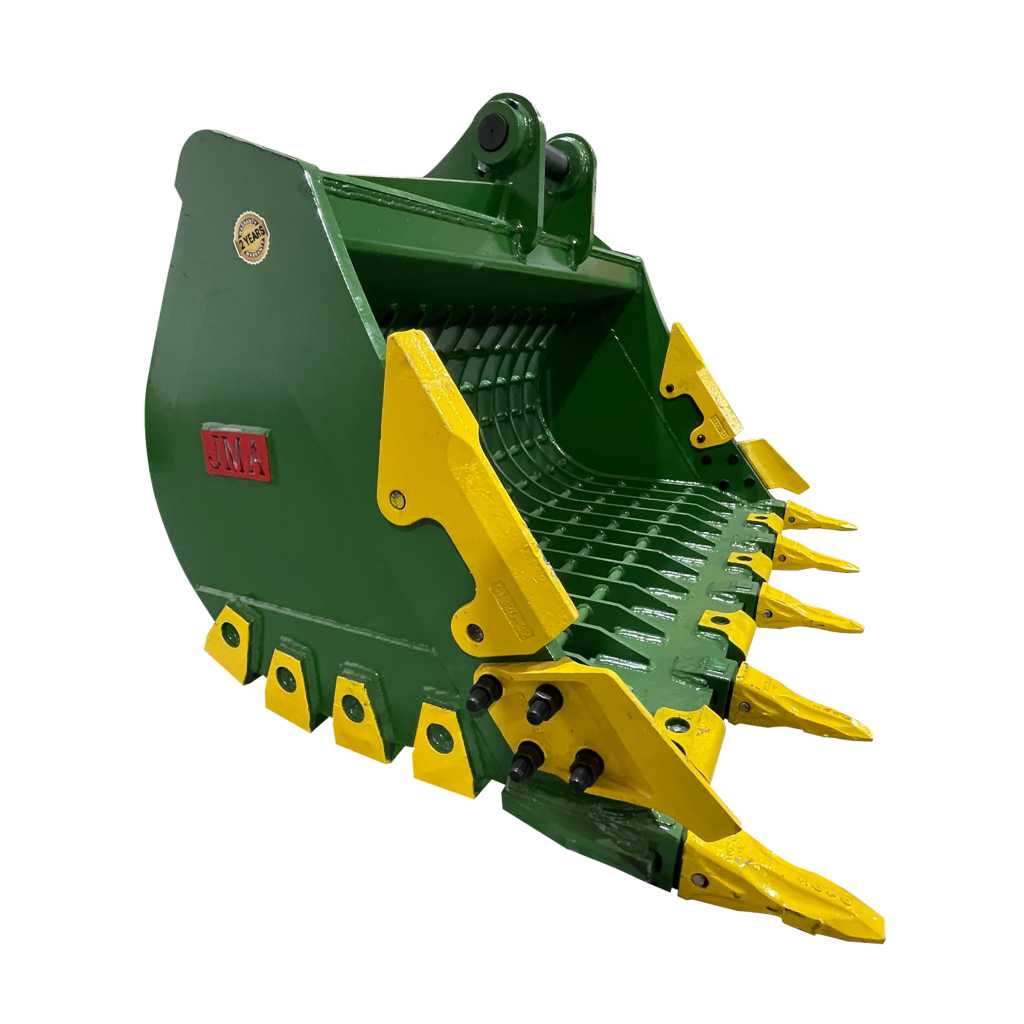

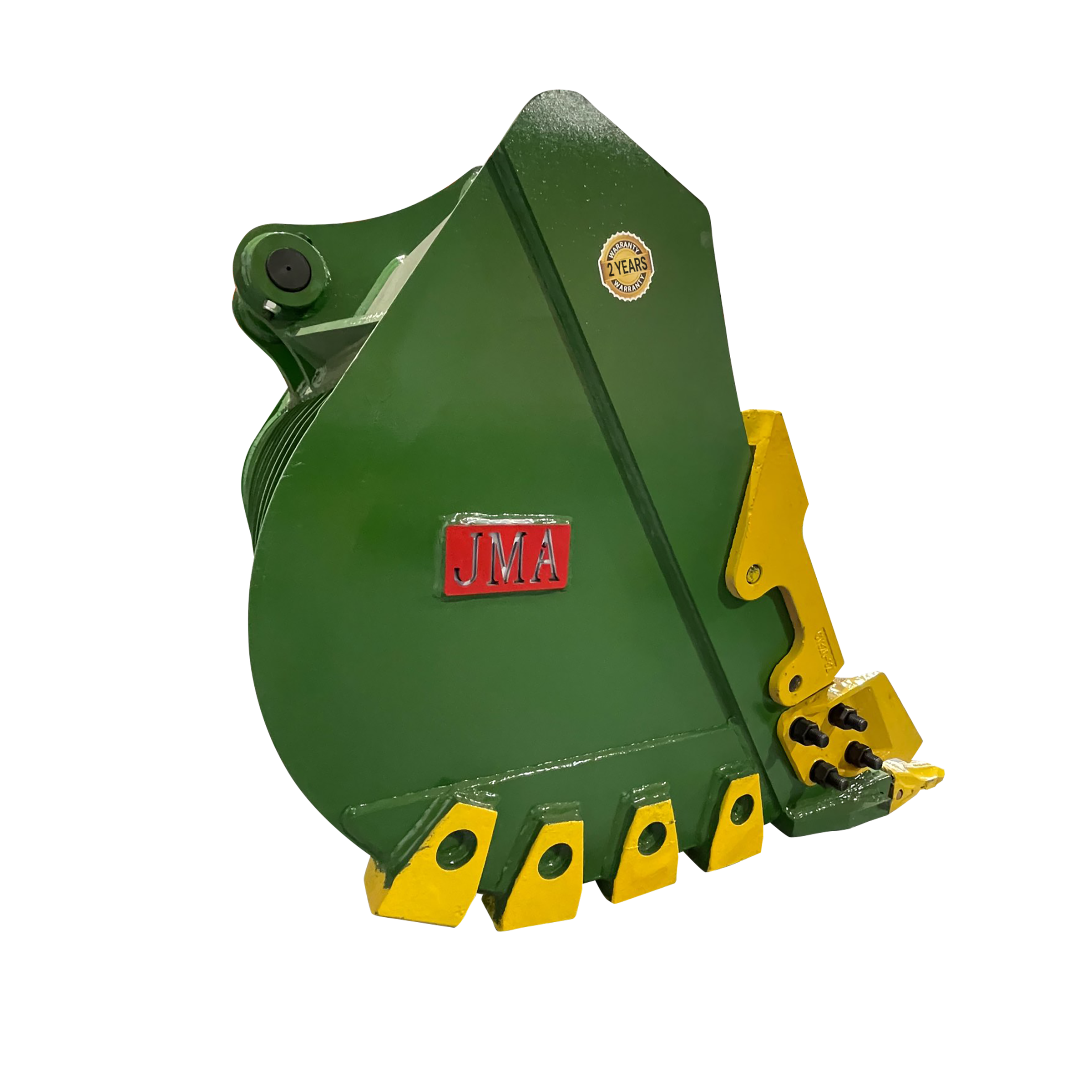

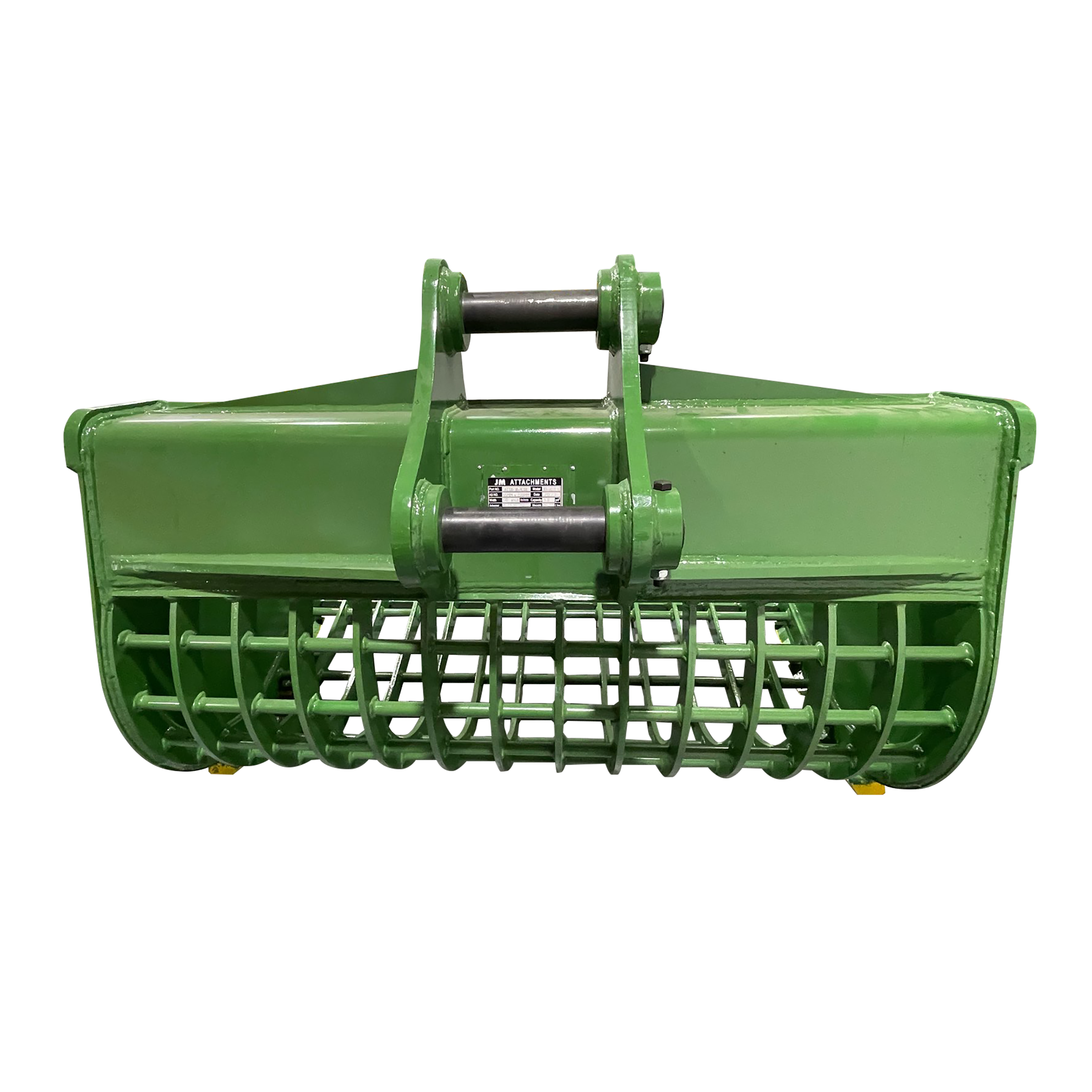

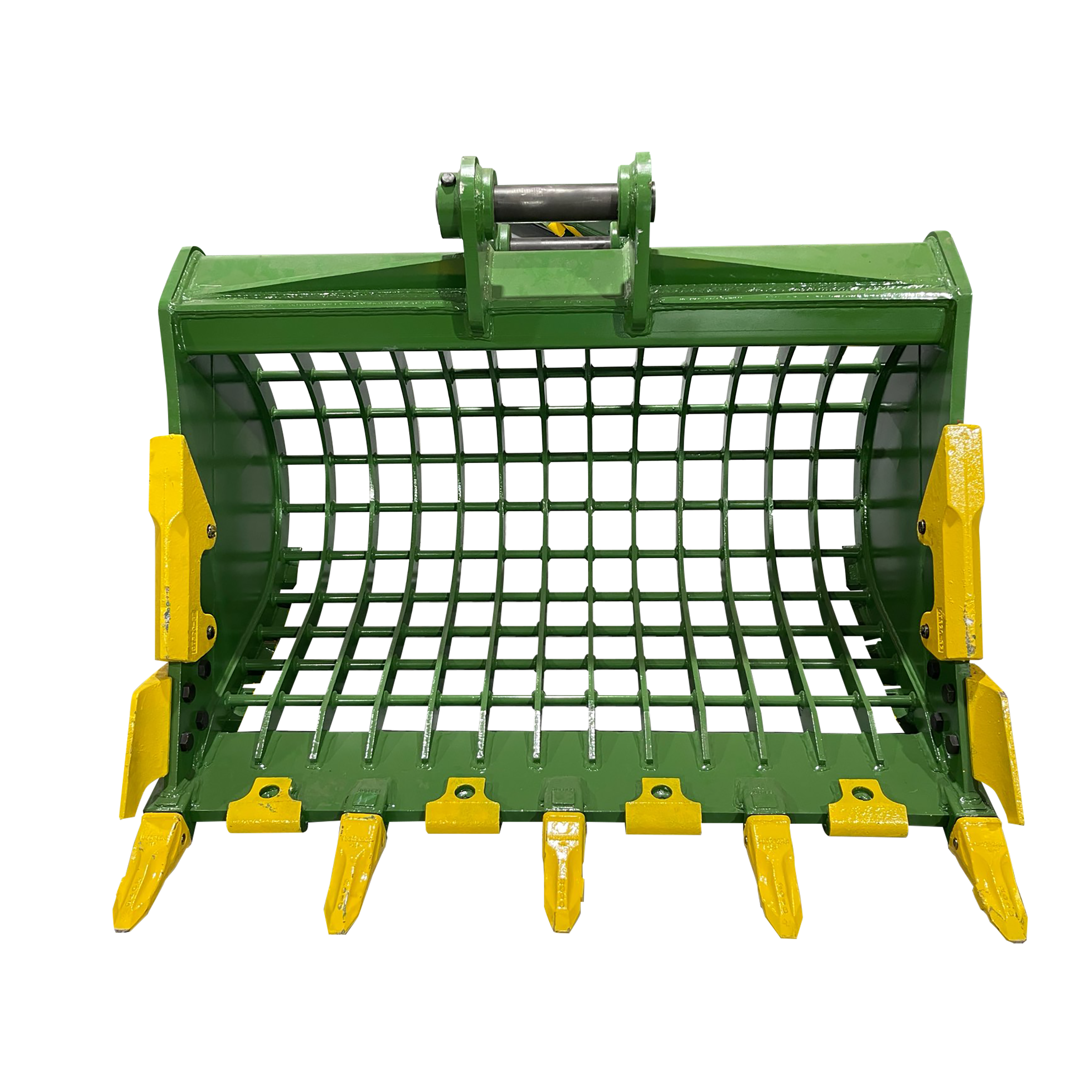

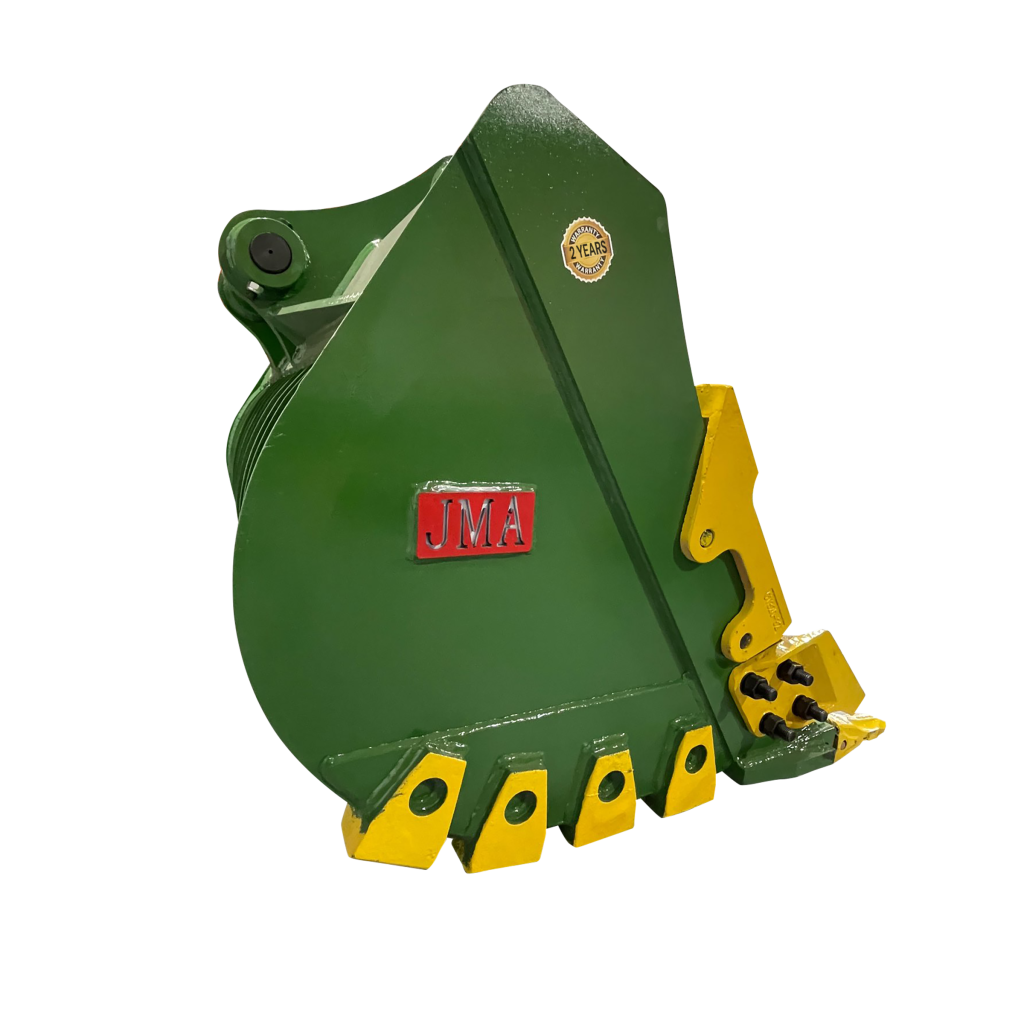

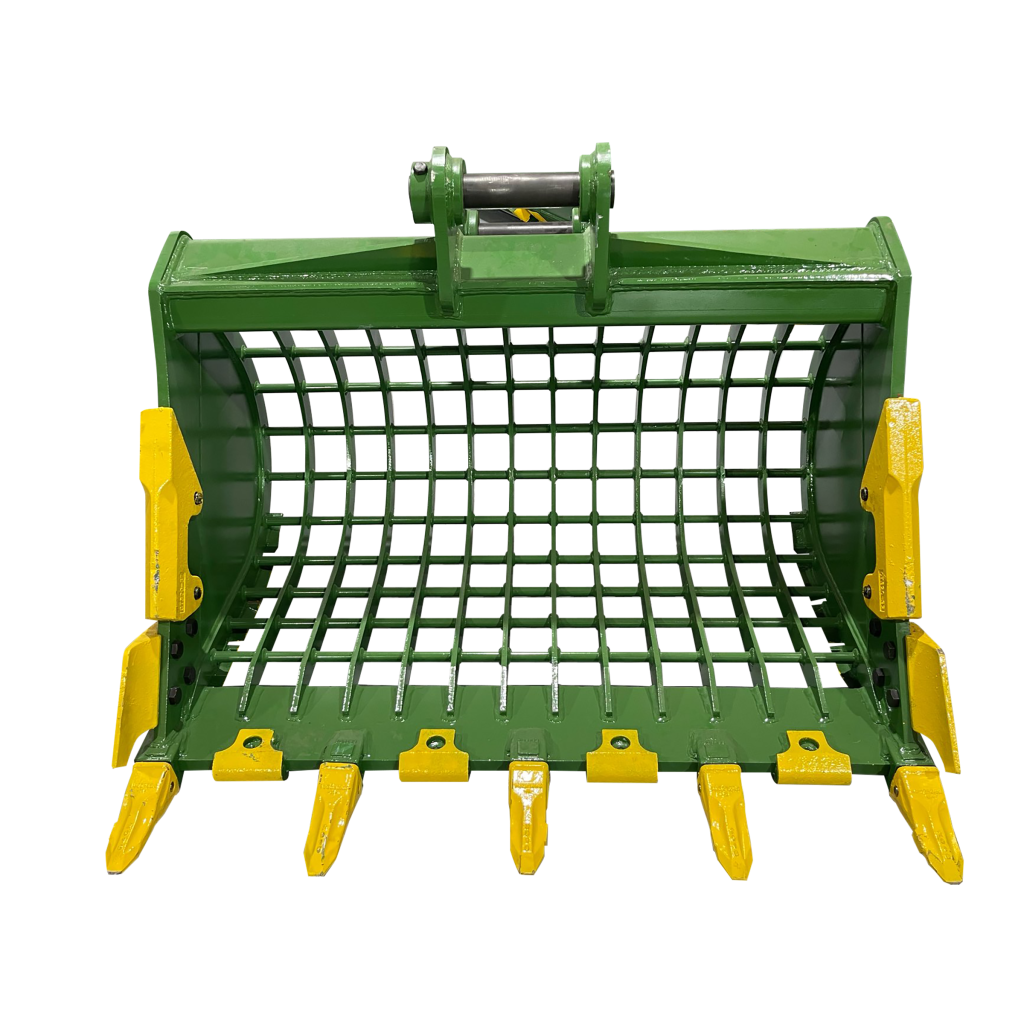

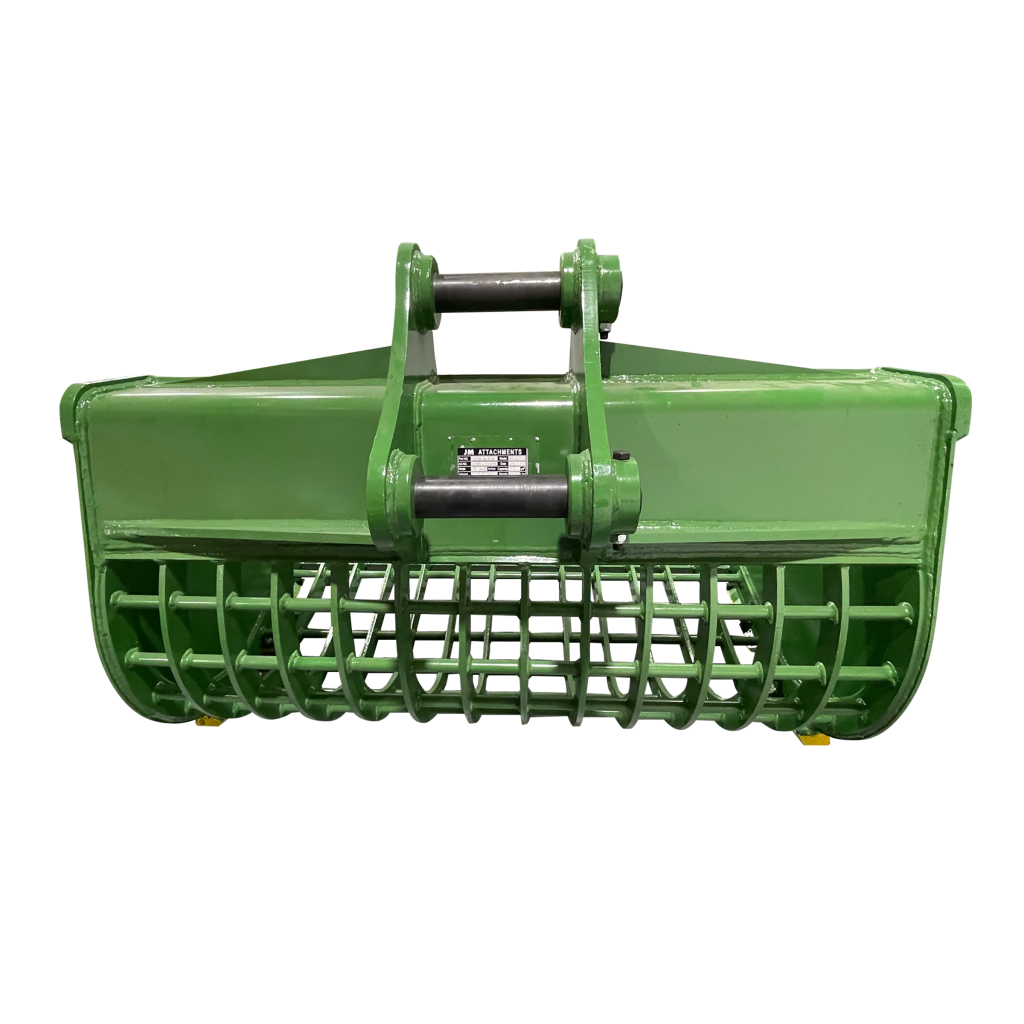

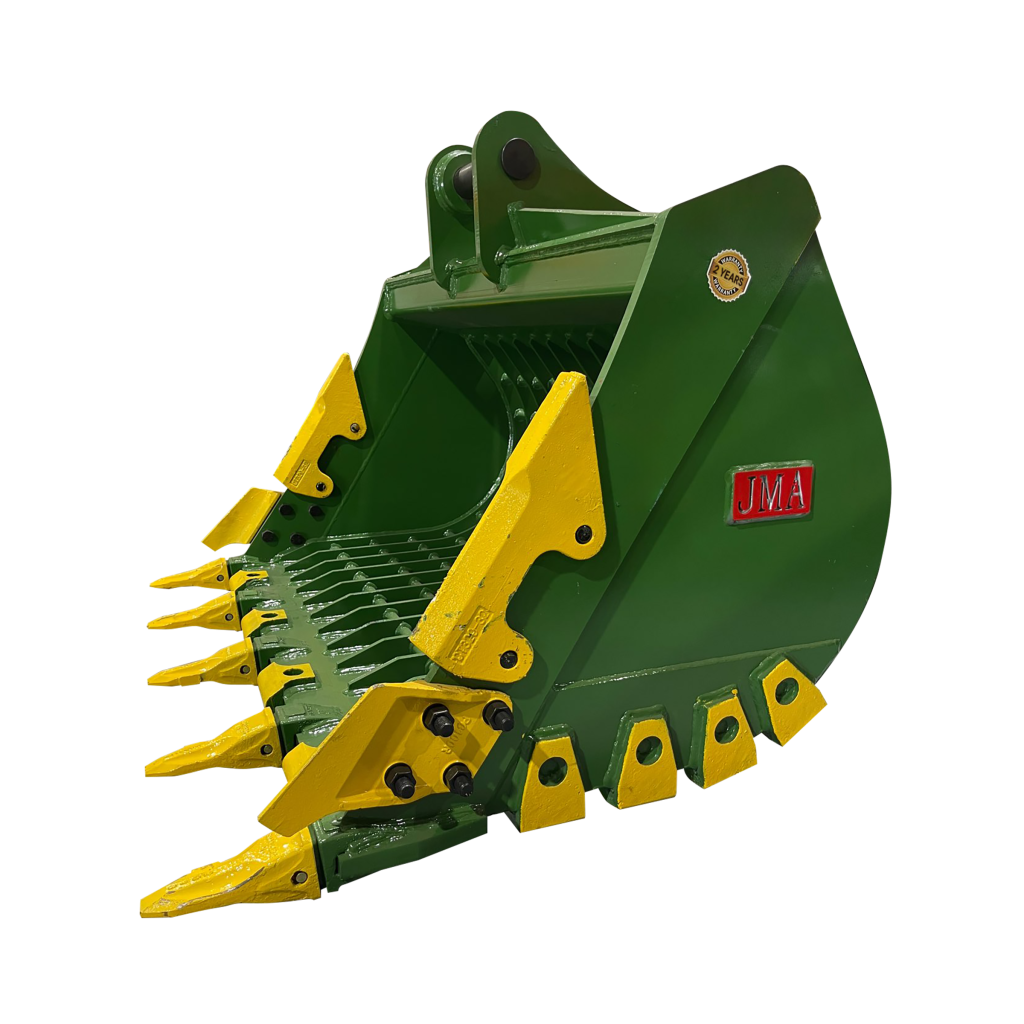

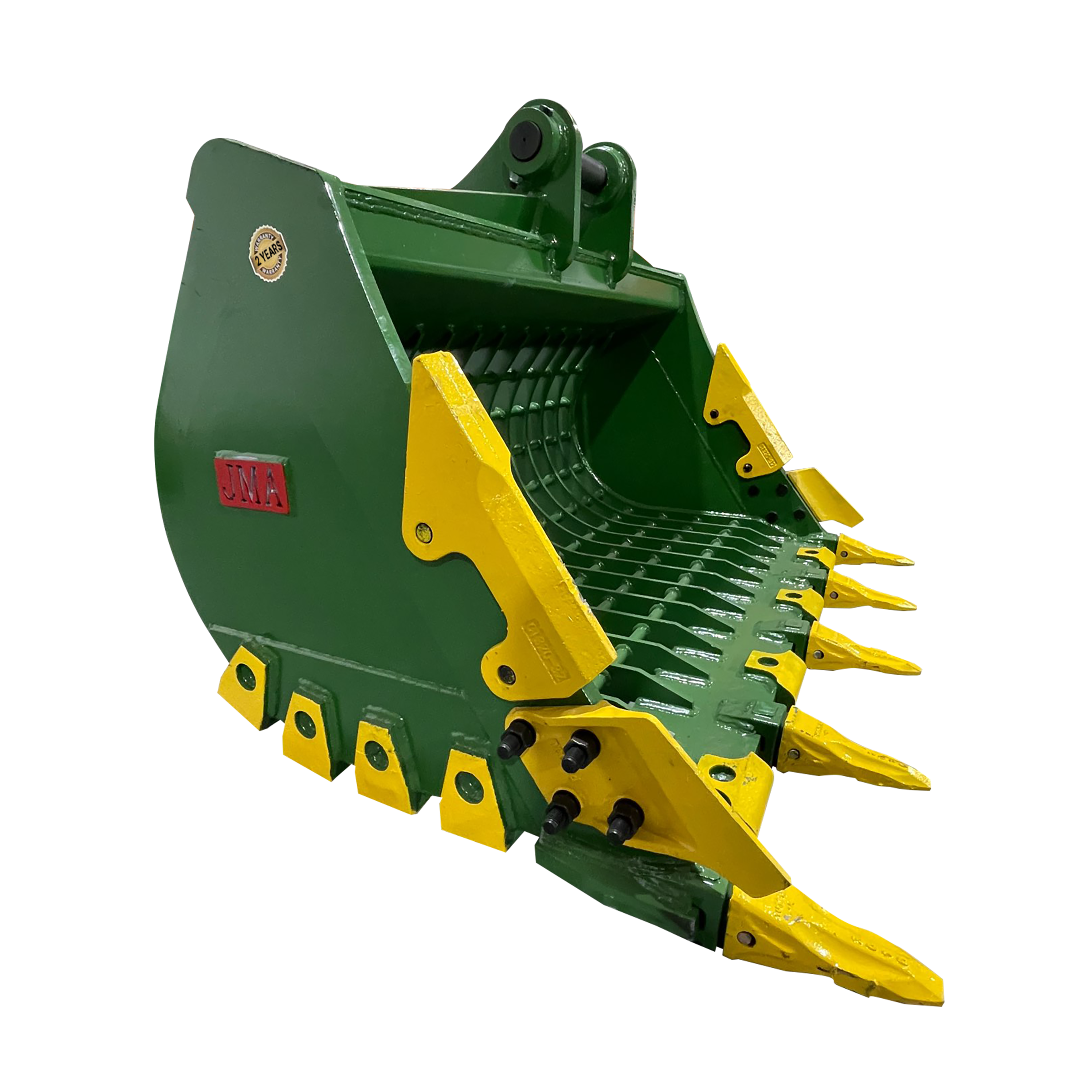

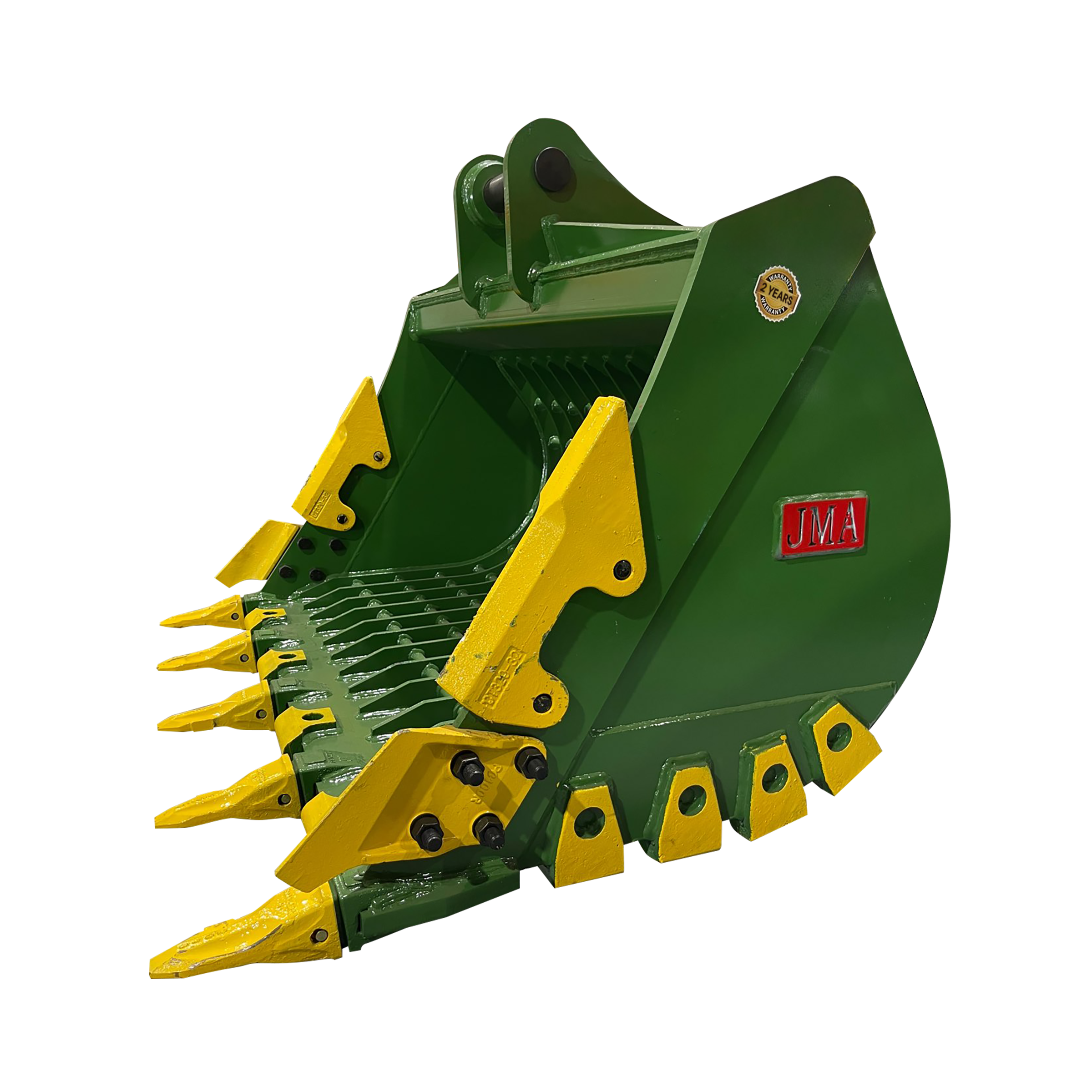

60″ Severe Duty Skeleton Bucket with Teeth for 11 – 15 Tons Excavators. 65mm Pins
- Fits 11–15 ton excavators · 65 mm pins · 220 mm ear to ear
- 60" wide (1524 mm) · 1.20 m³ capacity · AR400 steel body · 25 mm side walls
- Pins, 7 teeth (1U3252RC) included
- Ships from Miami, FL · US-based support
- 2-year warranty · lifetime warranty on structural welds
Bucket Size: 60"
Availability: Out of Stock
Frequently Bought Together
| Carrier Weight Class (tn) | 11 - 15 tons |
|---|---|
| Carrier Weight Class (lb) | 22,000 - 30,000 lb |
| Front Pin Diameter (mm) | 65 mm |
| Rear Pin Diameter (mm) | 65 mm |
| Front Ear to Ear (mm) | 220 mm |
| Rear Ear to Ear (mm) | 220 mm |
| Center to Center (mm) | 408 mm |
| Front Pin Length (mm) | 393 mm |
| Rear Pin Length (mm) | 393 mm |
| Bucket Depth (mm) | 655 mm |
| Capacity (m³) | 1.20 m³ |
| Material Type | AR400 Steel |
| Finish | Powder-Coated Green |
| Coupler Type | Pin On Style |
| Features | 3x Reinforced Side Plates |
| Bucket Side Wall Thickness (mm) | 25 mm |
| Bucket Width (mm) | 1524 mm |
| Inner Bucket Height (mm) | 950 mm |
| Bucket Size | 60" |
| Pin Size | 65mm |
| Product Weight (lbs) | 1631.42 lb |
| Tooth Number | 1U3252RC |
| Tooth Pin Part Number | 9J2258 |
| Caterpillar | 311, 311 V2, 311B, 311BL, 311C, 311C U, 311D, 311D LRR, 311D RR, 311F RR, 311FL, 311F LRR, 312, 312 V2, 312B, 312B LGP, 312BL, 312BLN, 312C, 312CL, 312C LR, 312D, 312D2, 312D2 GC, 312D2L, 312DL, 312E, 312EL, 312F, 312F L, 312F GC, 312 GC, 312L, 313, 313B, 313B CR, 313B SR, 313C, 313C CR, 313C SR, 313D, 313D2, 313D2 GC, 313D2 L, 313D CR, 313D SR, 313DL, 313E, 313F, 313F GC, 313FL, 313FLGC, 313 GC, 314, 314C, 314C CR, 314CL CR, 314CL LCR, 314D CR, 314DL CR, 314DL, 314E CR, 314EL CR, 314E SR, 314EL, 314F CR, 314GL CR, E120B |
|---|
60" Severe Duty Skeleton Bucket with Teeth for 11 - 15 Tons Excavators. 65mm Pins. Fits 11–15 ton excavators, 65 mm pins, 220 mm ear to ear. Included: pins, 7 teeth (1U3252RC). Price: $6,927.00, out of stock right now.
Master the art of material separation and severe-duty excavation with the 60" Severe Duty Skeleton Bucket with Teeth for 11 - 15 Tons Excavators. 65mm Pins. This robust 60" Severe Duty Skeleton Bucket with Teeth is your solution to the most challenging sorting and digging tasks in construction and land clearing operations.
Elite Features:
• Excavator Optimized: Designed for seamless integration with your heavy machinery.
• Uncompromising Durability: Built with AR400 Steel and 25 mm thick side walls to endure high-stress environments.
• Superior Sorting Capability: 12 heavy-duty tines, each 12 mm thick, for efficient material separation.
• Powerful Digging: 5 Teeth high-strength teeth for exceptional ground penetration.
• Generous Capacity: 1.20 m³ volume for handling large quantities of material.
• Performance Enhancements: 3x Reinforced Side Plates for extended service life and improved functionality.
Transform your approach to challenging material handling and excavation tasks. The 60" Severe Duty Skeleton Bucket with Teeth for 11 - 15 Tons Excavators. 65mm Pins isn't just a bucket – it's a game-changing tool that elevates your entire operation.
Are pins included?
Yes. Pins are included.
Will it fit my machine?
Tell us your machine, we confirm the fit before shipping. Pin-on attachments are sized from your machine's pin diameter, pin-to-pin distance and ear width. If your machine has a quick coupler, is a long-reach model or was modified, measure those three and send them to us before you order. If we confirmed the fit from your accurate machine and coupler details and our recommendation is wrong, report it within 14 calendar days of delivery: the JMA Fitment Money-Back Promise gives a full product refund, outbound and return freight covered, no restocking fee.
How fast does it ship?
In-stock items ship from Miami, FL the same business day when ordered before 2 PM ET; orders after 2 PM ET, on weekends or on holidays ship the next business day. Carrier estimates for the lower 48, in business days from the ship date: parcels of 50 lb or less 5–7 standard or 2–4 expedited; LTL freight over 50 lb 7–10 standard or 4–6 expedited, usually with a delivery appointment and a signature. Outside the lower 48, shipping is quoted. Inspect it before you sign and note any damage on the delivery receipt.
What does the warranty cover?
Defects in materials and workmanship are covered for 2 years or 2,000 operating hours, whichever comes first: year 1 parts and pre-approved labor, year 2 parts only. Lifetime warranty on structural welds. Teeth, cutting edges, pins and bushings are wear items and are not covered. Get our written approval before any repair.
Can I return it?
Yes, for standard products: a refund within 14 calendar days of delivery, or store credit within 30, if it is unused, uninstalled, free of soil and grease, and in its original packaging with all hardware. Get a Return Authorization Number (RAN) from us first. The buyer pays return shipping unless the item was defective, damaged or wrong because of our error, or you can drop it off at our warehouse, 8068 NW 29th St, Doral, FL, Monday to Friday, 9 AM to 5 PM, with your RAN. A restocking fee applies to non-defective refunds; store credit has no restocking fee. Original outbound shipping is not refunded on change-of-mind returns. Installed or used attachments can't be returned.
