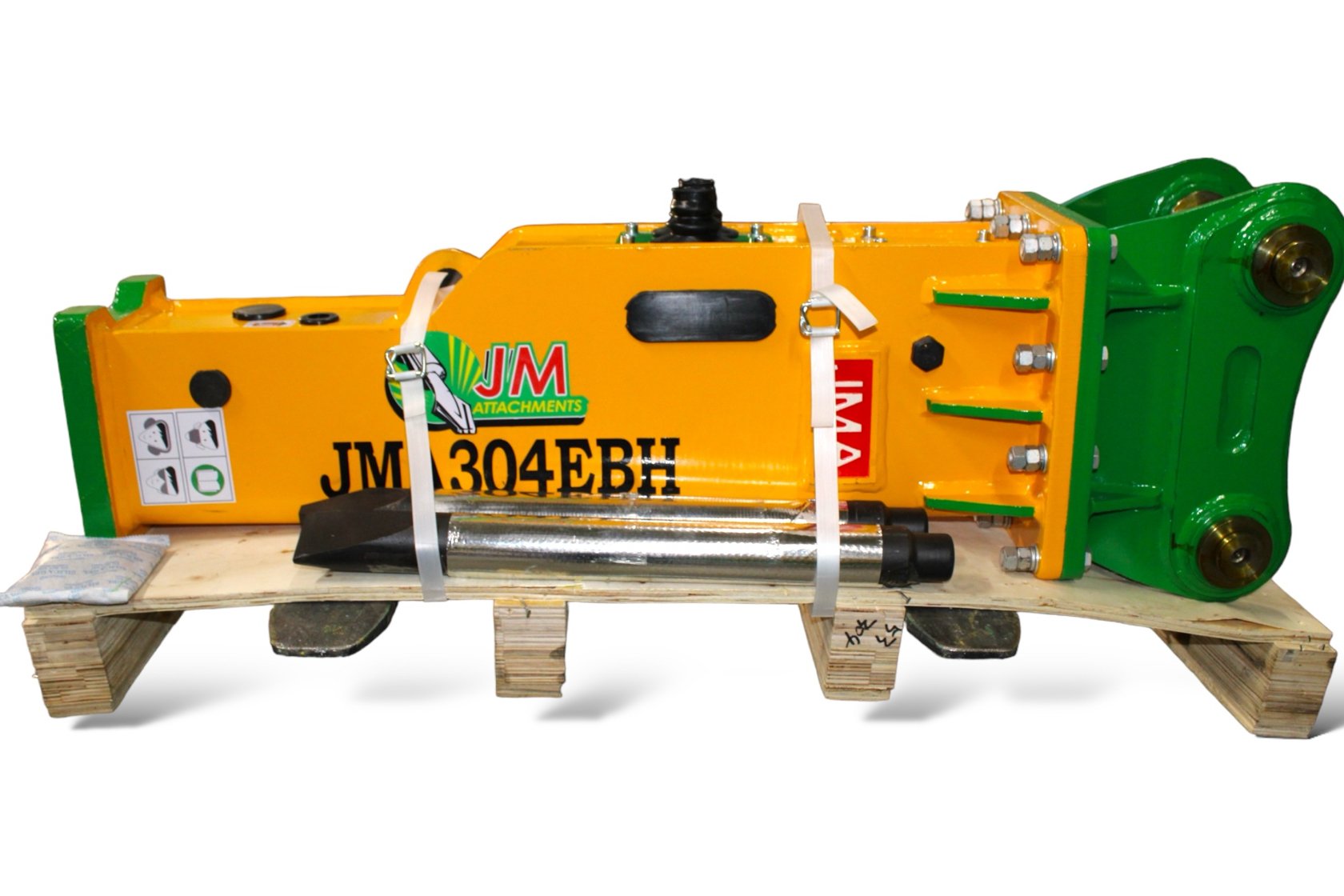

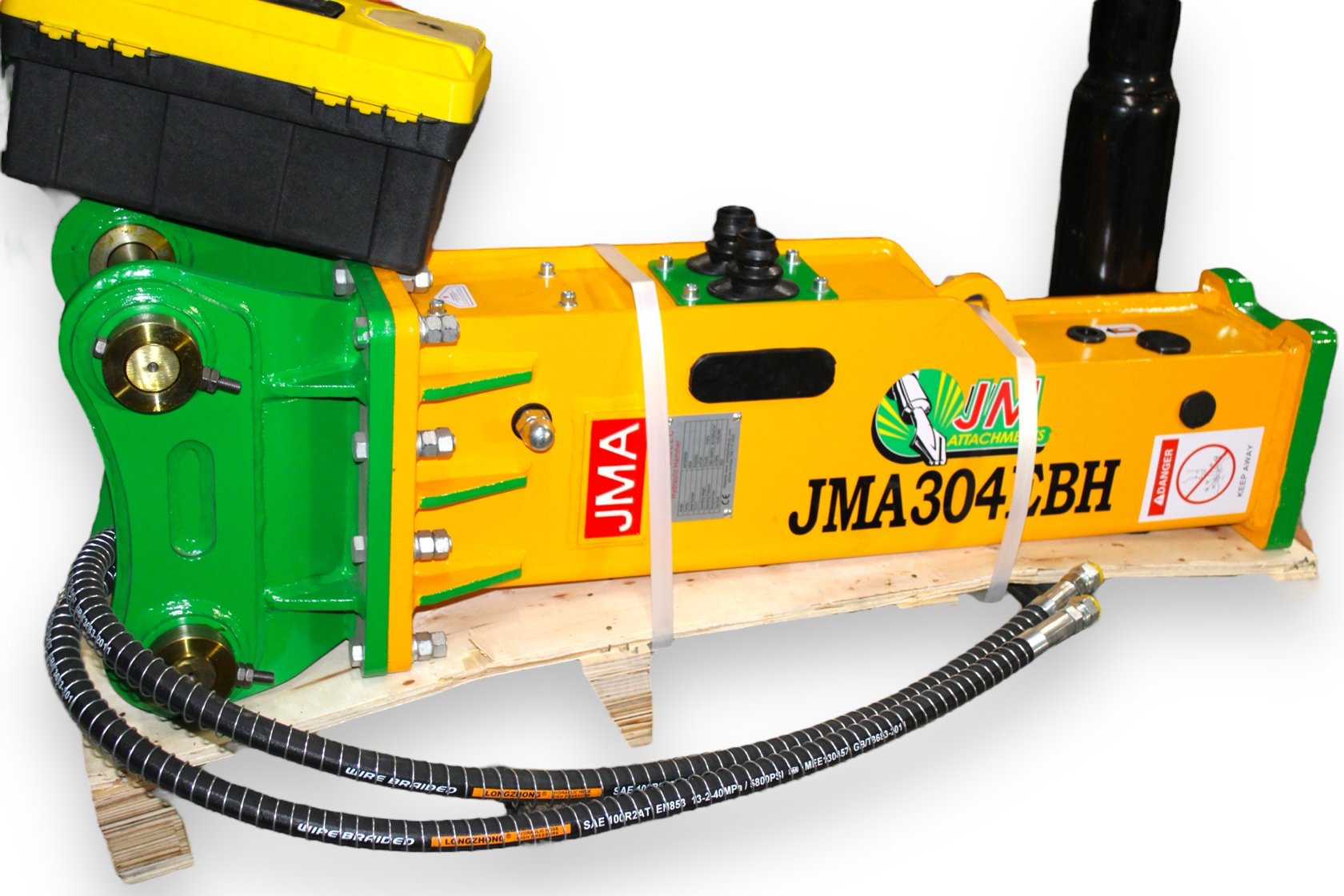

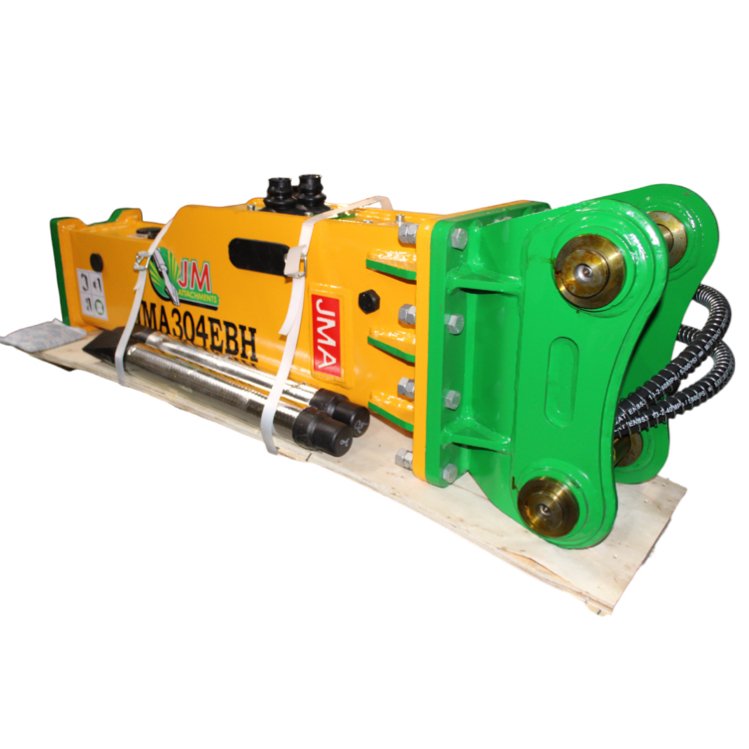

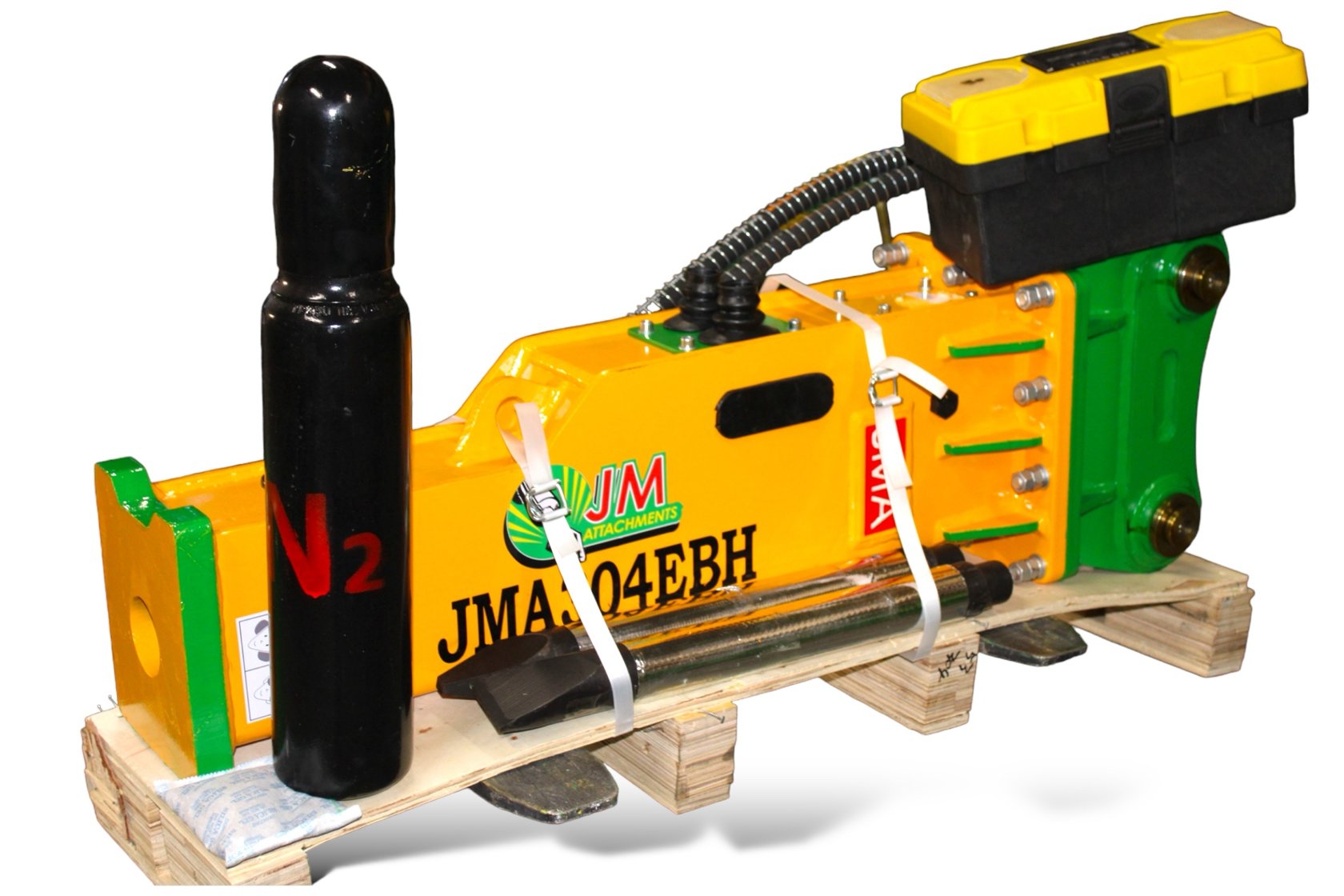

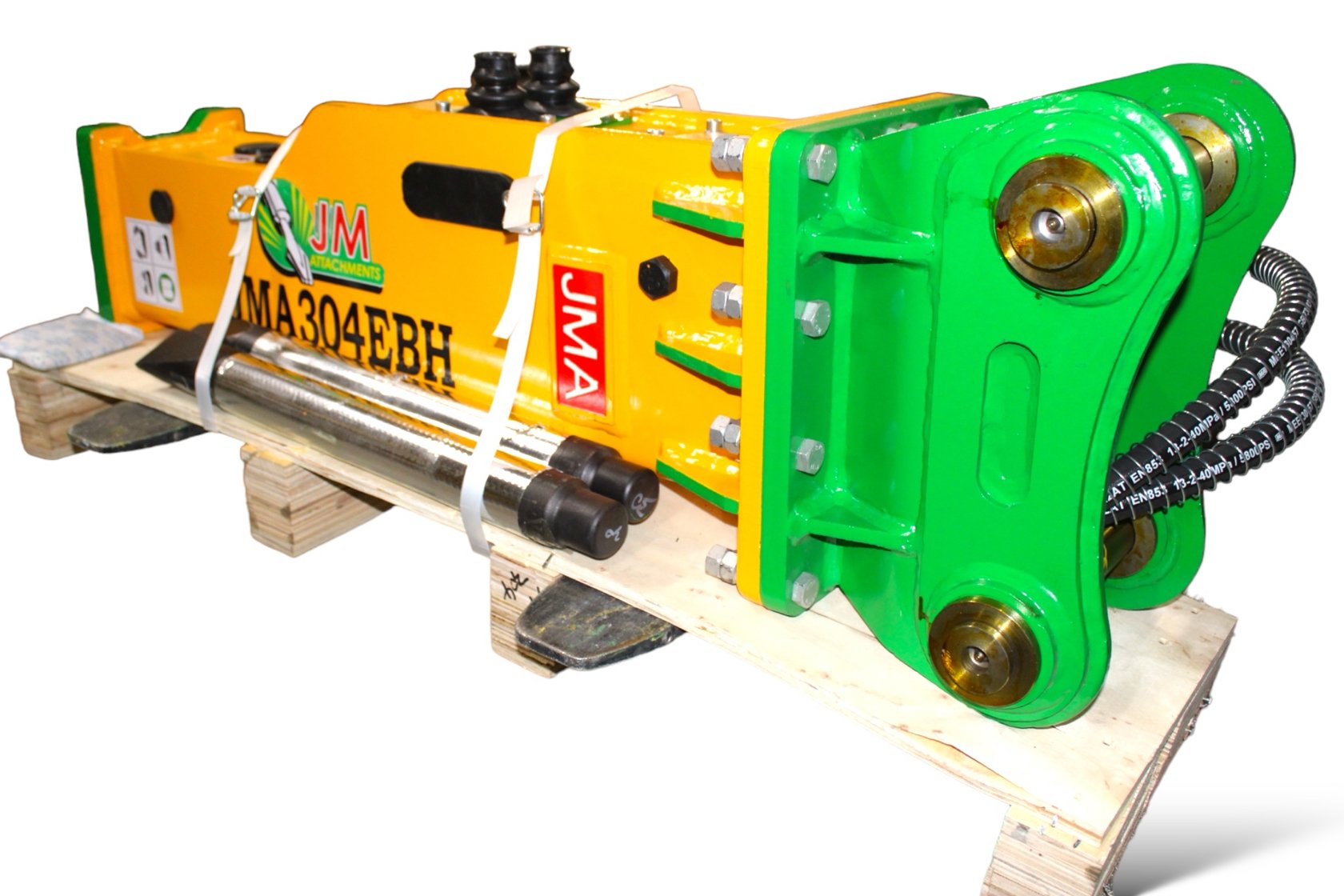

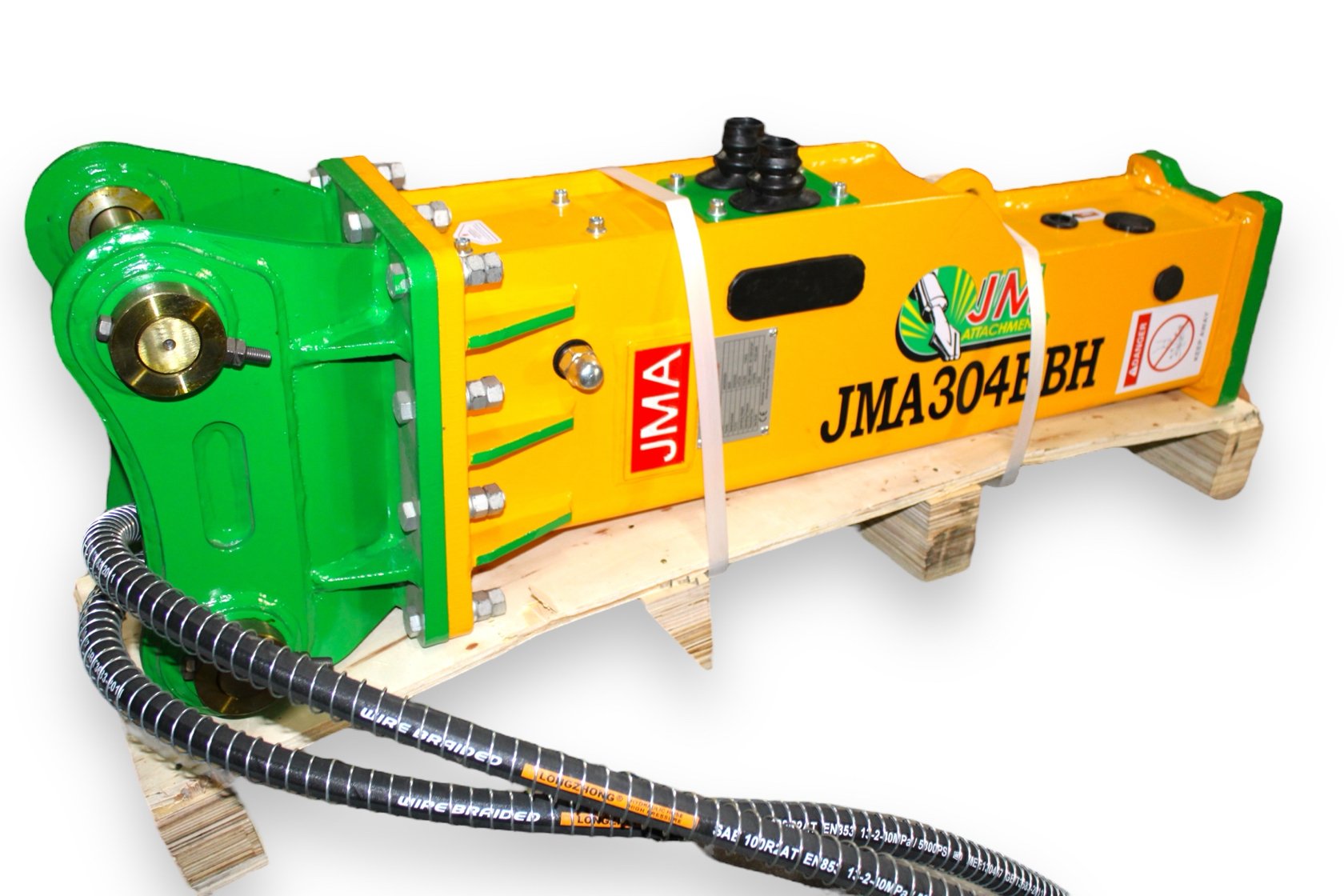

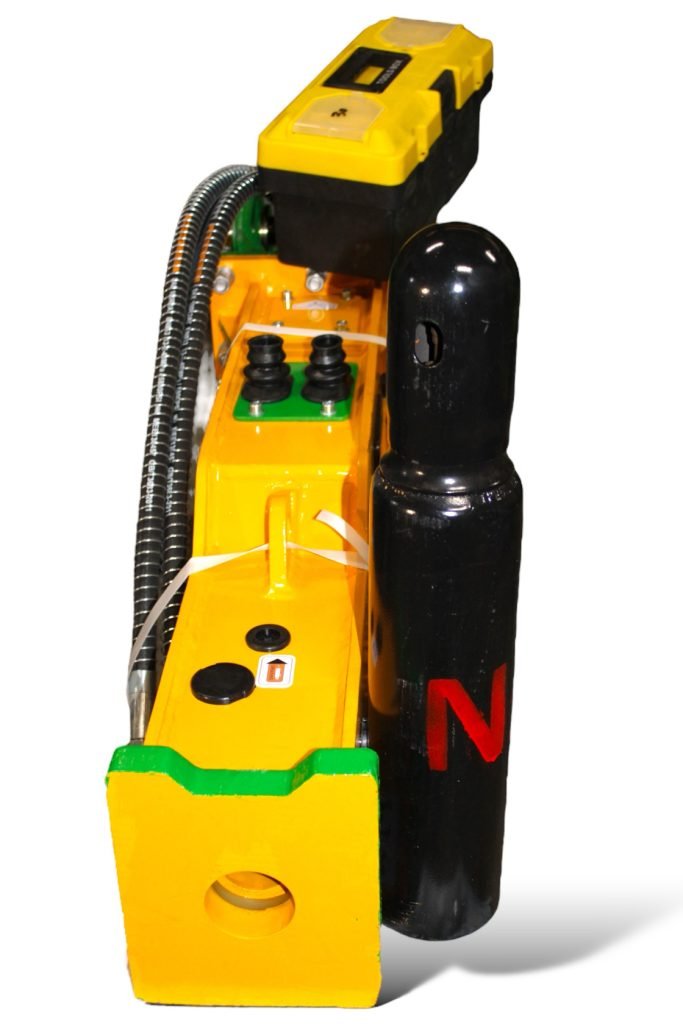

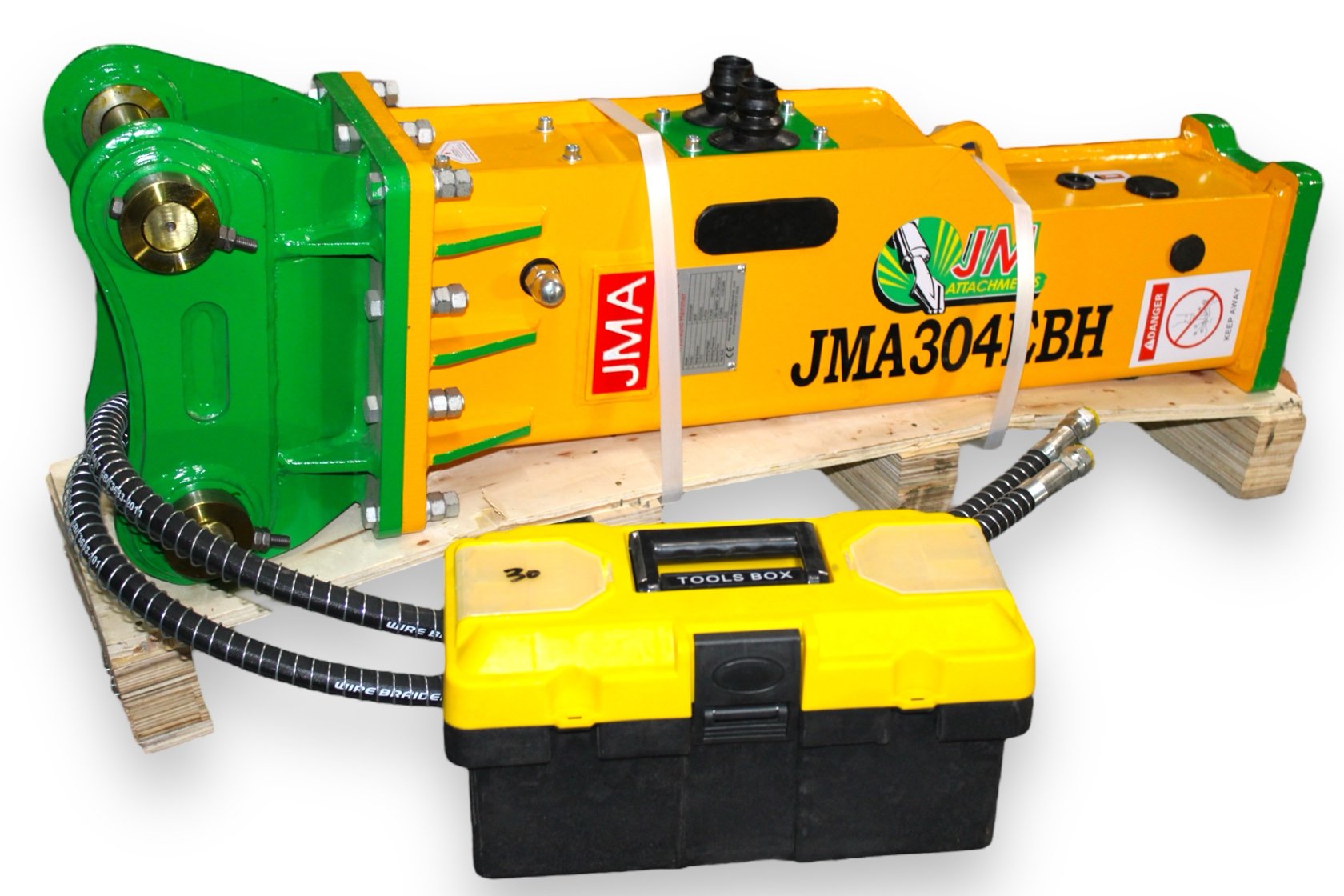

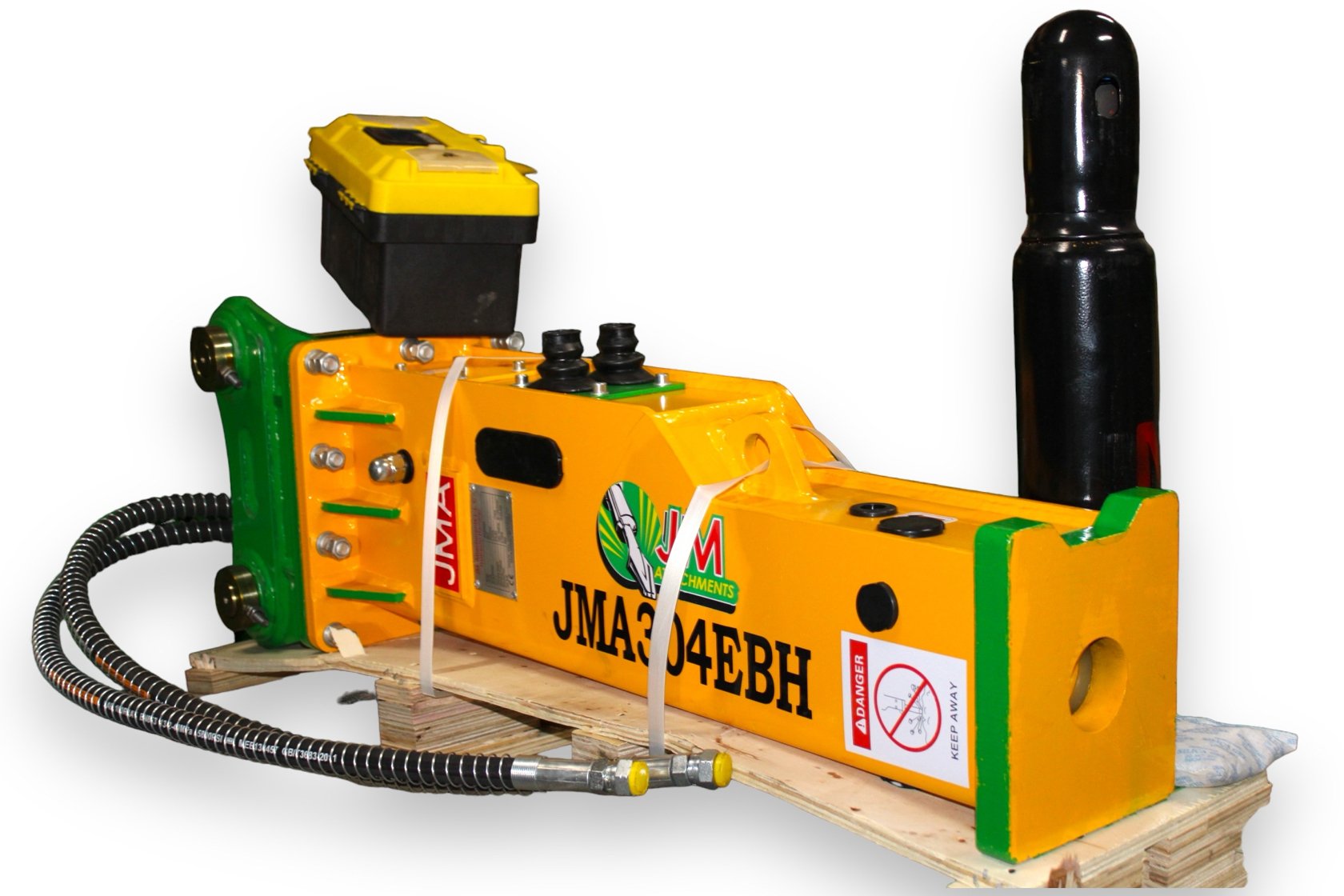

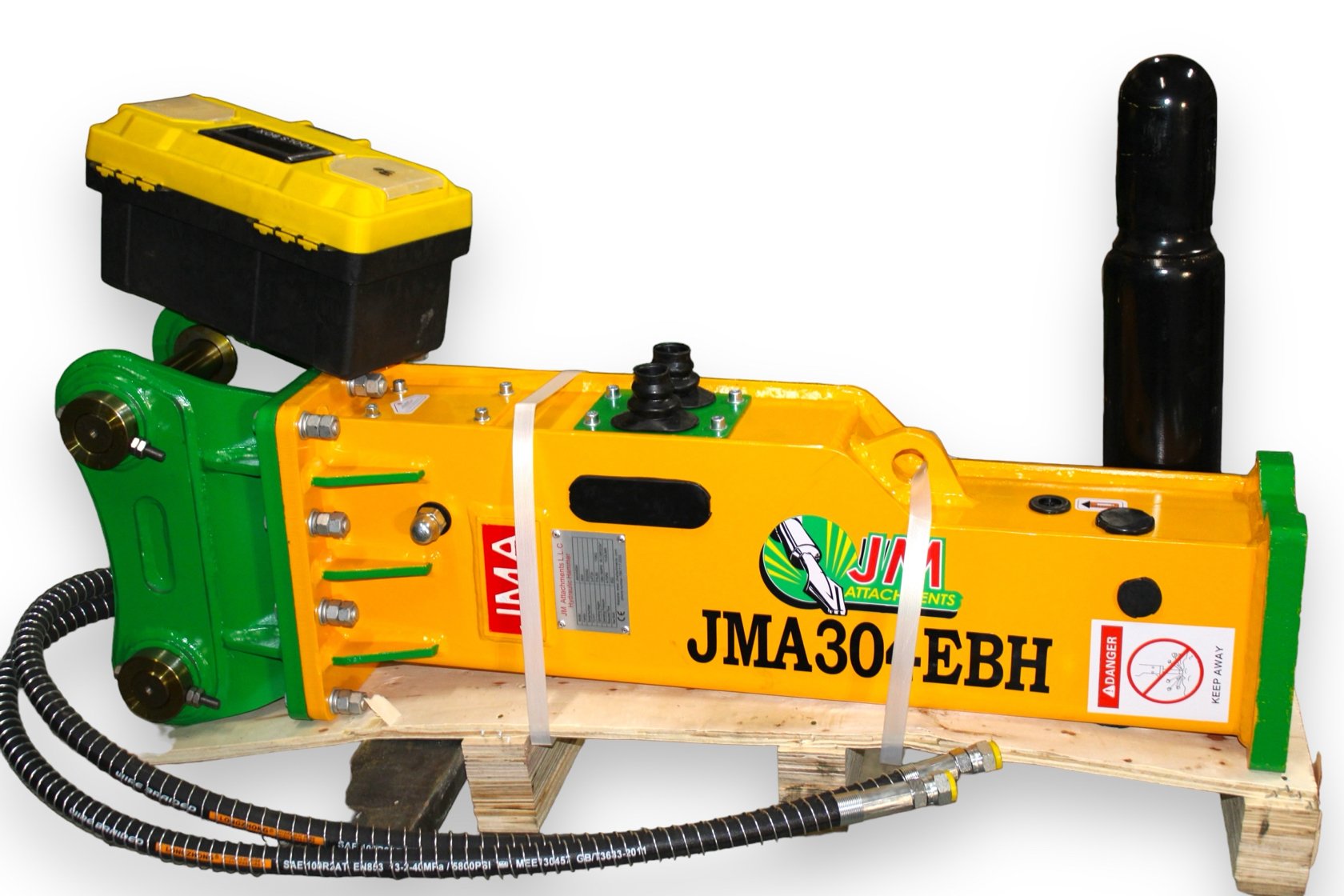

611 Joules Hydraulic Hammer For 2.5 – 4.5 Tons Mini Excavators and Backhoe Loaders. 40mm Pins
- Fits 2.5–4.5 ton mini excavators and backhoe loaders · 40 mm pins
- 611 J · 600–1,100 BPM · 6.6–13.2 GPM at 1,280–1,707 psi · AR400 steel · 547 lb working weight
- Box: mount with pins, 2 hoses, moil + wedge chisel, tool box, N2 bottle + gauges, seal kit
- Ships from Miami, FL the same business day when ordered before 2 PM ET · US-based support
- 24-month warranty · coverage varies by component
Pin Size: 40mm
Frequently Bought Together
| Chisel Bit Length (mm) | 600 mm |
|---|---|
| Material Type | AR400 Steel |
| Finish | Powder-Coated Green |
| Energy Class (J) | 611 Joules |
| Carrier Weight Class (lb) | 6,000 - 10,000 lb |
| Center to Center | 260 mm |
| Chisel Bit Diameter (mm) | 53 mm |
| Hammer Type | Hydraulic Hammer |
| Impact Frequency (bpm) | 600 - 1,100 bpm |
| Oil Flow (GPM) | 6.6 - 13.2 gpm |
| Operating Pressure (psi) | 1,280 - 1,707 psi |
| Operating Pressure (kg/cm²) | 90 - 120 kg/cm² |
| Pin Size | 40mm |
| Front Pin Diameter (mm) | 40 mm |
| Rear Pin Diameter (mm) | 40 mm |
| Front Ear to Ear (mm) | 156 mm |
| Carrier Weight Class (tn) | 2.5 - 4.5 tons |
| Oil Flow (LPM) | 25 - 50 lpm |
| Hydraulic Hoses Diameter | 1/2" |
| Working Weight (kg) | 248 kg |
| Working Weight (lb) | 547 lb |
| Airman | AX38U-5A, AX40, AX40U, AX40U-4, AX40U-5F |
|---|---|
| Bobcat | E37, E38, E40, E42, E42M, E42R2, E48, E48R2, X335 |
| JCB | MIDI CX, 260, 210 II, 210SU, 45Z, 45Z-1, 8040, 8040 ZTS |
| Nagano | NS45, NS45-3 |
| Case | 530CK, 530D, 530E, 530TC, 580, CX36B, CX37, CX40, CX40B |
| Caterpillar | 303.5 CR, 303.5C, 303.5C CR, 303.5D, 303.5D2 CR, 303.5D CR, 303.5E, 303.5E2 CR, 303.5E CR, 304, 304 CR, 304.5, 304C CR, 304D CR, 304E2, 304E2 CR |
| Develon | DX35Z-7, DX42-7 |
| Doosan | DX35-5, DX35Z, DX35Z-7, DX42, DX42-5 |
| Hanix | H45 |
| Hitachi | EX40, EX40-2, EX40U, EX40UR, EX40UR-2, EX40UR-2C, EX40UR-3, EX45, ZX38U-2, ZX38U-2 -3, ZX38U-3, ZX38U-3F, ZX38U-5A, ZX40U, ZX40U-2, ZX40U-3, ZX40U-5A |
| Hyundai | R35Z-9, R35Z-9A |
| Ihi | IS40, IS40-JX, IS45 |
| John Deere | 35CT, 35D, 35D ZTS, 35G, 35P |
| Kobelco | SK35SR-2, SK35SR-3, SK35SR-4, SK35SR-5, SK35SR-6, SK35SR-6E, SK40SR, SK40SR-1, SK40SR-2, SK040SR-3, SK40SR-3, SK040SR-5, SK40SR-5, SK042 |
| Komatsu | PC40-7, PC40MR-3, PC40MRC-2, PC40MRX, PC40MRX-1, PC40R-8 |
| Kubota | K045, KX040, KX040-4, KX121, KX121-2, KX121-3, KX121-4, KX121-5, U35-4, U40 |
| Link-Belt | MM40 |
| Liugong | 9035E, 9035EZTS, 9045D, 9045E |
| New Holland | E37 |
| Sany | SY35, SY35C, SY35U |
| Sumitomo | SWE40U, SWE45 |
| Takeuchi | TB138, TB138FR, TB240 |
| Terex | TC37 |
| Volvo | ECR38, ECR40 |
| Wacker Neuson | 38Z, 38Z3, 3503, 3703, EZ36, EZ38 |
| Yanmar | B37, SV40, VIO38, VIO40, VIO40-2, VIO40-3, VIO40-7 |
611 Joules Hydraulic Hammer For 2.5 - 4.5 Tons Mini Excavators and Backhoe Loaders. 40mm Pins. Fits 2.5–4.5 ton mini excavators and backhoe loaders, 40 mm pins. Included: mount with pins, 2 hoses, moil + wedge chisel, tool box, N2 bottle + gauges, seal kit. Price: $5,327.00, in stock, ships from Miami, FL the same business day when ordered before 2 PM ET.
Unleash the power of efficient demolition with the 611 Joules Hydraulic Hammer For 2.5 - 4.5 Tons Mini Excavators and Backhoe Loaders. 40mm Pins. Precision-engineered for Excavators, this hydraulic hammer is the ultimate tool for conquering the most demanding breaking tasks.
Unrivaled Capabilities:
• Exceptional Breaking Power: 611 Joules energy class ensures superior performance on tough materials.
• High-Frequency Impact: 600 - 1,000 bpm strikes per minute for rapid material processing.
• Durability: AR400 Steel construction for long life in harsh working conditions.
• Operator-Friendly Design: Engineered to minimize recoil and enhance safety.
• Complete Package: Includes 2 Hydraulic Hoses,1 Moil Rock Chisel Bit, 1 Wedge Rock Chisel Bit, Tool Box, Nitrogen Gauge, Nitrogen Bottle, Repair Seal Kit, 2 Greasable Pins, 4 Bushings for immediate deployment and optimal performance.
Take your demolition projects to the next level. With the 611 Joules Hydraulic Hammer For 2.5 - 4.5 Tons Mini Excavators and Backhoe Loaders. 40mm Pins, you're investing in a tool that combines raw power with intelligent design to deliver unmatched results in any breaking application.
What comes in the box?
One mount (head) for your machine with pins, 2 hydraulic hoses, a moil chisel and a wedge chisel, a tool box, a nitrogen bottle with gauges and a repair seal kit.
Will it fit my machine?
Tell us your machine, we confirm the fit before shipping. Pin-on attachments are sized from your machine's pin diameter, pin-to-pin distance and ear width. If your machine has a quick coupler, is a long-reach model or was modified, measure those three and send them to us before you order. If we confirmed the fit from your accurate machine and coupler details and our recommendation is wrong, report it within 14 calendar days of delivery: the JMA Fitment Money-Back Promise gives a full product refund, outbound and return freight covered, no restocking fee.
How fast does it ship?
In-stock items ship from Miami, FL the same business day when ordered before 2 PM ET; orders after 2 PM ET, on weekends or on holidays ship the next business day. Carrier estimates for the lower 48, in business days from the ship date: parcels of 50 lb or less 5–7 standard or 2–4 expedited; LTL freight over 50 lb 7–10 standard or 4–6 expedited, usually with a delivery appointment and a signature. Outside the lower 48, shipping is quoted. Inspect it before you sign and note any damage on the delivery receipt.
What does the warranty cover?
JMA Attachments hydraulic hammers carry a 24-month warranty; coverage varies by component and hammer class, and the Warranty page lists each part. Through bolts, bushings and rod pins: 2 months. Seal kits and diaphragm: 3 months. Chisels follow the manufacturer's standard. Get our written approval before any repair.
Can I return it?
Yes, for standard products: a refund within 14 calendar days of delivery, or store credit within 30, if it is unused, uninstalled, free of soil and grease, and in its original packaging with all hardware. Get a Return Authorization Number (RAN) from us first. The buyer pays return shipping unless the item was defective, damaged or wrong because of our error, or you can drop it off at our warehouse, 8068 NW 29th St, Doral, FL, Monday to Friday, 9 AM to 5 PM, with your RAN. A restocking fee applies to non-defective refunds; store credit has no restocking fee. Original outbound shipping is not refunded on change-of-mind returns. Installed or used attachments can't be returned.
