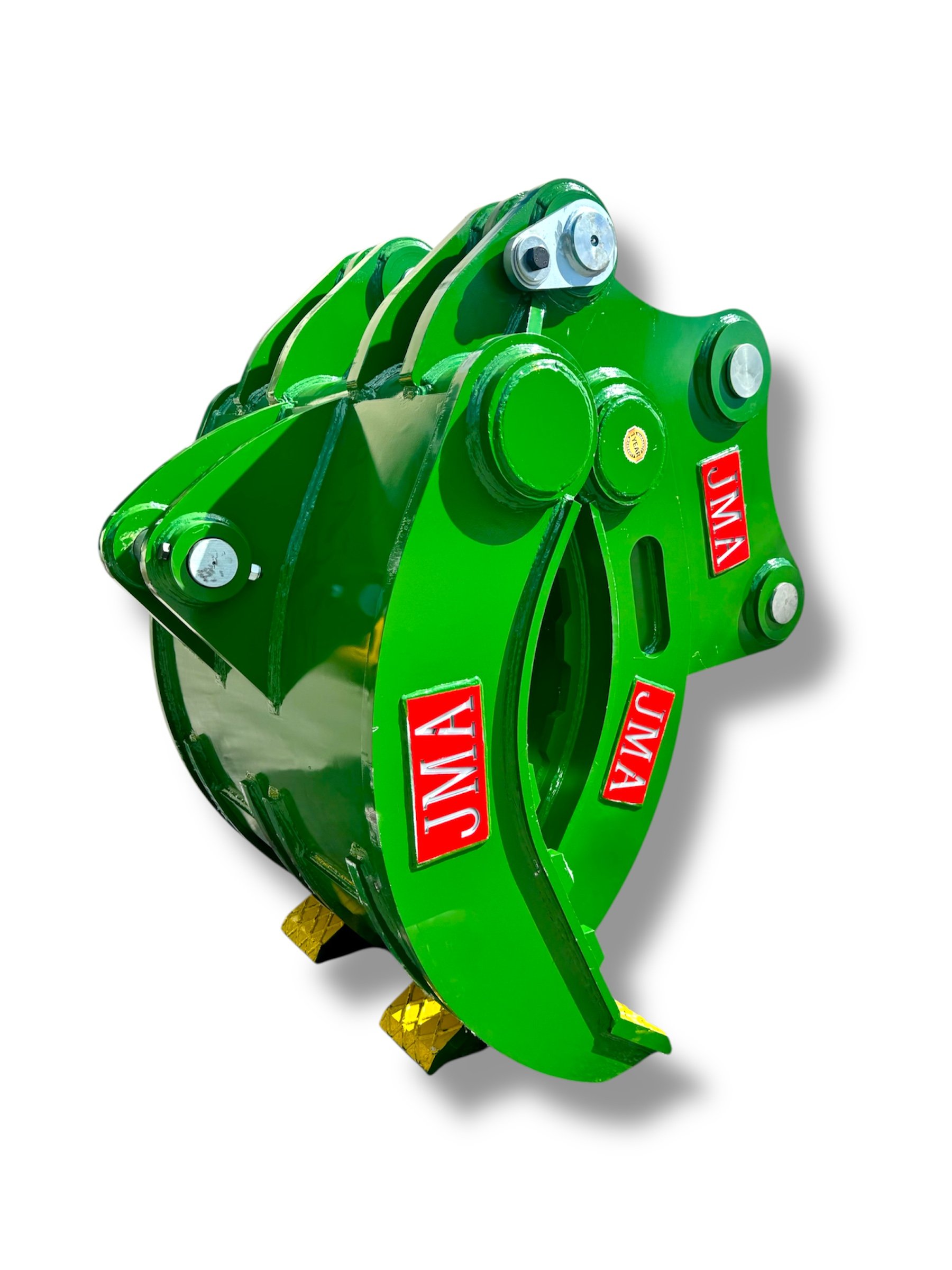

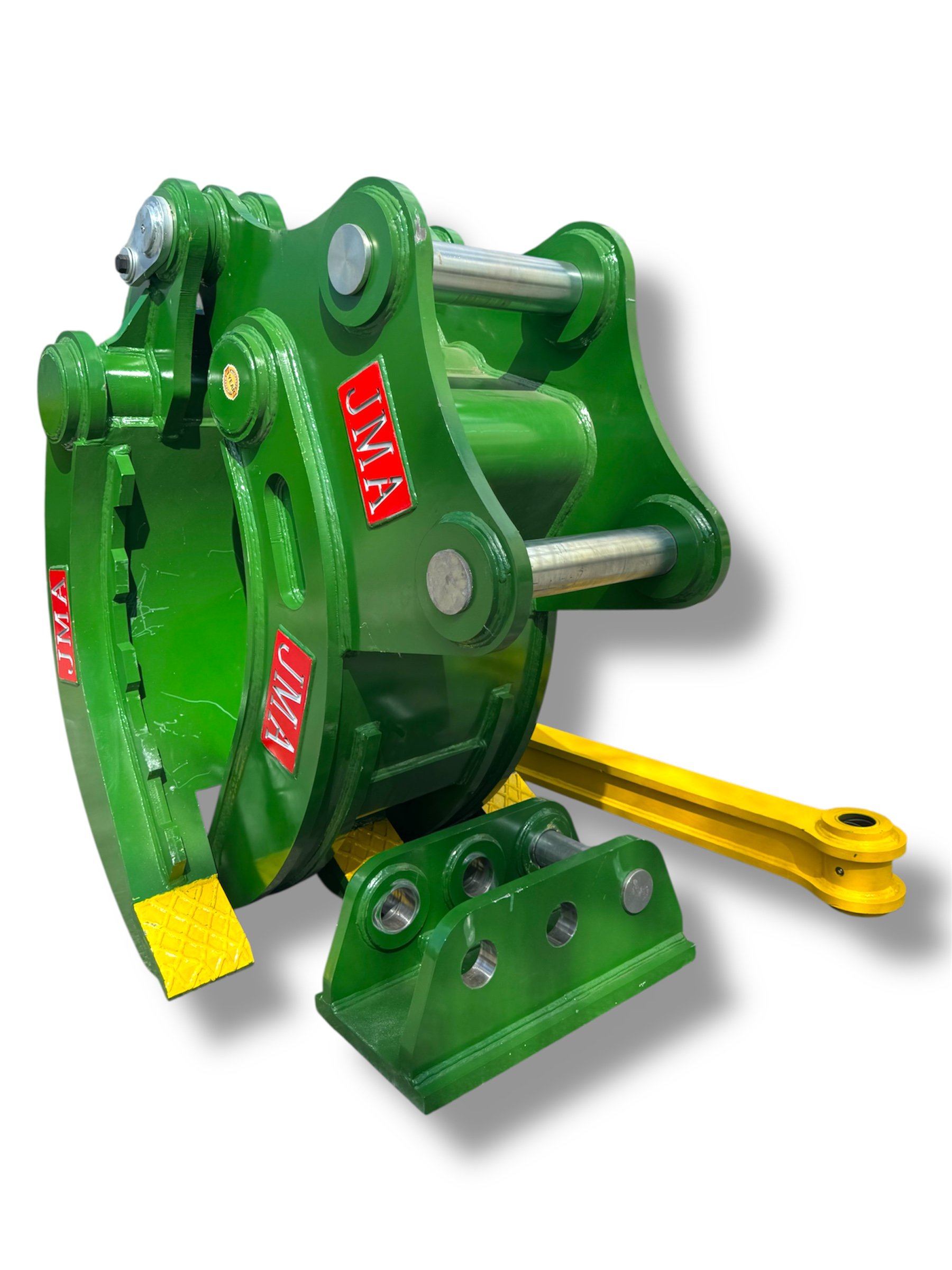

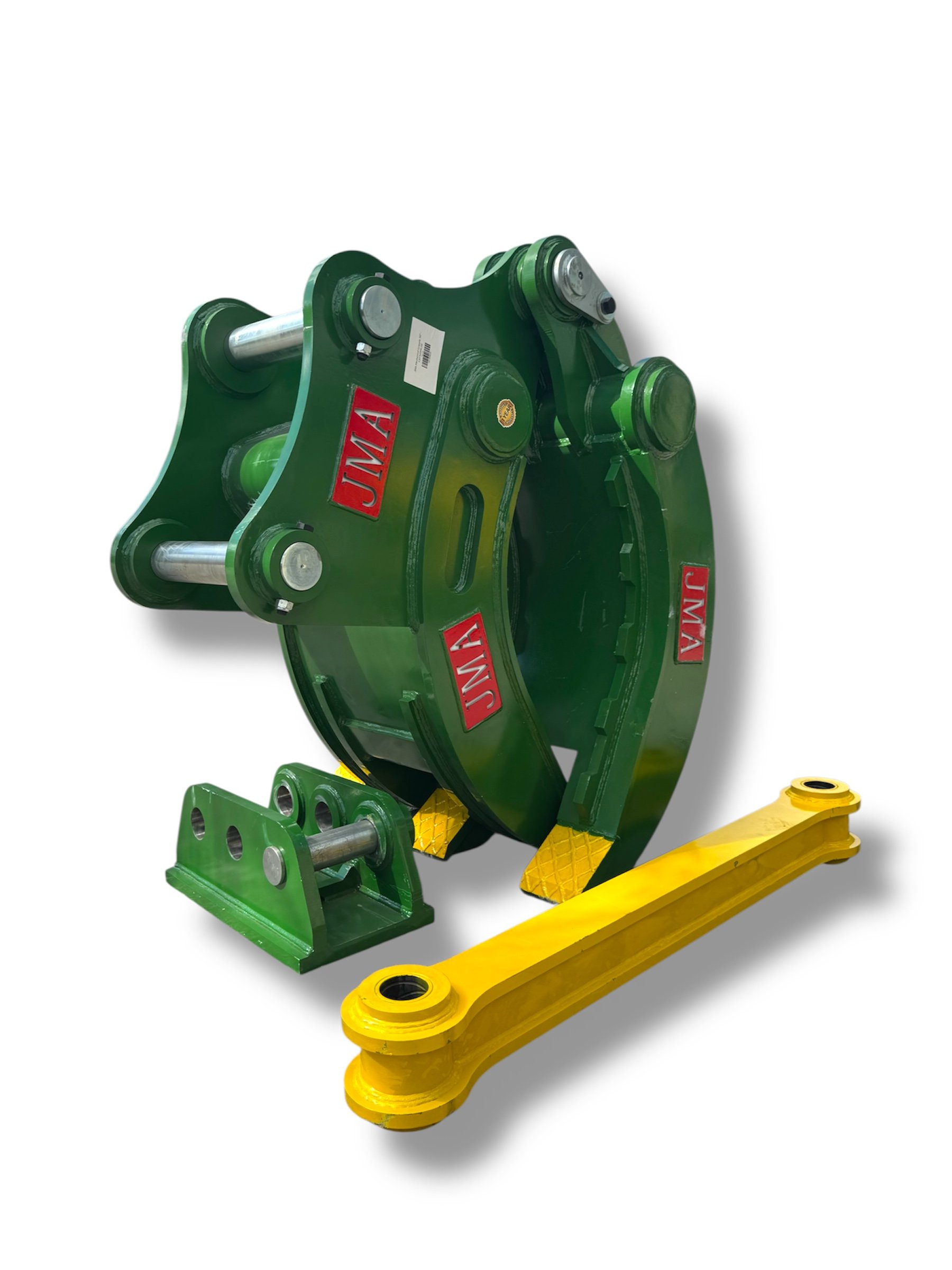

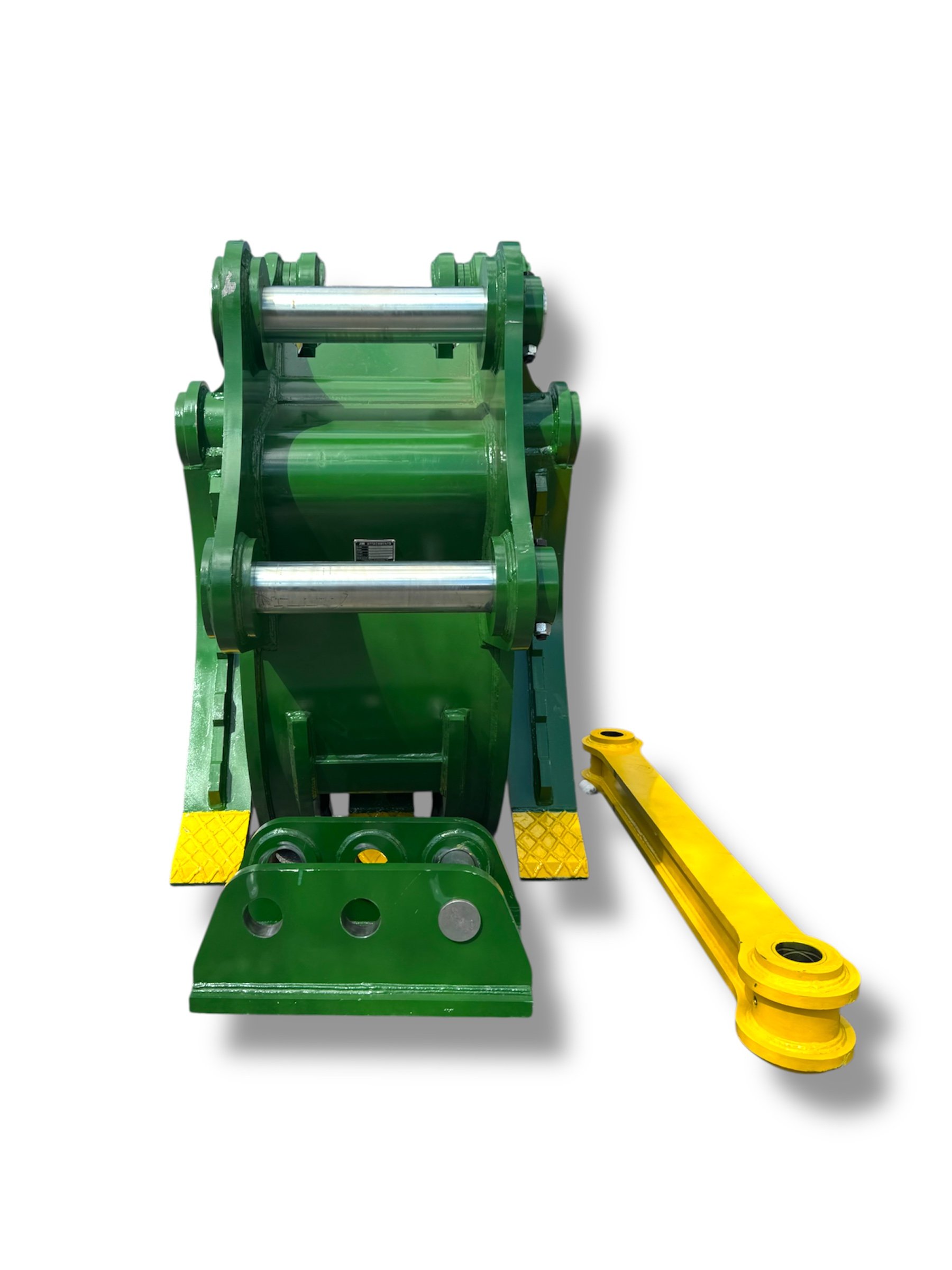

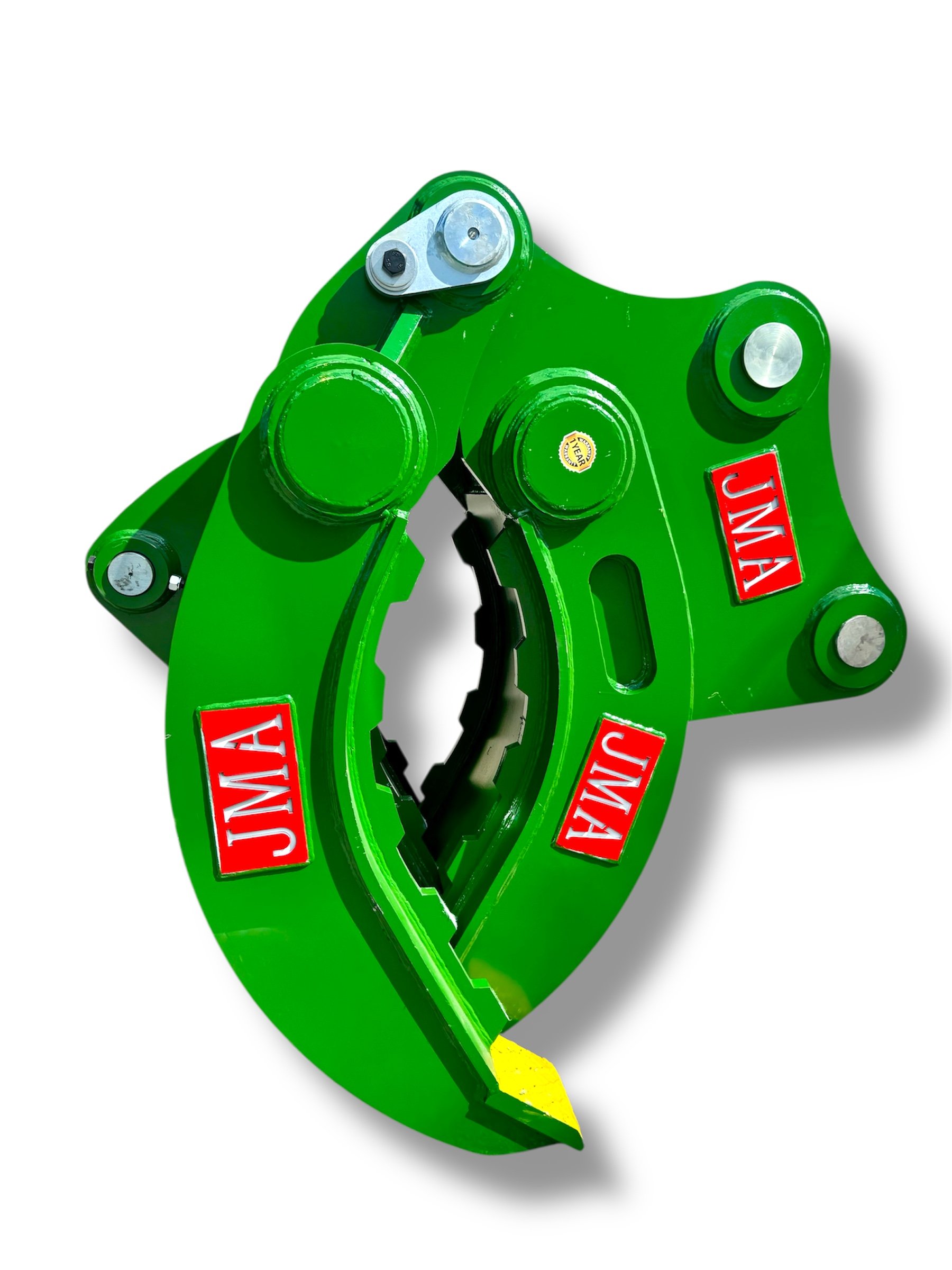

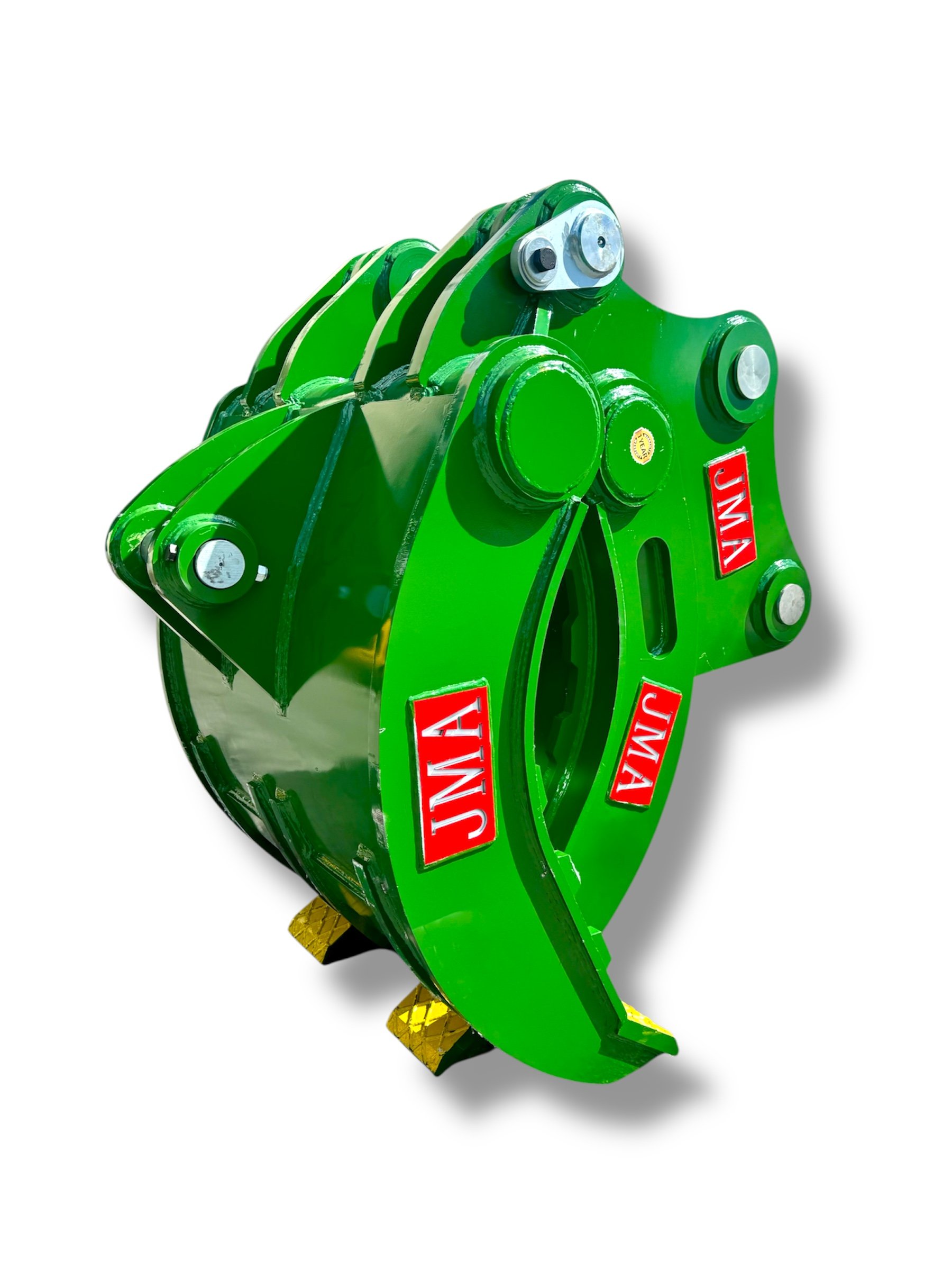

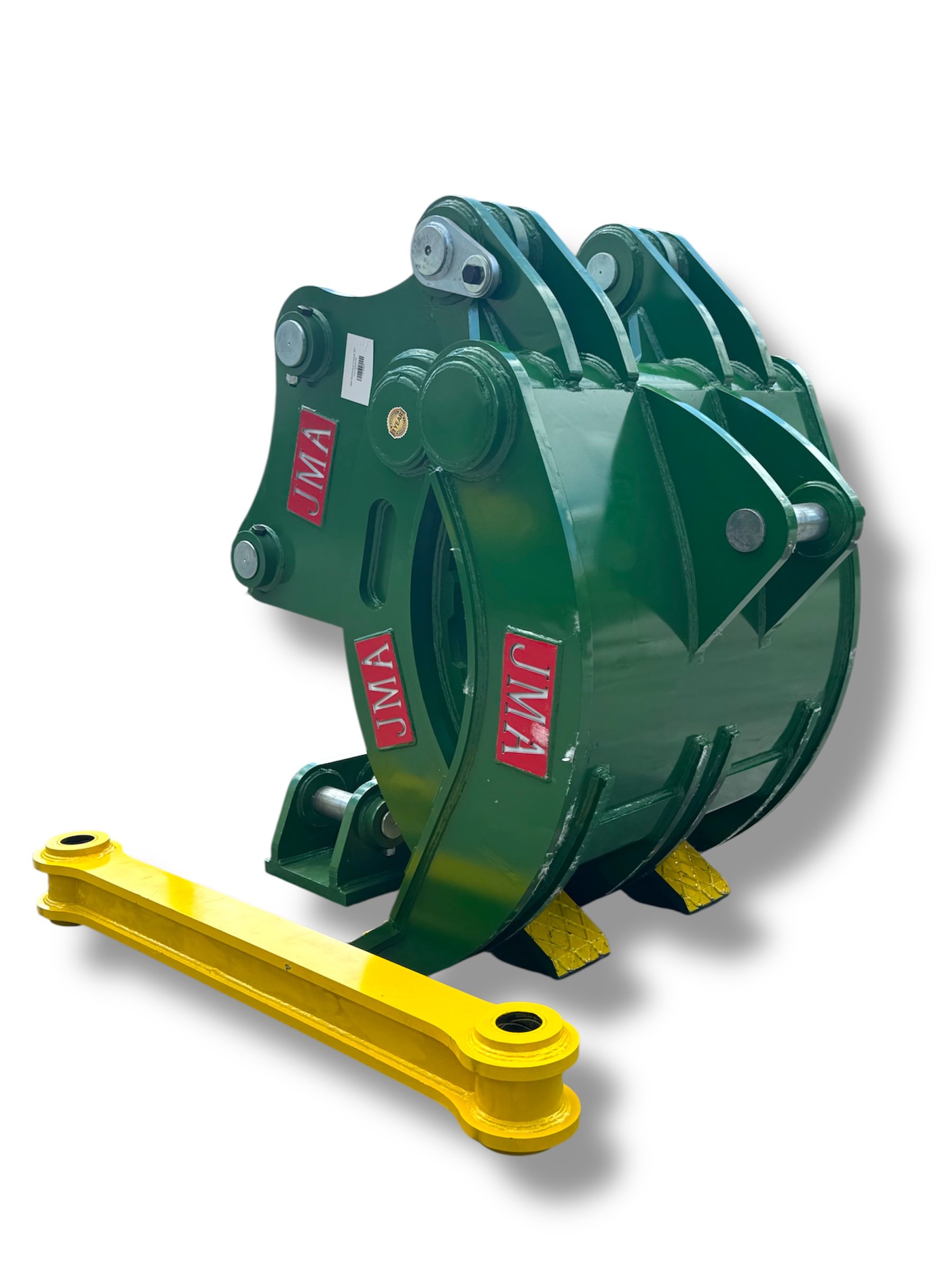

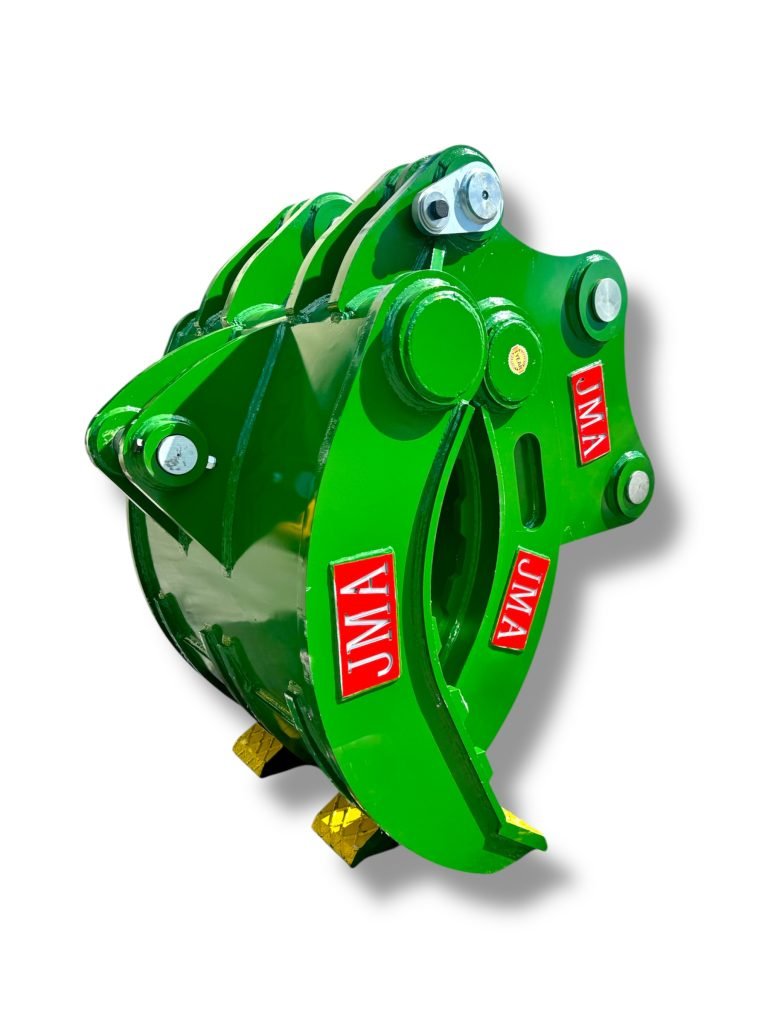

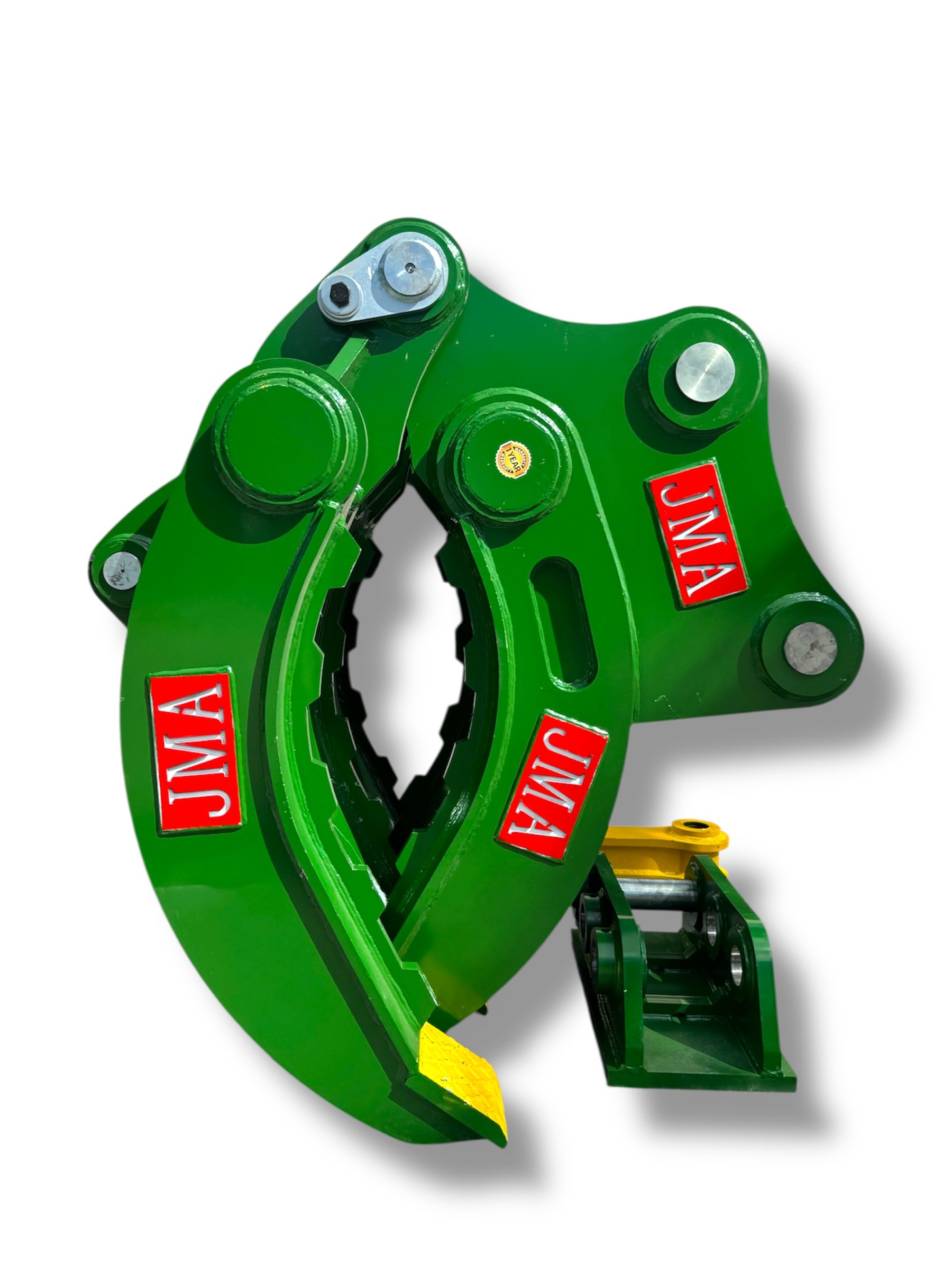

50” Mechanical Grapple for 30 – 50 Tons Excavators. 100mm | 90mm Pins
- Fits 30–50 ton excavators · 100 / 90 mm pins · 387 mm ear to ear · 500 mm pin centers
- 50″ wide · 71.26″ max jaw opening · 2 over 3 tine jaws · AR450 steel · powder-coated green
- Pins included
- Ships from Miami, FL the same business day when ordered before 2 PM ET · US-based support
- 2-year warranty · lifetime warranty on structural welds
Pin Size: 100mm
| Coupler Type | Pin On Style |
|---|---|
| Carrier Weight Class (tn) | 30 - 50 tons |
| Carrier Weight Class (lb) | 60,000 - 100,000 lb |
| Front Pin Diameter (mm) | 100 mm |
| Rear Pin Diameter (mm) | 90 mm |
| Front Ear to Ear (mm) | 387 mm |
| Rear Ear to Ear (mm) | 387 mm |
| Center to Center (mm) | 500 mm |
| Front Pin Length (mm) | 615 mm |
| Rear Pin Length (mm) | 615 mm |
| Finish | Powder-Coated Green |
| Handling Unit | Pallet |
| Product Height (mm) | 1,408.2 mm |
| Jaw Configuration | 3*2 |
| Material Type | AR450 Steel |
| Max Jaw Opening (mm) | 1,810 mm |
| Moving Jaw Width | 29.50" |
| Product Weight (kg) | 1,460 kg |
| Product Weight (lbs) | 3219 lbs |
| Shipping Height (in) | 66" |
| Shipping Length (in) | 80" |
| Shipping Weight (kg) | 1487.22 kg |
| Shipping Weight (lbs) | 3279 lbs |
| Shipping Width (in) | 52" |
| Case | 9050, 9050B, CX290B, CX290BLC, CX300C, CX300D, CX300E, CX330, CX330LC, CX330B, CX350, CX350LC, CX350B, CX350C, CX350D, CX350D LR, CX350DNLC, CX360, CX360B, CX365E SR, CX370, CX370B, CX370C, CX370D, CX380C, CX380D, CX460, CX460LC, CX470B, CX470C, CX470C ME |
|---|---|
| Caterpillar | 324E LR, 324EL LR, 328 D, 328DL CR, 329D, 329D2L, 329D CS, 329DL, 329DL LR, 329DL ME, 329DL VA, 329DLN, 329DLN VA, 329E, 329E LR, 329E LRE, 329EL, 329ELN, 329FL, 330, 330B, 330BL, 330C, 330C L, 330D, 330D2, 330D2 L, 330D DB Linkage, 330D L, 330DL DB, 330E, 330F L, 330GL, 335, 335FL CR, 336, 336 GC, 336D, 336D2, 336D2 L, 336D L, 336E, 336E L, 336F, 336F L, 340, 340 GC, 340D, 340D2, 340D2 L, 340D L, 340F, 340F2, 340F2 L, 340F L, 345, 345B, 345B II, 345B LC, 345BLC II, 345BLC VG, 345BL, 345BL GMX, 345BL II, 345BL LC VG, 345BL LR, 345BL ME, 345BL ME II, 345BL UHD, 345BLL, 345C, 345C LC, 345C LRE, 345CL, 345CL ME, 345CL VG, 345D, 345DL, 345DL ME, 345DL VG, 345F, 345F L, 345 GC, 345L, 349, 349 NEW GEN, 349D, 349D2, 349D2L ME, 349D2L, 349D L XE, 349DL ME, 349DL, 349E, 349EL ME, 349E LR, 349EL, 349EL VG, 349F, 349F L XE, 349FL, 349L, 350, 350 LF, 350 ME, 350 MEL, 350 V2, 350 V2L, 350BL, 350L, 350L ME, 350L V2, 350LL, EL300B, M325B |
| Daewoo | DX420LC V, S300LC-V, S320, S330, S340LC-V, S370LC-V, S400, S400LC-111, S420LC-V, S450, S470LC-V, S500LC V, Solar 320LC-V, Solar 330LC-V, Solar 340LC-V, Solar 370LC-V, Solar 400LC-III, Solar 400LC-V, Solar 420LC-V, Solar 450-III, Solar 450LC-V, Solar 470LC-V, Solar 500LC-V |
| Develon | DX300 LCA-7M, DX320LC-7, DX350LC-7, DX350LCR-7, DX360LC-7M, DX420LC-5, DX420LC-7, DX450LC-7M, DX490LC-7 |
| Doosan | DH300LC-7, DH370LC-7, DH370LC-9, DH420LC-7, DH500LC-7, DX300 Dem, DX300LC-3, DX300LC-5, DX300LC-7, DX300LC-9C, DX300 LCA, DX300 LCA-7M, DX300LL, DX300 RB, DX300LC, DX305LC-9C, DX320LC-7, DX340LC-3, DX340LC-5, DX340LC-9C, DX340LC-HD, DX340 LCA, DX340LC, DX350, DX350LC, DX350LC-3, DX350LC-5, DX350LC-7, DX350 LCA, DX360LC, DX360LC-7M, DX360 LCA, DX380LC, DX380LC-3, DX380LC-5, DX380LC-7, DX380LC-9C, DX380 LCA, DX400LC-5, DX400LC-7M, DX420LC-3, DX420LC-5, DX420LC-7, DX420LC-9, DX420LC-9C, DX420 LCA, DX420LC, DX450LC-7M, DX450LC-9C, DX450 LCA-7M, DX480 LCA, DX480LC, DX490LC-3, DX490LC-5, DX490LC-7, S300, S300LC-7, S330LC V, S330LC, S400LC V, S420LC, S450LC V, S470LC, S500LC V, Solar 300LC-V SLR, Solar 330LC-V, Solar 400LC-V, Solar 420LC-V, Solar 450LC-V, Solar 470LC-V, Solar 500LC-V |
| Hitachi | EX300, EX300-1, EX300-2, EX300-3, EX300-3C, EX300-5, EX300LC-3, EX300LC-5, EX320, EX370, EX370-5, EX400, EX400-1, EX400-3, EX400-5, EX400LC-3, EX400LC-5, UH23, ZX290LC, ZX290LC-5, ZX290LC-5B, ZX300LC, ZX300LC-6, ZX300LC-6N, ZX300LC-7, ZX300 LCH, ZX300 LCH-5A, ZX300 LCN-6, ZX300 LCN-7, ZX330, ZX330LC, ZX330LC-2, ZX330LC-3, ZX330LC-3G, ZX330LC-5, ZX330LC-5B, ZX330LC-5G, ZX330LC-7, ZX330 LCH, ZX330-3, ZX330-5B, ZX330-5G, ZX330-6, ZX345USLC-6, ZX345USLC-6N, ZX345USLC-7, ZX345USLC-7H, ZX350, ZX350LC, ZX350LC-3, ZX350LC-5, ZX350LC-5B, ZX350LC-5G, ZX350LC-5N, ZX350LC-6, ZX350LC-6N, ZX350LC-7, ZX350 LCD-1, ZX350 LCD-3, ZX350 LCH, ZX350 LCH-3, ZX350 LCH-5, ZX350 LCK, ZX350 LCK-3, ZX350 LCN, ZX350 LCN-1, ZX350 LCN-3, ZX350 LCN-5, ZX350 LCN-5B, ZX350 LCN-6, ZX350 LCN-7, ZX350-3, ZX350-3G, ZX350-5B, ZX350F, ZX350G, ZX350H, ZX350H-1, ZX350H-3, ZX350H-5A, ZX350H-5B, ZX350H-5G, ZX350K, ZX350K-3, ZX350K-6, ZX350M, ZX360, ZX360LC, ZX360LC-5B, ZX360 LCH-5B, ZX360 LX, ZX360H-3, ZX360H-3G, ZX360H-5A, ZX370, ZX370LC, ZX370F-3, ZX370MTH, ZX380LC-5, ZX380LC-5N, ZX380LC-6, ZX380LC-6N, ZX380HH, ZX400-3, ZX400LCH-3, ZX450, ZX450LC, ZX450-3, ZX450LC-3 |
| Hyundai | R305LC-7, R305LC-9, R320, R320LC, R320LC-3, R320LC-7, R320LC-7A, R320LC-9, R350, R350LC-7, R350LC-7A, R350LC-9, R350LC-9A, R360LC-3, R360LC-7, R360LC-7A, R360LC-9, R360LC-9A, R380LC-9, R380LC-9A, R380LC-9SH, R420, R420LC-7, R420LC-7A, R420LC-9, R420LC-9A, R450LC, R450LC-3, R450LC-7, R450LC-7A, R480LC-9, R480LC-9A, R480LC-9S, R500, R500LC-7, R500LC-7A |
| John Deere | 290GLC, 300 P-Tier, 300GLC, 330, 330LC, 330CLC, 345GLC, 350, 350 P-Tier, 350DLC, 350GLC, 360 P-TIER, 370, 370C, 380, 380 P-TIER, 380G, 380GLC, 450LC, 450CLC, 450DLC |
| Kato | HD1430-3, HD1430-7, HD1430X |
| Kobelco | SK300, SK300 Mark IV, SK300LC, SK300LC Mark IV, SK320-VI, SK320LC-V1, SK320LC-VI, SK330-8, SK330-9, SK330-10, SK330-VI, SK330LC-8, SK330LC-9, SK330LC-10, SK330LC-V1, SK330LC-VI, SK330NLC-V1, SK330NLC-VI, SK350LC-8, SK350LC-9, SK350LC-10, SK350LC-11, SK400, SK400LC, SK400LC Mark IV, SK480LC-6, SK480LC-8, SK480LC-9, SK480LC-10 |
| Komatsu | HB335LC-1, HB335-1, HB365LC-1, HB365LC-3, HB365LC-3EO, HB365 NLC-1, HB365 NLC-3, HB365-3, PC290LC-11, PC290LC-11E0, PC290 LCI-11, PC290 LCI-11E0, PC290LL-11, PC300, PC300 HD, PC300 HDLC-3, PC300 HDLC-5, PC300 HD-5, PC300 HD-5L, PC300 HD-6, PC300 HD-6E, PC300 HD-6L, PC300 HD-6LC, PC300 HD-6LE, PC300 HD-6SL, PC300 HD-7, PC300 HD-7E0, PC300 HD-7L, PC300 HD-8, PC300LC, PC300LC-2, PC300LC-3, PC300LC-4, PC300LC-5, PC300LC-5A, PC300LC-5K, PC300LC-5L, PC300LC-5LC, PC300LC-6, PC300LC-6A, PC300LC-6B, PC300LC-6C, PC300LC-6D, PC300LC-6E, PC300LC-6K, PC300LC-6L, PC300LC-6LC, PC300LC-6LE, PC300LC-6P, PC300LC-6Z, PC300LC-7, PC300LC-7E, PC300LC-7E0, PC300LC-7L, PC300LC-7LE, PC300LC-8L, PC300LC-8M0, PC300LC-10, PC300 LCSE-7, PC300 SE, PC300 SE-6, PC300 SE-7, PC300 SE-8, PC300-2, PC300-2C5, PC300-3, PC300-3B, PC300-4, PC300-5, PC300-5A, PC300-5C, PC300-5K, PC300-5L, PC300-6, PC300-6A, PC300-6E, PC300-6L, PC300-6Z, PC300-7, PC300-7E0, PC300-8, PC300-8M0, PC300L, PC300L-5, PC300LC-8, PC300LL-6, PC300LL-7, PC300N, PC300NLC, PC300NLC-3, PC300NLC-3K, PC300NLC-5, PC300NLC-5K, PC300NLC-6, PC308, PC308LC, PC308LC-3, PC308LC-7, PC308USLC, PC308USLC-3, PC308USLC-3E0, PC310, PC310LC, PC310LC-5, PC310-5, PC330LC, PC330-3, PC340, PC340 HRD-7E0, PC340LC, PC340LC-6, PC340LC-6K, PC340LC-6KJ, PC340LC-7, PC340LC-7E0, PC340LC-7K, PC340LC-8, PC340 LCD-7, PC340-6, PC340-6K, PC340-7, PC340NLC, PC340NLC-6, PC340NLC-6K, PC340NLC-6KJ, PC340NLC-7, PC340NLC-7E0, PC340NLC-7K, PC350, PC350 HD-8, PC350LC, PC350LC-6, PC350LC-6E, PC350LC-6Z, PC350LC-7, PC350LC-7E, PC350LC-7E0, PC350LC-8, PC350LC-8K, PC350LC-8M0, PC350LC-10, PC350LC-11, PC350-6, PC350-6E, PC350-6Z, PC350-7, PC350-7E0, PC350-8, PC350-8M0, PC350-10, PC350NLC-8, PC350NLC-8K, PC350NHRD-8, PC360, PC360LC, PC360LC-3, PC360LC-5K, PC360LC-6K, PC360LC-10, PC360LC-11, PC360LC-11E0, PC360 LCI-11, PC360 LCI-11EO, PC360-3, PC360-5, PC360-7, PC360-8M0, PC360-11M0, PC360LC-5, PC360NLC-10, PC360NLC-11, PC360NLC-11E0, PC380, PC380LC-6, PC380LC-6K, PC380LC-6KJ, PC380LC-7, PC380 LCD, PC380U, PC390LC-8M0, PC390LC-10, PC390LC-11, PC390 LCI-11, PC390HRD-11, PC400, PC400 EX, PC400 HD, PC400 HDLC, PC400 HD-3, PC400 HD-3LC, PC400 HD-5, PC400 HD-5LC, PC400 HD-6, PC400 HD-6LC, PC400 HD-6 LK, PC400 HD-6 LM, PC400LC, PC400LC-1, PC400LC-2, PC400LC-3, PC400LC-4, PC400LC-4L, PC400LC-5, PC400LC-5A, PC400LC-5C, PC400LC-5E, PC400LC-5K, PC400LC-5L, PC400LC-5LC, PC400LC-5N, PC400LC-6, PC400LC-6BL, PC400LC-6C, PC400LC-6E, PC400LC-6H, PC400LC-6K, PC400LC-6L, PC400LC-6LC, PC400LC-6LE, PC400LC-6LK, PC400LC-6LM, PC400LC-6M, PC400LC-6Z, PC400LC-7, PC400LC-7E, PC400LC-7E0, PC400LC-7L, PC400LC-8, PC400LC-8LK, PC400-5, PC400-7EO, PC400-8, PC400-8R, PC400LC-8E0, PC450-7EO, PC450-8, PC450LC-8 |
| Link-Belt | 300 X3, 300 X4, 330 LX, 330 X4, 350 X2, 350 X3, 350 X4, 355 X4S, 460 LX, 460 X2, LB400Q, LS330LX, LS4300Q |
| Liugong | 930, 930E, 930F, 933E, 936, 936E, 936F, 939, 939E, 939F, 942E, 945, 945E, 948, 948E, 950E, 952E |
| Samsung | SE350LC, SE350LC-2, SE350LC-3 |
| Sany | SY305, SY305CLC, SY305H, SY310C, SY315, SY330, SY335, SY335C, SY335CLC, SY335C-9, SY335H, SY350, SY360C, SY365, SY365C, SY365CLC, SY365H, SY365H-9, SY365HC-9, SY375, SY375H, SY375H-S, SY380C-10HD, SY385C, SY385H, SY390H, SY395, SY395H, SY405C, SY415, SY415H, SY420C, SY465C, SY485, SY485H, SY500, SY500H |
| Sumitomo | SH300-3, SH300-5, SH300-6, SH300LC-2, SH300LC-5, SH330-3, SH330-5, SH330-6, SH330LC-3, SH330LC-5, SH330LC-6, SH450, SH450HD-3, SH450LC-3, SH460, SH460HD-5, SH480, SH480LHD-5 |
| Volvo | EC290BLC, EC290C L, EC290CLC, EC300, EC300LC, EC300D, EC300DLC, EC300DL, EC300E, EC300E LR, EC300EL, EC320BLC, EC320C, EC320C L, EC320D L, EC320LC, EC330, EC330LC, EC330B, EC330BLC, EC330C, EC330CL, EC340, EC340LC, EC340BLC, EC340D, EC340DL, EC350D, EC350DL, EC350E, EC350EL, EC360, EC360LC, EC360B, EC360BLC, EC360BL, EC360C, EC360CL, EC360D, EC360DL, EC380, EC380CL, EC380D, EC380DL, EC380E, EC380EL, EC460, EC460B, EC460BLC, EC460C, EC460C L, EC480, EC480D, EC480D L, EC480E, EC480E HR, EC480E L, ECR305C, ECR305C L, MX365LS, MX455LS, SE360LC-3, SE460LC-3 |
50” Mechanical Grapple for 30 - 50 Tons Excavators. 100mm | 90mm Pins. Fits 30–50 ton excavators, 100 / 90 mm pins, 387 mm ear to ear, 500 mm pin centers. Included: pins. Price: $19,997.00, in stock, ships from Miami, FL the same business day when ordered before 2 PM ET.
Unlock unprecedented material handling potential with the 50” Mechanical Grapple for 30 - 50 Tons Excavators. 100mm | 90mm Pins. Designed for Excavators, this advanced mechanical grapple redefines efficiency in demolition and site clearance operations.
Unrivaled Advantages:
• Optimized Jaw Configuration: 4*3 design for superior grip on diverse materials.
• Expansive Reach: 50" grapple width combined with 71.25" max jaw opening for handling bulky items.
• Built to Last: AR450 Steel construction ensures longevity in harsh working environments.
• Precise Material Control: 50" fixed jaw width for secure handling of various debris sizes.
• Simplified Operation: Works with your excavator's existing hydraulics for easy integration.
Elevate your demolition game. With the 50” Mechanical Grapple for 30 - 50 Tons Excavators. 100mm | 90mm Pins, you're not just gripping materials – you're grasping new levels of productivity and efficiency.
Are pins included?
Yes. Pins are included.
Will it fit my machine?
Tell us your machine, we confirm the fit before shipping. Pin-on attachments are sized from your machine's pin diameter, pin-to-pin distance and ear width. If your machine has a quick coupler, is a long-reach model or was modified, measure those three and send them to us before you order. If we confirmed the fit from your accurate machine and coupler details and our recommendation is wrong, report it within 14 calendar days of delivery: the JMA Fitment Money-Back Promise gives a full product refund, outbound and return freight covered, no restocking fee.
How fast does it ship?
In-stock items ship from Miami, FL the same business day when ordered before 2 PM ET; orders after 2 PM ET, on weekends or on holidays ship the next business day. Carrier estimates for the lower 48, in business days from the ship date: parcels of 50 lb or less 5–7 standard or 2–4 expedited; LTL freight over 50 lb 7–10 standard or 4–6 expedited, usually with a delivery appointment and a signature. Outside the lower 48, shipping is quoted. Inspect it before you sign and note any damage on the delivery receipt.
What does the warranty cover?
Defects in materials and workmanship are covered for 2 years or 2,000 operating hours, whichever comes first: year 1 parts and pre-approved labor, year 2 parts only. Lifetime warranty on structural welds. Teeth, cutting edges, pins and bushings are wear items and are not covered. Get our written approval before any repair.
Can I return it?
Yes, for standard products: a refund within 14 calendar days of delivery, or store credit within 30, if it is unused, uninstalled, free of soil and grease, and in its original packaging with all hardware. Get a Return Authorization Number (RAN) from us first. The buyer pays return shipping unless the item was defective, damaged or wrong because of our error, or you can drop it off at our warehouse, 8068 NW 29th St, Doral, FL, Monday to Friday, 9 AM to 5 PM, with your RAN. A restocking fee applies to non-defective refunds; store credit has no restocking fee. Original outbound shipping is not refunded on change-of-mind returns. Installed or used attachments can't be returned.
