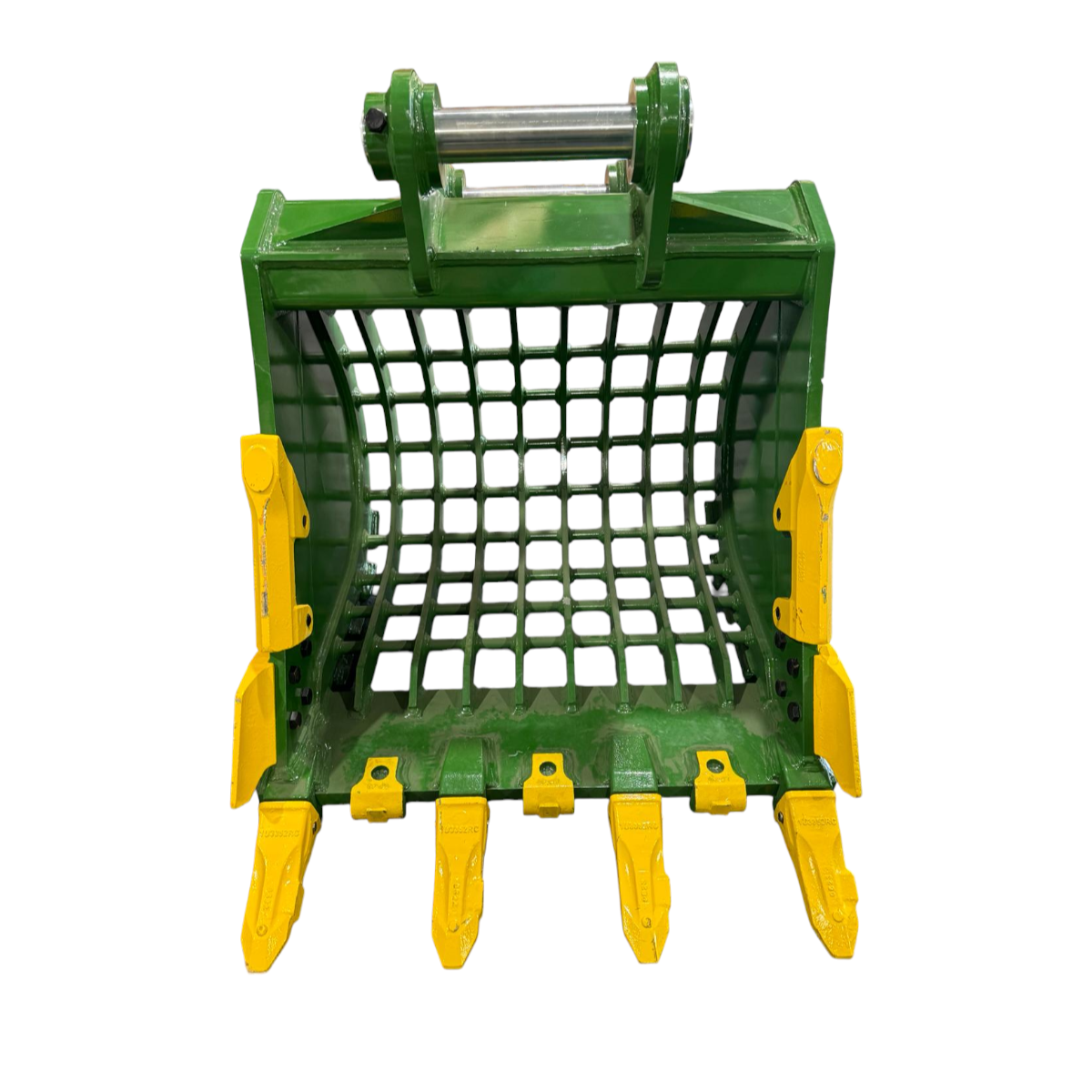

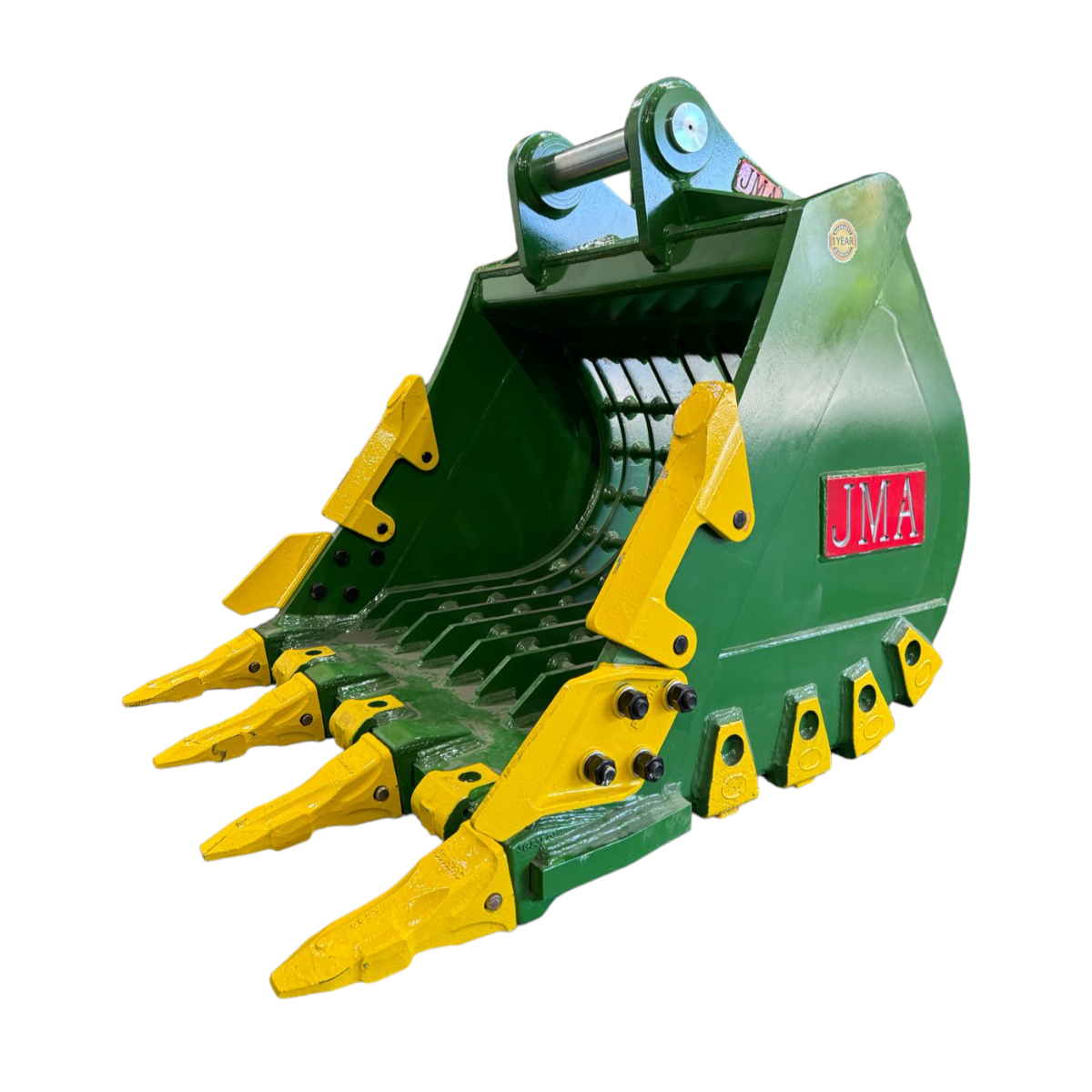

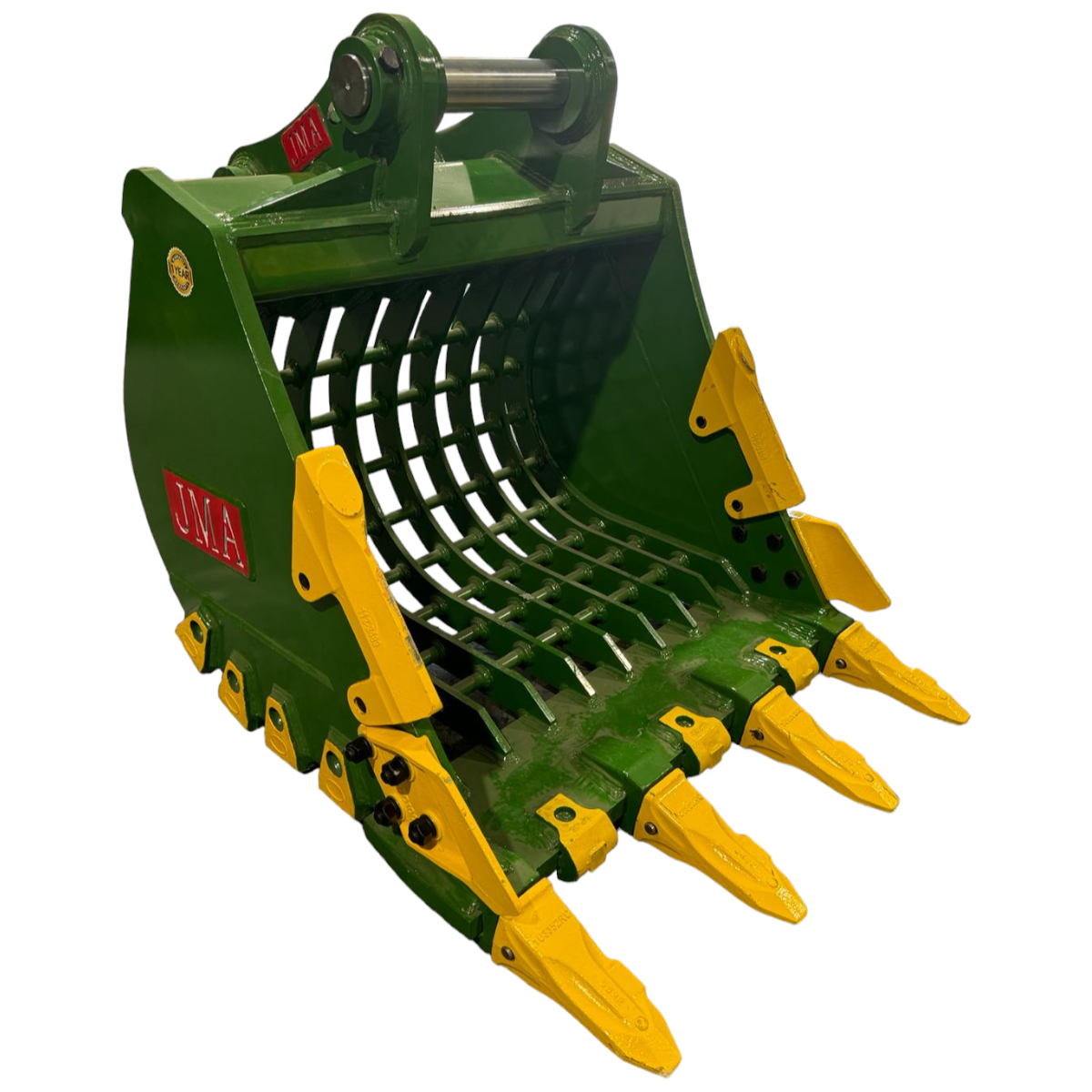

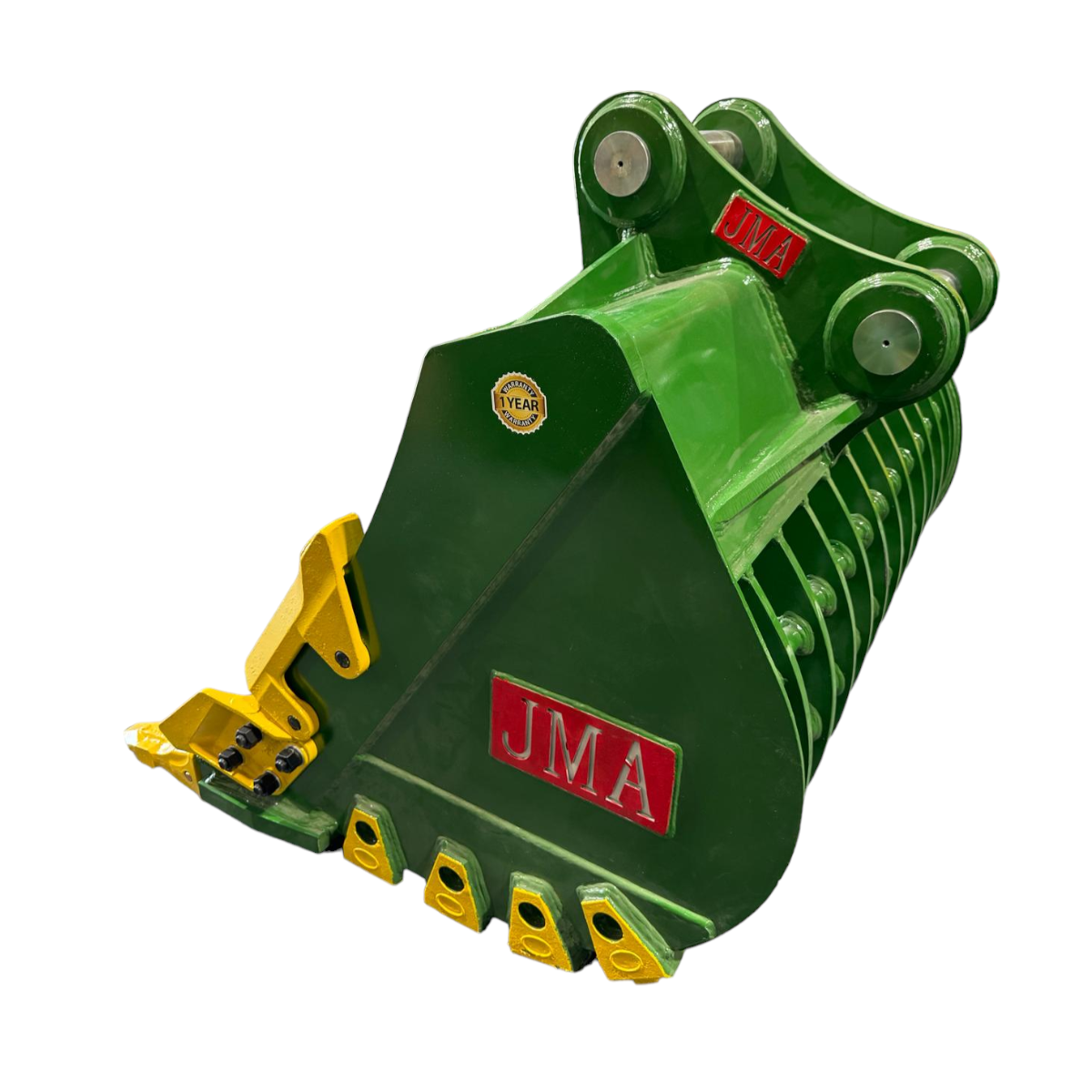

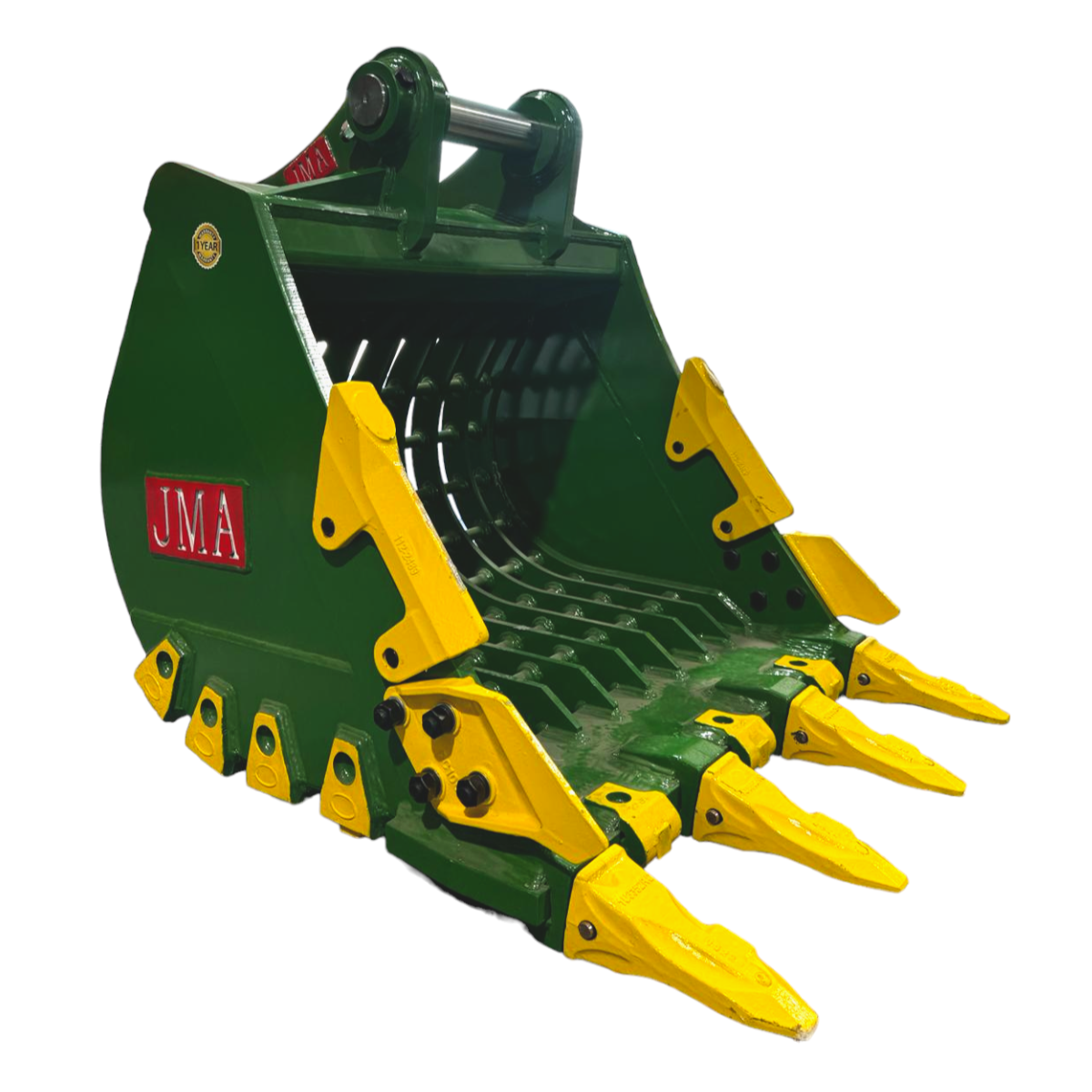

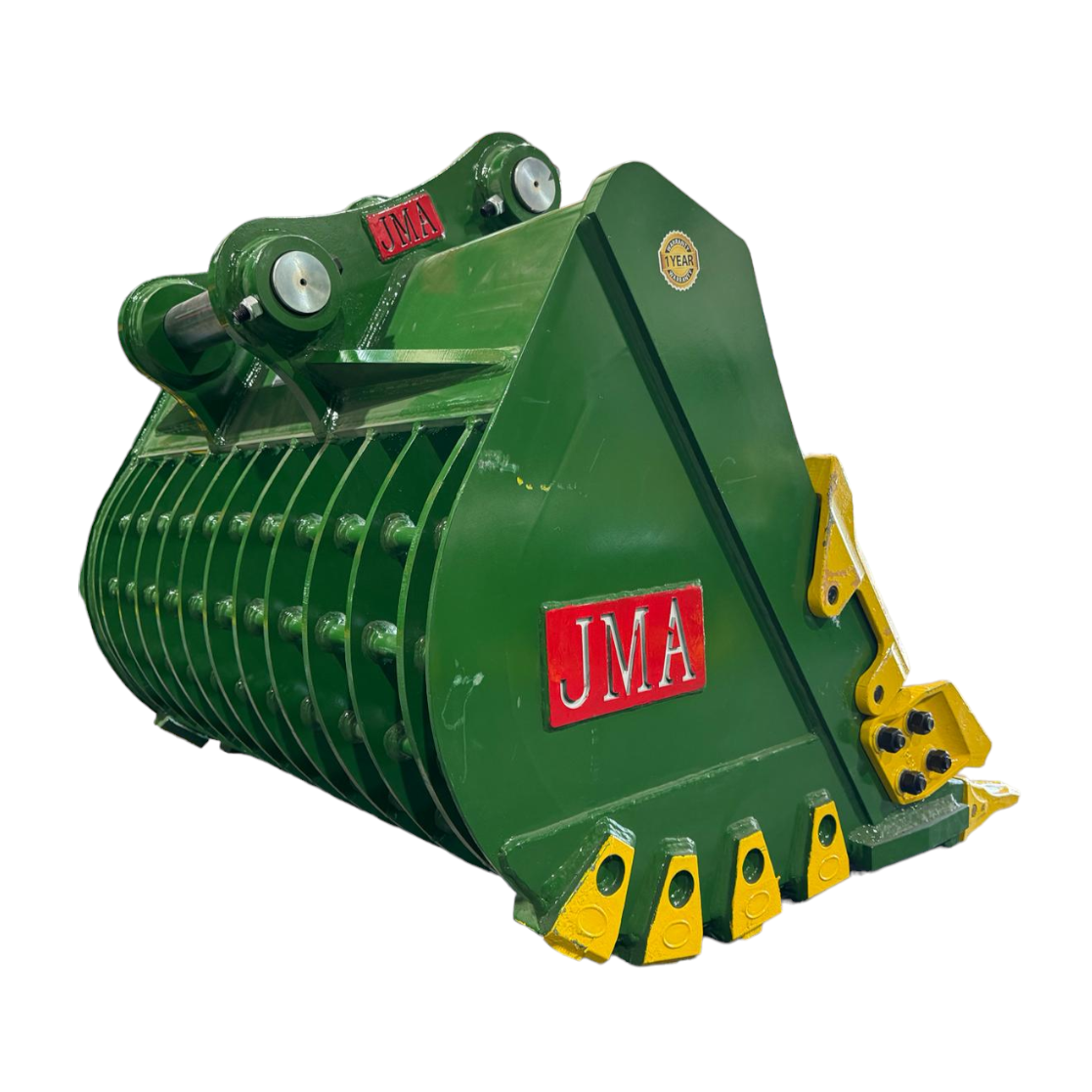

48″ Severe Duty Skeleton Bucket with Teeth for 16 – 25 Tons Excavators. 80mm Pins
- Fits 16–25 ton excavators · 80 mm pins · 311 mm ear to ear
- 48" wide (1219 mm) · AR450 steel body · 30 mm side walls · powder-coated green
- Pins, 5 teeth (1U3352RC) included
- Ships from Miami, FL · US-based support
- 2-year warranty · lifetime warranty on structural welds
Bucket Size: 48"
Availability: Out of Stock
Frequently Bought Together
| Carrier Weight Class (tn) | 16 - 25 tons |
|---|---|
| Carrier Weight Class (lb) | 32,000 - 50,000 lb |
| Front Pin Diameter (mm) | 80 mm |
| Rear Pin Diameter (mm) | 80 mm |
| Front Ear to Ear (mm) | 311 mm |
| Rear Ear to Ear (mm) | 311 mm |
| Center to Center (mm) | 446 mm |
| Front Pin Length (mm) | 530 mm |
| Rear Pin Length (mm) | 530 mm |
| Bucket Depth (mm) | 670 mm |
| Capacity (m³) | 0.82 m³ |
| Material Type | AR450 Steel |
| Finish | Powder-Coated Green |
| Coupler Type | Pin On Style |
| Features | 3x Reinforced Side Plates |
| Bucket Side Wall Thickness (mm) | 30 mm |
| Bucket Width (mm) | 1219.2 mm |
| Inner Bucket Height (mm) | 995 mm |
| Bucket Size | 48" |
| Pin Size | 80mm |
| Product Weight (lbs) | 1970.93 lb |
| Tooth Number | 1U3352RC |
| Tooth Pin Part Number | 9J2258 |
| Case | CX160, CX160 CR, CX160LC, CX160B, CX160BLC, CX160C, CX160D, CX160E, CX160K, CX170E, CX180, CX180B, CX180C, CX180D, CX180E, CX190E, CX210, CX210 CR, CX210LC, CX210 LS, CX210B, CX210BLC, CX210BNLC, CX210C, CX210C LR, CX210D, CX210D LR, CX210E, CX210N, CX220, CX220B, CX220C, CX220CLC, CX220E, CX225, CX225 CR, CX225 MSR, CX225SR, CX225SRLC |
|---|---|
| Caterpillar | 225, 318BL, 318C, 318CL, 318DL, 318EL, 318FL, 319, 319C, 319CLN, 319D, 319DLN, 320, 320L ME, 320 SVA, 320 V2, 320B, 320BL, 320BLN, 320BLU, 320C, 320C FM, 320C LC, 320C LU, 320C U, 320CL, 320CL ME, 320CLN, 320C LR, 320D, 320D2, 320D2 GC, 320D FM, 320DL ME, 320D GC, 320DL, 320E, 320EL, 320FL, 320 GC, 320GL, 320 GX, 320L, 321, 321B, 321B CR, 321BL CR, 321C, 321C CR, 321CL CR, 321CL, 321D CR, 321DL CR, 321DL, 322, 322 CR, 322B, 322BL, 322BL LR, 322BLN, 322C, 322C FM, 322C LCHD, 322CL, 322CL LR, 322CLM, 322L, 322LN, 322N, 323, 323D, 323D2, 323D2L, 323D3, 323DL, 323DL ME, 323DL VA, 323DLN, 323DS, 323E, 323EL, 323EL ME, 323ELN, 323FL, 323 GC, 324D, 324D ME, E180, E180A, E200B, E225, EL180, EL200, EL200B, M318, M318B, M318C, M318D, M318F, M319, M319D, M320, M320D2, M320F, M322, M322C, M322D, M322D2, M322F, M323F |
| Daewoo | S175LC V, S175W V, S180W, S210W-V, S220LC V, S220-111, S220N V, S225LC-V |
| Develon | DX170W-7, DX190W-5, DX190W-7, DX210W-7, DX210WA |
| Doosan | DH200, DH210W-7, DH215-7, DH215-9E, DH220LC-7, DH220LC-9, DH220LC-9E, DH225LC-7, DH225LC-9, DH225LC-9E, DX170LC-5, DX170W, DX170W-5, DX170W-7, DX180LC-3, DX180LC-5, DX180LC, DX190W, DX190W-3, DX190W-5, DX190W-7, DX190WA, DX200, DX200-9CN, DX200A, DX200LC, DX200LC-7, DX210, DX210LC, DX210LC-7, DX210W, DX210W SLR, DX210W-5, DX210W-7, DX210WA, DX215-9C, DX215-10N, DX220, DX220LC, DX220LC-9C, DX220 LCA, DX220 LCA-2, DX220A, DX225, DX225LC SLR, DX225LC-3, DX225LC-5, DX225LC-7M, DX225LC-9C, DX225 LCA, DX225 LCA-2, DX225 LCA-7M, DX225 LCB, DX225LL-5, DX225 NLC, DX225 RB, DX225LC, DX225LC-7, DX225LC-7X, DX235LC-5, DX235LCR-5, DX235 NLC, DX235 NLC-5, DX235LCR-7, S175W V, S180W V, S 170LC V, S175LC-V, S 220LC V, S 225LC V, S 225LC-7, S 225NLC V |
| Hitachi | EX200, EX200-1, EX200-2, EX200-3, EX200-5, EX200LC, EX200LC-1, EX200LC-2, EX200LC-3, EX200LC-5, EX210, EX210H-5, EX210K-3, EX210K-5, EX210LC-5, EX225USR, EX225USRLC, UH07, UH07-3, UH07-5, UH07-7, UH055-7, UH081, UH083, UH083LC, ZX160, ZX160LC-3, ZX180, ZX180LC, ZX180LC-5, ZX180LC-5B, ZX180LC-5N, ZX180LC-6, ZX180LC-6N, ZX180LC-7, ZX180 LCH-3, ZX180 LCN, ZX180 LCN-3, ZX180 LCN-5G, ZX180LC-3, ZX190LC-6, ZX190LC-7, ZX190 LCN, ZX190 LCN-6, ZX190W-5B, ZX195D, ZX200, ZX200LC, ZX200LC-1, ZX200LC-3, ZX200LC-5, ZX200LC-5B, ZX200LC-5G, ZX200LC-6, ZX200LC-7, ZX200-2, ZX200-2LC, ZX200-3, ZX200-3F, ZX200-3G, ZX200-3LC, ZX200-5, ZX200-5A, ZX200-5B, ZX200-5G, ZX200-5LC, ZX200-6, ZX200C, ZX200CLC, ZX200DLC, ZX200E, ZX200ELC, ZX200X, ZX210, ZX210LC, ZX210LC U, ZX210LC-3, ZX210LC-3G, ZX210LC-5, ZX210LC-5 LR, ZX210LC-5B, ZX210LC-5G, ZX210LC-5N, ZX210LC-6, ZX210LC-6N, ZX210LC-7, ZX210LC-7H, ZX210 LCH, ZX210 LCH-3, ZX210 LCH-5A, ZX210 LCK, ZX210 LCK HG, ZX210 LCK-3, ZX210 LCN, ZX210 LCN-3, ZX210 LCN-5, ZX210 LCN-5B, ZX210 LCN-6, ZX210 LCN-7, ZX210 MF, ZX210-2, ZX210-3, ZX210-5, ZX210-6, ZX210F-3, ZX210H, ZX210H-3, ZX210H-3G, ZX210H-6, ZX210K, ZX210K HG, ZX210KLC, ZX210K-3, ZX210K-6, ZX210KB-5B, ZX210N, ZX210N-3, ZX220, ZX220LC, ZX220LC-GI, ZX225, ZX225LC, ZX225LC-2, ZX225HE, ZX225US, ZX225USLC, ZX225USLC-2, ZX225USLC-3, ZX225USLC-5B, ZX225USLC-6, ZX225USLC-7, ZX225US-3, ZX225US-5B, ZX225US-6, ZX225USR, ZX225USR - 2, ZX225USRLC, ZX225USRLC-5B, ZX225USRLC-6, ZX225USRLC-7, ZX225USR LCK, ZX225USR LCK-3, ZX225USR-3, ZX225USR-5B, ZX225USR-6, ZX225USRK, ZX225USRK-3, ZX225USRK-6, ZX225USRLC-3 |
| Hyundai | HW210, HW210A |
| JCB | JS160C, JS220, JS220LC, JS220 NC, JS220 SC |
| John Deere | 160, 160LC, 160 P-Tier, 160C, 160CLC, 160DLC, 160G, 160GLC, 180GLC, 200, 200LC, 200CLC, 200D, 200G, 210, 210 P-Tier, 210G, 210GLC, 220LC, 220CLC, 225LC, 225CLC, 225CLC RTS, 225DLC |
| Liebherr | R918, R918 Compact, R920, R922 |
| Link-Belt | 160 LX, 160 X2, 160 X3, 160 X4, 170 X4S, 190 X4S, 210 LX, 210 LX DHP, 210 LX LF, 210 X2, 210 X2 LF, 210 X3, 210 X4, 210 X4 HN, 210 X4 LF, 220 X4S, 225 LX, 225 SPIN ACE |
| Liugong | 922E, 924E, 925E |
| New Holland | E175, E175B, E175C, E200, E200SR, E210, E215, E215B, E215C, E235, E235B SR, E235C SR, E235SR |
| Sumitomo | SH160-5, SH160LC-5, SH160LX-2, SH200, SH200-2, SH200-3, SH200HD-3, SH200LC, SH200LC-2, SH200LC-3, SH210-5, SH210-6, SH210LC-5, SH210LC-6, SH220-3, SH225X-3, SH225X-3B |
48" Severe Duty Skeleton Bucket with Teeth for 16 - 25 Tons Excavators. 80mm Pins. Fits 16–25 ton excavators, 80 mm pins, 311 mm ear to ear. Included: pins, 5 teeth (1U3352RC). Price: $8,637.60, out of stock right now.
Transform your approach to material sorting and heavy-duty digging with the 48" Severe Duty Skeleton Bucket with Teeth for 16 - 25 Tons Excavators. 80mm Pins. This premium 48" Severe Duty Skeleton Bucket with Teeth is designed to excel in separating debris and conquering the most challenging excavation scenarios.
Unrivaled Advantages:
• Excavator Compatibility: Seamlessly integrates with your equipment for enhanced performance.
• Maximum Strength: Constructed from AR450 Steel with 30 mm side wall thickness to withstand extreme forces.
• Efficient Sorting: 9 tines, each 16 mm thick, ensure superior material separation.
• Powerful Excavation: 5 Teeth rugged teeth provide exceptional ground penetration and material flow.
• High-Volume Handling: 0.82 m³ capacity allows for quick and efficient material processing.
• Advanced Features: 3x Reinforced Side Plates to boost overall productivity and durability.
Experience the pinnacle of skeleton bucket technology. The 48" Severe Duty Skeleton Bucket with Teeth for 16 - 25 Tons Excavators. 80mm Pins isn't just a tool – it's your pathway to unmatched efficiency in material sorting and heavy-duty excavation.
Are pins included?
Yes. Pins are included.
Will it fit my machine?
Tell us your machine, we confirm the fit before shipping. Pin-on attachments are sized from your machine's pin diameter, pin-to-pin distance and ear width. If your machine has a quick coupler, is a long-reach model or was modified, measure those three and send them to us before you order. If we confirmed the fit from your accurate machine and coupler details and our recommendation is wrong, report it within 14 calendar days of delivery: the JMA Fitment Money-Back Promise gives a full product refund, outbound and return freight covered, no restocking fee.
How fast does it ship?
In-stock items ship from Miami, FL the same business day when ordered before 2 PM ET; orders after 2 PM ET, on weekends or on holidays ship the next business day. Carrier estimates for the lower 48, in business days from the ship date: parcels of 50 lb or less 5–7 standard or 2–4 expedited; LTL freight over 50 lb 7–10 standard or 4–6 expedited, usually with a delivery appointment and a signature. Outside the lower 48, shipping is quoted. Inspect it before you sign and note any damage on the delivery receipt.
What does the warranty cover?
Defects in materials and workmanship are covered for 2 years or 2,000 operating hours, whichever comes first: year 1 parts and pre-approved labor, year 2 parts only. Lifetime warranty on structural welds. Teeth, cutting edges, pins and bushings are wear items and are not covered. Get our written approval before any repair.
Can I return it?
Yes, for standard products: a refund within 14 calendar days of delivery, or store credit within 30, if it is unused, uninstalled, free of soil and grease, and in its original packaging with all hardware. Get a Return Authorization Number (RAN) from us first. The buyer pays return shipping unless the item was defective, damaged or wrong because of our error, or you can drop it off at our warehouse, 8068 NW 29th St, Doral, FL, Monday to Friday, 9 AM to 5 PM, with your RAN. A restocking fee applies to non-defective refunds; store credit has no restocking fee. Original outbound shipping is not refunded on change-of-mind returns. Installed or used attachments can't be returned.
