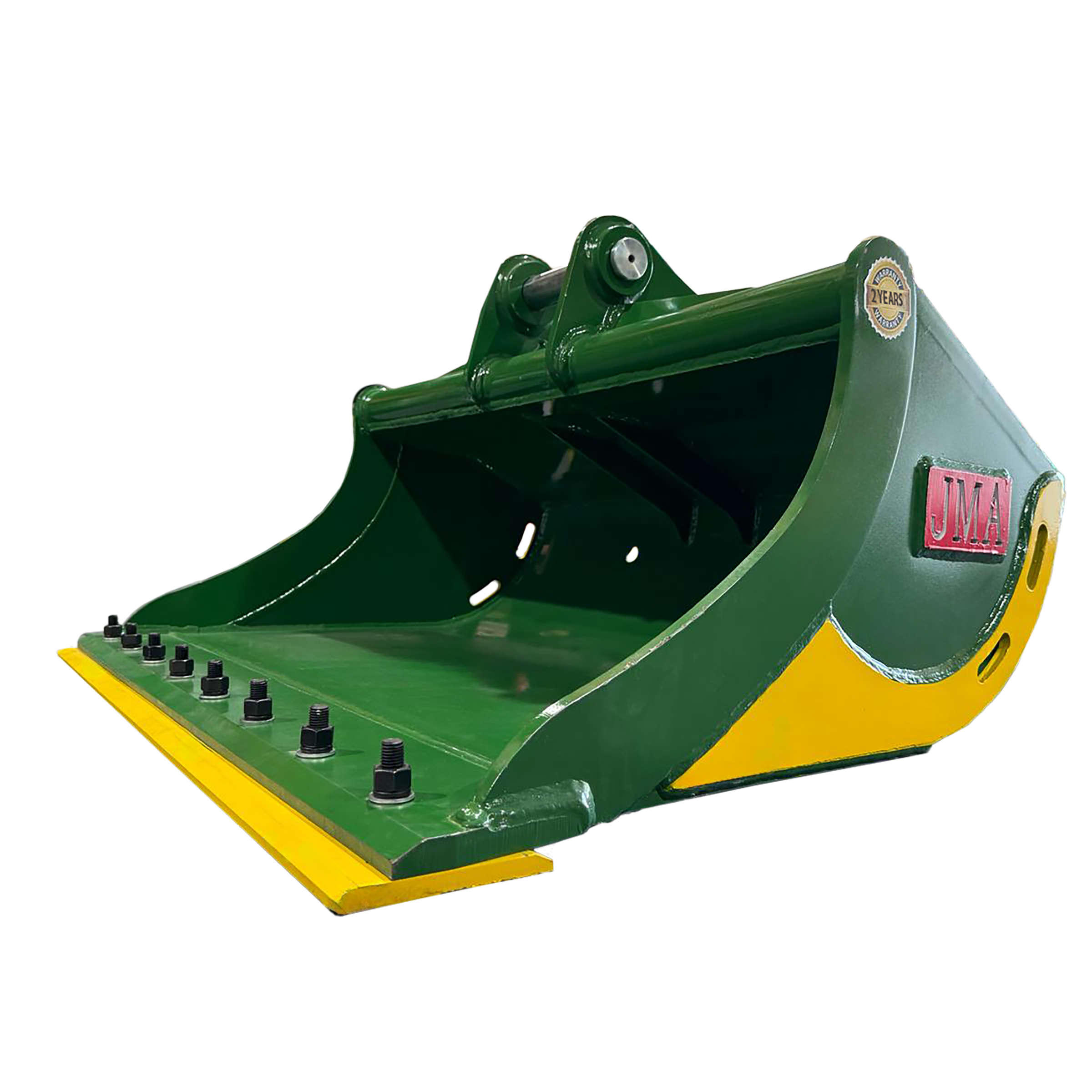

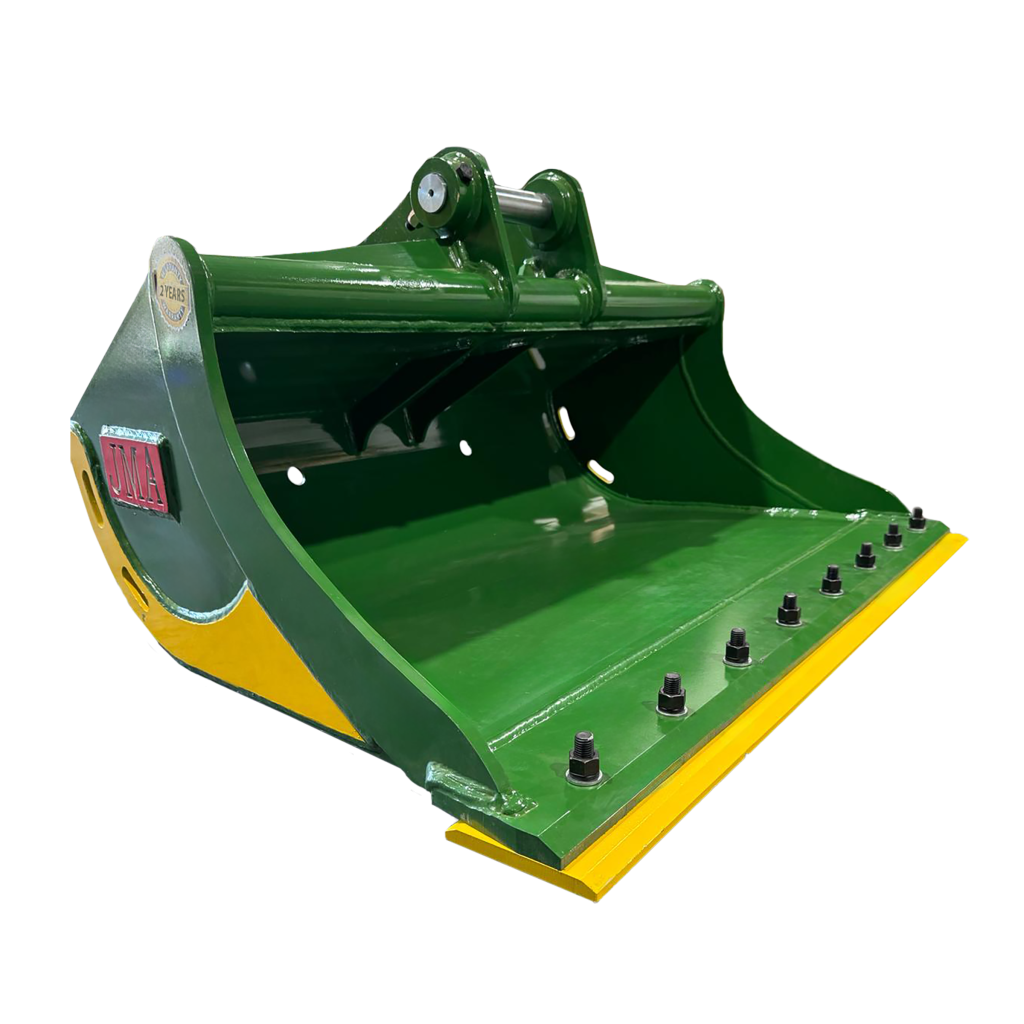

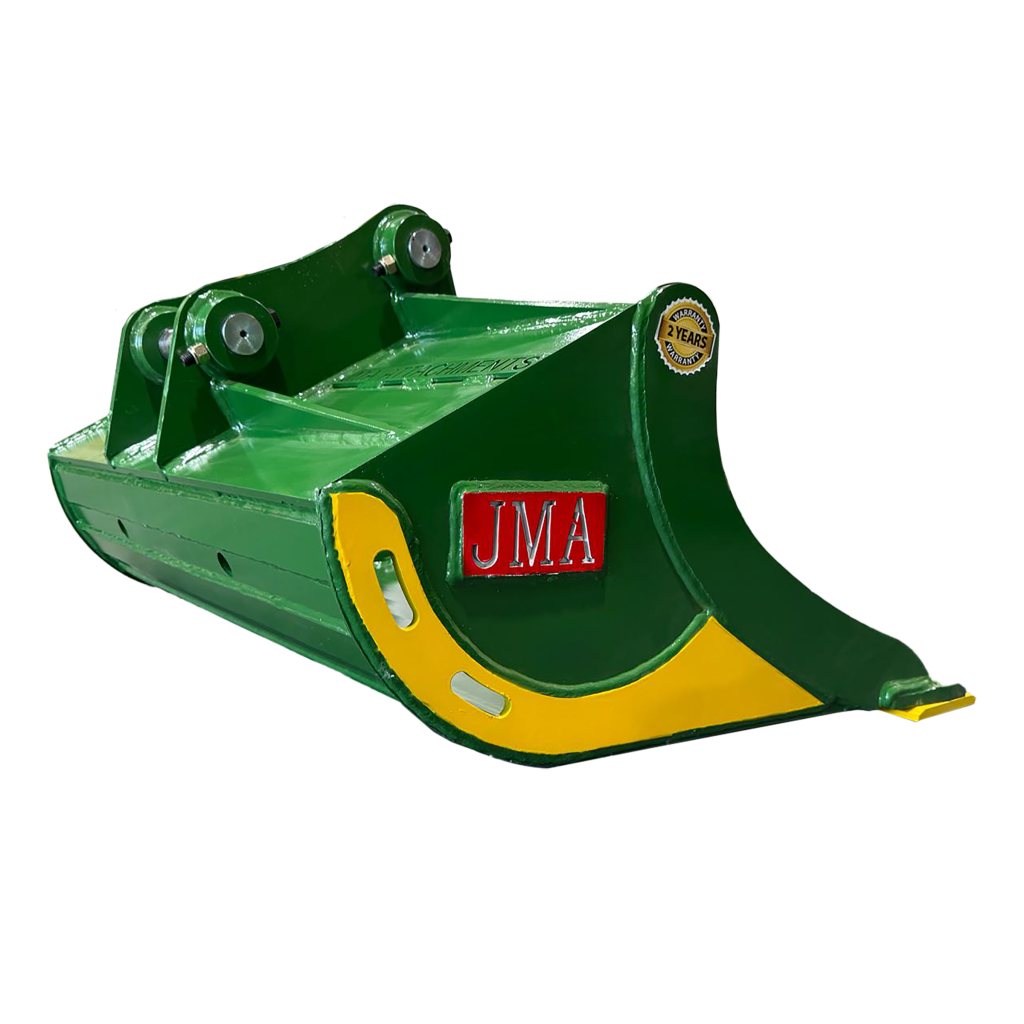

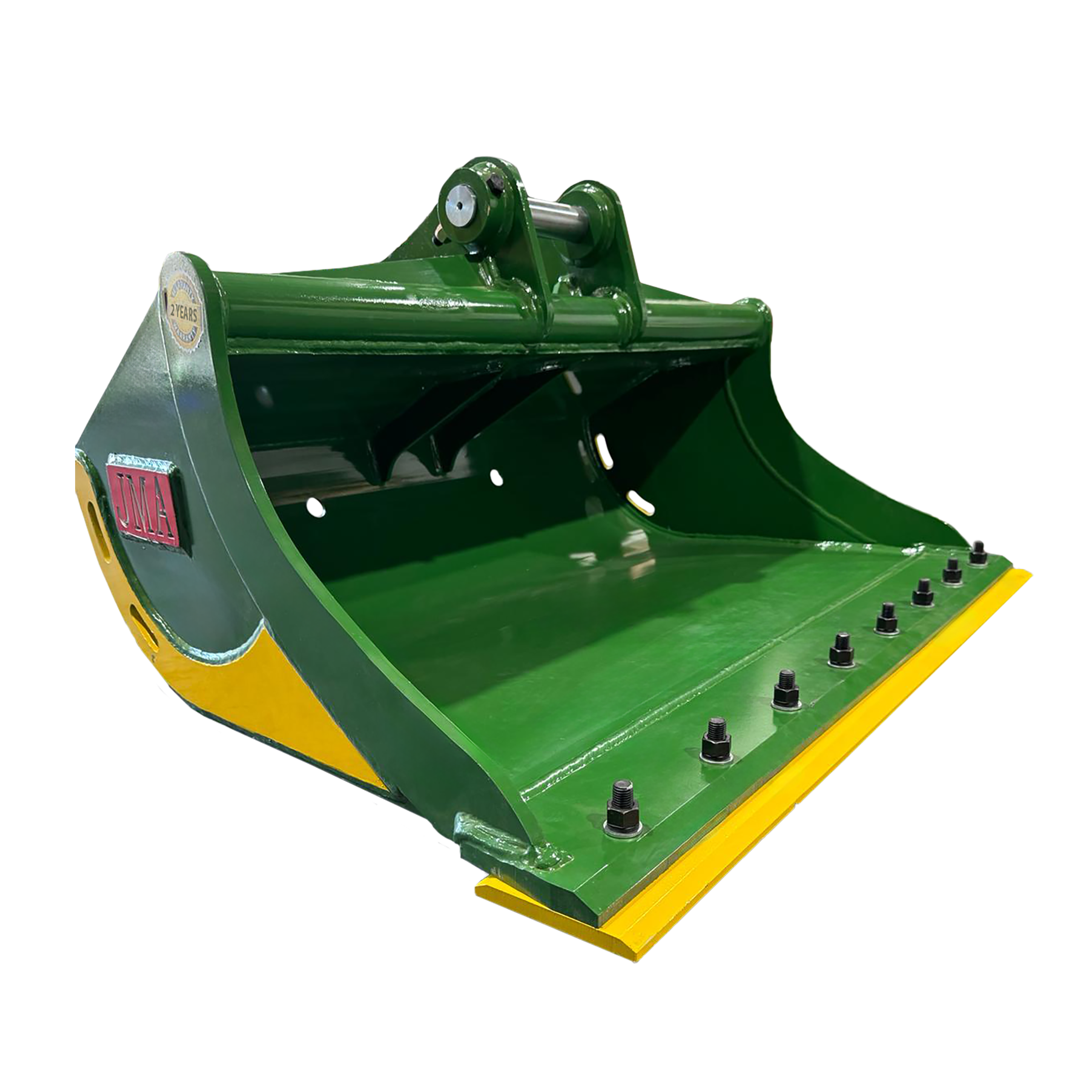

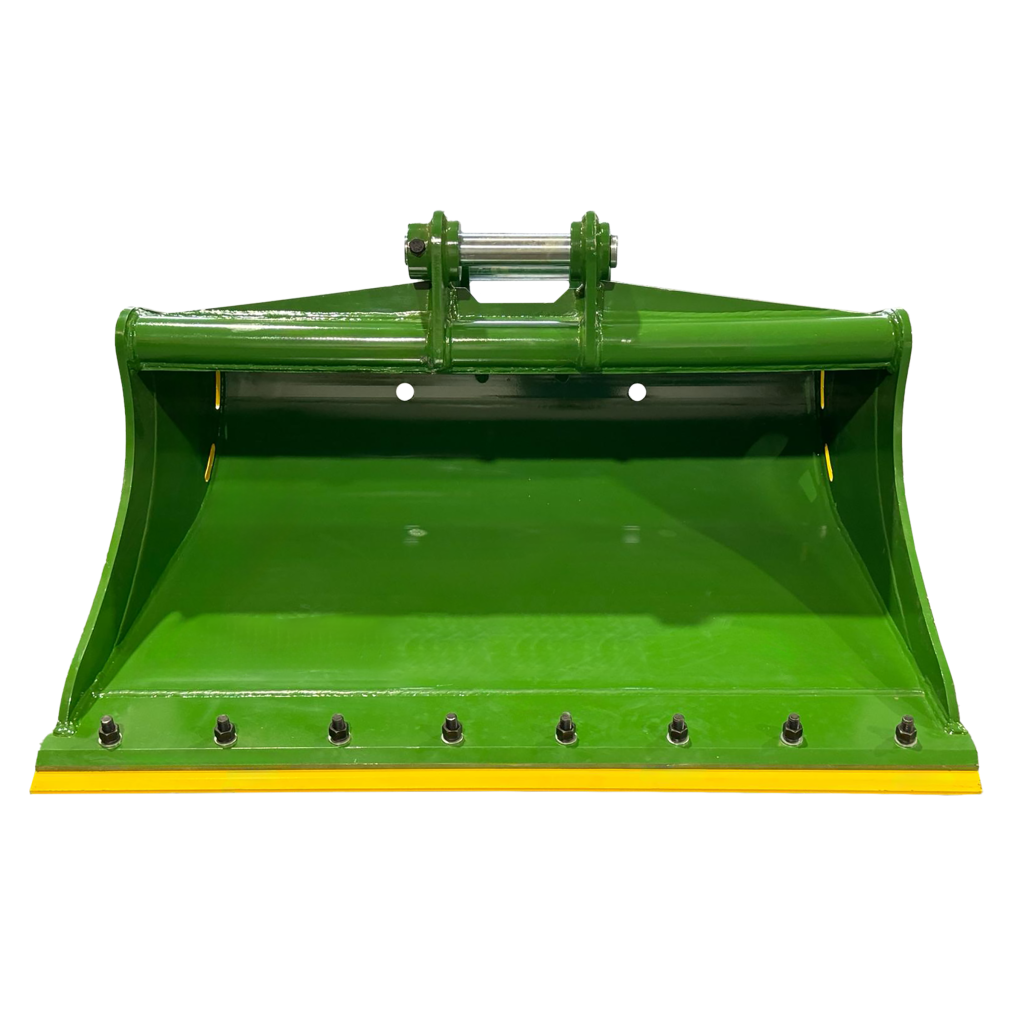

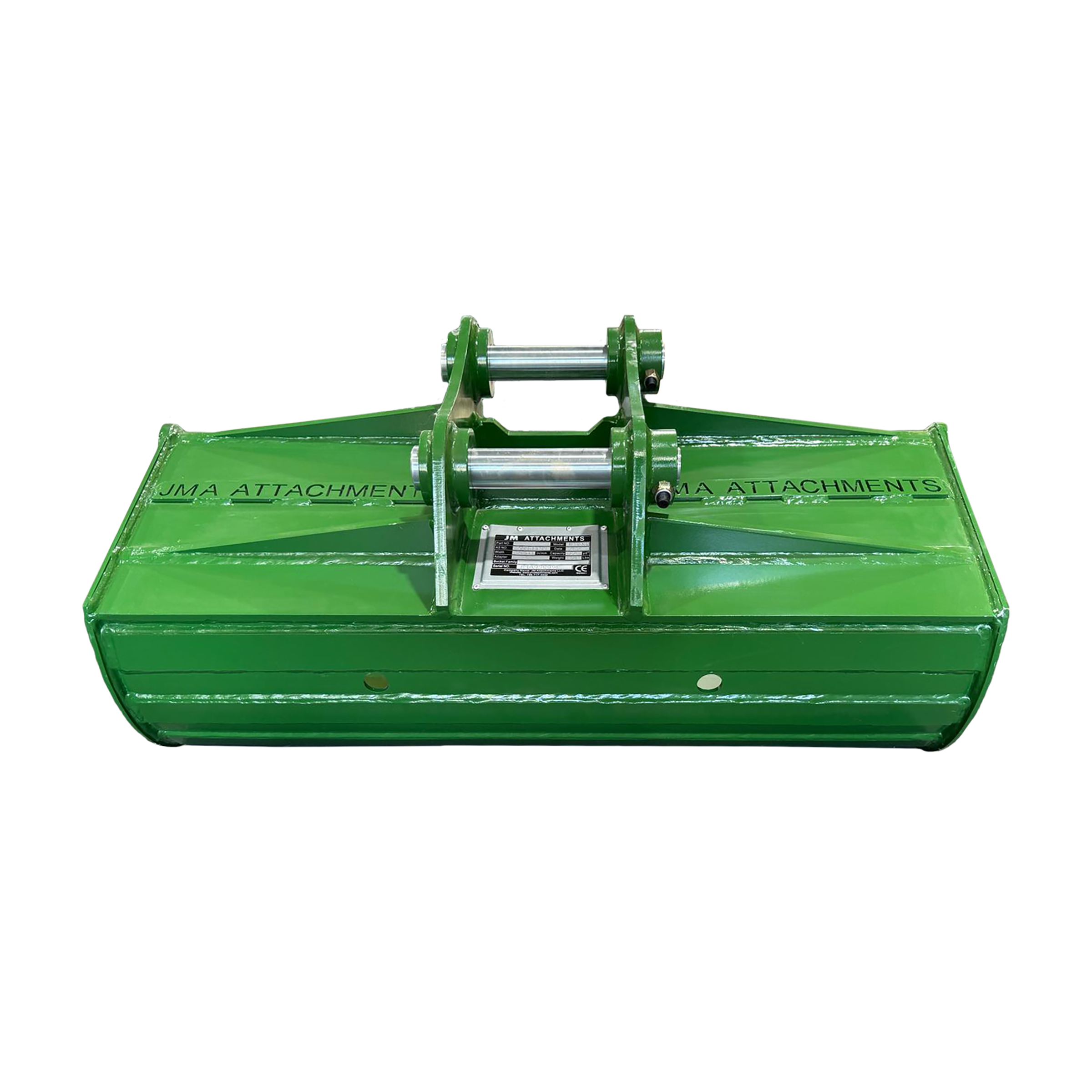

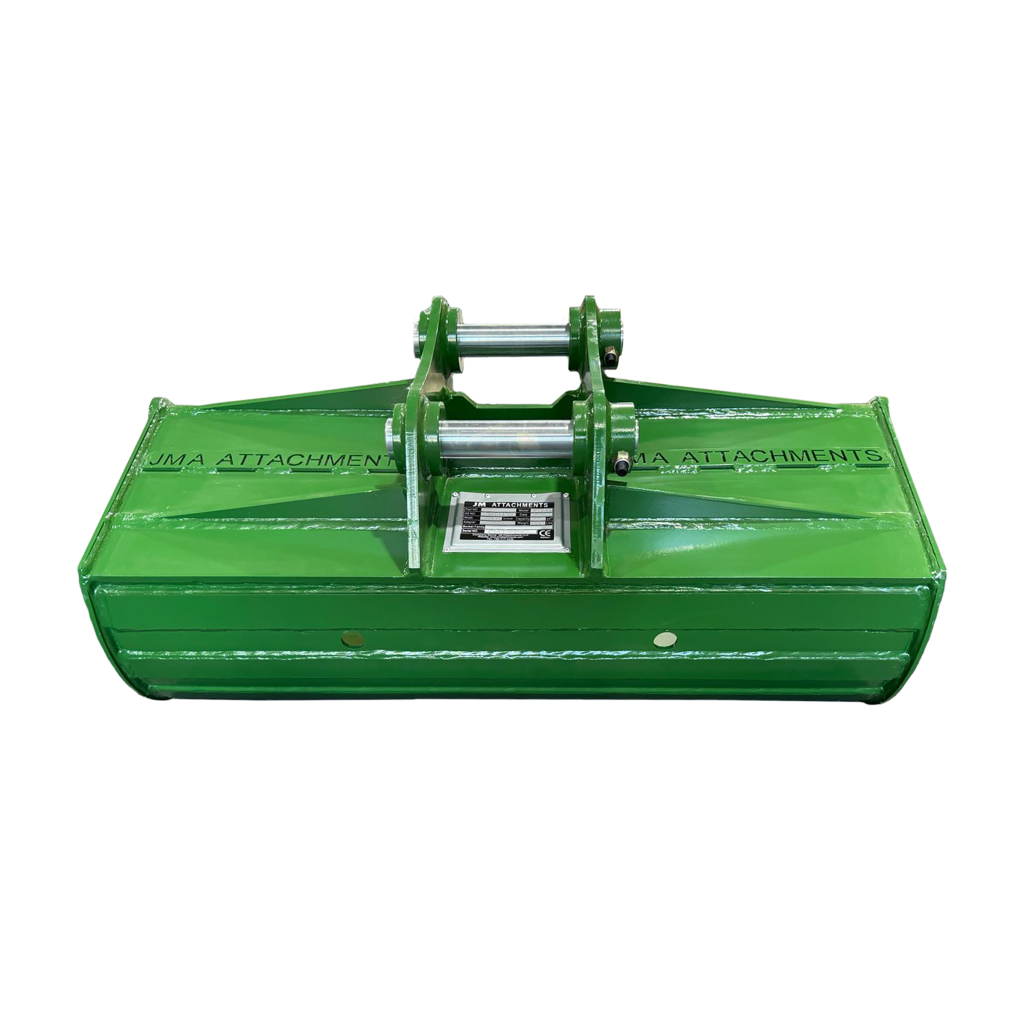

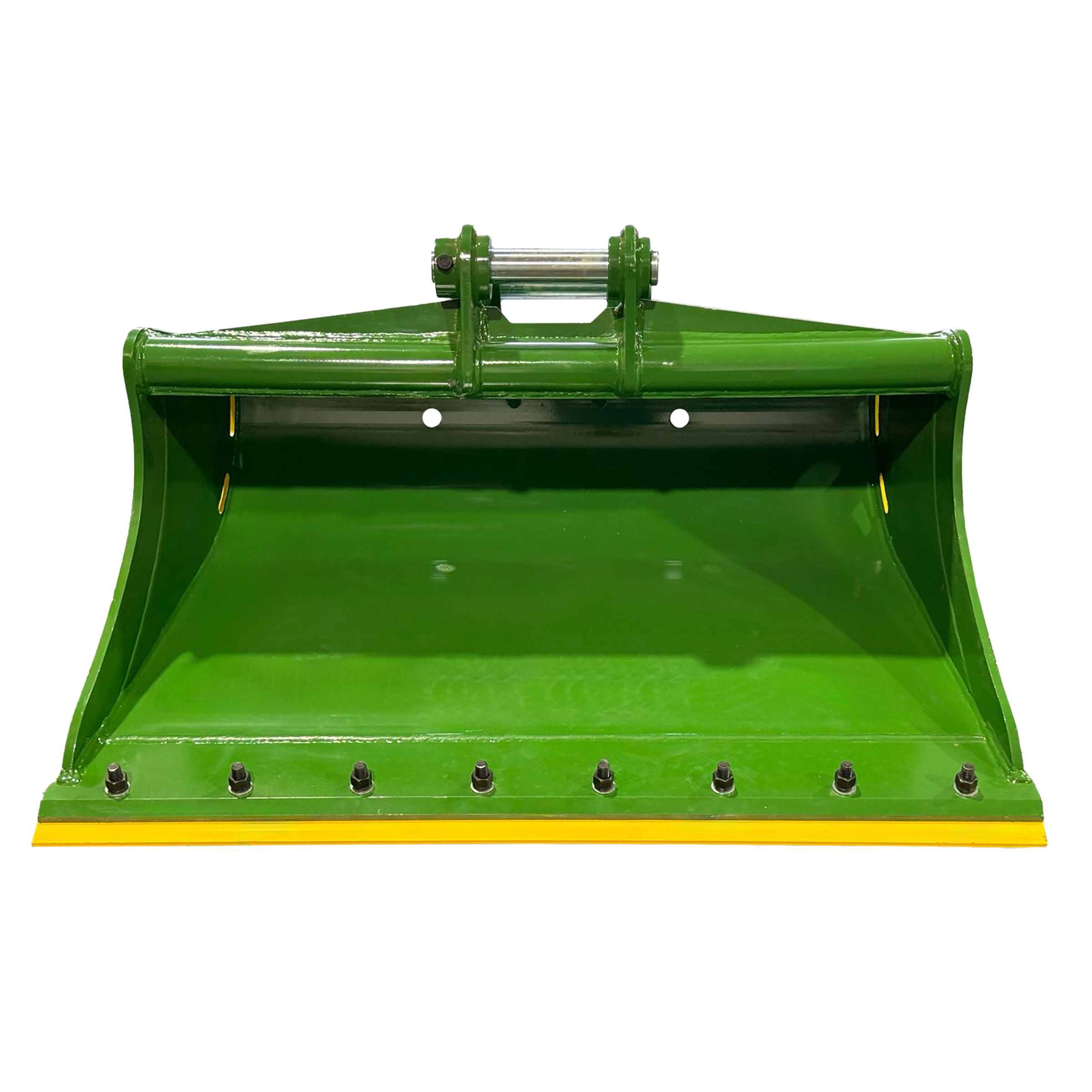

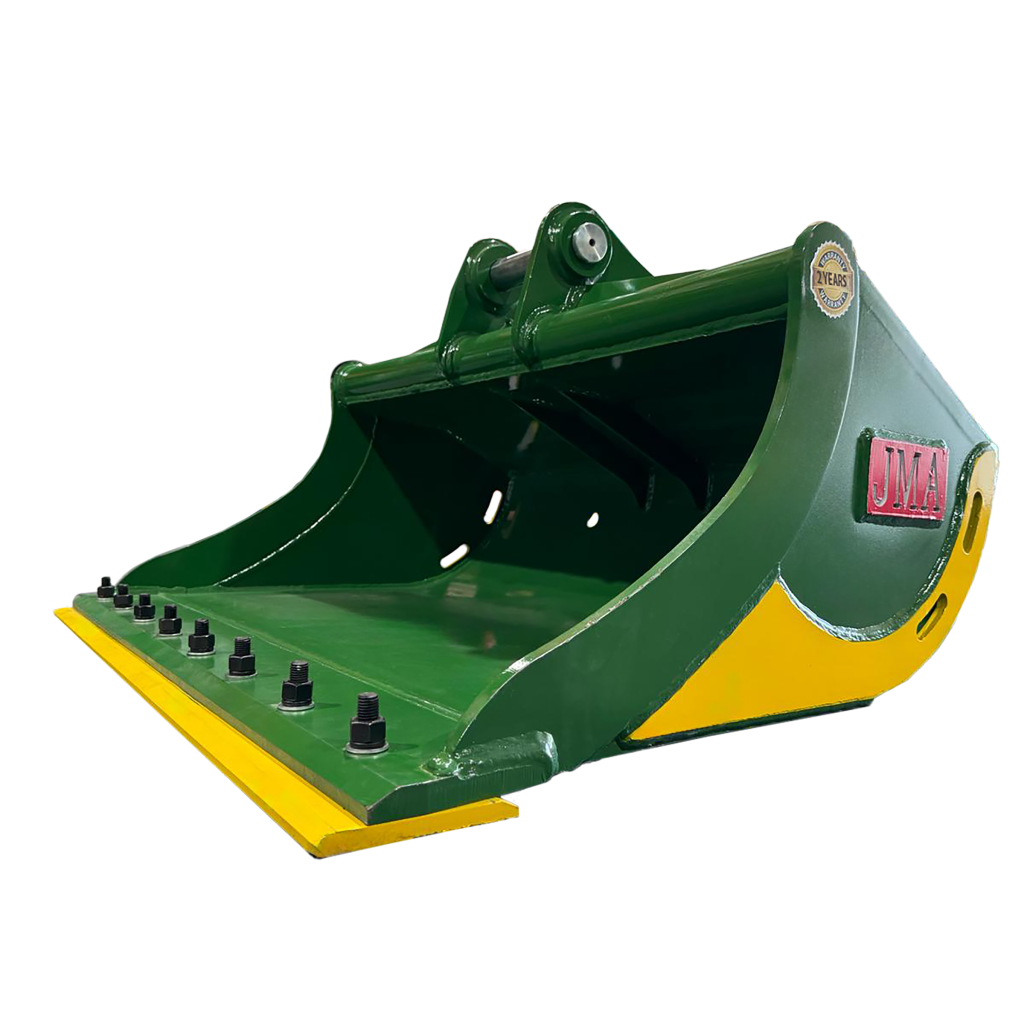

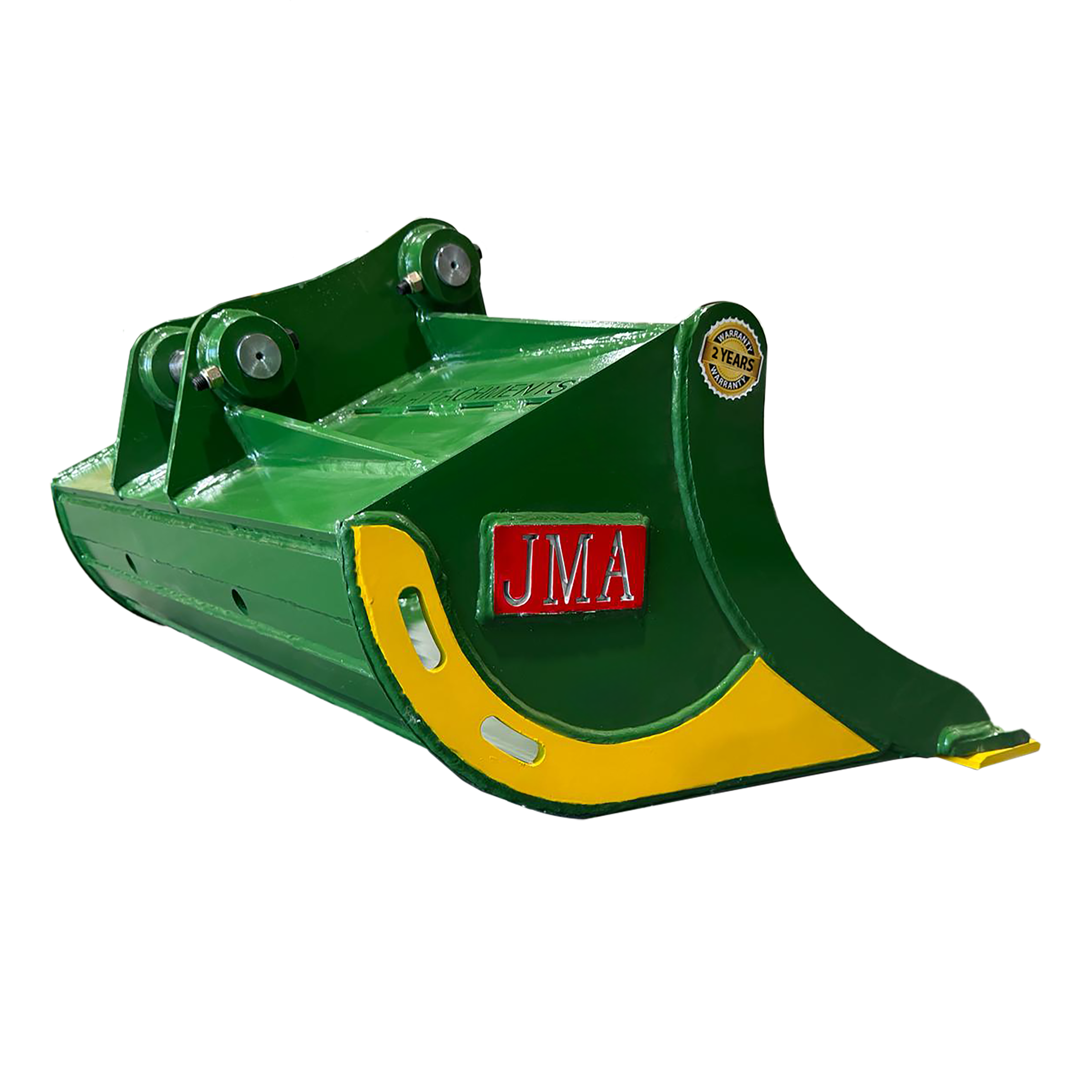

48″ Ditching Bucket for 7 – 10 Tons Excavators. 50mm Pins
- Fits 7–10 ton excavators · 50 mm pins · 200 mm ear to ear
- 48" wide (1219 mm) · AR400 steel body · 16 mm side walls · powder-coated green · 551 lb
- Pins included
- Ships from Miami, FL · US-based support
- 2-year warranty · lifetime warranty on structural welds
Bucket Size: 48"
Availability: Out of Stock
Frequently Bought Together
| Coupler Type | Pin On Style |
|---|---|
| Carrier Weight Class (tn) | 7 - 10 tons |
| Carrier Weight Class (lb) | 14,000 - 20,000 lb |
| Front Ear to Ear (mm) | 200 mm |
| Rear Ear to Ear (mm) | 200 mm |
| Center to Center (mm) | 310 mm |
| Front Pin Length (mm) | 346 mm |
| Rear Pin Length (mm) | 346 mm |
| Bucket Depth (mm) | 416 mm |
| Finish | Powder-Coated Green |
| Capacity (m³) | 0.32 m³ |
| Features | 3x Reinforced Side Plates |
| Product Weight (kg) | 250 kg |
| Product Weight (lbs) | 551.16 lb |
| Bucket Width (mm) | 1219.2 mm |
| Bucket Side Wall Thickness (mm) | 16 mm |
| Rear Pin Diameter (mm) | 50 mm |
| Material Type | AR400 Steel |
| Front Pin Diameter (mm) | 50 mm |
| Inner Bucket Height (mm) | 662 mm |
| Bucket Size | 48" |
| Pin Size | 50mm |
| Case | CX75, CX75 CSR, CX75 LR, CX75 MSR, CX75 SR, CX80, CX80 SR, CX80B, CX80C, CX80C MSR, CX85D SR, CX90, CX90D, CX90D MSR |
|---|---|
| Caterpillar | 307, 307 CR, 307.5, 307B, 307B2, 307C, 307D, 307E, 307S SR, 307S SR-V2, 308, 308 CR, 308 CR VAB, 308 SR, 308.5, 308B CR, 308B SR, 308C SR, 308D, 308D CR, 308D SR, 308D RR, 308E, 308E2 CR, 308E2 SR, 308E2 Z2.1, 308E CR, 308E SR, 309, 309 CR, 309 CR VAB |
| Hanix | H75C |
| Hitachi | EX75UR, EX75US, EX75US-5, EX80, EX80-5, EX80U, ZX70, ZX70LC, ZX70LC-2, ZX70LC-3, ZX70 LCN-3, ZX70-3, ZX70-5A, ZX70-5G, ZX70BL, ZX75, ZX75UR, ZX75UR-3, ZX75UR-5B, ZX75US, ZX75US A, ZX75US-2, ZX75US-3, ZX75US-3LC, ZX75US-5, ZX75US-5A, ZX75US-5B, ZX75US-5N, ZX75US-7, ZX75USBL, ZX75USK-5B, ZX75USL-3, ZX80, ZX80LC, ZX80LC-2, ZX80 LCK, ZX80LCK-3, ZX80SB, ZX80SBLC, ZX85US, ZX85USLC-3, ZX85US-3, ZX85US-5, ZX85US-5A, ZX85US-6, ZX85USB, ZX85USBLC-3, ZX85USB LCN-3, ZX85USB-3, ZX85USB-5, ZX85USB-5A, ZX85USB-5N, ZX85USB-6, ZX85USB-7, ZX90, ZX95US-7, ZX95USB-7 |
| Ihi | 80NX |
| John Deere | 80C, 80G, 80, 75, 75C, 75D, 75G, 75P, 75 P-Tier, 85D, 85G, 85P |
| Kato | 180G |
| Kobelco | K903, K903C, SK070SR, SK070SR-2, SK70SR-2, SK075 SR, SK75SR, SK75SR-3, SK75UR, SK75UR-3, SK80, SK80CS, SK80MSR, SK80MSR-1E, SK80MSR-2, SK85CS, SK85MSR, SK85MSR-3, SK85MSR-3E, SK85SR-3, SK95UR |
| Komatsu | PC60L-6, PC70, PC70-1, PC70-4, PC70-6, PC70-7E, PC70-8, PC70FR, PC70FR-1, PC70FR-2B, PC71, PC75, PC75 HD, PC75LC-6, PC75-1, PC75-2, PC75-3, PC75R, PC75R HD, PC75R-1, PC75R-2, PC75R-2K, PC75R-8, PC75U, PC75U1, PC75U-2, PC75UL, PC75UR, PC75UR-2, PC75UR-3, PC75US, PC75US-1, PC75US-2, PC75US-3, PC75US-5, PC75US-6, PC75UU, PC75UU-1, PC75UU-2, PC75UU-2A, PC75UU-2B, PC75UU-2E, PC75UU-3, PC75UU-3AC, PC75UU-3C, PC75UU-3E, PC76UU-2, PC78, PC78LC, PC78MR, PC78MR-1, PC78MR-2, PC78MR-5, PC78MR-6, PC78MR-8, PC78MRX-1, PC78R, PC78U, PC78US, PC78USLC, PC78US-2, PC78US-5, PC78US-6, PC78US-6E, PC78US-6E0, PC78US-6N0, PC78US-6Y, PC78US-7, PC78US-8, PC78US-10, PC78US-11, PC78UU, PC78UU-6, PC78UU-6E, PC78UU-6E0, PC78UU-8, PC78UU-10, PC78UUT-6, PC80, PC80LC-3, PC80-1, PC80-3, PC80-5, PC80MR, PC80MR-3, PC80MR-5, PC88, PC88MR, PC88MR-2, PC88MR-6, PC88MR-8, PC88MR-10, PC88MR-11, PC88MR-11E0, PC90, PC90-1, PC90-5, PC90-6, PC90-7, PC90R-2, PC91, PC95, PC95-1, PC95-2, PC95-5, PC95-6, PC95R, PC95R-1, PC95R-2, PC95RT |
| Link-Belt | 75 SPIN ACE, 75 X3, 75 X3 Spin Ace, 80 SPIN ACE, 80 X3, 80 X3 Spin Ace |
| Sany | SY70, SY75, SY75C, SY75C PRO, SY75C-9, SY80, SY80U, SY85, SY85C |
| Sumitomo | S160, SH75U, SH75X-3B, SH75X-6A, SH75XU-3B, SH75XU-6A, SH80, SH80-2, SH80-3, SH80-6, SH80BS-6A |
| Takeuchi | TB70, TB175, TB175W, TB180FR, TB285, TB290 |
| Terex | TC75, TW85 |
| Volvo | EC70, EC70V, EC70VV, EC75C, EC75D, EC75E, EC80D, EC80D PRO |
| XCMG | XE80C, XE80E |
| Yanmar | SV100, SV100-1, SV100-2, SV100-2A, SV100-2B, VIO70, VIO75, VIO75-A, VIO80, VIO80-1, VIO80-1A, VIO80-7, VIO100 |
48" Ditching Bucket for 7 - 10 Tons Excavators. 50mm Pins. Fits 7–10 ton excavators, 50 mm pins, 200 mm ear to ear. Included: pins. Price: $2,867.00, out of stock right now.
Unleash the full potential of your Excavator with the game-changing 48" Ditching Bucket for 7 - 10 Tons Excavators. 50mm Pins. This innovative ditching bucket is set to revolutionize your approach to drainage and grading projects.
Standout Features:
• Capacity Maximized: 0.32 m³ volume allows you to move more material with each pass, significantly reducing project timelines.
• Built for the Long Haul: AR400 Steel construction ensures years of reliable service in the most demanding environments.
• Cutting-Edge Performance: Reversible Bolt-On Cutting Edge delivers clean, efficient cuts while minimizing wear and tear.
• Perfect Fit Technology: Engineered specifically for Excavators in the 14,000 - 20,000 lbs category, ensuring seamless integration and enhanced capabilities.
• Optimized Profile: Designed for superior material release, preventing clogging and maintaining productivity in various soil conditions.
Experience the next level of ditching efficiency. With the 48" Ditching Bucket for 7 - 10 Tons Excavators. 50mm Pins, you're not just digging – you're mastering the art of precise earthwork.
Are pins included?
Yes. Pins are included.
Will it fit my machine?
Tell us your machine, we confirm the fit before shipping. Pin-on attachments are sized from your machine's pin diameter, pin-to-pin distance and ear width. If your machine has a quick coupler, is a long-reach model or was modified, measure those three and send them to us before you order. If we confirmed the fit from your accurate machine and coupler details and our recommendation is wrong, report it within 14 calendar days of delivery: the JMA Fitment Money-Back Promise gives a full product refund, outbound and return freight covered, no restocking fee.
How fast does it ship?
In-stock items ship from Miami, FL the same business day when ordered before 2 PM ET; orders after 2 PM ET, on weekends or on holidays ship the next business day. Carrier estimates for the lower 48, in business days from the ship date: parcels of 50 lb or less 5–7 standard or 2–4 expedited; LTL freight over 50 lb 7–10 standard or 4–6 expedited, usually with a delivery appointment and a signature. Outside the lower 48, shipping is quoted. Inspect it before you sign and note any damage on the delivery receipt.
What does the warranty cover?
Defects in materials and workmanship are covered for 2 years or 2,000 operating hours, whichever comes first: year 1 parts and pre-approved labor, year 2 parts only. Lifetime warranty on structural welds. Teeth, cutting edges, pins and bushings are wear items and are not covered. Get our written approval before any repair.
Can I return it?
Yes, for standard products: a refund within 14 calendar days of delivery, or store credit within 30, if it is unused, uninstalled, free of soil and grease, and in its original packaging with all hardware. Get a Return Authorization Number (RAN) from us first. The buyer pays return shipping unless the item was defective, damaged or wrong because of our error, or you can drop it off at our warehouse, 8068 NW 29th St, Doral, FL, Monday to Friday, 9 AM to 5 PM, with your RAN. A restocking fee applies to non-defective refunds; store credit has no restocking fee. Original outbound shipping is not refunded on change-of-mind returns. Installed or used attachments can't be returned.
