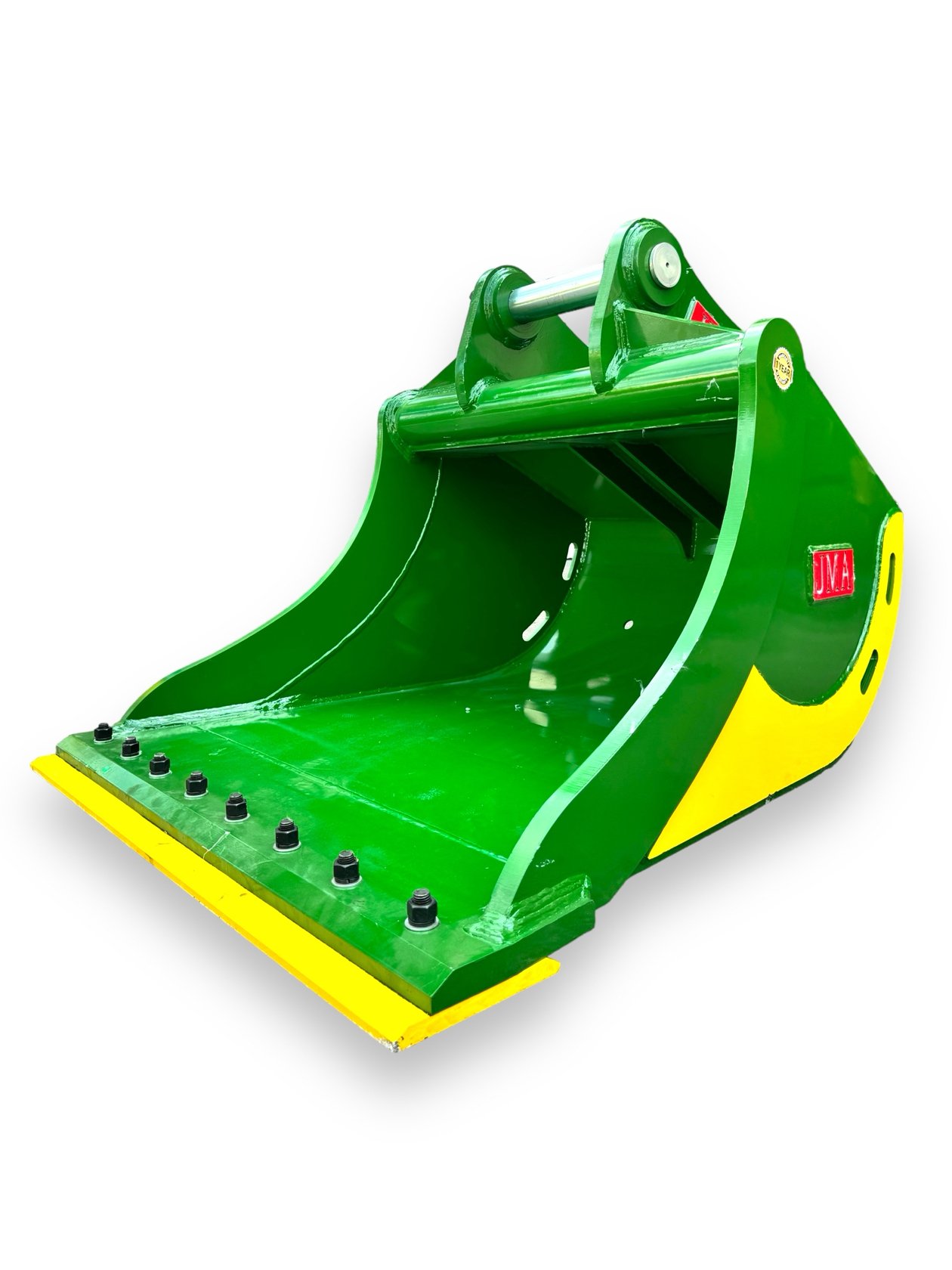

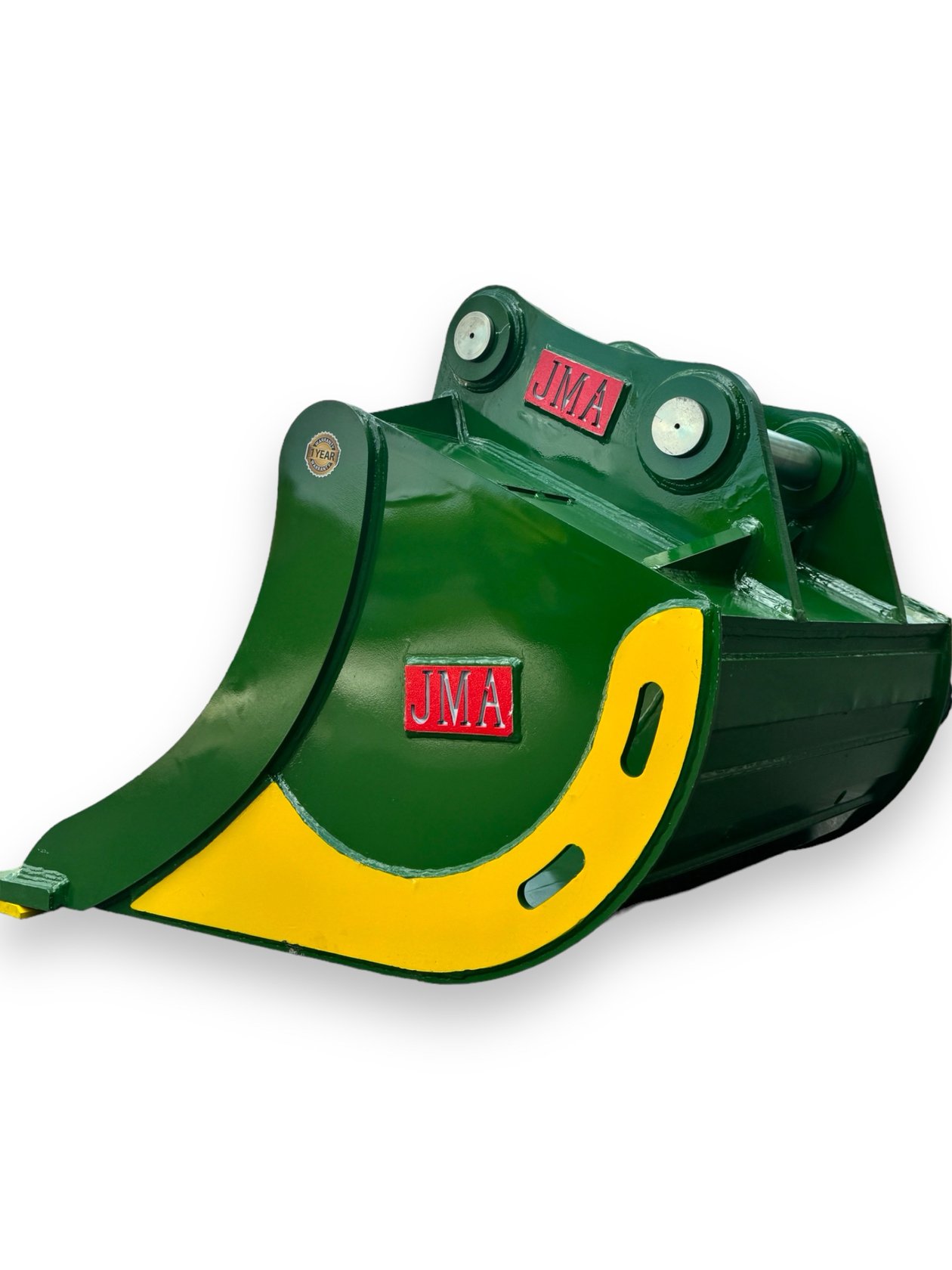

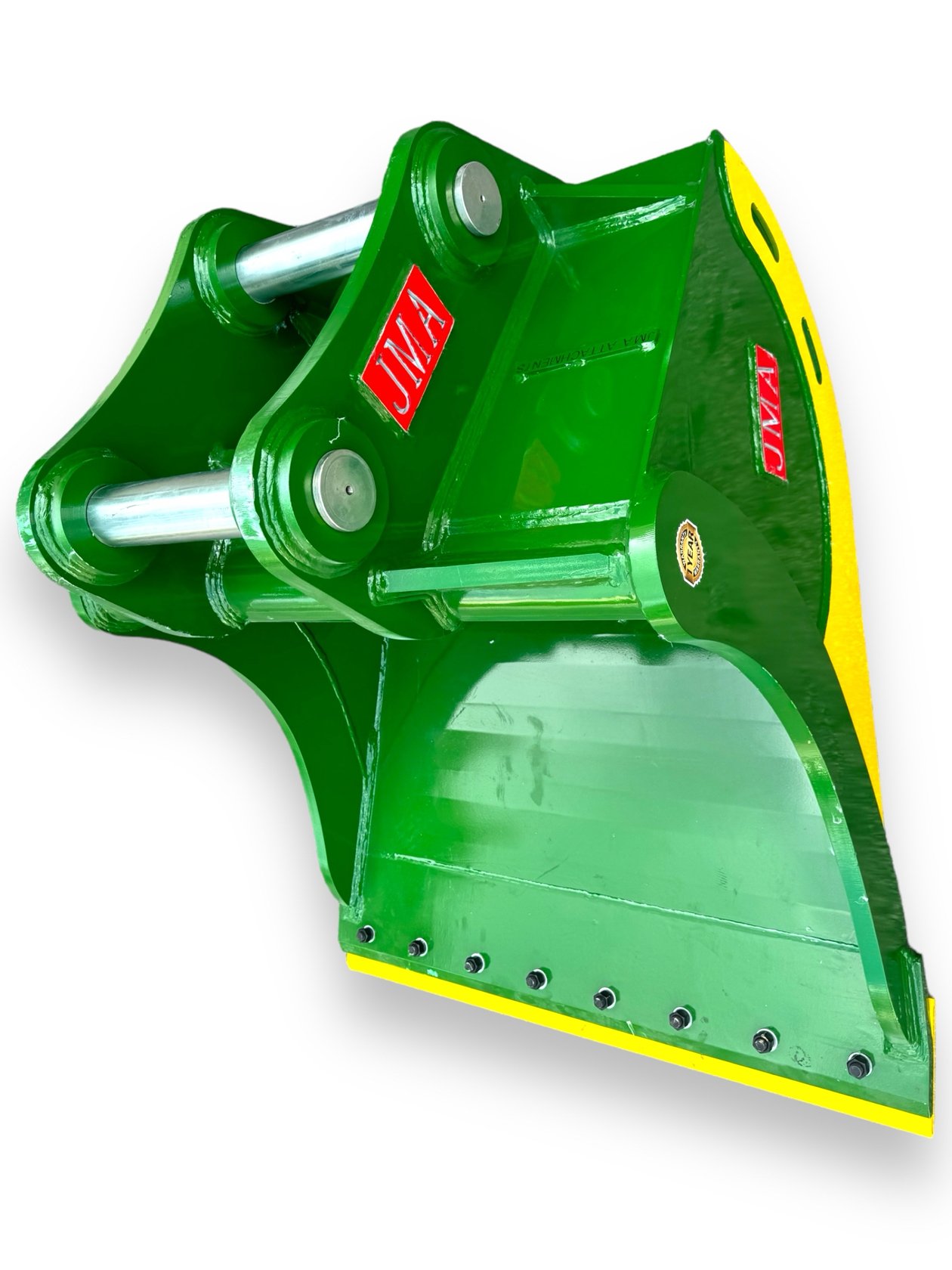

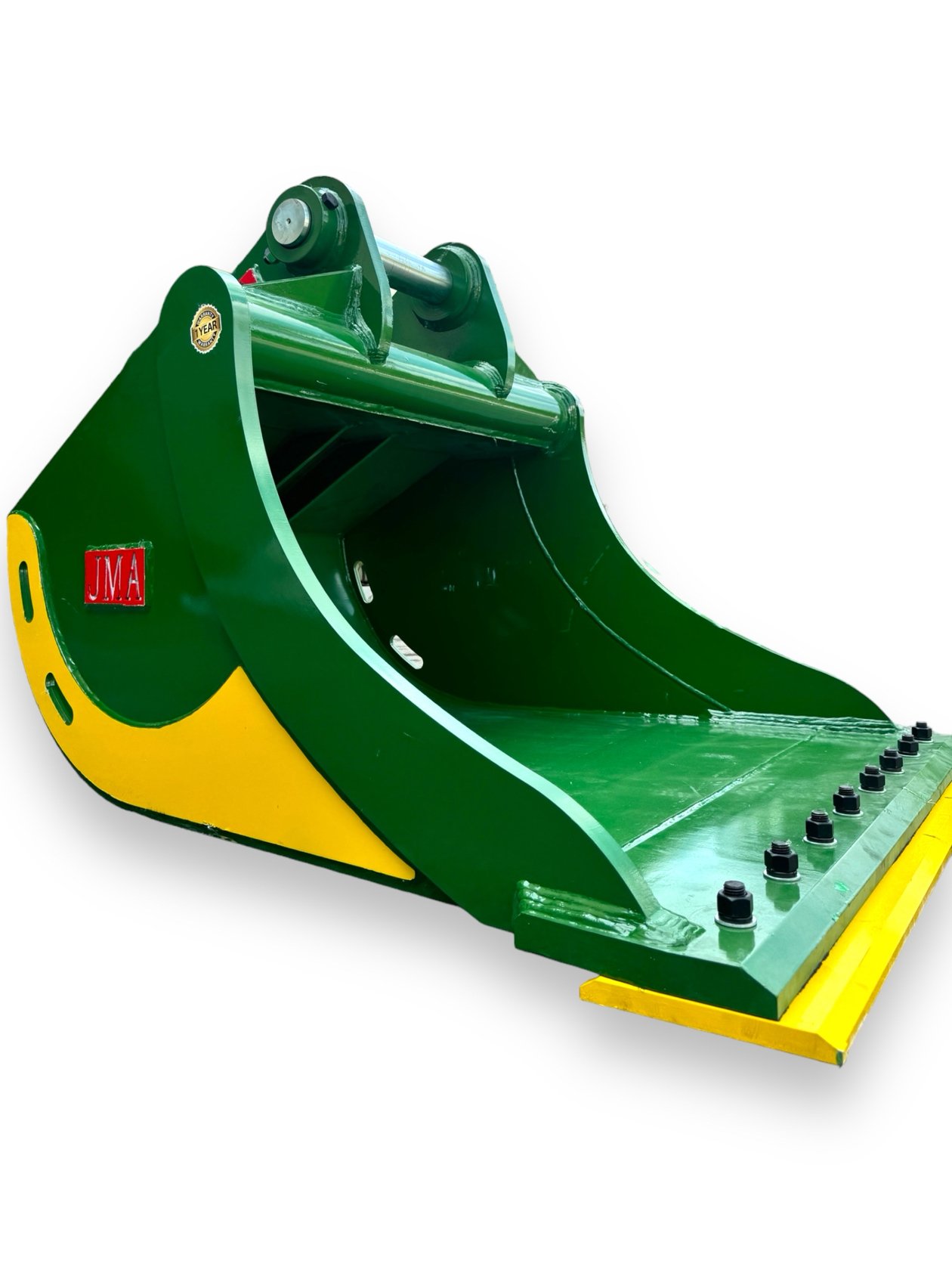

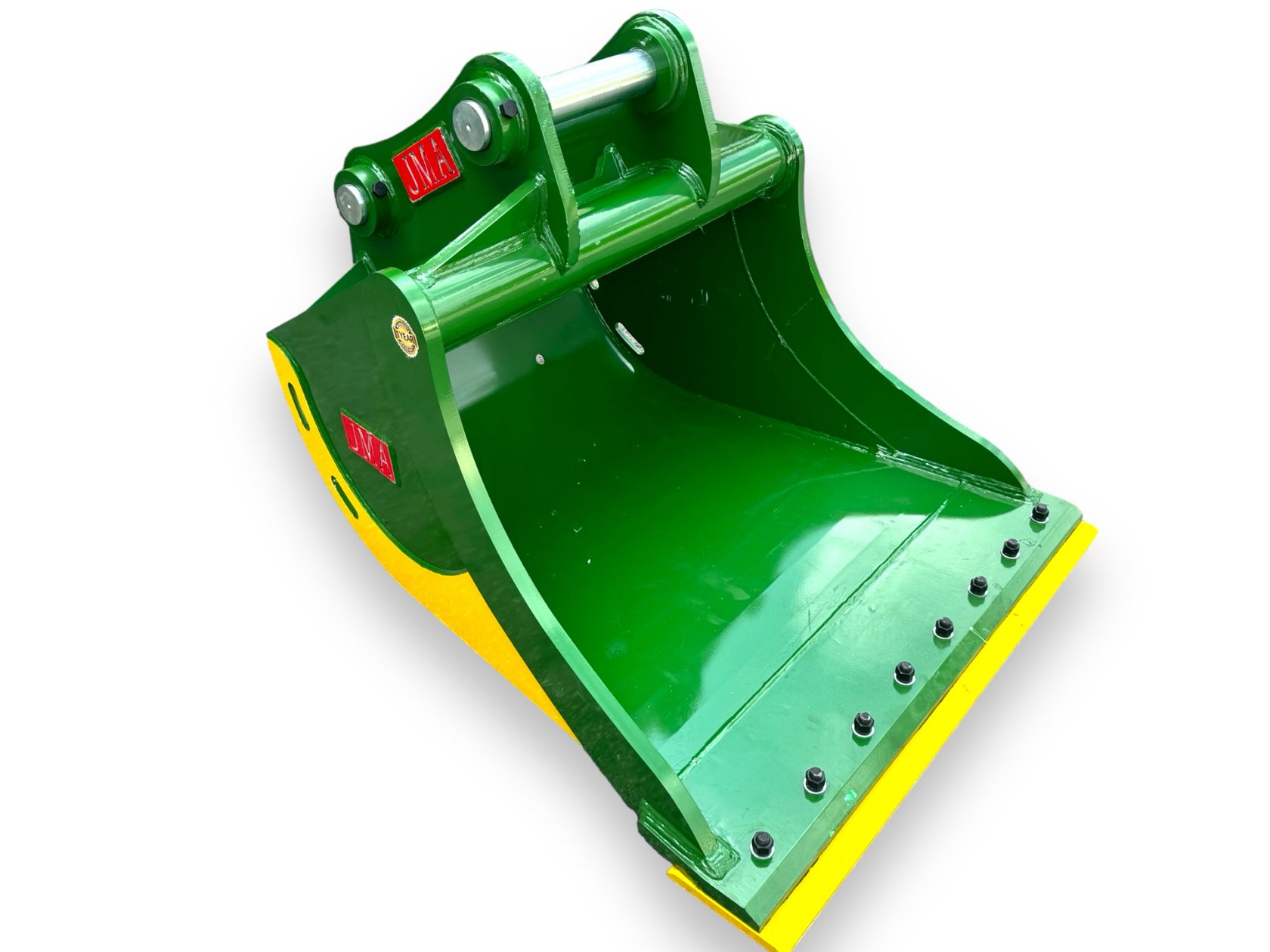

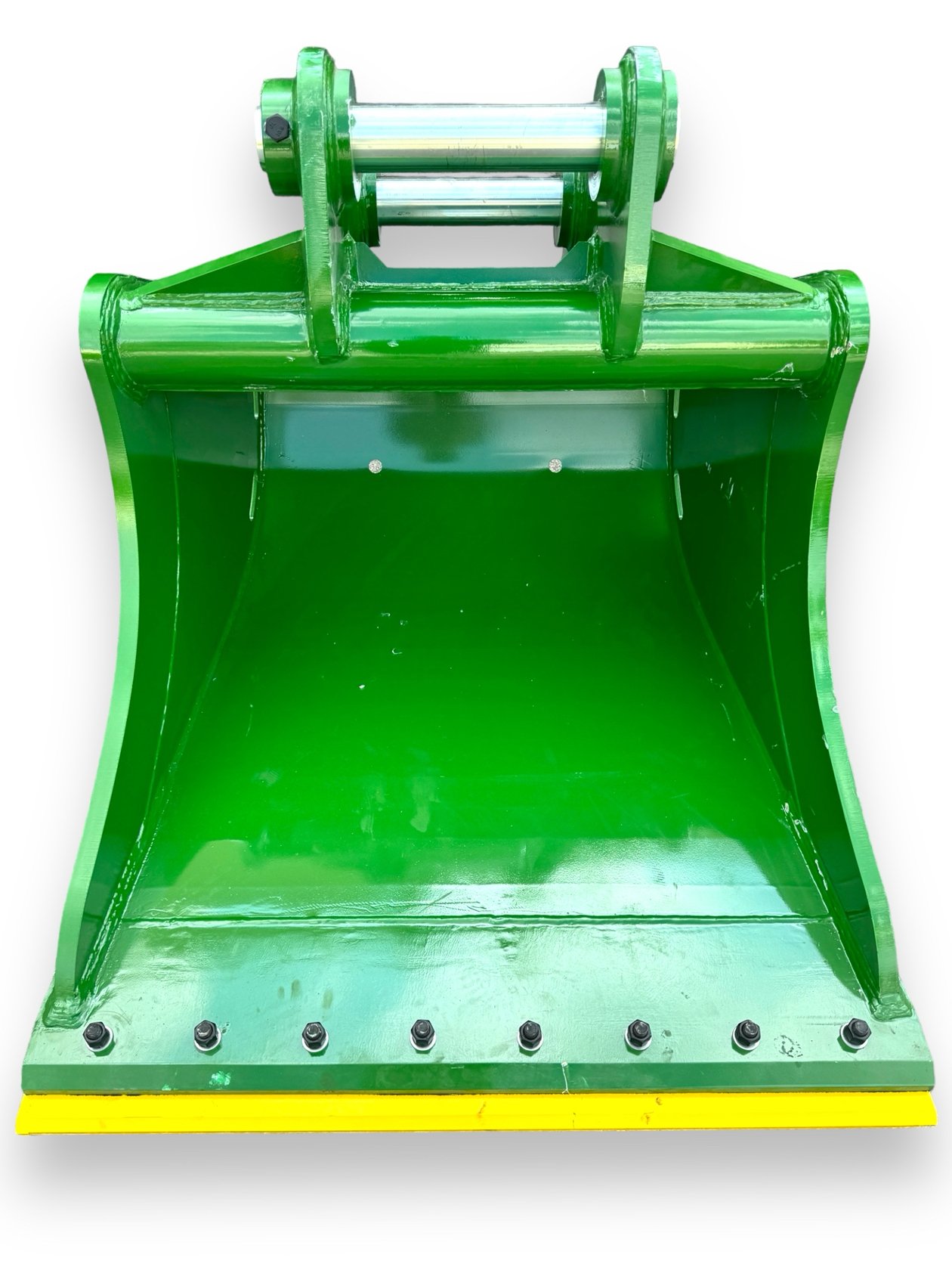

48″ Ditching Bucket for 10 – 15 Tons Excavators. 65mm Pins
- Fits 10–15 ton excavators · 65 mm pins · 262 mm ear to ear
- 48" wide (1219 mm) · 0.63 m³ capacity · AR400 steel body · 20 mm side walls
- Pins included
- Ships from Miami, FL the same business day when ordered before 2 PM ET · US-based support
- 2-year warranty · lifetime warranty on structural welds
Bucket Size: 48"
Frequently Bought Together
| Front Pin Diameter (mm) | 65 mm |
|---|---|
| Rear Pin Diameter (mm) | 65 mm |
| Front Ear to Ear (mm) | 262 mm |
| Rear Ear to Ear (mm) | 262 mm |
| Center to Center (mm) | 362 mm |
| Front Pin Length (mm) | 449 mm |
| Rear Pin Length (mm) | 449 mm |
| Capacity (m³) | 0.63 m³ |
| Features | 3x Reinforced Side Plates |
| Product Weight (kg) | 564 kg |
| Product Weight (lbs) | 1243.41 lb |
| Material Type | AR400 Steel |
| Bucket Depth (mm) | 550 mm |
| Finish | Powder-Coated Green |
| Bucket Width (mm) | 1219.2 mm |
| Bucket Side Wall Thickness (mm) | 20 mm |
| Carrier Weight Class (tn) | 10 - 15 tons |
| Carrier Weight Class (lb) | 20,000 - 30,000 lb |
| Inner Bucket Height (mm) | 856 mm |
| Bucket Size | 48" |
| Pin Size | 65mm |
| Coupler Type | Pin On Style |
| Case | CX130, CX130LC, CX130B, CX130BLC, CX130C, CX130C LR, CX130D, CX130DLC, CX130E, CX130K, CX135, CX135 CR, CX135 MSR, CX135 SR, CX135C, CX140E, CX145 CSR, CX145 DSR, CX145C, CX145D MSR |
|---|---|
| Daewoo | S130LC V, S130W-111, S140LC-V |
| Develon | DX100W-7, DX140LC-7K |
| Doosan | DH140W-7, DH150LC-7, DH150W-7, DX100W-7, DX120, DX130-9CN, DX140LC-3, DX140LC-5, DX140LC-7, DX140LC-9C, DX140 LCA, DX140LCR, DX140LCR-3, DX140LC, DX140LC-7K, DX140WA, DX140WACE, DX140WE, DX150LC-9C, DX150W-9C, S130WV, S140W V, S140WV RW |
| Hitachi | EX100-3, EX100-5, EX100WD-3, EX100WD-3C, EX120-3, EX120-5, EX125WD-5, EX130, EX130K, EX130UR-1, EX130UR-5, EX130W, EX135, EX135UR, EX135UR-1, EX135UR-5, EX135US, EX135USR, ZX110, ZX110-2, ZX110-3, ZX110BL, ZX110E, ZX110M, ZX110M-3, ZX120, ZX120 IV, ZX120LC, ZX120-2, ZX120-3, ZX120-5B, ZX120-6, ZX120B, ZX120BL, ZX120E, ZX120USR-5, ZX125US, ZX130, ZX130LC, ZX130LC-3, ZX130LC-5N, ZX130 LCM, ZX130 LCN, ZX130 LCN-3, ZX130 LCN-5, ZX130 LCN-5B, ZX130 LCN-6, ZX130 LCN-7, ZX130-3, ZX130-5, ZX130-5A, ZX130-5B, ZX130-5G, ZX130-5N, ZX130-6, ZX130-6N, ZX130-7, ZX130-7H, ZX130BL, ZX130H, ZX130K, ZX130K HG, ZX130K-3, ZX130K-5B, ZX130K-6, ZX130L, ZX130MT, ZX135, ZX135U, ZX135UR, ZX135US, ZX135USLC, ZX135US-1, ZX135US-2, ZX135US-3, ZX135US-5, ZX135US-5B, ZX135US-5N, ZX135US-6, ZX135US-6N, ZX135US-7, ZX135US-7H, ZX135US-E, ZX135USB-3, ZX135USB-5, ZX135USBL-3, ZX135USBL-5, ZX135USBL-6, ZX135USBL-7, ZX135USK, ZX135USK-3, ZX135USK-6, ZX135USM, ZX135USOS-3, ZX135USOS-5B, ZX135USOS-6, ZX135USR-5, ZX135USTN-Z, ZX140H, ZX140W-3 |
| Hyundai | HX125, HX130LCR, HX130ALCR, HX140, HX140LC, HX140A L, HX140L, HX145, HX145ALCR, HX145LCR, R110-7, R110-7A, R110D-7, R120W, R125LCR-9, R125LCR-9A, R130LC, R130LC-3, R130W-3, R140LC-7, R140LC-9, R140LC-9A, R140LC-9S, R140W-7, R140W-9, R145CR-9, R145LC-9, R145LCR-9A |
| JCB | 131LLC, 131X, 131XLC, 140X, 145X, JS130, JS130LC, JS130C, JS131, JS131LC, JS135, JS135LC, JS145, JZ140, JZ141 |
| John Deere | 110, 120, 120LC, 120C, 120CLC, 120D, 130G, 135 P-Tier, 135C, 135D, 135G |
| Kobelco | K905, K905LC MARK II, K905A, K905ALC, SK115SRDZ, SK120, SK120-2, SK120-5, SK120LC, SK120v, SK125SR, SK125SR-2, SK125SR-3, SK130, SK130-8, SK130LC, SK130LC-11, SK130UR, SK135SR, SK135SR-1E, SK135SR-2, SK135SR-3, SK135SRLC, SK140LC-8, SK140SRLC, SK140SRLC-7 |
| Link-Belt | 130 LX, 130 X2, 130 X3, 130 X4, 130 X4LC, 135 LX, 135 Spin Ace, 135 X3 SPIN |
| Liugong | 915D |
| Sany | SY115, SY115C, SY125, SY125C PRO, SY130-1, SY135, SY135 IV, SY135-2, SY135-3A, SY135C, SY135C-9, SY135U, SY140C-9S, SY155W |
| Sumitomo | SH120, SH120-1, SH120-3, SH120- 2, SH120-A3, SH125X-3, SH130-5, SH130-6, SH130LC-5, SH135X, SH135X-3, SH135X-3B, SH145X-6, SH145X-6B |
| Takeuchi | TB1140, TB2150R |
| Terex | TC125 |
48" Ditching Bucket for 10 - 15 Tons Excavators. 65mm Pins. Fits 10–15 ton excavators, 65 mm pins, 262 mm ear to ear. Included: pins. Price: $4,797.60, in stock, ships from Miami, FL the same business day when ordered before 2 PM ET.
Unlock the full potential of your Excavator with the 48" Ditching Bucket for 10 - 15 Tons Excavators. 65mm Pins. This 0.63 m³ ditching marvel is your key to mastering drainage and grading challenges with unparalleled efficiency.
Superior Features:
* Volume Virtuoso: 0.63 m³ capacity ensures you move more material in fewer passes, dramatically improving job site productivity.
* Durability Redefined: Constructed from high-grade AR450 Steel to withstand the most demanding work environments.
* Edge Excellence: Equipped with a Reversible Bolt-On Cutting Edge for exceptional cutting performance and reduced maintenance needs.
* Fit Check: Designed for 22,000 - 33,000 lbs class Excavators; we confirm fit before shipping.
* Flow Optimization: Crafted to maintain smooth material handling and release, even in challenging soil conditions.
Step into the future of precision earthwork. With the 48" Ditching Bucket for 10 - 15 Tons Excavators. 65mm Pins, you're not just ditching – you're revolutionizing the way drainage and grading projects are completed. Are you ready to set new standards in excavation efficiency?
Are pins included?
Yes. Pins are included.
Will it fit my machine?
Tell us your machine, we confirm the fit before shipping. Pin-on attachments are sized from your machine's pin diameter, pin-to-pin distance and ear width. If your machine has a quick coupler, is a long-reach model or was modified, measure those three and send them to us before you order. If we confirmed the fit from your accurate machine and coupler details and our recommendation is wrong, report it within 14 calendar days of delivery: the JMA Fitment Money-Back Promise gives a full product refund, outbound and return freight covered, no restocking fee.
How fast does it ship?
In-stock items ship from Miami, FL the same business day when ordered before 2 PM ET; orders after 2 PM ET, on weekends or on holidays ship the next business day. Carrier estimates for the lower 48, in business days from the ship date: parcels of 50 lb or less 5–7 standard or 2–4 expedited; LTL freight over 50 lb 7–10 standard or 4–6 expedited, usually with a delivery appointment and a signature. Outside the lower 48, shipping is quoted. Inspect it before you sign and note any damage on the delivery receipt.
What does the warranty cover?
Defects in materials and workmanship are covered for 2 years or 2,000 operating hours, whichever comes first: year 1 parts and pre-approved labor, year 2 parts only. Lifetime warranty on structural welds. Teeth, cutting edges, pins and bushings are wear items and are not covered. Get our written approval before any repair.
Can I return it?
Yes, for standard products: a refund within 14 calendar days of delivery, or store credit within 30, if it is unused, uninstalled, free of soil and grease, and in its original packaging with all hardware. Get a Return Authorization Number (RAN) from us first. The buyer pays return shipping unless the item was defective, damaged or wrong because of our error, or you can drop it off at our warehouse, 8068 NW 29th St, Doral, FL, Monday to Friday, 9 AM to 5 PM, with your RAN. A restocking fee applies to non-defective refunds; store credit has no restocking fee. Original outbound shipping is not refunded on change-of-mind returns. Installed or used attachments can't be returned.
