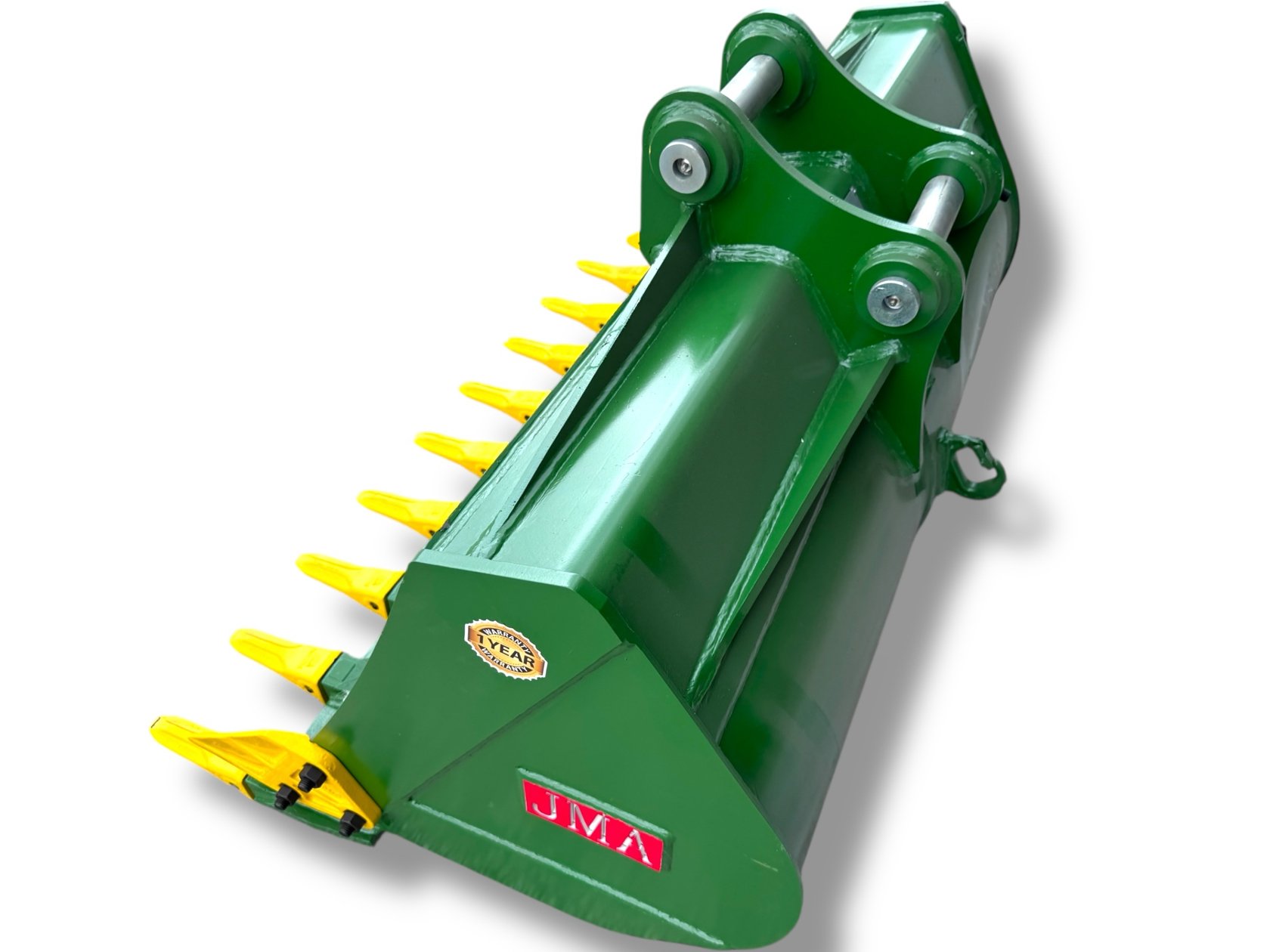

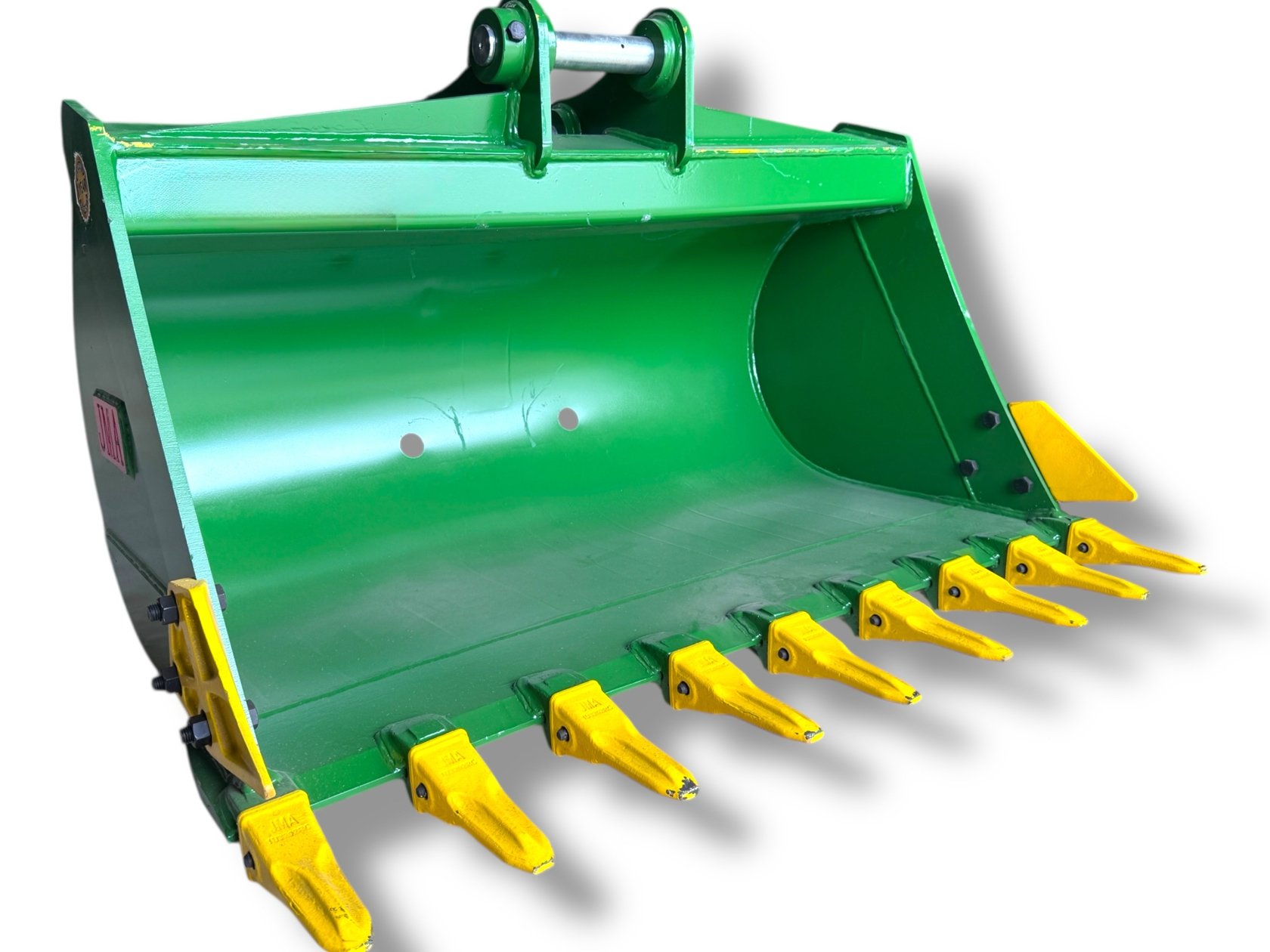

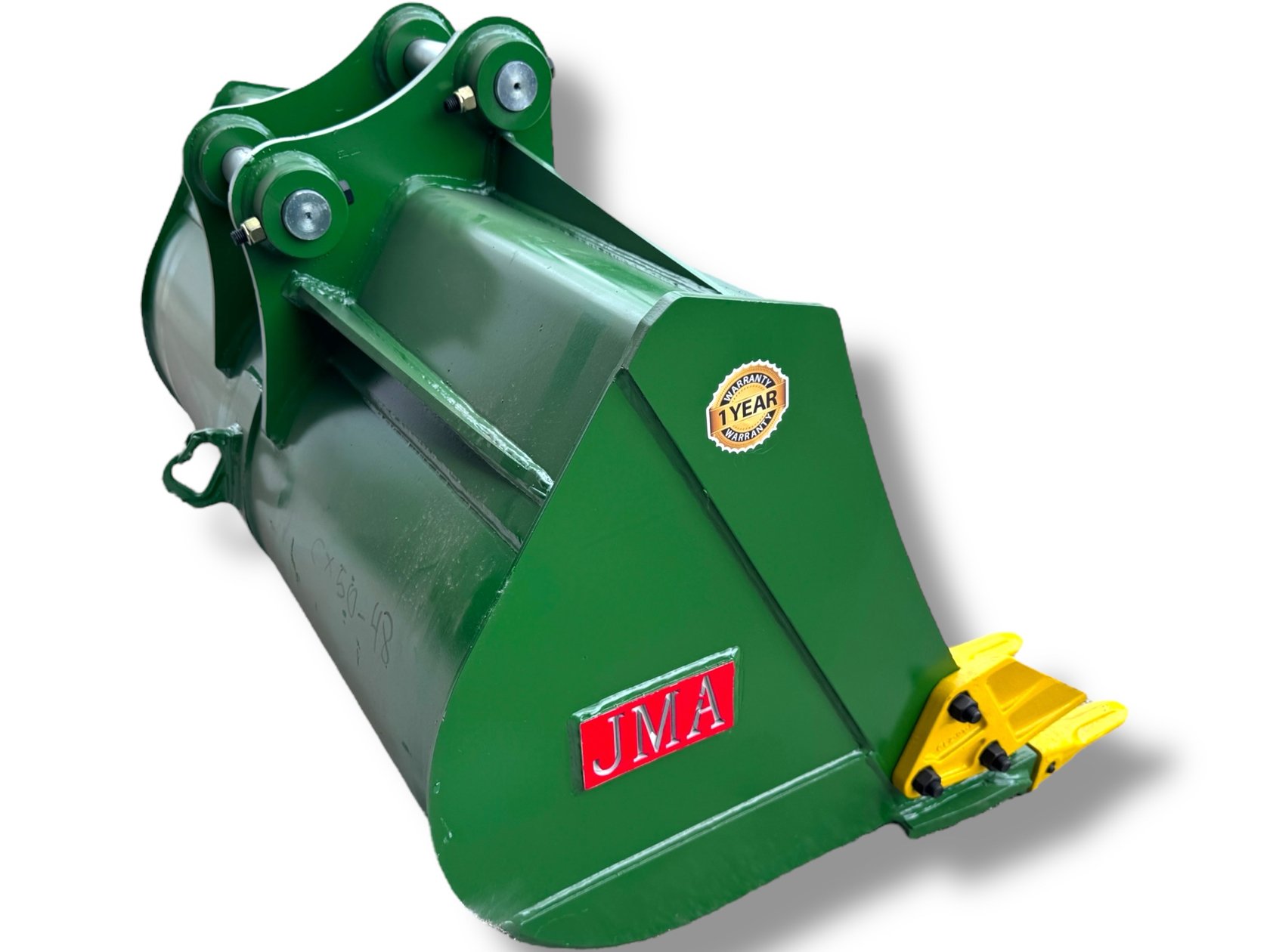

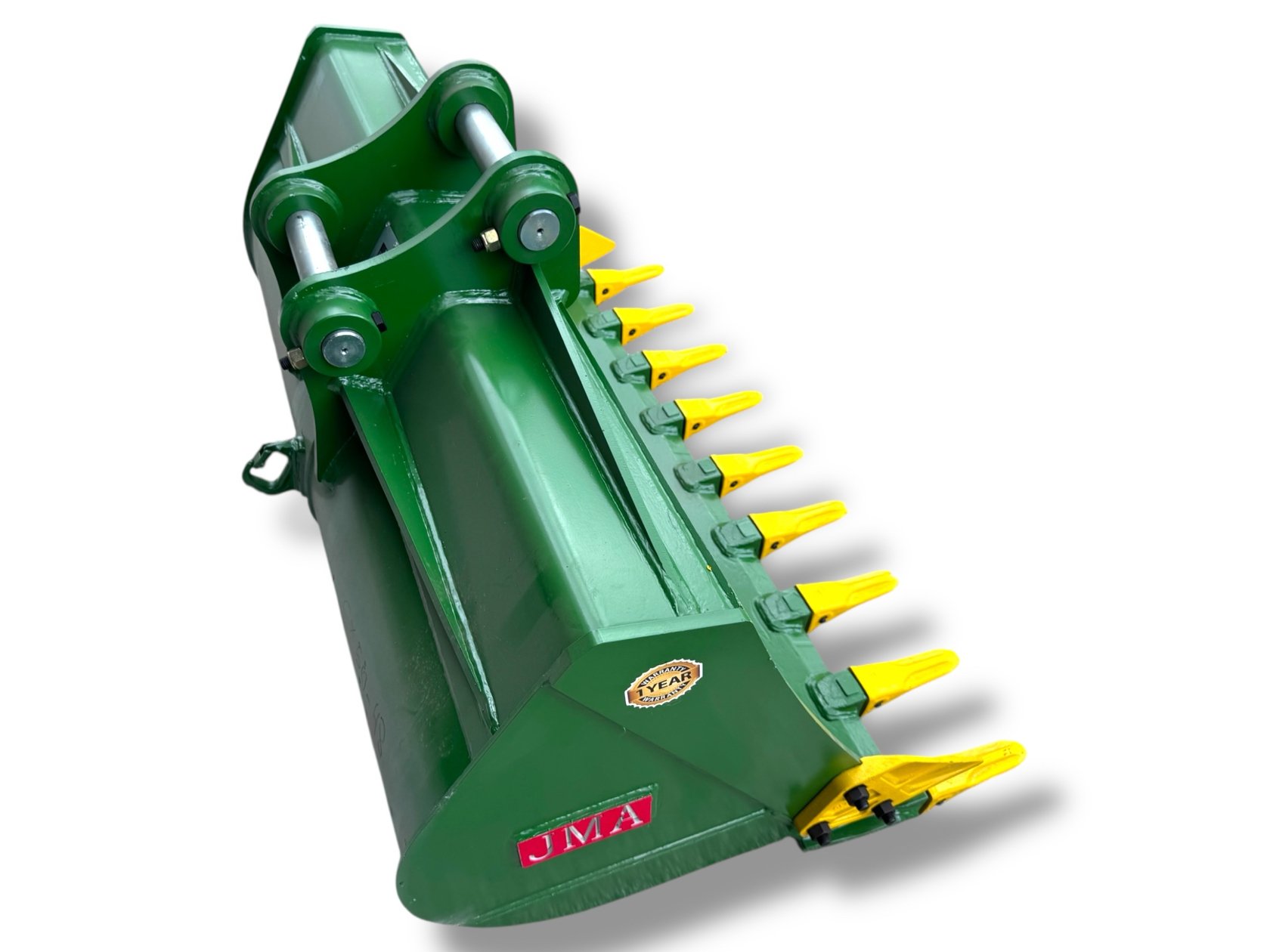

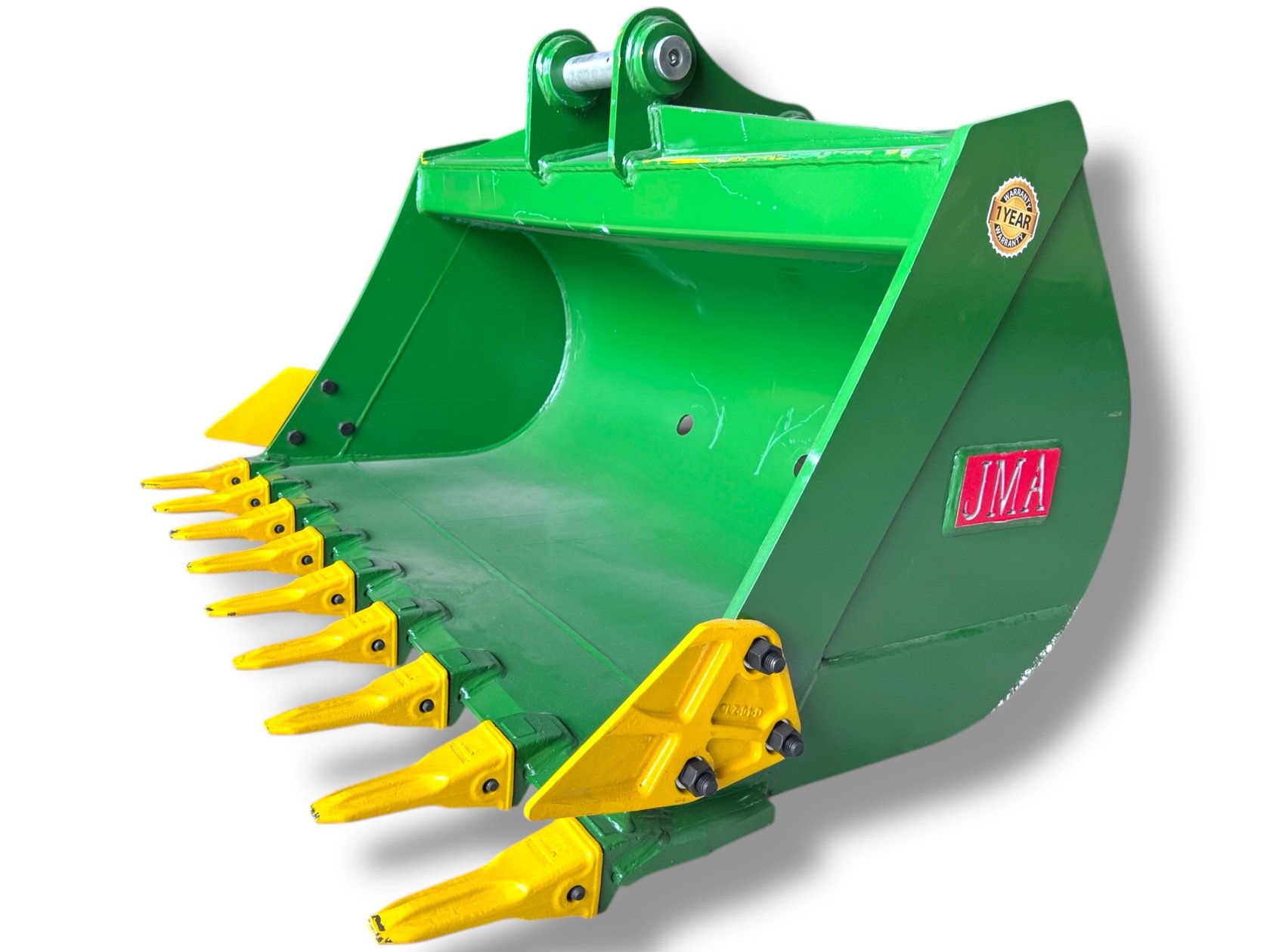

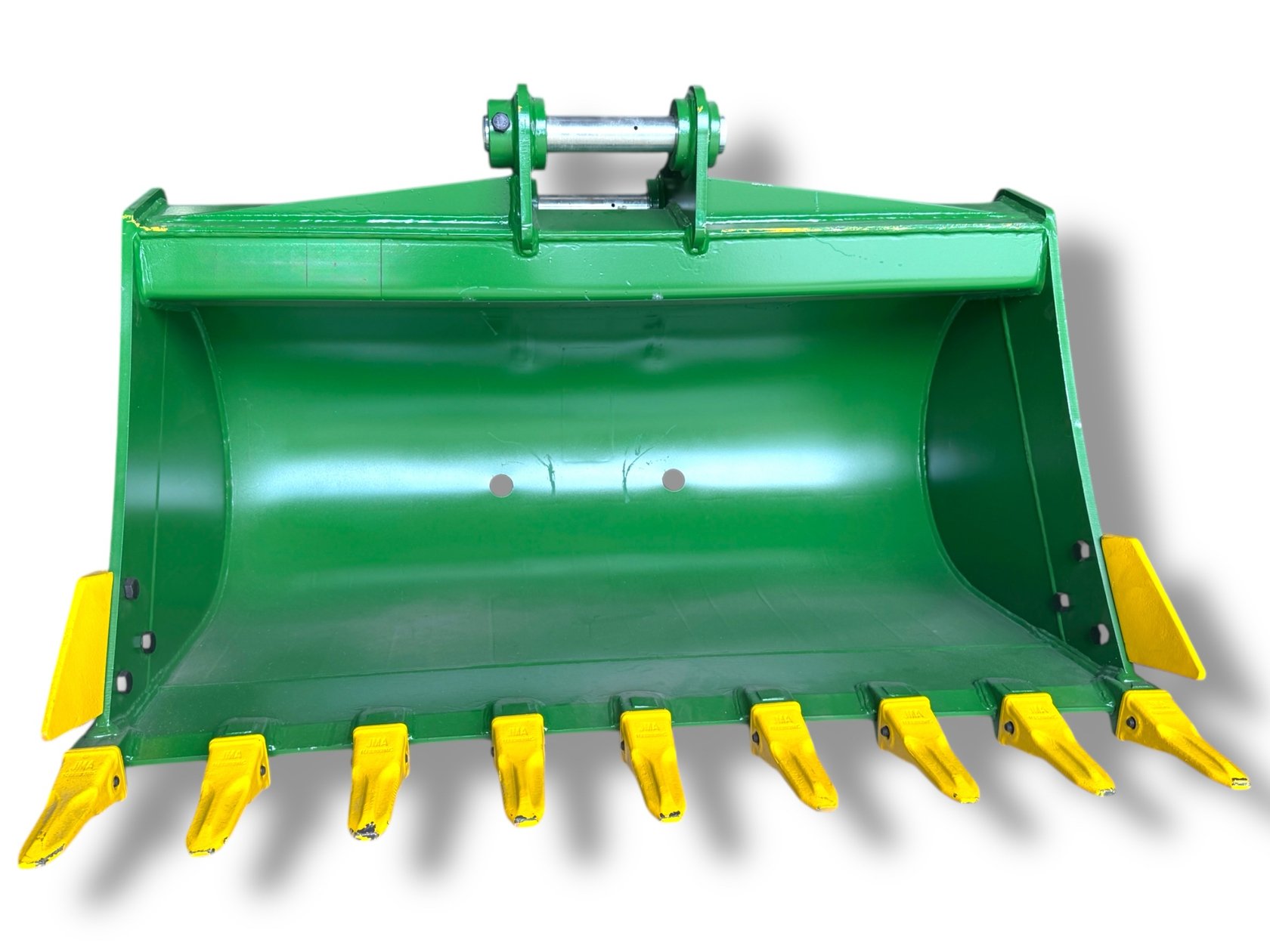

48″ Digging Bucket for 4 – 6.5 Tons Mini Excavators. 45mm Pins
- Fits 4–6.5 ton mini excavators · 45 mm pins · 165 mm ear to ear
- 48" wide (1219 mm) · AR400 steel body · 14 mm side walls · powder-coated green
- Pins, 9 teeth (1U3202RC) and 2 side cutters included
- Ships from Miami, FL the same business day when ordered before 2 PM ET · US-based support
- 2-year warranty · lifetime warranty on structural welds
Bucket Size: 48"
Frequently Bought Together
| Coupler Type | Pin On Style |
|---|---|
| Rear Pin Diameter (mm) | 45 mm |
| Front Ear to Ear (mm) | 165 mm |
| Rear Ear to Ear (mm) | 165 mm |
| Center to Center (mm) | 240 mm |
| Front Pin Length (mm) | 303 mm |
| Rear Pin Length (mm) | 303 mm |
| Bucket Depth (mm) | 460 mm |
| Capacity (m³) | 0.18 m³ |
| Front Pin Diameter (mm) | 45 mm |
| Material Type | AR400 Steel |
| Finish | Powder-Coated Green |
| Features | 3x Reinforced Side Plates |
| Product Weight (lbs) | 297.62 lb |
| Product Weight (kg) | 135 kg |
| Bucket Side Wall Thickness (mm) | 14 mm |
| Bucket Width (mm) | 1219.2 mm |
| Carrier Weight Class (tn) | 4 - 6.5 tons |
| Carrier Weight Class (lb) | 8,000 - 13,000 lb |
| Inner Bucket Height (mm) | 640 mm |
| Bucket Size | 48" |
| Pin Size | 45mm |
| Tooth Number | 1U3202RC |
| Tooth Pin Part Number | 9W7112 |
| Tooth Style | Rock Chisel Bucket Tooth |
| Airman | AX45, AX48U-5A, AX50, AX50-2, AX50U-4, AX50U-5F, AX55U-5A, AX55U-6A |
|---|---|
| Bobcat | E45, E45EM, E45M, E48, E48R2, E50, E50EM, E50M, E50R2, E50Z, E55, E55EM, E55M, E55R2, E55W, E55Z, E57W, E58, E60, E60A, E60EA, E60R2, E62, E62EM, E63, E63M, E65W, X435, X435G, X435HAG, X435ZHS |
| Case | CX47, CX50, CX50B, CX55, CX55B |
| Caterpillar | 305, 305 CR, 305 SR, 305 SR II, 305.5, 305.5 SR, 305.5D CR, 305.5E, 305.5E2 CR, 305.5E CR, 305BR, 305C, 305C CR, 305D, 305D CR, 305E, 305E2 CR, 305E CR, 306, 306 CR, 306.5, 306D, 306E |
| Daewoo | S50, S50 V, S055, S55 V PLUS, S55-V, S55V-G, S55W V, Solar 55, Solar 55-V |
| Develon | DX50Z-7, DX55, DX55R-7, DX57W-7, DX60WN ECO, DX63-7 |
| Doosan | DH55, DH55-7, DH55-V, DH60-7, DX42-5K, DX50, DX50-5, DX50-5K, DX50Z, DX50Z-7, DX53W, DX55, DX55-5B, DX55-5K, DX55-9C, DX55-9CN ACE, DX55A, DX55E, DX55MT ACE, DX55MT-5, DX55R-7, DX55W, DX55W-5, DX55W-5K, DX55W-5L, DX55WA, DX55WACE, DX55WK, DX57W-5, DX57W-7, DX60, DX60-9C, DX60-9CN, DX60E-9C, DX60E-9CN, DX60E-10N, DX60R, DX60W, DX60W ECO, DX60W-9C, DX60WN ECO, DX62, DX62R-3, DX62R-7, DX63, DX63-3, DX65-9C, S55, S55 V PLUS, S55-V, S55W V, SL55 |
| HItachi | ZX50 |
| Hanix | H45, H50, H50B, H50C, H56B, H56C |
| Hitachi | EX45-2, EX50, EX50U, EX50URG, ZX48U-2, ZX48U-2 -3, ZX48U-3, ZX48U-5A, ZX50-2, ZX50U-2, ZX50U-3, ZX50U-3F, ZX55U-2, ZX55U-2 -3, ZX55U-3, ZX55U-5A |
| Hyundai | R55-3, R55-9A |
| Ihi | 50NX, 50VX, 55N, 55N-2, 55NX, IS45 |
| JCB | 45Z, 45Z-1, 48Z, 48Z-1, 50Z-1, 50Z-2, 51R-1, 55Z, 55Z-1, 56Z-2, 57C-1, 60C-2 |
| John Deere | 50, 50C, 50 ZTS, 50C ZTS, 50D, 50D ZTS, 50G, 55 ZTS, 60D, 60G |
| Kobelco | SK045, SK045-1, SK045-2, SK045-3, SK045SR, SK45SR-1, SK45SR-2, SK45SRX-6E, SK050, SK050SR-3, SK50SR-3, SK050SR-5, SK50SR-5, SK50UR, SK50UR-2, SK55SR-5, SK55SRX-6, SK55SRX-6E |
| Komatsu | PC40-7, PC40MR-2, PC40MR-3, PC40MRC-2, PC40MRX, PC40MRX-1, PC45, PC45 MRX-1, PC45-1, PC45R-8, PC50 MR, PC50 MRX-2, PC50MR-2, PC50UU-1, PC50UU-2, PC50UU-3, PC50UUT, PC50UUT-2, PC55, PC55MR-3, PC58SF-1, PC58UU-3 |
| Kubota | K045, KH28, KH191, KX057, KX057-4, KX057-5, KX060, KX060-5, KX151, KX161, KX161-2, KX161-3, U45, U45-3, U48-4, U48-5, U50-3, U50-5, U55, U55-4, U56-6 |
| New Holland | E50.2SR, EH50 BSR, EH50.B |
| Sany | SY50, SY50U |
| Takeuchi | TB045, TB45, TB53FR, TB145, TB153, TB153FR, TB250, TB250-2, TB260 |
| Volvo | EC60BLC, EC60C, EC60D, EC60E, ECR58, ECR58D, ECR58F |
| Wacker Neuson | 50Z, 50Z3, 6003, 6503, EZ50, EZ53 |
| XCMG | XCG60-8 |
| Yanmar | SV60, VIO45-5, VIO45-5B, VIO45-6A, VIO45-6B, VIO50, VIO50-2, VIO50-6A, VIO50-6B, VIO50B50, VIO55, VIO55-5, VIO55-5B, VIO55-6A, VIO55-6B, VIO57, VIO57-6B, YC45-7 |
48" Digging Bucket for 4 - 6.5 Tons Mini Excavators. 45mm Pins. Fits 4–6.5 ton mini excavators, 45 mm pins, 165 mm ear to ear. Included: pins, 9 teeth (1U3202RC) and 2 side cutters. Price: $2,957.60, in stock, ships from Miami, FL the same business day when ordered before 2 PM ET.
Introducing the 48" Digging Bucket for 4 - 6.5 Tons Mini Excavators. 45mm Pins - where innovation meets excavation. This 48" dynamo is set to redefine your expectations of what a digging bucket can do.
Engineered for the discerning professional, it combines brawn and brains in perfect harmony.
Revolutionary Features:
- Durability Redefined: Crafted from superior AR400 Steel
- Precision Fit: 45 mm pins with 165 mm ear-to-ear and 240 mm center-to-center accuracy
- Multi-Functional Marvel: Adapts to diverse excavation challenges
- Time Efficiency: Swift attachment for maximum productivity
In Your Arsenal:
- 48" High-Performance Digging Bucket
- 4 Teeth advanced J200 series Rock Chisel Bucket Tooth
- Full complement of tooth pins and retainers
Equip yourself with JMA excellence. Ready to conquer your next project with unmatched efficiency?
Are pins included?
Yes. Pins are included.
Will it fit my machine?
Tell us your machine, we confirm the fit before shipping. Pin-on attachments are sized from your machine's pin diameter, pin-to-pin distance and ear width. If your machine has a quick coupler, is a long-reach model or was modified, measure those three and send them to us before you order. If we confirmed the fit from your accurate machine and coupler details and our recommendation is wrong, report it within 14 calendar days of delivery: the JMA Fitment Money-Back Promise gives a full product refund, outbound and return freight covered, no restocking fee.
How fast does it ship?
In-stock items ship from Miami, FL the same business day when ordered before 2 PM ET; orders after 2 PM ET, on weekends or on holidays ship the next business day. Carrier estimates for the lower 48, in business days from the ship date: parcels of 50 lb or less 5–7 standard or 2–4 expedited; LTL freight over 50 lb 7–10 standard or 4–6 expedited, usually with a delivery appointment and a signature. Outside the lower 48, shipping is quoted. Inspect it before you sign and note any damage on the delivery receipt.
What does the warranty cover?
Defects in materials and workmanship are covered for 2 years or 2,000 operating hours, whichever comes first: year 1 parts and pre-approved labor, year 2 parts only. Lifetime warranty on structural welds. Teeth, cutting edges, pins and bushings are wear items and are not covered. Get our written approval before any repair.
Can I return it?
Yes, for standard products: a refund within 14 calendar days of delivery, or store credit within 30, if it is unused, uninstalled, free of soil and grease, and in its original packaging with all hardware. Get a Return Authorization Number (RAN) from us first. The buyer pays return shipping unless the item was defective, damaged or wrong because of our error, or you can drop it off at our warehouse, 8068 NW 29th St, Doral, FL, Monday to Friday, 9 AM to 5 PM, with your RAN. A restocking fee applies to non-defective refunds; store credit has no restocking fee. Original outbound shipping is not refunded on change-of-mind returns. Installed or used attachments can't be returned.
