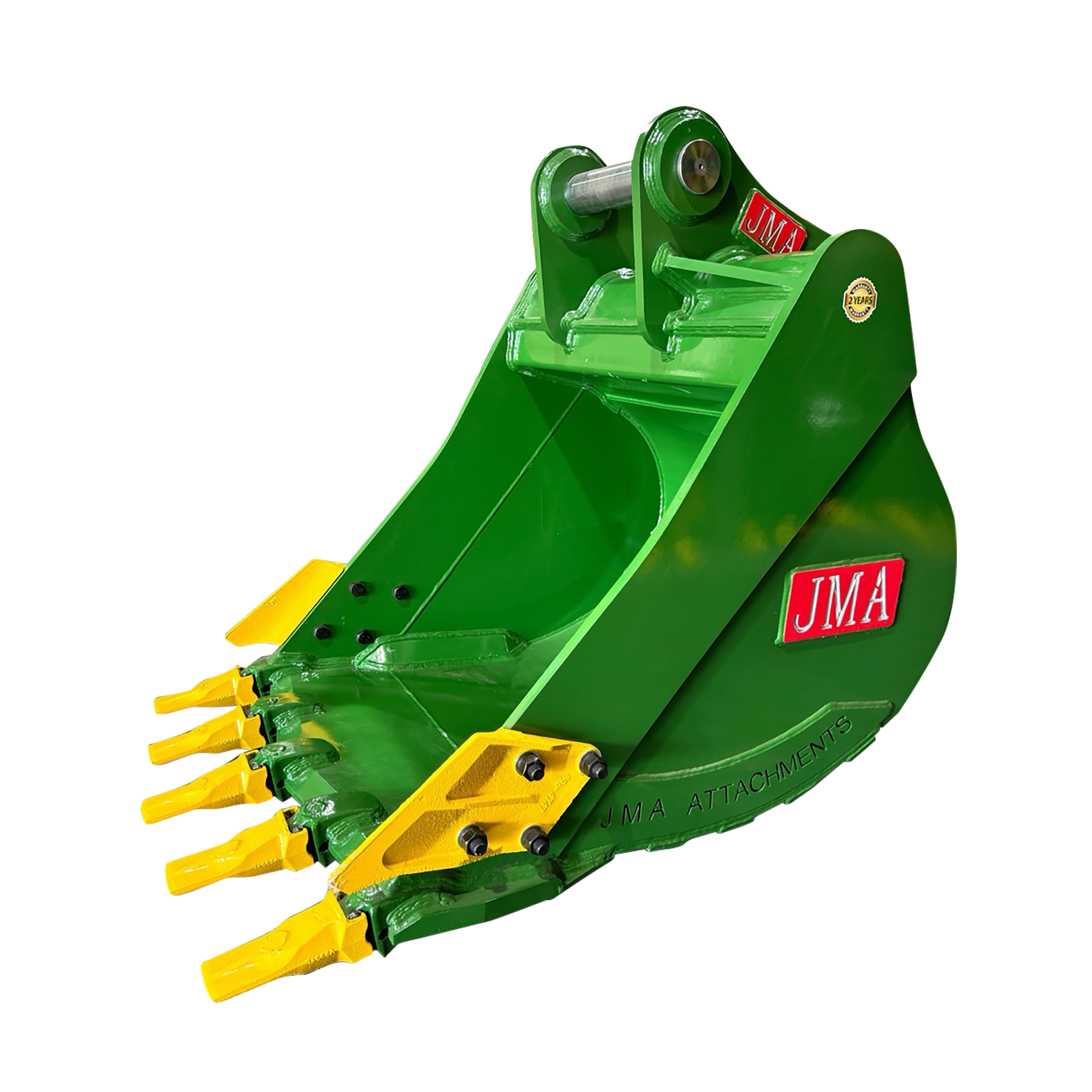

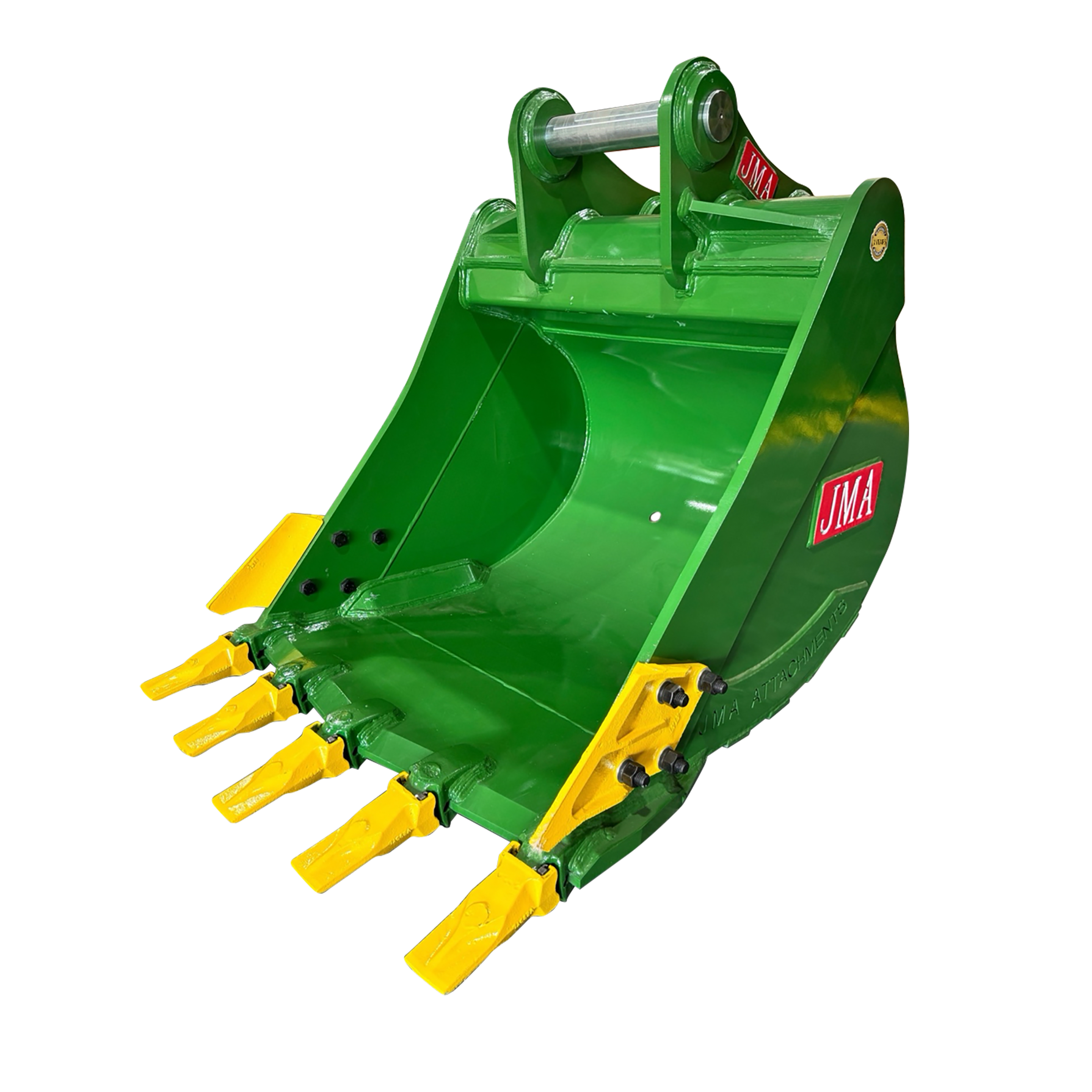

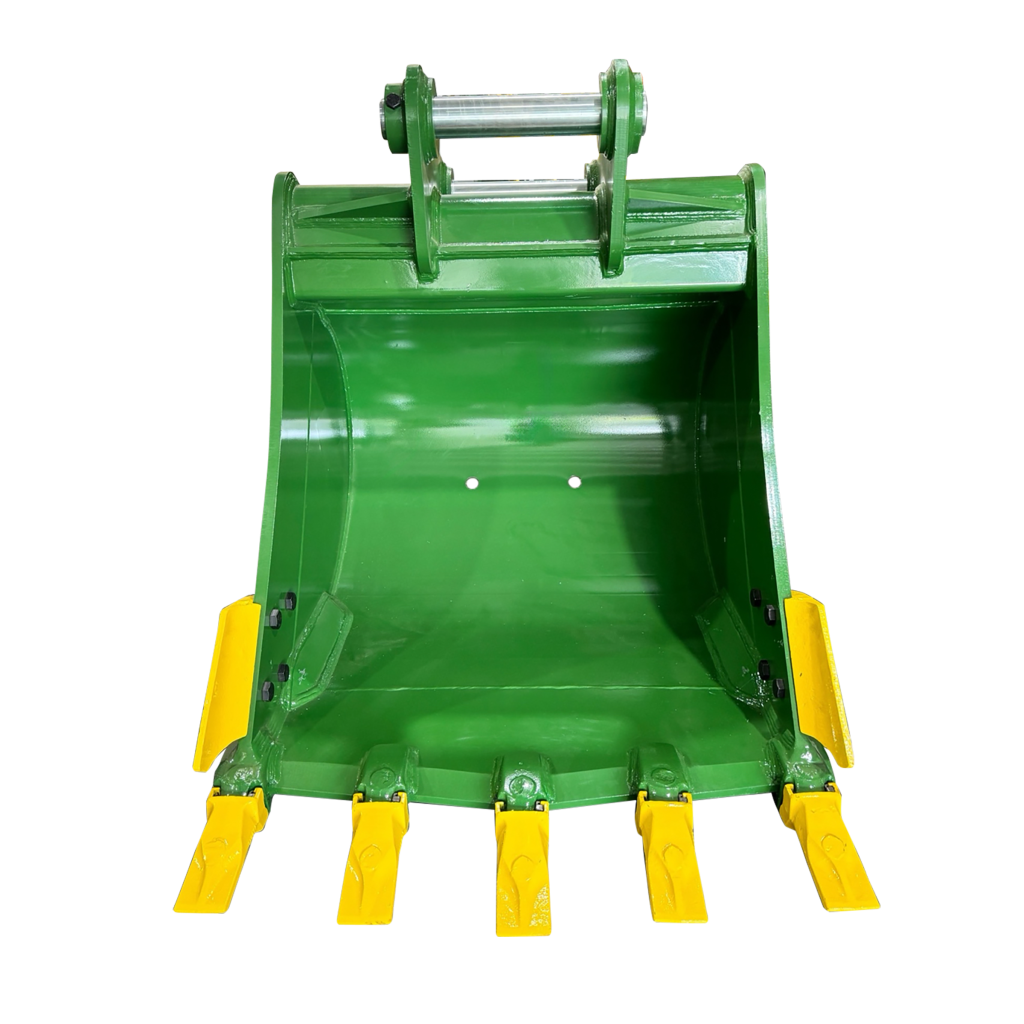

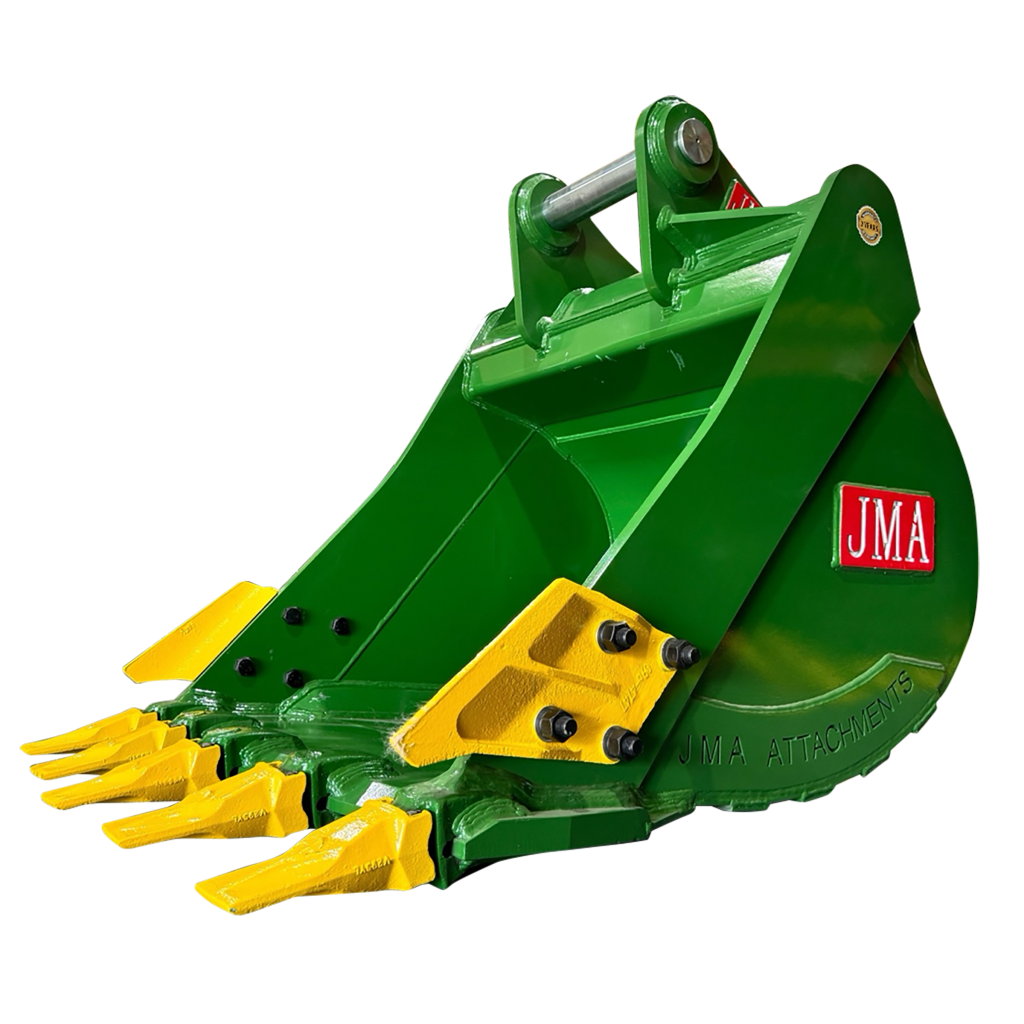

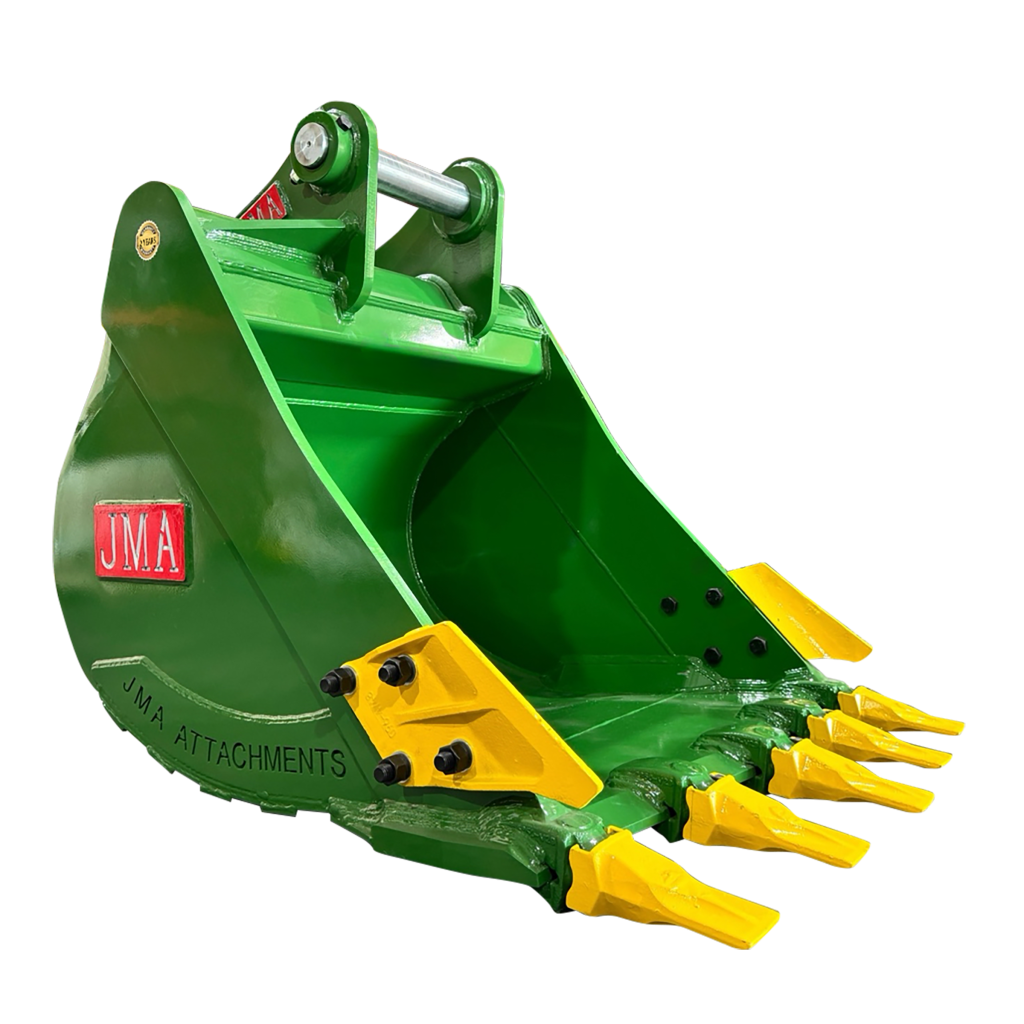

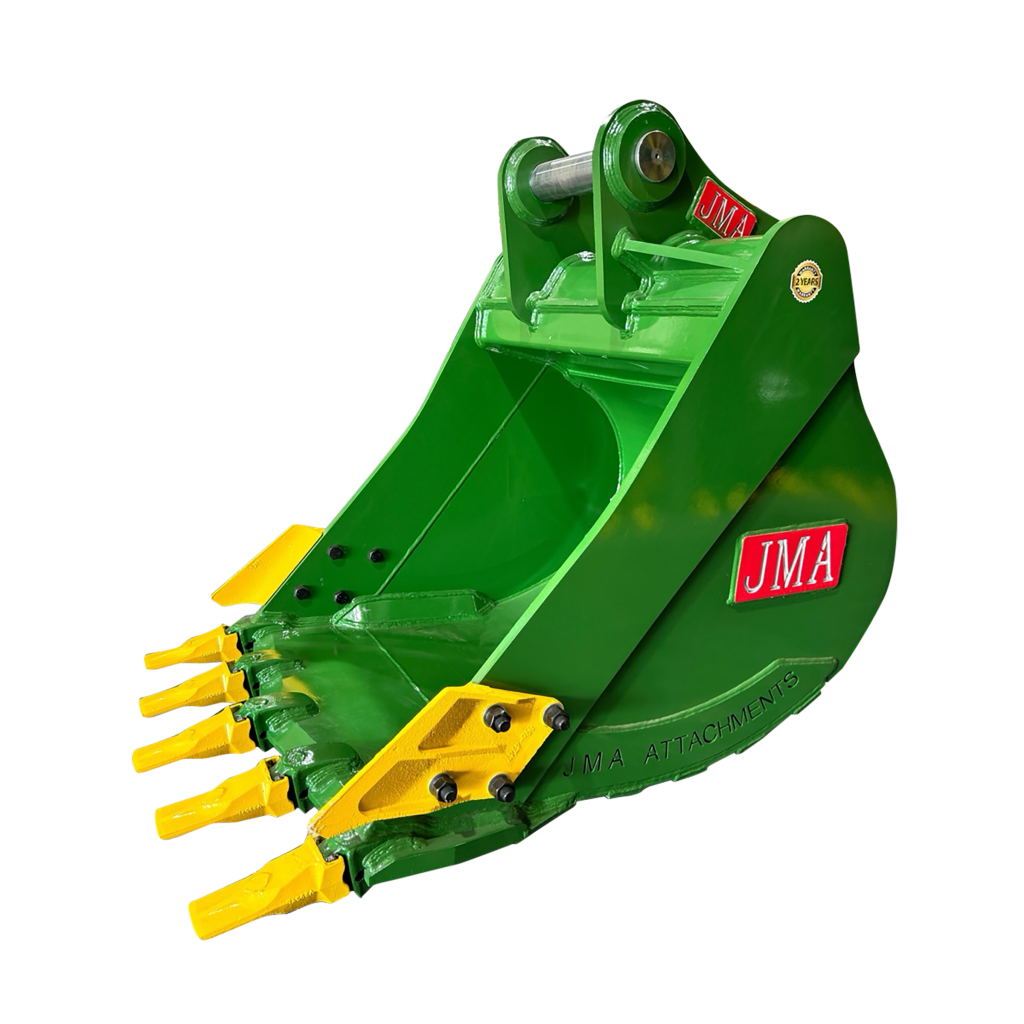

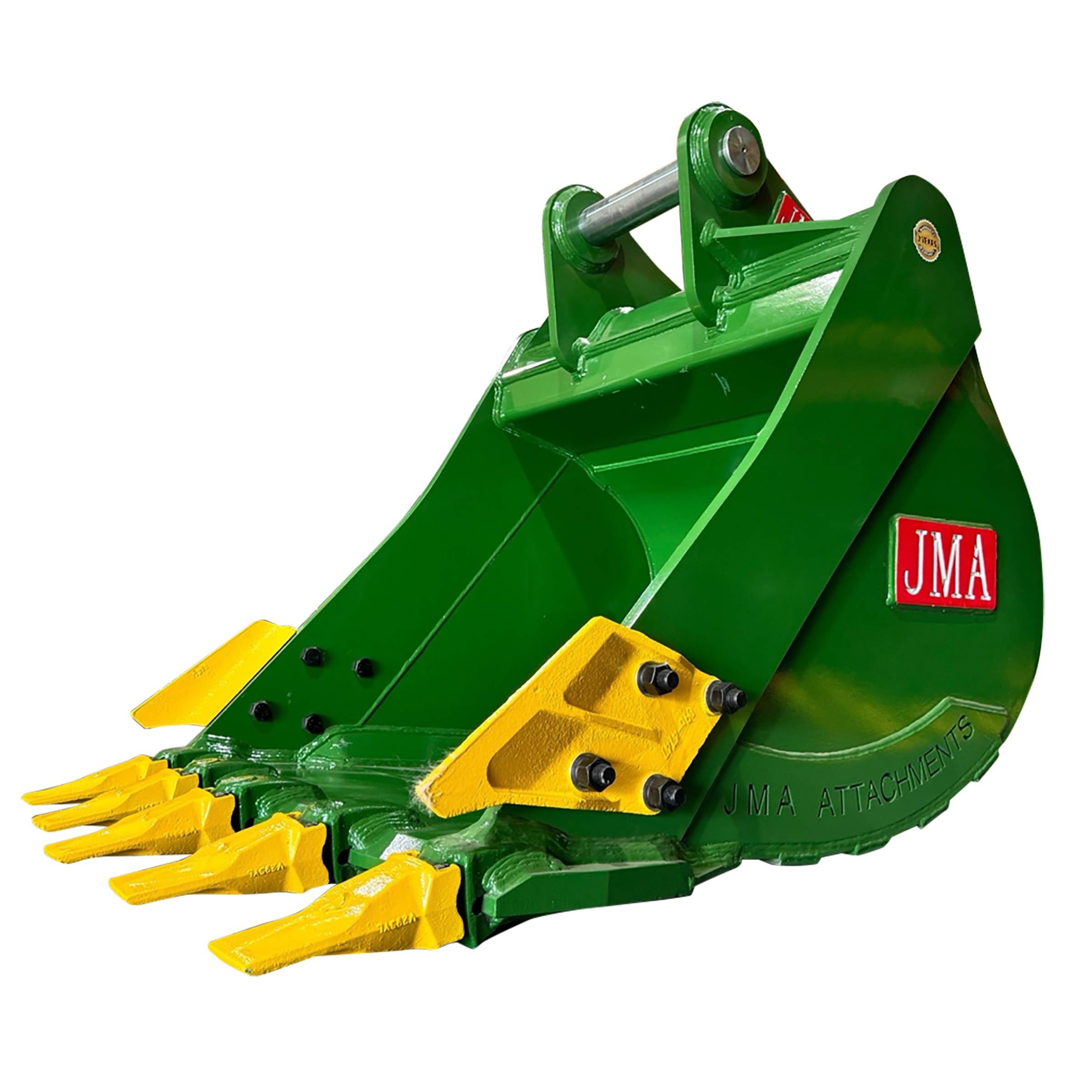

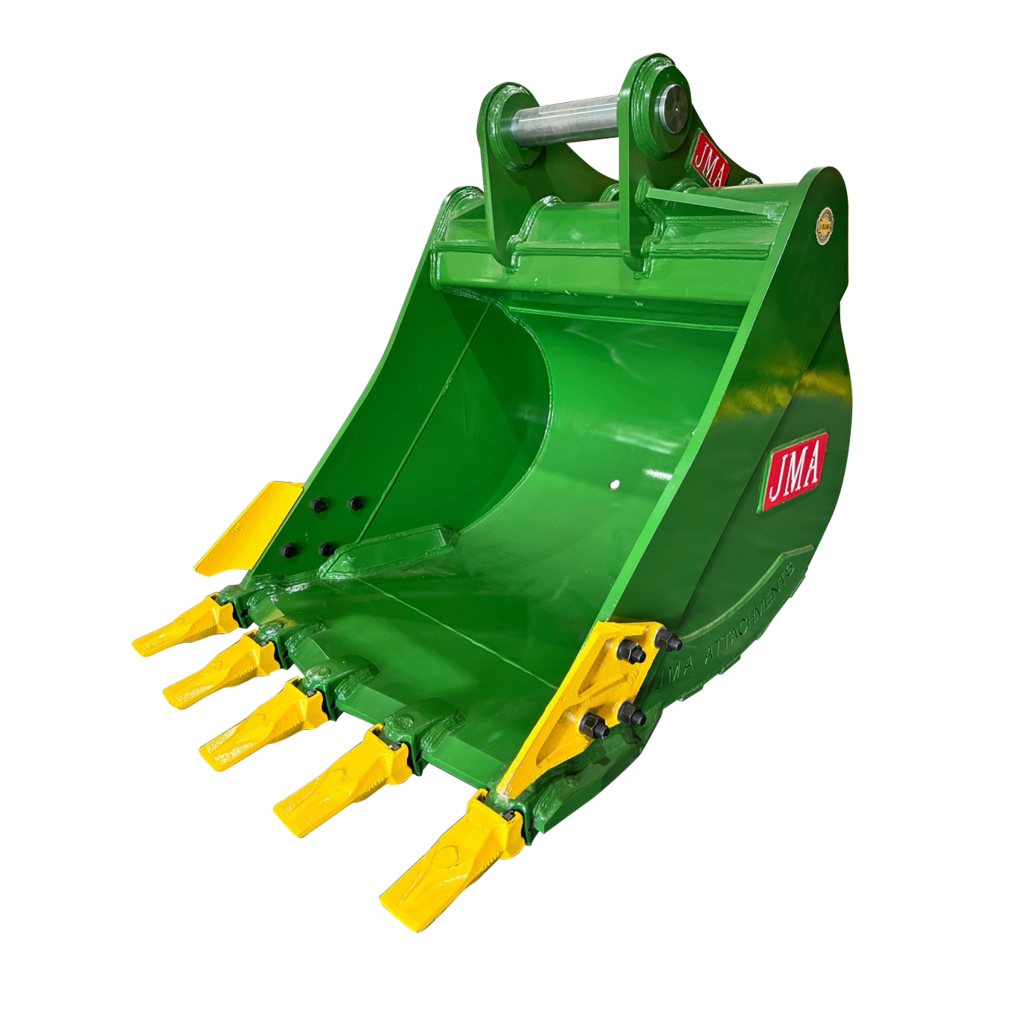

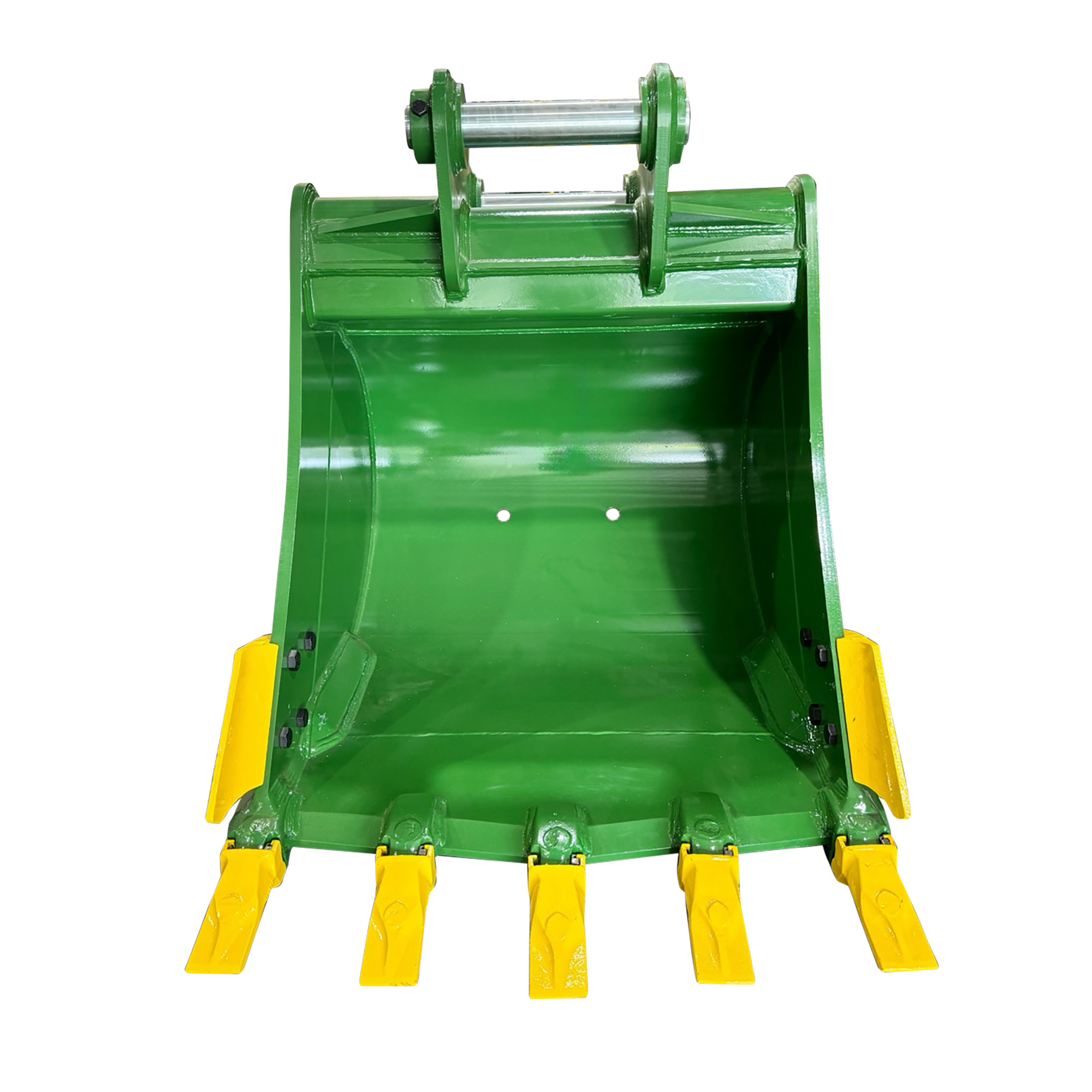

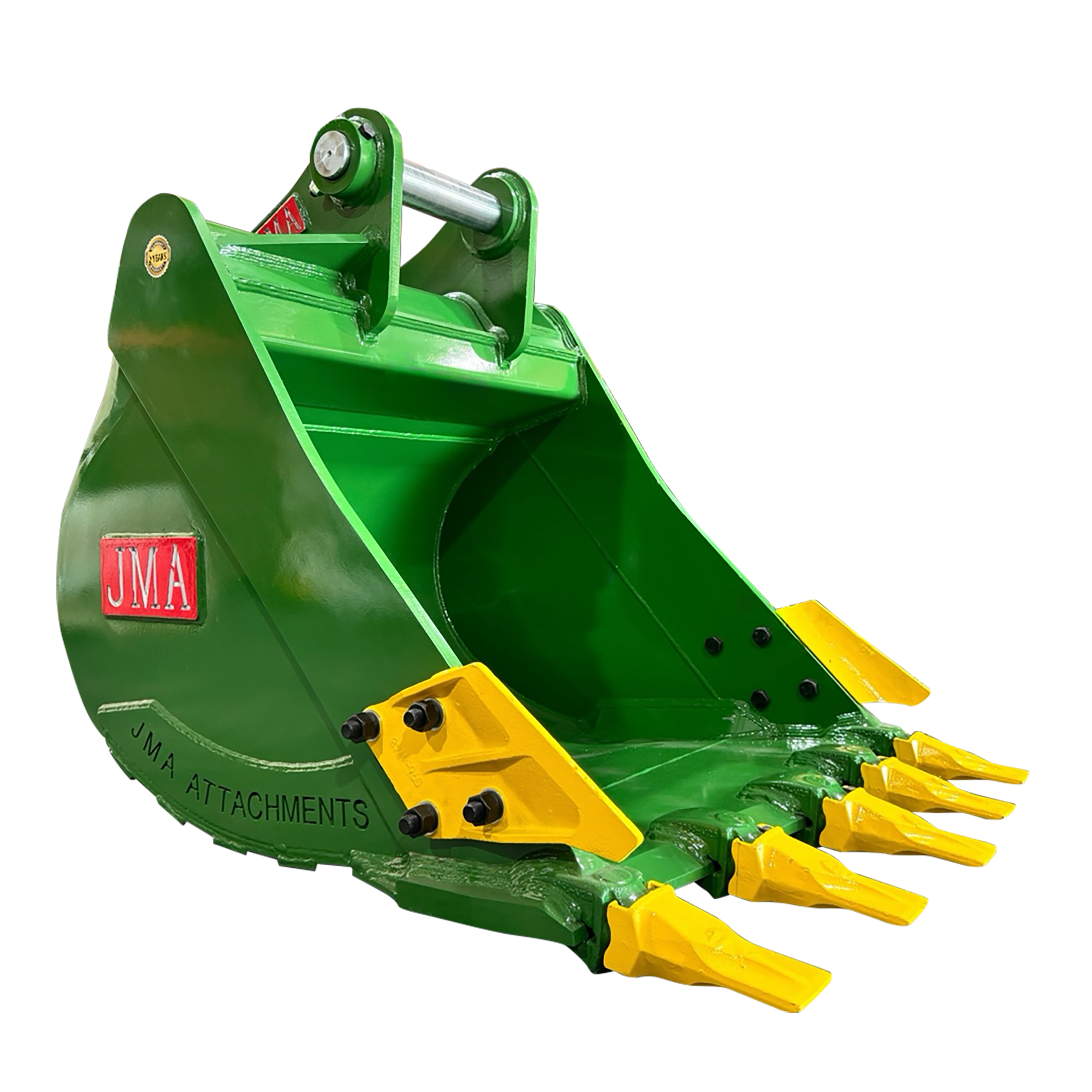

42″ Heavy Duty Digging Bucket for 16 – 25 Tons Excavators. 80mm Pins
- Fits 16–25 ton excavators · 80 mm pins · 330 mm ear to ear
- 42" wide (1066 mm) · AR400 steel body · 25 mm side walls · powder-coated green · 1,786 lb
- Pins, 5 teeth (V29SYL) included
- Ships from Miami, FL the same business day when ordered before 2 PM ET · US-based support
- 2-year warranty · lifetime warranty on structural welds
Bucket Size: 42"
Frequently Bought Together
| Carrier Weight Class (tn) | 16 - 25 tons |
|---|---|
| Carrier Weight Class (lb) | 32,000 - 50,000 lb |
| Front Pin Diameter (mm) | 80 mm |
| Rear Pin Diameter (mm) | 80 mm |
| Front Ear to Ear (mm) | 330 mm |
| Rear Ear to Ear (mm) | 330 mm |
| Center to Center (mm) | 450 mm |
| Front Pin Length (mm) | 530 mm |
| Rear Pin Length (mm) | 530 mm |
| Bucket Depth (mm) | 730 mm |
| Capacity (m³) | 0.90 m³ |
| Material Type | AR400 Steel |
| Finish | Powder-Coated Green |
| Features | 3x Reinforced Side Plates |
| Coupler Type | Pin On Style |
| Product Weight (kg) | 810 kg |
| Product Weight (lbs) | 1785.74 lb |
| Bucket Side Wall Thickness (mm) | 25 mm |
| Bucket Width (mm) | 1,066 mm |
| Bucket Size | 42" |
| Pin Size | 80mm |
| Tooth Number | V29SYL |
| Tooth Pin Part Number | V29PN |
| Case | CX210, CX210 CR, CX210LC, CX210 LS, CX210B, CX210BLC, CX210BNLC, CX210C, CX210C LR, CX210D, CX210D LR, CX210E, CX210N, CX220, CX220B, CX220C, CX220CLC, CX220E, CX225, CX225 CR, CX225 MSR, CX225SR, CX225SRLC |
|---|---|
| Caterpillar | 225, 318C, 318CL, 319, 319C, 319CLN, 319D, 319DLN, 320, 320L ME, 320 SVA, 320 V2, 320B, 320BL, 320BLN, 320BLU, 320C, 320C FM, 320C LC, 320C LU, 320C U, 320CL, 320CL ME, 320CLN, 320C LR, 320D, 320D2, 320D2 GC, 320D FM, 320DL ME, 320D GC, 320DL, 320E, 320EL, 320FL, 320 GC, 320GL, 320 GX, 320L, 321, 321B, 321B CR, 321BL CR, 321C, 321C CR, 321CL CR, 321CL, 321D CR, 321DL CR, 321DL, 322, 322 CR, 322B, 322BL, 322BL LR, 322BLN, 322C, 322C FM, 322C LCHD, 322CL, 322CL LR, 322CLM, 322L, 322LN, 322N, 323, 323D, 323D2, 323D2L, 323D3, 323DL, 323DL ME, 323DL VA, 323DLN, 323DS, 323E, 323EL, 323EL ME, 323ELN, 323FL, 323 GC, 324D, 324D ME, E225, EL180, EL200, EL200B, M318D, M318F, M319, M319D, M320, M320D2, M320F, M322, M322C, M322D, M322D2, M322F, M323F |
| Daewoo | S210W-V, S220LC V, S220-111, S220N V, S225LC-V |
| Develon | DX190W-5, DX190W-7, DX200LC-7, DX210W-7, DX210WA, DX225LC-7, DX225LC-7X, DX235LCR-7 |
| Doosan | DH200, DH210W-7, DH215-7, DH215-9E, DH220LC-7, DH220LC-9, DH220LC-9E, DH225LC-7, DH225LC-9, DH225LC-9E, DX190W-3, DX190W-5, DX190W-7, DX190WA, DX200, DX200-9CN, DX200A, DX200LC, DX200LC-7, DX210, DX210LC, DX210LC-7, DX210W, DX210W SLR, DX210W-5, DX210W-7, DX210WA, DX215-9C, DX215-10N, DX220, DX220LC, DX220LC-9C, DX220 LCA, DX220 LCA-2, DX220A, DX225, DX225LC SLR, DX225LC-3, DX225LC-5, DX225LC-7M, DX225LC-9C, DX225 LCA, DX225 LCA-2, DX225 LCA-7M, DX225 LCB, DX225LL-5, DX225 NLC, DX225 RB, DX225LC, DX225LC-7, DX225LC-7X, DX235LC-5, DX235LCR-5, DX235 NLC, DX235 NLC-5, DX235LCR, DX235LCR-7, DX250LC, S 220LC V, S 225LC V, S 225LC-7, S 225NLC V |
| Hitachi | EX200, EX200-1, EX200-2, EX200-3, EX200-5, EX200LC, EX200LC-1, EX200LC-2, EX200LC-3, EX200LC-5, EX210, EX210H-5, EX210K-3, EX210K-5, EX210LC-5, EX225USR, EX225USRLC, UH07-5, UH07-7, UH081, UH083LC, ZX190LC-6, ZX190LC-7, ZX190 LCN, ZX190 LCN-6, ZX195D, ZX200, ZX200LC, ZX200LC-1, ZX200LC-3, ZX200LC-5, ZX200LC-5B, ZX200LC-5G, ZX200LC-6, ZX200LC-7, ZX200-2, ZX200-2LC, ZX200-3, ZX200-3F, ZX200-3G, ZX200-3LC, ZX200-5, ZX200-5A, ZX200-5B, ZX200-5G, ZX200-5LC, ZX200-6, ZX200C, ZX200CLC, ZX200DLC, ZX200E, ZX200ELC, ZX200X, ZX210, ZX210LC, ZX210LC U, ZX210LC-3, ZX210LC-3G, ZX210LC-5, ZX210LC-5 LR, ZX210LC-5B, ZX210LC-5G, ZX210LC-5N, ZX210LC-6, ZX210LC-6N, ZX210LC-7, ZX210LC-7H, ZX210 LCH, ZX210 LCH-3, ZX210 LCH-5A, ZX210 LCK, ZX210 LCK HG, ZX210 LCK-3, ZX210 LCN, ZX210 LCN-3, ZX210 LCN-5, ZX210 LCN-5B, ZX210 LCN-6, ZX210 LCN-7, ZX210 MF, ZX210-2, ZX210-3, ZX210-5, ZX210-6, ZX210F-3, ZX210H, ZX210H-3, ZX210H-3G, ZX210H-6, ZX210K, ZX210K HG, ZX210KLC, ZX210K-3, ZX210K-6, ZX210KB-5B, ZX210N, ZX210N-3, ZX220, ZX220LC, ZX220LC-GI, ZX225, ZX225LC, ZX225LC-2, ZX225HE, ZX225US, ZX225USLC, ZX225USLC-2, ZX225USLC-3, ZX225USLC-5B, ZX225USLC-6, ZX225USLC-7, ZX225US-3, ZX225US-5B, ZX225US-6, ZX225USR, ZX225USR - 2, ZX225USRLC, ZX225USRLC-5B, ZX225USRLC-6, ZX225USRLC-7, ZX225USR LCK, ZX225USR LCK-3, ZX225USR-3, ZX225USR-5B, ZX225USR-6, ZX225USRK, ZX225USRK-3, ZX225USRK-6, ZX225USRLC-3 |
| Hyundai | 220CC, 220LC, HW210, HW210A, R200W-7, R210LC-7, R210LC-9, R235LCR-9, R235LCR-9A |
| JCB | 220X, 245, 245X, JS220, JS220LC, JS220 NC, JS220 SC |
| John Deere | 180GLC, 200, 200LC, 200CLC, 200D, 200G, 210, 210 P-Tier, 210G, 210GLC, 220LC, 220CLC, 225LC, 225CLC, 225CLC RTS, 225DLC |
| Kobelco | K907, K907LC MARK II, K907C, K907D, K907DLC, SK200, SK200-2, SK200-6, SK200-8, SK200-10, SK200LC, SK200MK5, SK200MKVI, SK200SR, SK200SRLC, SK200V, SK210LC-6, SK210LC-8, SK210LC-10, SK210LC-11, SK210NLC-8, SK225SR, SK225SR-2, SK225SRLC, SK230LC-6, SK230SRLC, SK235SR, SK235SRLC |
| Komatsu | HB205-1, HB205LC-1, HB205LC-1M0, HB215LC-1, HB215LC-1M0, HB215LC-2, HB215LC-3, HB215-1, PC190LC, PC190LC-8, PC190NLC, PC200, PC200 HDLC-8, PC200 HD-8, PC200 L, PC200LC, PC200LC LE, PC200LC-1, PC200LC-2, PC200LC-2H, PC200LC-3, PC200LC-4, PC200LC-4LE, PC200LC-5, PC200LC-5L, PC200LC-5S, PC200LC-6, PC200LC-6A, PC200LC-6B, PC200LC-6C, PC200LC-6E, PC200LC-6K, PC200LC-6L, PC200LC-6LB, PC200LC-6LC, PC200LC-6LE, PC200LC-6SE, PC200LC-7, PC200LC-7B, PC200LC-7C, PC200LC-7K, PC200LC-7L, PC200LC-7LE, PC200LC-7Y, PC200LC-8, PC200LC-8E0, PC200LC-8L, PC200LC-8LE, PC200LC-8M0, PC200LC-8N1, PC200LL-6, PC200LL-7, PC200LN-6, PC200 SE-6, PC200 SL, PC200-2, PC200-3, PC200-5, PC200-5C, PC200-5L, PC200-5S, PC200-5Z, PC200-6, PC200-6A, PC200-6B, PC200-6C, PC200-6E, PC200-6EL, PC200-6EN, PC200-6H, PC200-6J, PC200-6K, PC200-6L, PC200-6LE, PC200-6M, PC200-6S, PC200-6Z, PC200-6ZE, PC200-7, PC200-7A, PC200-7B, PC200-7C, PC200-7E, PC200-7L, PC200-8, PC200-8E0, PC200-8M0, PC200-8N1, PC200-10, PC200-10M0, PC200-11, PC200-11M0, PC200B, PC200BLC, PC200DLC, PC200ELC, PC200ELC-6, PC200EL, PC200EL-6, PC200EL-6K, PC200EM-6K, PC200EN, PC200EN-6, PC200EN-6K, PC200I-10, PC200NC, PC200SC-6E, PC200Z, PC200Z-6, PC200Z-6LE, PC208LC, PC208USLC-3, PC210, PC210LC, PC210LC-3, PC210LC-3K, PC210LC-3KP, PC210LC-5, PC210LC-5K, PC210LC-5L, PC210LC-6, PC210LC-6A, PC210LC-6AP, PC210LC-6E, PC210LC-6G, PC210LC-6K, PC210LC-6L, PC210LC-7, PC210LC-7H, PC210LC-7K, PC210LC-7N, PC210LC-8, PC210LC-8K, PC210LC-8M0, PC210LC-10, PC210LC-10M0, PC210LC-11, PC210LC-11E0, PC210 LCD-7, PC210 LCD-8, PC210 LCD-10, PC210 LCI-10, PC210 LCI-11, PC210 LCI-11E0, PC210LL, PC210-3, PC210-3K, PC210-3KP, PC210-5, PC210-5K, PC210-6, PC210-6E, PC210-6ED, PC210-6K, PC210-7, PC210-7K, PC210-8, PC210-8K, PC210-8N1, PC210-10, PC210-10M0, PC210-11, PC210KLC-6, PC210LC-11 WH, PC210NLC-6, PC210NLC-7, PC210NLC-7K, PC210NLC-8, PC210NLC-8K, PC215LC, PC215-10M0, PC220, PC220LC, PC220LC-2, PC220LC-3, PC220LC-4, PC220LC-5, PC220LC-5D, PC220LC-5L, PC220LC-5LC, PC220LC-5LF, PC220LC-5S, PC220LC-6, PC220LC-6D, PC220LC-6E, PC220LC-6H, PC220LC-6K, PC220LC-6L, PC220LC-6LC, PC220LC-6LE, PC220LC-6LF, PC220LC-7, PC220LC-7L, PC220LC-7LE, PC220LC-8, PC220LC-8M0, PC220LC-11, PC220 PU-7L, PC220-1, PC220-2, PC220-3, PC220-5, PC220-5L, PC220-6, PC220-6E, PC220-6L, PC220-6LE, PC220-6Z, PC220-7, PC220-8, PC220-8M0, PC220-8N1, PC220SLC, PC228, PC228LC, PC228LC-2, PC228LC-3, PC228US, PC228USLC, PC228USLC-1, PC228USLC-2, PC228USLC-3, PC228USLC-3E0, PC228USLC-3L, PC228USLC-3N, PC228USLC-3N0, PC228USLC-6, PC228USLC-7, PC228USLC-8, PC228USLC-10, PC228USLC-11, PC228USLC-11E0, PC228US-1, PC228US-2, PC228US-3, PC228US-3E0, PC228US-3K, PC228US-3N0, PC228US-8, PC228US-10, PC228USLC-3EC, PC228UU, PC228UULC, PC228UULC-1, PC228UU-1, PC229-6R, PC230, PC230LC, PC230LC-6, PC230LC-6E, PC230LC-7, PC230 LE, PC230-6, PC230-6E, PC230-7, PC230N HD-7, PC230N HD-7K, PC230N HD-8, PC238LC, PC238USLC-11, PC240, PC240LC, PC240LC-3, PC240LC-3K, PC240LC-3KP, PC240LC-4, PC240LC-5, PC240LC-5K, PC240LC-6, PC240LC-6K, PC240LC-6N, PC240LC-7, PC240LC-7K, PC240LC-10, PC240LC-10K, PC240LC-11, PC240LC-11E0, PC240-3, PC240-5, PC240-5K, PC240-6, PC240-6K, PC240-7, PC240NLC, PC240NLC-3, PC240NLC-3KP, PC240NLC-5, PC240NLC-5K, PC240NLC-6, PC240NLC-6A, PC240NLC-6K, PC240NLC-7, PC240NLC-7K, PC240NLC-8, PC240NLC-8K, PC240NLC-10, PC240NLC-11, PC240NLC-11E0 |
| Liebherr | R920, R922 |
| Link-Belt | 190 X4S, 210 LX, 210 LX DHP, 210 LX LF, 210 X2, 210 X2 LF, 210 X3, 210 X4, 210 X4 HN, 210 X4 LF, 220 X4S, 225 LX, 225 SPIN ACE |
| Liugong | 922E, 924E, 925E |
| Lonking | CDM6225 |
| New Holland | E200, E200SR, E210, E215, E215B, E215C, E235, E235B SR, E235C SR, E235SR |
| Sany | SY195, SY195C, SY200, SY200C, SY200C-6, SY205, SY205C, SY205H, SY205H DPC, SY210, SY210LC, SY210C, SY210C8E, SY210C-6, SY210C-9, SY215, SY215C, SY215CLC, SY215C PRO, SY215C-8, SY215C-9, SY215C-9LC, SY215C-9LCS, SY215C-10, SY215H, SY220C-9, SY220C-9HD, SY225C, SY225CLC, SY225C-9, SY230 |
| Sumitomo | SH200, SH200-2, SH200-3, SH200HD-3, SH200LC, SH200LC-2, SH200LC-3, SH210-5, SH210-6, SH210LC-5, SH210LC-6, SH220-3, SH225X-3, SH225X-3B |
| Volvo | EC200, EC200B, EC200BLC, EC200D, EC200DL, EC200E, EC200EL, EC210, EC210B, EC210BLC, EC210C, EC210CLC, EC210CL, EC210D, EC210DL, EC210EL, EC220D, EC220DL, EC220E, EC220EL, EC229, EC230, EC230LC, EC230B, EC235C, EC235CL, EC240LC, ECR235C, ECR235CL, ECR235D, ECR235D L, ECR235E, ECR235E L, MX225LS, SE210LC-3 |
| XCMG | XE210C, XE210U |
42" Heavy Duty Digging Bucket for 16 - 25 Tons Excavators. 80mm Pins. Fits 16–25 ton excavators, 80 mm pins, 330 mm ear to ear. Included: pins, 5 teeth (V29SYL). Price: $6,237.60, in stock, ships from Miami, FL the same business day when ordered before 2 PM ET.
Dominate your earthmoving projects with the 42" Heavy Duty Digging Bucket for 16 - 25 Tons Excavators. 80mm Pins. Precision-engineered for 32,000 - 52,000 lbs class Excavators, this heavy-duty bucket is the cornerstone of a more profitable operation.
Premium Advantages:
• Volume Virtuoso: 0.90 m³ capacity translates to fewer passes and accelerated project timelines.
• Durability Redefined: Forged from top-grade AR400 Steel, ensuring longevity in the harshest conditions and maximizing your investment.
• Tooth Technology: 5 Teeth Esco Dirt Bucket Tooth teeth (V29 SERIES series) offer superior penetration and extended service intervals.
• Efficiency Engineered: 3x Reinforced Side Plates design optimizes material flow, reducing fuel consumption and operational costs.
Transform your Excavator into a profit-generating powerhouse. The 42" Heavy Duty Digging Bucket for 16 - 25 Tons Excavators. 80mm Pins isn't just an attachment – it's a strategic investment in your company's future.
Are pins included?
Yes. Pins are included.
Will it fit my machine?
Tell us your machine, we confirm the fit before shipping. Pin-on attachments are sized from your machine's pin diameter, pin-to-pin distance and ear width. If your machine has a quick coupler, is a long-reach model or was modified, measure those three and send them to us before you order. If we confirmed the fit from your accurate machine and coupler details and our recommendation is wrong, report it within 14 calendar days of delivery: the JMA Fitment Money-Back Promise gives a full product refund, outbound and return freight covered, no restocking fee.
How fast does it ship?
In-stock items ship from Miami, FL the same business day when ordered before 2 PM ET; orders after 2 PM ET, on weekends or on holidays ship the next business day. Carrier estimates for the lower 48, in business days from the ship date: parcels of 50 lb or less 5–7 standard or 2–4 expedited; LTL freight over 50 lb 7–10 standard or 4–6 expedited, usually with a delivery appointment and a signature. Outside the lower 48, shipping is quoted. Inspect it before you sign and note any damage on the delivery receipt.
What does the warranty cover?
Defects in materials and workmanship are covered for 2 years or 2,000 operating hours, whichever comes first: year 1 parts and pre-approved labor, year 2 parts only. Lifetime warranty on structural welds. Teeth, cutting edges, pins and bushings are wear items and are not covered. Get our written approval before any repair.
Can I return it?
Yes, for standard products: a refund within 14 calendar days of delivery, or store credit within 30, if it is unused, uninstalled, free of soil and grease, and in its original packaging with all hardware. Get a Return Authorization Number (RAN) from us first. The buyer pays return shipping unless the item was defective, damaged or wrong because of our error, or you can drop it off at our warehouse, 8068 NW 29th St, Doral, FL, Monday to Friday, 9 AM to 5 PM, with your RAN. A restocking fee applies to non-defective refunds; store credit has no restocking fee. Original outbound shipping is not refunded on change-of-mind returns. Installed or used attachments can't be returned.
DISCLAIMER
JMA Attachments provides heavy machinery attachments that must be used with care by
competent individuals under supervision, if necessary. Use of any equipment, including ours, involves
potential risk of injury. You accept and assume full responsibility for any and all injuries, damages
(both economic and non-economic), and losses of any type that may occur, and release JMA Attachments,
its insurers, employees, officers, directors, associates, and agents from all claims and liabilities
resulting from the use of said equipment.
Except for the written JMA Attachments Warranty (/warranty/), JMA Attachments makes no other warranty, express or implied, including merchantability or fitness for a particular purpose. BUYER ASSUMES ALL LIABILITY IN THE USE OF THE EQUIPMENT. The purchaser must ensure operators are properly trained and comply with all laws and regulations. You agree to be legally bound by this disclaimer by purchasing and using our products. If you disagree, do not proceed with purchasing or using the equipment.
