SKU: 7987653

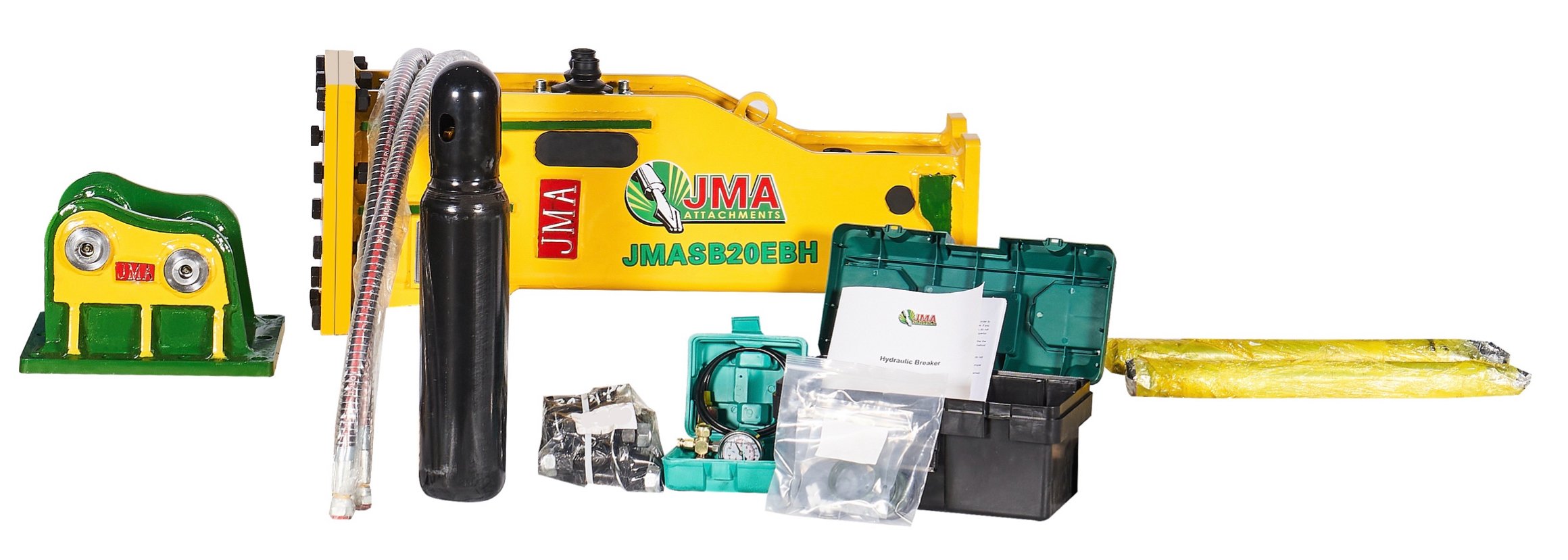

407 Joules Hydraulic Hammer for 1 – 2.5 Tons Mini Excavators

$4,997.00

Note: Pins are included.

Fits 1–2.5 ton mini excavators · bolt-on mount matched to your machine's pins
407 J · 700–1,200 BPM · 5.3–7.9 GPM at 1,280–1,707 psi · AR400 steel · 463 lb working weight
Box: mount with pins, 2 hoses, moil + wedge chisel, tool box, N2 bottle + gauges, seal kit
Ships from Miami, FL the same business day when ordered before 2 PM ET · US-based support
24-month warranty · coverage varies by component

View More Details

Build your JMASB20EBH hammer kit

1Pick your machine

Your machine

Brand and model. We match the mount to your pins.

Brand Model

Blunt chisel

45 mm

$697.00

All JMASB20EBH parts →

Your kit

JMASB20EBH hammer$4,997.00
Mount (included): pick your machine
Chisel: not selected

Kit total$4,997.00

Before freight. Freight is quoted in the cart.

Specifications

Coupler Type	Pin On Style
Carrier Weight Class (tn)	1.2 - 3.0 tons
Carrier Weight Class (lb)	3,000 - 7,000 lb
Chisel Bit Length (mm)	500 mm
Material Type	AR400 Steel
Finish	Powder-Coated Green
Energy Class (J)	407 Joules
Operating Pressure (psi)	1,280 - 1,707 psi
Operating Pressure (kg/cm²)	90 - 120 kg/cm²
Oil Flow (LPM)	20 - 30 lpm
Oil Flow (GPM)	5.3 - 7.9 gpm
Chisel Bit Diameter (mm)	45 mm
Hammer Type	Hydraulic Hammer
Hydraulic Hoses Diameter	1/2"
Impact Frequency (bpm)	700 - 1,200 bpm
Working Weight (kg)	210 kg
Working Weight (lb)	463 lb

Fits To Airman, Bobcat, Case, Caterpillar, Daewoo, Develon, Doosan, Hanix, Hitachi, Hyundai, Ihi, JCB, John Deere, Kobelco, Komatsu, Kubota, Link-Belt, Liugong, Nagano, New Holland, Sany, Sumitomo, Takeuchi, Volvo, Wacker Neuson, XCMG, Yanmar

Airman	AX15-2, AX17U-4, AX17U-5, AX17U-6, AX20U, AX20U-3
Bobcat	E08, E10Z, 418, 418A, 418AA, E10, X120, E10E, E14, X319K, M444, X220, 323, E16, E16AEM, X320, X322, X324, X324M, E17, E17Z, E323, X319, X322D, X322G, X323, X323J, E19, E19E, E20, E20Z
Case	CX12D, CX14, CX15, CX17, CX17B, CX17C, CX20
Caterpillar	300.9D, 301, 301 CR, 301.4, 301.4C, 301.5, 301.5 CR, 301.5 SR, 301.5C, 301.6, 301.6C, 301.6D, 301.7 CR, 301.7D, 301.7D CR, 301.8, 301.8C, 301.8D, 302, 302C CR, 302E SR
Daewoo	S15, S018 VT
Develon	DX19Z-7B, DX20Z-7, DX20ZE
Doosan	DX10Z, DX15, DX17Z, DX17Z-7, DX18, DX19, DX19-7, DX20Z, S015, S015 PLUS, S018, S018 VT, SL018VT, Solar 018-VT
Hanix	H12A, H12B, H15A, H15B, H15B-2
Hitachi	EX10U, EX10U-1B, EX15, EX15-2, EX15U, EX15U-1B, EX15U-3, EX15UR, EX17, EX17U, EX18-2, EX20U, EX20U-3, EX20UR, EX20UR-2, EX20UR-3, EX 12-2, ZX16, ZX17U, ZX17U-2, ZX19U
Hyundai	R15-5, R15-7, R16-7, R16-9, R17Z-9A
Ihi	9VX, 15NX, 15NX-2, 20NX, 20VX, IS15
JCB	15C-1, 16C-1, 18, 18Z, 18Z-1, 19C-1, 801, 801.4, 801.5, 801.6, 8008 CTS, 8010 CTS, 8014, 8014 CTS, 8015, 8016, 8016 CTS, 8018, 8018 CTS, 8020, 8020 CTS, JCB MICRO
John Deere	17G, 17P
Kobelco	SK13SR, SK014, SK015, SK15SR, SK15SR-1, SK17SR, SK17SR-3, SK17SR-5E, SK17SR-6E, SK20SR, SK20SR-1, SK20SR-3, SK20SR-5
Komatsu	PC05, PC05-1, PC05-6, PC05-7, PC07, PC07-1, PC07-2, PC09, PC09-1, PC10, PC12, PC12UU-1, PC12UU-2, PC14R-3, PC15, PC15MRX-1, PC18, PC18MR, PC18MR-2, PC18MR-3
Kubota	K008-3, KH15, KH16, KH28L, KX018-4, KX36, KX36-2, KX36-3, KX41, KX41-2, KX41-3, KX41-3V, KX41-4, U10, U10-3, U10-5, U15, U15-3, U17, U17-3, U20, U20-3
Link-Belt	ME15, MM20CR
Liugong	9018F
Nagano	NS15-2, NS16-3
New Holland	E15, E18, E18B, E18SR
Sany	SY16, SY16C, SY18, SY18C, SY18U
Sumitomo	SWE17U, SWE18U
Takeuchi	TB014, TB14, TB015, TB15, TB016, TB16, TB120, TB210, TB210R, TB215 R, TB216, TB219
Volvo	EC13, EC13XR, EC13XTV, EC15, EC15B, EC15C, EC15D, EC15E
Wacker Neuson	803, 1403, 1404, 1503, 1703, 1903, 2203, ET16, ET18, EZ17, EZ17E
XCMG	XE15U, XE18U, XE20E
Yanmar	B08, B08-3, B15, B15-3, SV08, SV08-1, SV08-1A, SV08-1B, SV08-1C, SV08-1D, SV15, SV15VT, SV17, SV17EX, SV17VT, SV18, VIO10, VIO10-2A, VIO12, VIO12-2A, VIO15, VIO15-2, VIO17, VIO17-1E, VIO17-A, VIO20, VIO20-2, YC15, YC18-2, YC18-3

Product Overview

407 Joules Hydraulic Hammer for 1 - 2.5 Tons Mini Excavators. Fits 1–2.5 ton mini excavators, bolt-on mount matched to your machine's pins. Included: mount with pins, 2 hoses, moil + wedge chisel, tool box, N2 bottle + gauges, seal kit. Price: $4,997.00, in stock, ships from Miami, FL the same business day when ordered before 2 PM ET.

Revolutionize your demolition capabilities with the 407 Joules Hydraulic Hammer for 1 - 2.5 Tons Mini Excavators. Precision-crafted for excavators, this hydraulic hammer sets new standards in breaking power and operational efficiency.

Elite Features:
• Powerhouse Performance: 407 Joules energy class
• Rapid Demolition: 700 -1,200 BPM impact frequency
• Extreme Durability: AR400 Steel construction
• Noise & Vibration Control: Designed for operator comfort
• Ready for Action: Includes 2 Hydraulic Hoses,1 Moil Rock Chisel Bit, 1 Wedge Rock Chisel Bit, Tool Box, Nitrogen Gauge, Nitrogen Bottle, Repair Seal Kit; runs at 1,280 - 1,707 psi operating pressure

Transform your excavator into a demolition dynamo. With the 407 Joules Hydraulic Hammer for 1 - 2.5 Tons Mini Excavators, you’re investing in a game-changing tool for the harshest environments.

FAQ

What comes in the box?

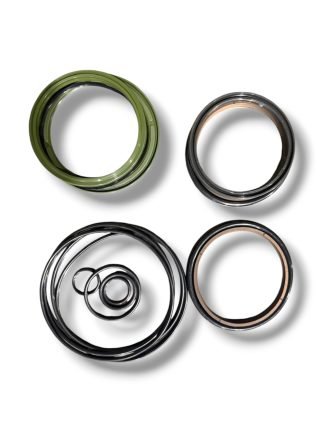

One mount (head) for your machine with pins, 2 hydraulic hoses, a moil chisel and a wedge chisel, a tool box, a nitrogen bottle with gauges and a repair seal kit.

Will it fit my machine?

Tell us your machine, we confirm the fit before shipping. Pin-on attachments are sized from your machine's pin diameter, pin-to-pin distance and ear width. If your machine has a quick coupler, is a long-reach model or was modified, measure those three and send them to us before you order. If we confirmed the fit from your accurate machine and coupler details and our recommendation is wrong, report it within 14 calendar days of delivery: the JMA Fitment Money-Back Promise gives a full product refund, outbound and return freight covered, no restocking fee.

How fast does it ship?

In-stock items ship from Miami, FL the same business day when ordered before 2 PM ET; orders after 2 PM ET, on weekends or on holidays ship the next business day. Carrier estimates for the lower 48, in business days from the ship date: parcels of 50 lb or less 5–7 standard or 2–4 expedited; LTL freight over 50 lb 7–10 standard or 4–6 expedited, usually with a delivery appointment and a signature. Outside the lower 48, shipping is quoted. Inspect it before you sign and note any damage on the delivery receipt.

What does the warranty cover?

JMA Attachments hydraulic hammers carry a 24-month warranty; coverage varies by component and hammer class, and the Warranty page lists each part. Through bolts, bushings and rod pins: 2 months. Seal kits and diaphragm: 3 months. Chisels follow the manufacturer's standard. Get our written approval before any repair.

Can I return it?

Yes, for standard products: a refund within 14 calendar days of delivery, or store credit within 30, if it is unused, uninstalled, free of soil and grease, and in its original packaging with all hardware. Get a Return Authorization Number (RAN) from us first. The buyer pays return shipping unless the item was defective, damaged or wrong because of our error, or you can drop it off at our warehouse, 8068 NW 29th St, Doral, FL, Monday to Friday, 9 AM to 5 PM, with your RAN. A restocking fee applies to non-defective refunds; store credit has no restocking fee. Original outbound shipping is not refunded on change-of-mind returns. Installed or used attachments can't be returned.
