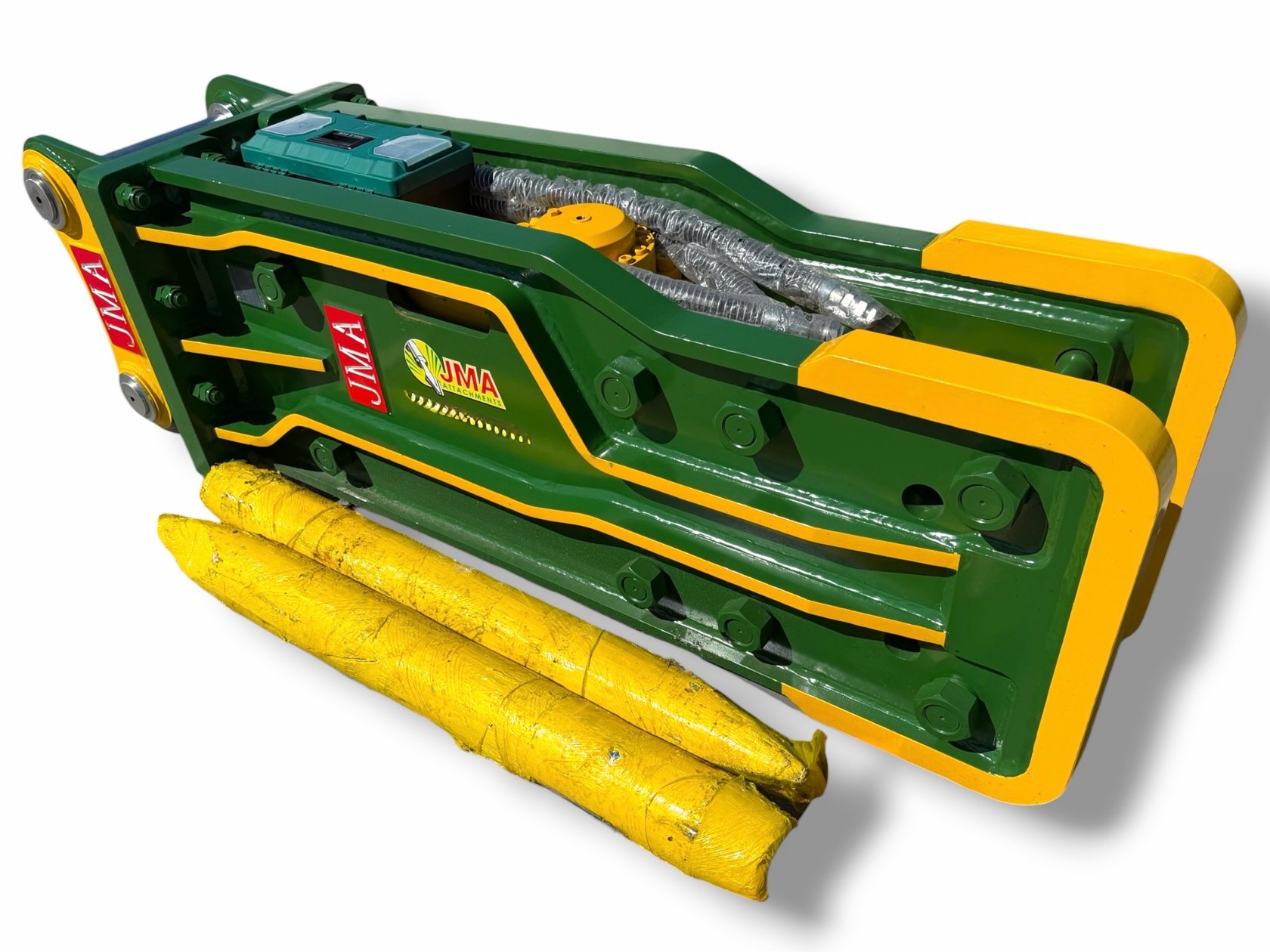

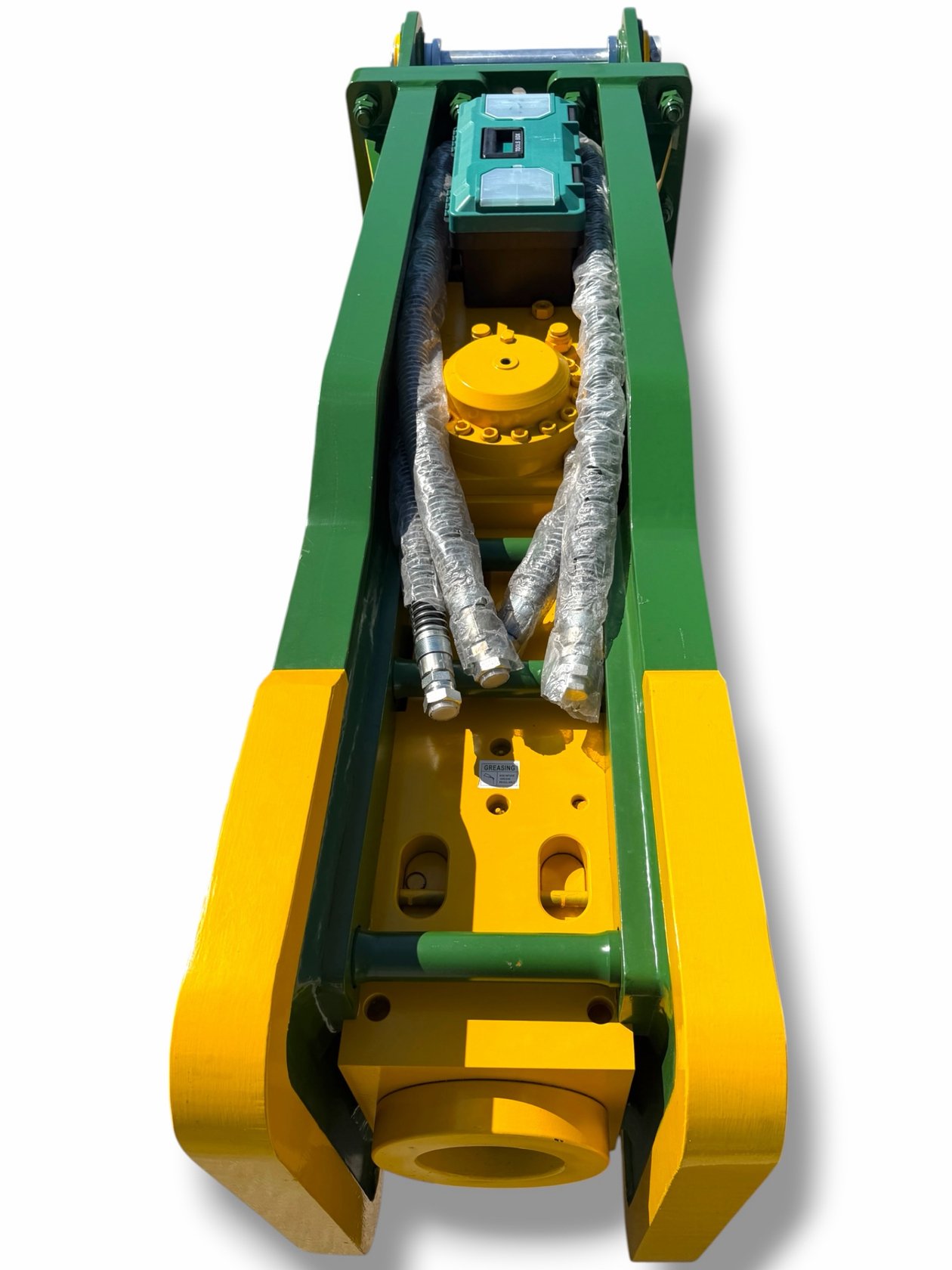

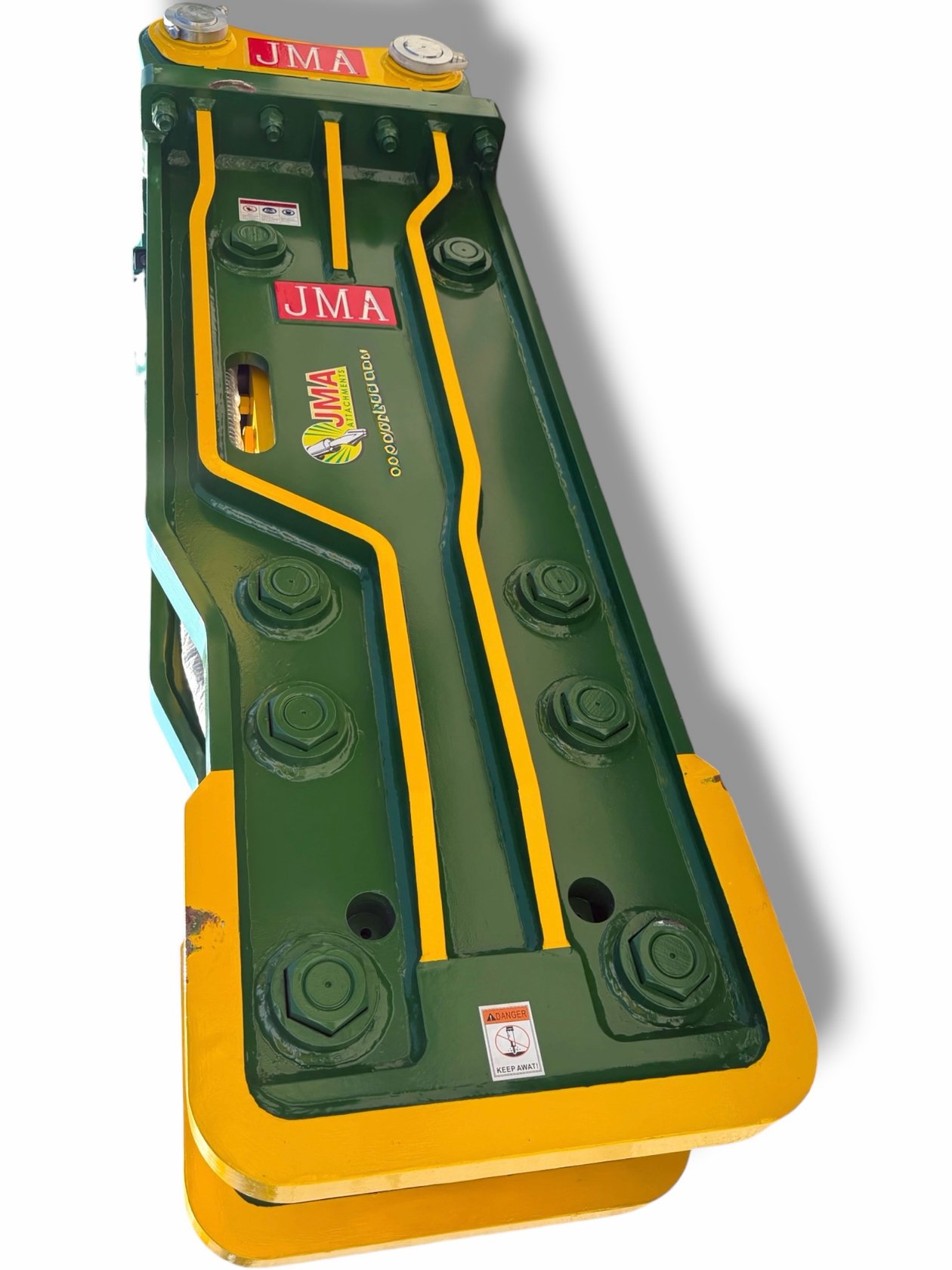

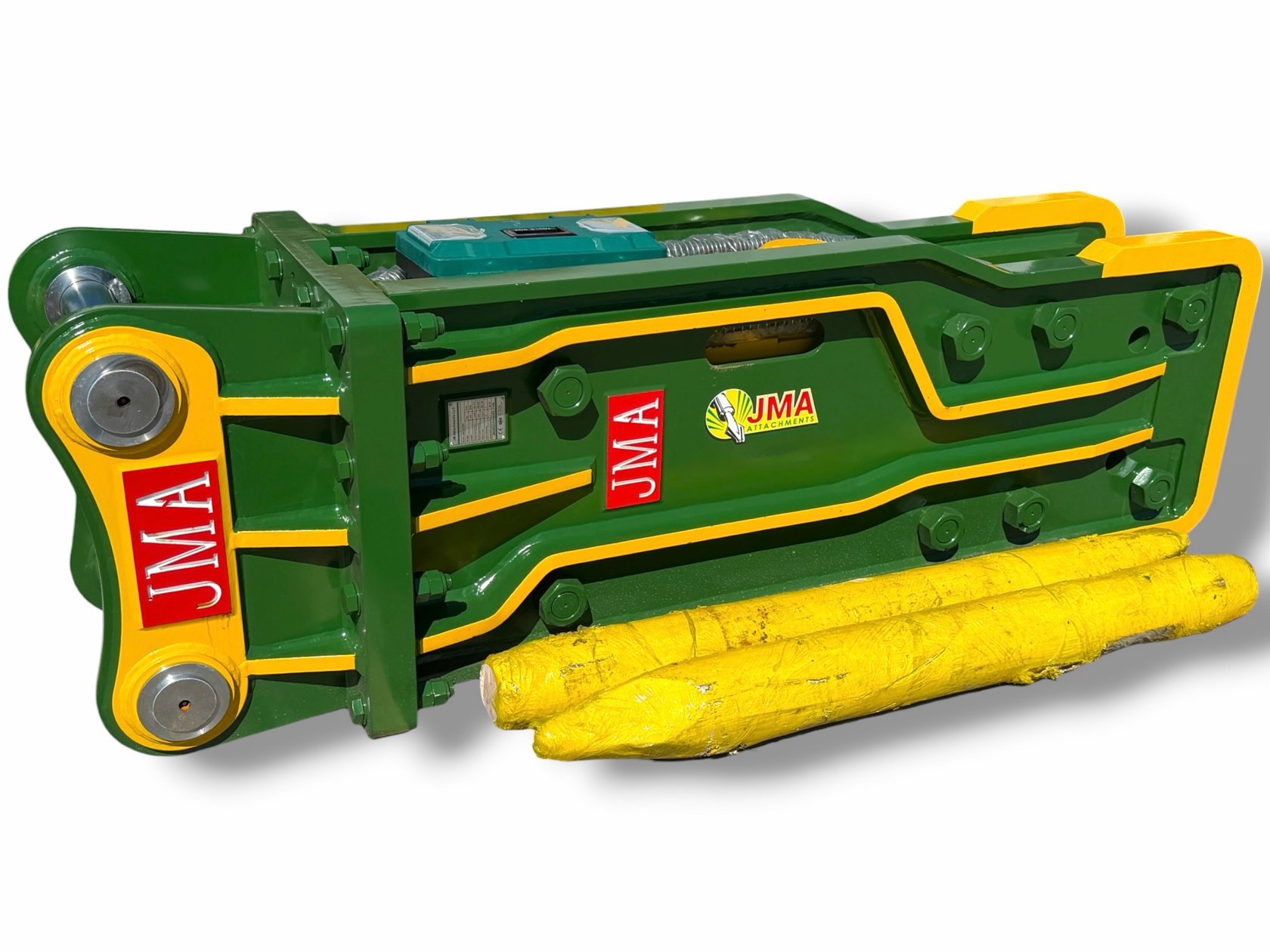

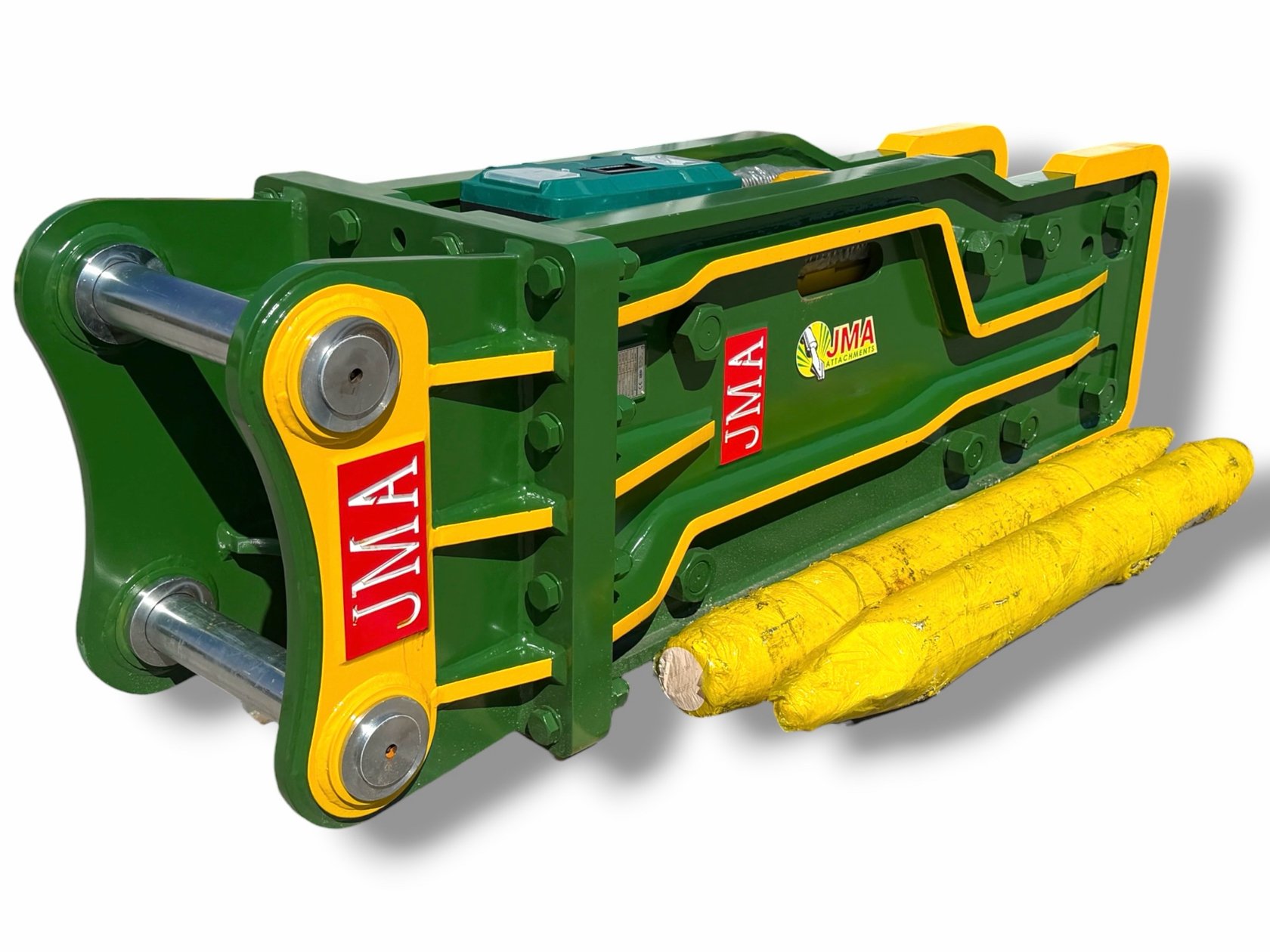

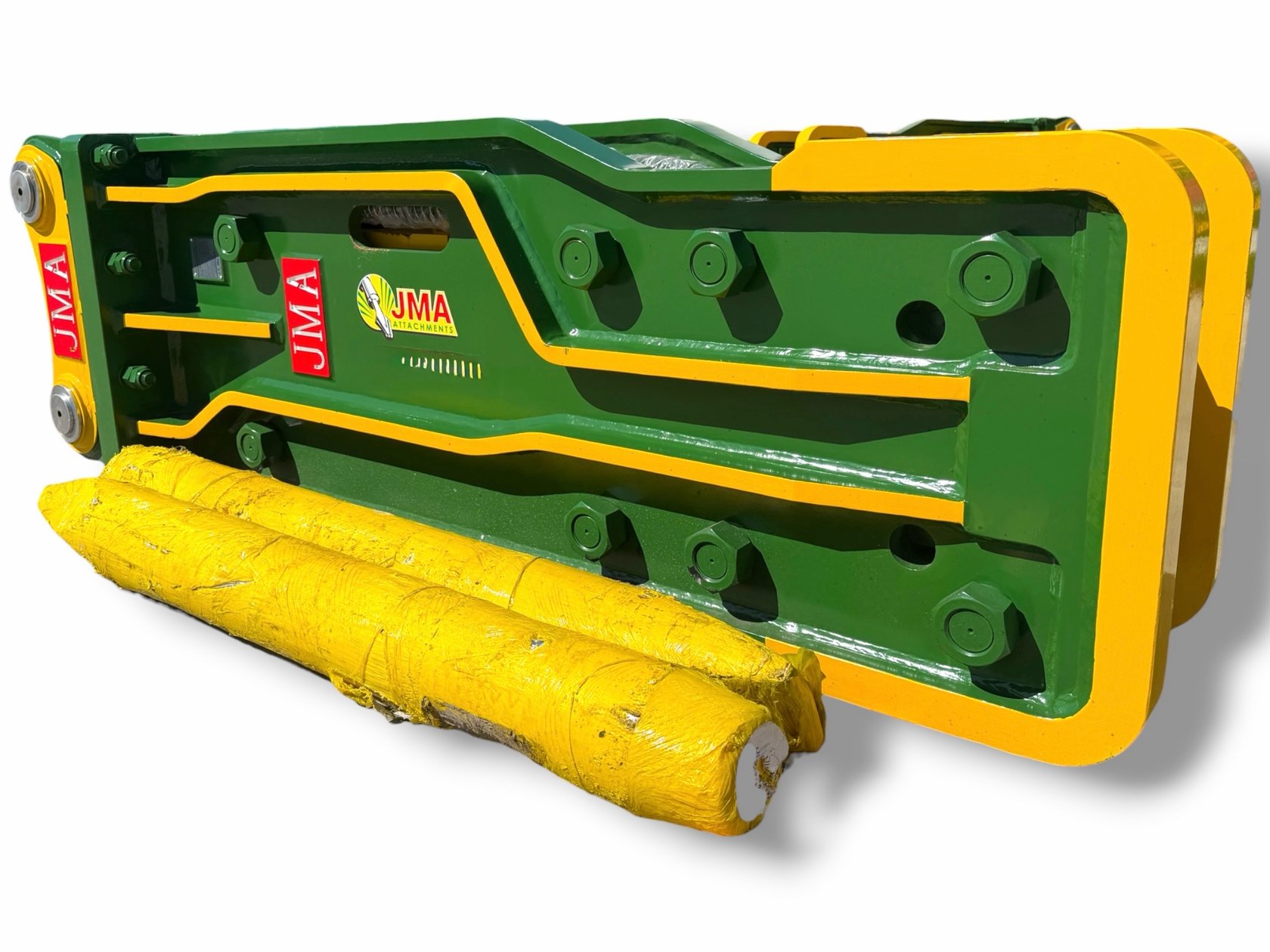

4,067 Joules Hydraulic Hammer for 15 – 19 Tons Excavators
- Fits 15–19 ton excavators · bolt-on mount matched to your machine's pins
- 4,067 J · 350–700 BPM · 23.8–31.7 GPM at 2,133–2,418 psi · AR400 steel

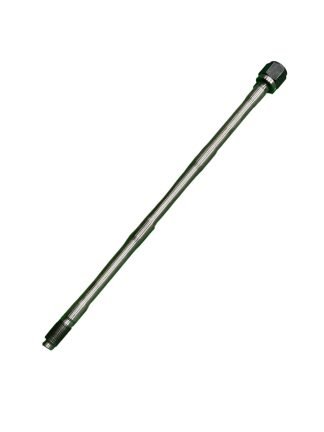

- Box: mount with pins, 2 hoses, moil + wedge chisel, tool box, N2 bottle + gauges, seal kit
- Ships from Miami, FL · US-based support
- 24-month warranty · coverage varies by component
Availability: Out of Stock
Build your JMASB60EBH hammer kit
1Pick your machine
Your machine
Brand and model. We match the mount to your pins.
Not sure?
70 mm pins
Included Extra head: Original price was: $3,077.00.$2,461.60Current price is: $2,461.60.
Out of stock
Your kit
- JMASB60EBH hammer$15,997.00

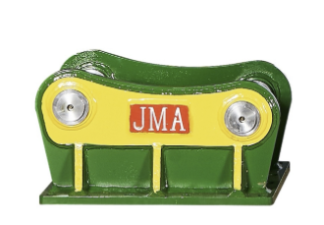

- Mount (included): pick your machine

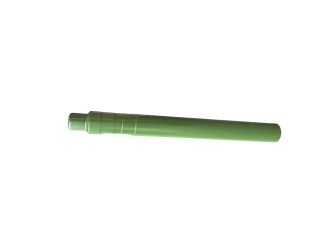

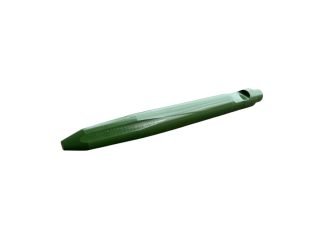

- Chisel: not selected
Kit total$15,997.00
Before freight. Freight is quoted in the cart.
The JMASB60EBH is out of stock.
| Coupler Type | Pin On Style |
|---|---|
| Carrier Weight Class (tn) | 15 - 18 tons |
| Carrier Weight Class (lb) | 33,000 - 40,000 lb |
| Chisel Bit Length (mm) | 1,300 mm |
| Hydraulic Hoses Diameter | 1" |
| Material Type | AR400 Steel |
| Finish | Powder-Coated Green |
| Energy Class (J) | 4,067 Joules |
| Operating Pressure (psi) | 2,133 - 2,418 psi |
| Operating Pressure (kg/cm²) | 150 - 170 kg/cm² |
| Oil Flow (LPM) | 90 - 120 lpm |
| Oil Flow (GPM) | 23.8 - 31.7 gpm |
| Chisel Bit Diameter (mm) | 125 mm |
| Hammer Type | Hydraulic Hammer |
| Impact Frequency (bpm) | 350 - 700 bpm |
| Working Weight (kg) | 1,570 kg |
| Working Weight (lb) | 3,461 lb |
| Bobcat | E145, E165 |
|---|---|
| Case | CX160, CX160 CR, CX160LC, CX160B, CX160BLC, CX160C, CX160D, CX160E, CX160K, CX170E, CX180, CX180B, CX180C, CX180D, CX180E, CX190E |
| Caterpillar | 215, 315, 315 GC, 315B, 315BL, 315C, 315CL, 315D, 315D2 GC, 315D2L, 315DL, 315F, 315FL CR, 315FL, 315L, 315LN, 316E, 316EL, 316FL, 317, 317B, 317BL, 317BLN, 317 GC, 317N, 318B, 318BL, 318BL2, 318BLN, 318D2L, 318DL, 318DL2, 318E, 318EL, 318EL2, 318FL, 318FL2, 319C, E180, E180A, E200B, E215, M318, M318B, M318C, M319D |
| Daewoo | S155LC V, S175LC V, S175-V, S175W V, S180, S180W |
| Develon | DX140LCR-7, DX140LCR-7K, DX140W-5, DX140W-7, DX140W-7K, DX160W-7, DX165WR-7, DX170W-7 |
| Doosan | DH150LC-7, DH150W-7, DX140LCR-5, DX140LCR-7, DX140W-3, DX140W-5, DX140W-7, DX160LC, DX160LC-3, DX160LC-5 HT, DX160W, DX160W-3, DX160W-5, DX160W-7, DX165W-5, DX165WR-7, DX170LC-5, DX170W, DX170W-5, DX170W-7, DX175LC, DX180LC-3, DX180LC-5, DX180LC, DX190W, DX190WA, S160WV, S175W V, S180W V, S 170LC V, S175LC-V |
| Hitachi | EX150LC, EX150LC-5, UH07, UH07-3, UH07-5, UH053, UH055-7, UH063, UH081, UH083, ZX160, ZX160LC, ZX160LC-3, ZX180, ZX180LC, ZX180LC-5, ZX180LC-5B, ZX180LC-5N, ZX180LC-6, ZX180LC-6N, ZX180LC-7, ZX180 LCH-3, ZX180 LCN, ZX180 LCN-3, ZX180 LCN-5G, ZX180LC-3, ZX190W-5B |
| Hyundai | R145LCR-9A, R160LC, R160LC-3, R160LC-7, R160LC-7A, R160LC-9, R160LC-9A, R160W-9, R170W-3, R170W-7, R170W-9, R170W-9S, R180LC, R180LC-3, R180LC-7A, R180LC-9A, R180LC-9S, R200W-2 |
| JCB | 140XLC, 145XR, 150X, 150X HD, 150XLC, 150X-1, 814SLC, JS145, JS145LC, JS145W, JS160, JS160LC, JS160 NLC, JS160C, JZ140, JZ140 HD, JZ140LC, JZ141, JZ141 HD, JZ141LC |
| John Deere | 160, 160LC, 160 P-Tier, 160C, 160CLC, 160DLC, 160G, 160GLC |
| Kato | 700SEV2, HD550SEV, HD700, HD700SE, HD700V2, HD700VII |
| Kobelco | SK140SRLC-3, SK140SRLC-5, SK170LC-8, SK170LC-11 |
| Komatsu | PC138USLC-11, PC138USLC-11E0, PC150 HD, PC150 HDLC-5, PC150 HD-3, PC150 HD-5, PC150 HD-5K, PC150LC, PC150LC-1, PC150LC-3, PC150LC-3W, PC150LC-5, PC150LC-6, PC150LC-6K, PC150LC-7, PC150LC-8K, PC150LGP-6, PC150-5, PC150-5K, PC150-6, PC150-6K, PC150C, PC150C-3, PC150C-6, PC150L, PC150L-6, PC150N HD, PC150N HD-5, PC150N HD-5K, PC158, PC158LC, PC158USLC, PC158USLC-2, PC158US-2, PC160, PC160LC, PC160LC-6, PC160LC-6K, PC160LC-7, PC160LC-7A E0, PC160LC-7E, PC160LC-7E0, PC160LC-7K, PC160LC-7KA, PC160LC-7L, PC160LC-8, PC160-6, PC160-6K, PC160-7, PC160-7K, PC160-8, PC160LC-7EO, PC160NLC, PC168LC, PC168USLC-3, PC170LC, PC170LC-10, PC170LC-11, PC180, PC180LC, PC180LC-3, PC180LC-5, PC180LC-5K, PC180LC-6, PC180LC-6K, PC180LC-7, PC180LC-7E0, PC180LC-7K, PC180-3, PC180-3K, PC180-5, PC180-5K, PC180-6, PC180-6K, PC180-7, PC180LLC-3, PC180NLC, PC180NLC-3, PC180NLC-5, PC180NLC-5K, PC180NLC-6, PC180NLC-6K, PC180NLC-7, PC180NLC-7K, PC200-1, PC200-2, PW150, PW150ES-6, PW150ES-6K |
| Liebherr | R914, R914 Compact, R918, R918 Compact |
| Link-Belt | 145 X3, 145 X4, 160 LX, 160 X2, 160 X3, 160 X4, 170 X4S |
| Liugong | 915D, 915E |
| New Holland | E175, E175B, E175C |
| Sany | SY155, SY155C, SY155H, SY155H-9, SY155U, SY155W |
| Sumitomo | S2800FJ, S2800FJ-3, SH160-5, SH160LC-5, SH160LX-2, SH200 |
| Takeuchi | TB2150, TB2150R |
| Volvo | EC145E, EC145EL, EC150, EC150LC, EC150B, EC150C, EC160, EC160LC, EC160B, EC160BLC, EC160C, EC160CLC, EC160CL, EC160DL, EC160EL, EC160N, EC160P, EC170DL, EC180B, EC180C, EC180CL, EC180D, EC180DL, ECR145E, ECR145EL, ECR145SE, EW170, MX175WS, SE170W-3 |
| XCMG | XE155ECR, XE155U, XE155UCR, XR155U |
4,067 Joules Hydraulic Hammer for 15 - 19 Tons Excavators. Fits 15–19 ton excavators, bolt-on mount matched to your machine's pins. Included: mount with pins, 2 hoses, moil + wedge chisel, tool box, N2 bottle + gauges, seal kit. Price: $15,997.00, out of stock right now.
Dominate the demolition landscape with the 4,067 Joules Hydraulic Hammer for 15 - 19 Tons Excavators.. Engineered for excavators, this hydraulic hammer accelerates project timelines and delivers consistent results.
Premium Features:
• Forceful Impact: 4,067 Joules energy class
• Rapid Strikes: 350 - 700 BPM impact rate
• Rugged Resilience: AR400 Steel build
• Minimal Recoil: Operator-friendly design
• Complete Kit: 2 Hydraulic Hoses,1 Moil Rock Chisel Bit, 1 Wedge Rock Chisel Bit, Tool Box, Nitrogen Gauge, Nitrogen Bottle, Repair Seal Kit | 2,133 - 2,418 psi operating pressure
Unleash the full potential of your excavator. The 4,067 Joules Hydraulic Hammer for 15 - 19 Tons Excavators. is your competitive edge in breaking and demolition.
What comes in the box?

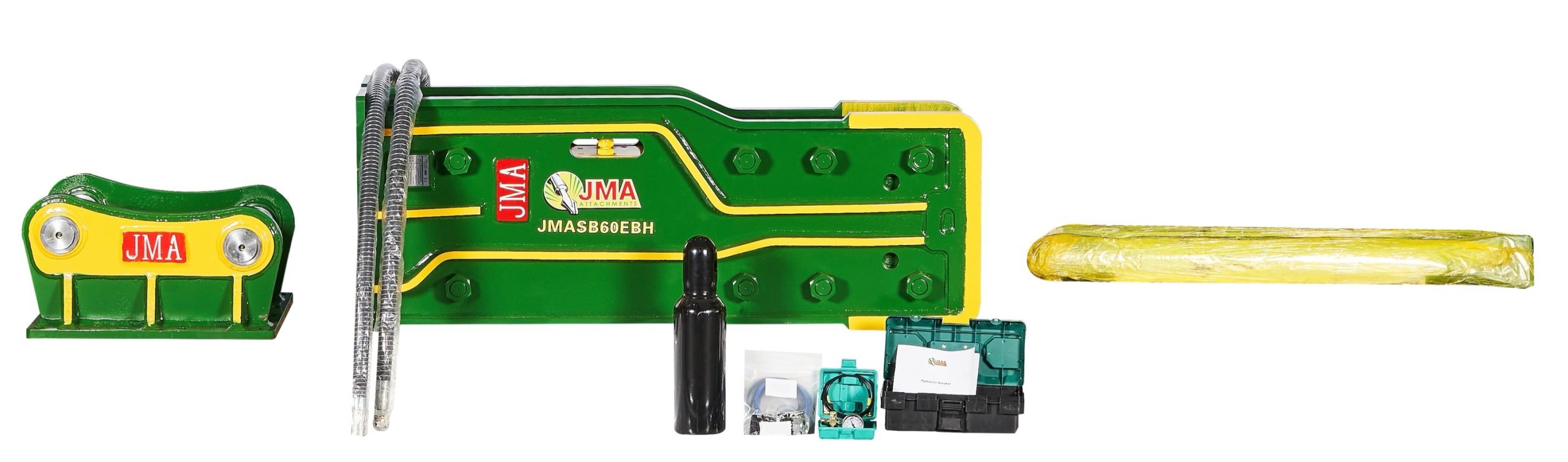

One mount (head) for your machine with pins, 2 hydraulic hoses, a moil chisel and a wedge chisel, a tool box, a nitrogen bottle with gauges and a repair seal kit.
Will it fit my machine?
Tell us your machine, we confirm the fit before shipping. Pin-on attachments are sized from your machine's pin diameter, pin-to-pin distance and ear width. If your machine has a quick coupler, is a long-reach model or was modified, measure those three and send them to us before you order. If we confirmed the fit from your accurate machine and coupler details and our recommendation is wrong, report it within 14 calendar days of delivery: the JMA Fitment Money-Back Promise gives a full product refund, outbound and return freight covered, no restocking fee.
How fast does it ship?
In-stock items ship from Miami, FL the same business day when ordered before 2 PM ET; orders after 2 PM ET, on weekends or on holidays ship the next business day. Carrier estimates for the lower 48, in business days from the ship date: parcels of 50 lb or less 5–7 standard or 2–4 expedited; LTL freight over 50 lb 7–10 standard or 4–6 expedited, usually with a delivery appointment and a signature. Outside the lower 48, shipping is quoted. Inspect it before you sign and note any damage on the delivery receipt.
What does the warranty cover?
JMA Attachments hydraulic hammers carry a 24-month warranty; coverage varies by component and hammer class, and the Warranty page lists each part. Through bolts, bushings and rod pins: 2 months. Seal kits and diaphragm: 3 months. Chisels follow the manufacturer's standard. Get our written approval before any repair.
Can I return it?
Yes, for standard products: a refund within 14 calendar days of delivery, or store credit within 30, if it is unused, uninstalled, free of soil and grease, and in its original packaging with all hardware. Get a Return Authorization Number (RAN) from us first. The buyer pays return shipping unless the item was defective, damaged or wrong because of our error, or you can drop it off at our warehouse, 8068 NW 29th St, Doral, FL, Monday to Friday, 9 AM to 5 PM, with your RAN. A restocking fee applies to non-defective refunds; store credit has no restocking fee. Original outbound shipping is not refunded on change-of-mind returns. Installed or used attachments can't be returned.
