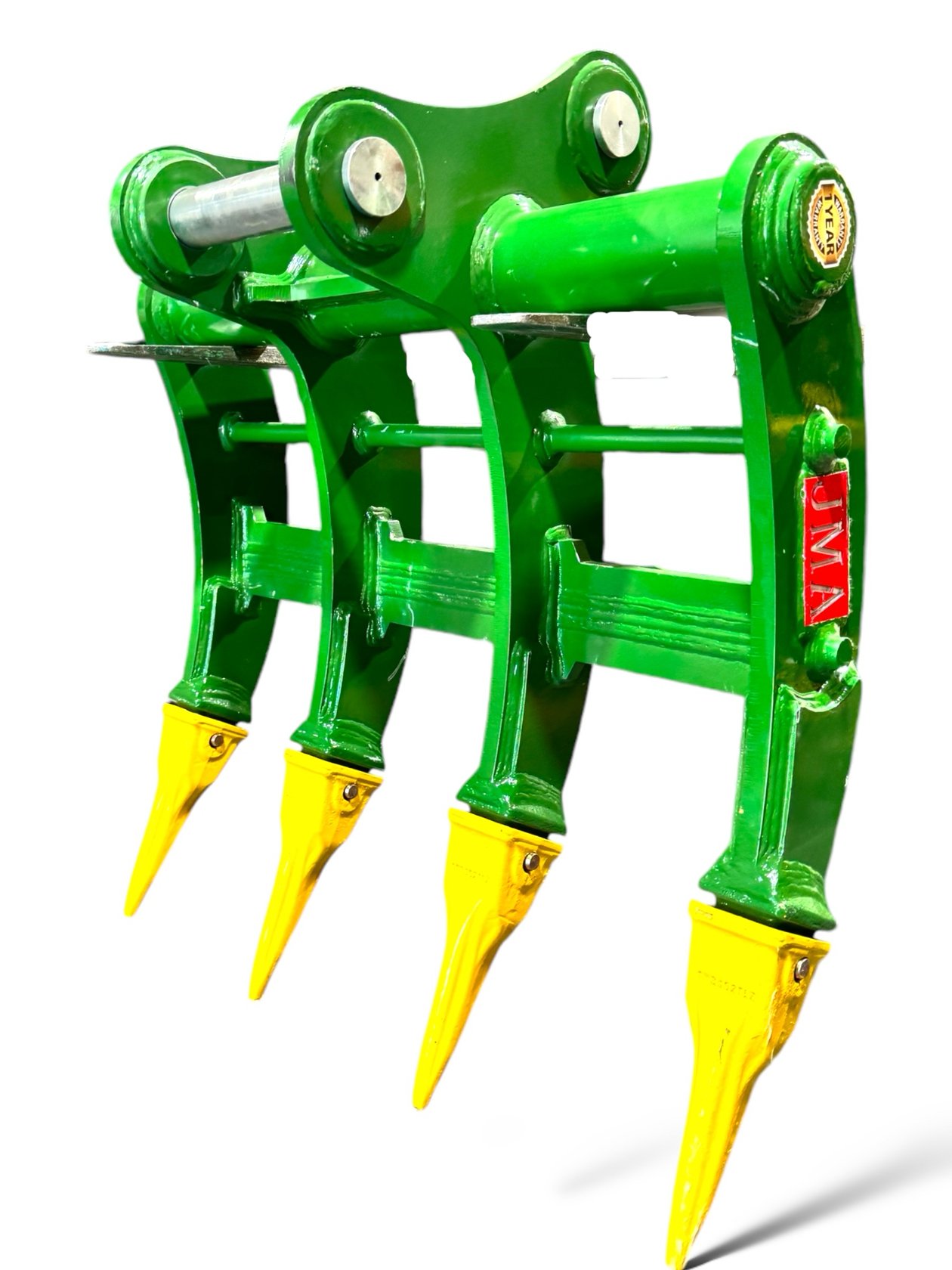

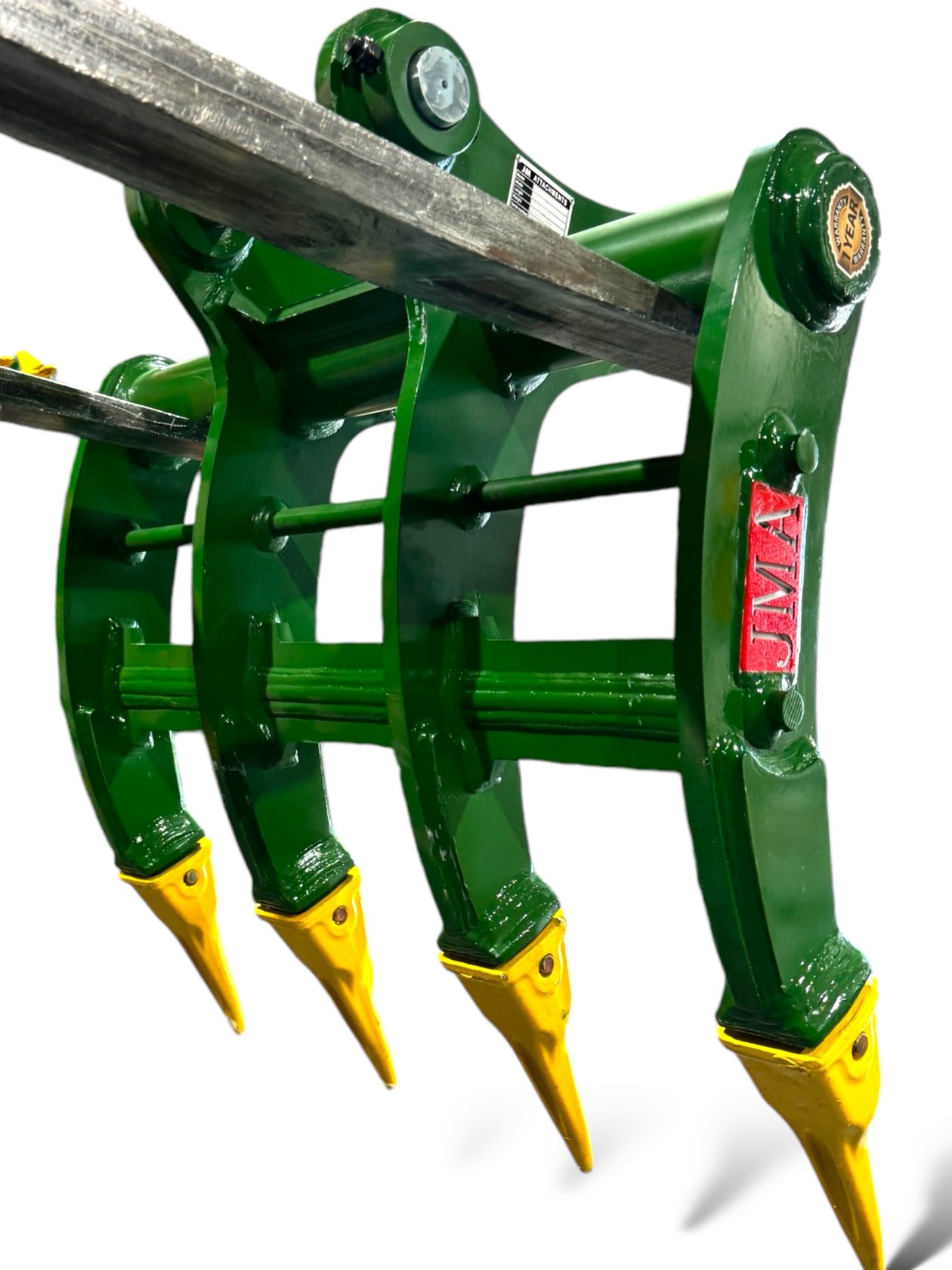

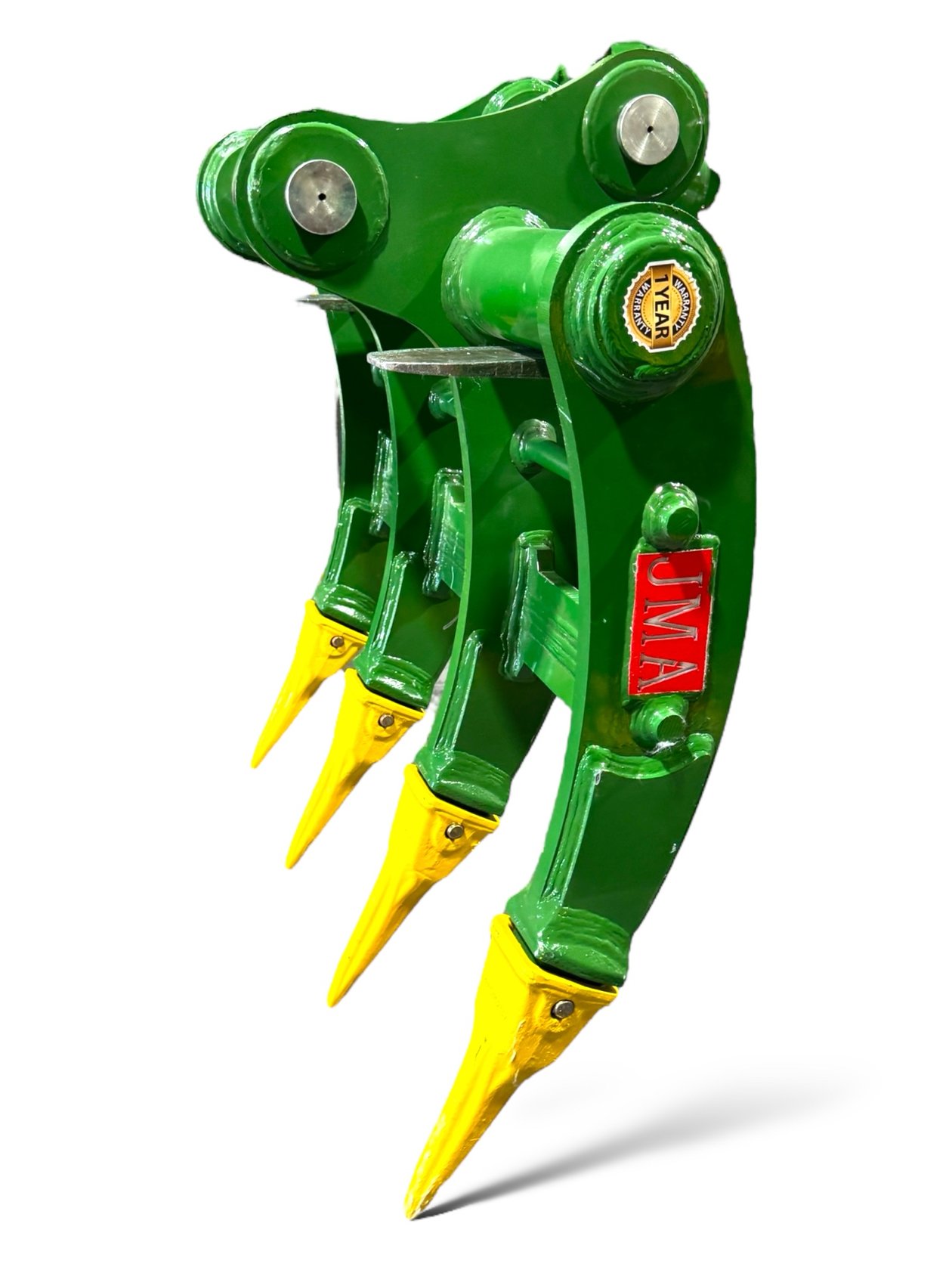

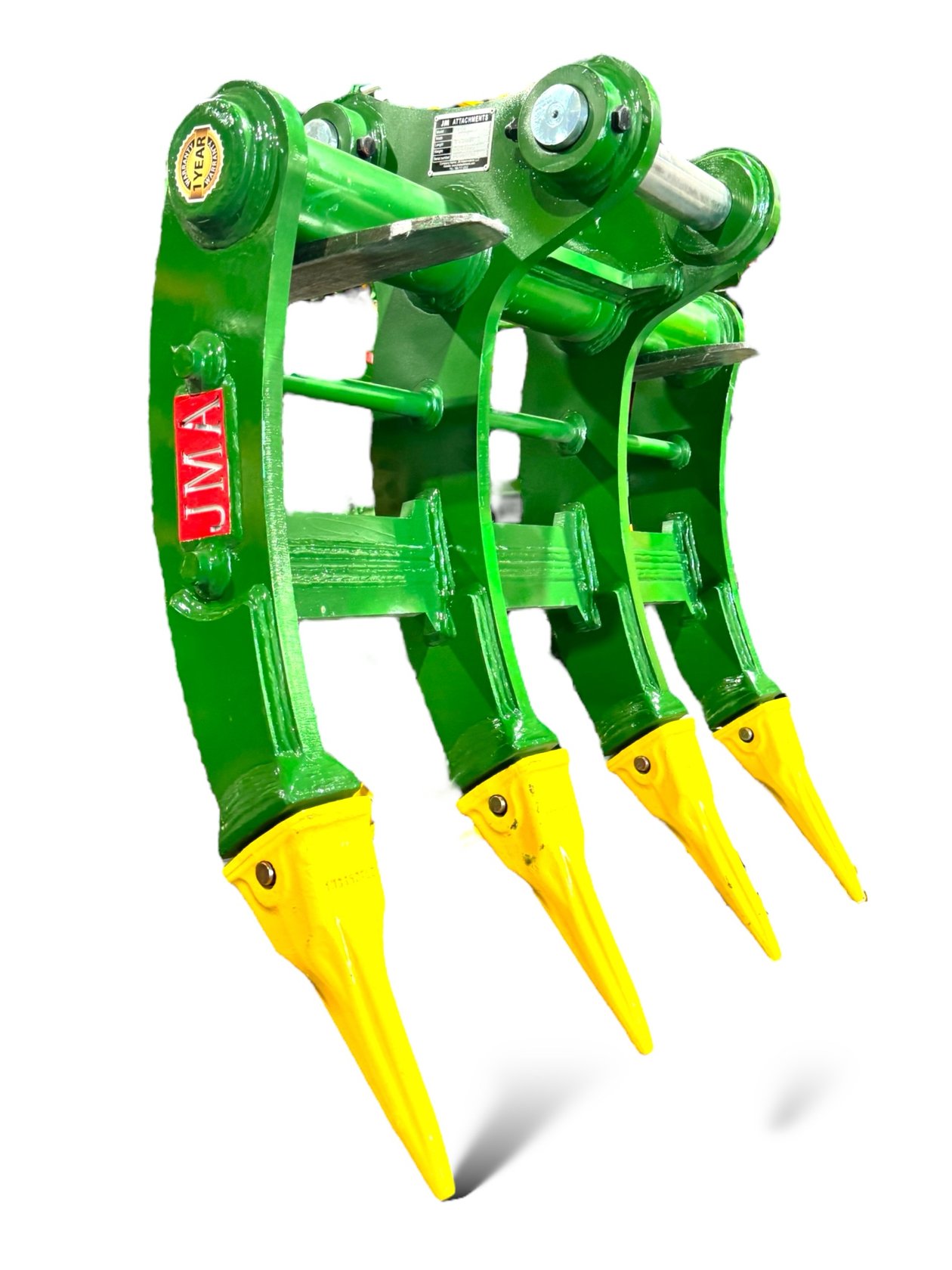

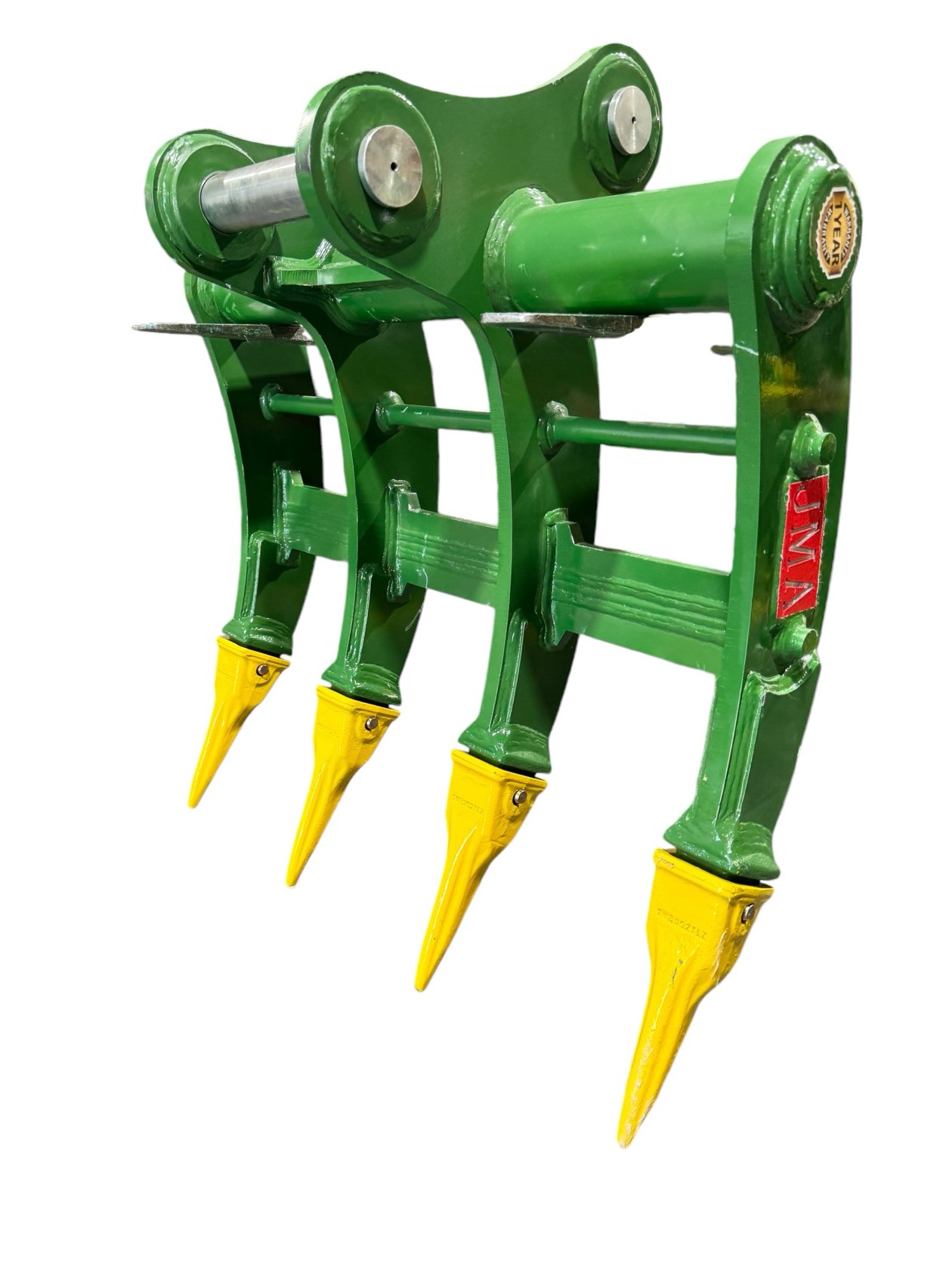

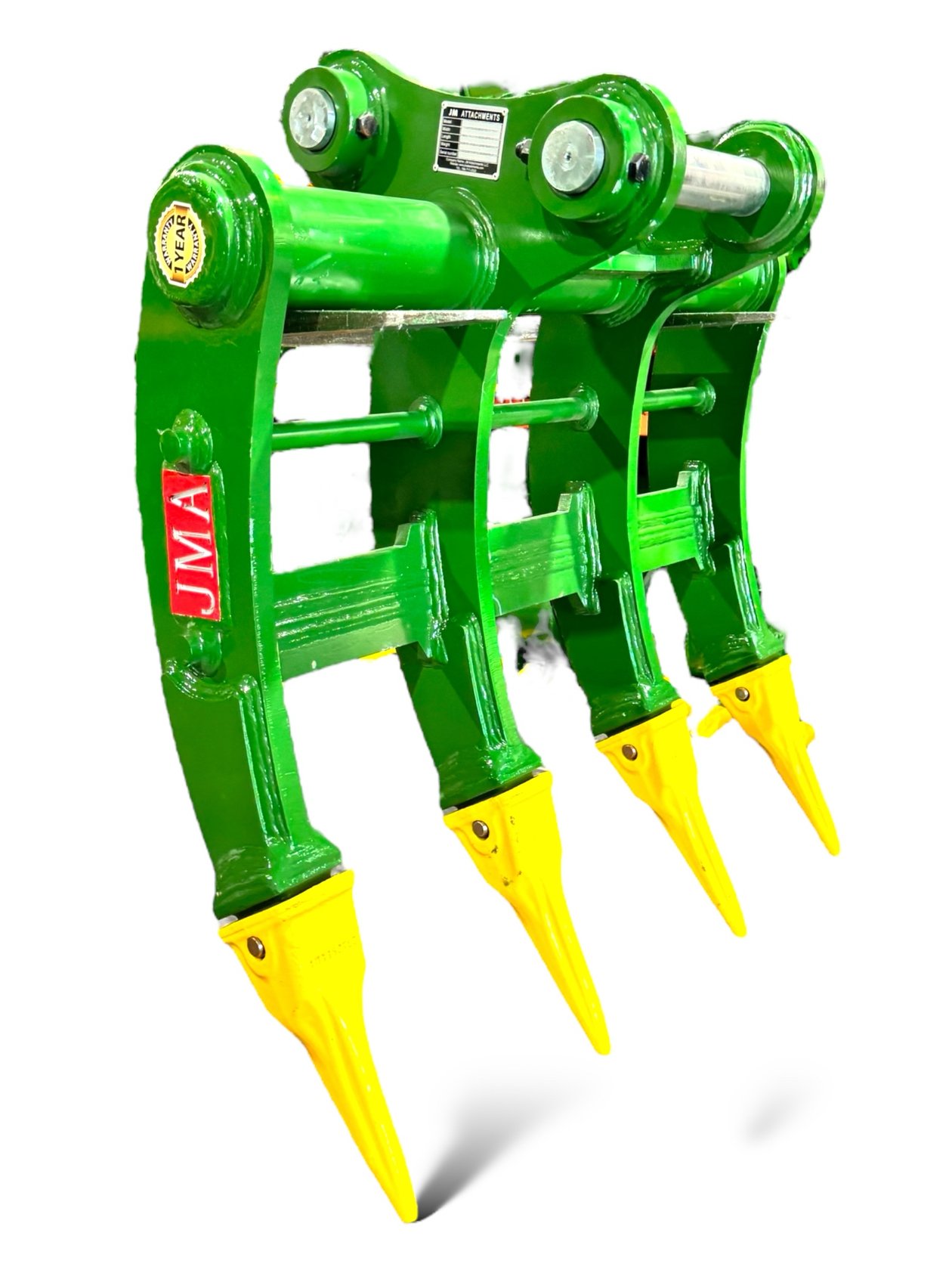

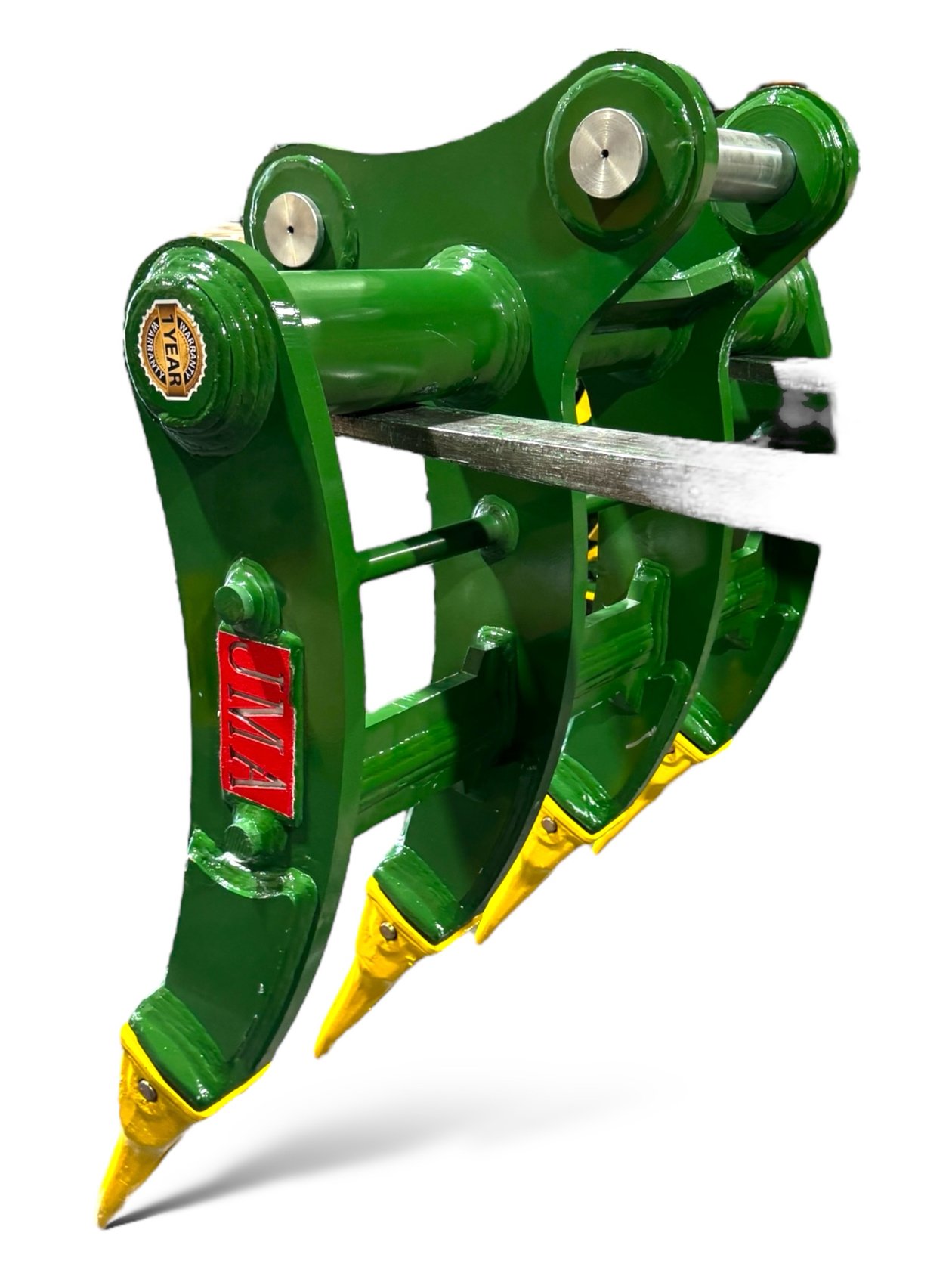

40″ Root Rake for 10 – 15 Tons Excavators. 65mm Pins
- Fits 10–15 t excavators · 65 mm pins · 262 mm ear to ear · 362 mm C-C
- 40″ wide · 4 tines · 304 mm spacing · AR400 steel · green powder coat · 1,122 lb
- Pins included
- Ships from Miami, FL · US-based support
- 2-year warranty · lifetime warranty on structural welds
Rake Size: 40"
Availability: Out of Stock
Frequently Bought Together
| Coupler Type | Pin On Style |
|---|---|
| Carrier Weight Class (tn) | 10 - 15 tons |
| Carrier Weight Class (lb) | 20,000 - 30,000 lb |
| Front Pin Diameter (mm) | 65 mm |
| Rear Pin Diameter (mm) | 65 mm |
| Front Ear to Ear (mm) | 262 mm |
| Rear Ear to Ear (mm) | 262 mm |
| Center to Center (mm) | 362 mm |
| Front Pin Length (mm) | 449 mm |
| Finish | Powder-Coated Green |
| Material Type | AR400 Steel |
| Rear Pin Length (mm) | 449 mm |
| Tooth Retainer Part Number | 8E6359 |
| Bucket Tooth Series | J450 |
| Product Weight (kg) | 510 kg |
| Product Weight (lbs) | 1,122 lbs |
| Tooth (ct.) | 4 ct. |
| Pin Size | 65mm |
| Product Width (in) | 40" |
| Tines (ct.) | 4 ct. |
| Tines Spacing (mm) | 304 mm |
| Tooth Number | 1U3352TLZ |
| Tooth Pin Part Number | 9J2358 |
| Tooth Style | Single Tiger Tooth Style |
| Case | CX130, CX130LC, CX130B, CX130BLC, CX130C, CX130C LR, CX130D, CX130DLC, CX130E, CX130K, CX135, CX135 CR, CX135 MSR, CX135 SR, CX135C, CX140E, CX145 CSR, CX145 DSR, CX145C, CX145D MSR |
|---|---|
| Daewoo | S130LC V, S130W-111, S140LC-V |
| Develon | DX100W-7, DX140LC-7K |
| Doosan | DH140W-7, DH150LC-7, DH150W-7, DX100W-7, DX120, DX130-9CN, DX140LC-3, DX140LC-5, DX140LC-7, DX140LC-9C, DX140 LCA, DX140LCR, DX140LCR-3, DX140LC, DX140LC-7K, DX140WA, DX140WACE, DX140WE, DX150LC-9C, DX150W-9C, S130WV, S140W V, S140WV RW |
| Hitachi | EX100-3, EX100-5, EX100WD-3, EX100WD-3C, EX120-3, EX120-5, EX125WD-5, EX130, EX130K, EX130UR-1, EX130UR-5, EX130W, EX135, EX135UR, EX135UR-1, EX135UR-5, EX135US, EX135USR, ZX110, ZX110-2, ZX110-3, ZX110BL, ZX110E, ZX110M, ZX110M-3, ZX120, ZX120 IV, ZX120LC, ZX120-2, ZX120-3, ZX120-5B, ZX120-6, ZX120B, ZX120BL, ZX120E, ZX120USR-5, ZX125US, ZX130, ZX130LC, ZX130LC-3, ZX130LC-5N, ZX130 LCM, ZX130 LCN, ZX130 LCN-3, ZX130 LCN-5, ZX130 LCN-5B, ZX130 LCN-6, ZX130 LCN-7, ZX130-3, ZX130-5, ZX130-5A, ZX130-5B, ZX130-5G, ZX130-5N, ZX130-6, ZX130-6N, ZX130-7, ZX130-7H, ZX130BL, ZX130H, ZX130K, ZX130K HG, ZX130K-3, ZX130K-5B, ZX130K-6, ZX130L, ZX130MT, ZX135, ZX135U, ZX135UR, ZX135US, ZX135USLC, ZX135US-1, ZX135US-2, ZX135US-3, ZX135US-5, ZX135US-5B, ZX135US-5N, ZX135US-6, ZX135US-6N, ZX135US-7, ZX135US-7H, ZX135US-E, ZX135USB-3, ZX135USB-5, ZX135USBL-3, ZX135USBL-5, ZX135USBL-6, ZX135USBL-7, ZX135USK, ZX135USK-3, ZX135USK-6, ZX135USM, ZX135USOS-3, ZX135USOS-5B, ZX135USOS-6, ZX135USR-5, ZX135USTN-Z, ZX140H, ZX140W-3 |
| Hyundai | HX125, HX130LCR, HX130ALCR, HX140, HX140LC, HX140A L, HX140L, HX145, HX145ALCR, HX145LCR, R110-7, R110-7A, R110D-7, R120W, R125LCR-9, R125LCR-9A, R130LC, R130LC-3, R130W-3, R140LC-7, R140LC-9, R140LC-9A, R140LC-9S, R140W-7, R140W-9, R145CR-9, R145LC-9, R145LCR-9A |
| JCB | 131LLC, 131X, 131XLC, 140X, 145X, JS130, JS130LC, JS130C, JS131, JS131LC, JS135, JS135LC, JS145, JZ140, JZ141 |
| John Deere | 110, 120, 120LC, 120C, 120CLC, 120D, 130G, 135 P-Tier, 135C, 135D, 135G |
| Kobelco | K905, K905LC MARK II, K905A, K905ALC, SK115SRDZ, SK120, SK120-2, SK120-5, SK120LC, SK120v, SK125SR, SK125SR-2, SK125SR-3, SK130, SK130-8, SK130LC, SK130LC-11, SK130UR, SK135SR, SK135SR-1E, SK135SR-2, SK135SR-3, SK135SRLC, SK140LC-8, SK140SRLC, SK140SRLC-7 |
| Link-Belt | 130 LX, 130 X2, 130 X3, 130 X4, 130 X4LC, 135 LX, 135 Spin Ace, 135 X3 SPIN |
| Liugong | 915D |
| Sany | SY115, SY115C, SY125, SY125C PRO, SY130-1, SY135, SY135 IV, SY135-2, SY135-3A, SY135C, SY135C-9, SY135U, SY140C-9S, SY155W |
| Sumitomo | SH120, SH120-1, SH120-3, SH120- 2, SH120-A3, SH125X-3, SH130-5, SH130-6, SH130LC-5, SH135X, SH135X-3, SH135X-3B, SH145X-6, SH145X-6B |
| Takeuchi | TB1140, TB2150R |
| Terex | TC125 |
40" Root Rake for 10 - 15 Tons Excavators. 65mm Pins. Fits 10–15 t excavators, 65 mm pins, 262 mm ear to ear, 362 mm C-C. Included: pins. Price: $5,067.00, out of stock right now.
Master the art of land clearing with the 40" Root Rake for 10 - 15 Tons Excavators. 65mm Pins. This robust Root Rake is your solution to the most challenging site preparation tasks in construction, landscaping, and forestry.
Elite Features:
* Optimized Tine Configuration: 4 heavy-duty tines, each 25 mm thick, for superior debris collection.
* Rugged Construction: Engineered from AR400 Steel to endure high-stress clearing environments.
* Deep Penetration: Achieves 35.15" ground penetration for effective root and rock removal.
* Broad Equipment Compatibility: Designed for use with a range of heavy excavation machinery.
* Efficient Debris Separation: Expertly spaced tines retain large debris while allowing soil to pass through.
* Professional Performance: Meets the stringent demands of commercial land clearing projects.
Transform your approach to challenging site preparations. The 40" Root Rake for 10 - 15 Tons Excavators. 65mm Pins isn't just a root rake – it's a game-changing tool that elevates your entire land clearing operation.
Are pins included?
Yes. Pins are included.
Will it fit my machine?
Tell us your machine, we confirm the fit before shipping. Pin-on attachments are sized from your machine's pin diameter, pin-to-pin distance and ear width. If your machine has a quick coupler, is a long-reach model or was modified, measure those three and send them to us before you order. If we confirmed the fit from your accurate machine and coupler details and our recommendation is wrong, report it within 14 calendar days of delivery: the JMA Fitment Money-Back Promise gives a full product refund, outbound and return freight covered, no restocking fee.
How fast does it ship?
In-stock items ship from Miami, FL the same business day when ordered before 2 PM ET; orders after 2 PM ET, on weekends or on holidays ship the next business day. Carrier estimates for the lower 48, in business days from the ship date: parcels of 50 lb or less 5–7 standard or 2–4 expedited; LTL freight over 50 lb 7–10 standard or 4–6 expedited, usually with a delivery appointment and a signature. Outside the lower 48, shipping is quoted. Inspect it before you sign and note any damage on the delivery receipt.
What does the warranty cover?
Defects in materials and workmanship are covered for 2 years or 2,000 operating hours, whichever comes first: year 1 parts and pre-approved labor, year 2 parts only. Lifetime warranty on structural welds. Teeth, cutting edges, pins and bushings are wear items and are not covered. Get our written approval before any repair.
Can I return it?
Yes, for standard products: a refund within 14 calendar days of delivery, or store credit within 30, if it is unused, uninstalled, free of soil and grease, and in its original packaging with all hardware. Get a Return Authorization Number (RAN) from us first. The buyer pays return shipping unless the item was defective, damaged or wrong because of our error, or you can drop it off at our warehouse, 8068 NW 29th St, Doral, FL, Monday to Friday, 9 AM to 5 PM, with your RAN. A restocking fee applies to non-defective refunds; store credit has no restocking fee. Original outbound shipping is not refunded on change-of-mind returns. Installed or used attachments can't be returned.
