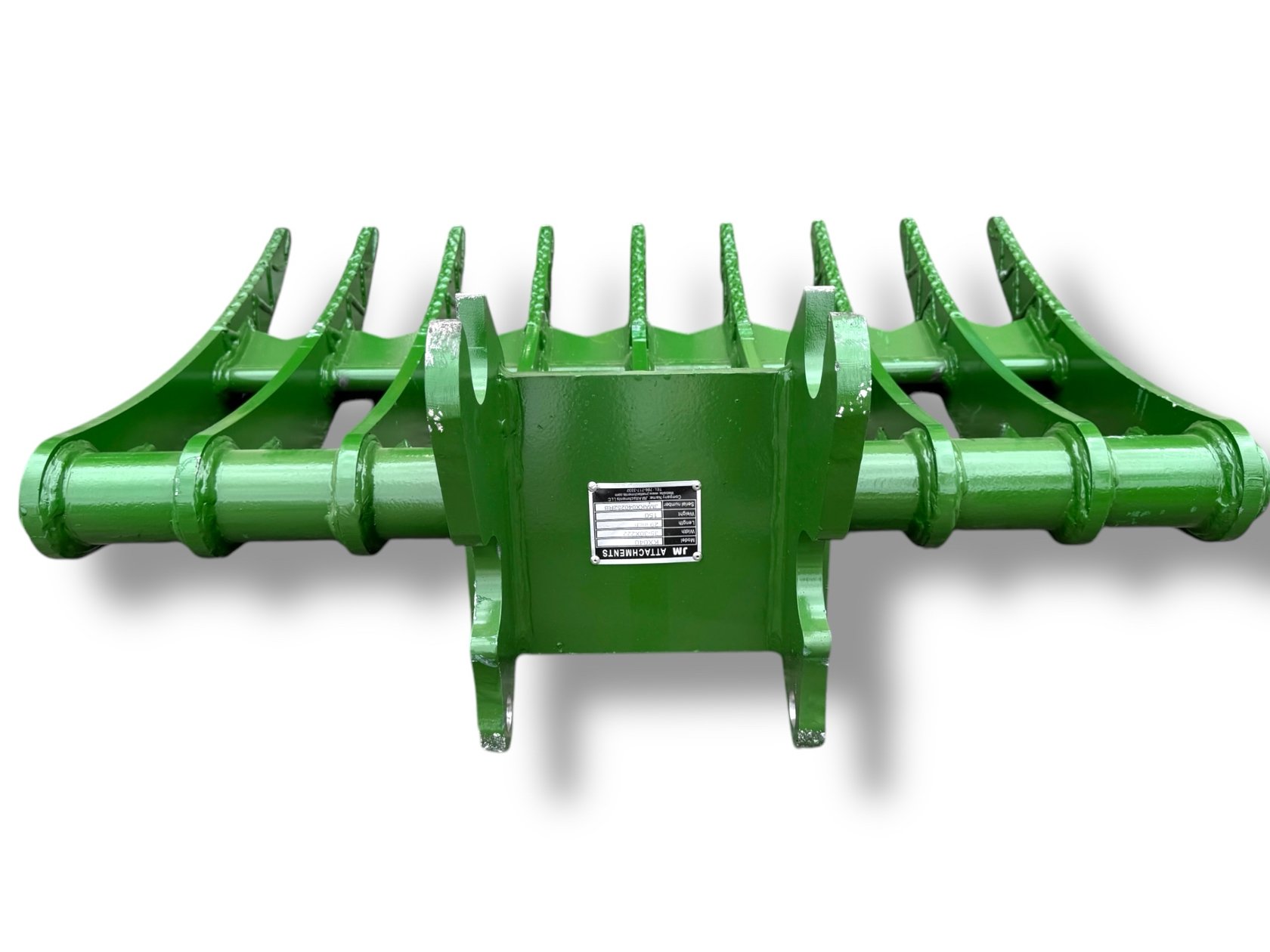

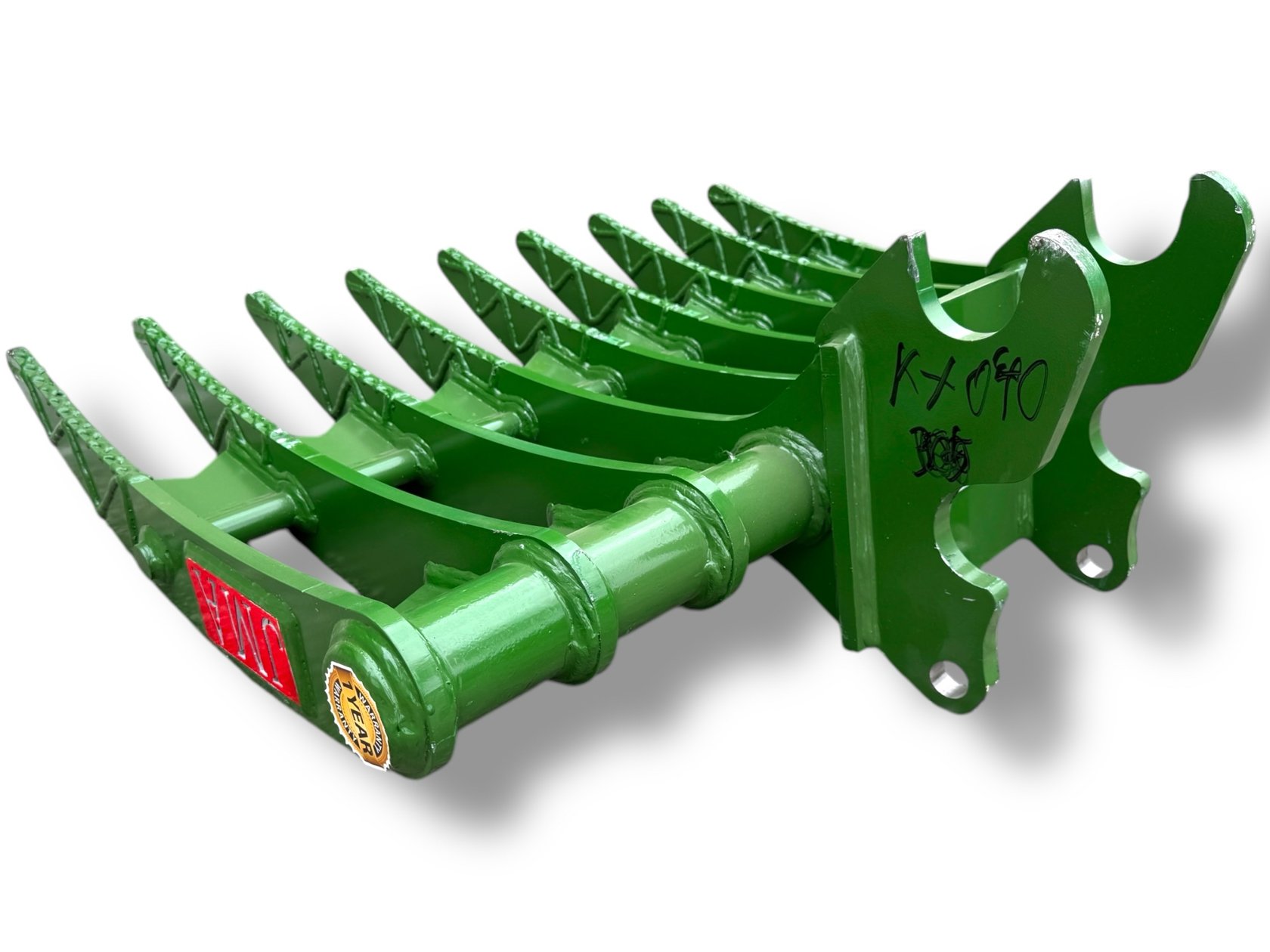

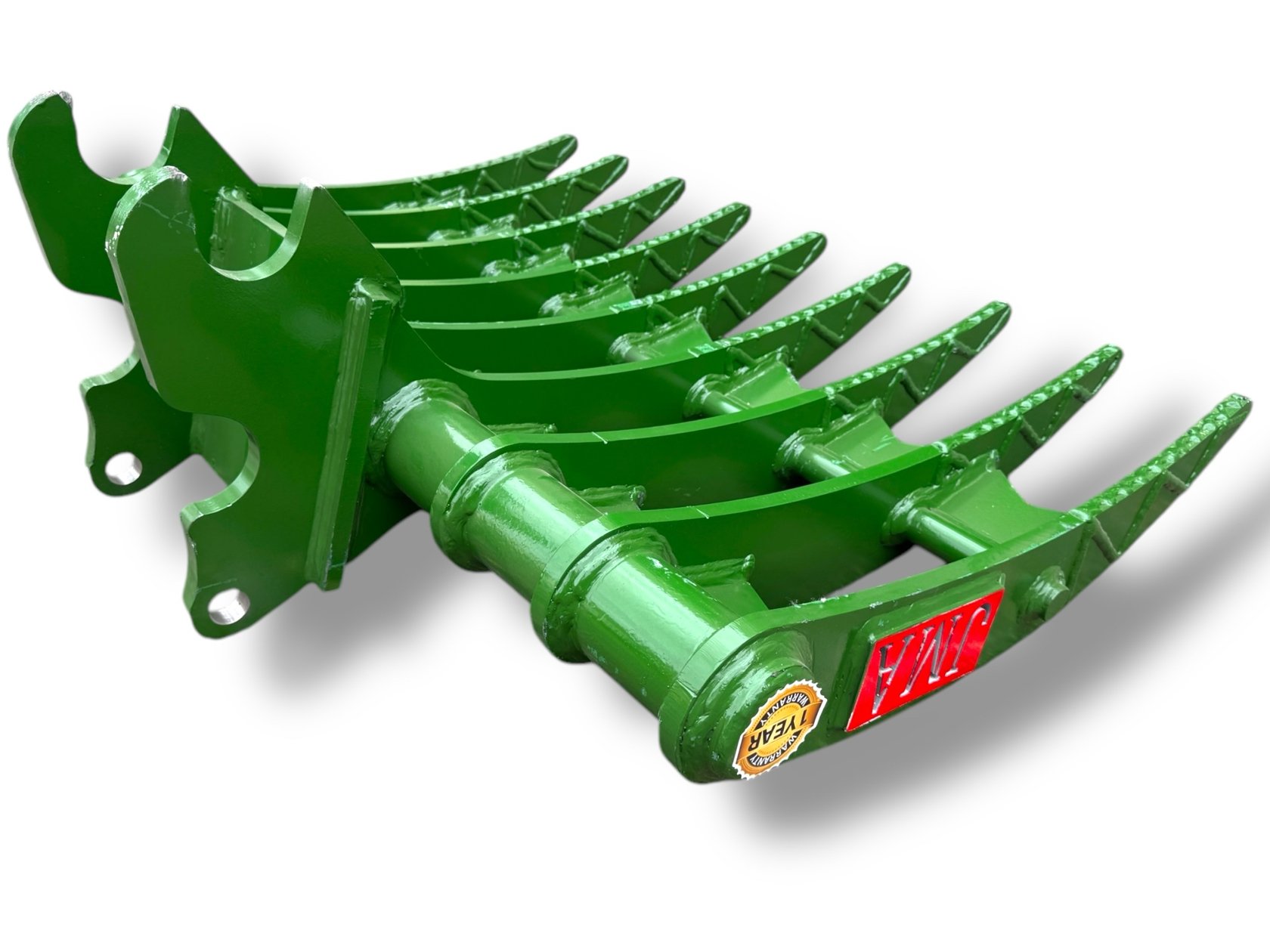

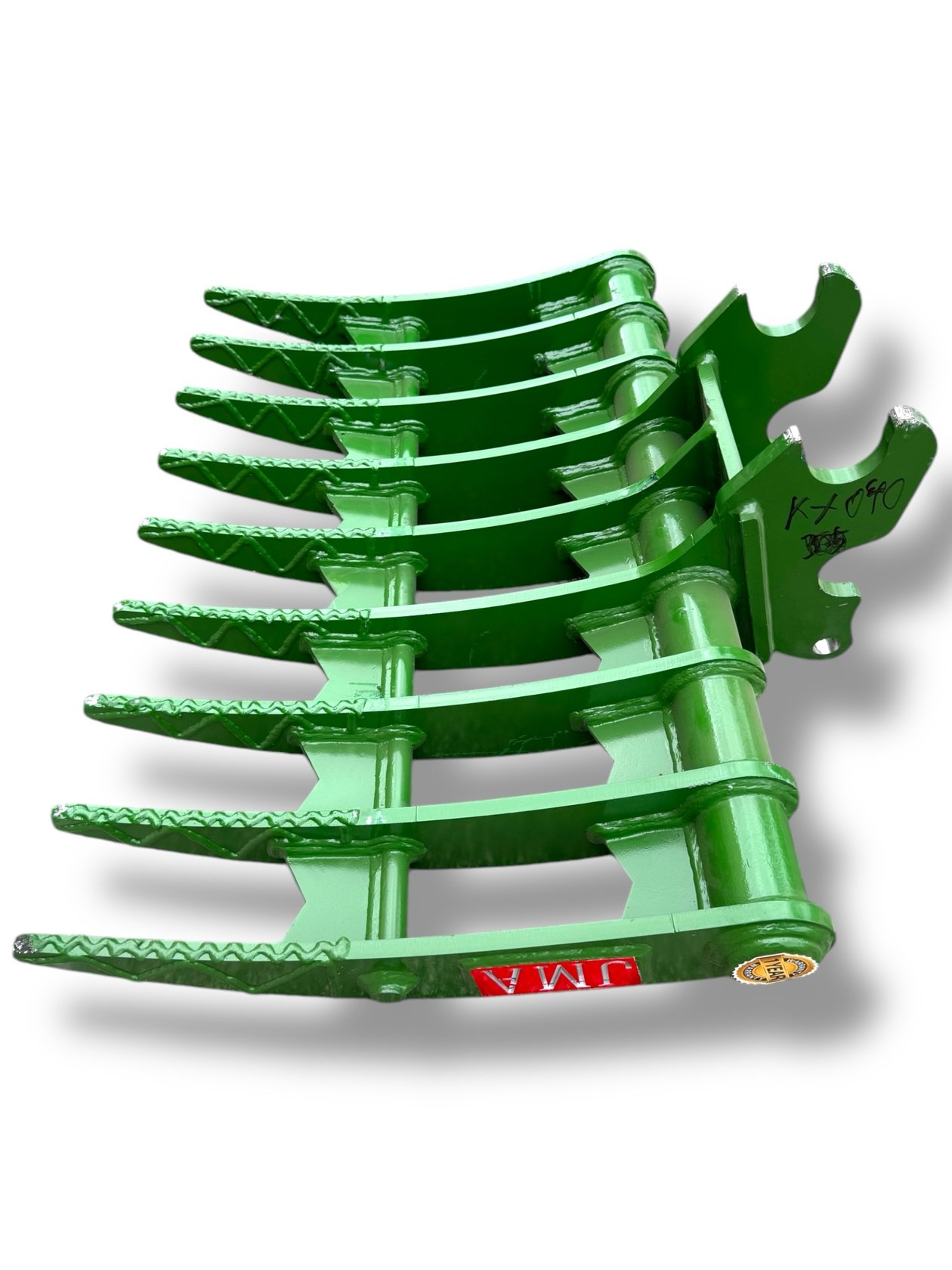

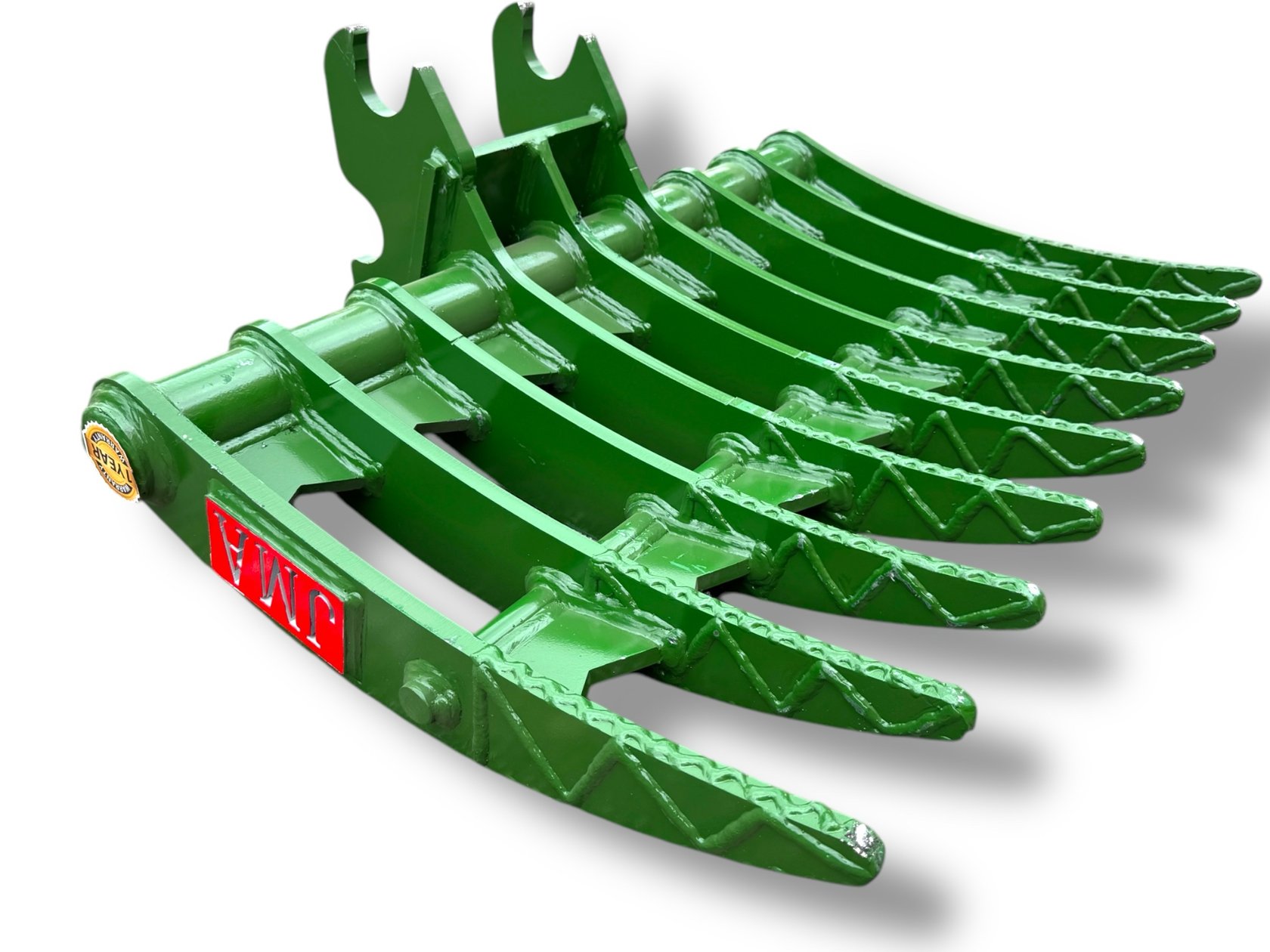

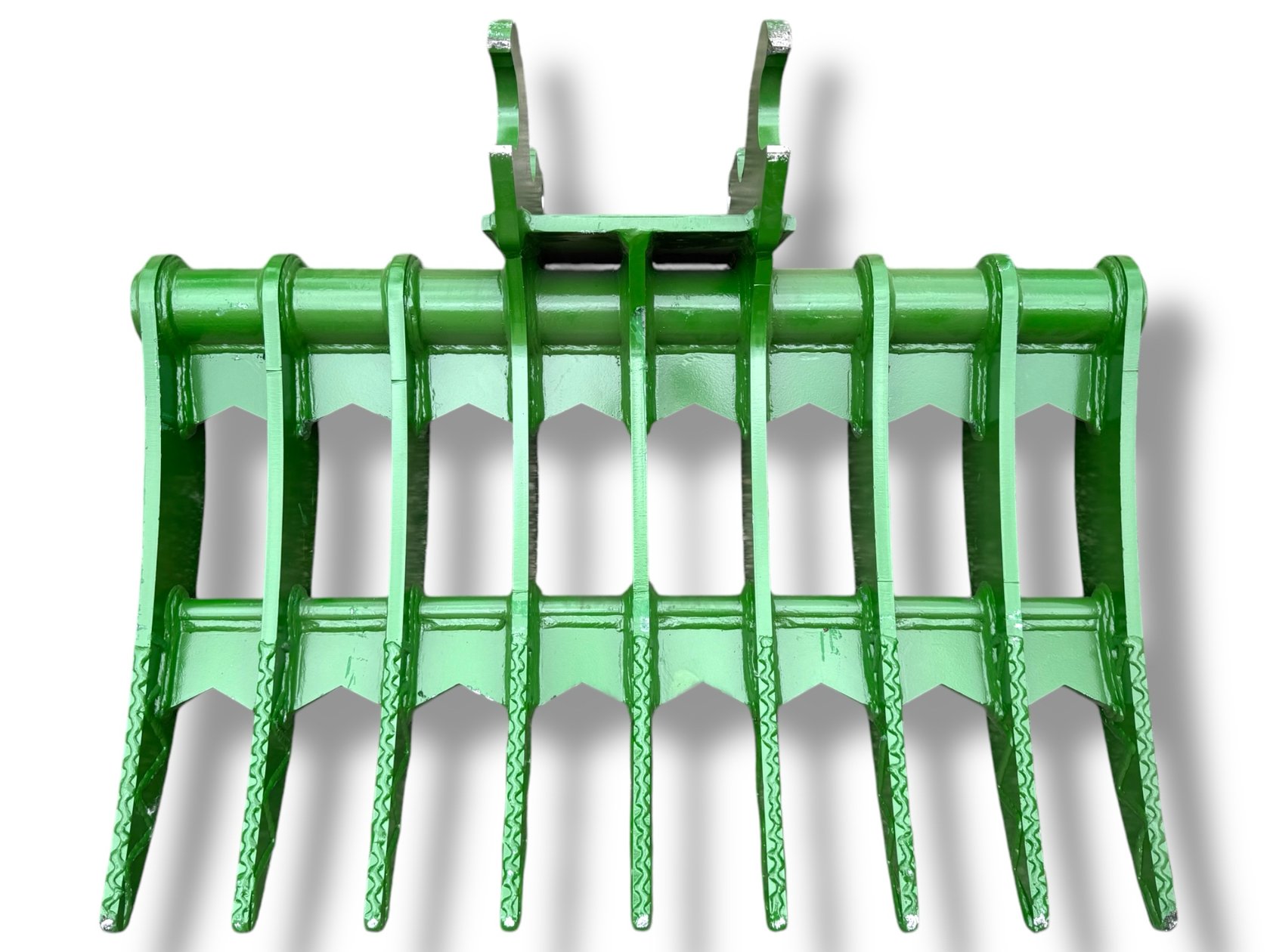

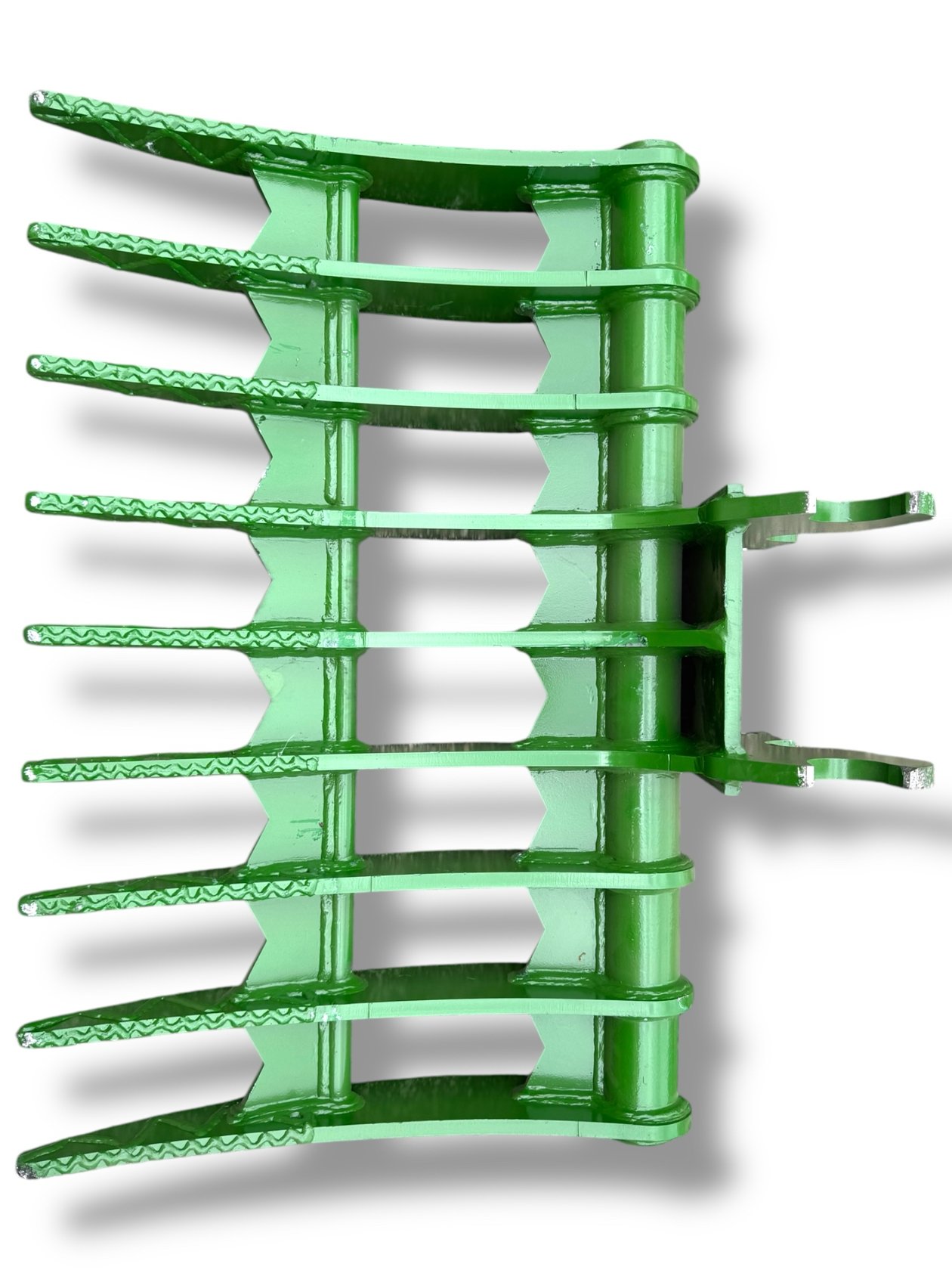

40″ Brush Rake Kubota Wedge Lock Coupler Style for 3 – 4.5 Tons Mini Excavators
- Kubota wedge-lock coupler · 30 mm rear pin · 3–4.5 t mini excavators
- 40″ wide · 9 tines, 0.63″ thick · 109 mm spacing · 23.62″ penetration · AR400 steel
- Ships from Miami, FL · US-based support
- 2-year warranty · lifetime warranty on structural welds
Rake Size: 40"
Availability: Out of Stock
Frequently Bought Together
| Coupler Type | Kubota Style |
|---|---|
| Carrier Weight Class (tn) | 3 - 4.5 tons |
| Carrier Weight Class (lb) | 6,000 - 9,000 lb |
| Rear Pin Diameter (mm) | 30 mm |
| Front Ear to Ear (mm) | 222 mm |
| Rear Ear to Ear (mm) | 222 mm |
| Rake Width (mm) | 1,016 mm |
| Rake Width (in) | 40" |
| Rake Length (in) | 25.98" |
| Rake Length (mm) | 660 mm |
| Tines Thickness (in) | 0.63" |
| Tines Thickness (mm) | 16 mm |
| Material Type | AR400 Steel |
| Finish | Powder-Coated Green |
| Penetration (in) | 23.62" |
| Penetration (mm) | 600 mm |
| Product Width (in) | 40" |
| Rake Size | 40" |
| Tines (ct.) | 9 ct. |
| Tines Spacing (mm) | 109 mm |
| Airman | AX30, AX30-U2, AX30U-4, AX30U-5F, AX30UC-4, AX30UC-5, AX33Mu, AX33U-5A, AX35, AX35U-4, AX35U-5F, AX38U-5A, AX40, AX40U, AX40U-4, AX40U-5F, AX45 |
|---|---|
| Bobcat | 334, 334D, 334G, 430, 430AG, 430AG ZHS, 430CD, 430D, 430D ZHS, 430E, 430G, 430GZHS, 430ZHS, E32, E32EM, E32I, E32M, E32R, E32R2, E34, E35, E35EM, E35ER2, E35I, E35M, E35R, E35R2, E35Z, E37, E38, E40, E42, E42M, E42R2, E45, E45EM, E45M, E48, E48R2, X325, X328, 428, 428EG, 428G, X331, X331C, X331D, X331E, X331G, X332, X334, X335, 428U, X328G, X428 |
| Case | CX27B, CX31B, CX33, CX36B, CX37, CX37C, CX40, CX40B |
| Caterpillar | 302.7, 302.7 CR, 303, 303 CR, 303 CR2, 303 SR, 303.4C, 303.5, 303.5 CR, 303.5C, 303.5C CR, 303.5D, 303.5D2 CR, 303.5D CR, 303.5E, 303.5E2 CR, 303.5E CR, 303C2 CR, 303C CR, 303E CR, 303E SR, 303GR, 304, 304 CR, 304.5, 304C CR, 304D CR, 304E2, 304E2 CR |
| Daewoo | S030, S035, S35, Solar 035 |
| Develon | DX27Z-7, DX35Z-7, DX42-7 |
| Doosan | D20Z, DH35, DX27Z-7, DX30Z, DX35, DX35-5, DX35Z, DX35Z-7, DX42, DX42-5, DX42-5K, S30, S030 PLUS, Solar 030, Solar 030 Plus |
| Hanix | 20S, H26B, H26C, H29A, H30A, H35A, H36A, H36B, H36B-R, H36C, H45, H50B, H50C |
| Hitachi | EX27U, EX30, EX30-2, EX30U, EX30UR, EX30UR-2, EX30UR-2C, EX30UR-3, EX33MU, EX33U, EX35, EX35-2, EX35U, EX40, EX40-2, EX40U, EX40UR, EX40UR-2, EX40UR-2C, EX40UR-3, EX45, EX45-2, ZX30, ZX30U-2, ZX30U, ZX33U-2, ZX33U-2 -3, ZX33U-3, ZX33U-3F, ZX33U-5A, ZX35, ZX35U, ZX35U-2, ZX35U-3, ZX35U-3F, ZX35U-5A, ZX38U-2, ZX38U-2 -3, ZX38U-3, ZX38U-3F, ZX38U-5A, ZX40U, ZX40U-2, ZX40U-3, ZX40U-5A |
| Hyundai | R27Z-9A, R28-5, R30-9A, R35-5, R35-7, R35Z-9, R35Z-9A |
| Ihi | 28G, 28N-2, 28NX, 30NX, 30NX-2, 32J, IS28, IS28J, IS30, IS30J, IS35, IS35N, IS35NX-2, IS35VX-2, IS40, IS40-JX, IS45 |
| JCB | 1CX, 35Z-1, 45Z, 45Z-1, 803, 803 Plus, 803 Super, 8025 ZTSLC, 8026, 8026 CTS, 8027 ZTS, 8029, 8029 CTS, 8030, 8030 ZTS, 8032 ZTS, 8035, 8035 C, 8035 CTS, 8035 ZTS, 8040, 8040 ZTS |
| John Deere | 25, 25D, 27 ZTS, 30, 30G, 30P, 35, 35 ZTS, 35C, 35C ZTS, 35CT, 35D, 35D ZTS, 35G, 35P, 35ZT |
| Kobelco | SK025, SK027, SK27SR-3, SK27SR-5, SK27SR-6E, SK030, SK30SR, SK30SR-1, SK30SR-2, SK30SR-3, SK30SR-4, SK30SR-5, SK30SR-6E, SK032, SK035, SK35SR-1, SK35SR-2, SK35SR-3, SK35SR-4, SK35SR-5, SK35SR-6, SK35SR-6E, SK40SR, SK40SR-1, SK40SR-2, SK040SR-3, SK40SR-3, SK040SR-5, SK40SR-5, SK042, SK045, SK045-1, SK045-2, SK045-3, SK045SR, SK45SR-1 |
| Komatsu | PC27 MRX-1, PC27MR-3, PC27R-8, PC28UU-1, PC28UU-2, PC30, PC30 MR, PC30 MRX-1, PC30 MRX-2, PC30-6, PC30-7, PC30MR-2, PC30MR-3, PC35, PC35MR-2, PC35MR-3, PC35MRX-1, PC35R-8, PC35RS, PC40-7, PC40MR-3, PC40MRC-2, PC40MRX, PC40MRX-1, PC40R-8, PC45 MRX-1, PC45R-8 |
| Kubota | K045, KH16W, KH90, KX030, KX030-4, KX033, KX033-4, KX040, KX040-4, KX71, KX71-3, KX71-3S, KX91, KX91-2, KX91-3, KX91-3S2, KX101, KX101-3, KX121, KX121-2, KX121-3, KX121-4, KX121-5, RX302, U30 Import, U35, U35-3, U35-4, U36-4, U40, U45, U45-3 |
| Link-Belt | MM40, MS035 |
| Liugong | 9035E, 9035EZTS, 9045D, 9045E |
| Nagano | NS25-3, NS35, NS35R-3, NS45-3 |
| New Holland | E33, E33C, E35B, E37, E37C, E50.2SR, EH50.B |
| Nissan | N350, N350-2 |
| Sany | SY26, SY26U, SY35, SY35C, SY35U |
| Sumitomo | SWE30, SWE30UF, SWE40U, SWE45 |
| Takeuchi | EH50B, TB028, TB28FR, TB030, TB30, TB035, TB36, TB045, TB45, TB125, TB135, TB138, TB138FR, TB228, TB230, TB235, TB235-2, TB240 |
| Terex | TC35, TC37 |
| Volvo | EC35, EC35C, ECR35, ECR35D, ECR38, ECR40 |
| Wacker Neuson | 28Z, 38Z, 38Z3, 3003, 3503, 3703, ET35, EZ35, EZ36, EZ38 |
| Yanmar | B27, B30V, B37, SV40, VIO27, VIO27-2, VIO30, VIO30-1, VIO30-6B, VIO30-7, VIO35, VIO35-2, VIO35-3, VIO35-6A, VIO35-6B, VIO35-7, VIO38, VIO38-6, VIO38-7, VIO40, VIO40-2, VIO40-3, VIO40-7, VIO45-5, VIO50-6A, VIO50-6B, YC30-2, YC35 |
40" Brush Rake Kubota Wedge Lock Coupler Style for 3 - 4.5 Tons Mini Excavators. Fit: Kubota wedge-lock coupler, 30 mm rear pin, 3–4.5 t mini excavators. Price: $2,497.00, out of stock right now.
Conquer dense vegetation with ease using the 40" Brush Rake Kubota Wedge Lock Coupler Style for 3 - 4.5 Tons Mini Excavators. This 1016 mm attachment is the ultimate game-changer for Kubota equipment owners.
Specially designed for 3 - 4.5 Tons Kubota machines, it combines brawn and precision in one unbeatable package.
Standout Features:
- Impressive Clearing space: 1016 mm width tackles large areas efficiently
- Uncompromising Durability: Crafted from AR400 Steel for exceptional longevity
- Advanced Tine Configuration: 9 robust tines, 0.63" thick, with 23.62" penetration
Step up your land clearing game with JMA's Kubota-compatible Brush Rake. Are you ready to transform challenging terrains?
Will it fit my machine?
Tell us your machine and your coupler, we confirm the fit before shipping. If we confirmed the fit from your accurate machine and coupler details and our recommendation is wrong, report it within 14 calendar days of delivery: the JMA Fitment Money-Back Promise gives a full product refund, outbound and return freight covered, no restocking fee.
How fast does it ship?
In-stock items ship from Miami, FL the same business day when ordered before 2 PM ET; orders after 2 PM ET, on weekends or on holidays ship the next business day. Carrier estimates for the lower 48, in business days from the ship date: parcels of 50 lb or less 5–7 standard or 2–4 expedited; LTL freight over 50 lb 7–10 standard or 4–6 expedited, usually with a delivery appointment and a signature. Outside the lower 48, shipping is quoted. Inspect it before you sign and note any damage on the delivery receipt.
What does the warranty cover?
Defects in materials and workmanship are covered for 2 years or 2,000 operating hours, whichever comes first: year 1 parts and pre-approved labor, year 2 parts only. Lifetime warranty on structural welds. Teeth, cutting edges, pins and bushings are wear items and are not covered. Get our written approval before any repair.
Can I return it?
Yes, for standard products: a refund within 14 calendar days of delivery, or store credit within 30, if it is unused, uninstalled, free of soil and grease, and in its original packaging with all hardware. Get a Return Authorization Number (RAN) from us first. The buyer pays return shipping unless the item was defective, damaged or wrong because of our error, or you can drop it off at our warehouse, 8068 NW 29th St, Doral, FL, Monday to Friday, 9 AM to 5 PM, with your RAN. A restocking fee applies to non-defective refunds; store credit has no restocking fee. Original outbound shipping is not refunded on change-of-mind returns. Installed or used attachments can't be returned.
