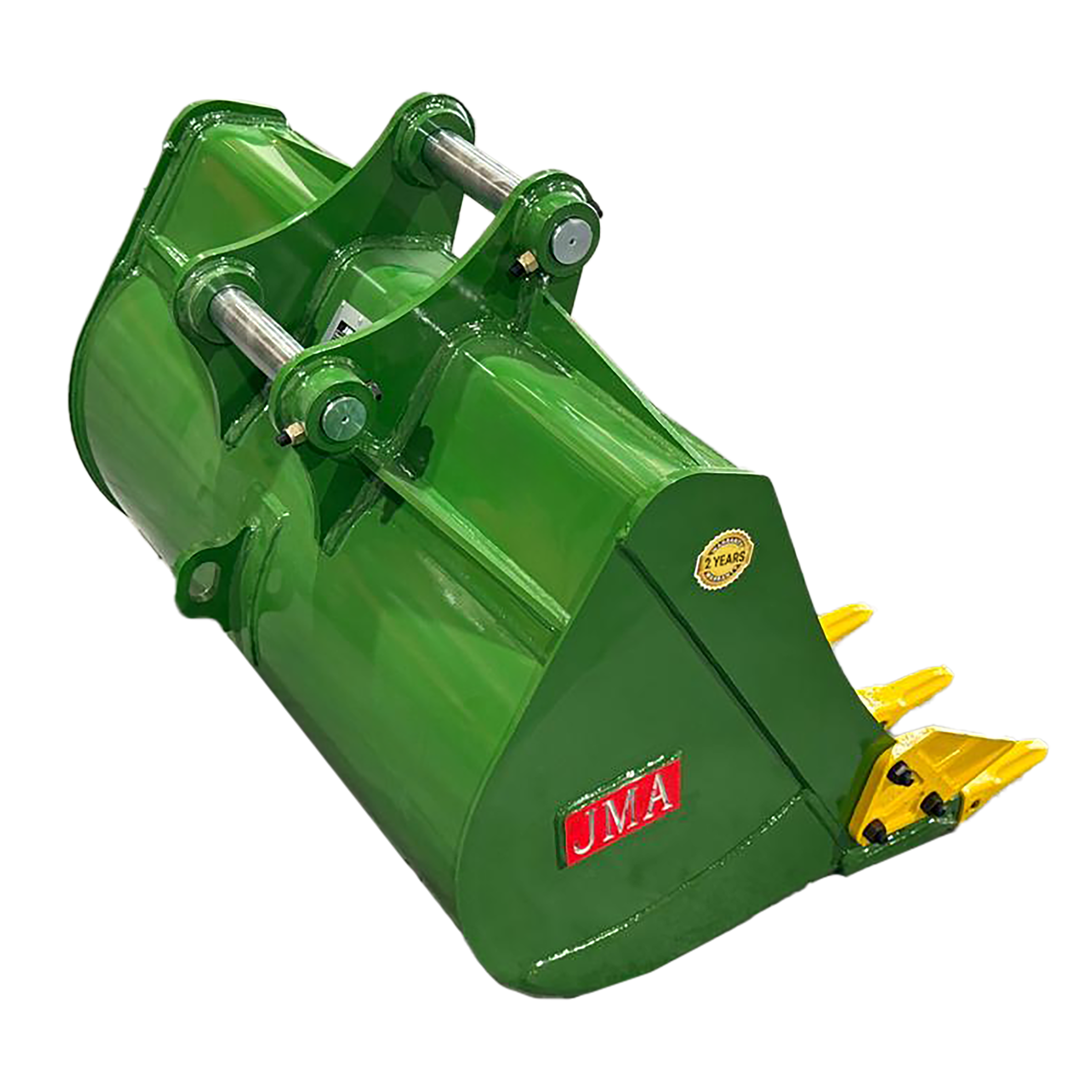

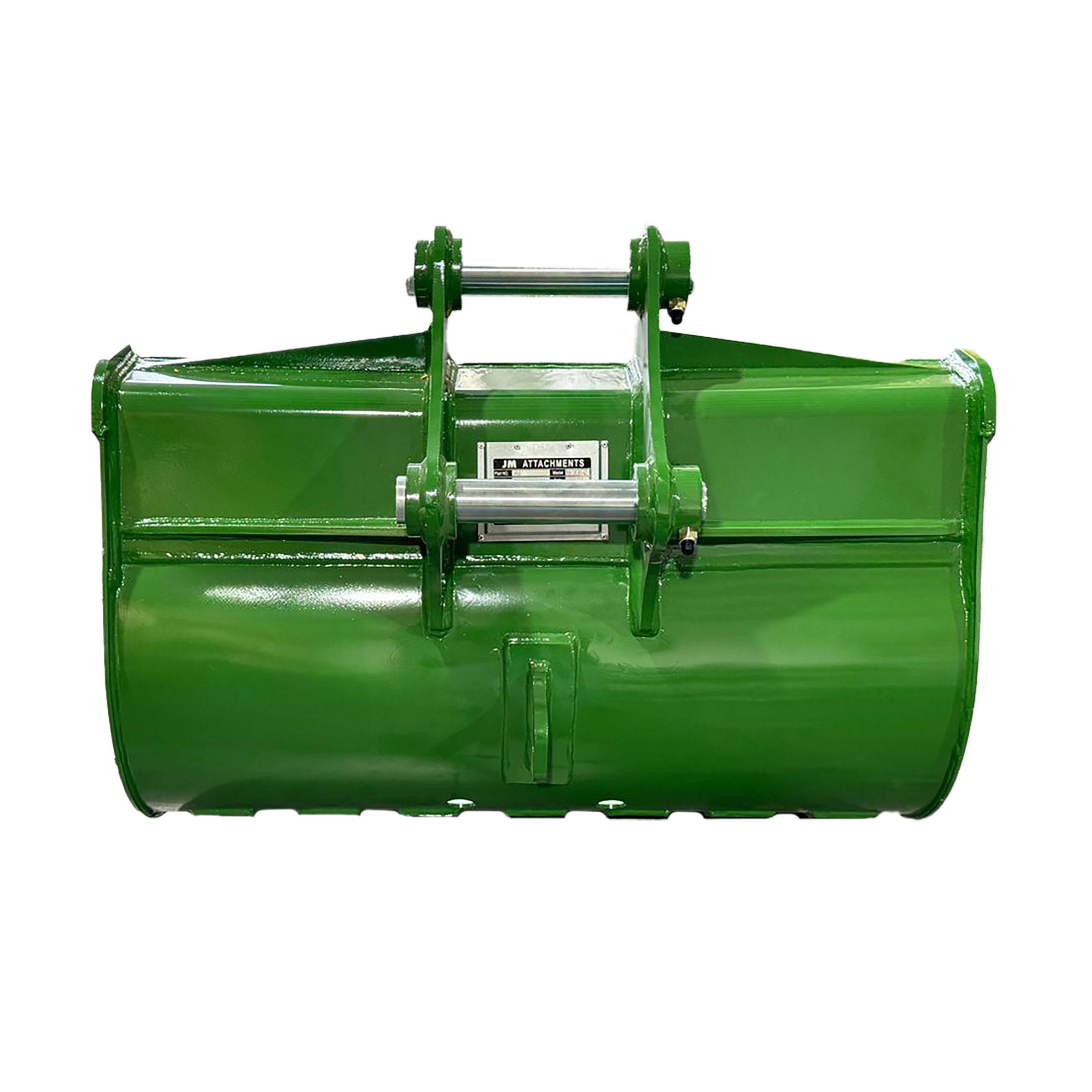

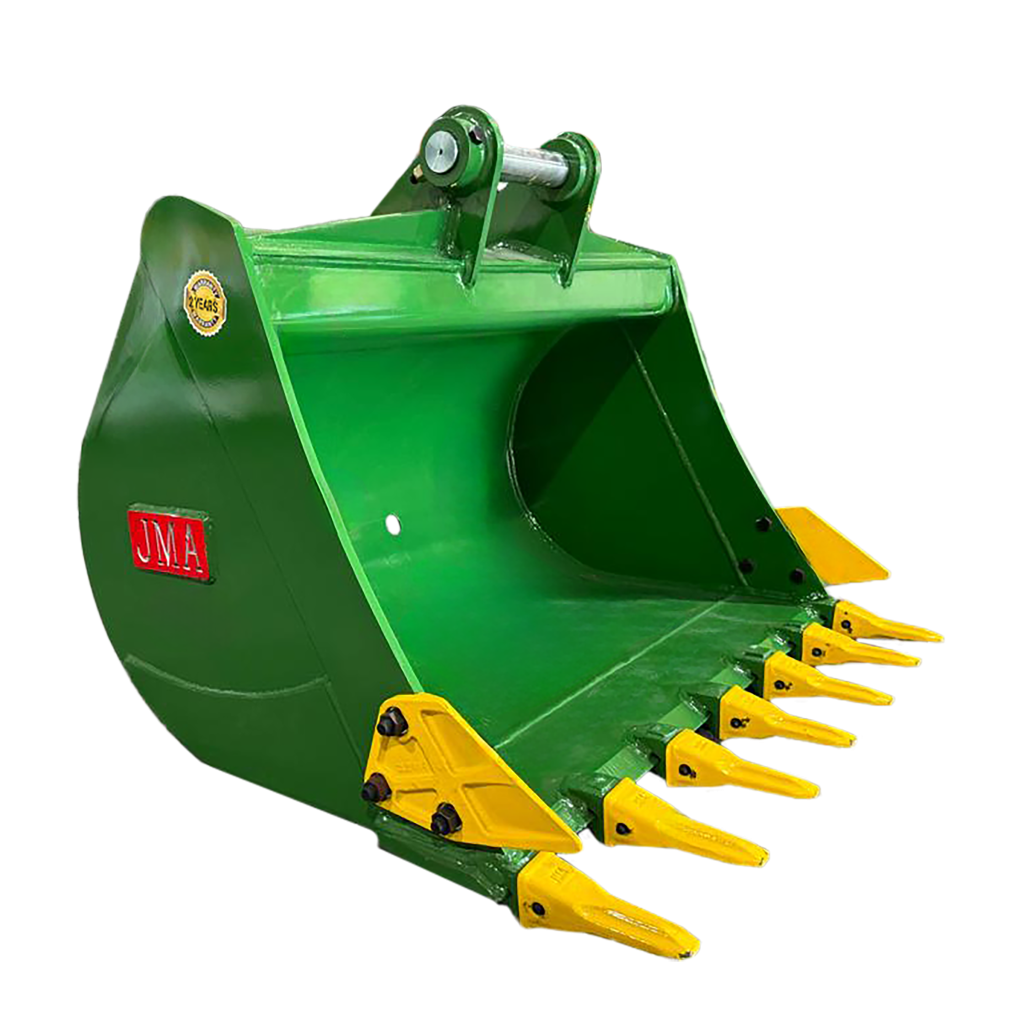

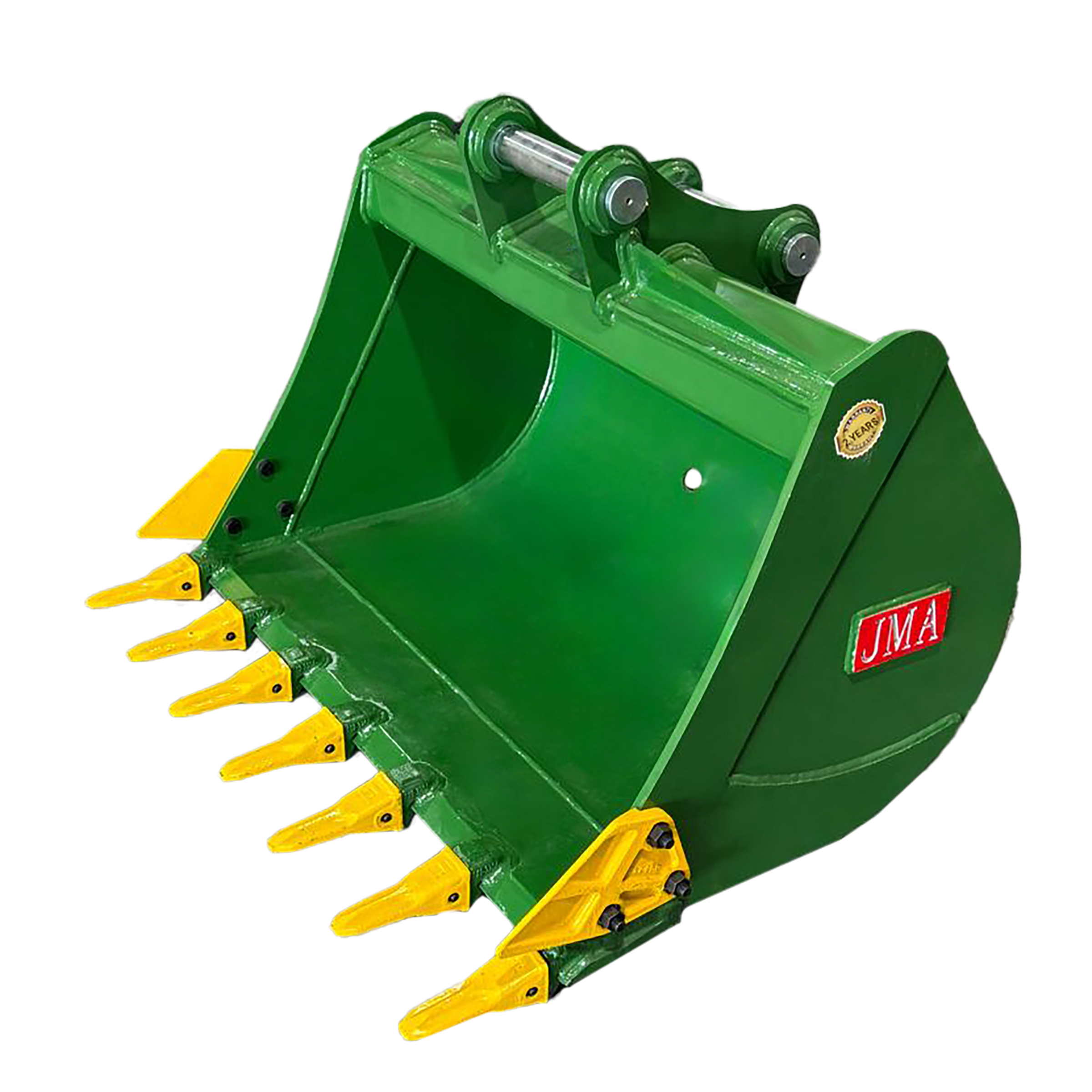

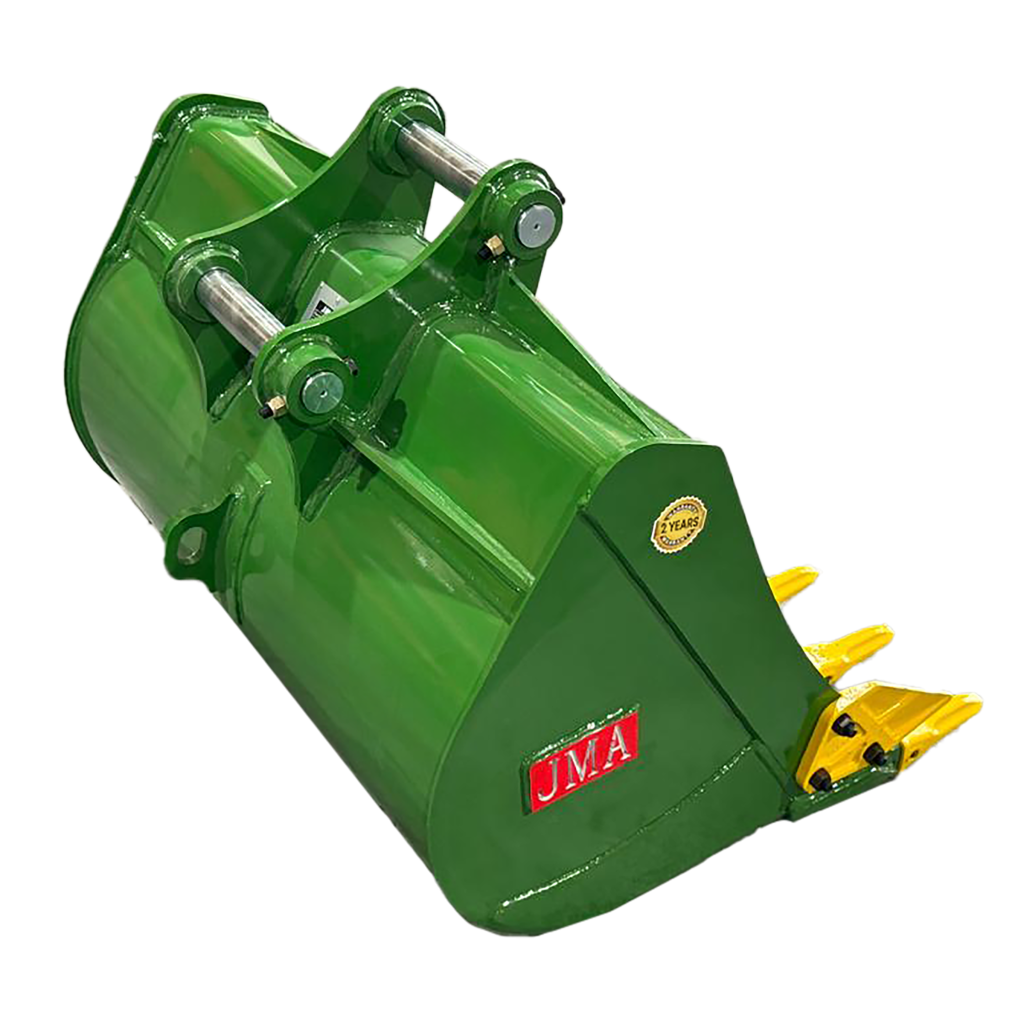

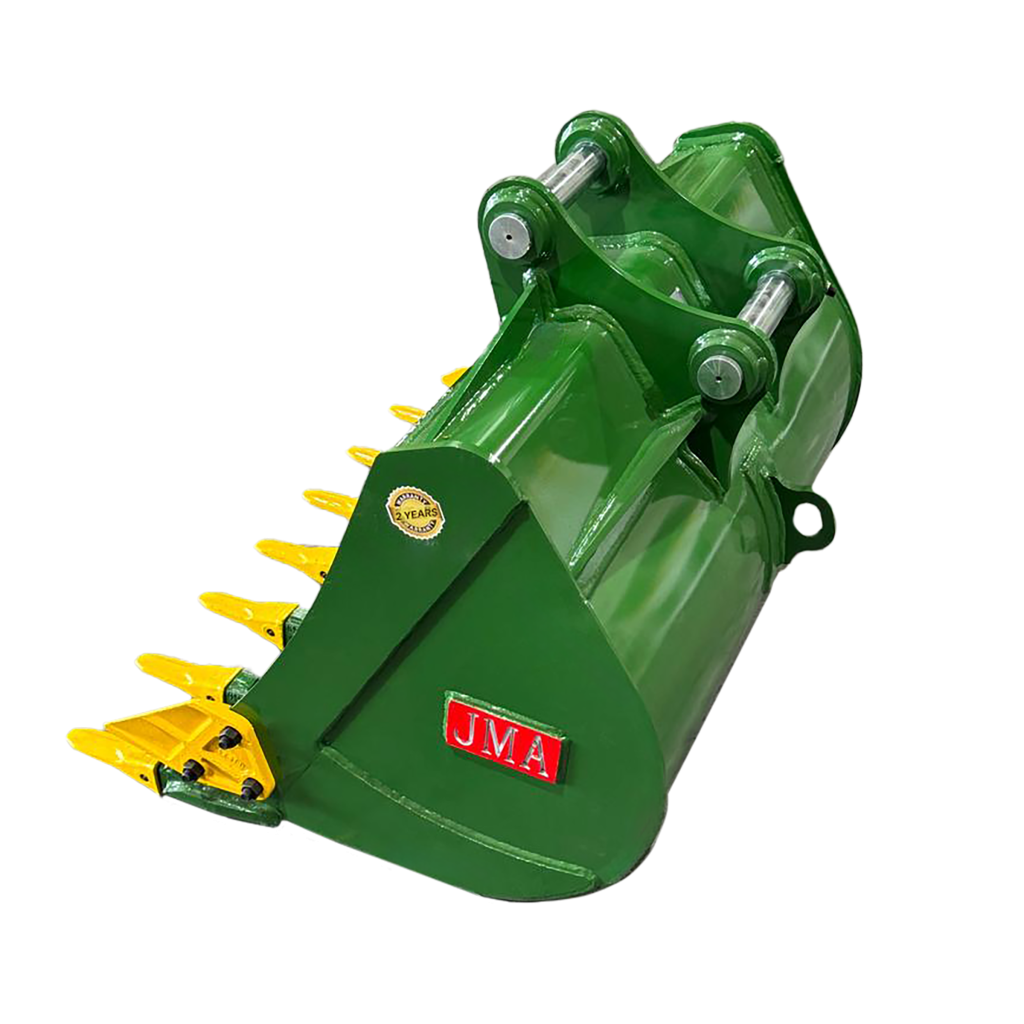

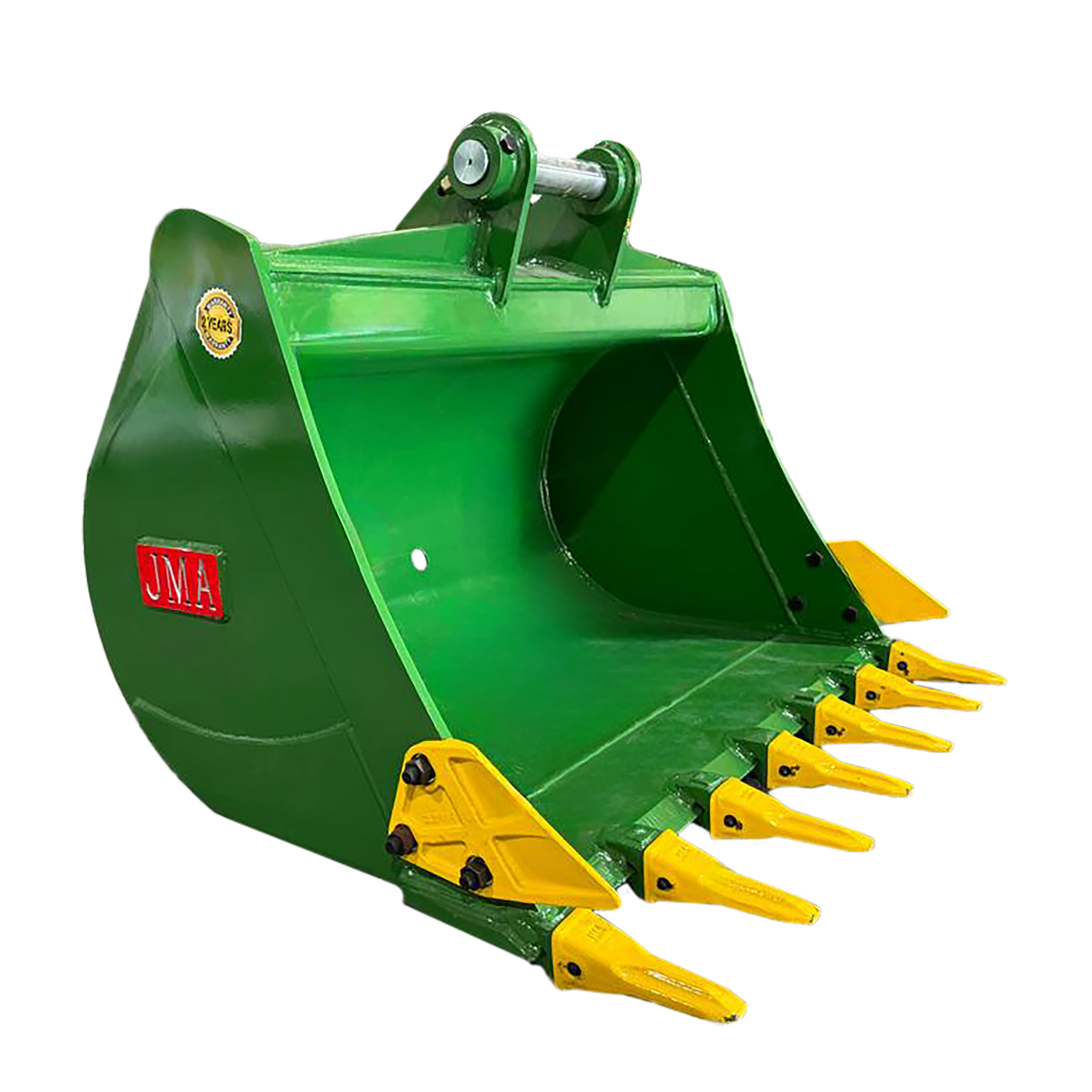

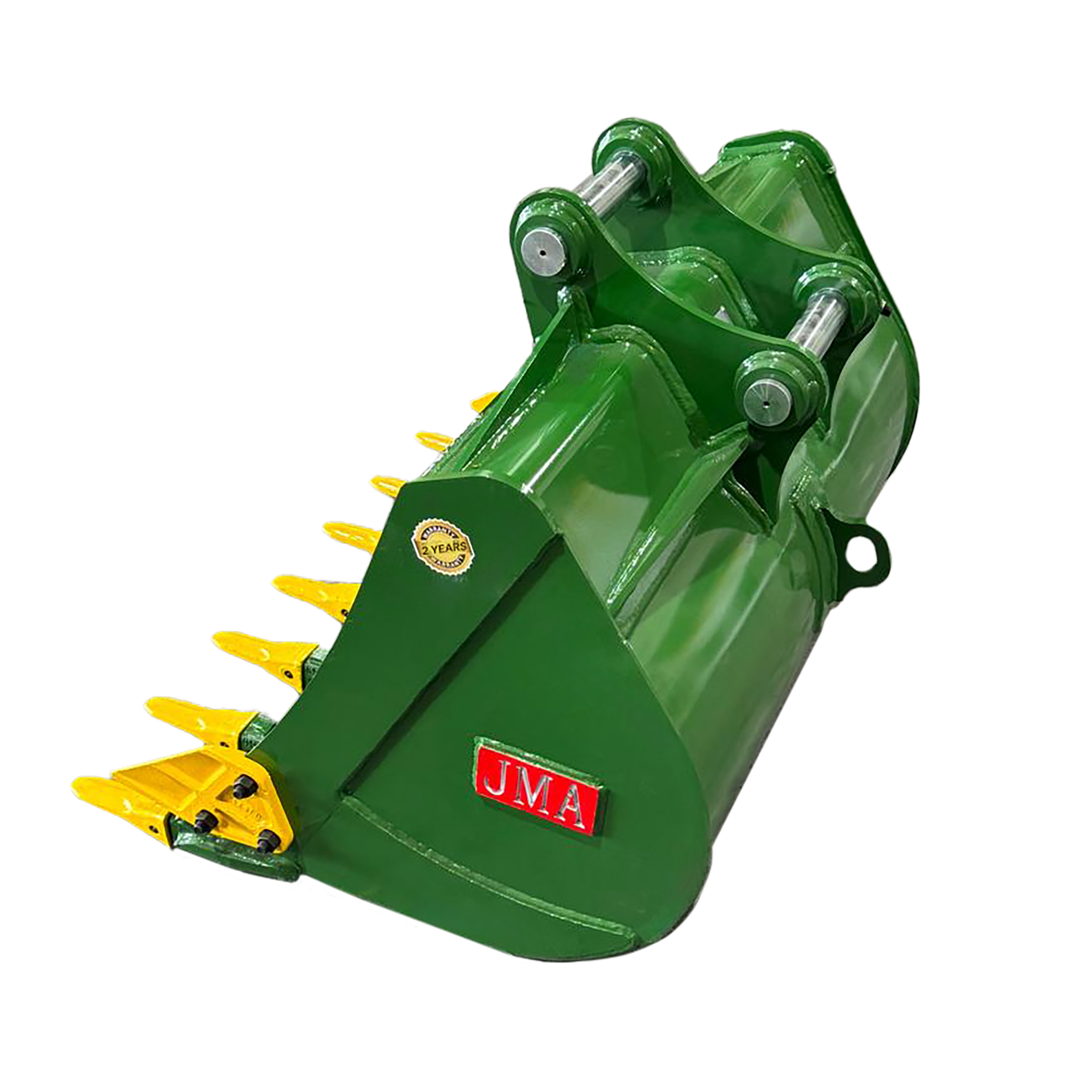

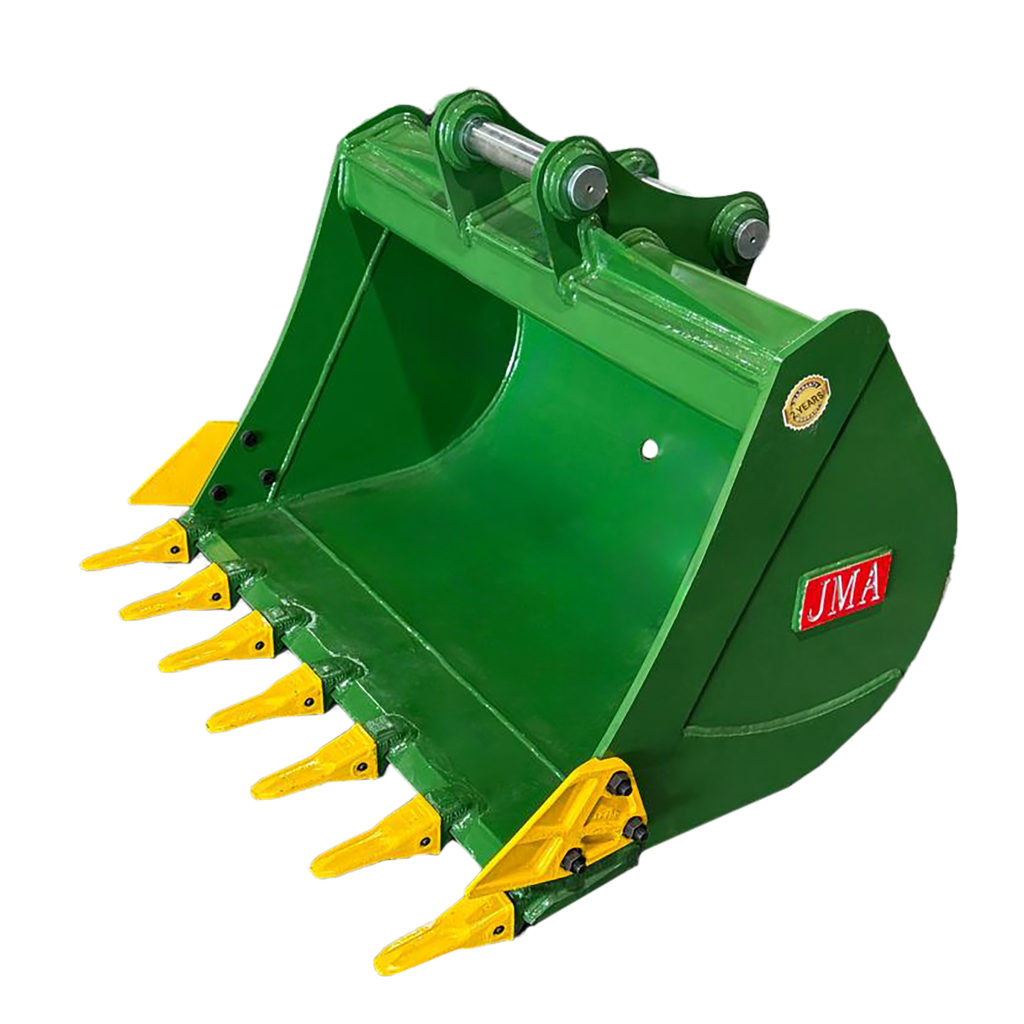

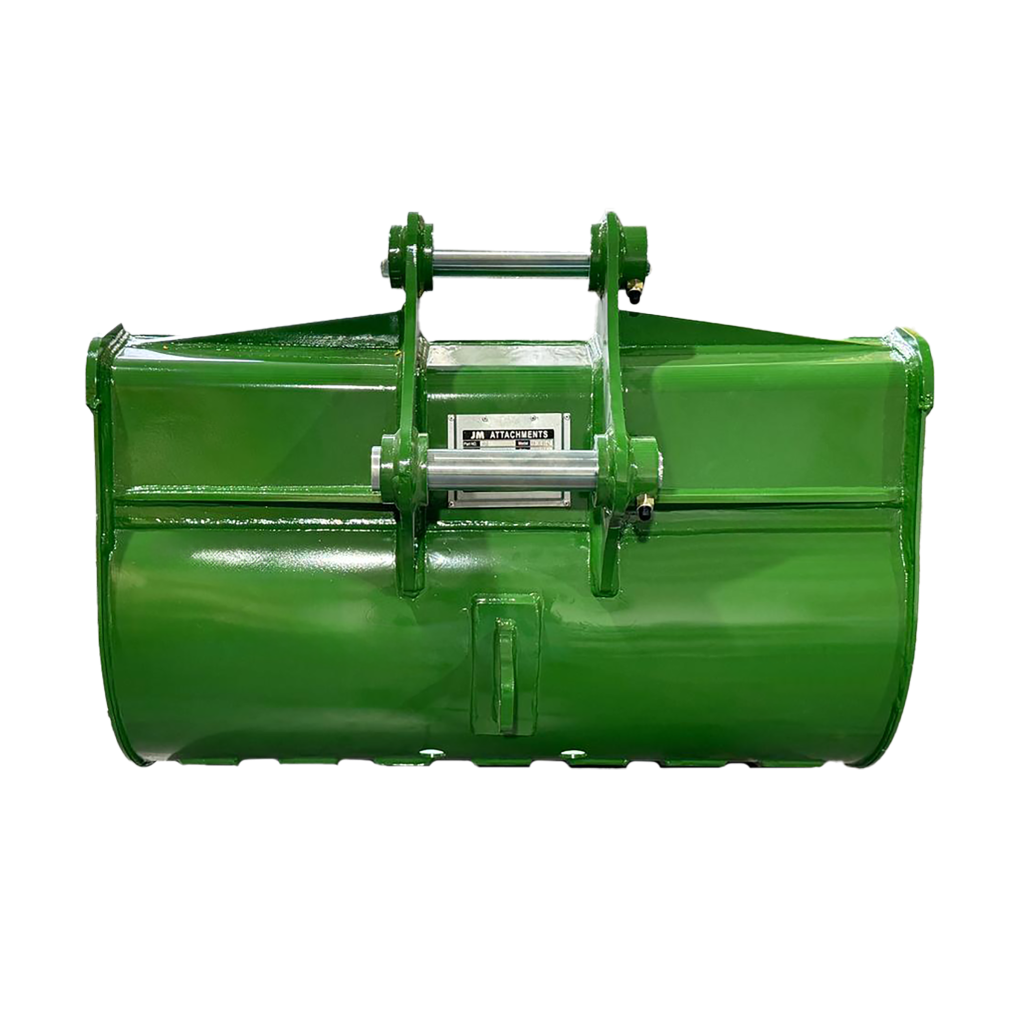

36″ Digging Bucket for 7 – 10 Tons Excavators. 50mm Pins
- Fits 7–10 ton excavators · 50 mm pins · 200 mm ear to ear
- 36" wide (914 mm) · 0.27 m³ capacity · AR400 steel body · 14 mm side walls · 456 lb
- Pins, 7 teeth (1U3202RC) and 2 side cutters included
- Ships from Miami, FL the same business day when ordered before 2 PM ET · US-based support
- 2-year warranty · lifetime warranty on structural welds
Bucket Size: 36"
Frequently Bought Together
| Carrier Weight Class (tn) | 7 - 10 tons |
|---|---|
| Carrier Weight Class (lb) | 14,000 - 20,000 lb |
| Front Pin Diameter (mm) | 50 mm |
| Rear Pin Diameter (mm) | 50 mm |
| Front Ear to Ear (mm) | 200 mm |
| Rear Ear to Ear (mm) | 200 mm |
| Center to Center (mm) | 310 mm |
| Front Pin Length (mm) | 346 mm |
| Rear Pin Length (mm) | 346 mm |
| Bucket Depth (mm) | 490 mm |
| Capacity (m³) | 0.27 m³ |
| Material Type | AR400 Steel |
| Finish | Powder-Coated Green |
| Features | 3x Reinforced Side Plates |
| Product Weight (lbs) | 456.36 lb |
| Product Weight (kg) | 207 kg |
| Bucket Side Wall Thickness (mm) | 14 mm |
| Bucket Width (mm) | 914.4 mm |
| Coupler Type | Pin On Style |
| Inner Bucket Height (mm) | 700 mm |
| Bucket Size | 36" |
| Pin Size | 50mm |
| Tooth Number | 1U3202RC |
| Tooth Pin Part Number | 9W7112 |
| Case | CX75, CX75 CSR, CX75 LR, CX75 MSR, CX75 SR, CX80, CX80 SR, CX80B, CX80C, CX80C MSR, CX85D SR, CX90, CX90D, CX90D MSR |
|---|---|
| Caterpillar | 307, 307 CR, 307.5, 307B, 307B2, 307C, 307D, 307E, 307S SR, 307S SR-V2, 308, 308 CR, 308 CR VAB, 308 SR, 308.5, 308B CR, 308B SR, 308C SR, 308D, 308D CR, 308D SR, 308D RR, 308E, 308E2 CR, 308E2 SR, 308E2 Z2.1, 308E CR, 308E SR, 309, 309 CR, 309 CR VAB |
| Hanix | H75C |
| Hitachi | EX75UR, EX75US, EX75US-5, EX80, EX80-5, EX80U, ZX70, ZX70LC, ZX70LC-2, ZX70LC-3, ZX70 LCN-3, ZX70-3, ZX70-5A, ZX70-5G, ZX70BL, ZX75, ZX75UR, ZX75UR-3, ZX75UR-5B, ZX75US, ZX75US A, ZX75US-2, ZX75US-3, ZX75US-3LC, ZX75US-5, ZX75US-5A, ZX75US-5B, ZX75US-5N, ZX75US-7, ZX75USBL, ZX75USK-5B, ZX75USL-3, ZX80, ZX80LC, ZX80LC-2, ZX80 LCK, ZX80LCK-3, ZX80SB, ZX80SBLC, ZX85US, ZX85USLC-3, ZX85US-3, ZX85US-5, ZX85US-5A, ZX85US-6, ZX85USB, ZX85USBLC-3, ZX85USB LCN-3, ZX85USB-3, ZX85USB-5, ZX85USB-5A, ZX85USB-5N, ZX85USB-6, ZX85USB-7, ZX90, ZX95US-7, ZX95USB-7 |
| Ihi | 80NX |
| John Deere | 80C, 80G, 80, 75, 75C, 75D, 75G, 75P, 75 P-Tier, 85D, 85G, 85P |
| Kato | 180G |
| Kobelco | K903, K903C, SK070SR, SK070SR-2, SK70SR-2, SK075 SR, SK75SR, SK75SR-3, SK75UR, SK75UR-3, SK80, SK80CS, SK80MSR, SK80MSR-1E, SK80MSR-2, SK85CS, SK85MSR, SK85MSR-3, SK85MSR-3E, SK85SR-3, SK95UR |
| Komatsu | PC60L-6, PC70, PC70-1, PC70-4, PC70-6, PC70-7E, PC70-8, PC70FR, PC70FR-1, PC70FR-2B, PC71, PC75, PC75 HD, PC75LC-6, PC75-1, PC75-2, PC75-3, PC75R, PC75R HD, PC75R-1, PC75R-2, PC75R-2K, PC75R-8, PC75U, PC75U1, PC75U-2, PC75UL, PC75UR, PC75UR-2, PC75UR-3, PC75US, PC75US-1, PC75US-2, PC75US-3, PC75US-5, PC75US-6, PC75UU, PC75UU-1, PC75UU-2, PC75UU-2A, PC75UU-2B, PC75UU-2E, PC75UU-3, PC75UU-3AC, PC75UU-3C, PC75UU-3E, PC76UU-2, PC78, PC78LC, PC78MR, PC78MR-1, PC78MR-2, PC78MR-5, PC78MR-6, PC78MR-8, PC78MRX-1, PC78R, PC78U, PC78US, PC78USLC, PC78US-2, PC78US-5, PC78US-6, PC78US-6E, PC78US-6E0, PC78US-6N0, PC78US-6Y, PC78US-7, PC78US-8, PC78US-10, PC78US-11, PC78UU, PC78UU-6, PC78UU-6E, PC78UU-6E0, PC78UU-8, PC78UU-10, PC78UUT-6, PC80, PC80LC-3, PC80-1, PC80-3, PC80-5, PC80MR, PC80MR-3, PC80MR-5, PC88, PC88MR, PC88MR-2, PC88MR-6, PC88MR-8, PC88MR-10, PC88MR-11, PC88MR-11E0, PC90, PC90-1, PC90-5, PC90-6, PC90-7, PC90R-2, PC91, PC95, PC95-1, PC95-2, PC95-5, PC95-6, PC95R, PC95R-1, PC95R-2, PC95RT |
| Link-Belt | 75 SPIN ACE, 75 X3, 75 X3 Spin Ace, 80 SPIN ACE, 80 X3, 80 X3 Spin Ace |
| Sany | SY70, SY75, SY75C, SY75C PRO, SY75C-9, SY80, SY80U, SY85, SY85C |
| Sumitomo | S160, SH75U, SH75X-3B, SH75X-6A, SH75XU-3B, SH75XU-6A, SH80, SH80-2, SH80-3, SH80-6, SH80BS-6A |
| Takeuchi | TB70, TB175, TB175W, TB180FR, TB285, TB290 |
| Terex | TC75, TW85 |
| Volvo | EC70, EC70V, EC70VV, EC75C, EC75D, EC75E, EC80D, EC80D PRO |
| XCMG | XE80C, XE80E |
| Yanmar | SV100, SV100-1, SV100-2, SV100-2A, SV100-2B, VIO70, VIO75, VIO75-A, VIO80, VIO80-1, VIO80-1A, VIO80-7, VIO100 |
36" Digging Bucket for 7 - 10 Tons Excavators. 50mm Pins. Fits 7–10 ton excavators, 50 mm pins, 200 mm ear to ear. Included: pins, 7 teeth (1U3202RC) and 2 side cutters. Price: $2,867.00, in stock, ships from Miami, FL the same business day when ordered before 2 PM ET.
Introducing the 36" Digging Bucket for 7 - 10 Tons Excavators. 50mm Pins - where power meets precision in a 36" package. Transform your excavator into a terrain-conquering marvel.
Meticulously designed for the discerning professional, this bucket delivers unparalleled performance in every scoop.
Exceptional Features:
• Built Tough: Premium AR400 Steel construction
• Engineered for Stability: 50 mm pins (200 mm ear-to-ear, 310 mm center-to-center)
• Multi-Talented: Perfect for landscaping, utility work, and excavation
• Time-Saver: Swift attachment for increased uptime
In the Box:
• 36" Professional-Grade Digging Bucket
• 7 high-performance J200 series Rock Chisel Bucket Tooth
• Complete tooth pin and retainer set
Equip yourself with JMA excellence. Ready to redefine efficiency on your next project?
Are pins included?
Yes. Pins are included.
Will it fit my machine?
Tell us your machine, we confirm the fit before shipping. Pin-on attachments are sized from your machine's pin diameter, pin-to-pin distance and ear width. If your machine has a quick coupler, is a long-reach model or was modified, measure those three and send them to us before you order. If we confirmed the fit from your accurate machine and coupler details and our recommendation is wrong, report it within 14 calendar days of delivery: the JMA Fitment Money-Back Promise gives a full product refund, outbound and return freight covered, no restocking fee.
How fast does it ship?
In-stock items ship from Miami, FL the same business day when ordered before 2 PM ET; orders after 2 PM ET, on weekends or on holidays ship the next business day. Carrier estimates for the lower 48, in business days from the ship date: parcels of 50 lb or less 5–7 standard or 2–4 expedited; LTL freight over 50 lb 7–10 standard or 4–6 expedited, usually with a delivery appointment and a signature. Outside the lower 48, shipping is quoted. Inspect it before you sign and note any damage on the delivery receipt.
What does the warranty cover?
Defects in materials and workmanship are covered for 2 years or 2,000 operating hours, whichever comes first: year 1 parts and pre-approved labor, year 2 parts only. Lifetime warranty on structural welds. Teeth, cutting edges, pins and bushings are wear items and are not covered. Get our written approval before any repair.
Can I return it?
Yes, for standard products: a refund within 14 calendar days of delivery, or store credit within 30, if it is unused, uninstalled, free of soil and grease, and in its original packaging with all hardware. Get a Return Authorization Number (RAN) from us first. The buyer pays return shipping unless the item was defective, damaged or wrong because of our error, or you can drop it off at our warehouse, 8068 NW 29th St, Doral, FL, Monday to Friday, 9 AM to 5 PM, with your RAN. A restocking fee applies to non-defective refunds; store credit has no restocking fee. Original outbound shipping is not refunded on change-of-mind returns. Installed or used attachments can't be returned.
DISCLAIMER
JMA Attachments provides heavy machinery attachments that must be used with care by
competent individuals under supervision, if necessary. Use of any equipment, including ours, involves
potential risk of injury. You accept and assume full responsibility for any and all injuries, damages
(both economic and non-economic), and losses of any type that may occur, and release JMA Attachments,
its insurers, employees, officers, directors, associates, and agents from all claims and liabilities
resulting from the use of said equipment.
Except for the written JMA Attachments Warranty (/warranty/), JMA Attachments makes no other warranty, express or implied, including merchantability or fitness for a particular purpose. BUYER ASSUMES ALL LIABILITY IN THE USE OF THE EQUIPMENT. The purchaser must ensure operators are properly trained and comply with all laws and regulations. You agree to be legally bound by this disclaimer by purchasing and using our products. If you disagree, do not proceed with purchasing or using the equipment.
