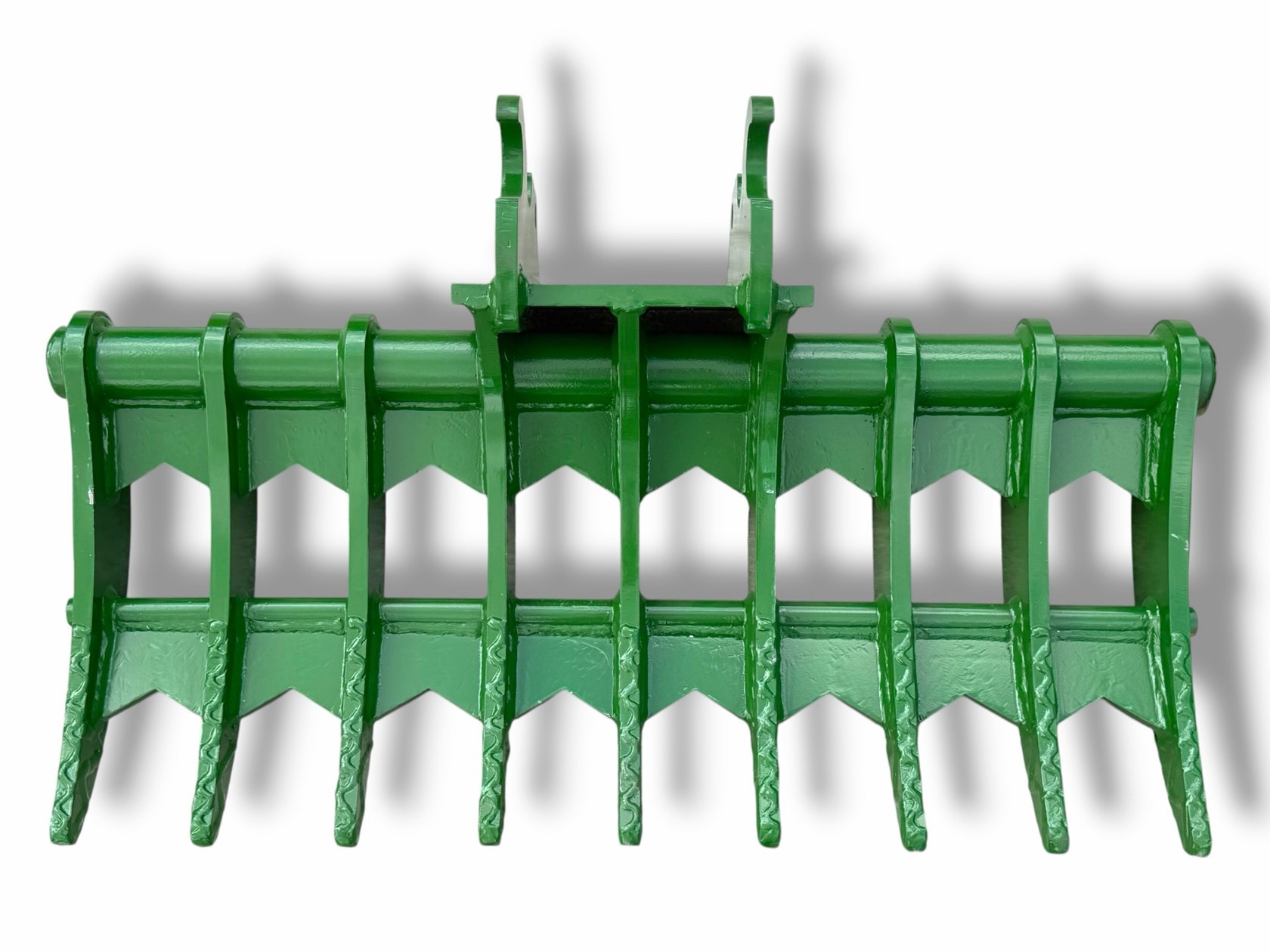

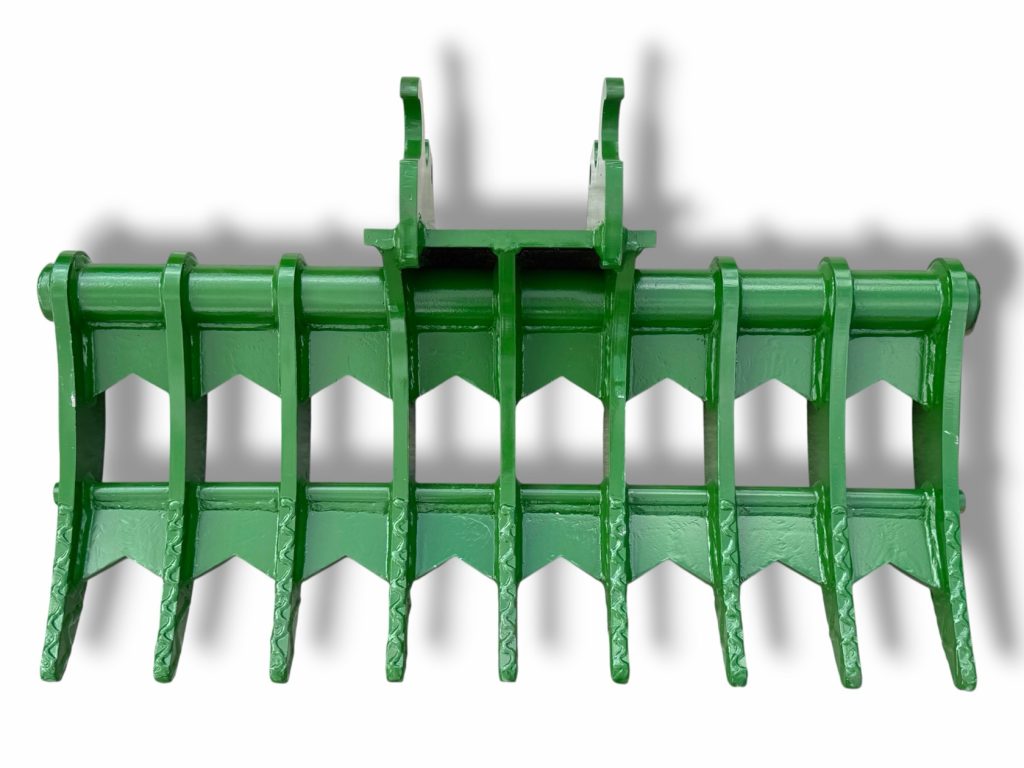

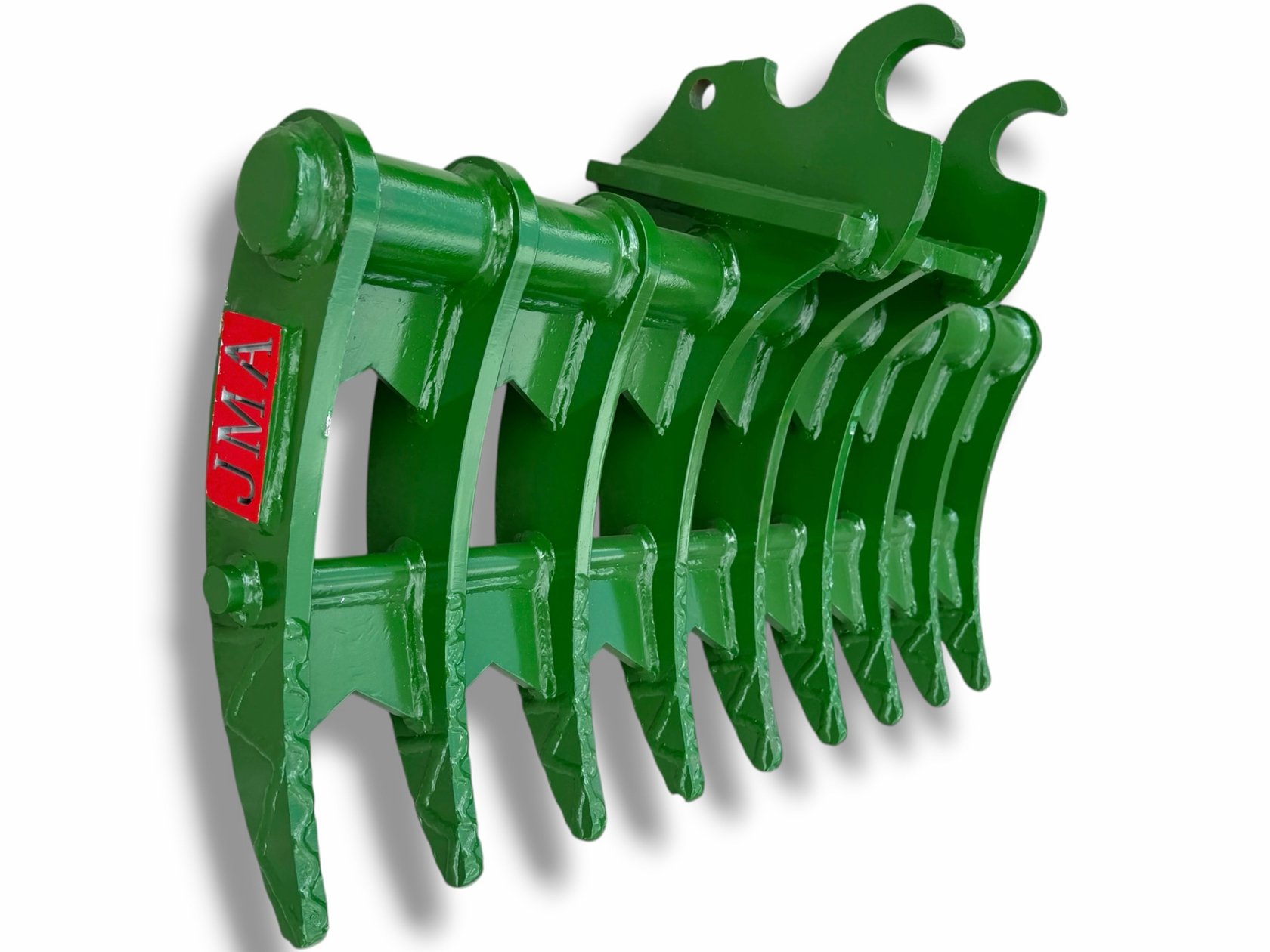

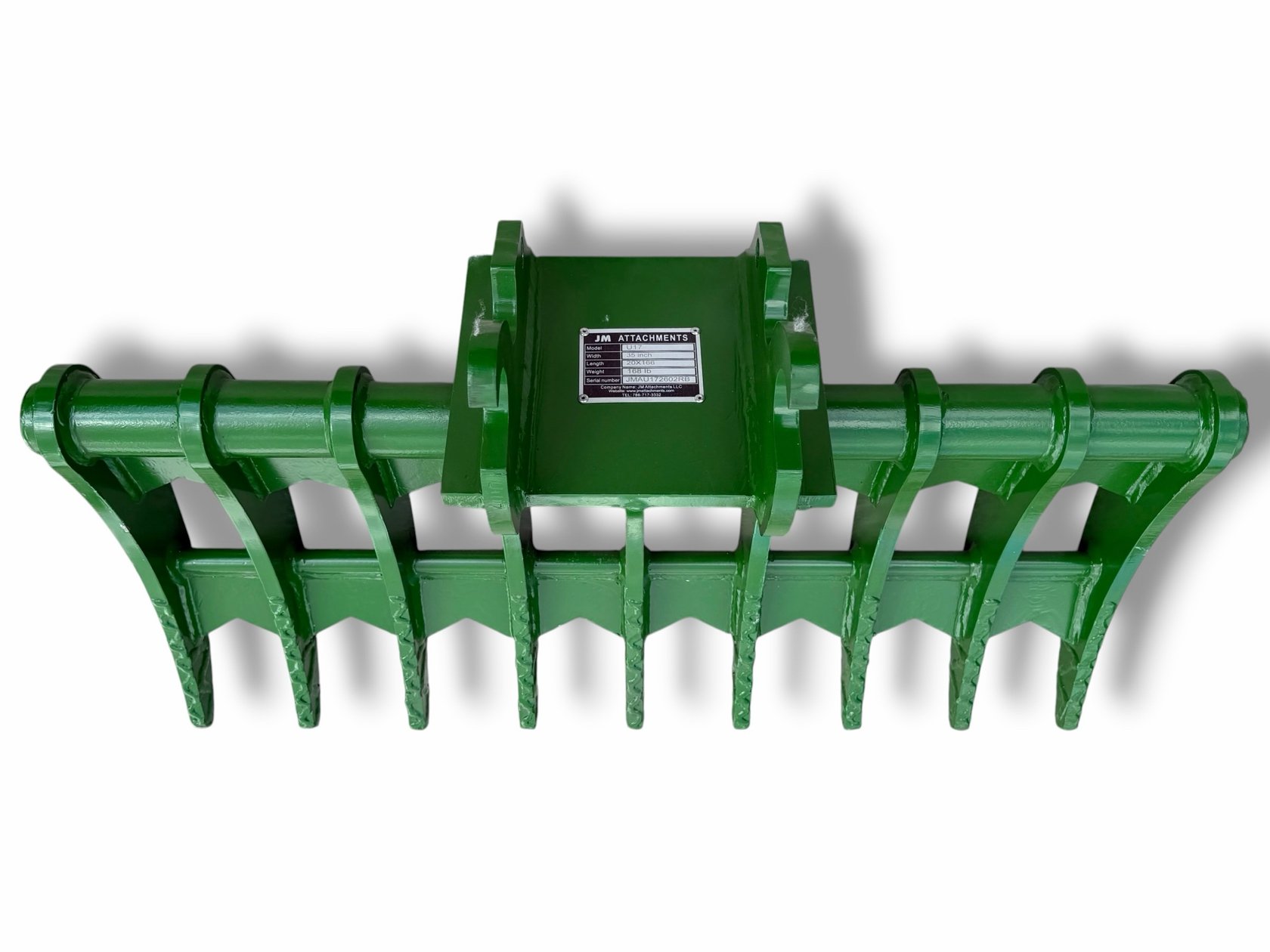

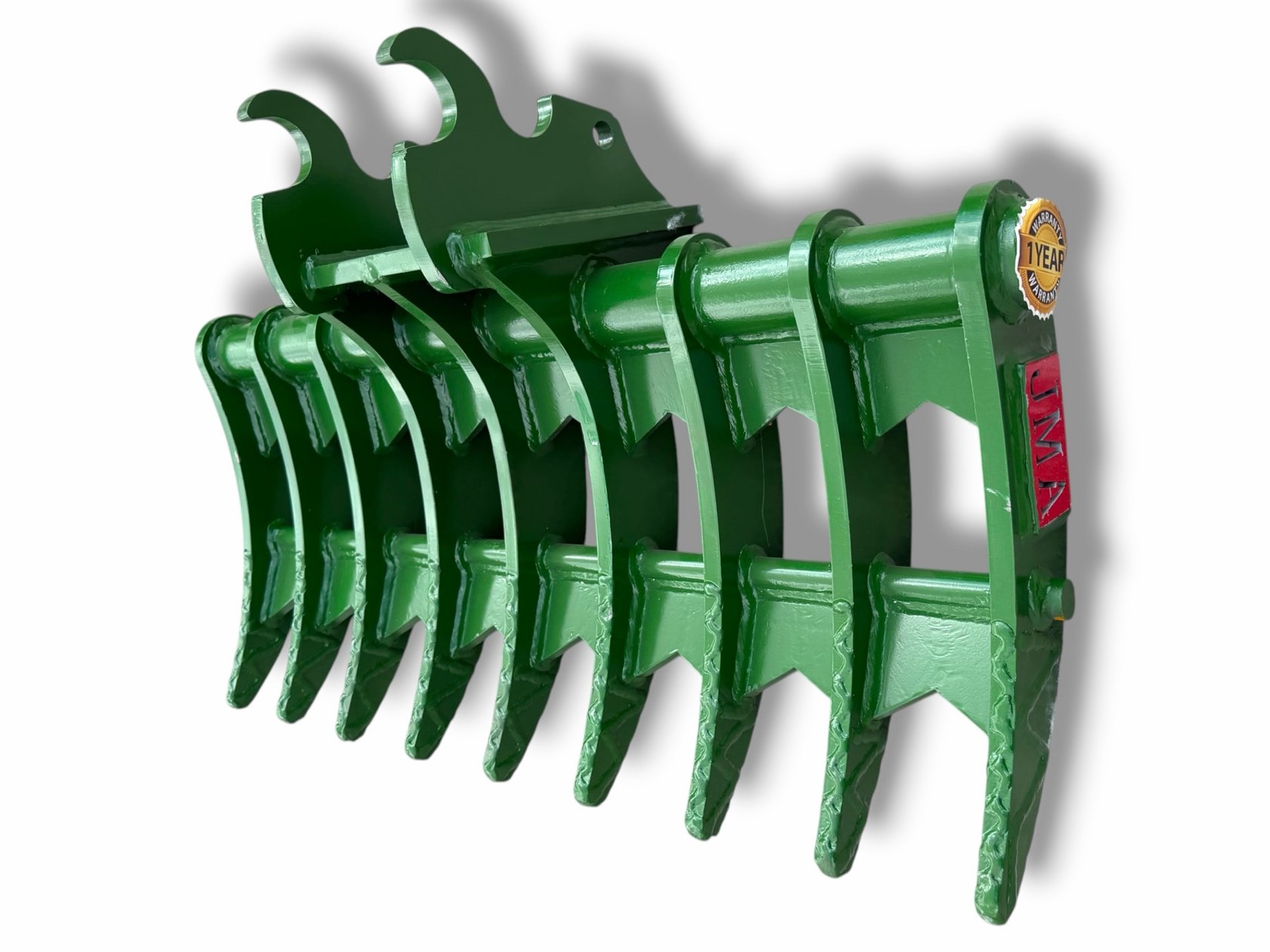

Kubota U17 35″ Mini Excavator Brush & Root Rake
- Kubota wedge-lock coupler · 1–3 t mini excavators · sized for the Kubota U17
- 35″ wide · 9 tines, 0.63″ thick · 96 mm spacing · 17.91″ penetration · AR400 steel
- Ships from Miami, FL the same business day when ordered before 2 PM ET · US-based support
- 2-year warranty · lifetime warranty on structural welds
Rake Size: 35"
Frequently Bought Together
| Carrier Weight Class (lb) | 2,000 - 6,000 lb |
|---|---|
| Carrier Weight Class (tn) | 1 - 3 tons |
| Coupler Type | Kubota Wedge Lock Coupler |
| Finish | Powder-Coated Green |
| Front Ear to Ear (mm) | 166 mm |
| Material Type | AR400 Steel |
| Penetration (in) | 17.91" |
| Penetration (mm) | 455 mm |
| Rake Length (in) | 25.98" |
| Rake Length (mm) | 660 mm |
| Rake Type | Brush Rake |
| Rake Width (in) | 35" |
| Rake Width (mm) | 889 mm |
| Rear Ear to Ear (mm) | 166 mm |
| Rear Pin Diameter (mm) | 20 mm |
| Tines (ct.) | 9 ct. |
| Tines Spacing (mm) | 96 mm |
| Tines Thickness (in) | 0.63" |
| Tines Thickness (mm) | 16 mm |
| Airman | AX15-2, AX17U-4, AX17U-5, AX17U-6, AX20U, AX20U-3, AX22, AX22U-4, AX25, AX30, AX30-U2 |
|---|---|
| Bobcat | E08, E10Z, 418, 418A, 418AA, E10, X120, E10E, E14, X319K, M444, X220, 323, E16, E16AEM, X320, X322, X324, X324M, E17, E17Z, E323, X319, X322D, X322G, X323, X323J, E19, E19E, E20, E20Z, E25EM, 425, 425EG, 425ZHS, E25, 425G, E26, E26C, E26EM, E26GAM, E26GM, E27, E27Z, X425, X425G, X325, X328, 428, 428EG, 428G, 428U, X328G, X428 |
| Case | CX12D, CX14, CX15, CX17, CX17B, CX17C, CX20, CX20B, CX22, CX22B, CX23, CX25, CX27B |
| Caterpillar | 300.9D, 301, 301 CR, 301.4, 301.4C, 301.5, 301.5 CR, 301.5 SR, 301.5C, 301.6, 301.6C, 301.6D, 301.7 CR, 301.7D, 301.7D CR, 301.8, 301.8C, 301.8D, 302, 302 CR, 302.2D, 302.4D, 302.5, 302.5C, 302.5C CR, 302.7, 302.7 CR, 302.7D, 302.7D CR, 302C CR, 302E SR |
| Daewoo | S15, S018 VT |
| Develon | DX19Z-7B, DX20Z-7, DX20ZE, DX27Z-7 |
| Doosan | DX10Z, DX15, DX17Z, DX17Z-7, DX18, DX19, DX19-7, DX20Z, DX27, DX27Z, DX27Z-7, S015, S015 PLUS, S018, S018 VT, S30, SL018VT, Solar 018-VT, Solar 030, Solar 030 Plus |
| Hanix | 20S, H12A, H12B, H15A, H15B, H15B-2, H22A, H22B, H24A, H25B, H26B, H26C, H29A, H30A |
| Hitachi | EX10U, EX10U-1B, EX15, EX15-2, EX15U, EX15U-1B, EX15U-3, EX15UR, EX17, EX17U, EX18-2, EX20U, EX20U-3, EX20UR, EX20UR-2, EX20UR-3, EX22-2, EX25-2, EX27U, EX30, EX30-2, EX30U, EX30UR, EX30UR-2, EX30UR-2C, EX30UR-3, EX 12-2, UE20, ZX16, ZX17U, ZX17U-2, ZX19U, ZX22U-2, ZX26U, ZX26U-5A, ZX27U-2, ZX30 |
| Hyundai | R15-5, R15-7, R16-7, R16-9, R17Z-9A, R25-5, R27Z-9, R27Z-9A, R28-5, R30-9A |
| Ihi | 9VX, 15NX, 15NX-2, 20JX, 20NX, 20VX, 25NX, 25NX-2, 28G, 28J, 28N, 28N-2, 28NX, 30NX, 30NX-2, IS15, IS25, IS27, IS28, IS28J, IS30, IS30J |
| JCB | 1CX, 15C-1, 16C-1, 18, 18Z, 18Z-1, 19C-1, 801, 801.4, 801.5, 801.6, 802, 802 Super, 802.4, 802.4 Super, 802.7, 802.7 ZTS, 803, 803 Plus, 803 Super, 8008 CTS, 8010 CTS, 8014, 8014 CTS, 8015, 8016, 8016 CTS, 8018, 8018 CTS, 8020, 8020 CTS, 8025, 8025 ZTS, 8025 ZTSLC, 8026, 8026 CTS, 8027 ZTS, 8029, 8029 CTS, JCB MICRO |
| John Deere | 17G, 17P, 25, 25D, 25E, 26G, 26P, 27 ZTS, 27C, 27C ZTS, 27CT, 27D, 27D ZTS |
| Kobelco | SK13SR, SK014, SK015, SK15SR, SK15SR-1, SK17SR, SK17SR-3, SK17SR-5E, SK17SR-6E, SK20SR, SK20SR-1, SK20SR-3, SK20SR-5, SK025, SK25SR-1, SK25SR-2, SK25SR-3, SK25SR-5, SK25SR-6E, SK027, SK27SR-3, SK27SR-5, SK27SR-6E |
| Komatsu | PC05, PC05-1, PC05-6, PC05-7, PC07, PC07-1, PC07-2, PC09, PC09-1, PC10, PC10-6, PC10-7, PC12, PC12UU-1, PC12UU-2, PC14R-3, PC15, PC15MRX-1, PC18, PC18MR, PC18MR-2, PC18MR-3, PC20-6, PC20MR-2, PC25, PC26, PC27, PC27 MRX-1, PC27MR-2, PC27MR-3, PC27R-8, PC28UU-1, PC28UU-2, PC30, PC30 MR, PC30-6, PC30-7 |
| Kubota | K008-3, KH15, KH16, KH28L, KH51, KX018-4, KX030, KX030-4, KX36, KX36-2, KX36-3, KX41, KX41-2, KX41-3, KX41-3V, KX41-4, KX61, KX61-2, KX61-3, KX71, KX71-2, KX71-3, KX71-3S, RX302, U10, U10-3, U10-5, U15, U15-3, U17, U17-3, U20, U20-3, U25, U25-3, U27-4 |
| Link-Belt | ME15, MM20CR |
| Liugong | 9018F, 9025, 9025F, 9027E, 9027F, 9027FZTS |
| Nagano | NS15-2, NS16-3, NS25-3 |
| New Holland | E15, E18, E18B, E18SR, E25-2SR, E27-2SR |
| Sany | SY16, SY16C, SY18, SY18C, SY18U, SY26, SY26U, SY27U |
| Sumitomo | SWE17U, SWE18U, SWE30, SWE30UF |
| Takeuchi | TB014, TB14, TB015, TB15, TB016, TB16, TB23, TB23R, TB025, TB25, TB028, TB030, TB30, TB120, TB125, TB210, TB210R, TB215 R, TB216, TB219, TB228, TB230 |
| Terex | TC25 |
| Volvo | EC13, EC13XR, EC13XTV, EC15, EC15B, EC15C, EC15D, EC15E, EC25 |
| Wacker Neuson | 28Z, 28Z3, 803, 1403, 1404, 1503, 1703, 1903, 2002, 2203, 2404, 2503, ET16, ET18, ET24, EZ17, EZ17E, EZ26 |
| XCMG | XE15U, XE18U, XE20E |
| Yanmar | B08, B08-3, B15, B15-3, B25V, B27, B30V, SV08, SV08-1, SV08-1A, SV08-1B, SV08-1C, SV08-1D, SV15, SV15VT, SV17, SV17EX, SV17VT, SV18, SV26, SV26-7, VIO10, VIO10-2A, VIO12, VIO12-2A, VIO15, VIO15-2, VIO17, VIO17-1E, VIO17-A, VIO20, VIO20-2, VIO20-3, VIO23, VIO23-6, VIO25, VIO25-6A, VIO25-6B, VIO26, VIO26-6, VIO27, VIO27-2, VIO27-6, VIO30, VIO30-1, VIO30-6B, YC15, YC18-2, YC18-3, YC25-2 |
Kubota U17 35" Mini Excavator Brush & Root Rake. Fit: Kubota wedge-lock coupler, 1–3 t mini excavators, sized for the Kubota U17. Price: $1,467.00, in stock, ships from Miami, FL the same business day when ordered before 2 PM ET.
Nine closely spaced tines set this 35-inch stick rake apart at 96 mm apart, they hold onto smaller roots and stones other rakes let slip. It's cut for the Kubota U17 and other 1-to-3-ton minis, riding on the K7966 Kubota-style coupler for a no-guesswork fit. Each tine runs 16 mm thick AR400 steel under a green powder-coat finish, and the 320-lb frame digs to a 17.9-inch penetration. Ships from Miami, FL with US-based help, a 2-year warranty, plus a lifetime warranty on the welds.
Will it fit my machine?
Tell us your machine and your coupler, we confirm the fit before shipping. If we confirmed the fit from your accurate machine and coupler details and our recommendation is wrong, report it within 14 calendar days of delivery: the JMA Fitment Money-Back Promise gives a full product refund, outbound and return freight covered, no restocking fee.
How fast does it ship?
In-stock items ship from Miami, FL the same business day when ordered before 2 PM ET; orders after 2 PM ET, on weekends or on holidays ship the next business day. Carrier estimates for the lower 48, in business days from the ship date: parcels of 50 lb or less 5–7 standard or 2–4 expedited; LTL freight over 50 lb 7–10 standard or 4–6 expedited, usually with a delivery appointment and a signature. Outside the lower 48, shipping is quoted. Inspect it before you sign and note any damage on the delivery receipt.
What does the warranty cover?
Defects in materials and workmanship are covered for 2 years or 2,000 operating hours, whichever comes first: year 1 parts and pre-approved labor, year 2 parts only. Lifetime warranty on structural welds. Teeth, cutting edges, pins and bushings are wear items and are not covered. Get our written approval before any repair.
Can I return it?
Yes, for standard products: a refund within 14 calendar days of delivery, or store credit within 30, if it is unused, uninstalled, free of soil and grease, and in its original packaging with all hardware. Get a Return Authorization Number (RAN) from us first. The buyer pays return shipping unless the item was defective, damaged or wrong because of our error, or you can drop it off at our warehouse, 8068 NW 29th St, Doral, FL, Monday to Friday, 9 AM to 5 PM, with your RAN. A restocking fee applies to non-defective refunds; store credit has no restocking fee. Original outbound shipping is not refunded on change-of-mind returns. Installed or used attachments can't be returned.
