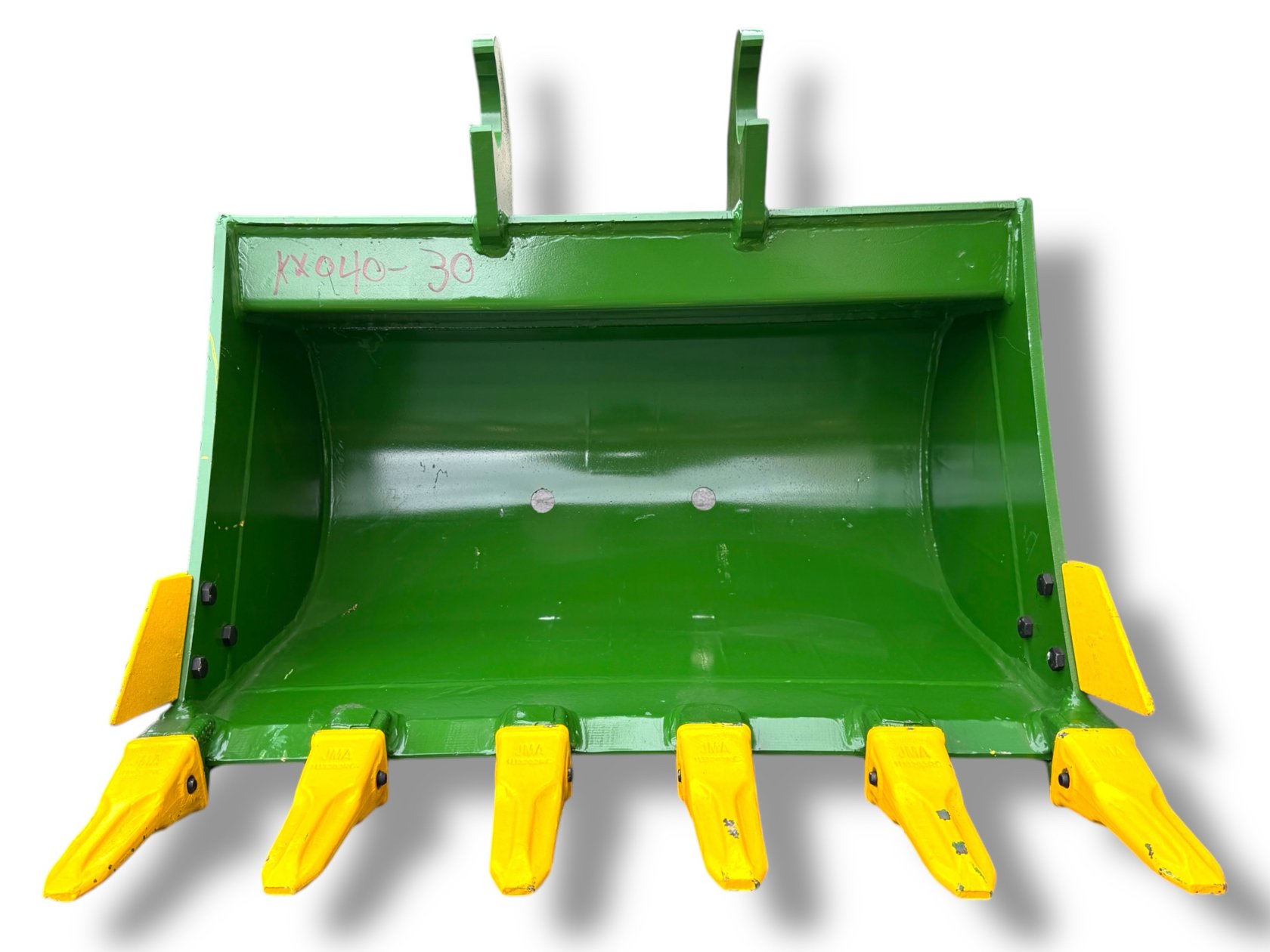

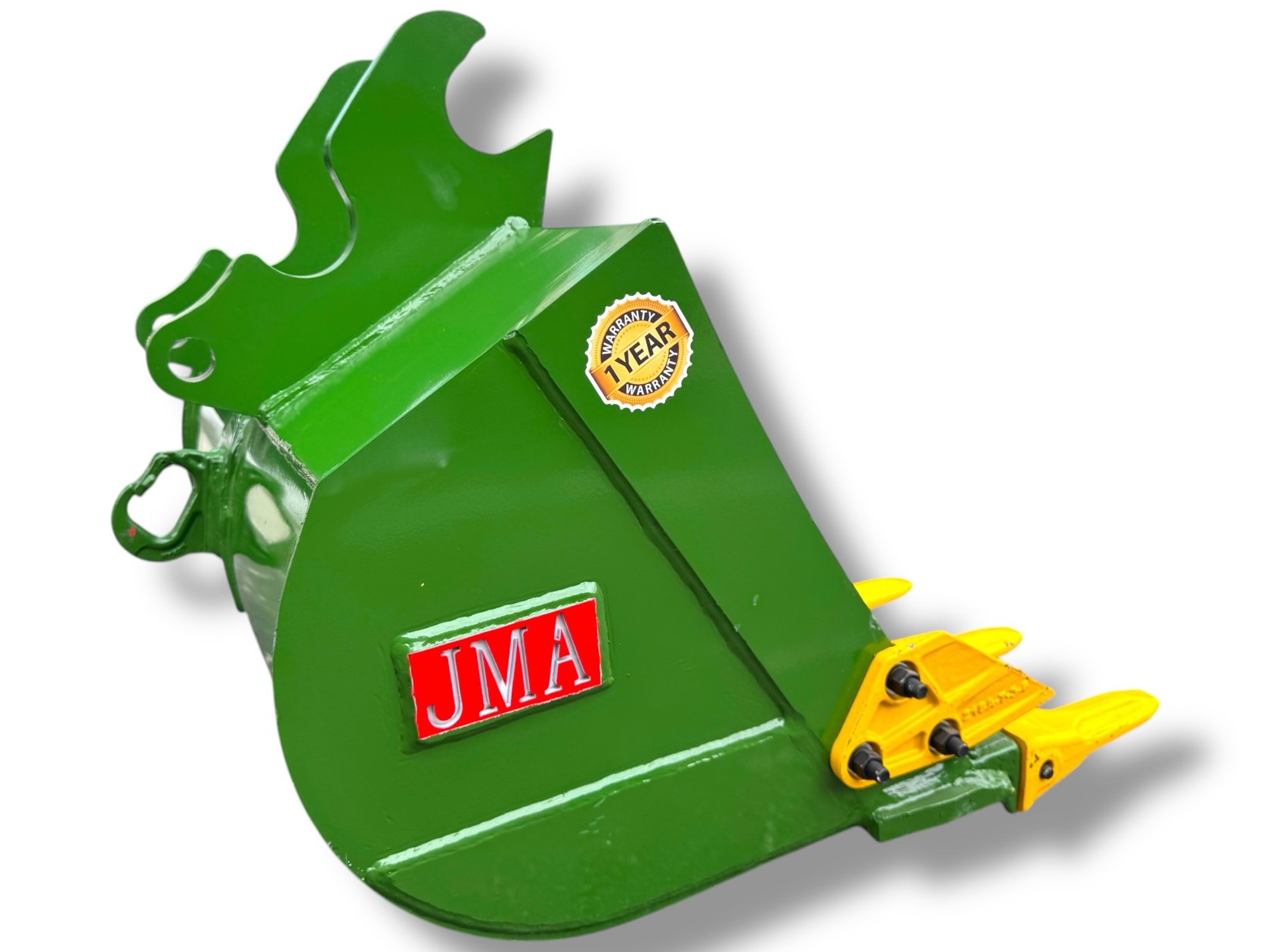

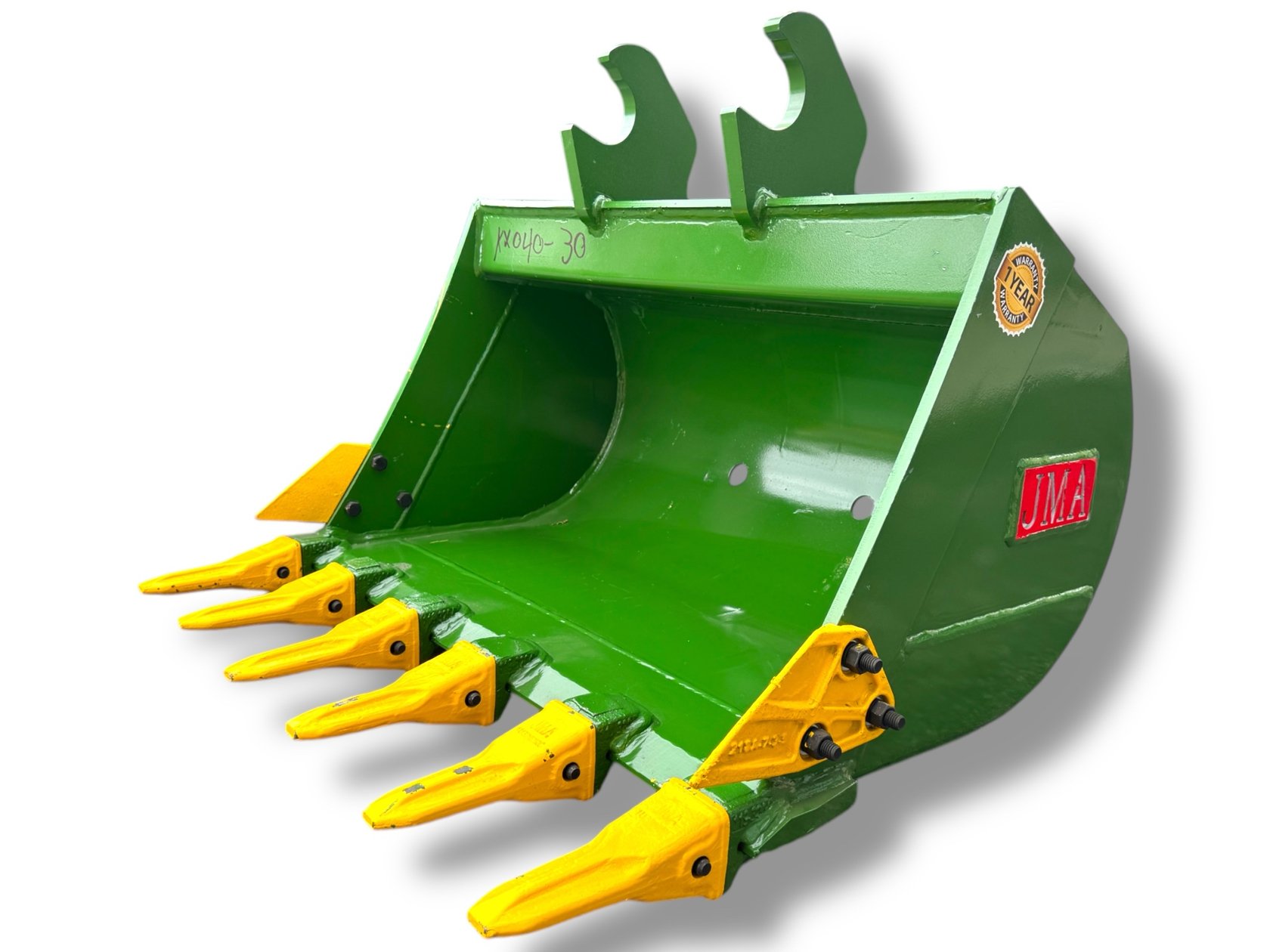

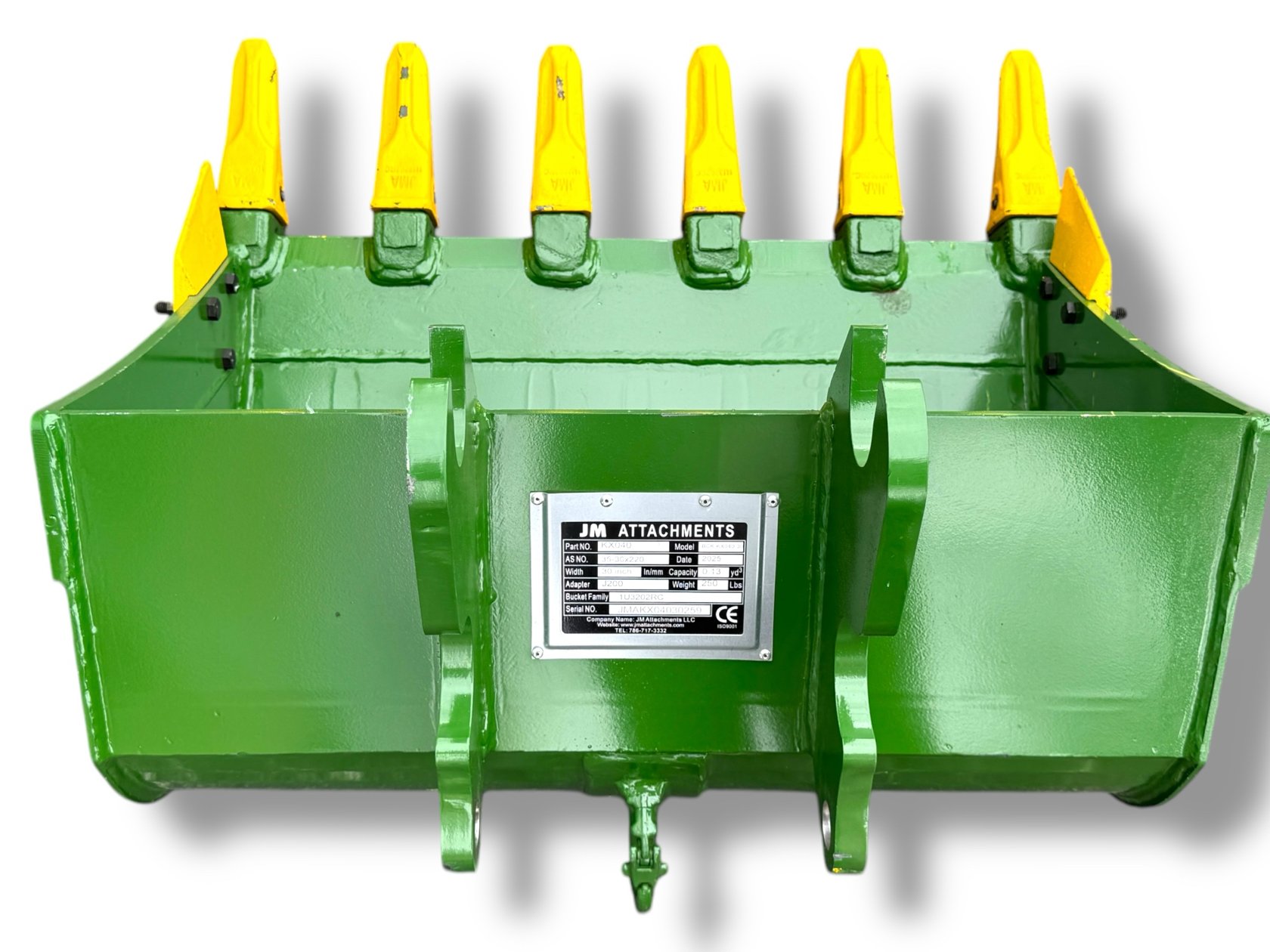

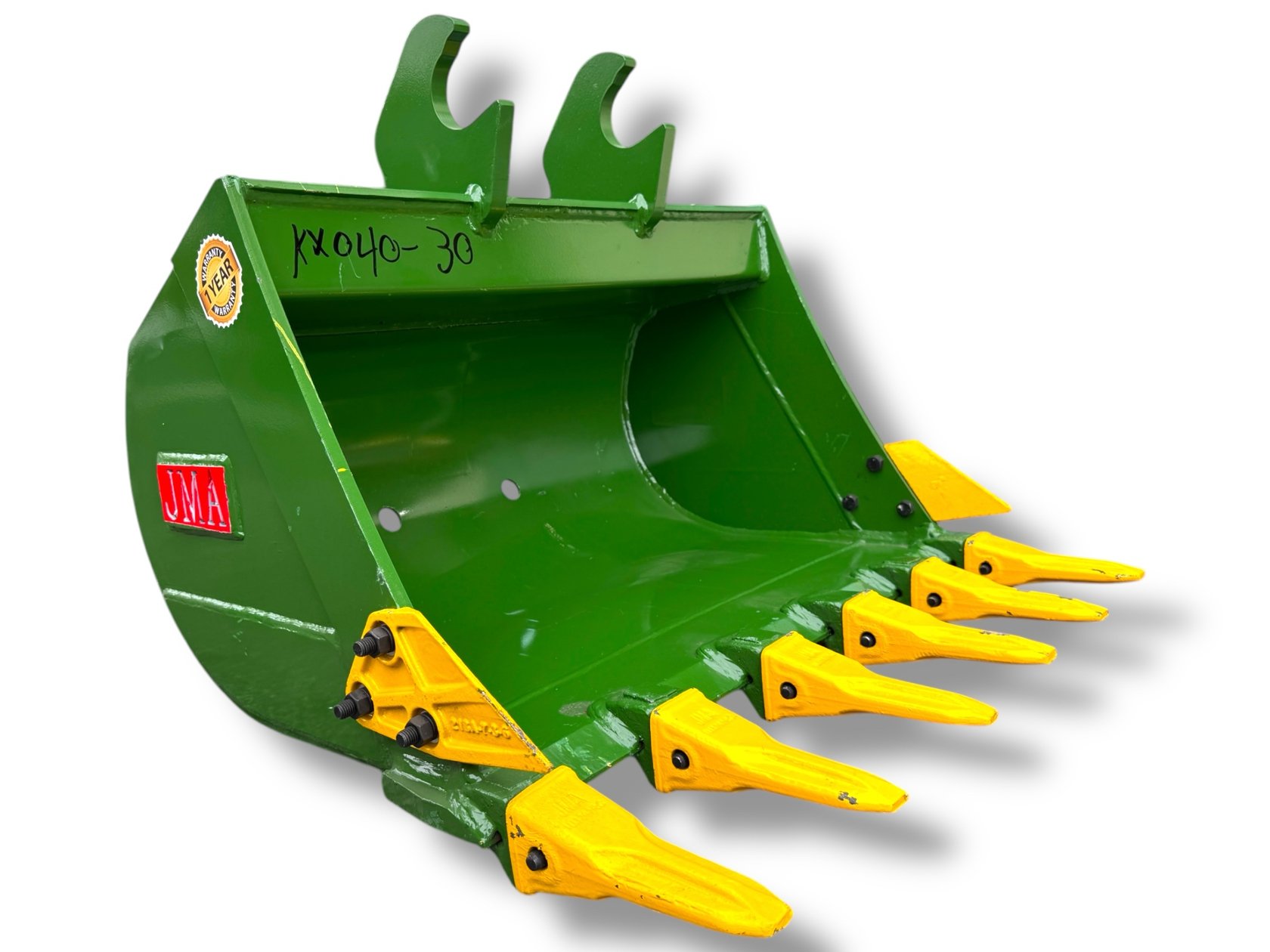

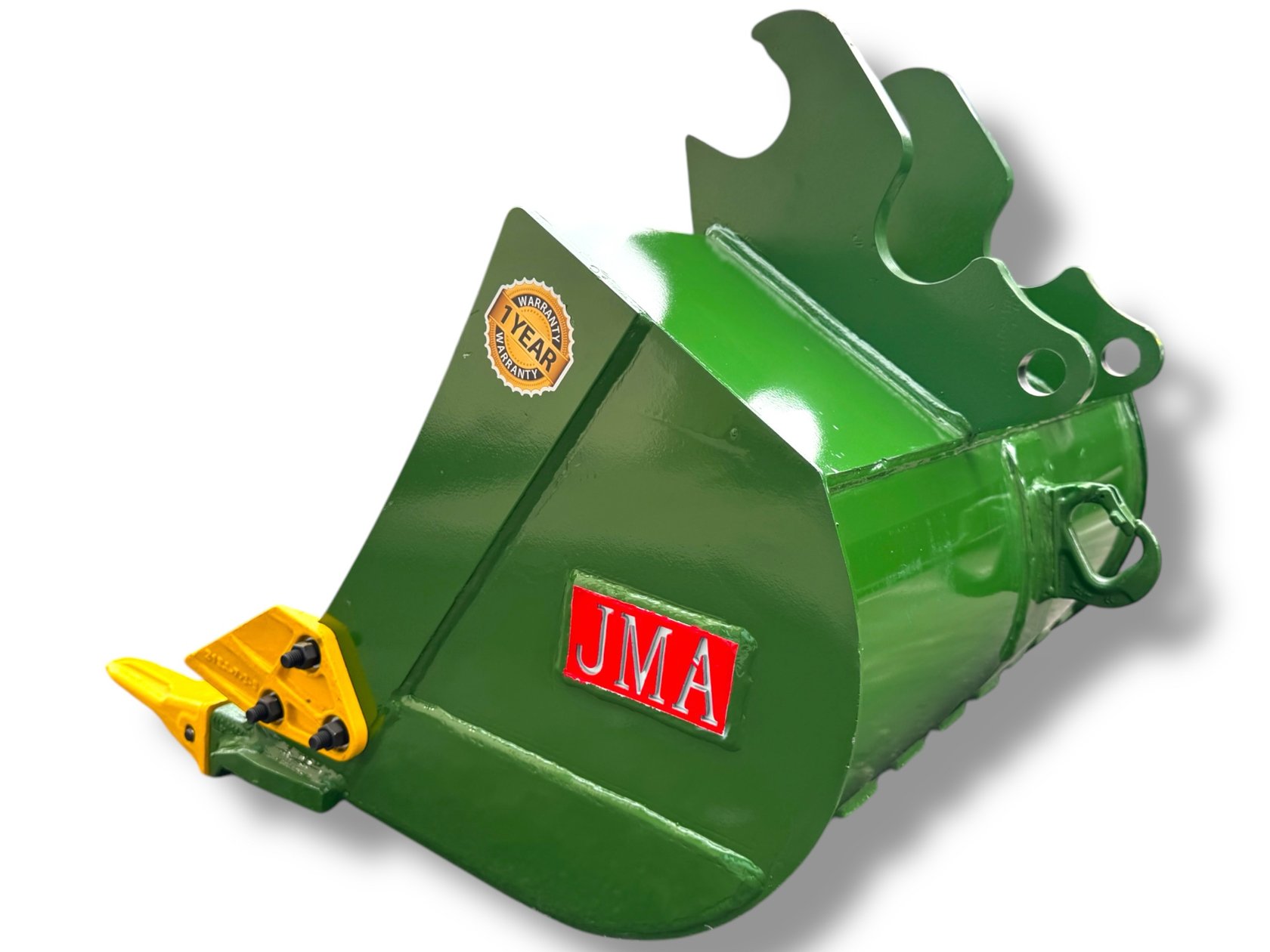

30″ Digging Bucket Kubota Wedge Style for 3 – 4.5 Tons Mini Excavators
- Kubota-style coupler · 3–4.5 ton class
- 30" wide (762 mm) · 0.13 m³ capacity · AR400 steel body · 12 mm side walls · 265 lb
- 6 teeth (1U3202RC) and 2 side cutters included
- Ships from Miami, FL the same business day when ordered before 2 PM ET · US-based support
- 2-year warranty · lifetime warranty on structural welds
Bucket Size: 30"
| Rear Pin Diameter (mm) | 30 mm |
|---|---|
| Front Ear to Ear (mm) | 222 mm |
| Rear Ear to Ear (mm) | 222 mm |
| Bucket Depth (mm) | 340 mm |
| Capacity (m³) | 0.13 m³ |
| Tooth Retainer Part Number | 8E6209 |
| Drain Holes (ct.) | 2 ct. |
| Material Type | AR400 Steel |
| Finish | Powder-Coated Green |
| Features | 3x Reinforced Side Plates |
| Coupler Type | Kubota Style |
| Product Weight (kg) | 120 kg |
| Product Weight (lbs) | 264.55 lb |
| Bucket Side Wall Thickness (mm) | 12 mm |
| Bucket Width (mm) | 762 mm |
| Carrier Weight Class (tn) | 3 - 4.5 tons |
| Carrier Weight Class (lb) | 6,000 - 9,000 lb |
| Inner Bucket Height (mm) | 480 mm |
| Tooth (ct.) | 6 Teeth |
| Bucket Size | 30" |
| Bucket Type | Digging Bucket |
| Tooth Number | 1U3202RC |
| Tooth Pin Part Number | 9W7112 |
| Tooth Style | Rock Chisel Bucket Tooth |
| Airman | AX30, AX30-U2, AX30U-4, AX30U-5F, AX30UC-4, AX30UC-5, AX33Mu, AX33U-5A, AX35, AX35U-4, AX35U-5F, AX38U-5A, AX40, AX40U, AX40U-4, AX40U-5F, AX45 |
|---|---|
| Bobcat | 334, 334D, 334G, 430, 430AG, 430AG ZHS, 430CD, 430D, 430D ZHS, 430E, 430G, 430GZHS, 430ZHS, E32, E32EM, E32I, E32M, E32R, E32R2, E34, E35, E35EM, E35ER2, E35I, E35M, E35R, E35R2, E35Z, E37, E38, E40, E42, E42M, E42R2, E45, E45EM, E45M, E48, E48R2, X325, X328, 428, 428EG, 428G, X331, X331C, X331D, X331E, X331G, X332, X334, X335, 428U, X328G, X428 |
| Case | CX27B, CX31B, CX33, CX36B, CX37, CX37C, CX40, CX40B |
| Caterpillar | 302.7, 302.7 CR, 303, 303 CR, 303 CR2, 303 SR, 303.4C, 303.5, 303.5 CR, 303.5C, 303.5C CR, 303.5D, 303.5D2 CR, 303.5D CR, 303.5E, 303.5E2 CR, 303.5E CR, 303C2 CR, 303C CR, 303E CR, 303E SR, 303GR, 304, 304 CR, 304.5, 304C CR, 304D CR, 304E2, 304E2 CR |
| Daewoo | S030, S035, S35, Solar 035 |
| Develon | DX27Z-7, DX35Z-7, DX42-7 |
| Doosan | D20Z, DH35, DX27Z-7, DX30Z, DX35, DX35-5, DX35Z, DX35Z-7, DX42, DX42-5, DX42-5K, S30, S030 PLUS, Solar 030, Solar 030 Plus |
| Hanix | 20S, H26B, H26C, H29A, H30A, H35A, H36A, H36B, H36B-R, H36C, H45, H50B, H50C |
| Hitachi | EX27U, EX30, EX30-2, EX30U, EX30UR, EX30UR-2, EX30UR-2C, EX30UR-3, EX33MU, EX33U, EX35, EX35-2, EX35U, EX40, EX40-2, EX40U, EX40UR, EX40UR-2, EX40UR-2C, EX40UR-3, EX45, EX45-2, ZX30, ZX30U-2, ZX30U, ZX33U-2, ZX33U-2 -3, ZX33U-3, ZX33U-3F, ZX33U-5A, ZX35, ZX35U, ZX35U-2, ZX35U-3, ZX35U-3F, ZX35U-5A, ZX38U-2, ZX38U-2 -3, ZX38U-3, ZX38U-3F, ZX38U-5A, ZX40U, ZX40U-2, ZX40U-3, ZX40U-5A |
| Hyundai | R27Z-9A, R28-5, R30-9A, R35-5, R35-7, R35Z-9, R35Z-9A |
| Ihi | 28G, 28N-2, 28NX, 30NX, 30NX-2, 32J, IS28, IS28J, IS30, IS30J, IS35, IS35N, IS35NX-2, IS35VX-2, IS40, IS40-JX, IS45 |
| JCB | 1CX, 35Z-1, 45Z, 45Z-1, 803, 803 Plus, 803 Super, 8025 ZTSLC, 8026, 8026 CTS, 8027 ZTS, 8029, 8029 CTS, 8030, 8030 ZTS, 8032 ZTS, 8035, 8035 C, 8035 CTS, 8035 ZTS, 8040, 8040 ZTS |
| John Deere | 25, 25D, 27 ZTS, 30, 30G, 30P, 35, 35 ZTS, 35C, 35C ZTS, 35CT, 35D, 35D ZTS, 35G, 35P, 35ZT |
| Kobelco | SK025, SK027, SK27SR-3, SK27SR-5, SK27SR-6E, SK030, SK30SR, SK30SR-1, SK30SR-2, SK30SR-3, SK30SR-4, SK30SR-5, SK30SR-6E, SK032, SK035, SK35SR-1, SK35SR-2, SK35SR-3, SK35SR-4, SK35SR-5, SK35SR-6, SK35SR-6E, SK40SR, SK40SR-1, SK40SR-2, SK040SR-3, SK40SR-3, SK040SR-5, SK40SR-5, SK042, SK045, SK045-1, SK045-2, SK045-3, SK045SR, SK45SR-1 |
| Komatsu | PC27 MRX-1, PC27MR-3, PC27R-8, PC28UU-1, PC28UU-2, PC30, PC30 MR, PC30 MRX-1, PC30 MRX-2, PC30-6, PC30-7, PC30MR-2, PC30MR-3, PC35, PC35MR-2, PC35MR-3, PC35MRX-1, PC35R-8, PC35RS, PC40-7, PC40MR-3, PC40MRC-2, PC40MRX, PC40MRX-1, PC40R-8, PC45 MRX-1, PC45R-8 |
| Kubota | K045, KH16W, KH90, KX030, KX030-4, KX033, KX033-4, KX040, KX040-4, KX71, KX71-3, KX71-3S, KX91, KX91-2, KX91-3, KX91-3S2, KX101, KX101-3, KX121, KX121-2, KX121-3, KX121-4, KX121-5, RX302, U30 Import, U35, U35-3, U35-4, U36-4, U40, U45, U45-3 |
| Link-Belt | MM40, MS035 |
| Liugong | 9035E, 9035EZTS, 9045D, 9045E |
| Nagano | NS25-3, NS35, NS35R-3, NS45-3 |
| New Holland | E33, E33C, E35B, E37, E37C, E50.2SR, EH50.B |
| Nissan | N350, N350-2 |
| Sany | SY26, SY26U, SY35, SY35C, SY35U |
| Sumitomo | SWE30, SWE30UF, SWE40U, SWE45 |
| Takeuchi | EH50B, TB028, TB28FR, TB030, TB30, TB035, TB36, TB045, TB45, TB125, TB135, TB138, TB138FR, TB228, TB230, TB235, TB235-2, TB240 |
| Terex | TC35, TC37 |
| Volvo | EC35, EC35C, ECR35, ECR35D, ECR38, ECR40 |
| Wacker Neuson | 28Z, 38Z, 38Z3, 3003, 3503, 3703, ET35, EZ35, EZ36, EZ38 |
| Yanmar | B27, B30V, B37, SV40, VIO27, VIO27-2, VIO30, VIO30-1, VIO30-6B, VIO30-7, VIO35, VIO35-2, VIO35-3, VIO35-6A, VIO35-6B, VIO35-7, VIO38, VIO38-6, VIO38-7, VIO40, VIO40-2, VIO40-3, VIO40-7, VIO45-5, VIO50-6A, VIO50-6B, YC30-2, YC35 |
30" Digging Bucket Kubota Wedge Style for 3 - 4.5 Tons Mini Excavators. Fit: Kubota-style coupler, 3–4.5 ton class. Included: 6 teeth (1U3202RC) and 2 side cutters. Price: $2,077.60, in stock, ships from Miami, FL the same business day when ordered before 2 PM ET.
Elevate your excavation game with the 30" Digging Bucket Kubota Wedge Style for 3 - 4.5 Tons Mini Excavators. This isn't just another bucket; it's your key to unlocking unparalleled efficiency and precision on every job site.
Key Benefits:
* Impressive Capacity: With 0.13 m³, tackle bigger jobs with fewer cycles, boosting your productivity.
* Durability Redefined: Crafted from premium AR400 Steel, this bucket is built to withstand the toughest conditions job after job.
* Optimized Digging Power: Equipped with 6 Teeth Rock Chisel Bucket Tooth teeth (J200 series), ensuring superior penetration and material flow.
* Versatility Enhanced: Designed specifically for Mini Excavator, this bucket seamlessly integrates with your machine for maximum performance.
Transform your Kubota mini excavator into an earthmoving powerhouse. With the 30" Digging Bucket Kubota Wedge Style for 3 - 4.5 Tons Mini Excavators, you're not just digging – you're redefining efficiency in every scoop.
Will it fit my machine?
Tell us your machine and your coupler, we confirm the fit before shipping. If we confirmed the fit from your accurate machine and coupler details and our recommendation is wrong, report it within 14 calendar days of delivery: the JMA Fitment Money-Back Promise gives a full product refund, outbound and return freight covered, no restocking fee.
How fast does it ship?
In-stock items ship from Miami, FL the same business day when ordered before 2 PM ET; orders after 2 PM ET, on weekends or on holidays ship the next business day. Carrier estimates for the lower 48, in business days from the ship date: parcels of 50 lb or less 5–7 standard or 2–4 expedited; LTL freight over 50 lb 7–10 standard or 4–6 expedited, usually with a delivery appointment and a signature. Outside the lower 48, shipping is quoted. Inspect it before you sign and note any damage on the delivery receipt.
What does the warranty cover?
Defects in materials and workmanship are covered for 2 years or 2,000 operating hours, whichever comes first: year 1 parts and pre-approved labor, year 2 parts only. Lifetime warranty on structural welds. Teeth, cutting edges, pins and bushings are wear items and are not covered. Get our written approval before any repair.
Can I return it?
Yes, for standard products: a refund within 14 calendar days of delivery, or store credit within 30, if it is unused, uninstalled, free of soil and grease, and in its original packaging with all hardware. Get a Return Authorization Number (RAN) from us first. The buyer pays return shipping unless the item was defective, damaged or wrong because of our error, or you can drop it off at our warehouse, 8068 NW 29th St, Doral, FL, Monday to Friday, 9 AM to 5 PM, with your RAN. A restocking fee applies to non-defective refunds; store credit has no restocking fee. Original outbound shipping is not refunded on change-of-mind returns. Installed or used attachments can't be returned.
DISCLAIMER
JMA Attachments provides heavy machinery attachments that must be used with care by
competent individuals under supervision, if necessary. Use of any equipment, including ours, involves
potential risk of injury. You accept and assume full responsibility for any and all injuries, damages
(both economic and non-economic), and losses of any type that may occur, and release JMA Attachments,
its insurers, employees, officers, directors, associates, and agents from all claims and liabilities
resulting from the use of said equipment.
Except for the written JMA Attachments Warranty (/warranty/), JMA Attachments makes no other warranty, express or implied, including merchantability or fitness for a particular purpose. BUYER ASSUMES ALL LIABILITY IN THE USE OF THE EQUIPMENT. The purchaser must ensure operators are properly trained and comply with all laws and regulations. You agree to be legally bound by this disclaimer by purchasing and using our products. If you disagree, do not proceed with purchasing or using the equipment.
