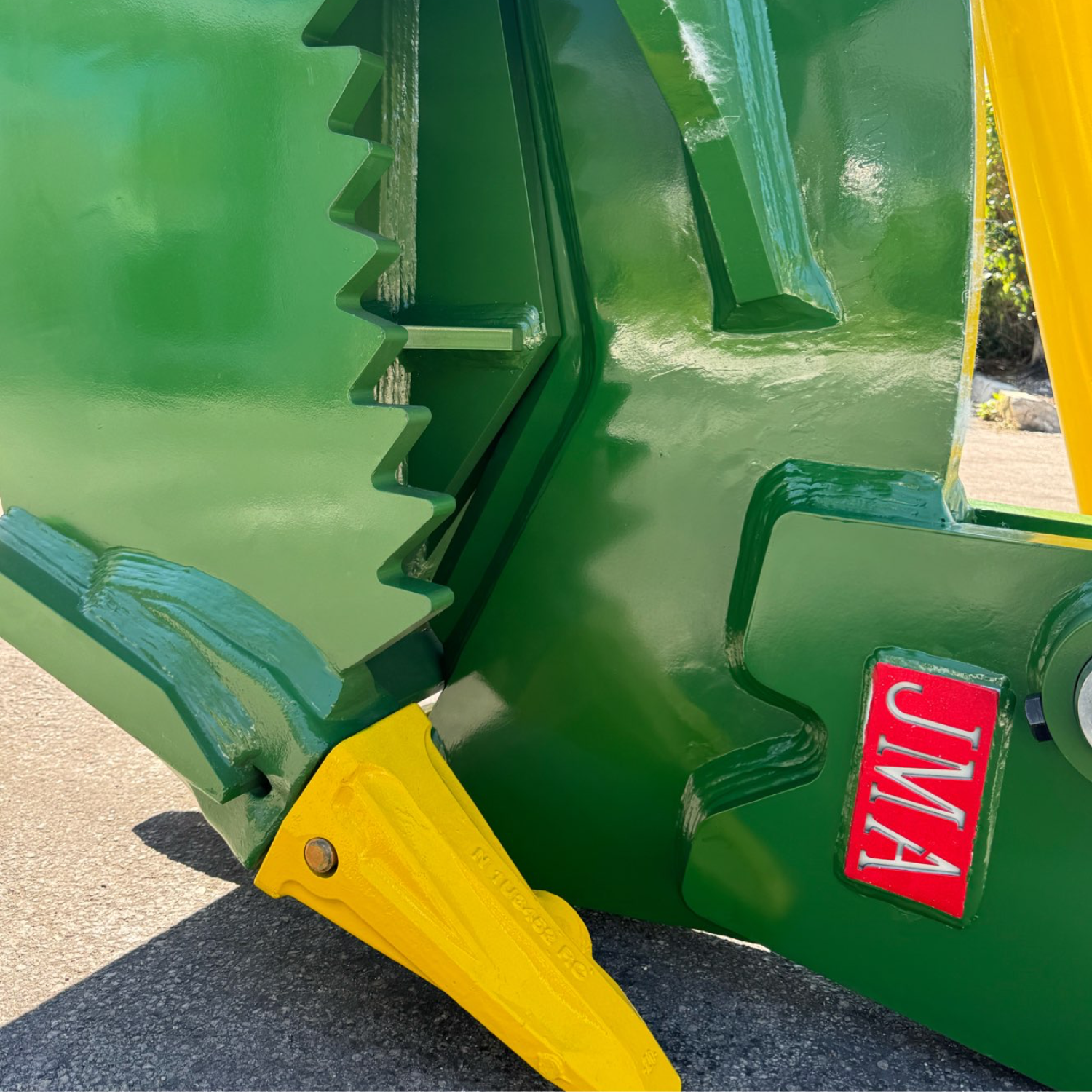

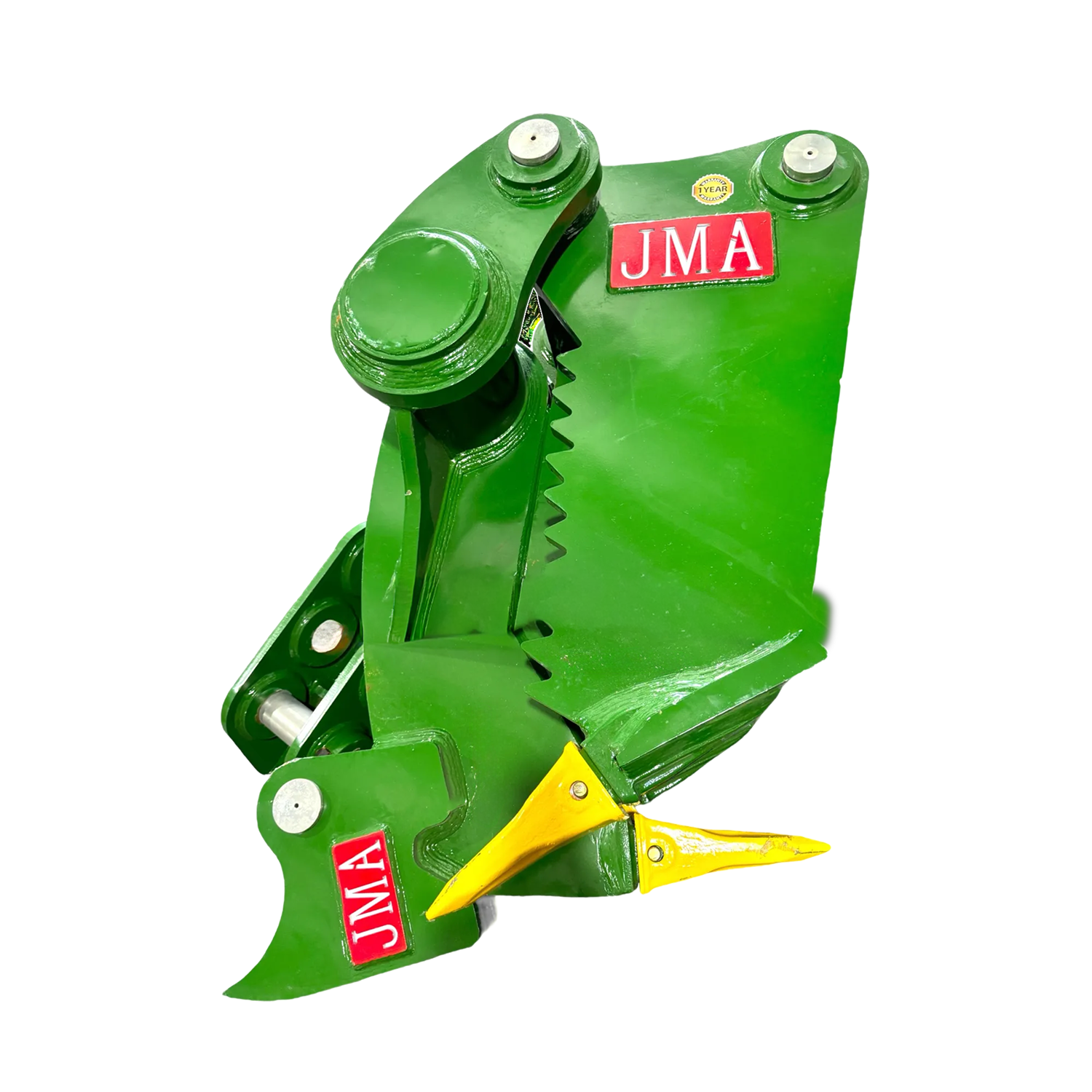

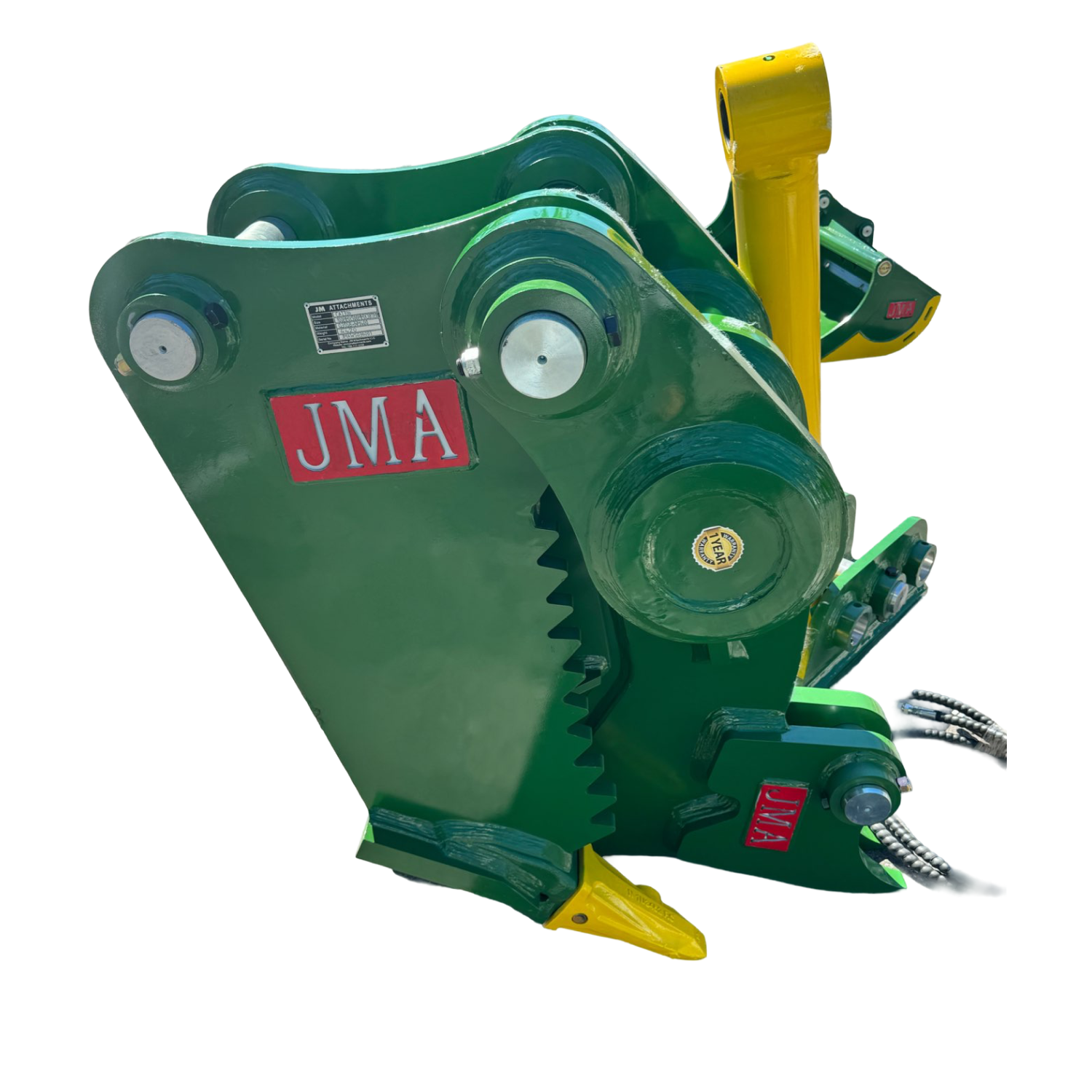

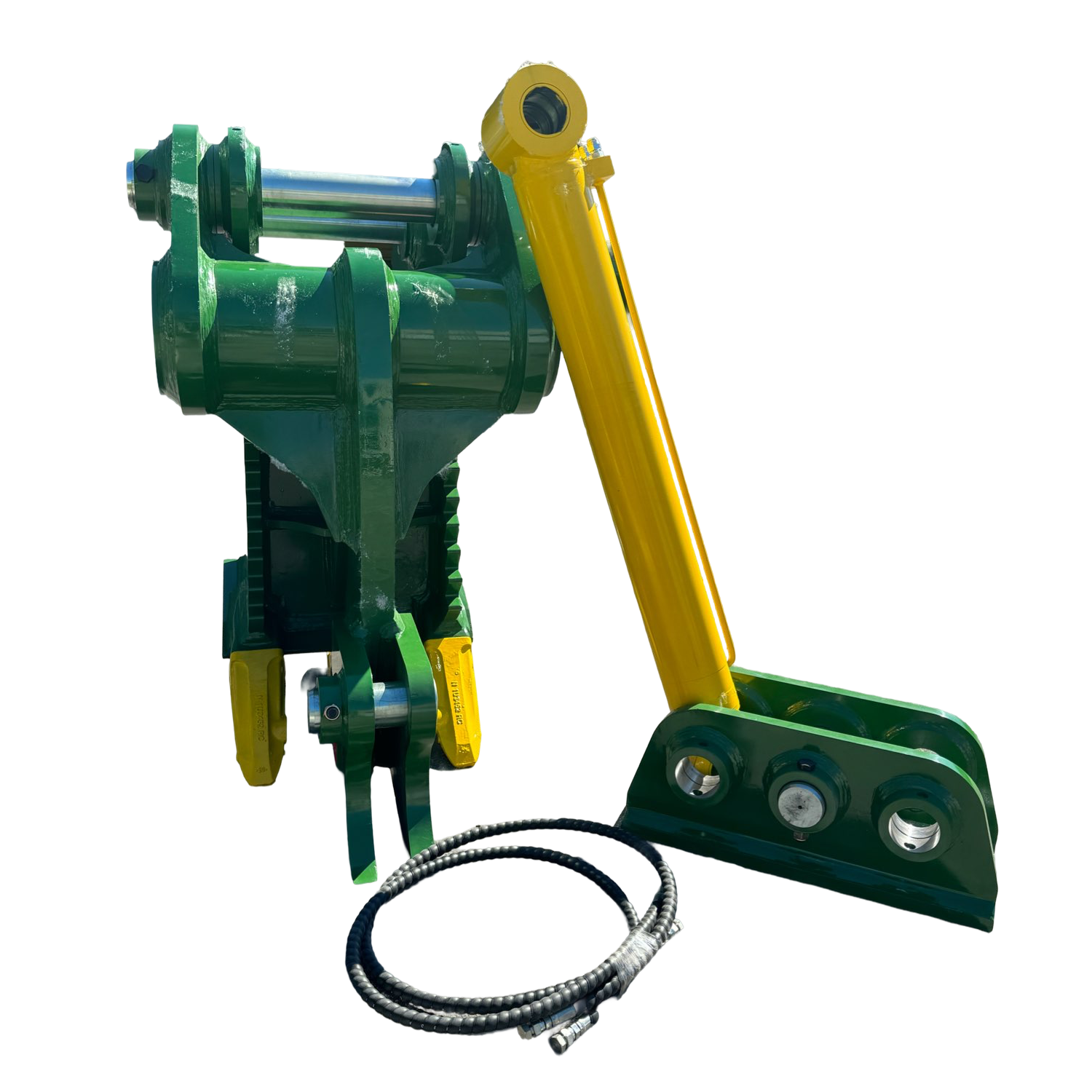

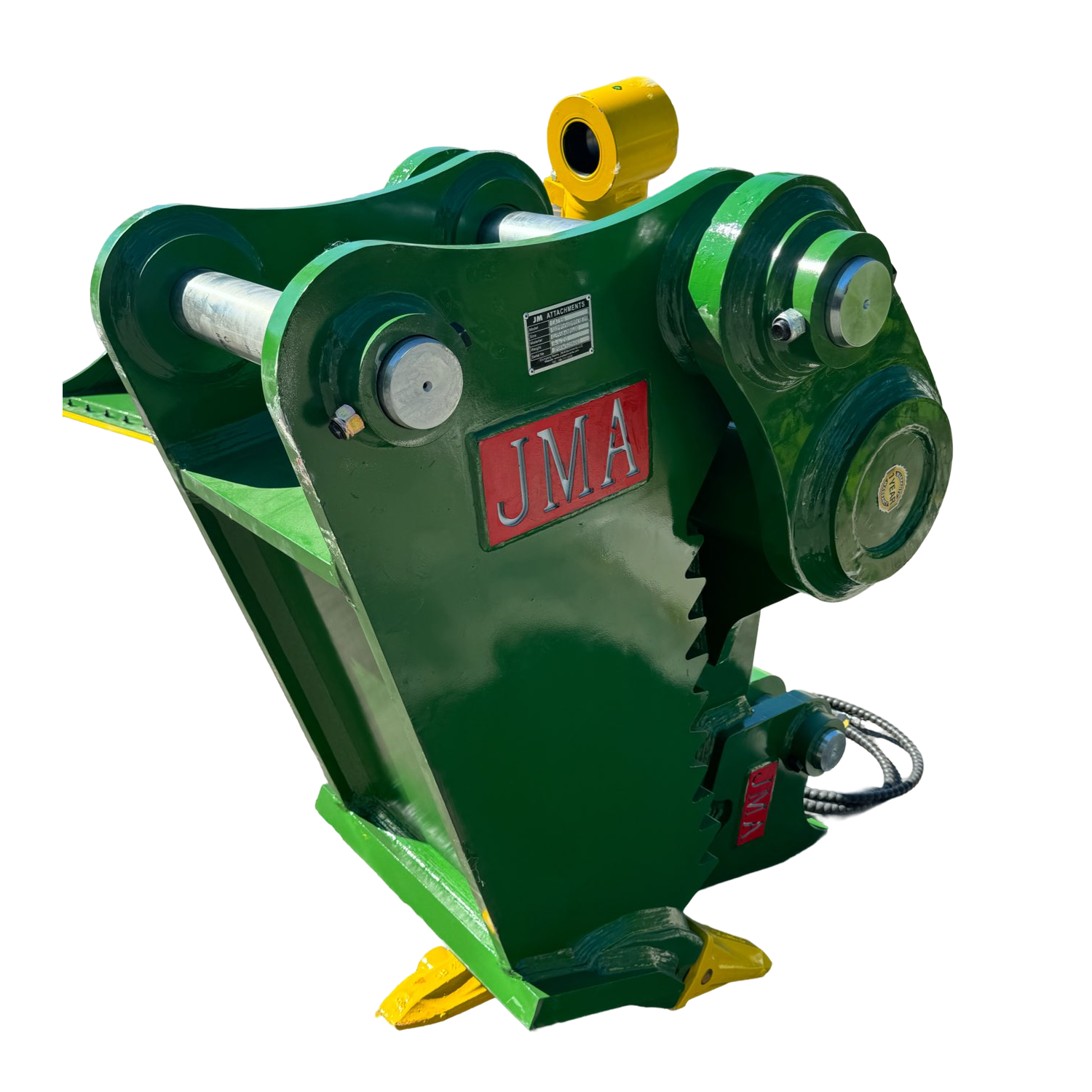

25″ Wood Hydraulic Shear for 33 – 55 Tons Excavators. 100mm | 90mm Pins
- Fits 33–55 t excavators · 100 mm front / 90 mm rear pins, 387 mm ears
- 25" wood shear · 85.36" max jaw opening · 2 over 1 jaw · 4,429 lb · 3 J450-series teeth
- Ships from Miami, FL the same business day when ordered before 2 PM ET · US-based support
- 2-year warranty · lifetime warranty on structural welds
Frequently Bought Together
| Coupler Type | Pin On Style |
|---|---|
| Carrier Weight Class (tn) | 33 - 55 tons |
| Carrier Weight Class (lb) | 66,000 - 110,000 lb |
| Front Pin Diameter (mm) | 100 mm |
| Rear Pin Diameter (mm) | 90 mm |
| Front Ear to Ear (mm) | 387 mm |
| Rear Ear to Ear (mm) | 387 mm |
| Center to Center (mm) | 500 mm |
| Front Pin Length (mm) | 615 mm |
| Finish | Powder-Coated Green |
| Product Weight (kg) | 2,009 kg |
| Product Weight (lbs) | 4,429.08 lb |
| Bucket Tooth Series | J450 |
| Rear Pin Length (mm) | 615 mm |
| Tooth Retainer Part Number | 8E6359 |
| Material Type | AR450 Steel |
| Tooth (ct.) | 3 teeth |
| Max Jaw Opening | 85.358" |
| Pin Size | 100mm |
| Tooth Number | 1U3452RC |
| Tooth Pin Part Number | 1U1458 |
| Tooth Style | Single Tiger Tooth Style |
| Case | 9050B, CX330, CX330LC, CX330B, CX350, CX350LC, CX350B, CX350C, CX350D, CX350D LR, CX350DNLC, CX360, CX360B, CX365E SR, CX370, CX370B, CX370C, CX370D, CX380C, CX380D, CX460, CX460LC, CX470B, CX470C, CX470C ME |
|---|---|
| Caterpillar | 328 D, 330B, 330BL, 330C, 330C L, 330D, 330D2, 330D DB Linkage, 330D L, 330DL DB, 330E, 335, 335FL CR, 336, 336 GC, 336D, 336D2, 336D2 L, 336D L, 336E, 336E L, 336F, 336F L, 340, 340 GC, 340D, 340D2, 340D2 L, 340D L, 340F, 340F2, 340F2 L, 340F L, 345, 345B, 345B II, 345B LC, 345BLC II, 345BLC VG, 345BL, 345BL GMX, 345BL II, 345BL II UHD, 345BL LC VG, 345BL LR, 345BL ME, 345BL ME II, 345BL UHD, 345BLL, 345C, 345C LC, 345C LRE, 345CL, 345CL ME, 345CL VG, 345D, 345DL, 345DL ME, 345DL UHD, 345DL VG, 345F, 345F L, 345 GC, 345L, 349, 349 NEW GEN, 349D, 349D2, 349D2L ME, 349D2L, 349D L XE, 349DL ME, 349DL, 349E, 349EL ME, 349E LR, 349EL, 349EL VG, 349F, 349F L XE, 349FL, 349L, 350, 350 LF, 350 ME, 350 MEL, 350 V2, 350 V2L, 350BL, 350L, 350L ME, 350L V2, 350LL, 352, 352F, 352F LRE, 352F UHD, 352F XE, 352FL, 352L, 352LRE, 355 |
| Daewoo | DX420LC V, S330, S340LC-V, S370LC-V, S400, S400LC-111, S420LC-V, S450, S470LC-V, S500LC V, Solar 330LC-V, Solar 340LC-V, Solar 370LC-V, Solar 400LC-III, Solar 400LC-V, Solar 420LC-V, Solar 450-III, Solar 450LC-V, Solar 470LC-V, Solar 500LC-V |
| Develon | DX350LC-7, DX350LCR-7, DX360LC-7M, DX420LC-5, DX420LC-7, DX450LC-7M, DX490LC-7, DX530LC-7M |
| Doosan | DH370LC-7, DH370LC-9, DH420LC-7, DH500LC-7, DX300LC-7, DX340LC-3, DX340LC-5, DX340LC-9C, DX340LC-HD, DX340 LCA, DX340LC, DX350, DX350LC, DX350LC-3, DX350LC-5, DX350LC-7, DX350 LCA, DX360LC, DX360LC-7M, DX360 LCA, DX380LC, DX380LC-3, DX380LC-5, DX380LC-7, DX380LC-9C, DX380 LCA, DX380LL-5, DX400LC-5, DX400LC-7M, DX420LC-3, DX420LC-5, DX420LC-7, DX420LC-9, DX420LC-9C, DX420 LCA, DX420LC, DX450LC-7M, DX450LC-9C, DX450 LCA-7M, DX480 LCA, DX480LC, DX490LC-3, DX490LC-5, DX490LC-7, DX500LC-9C, DX500 LCA, DX520LC-9C, DX520 LCA, DX520LC, DX530LC-3, DX530LC-5, DX530LC-5B, DX530LC-7M, DX530LCA-7M, S330LC V, S330LC, S400LC V, S420LC, S450LC V, S470LC, S500LC V, Solar 330LC-V, Solar 400LC-V, Solar 420LC-V, Solar 450LC-V, Solar 470LC-V, Solar 500LC-V |
| Hitachi | EX370, EX370-5, EX400, EX400-1, EX400-3, EX400-5, EX400LC-3, EX400LC-5, EX550, EX550-3, EX550-5, UH23, ZX330, ZX330LC, ZX330LC-2, ZX330LC-3, ZX330LC-3G, ZX330LC-5, ZX330LC-5B, ZX330LC-7, ZX330 LCH, ZX330-6, ZX345USLC-6, ZX345USLC-6N, ZX345USLC-7, ZX345USLC-7H, ZX350, ZX350LC, ZX350LC-3, ZX350LC-5, ZX350LC-5B, ZX350LC-5G, ZX350LC-5N, ZX350LC-6, ZX350LC-6N, ZX350LC-7, ZX350 LCD-1, ZX350 LCD-3, ZX350 LCH, ZX350 LCH-3, ZX350 LCH-5, ZX350 LCK, ZX350 LCK-3, ZX350 LCN, ZX350 LCN-1, ZX350 LCN-3, ZX350 LCN-5, ZX350 LCN-5B, ZX350 LCN-6, ZX350 LCN-7, ZX350-3, ZX350-3G, ZX350-5B, ZX350F, ZX350G, ZX350H, ZX350H-1, ZX350H-3, ZX350H-5A, ZX350H-5B, ZX350H-5G, ZX350K, ZX350K-3, ZX350K-6, ZX350M, ZX360, ZX360LC, ZX360LC-5B, ZX360 LCH-5B, ZX360 LX, ZX360H-3, ZX360H-3G, ZX360H-5A, ZX370, ZX370LC, ZX370F-3, ZX370MTH, ZX380LC-5, ZX380LC-5N, ZX380LC-6, ZX380LC-6N, ZX380HH, ZX400-3, ZX400LCH-3, ZX450, ZX450LC, ZX450-3, ZX450LC-3 |
| Hyundai | R350, R350LC-7, R350LC-7A, R350LC-9, R350LC-9A, R360LC-3, R360LC-7, R360LC-7A, R360LC-9, R360LC-9A, R380LC-9, R380LC-9A, R380LC-9SH, R420, R420LC-7, R420LC-7A, R420LC-9, R420LC-9A, R450LC, R450LC-3, R450LC-7, R450LC-7A, R480LC-9, R480LC-9A, R480LC-9S, R500, R500LC-7, R500LC-7A, R520LC-9, R520LC-9A, R520LC-9S |
| John Deere | 330, 330LC, 330CLC, 345GLC, 350, 350 P-Tier, 350DLC, 350GLC, 360 P-TIER, 370, 370C, 380, 380 P-TIER, 380G, 380GLC, 450LC, 450CLC, 450DLC, 470 P-TIER, 470GLC |
| Kobelco | SK330-8, SK330-9, SK330-10, SK330LC-8, SK330LC-9, SK330LC-10, SK330LC-V1, SK330LC-VI, SK330NLC-V1, SK330NLC-VI, SK350LC-8, SK350LC-9, SK350LC-10, SK350LC-11, SK400, SK400LC, SK400LC Mark IV, SK480LC-6, SK480LC-8, SK480LC-9, SK480LC-10 |
| Komatsu | HB335LC-1, HB365LC-1, HB365LC-3, HB365LC-3EO, HB365 NLC-1, HB365 NLC-3, HB365-3, PC290LL-11, PC300 HDLC-5, PC300 HD-5, PC300 HD-5L, PC300 HD-6, PC300 HD-6E, PC300 HD-6L, PC300 HD-6LC, PC300 HD-6LE, PC300 HD-6SL, PC300 HD-7, PC300 HD-7E0, PC300 HD-7L, PC300 HD-8, PC300LC-8L, PC300LC-8M0, PC300LC-10, PC300LL-6, PC300LL-7, PC308, PC308LC, PC308LC-3, PC308LC-7, PC308USLC, PC308USLC-3, PC308USLC-3E0, PC330LC, PC330-3, PC340, PC340 HRD-7E0, PC340LC, PC340LC-6, PC340LC-6K, PC340LC-6KJ, PC340LC-7, PC340LC-7E0, PC340LC-7K, PC340LC-8, PC340 LCD-7, PC340-6, PC340-6K, PC340-7, PC340NLC, PC340NLC-6, PC340NLC-6K, PC340NLC-6KJ, PC340NLC-7, PC340NLC-7E0, PC340NLC-7K, PC350, PC350 HD-8, PC350LC, PC350LC-6, PC350LC-6E, PC350LC-6Z, PC350LC-7, PC350LC-7E, PC350LC-7E0, PC350LC-8, PC350LC-8K, PC350LC-8M0, PC350LC-10, PC350LC-11, PC350-6, PC350-6E, PC350-6Z, PC350-7, PC350-7E0, PC350-8, PC350-8M0, PC350-10, PC350NLC-8, PC350NLC-8K, PC350NHRD-8, PC360, PC360LC, PC360LC-3, PC360LC-5K, PC360LC-6K, PC360LC-10, PC360LC-11, PC360LC-11E0, PC360 LCI-11, PC360 LCI-11EO, PC360-3, PC360-5, PC360-7, PC360-8M0, PC360-11M0, PC360LC-5, PC360NLC-10, PC360NLC-11, PC360NLC-11E0, PC380, PC380LC-6, PC380LC-6K, PC380LC-6KJ, PC380LC-7, PC380 LCD, PC380U, PC390LC-8M0, PC390LC-10, PC390LC-11, PC390 LCI-11, PC390HRD-11, PC400, PC400 EX, PC400 HD, PC400 HDLC, PC400 HD-3, PC400 HD-3LC, PC400 HD-5, PC400 HD-5LC, PC400 HD-6, PC400 HD-6LC, PC400 HD-6 LK, PC400 HD-6 LM, PC400LC, PC400LC-1, PC400LC-2, PC400LC-3, PC400LC-4, PC400LC-4L, PC400LC-5, PC400LC-5A, PC400LC-5C, PC400LC-5E, PC400LC-5K, PC400LC-5L, PC400LC-5LC, PC400LC-5N, PC400LC-6, PC400LC-6BL, PC400LC-6C, PC400LC-6E, PC400LC-6H, PC400LC-6K, PC400LC-6L, PC400LC-6LC, PC400LC-6LE, PC400LC-6LK, PC400LC-6LM, PC400LC-6M, PC400LC-6Z, PC400LC-7, PC400LC-7E, PC400LC-7E0, PC400LC-7L, PC400LC-8, PC400LC-8LK, PC400-5, PC400-7EO, PC400-8, PC400-8R, PC400LC-8E0, PC450-7EO, PC450-8, PC450LC-8 |
| Link-Belt | 330 LX, 330 X4, 350 X2, 350 X3, 350 X4, 355 X4S, 460 LX, 460 X2, 470 X3, 470 X4, 490 X4, LS330LX, LS4300Q |
| Liugong | 936, 936E, 936F, 939, 939E, 939F, 942E, 945, 945E, 948, 948E, 950E, 952E |
| Samsung | SE350LC, SE350LC-2, SE350LC-3 |
| Sany | SY335, SY335C, SY335CLC, SY335C-9, SY335H, SY350, SY360C, SY365, SY365C, SY365CLC, SY365H, SY365H-9, SY365HC-9, SY375, SY375H, SY375H-S, SY380C-10HD, SY385C, SY385H, SY390H, SY395, SY395H, SY405C, SY415, SY415H, SY420C, SY465C, SY485, SY485H, SY500, SY500H, SY550, SY550H, SY550HD |
| Sumitomo | SH300LC-2, SH330-3, SH330-5, SH330-6, SH330LC-3, SH330LC-5, SH330LC-6, SH450, SH450HD-3, SH450LC-3, SH460, SH460HD-5, SH480, SH480LHD-5 |
| Volvo | EC320BLC, EC320C, EC320C L, EC320D L, EC330, EC330LC, EC330B, EC330BLC, EC330C, EC330CL, EC340, EC340LC, EC340BLC, EC340D, EC340DL, EC350D, EC350DL, EC350E, EC350EL, EC360, EC360LC, EC360B, EC360BLC, EC360BL, EC360C, EC360CL, EC360D, EC360DL, EC380, EC380CL, EC380D, EC380DL, EC380E, EC380EL, EC460, EC460B, EC460BLC, EC460C, EC460C L, EC480, EC480D, EC480D L, EC480E, EC480E HR, EC480E L, ECR305C, ECR305C L, MX365LS, MX455LS, SE360LC-3, SE460LC-3 |
25" Wood Hydraulic Shear for 33 - 55 Tons Excavators. 100mm | 90mm Pins. Fits 33–55 t excavators, 100 mm front / 90 mm rear pins, 387 mm ears. Price: $18,697.00, in stock, ships from Miami, FL the same business day when ordered before 2 PM ET.
Experience breakthrough performance in metal processing with the 25" Wood Hydraulic Shear for 33 - 55 Tons Excavators. 100mm | 90mm Pins. Tailored for 66,000 - 110,000 lbs excavators, this hydraulic shear is your key to unlocking unparalleled productivity in demolition and recycling operations.
Elite Performance Features:
• Optimized Cutting Power: 2 x 1 jaw configuration for maximum force and efficiency.
• Swift Cycle Times: 6" Rod hydraulic cylinder delivers rapid operation and reduced downtime.
• Built for Longevity: AR450 Steel construction ensures reliability in the toughest working conditions.
• Precision Engineering: 25.19" blade jaw width for accurate cuts and efficient material processing.
• Versatile Application: Excels in structural demolition, scrap yards, and recycling facilities.
Elevate your metal processing game. The 25" Wood Hydraulic Shear for 33 - 55 Tons Excavators. 100mm | 90mm Pins isn't just a tool – it's a game-changing solution that delivers tangible returns through increased efficiency and material recovery.
Will it fit my machine?
Tell us your machine, we confirm the fit before shipping. Pin-on attachments are sized from your machine's pin diameter, pin-to-pin distance and ear width. If your machine has a quick coupler, is a long-reach model or was modified, measure those three and send them to us before you order. If we confirmed the fit from your accurate machine and coupler details and our recommendation is wrong, report it within 14 calendar days of delivery: the JMA Fitment Money-Back Promise gives a full product refund, outbound and return freight covered, no restocking fee.
How fast does it ship?
In-stock items ship from Miami, FL the same business day when ordered before 2 PM ET; orders after 2 PM ET, on weekends or on holidays ship the next business day. Carrier estimates for the lower 48, in business days from the ship date: parcels of 50 lb or less 5–7 standard or 2–4 expedited; LTL freight over 50 lb 7–10 standard or 4–6 expedited, usually with a delivery appointment and a signature. Outside the lower 48, shipping is quoted. Inspect it before you sign and note any damage on the delivery receipt.
What does the warranty cover?
Defects in materials and workmanship are covered for 2 years or 2,000 operating hours, whichever comes first: year 1 parts and pre-approved labor, year 2 parts only. Lifetime warranty on structural welds. Hydraulic cylinders, motors and valves: 1 year or 1,000 hours. Hoses and fittings: 90 days. Pins, bushings and other wear items are not covered. Get our written approval before any repair.
Can I return it?
Yes, for standard products: a refund within 14 calendar days of delivery, or store credit within 30, if it is unused, uninstalled, free of soil and grease, and in its original packaging with all hardware. Get a Return Authorization Number (RAN) from us first. The buyer pays return shipping unless the item was defective, damaged or wrong because of our error, or you can drop it off at our warehouse, 8068 NW 29th St, Doral, FL, Monday to Friday, 9 AM to 5 PM, with your RAN. A restocking fee applies to non-defective refunds; store credit has no restocking fee. Original outbound shipping is not refunded on change-of-mind returns. Installed or used attachments can't be returned.
