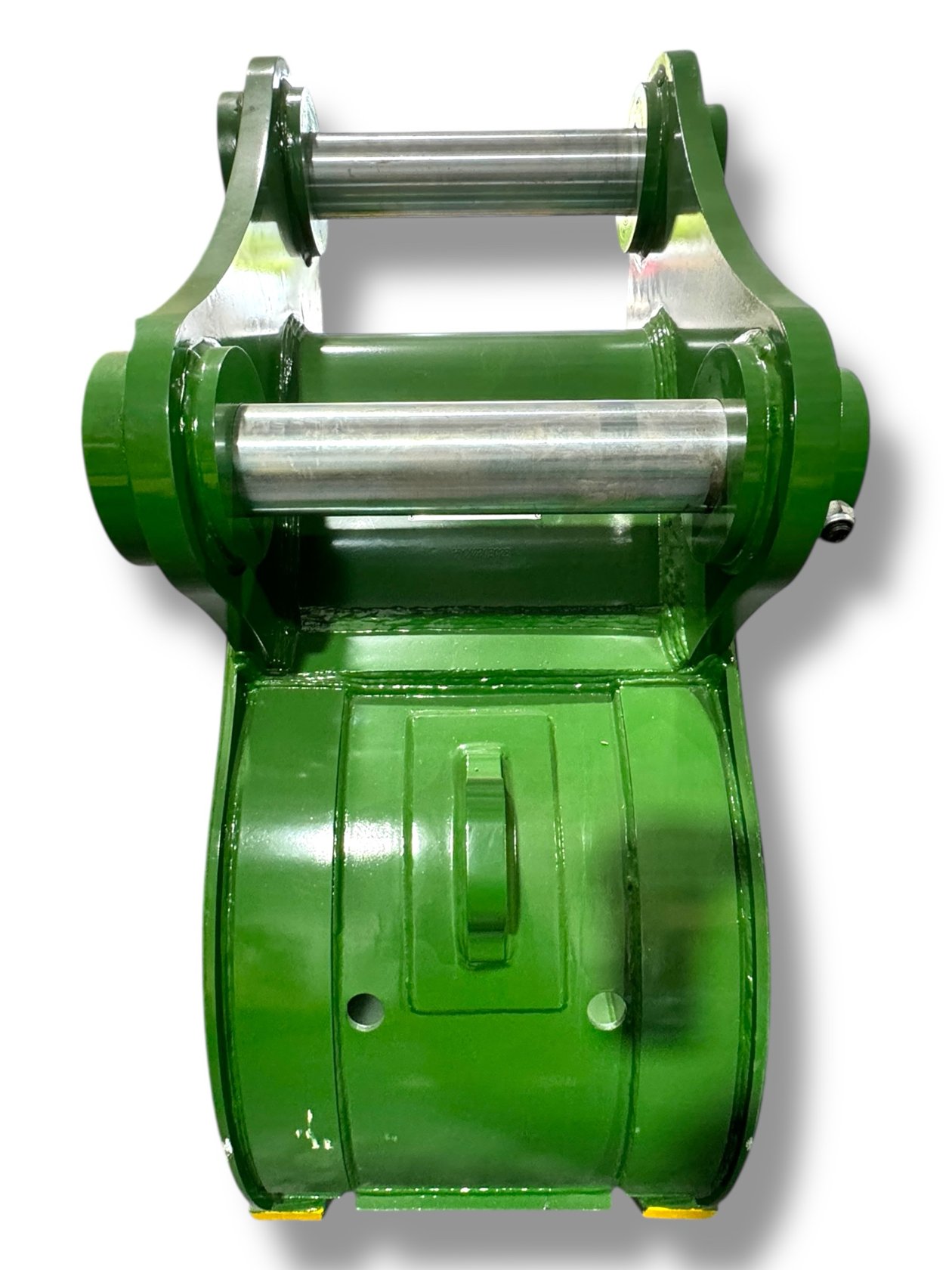

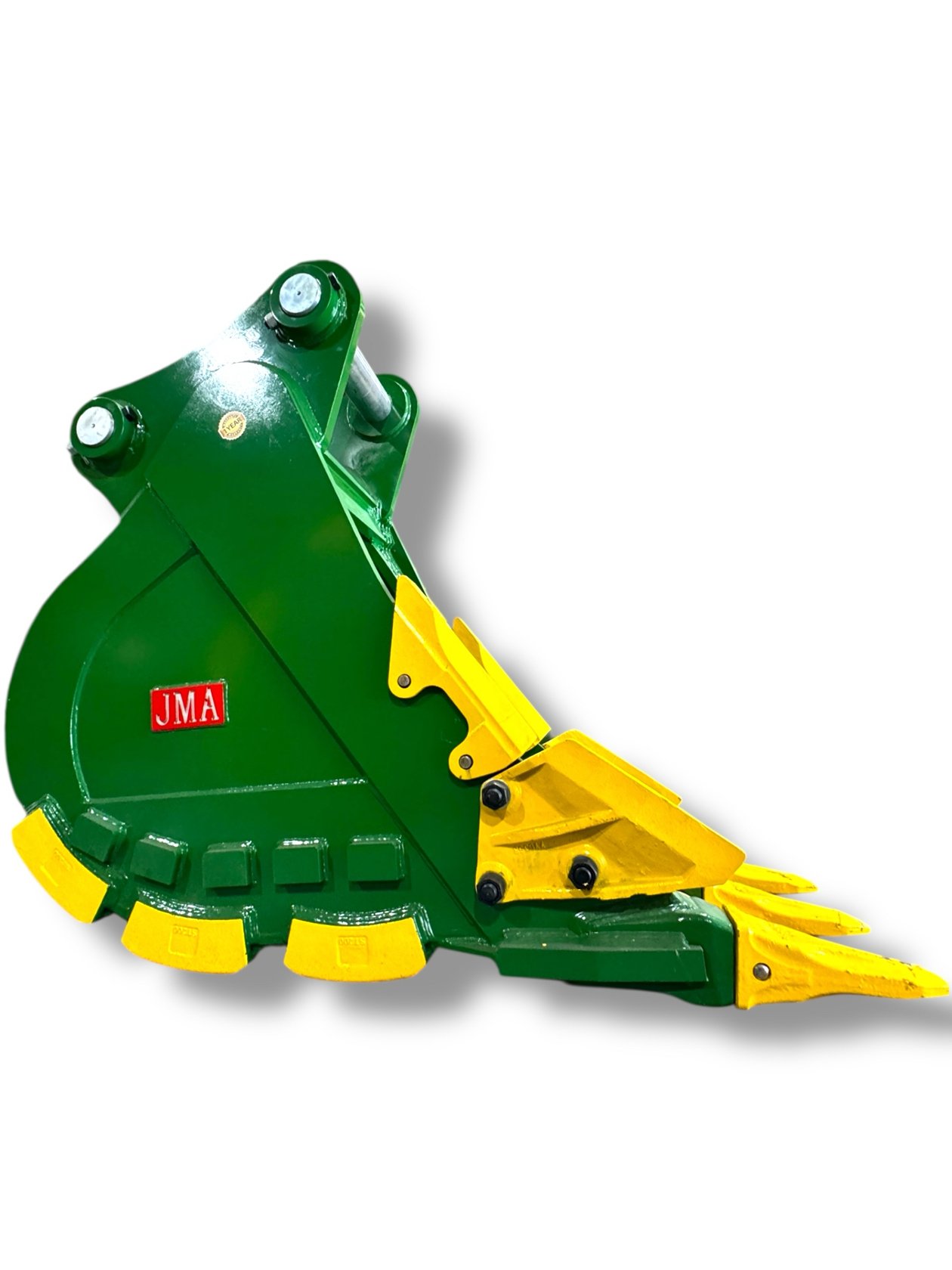

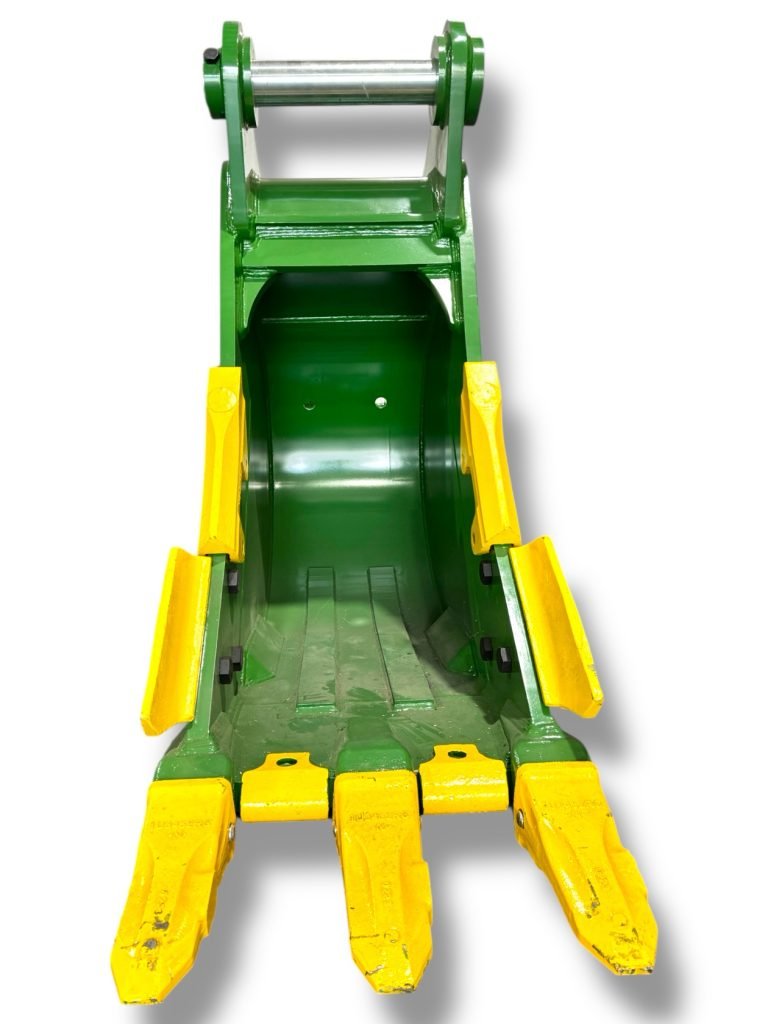

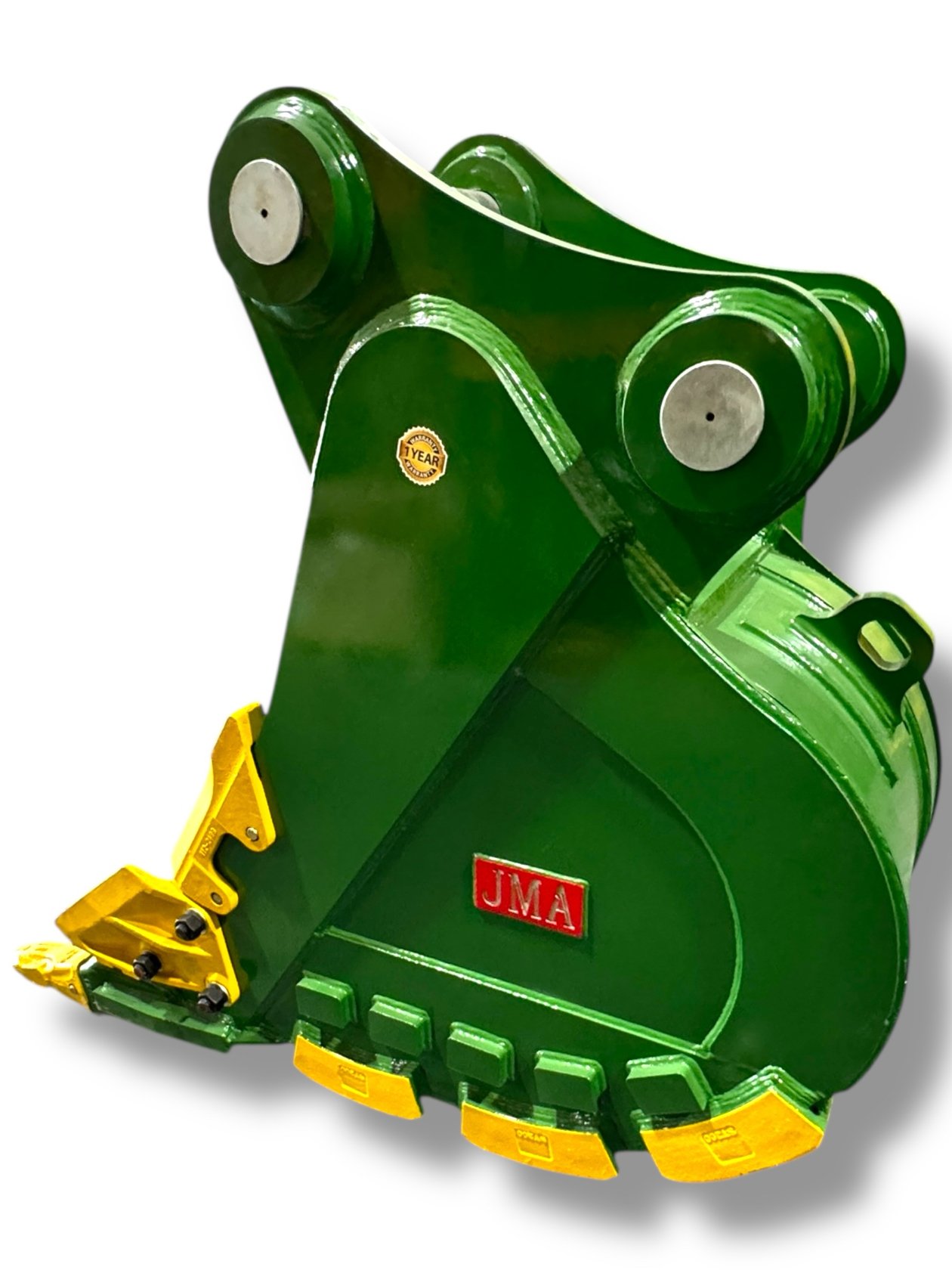

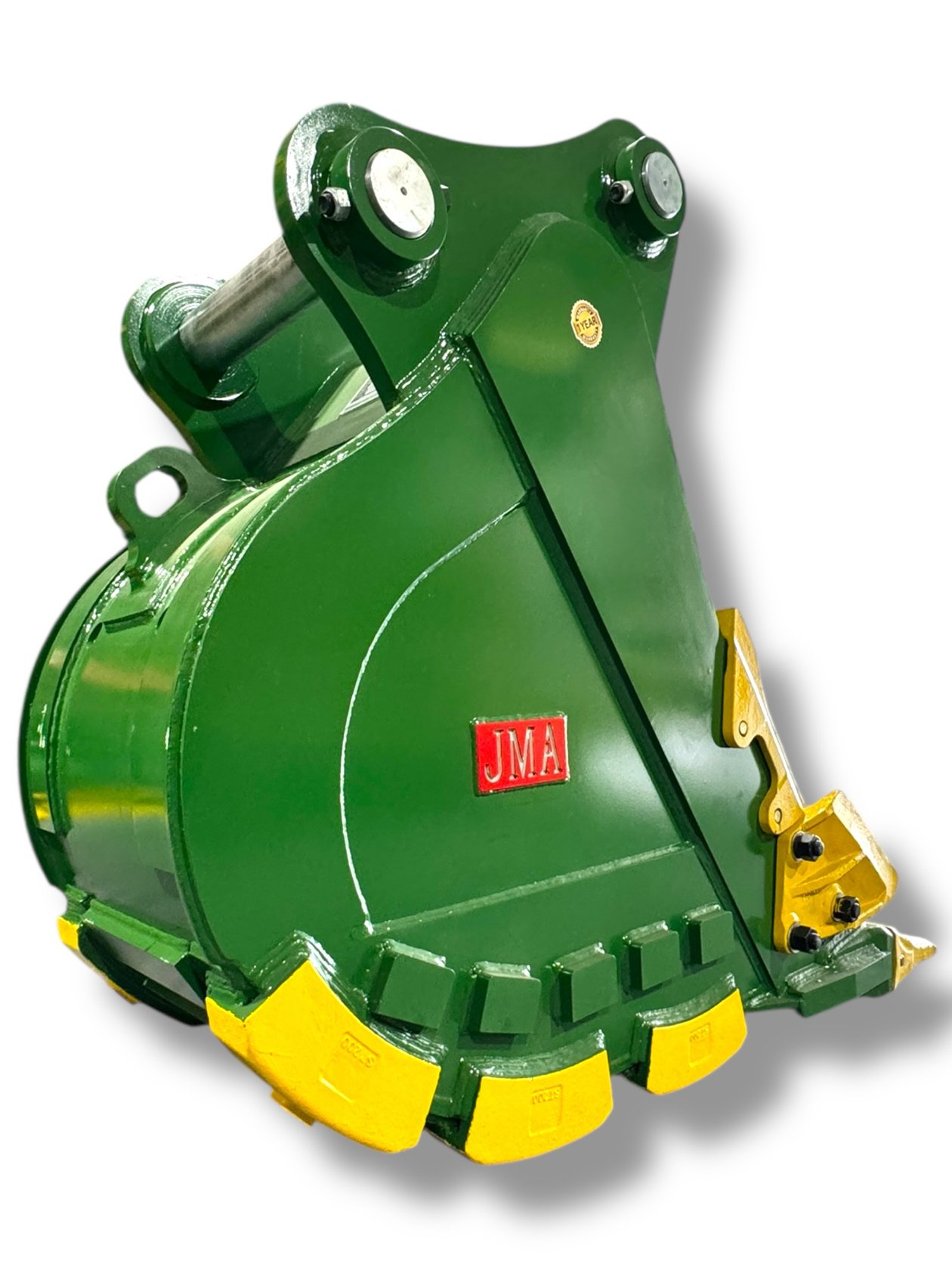

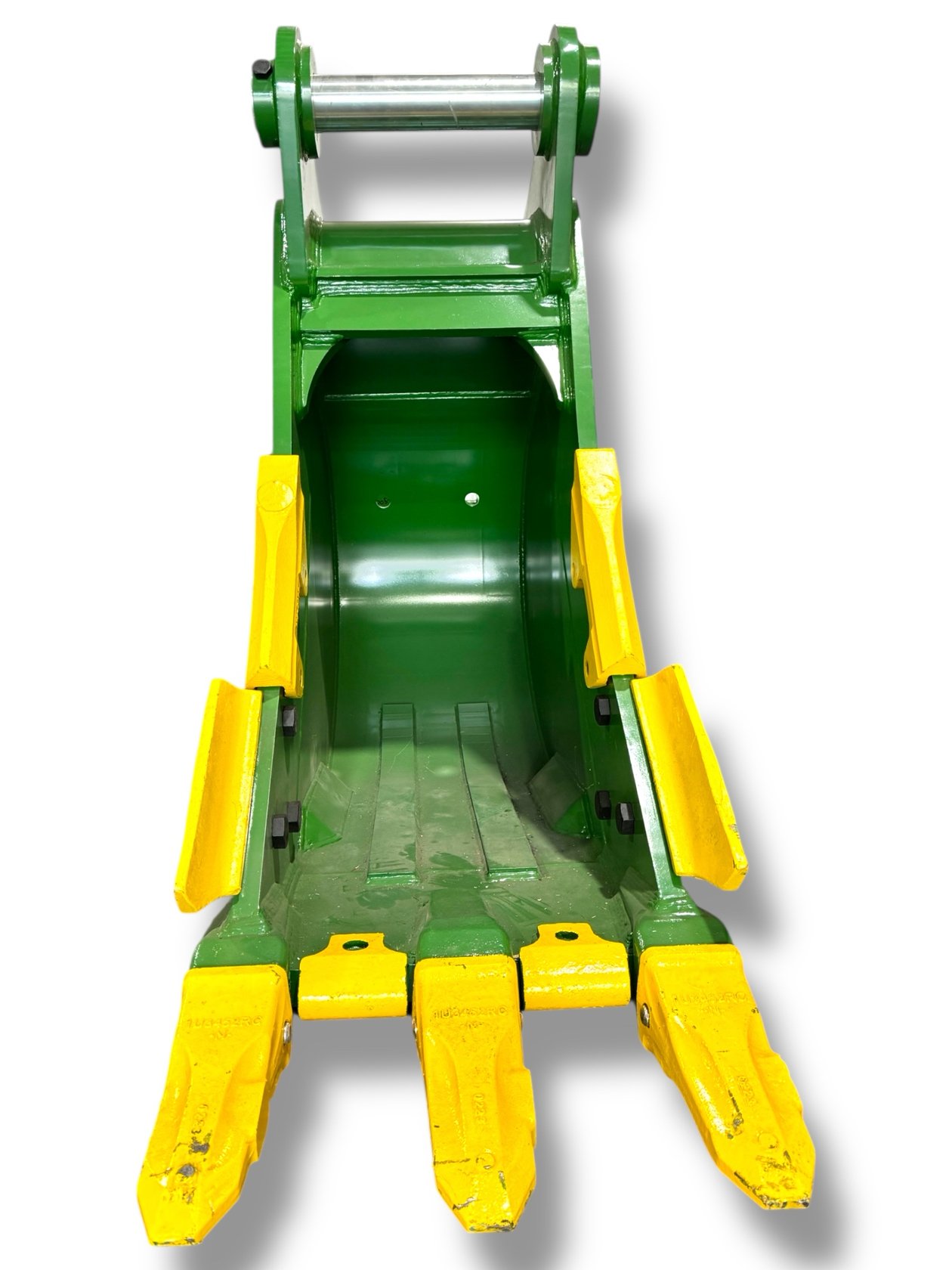

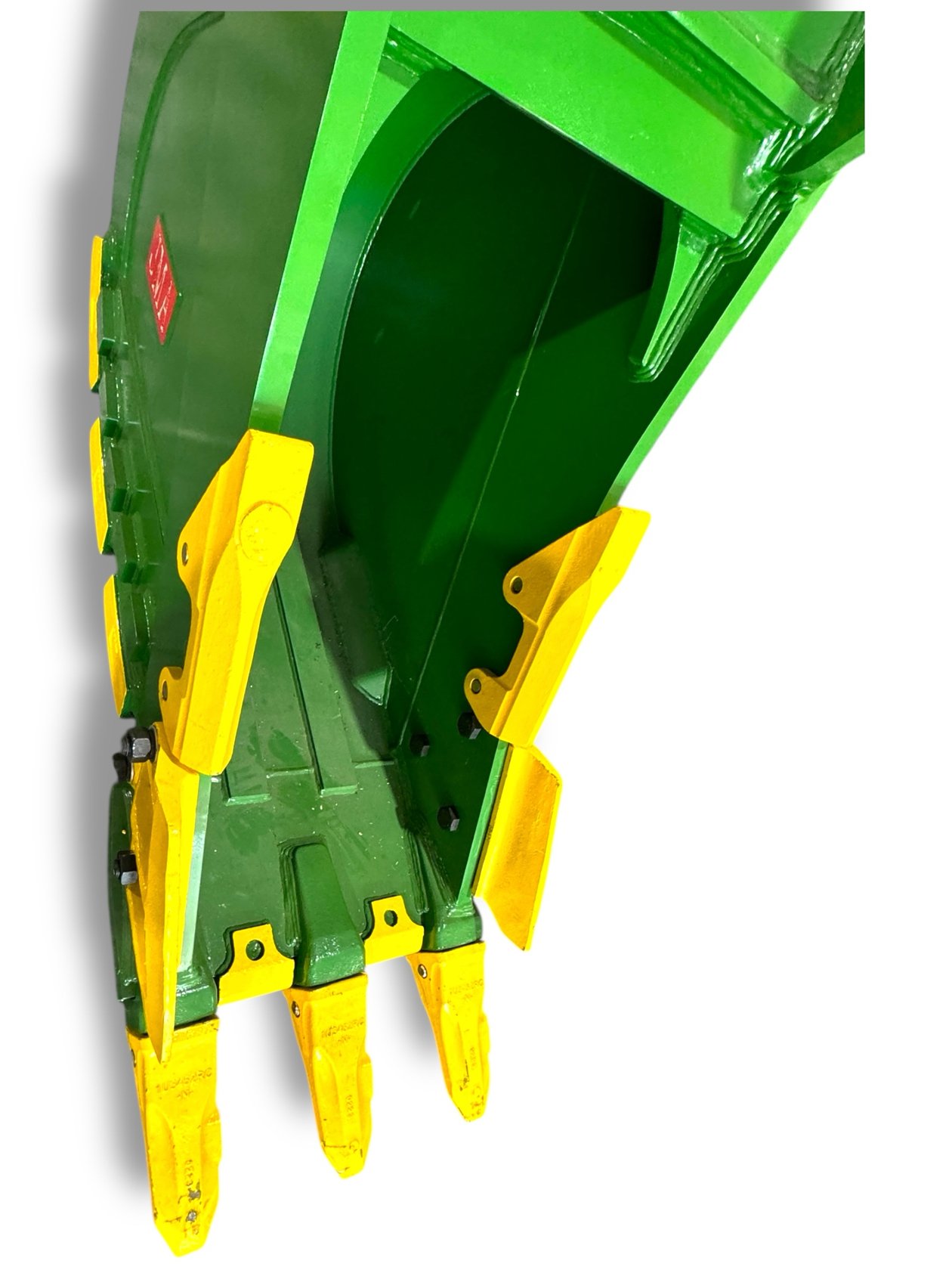

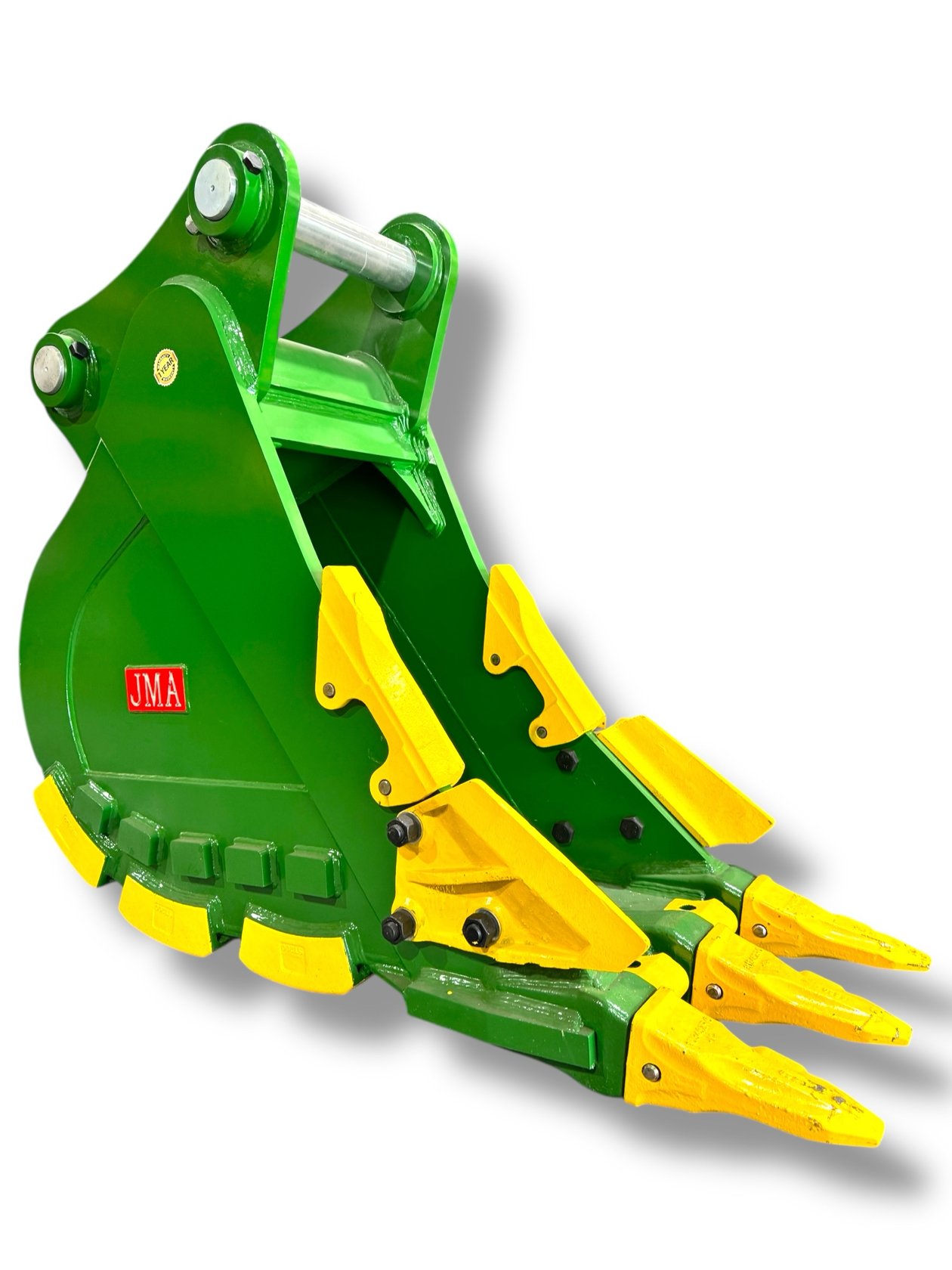

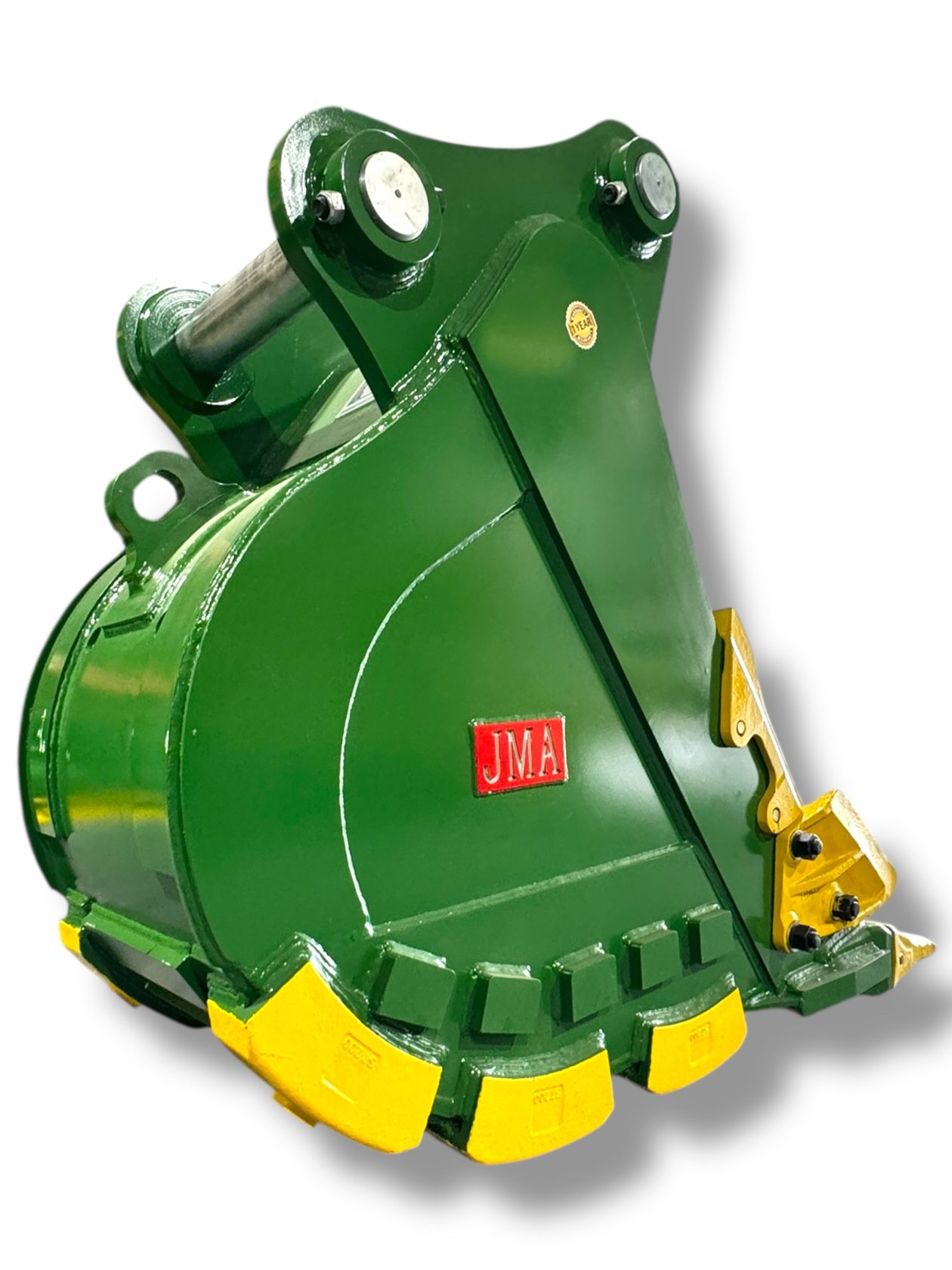

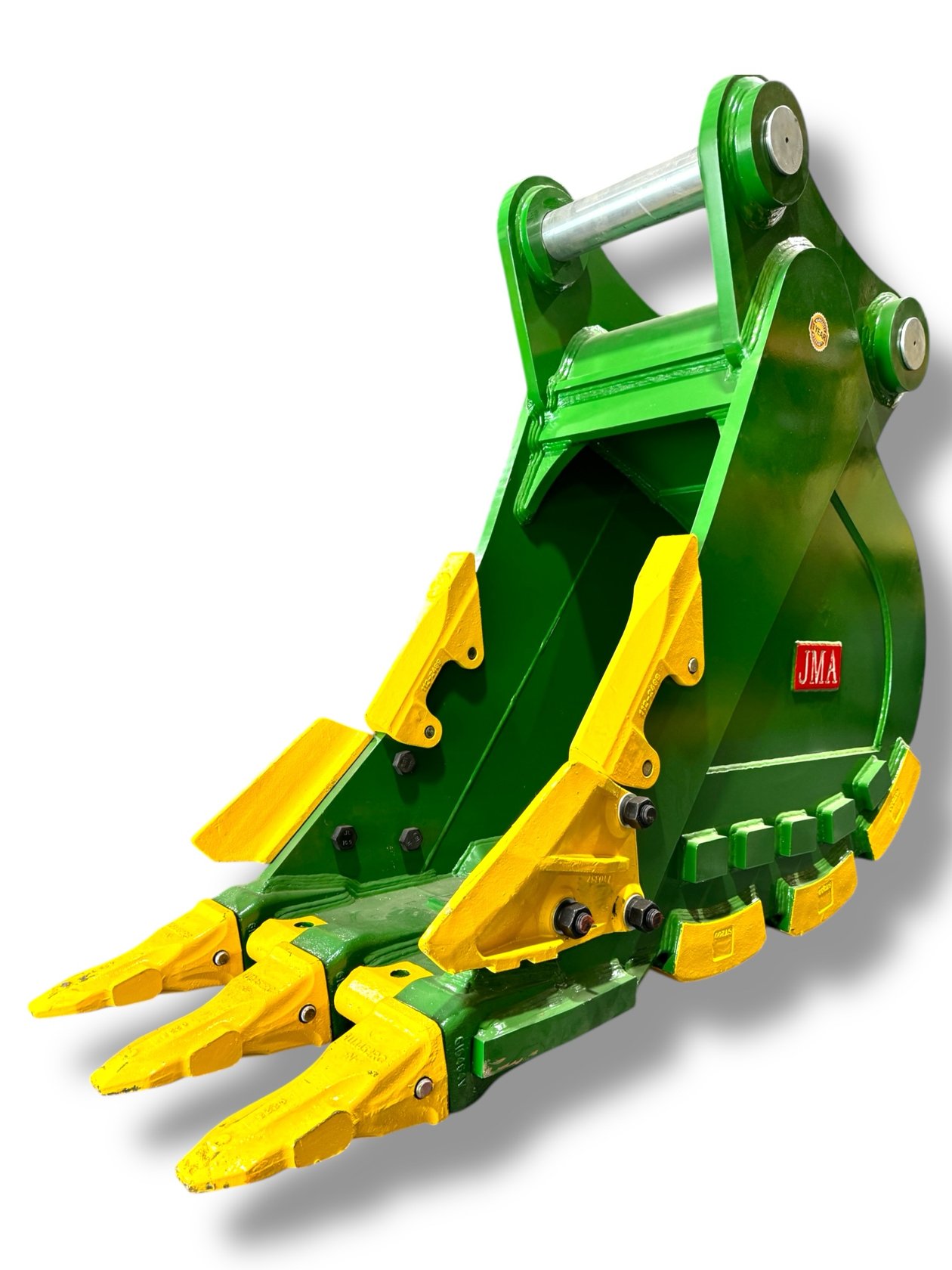

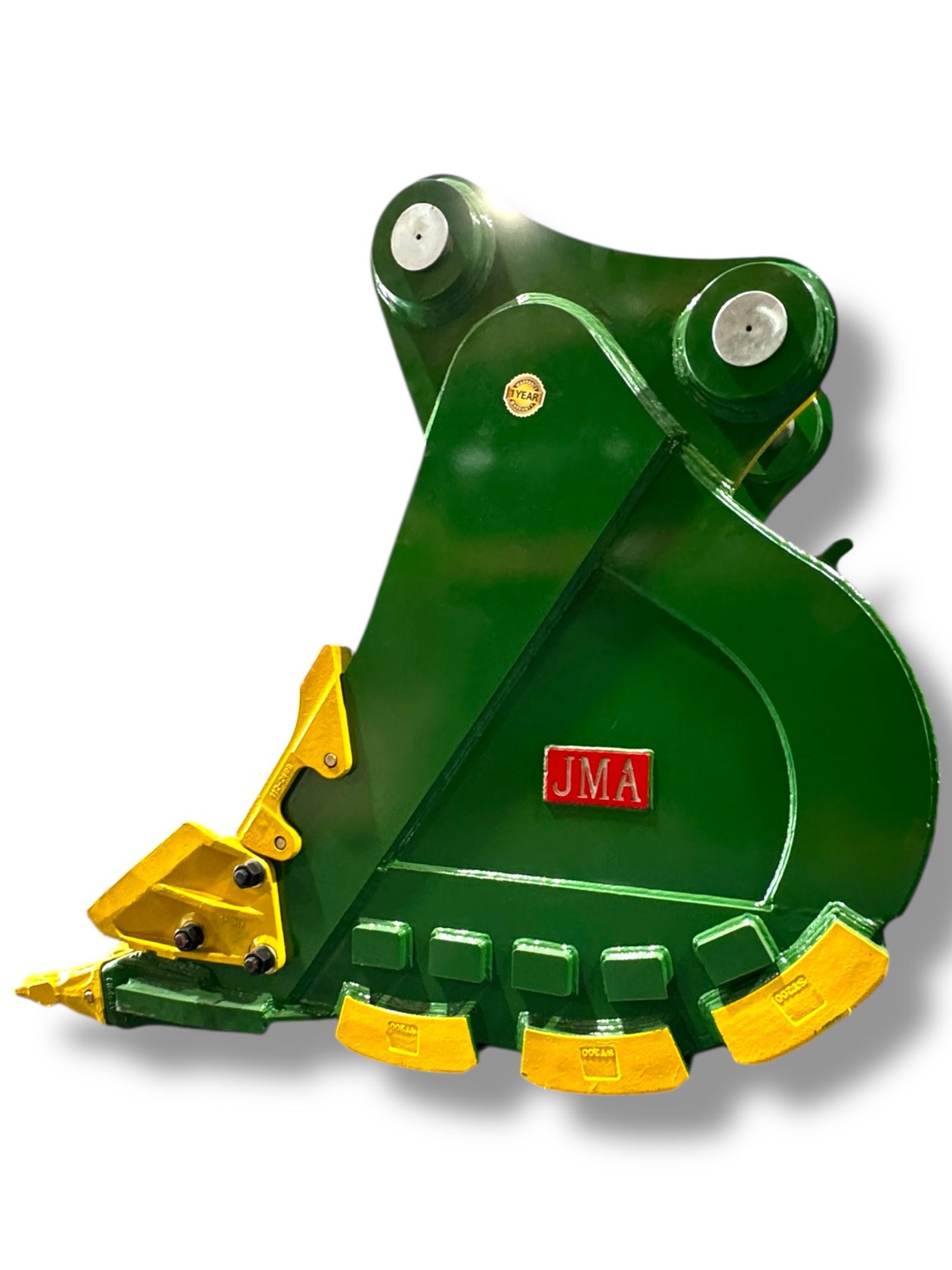

24″ Severe Duty Digging Bucket for 23 – 36 Tons Excavators. 90mm Pins
- Fits 23–36 ton excavators · 90 mm pins · 381 mm ear to ear
- 24" wide (610 mm) · 1 m³ capacity · AR400 steel body · 30 mm side walls · powder-coated green
- Pins included
- Ships from Miami, FL the same business day when ordered before 2 PM ET · US-based support
- 2-year warranty · lifetime warranty on structural welds
Bucket Size: 24"
Frequently Bought Together
| Coupler Type | Pin On Style |
|---|---|
| Carrier Weight Class (tn) | 23 - 36 tons |
| Carrier Weight Class (lb) | 46,000 - 72,000 lb |
| Rear Ear to Ear (mm) | 381 mm |
| Center to Center (mm) | 485 mm |
| Front Pin Length (mm) | 615 mm |
| Rear Pin Length (mm) | 615 mm |
| Bucket Depth (mm) | 879 mm |
| Capacity (m³) | 1 m³ |
| Front Pin Diameter (mm) | 90 mm |
| Front Ear to Ear (mm) | 381 mm |
| Material Type | AR400 Steel |
| Finish | Powder-Coated Green |
| Features | 3x Reinforced Side Plates |
| Product Weight (kg) | 713 kg |
| Product Weight (lbs) | 1571.89 lb |
| Bucket Side Wall Thickness (mm) | 30 mm |
| Bucket Width (mm) | 609.6 mm |
| Rear Pin Diameter (mm) | 90 mm |
| Inner Bucket Height (mm) | 1,193 mm |
| Bucket Size | 24" |
| Pin Size | 90mm |
| Tooth Number | 1U3352RC |
| Tooth Pin Part Number | 9J2258 |
| Caterpillar | 324CL, 324D FM, 324D LR, 324DL, 324DL LR, 324DL ME, 324DLN, 324DLN VA, 324E, 324E LN, 324E LR, 324EL, 324EL LR, 324FL, 325, 325 D, 325 GC, 325B L, 325C L, 325D L, 325D LN, 325FL CR, 325L D Linkage, 326, 326D2, 326D2L, 326DL, 326F, 326FL, 326FLN, 326 GC, 328 D, 328DL CR, 329D, 329D2, 329D2L, 329D CS, 329DL, 329DL LR, 329DL ME, 329DL VA, 329DLN, 329DLN VA, 329E, 329EL LR, 329E LR, 329E LRE, 329EL, 329ELN, 329F, 329FL, 330, 330 GC, 330BL, 330C, 330C L, 330D, 330D2, 330D2 L, 330D L, 330DL DB, 330F L, 335FL CR, M325B |
|---|---|
| Kobelco | SK300, SK300 Mark IV, SK300LC, SK300LC Mark IV, SK320-VI, SK320LC-V1, SK320LC-VI, SK330-8, SK330-9, SK330-10, SK330-VI, SK330LC-8, SK330LC-9, SK330LC-10, SK330LC-V1, SK330LC-VI, SK330NLC-V1, SK330NLC-VI, SK350LC-8 |
| Komatsu | HB365LC-1, HB365 NLC-1, PC300, PC300 HD, PC300 HDLC-3, PC300LC, PC300LC-2, PC300LC-3, PC300LC-4, PC300LC-5, PC300LC-5A, PC300LC-5K, PC300LC-5L, PC300LC-5LC, PC300LC-6, PC300LC-6A, PC300LC-6B, PC300LC-6C, PC300LC-6D, PC300LC-6E, PC300LC-6K, PC300LC-6L, PC300LC-6LC, PC300LC-6LE, PC300LC-6P, PC300LC-6Z, PC300LC-7, PC300LC-7E, PC300LC-7E0, PC300LC-7L, PC300LC-7LE, PC300LC-8L, PC300LC-8M0, PC300LC-10, PC300 LCSE-7, PC300 SE, PC300 SE-6, PC300 SE-7, PC300 SE-8, PC300-1, PC300-2, PC300-2C5, PC300-3, PC300-3B, PC300-4, PC300-5, PC300-5A, PC300-5C, PC300-5K, PC300-5L, PC300-6, PC300-6A, PC300-6E, PC300-6L, PC300-6Z, PC300-7, PC300-7E0, PC300-8, PC300-8M0, PC300L, PC300L-5, PC300LC-8, PC300N, PC300NLC, PC300NLC-3, PC300NLC-3K, PC300NLC-5, PC300NLC-5K, PC300NLC-6, PC308, PC308LC-3, PC308LC-7, PC308USLC, PC308USLC-3, PC308USLC-3E0, PC310, PC310LC, PC310LC-5, PC310-5, PC330LC, PC330-3, PC340, PC340 HRD-7E0, PC340LC, PC340LC-6, PC340LC-6K, PC340LC-6KJ, PC340LC-7, PC340LC-7E0, PC340LC-7K, PC340LC-8, PC340 LCD-7, PC340-6, PC340-6K, PC340-7, PC340NLC, PC340NLC-6, PC340NLC-6K, PC340NLC-6KJ, PC340NLC-7, PC340NLC-7E0, PC340NLC-7K, PC350, PC350 HD-8, PC350LC, PC350LC-6, PC350LC-6E, PC350LC-6Z, PC350LC-7, PC350LC-7E, PC350LC-7E0, PC350LC-8, PC350LC-8K, PC350LC-8M0, PC350LC-10, PC350LC-11, PC350-6, PC350-6E, PC350-6Z, PC350-7, PC350-7E0, PC350-8, PC350-8M0, PC350-10, PC350NLC-8, PC350NLC-8K, PC350NHRD-8, PC360LC-3, PC360LC-5K, PC360LC-6K, PC360LC-11E0, PC360 LCI-11, PC360 LCI-11EO, PC360-3, PC360-5, PC360-7, PC360-8M0, PC360-11M0, PC360LC-5, PC360NLC-10, PC360NLC-11, PC360NLC-11E0 |
| Liugong | 930, 930E, 930F, 933E |
| Sany | SY245, SY255, SY265, SY285, SY330, SY335 |
| Volvo | EC240, EC240 LR, EC240 NLC, EC240B, EC240B LR, EC240B NLC, EC240C, EC240C L, EC240C LR, EC240C NL, EC250, EC250D, EC250DL, EC250E, EC250E LR, EC250EL, MX255LS, SE240LC-3 |
24" Severe Duty Digging Bucket for 23 - 36 Tons Excavators. 90mm Pins. Fits 23–36 ton excavators, 90 mm pins, 381 mm ear to ear. Included: pins. Price: $7,267.00, in stock, ships from Miami, FL the same business day when ordered before 2 PM ET.
Unleash unparalleled earthmoving efficiency with the 24" Severe Duty Digging Bucket for 23 - 36 Tons Excavators. 90mm Pins. Precision-crafted for 46,000 - 72,000 lbs class Excavators, this premium bucket is the key to maximizing your operation's productivity and profitability.
Superior Features:
• Volume Virtuoso: 1 m³ capacity ensures more material moved per cycle, significantly reducing project timelines and labor costs.
• Built for Extreme Longevity: AR400 Steel construction provides exceptional durability, minimizing downtime and replacement expenses.
• Advanced Tooth Technology: 3 Teeth Rock Chisel Bucket Tooth teeth (J350 series) offer superior penetration and extended service life.
• Innovative Design: 3x Reinforced Side Plates for optimal material flow and reduced cycle times, enhancing fuel efficiency.
Elevate your excavation game. The 24" Severe Duty Digging Bucket for 23 - 36 Tons Excavators. 90mm Pins isn't just an attachment – it's a strategic investment that delivers tangible returns through increased efficiency and reduced operational costs.
Are pins included?
Yes. Pins are included.
Will it fit my machine?
Tell us your machine, we confirm the fit before shipping. Pin-on attachments are sized from your machine's pin diameter, pin-to-pin distance and ear width. If your machine has a quick coupler, is a long-reach model or was modified, measure those three and send them to us before you order. If we confirmed the fit from your accurate machine and coupler details and our recommendation is wrong, report it within 14 calendar days of delivery: the JMA Fitment Money-Back Promise gives a full product refund, outbound and return freight covered, no restocking fee.
How fast does it ship?
In-stock items ship from Miami, FL the same business day when ordered before 2 PM ET; orders after 2 PM ET, on weekends or on holidays ship the next business day. Carrier estimates for the lower 48, in business days from the ship date: parcels of 50 lb or less 5–7 standard or 2–4 expedited; LTL freight over 50 lb 7–10 standard or 4–6 expedited, usually with a delivery appointment and a signature. Outside the lower 48, shipping is quoted. Inspect it before you sign and note any damage on the delivery receipt.
What does the warranty cover?
Defects in materials and workmanship are covered for 2 years or 2,000 operating hours, whichever comes first: year 1 parts and pre-approved labor, year 2 parts only. Lifetime warranty on structural welds. Teeth, cutting edges, pins and bushings are wear items and are not covered. Get our written approval before any repair.
Can I return it?
Yes, for standard products: a refund within 14 calendar days of delivery, or store credit within 30, if it is unused, uninstalled, free of soil and grease, and in its original packaging with all hardware. Get a Return Authorization Number (RAN) from us first. The buyer pays return shipping unless the item was defective, damaged or wrong because of our error, or you can drop it off at our warehouse, 8068 NW 29th St, Doral, FL, Monday to Friday, 9 AM to 5 PM, with your RAN. A restocking fee applies to non-defective refunds; store credit has no restocking fee. Original outbound shipping is not refunded on change-of-mind returns. Installed or used attachments can't be returned.
DISCLAIMER
JMA Attachments provides heavy machinery attachments that must be used with care by
competent individuals under supervision, if necessary. Use of any equipment, including ours, involves
potential risk of injury. You accept and assume full responsibility for any and all injuries, damages
(both economic and non-economic), and losses of any type that may occur, and release JMA Attachments,
its insurers, employees, officers, directors, associates, and agents from all claims and liabilities
resulting from the use of said equipment.
Except for the written JMA Attachments Warranty (/warranty/), JMA Attachments makes no other warranty, express or implied, including merchantability or fitness for a particular purpose. BUYER ASSUMES ALL LIABILITY IN THE USE OF THE EQUIPMENT. The purchaser must ensure operators are properly trained and comply with all laws and regulations. You agree to be legally bound by this disclaimer by purchasing and using our products. If you disagree, do not proceed with purchasing or using the equipment.
