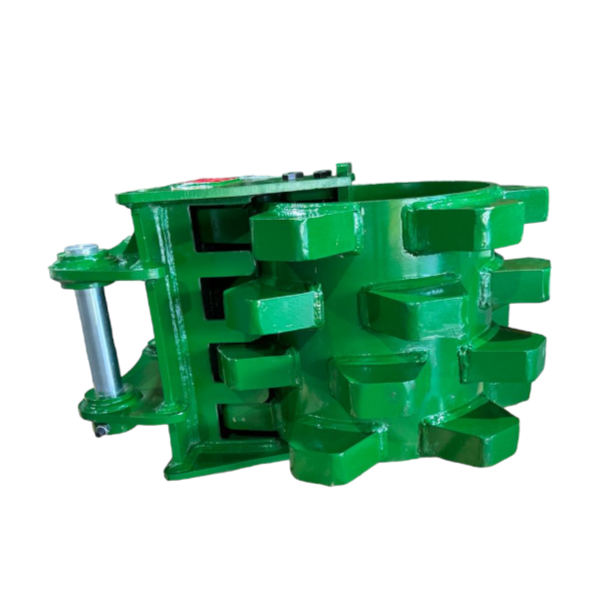

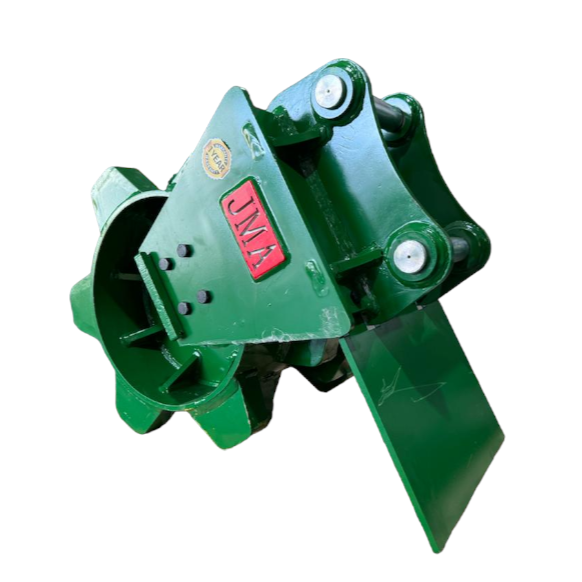

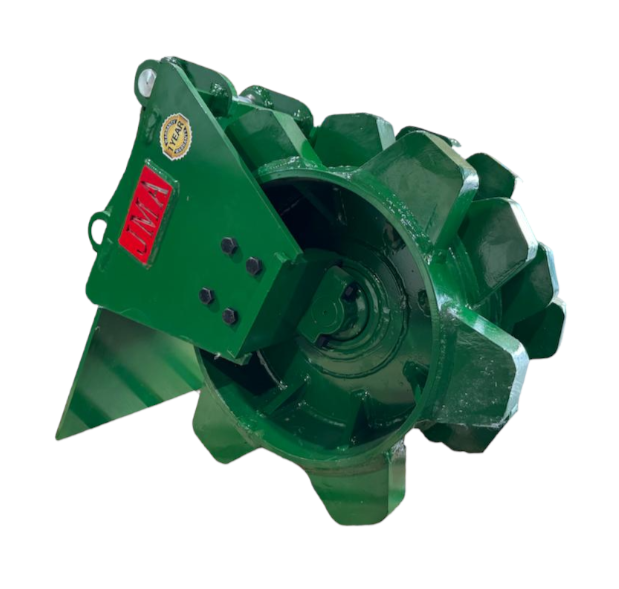

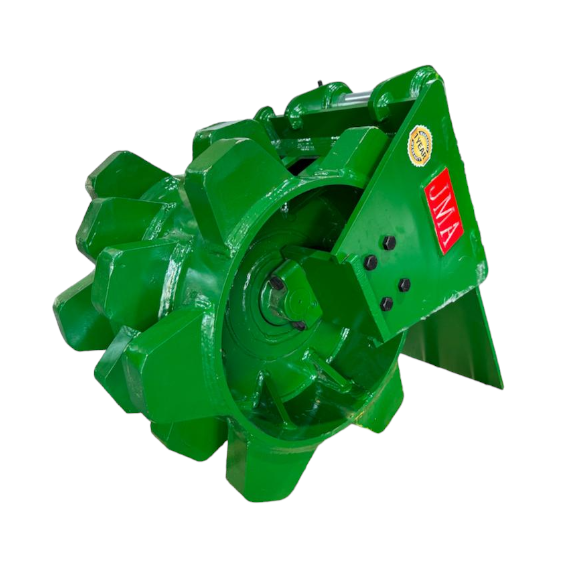

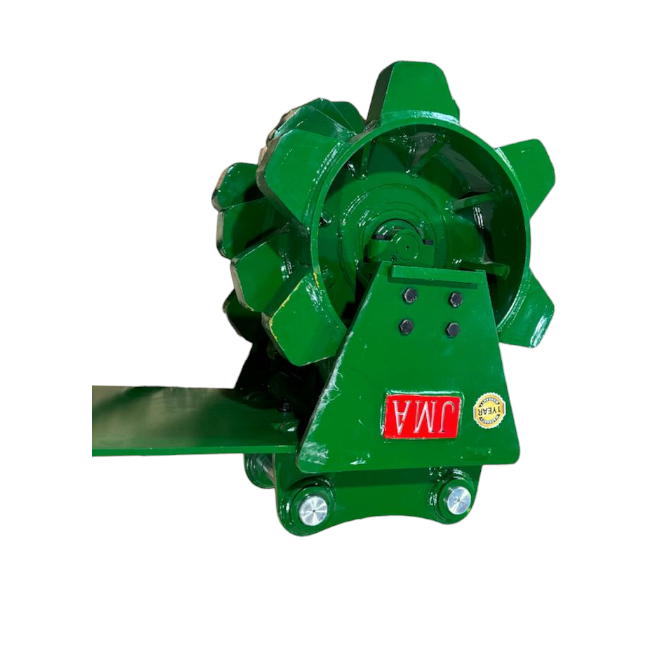

21″ Compaction Wheels for 11 – 15 Tons Excavator. 65mm Pins
- Fits 11–15 t excavators · 65 mm pins, 220 mm ears, 408 mm pin centers
- 21" compaction width · 1,113 lb · Bolt-on leveling blades, 403 mm wide x 14 mm thick
- Ships from Miami, FL · US-based support
- 2-year warranty · lifetime warranty on structural welds
Availability: Out of Stock
Frequently Bought Together
| Compaction Width (mm) | 520 mm |
|---|---|
| Material Type | AR400 Steel |
| Finish | Powder-Coated Green |
| Product Weight (lbs) | 1,113.33 lb |
| Product Weight (kg) | 505 kg |
| Coupler Type | Pin On Style |
| Carrier Weight Class (tn) | 11 - 15 tons |
| Carrier Weight Class (lb) | 22,000 - 30,000 lb |
| Center to Center | 408 mm |
| Inner Wheel Dimension | 500 mm |
| Outer Wheel Dimension | 705 mm |
| Pin Size | 65mm |
| Rear Ear to Ear (mm) | 220 mm |
| Front Pin Diameter (mm) | 65 mm |
| Rear Pin Diameter (mm) | 65 mm |
| Front Ear to Ear (mm) | 220 mm |
| Bobcat | 444A, 444B |
|---|---|
| John Deere | 710C, 710D, 710G, 710K, 710L, 710 P-Tier, 710J, 110, 120, 120LC, 120C, 120CLC, 120D, 130G, 135 P-Tier, 135C, 135D, 135G, 490, 490D |
| Volvo | BM 6300, EL70, EL70C, L70, L70B, L70C, L70D, L70F, L70E, L70G, L70H, EC120, EC120C, EC120D, EC120E, EC130, EC130C, EC135BLC, EC140, EC140LC, EC140 LCM, EC140-7, EC140B, EC140BLC, EC140C, EC140CL, EC140CLM, EC140D, EC140DL, EC140DLM, EC140E, EC140E LM, EC140EL, EC145D, EC145E, EC150C, ECR145, ECR145C, ECR145CL, ECR145D, ECR145D L, ECR145E, ECR145EL, ECR145SE, EW130, EW130C, MX135WS/LS, SE130LC-3, SE130W-3 |
| Case | CX130, CX130LC, CX130B, CX130BLC, CX130C, CX130C LR, CX130D, CX130DLC, CX130E, CX130K, CX135, CX135 CR, CX135 MSR, CX135 SR, CX135C, CX140E, CX145 CSR, CX145 DSR, CX145C, CX145D MSR |
| Caterpillar | 311, 311 V2, 311B, 311BL, 311C, 311C U, 311D, 311D LRR, 311D RR, 311F RR, 311FL, 311F LRR, 312, 312 V2, 312B, 312B LGP, 312BL, 312BLN, 312C, 312CL, 312C LR, 312D, 312D2, 312D2 GC, 312D2L, 312DL, 312E, 312EL, 312F, 312F L, 312F GC, 312 GC, 312L, 313, 313B, 313B CR, 313B SR, 313C, 313C CR, 313C SR, 313D, 313D2, 313D2 GC, 313D2 L, 313D CR, 313D SR, 313DL, 313E, 313F, 313F GC, 313FL, 313FLGC, 313 GC, 314, 314C, 314C CR, 314CL CR, 314CL LCR, 314D CR, 314DL CR, 314DL, 314E CR, 314EL CR, 314E SR, 314EL, 314F CR, 314GL CR, 315, 315LN, 316 GC, E120B, M313C, M313D, 450, 450E, 450F |
| Daewoo | S130LC III, S130LC V, S130-2, S130W, S130W-111, S140LC-V |
| Develon | DX100W-7, DX140LC-7K |
| Doosan | DH140W-7, DH150LC-7, DH150W-7, DX100W-7, DX120, DX130, DX130-9CN, DX140, DX140LC-3, DX140LC-5, DX140LC-7, DX140LC-9C, DX140 LCA, DX140LCR, DX140LCR-3, DX140LC, DX140LC-7K, DX140W, DX140WA, DX140WACE, DX140WE, DX150LC-9C, DX150W-9C, S130WV, S140W V, S140WV RW |
| Hitachi | EX100, EX100-1, EX100-2, EX100-3, EX100-5, EX100M-5, EX100WD, EX100WD-1, EX100WD-2, EX100WD-3, EX100WD-3C, EX120, EX120-1, EX120-2, EX120-3, EX120-5, EX125WD-5, EX130, EX130K, EX130UR-1, EX130UR-5, EX130W, EX135, EX135UR, EX135UR-1, EX135UR-5, EX135US, EX135USR, EX150, UH053, UH063, WH04D, ZX110, ZX110-2, ZX110-3, ZX110BL, ZX110E, ZX110M, ZX110M-3, ZX120, ZX120 IV, ZX120LC, ZX120-2, ZX120-3, ZX120-5B, ZX120-6, ZX120B, ZX120BL, ZX120E, ZX120USR-5, ZX125US, ZX130, ZX130LC, ZX130LC-3, ZX130LC-5N, ZX130 LCM, ZX130 LCN, ZX130 LCN-3, ZX130 LCN-5, ZX130 LCN-5B, ZX130 LCN-6, ZX130 LCN-7, ZX130-3, ZX130-5, ZX130-5A, ZX130-5B, ZX130-5G, ZX130-5N, ZX130-6, ZX130-6N, ZX130-7, ZX130-7H, ZX130BL, ZX130H, ZX130K, ZX130K HG, ZX130K-3, ZX130K-5B, ZX130K-6, ZX130L, ZX130MT, ZX135, ZX135U, ZX135UR, ZX135US, ZX135USLC, ZX135US-1, ZX135US-2, ZX135US-3, ZX135US-5, ZX135US-5B, ZX135US-5N, ZX135US-6, ZX135US-6N, ZX135US-7, ZX135US-7H, ZX135US-E, ZX135USB-3, ZX135USB-5, ZX135USBL-3, ZX135USBL-5, ZX135USBL-6, ZX135USBL-7, ZX135USK, ZX135USK-3, ZX135USK-6, ZX135USM, ZX135USOS-3, ZX135USOS-5B, ZX135USOS-6, ZX135USR-5, ZX135USTN-Z, ZX140H, ZX140W-3 |
| Hyundai | 130W, HX125, HX130LCR, HX130ALCR, HX140, HX140LC, HX140A L, HX140L, HX145, HX145ALCR, HX145LCR, R110-7, R110-7A, R110D-7, R120W, R125LCR-9, R125LCR-9A, R130LC, R130LC-3, R130W, R130W-3, R140LC-7, R140LC-9, R140LC-9A, R140LC-9S, R140W-7, R140W-9, R145CR-9, R145LC-9, R145LCR-9A |
| Ihi | IS110, IS120 |
| JCB | 131LLC, 131X, 131XLC, 140X, 145X, 814S, JS130, JS130LC, JS130C, JS131, JS131LC, JS135, JS135LC, JS145, JZ140, JZ141 |
| Kato | 400GS, 450, 512, 572, HD450 SEV, HD450 SEV-II, HD450 VII, HD450-7, HD512, HD512 E, HD512-3, HD512-5, HD512-7, HD512-III, HD512-R5, HD513 MR, HD513 MR-3, HD550SE |
| Kobelco | K905, K905LC MARK II, K905A, K905ALC, SK100, SK100-2, SK100-3, SK100V, SK115SR, SK115SR-1E, SK115SRDZ, SK120, SK120-2, SK120-5, SK120LC, SK120v, SK125SR, SK125SR-2, SK125SR-3, SK130, SK130-8, SK130LC, SK130LC-11, SK130UR, SK135SR, SK135SR-1E, SK135SR-2, SK135SR-3, SK135SRLC, SK140LC-8, SK140SRLC, SK140SRLC-7 |
| Komatsu | PC100, PC100LC, PC100LC-1, PC100LC-2, PC100LC-3, PC100LC-4, PC100LC-5, PC100LC-6, PC100-1, PC100-2, PC100-3, PC100-4, PC100-5, PC100-5Z, PC100-6, PC100-6E, PC100-6ZE, PC100-7, PC100-8, PC100L, PC100L-1, PC100L-2, PC100L-3, PC100L-5, PC100L-6, PC100N, PC100N-6, PC100SS-3, PC100U, PC100U-2, PC100U-3, PC110, PC110-1, PC110-2, PC110-7, PC110R, PC110R-1, PC110SP-6, PC118MR-8, PC120, PC120LC, PC120LC-3, PC120LC-4, PC120LC-5, PC120LC-5L, PC120LC-6, PC120LC-6E, PC120LC-6E0, PC120LC-6L, PC120LC-6LE, PC120LC-7, PC120 LE, PC120-1, PC120-1 -2, PC120-2, PC120-3, PC120-3K, PC120-3W, PC120-4, PC120-5, PC120-5C, PC120-5G, PC120-5K, PC120-5Z, PC120-6, PC120-6AC, PC120-6E, PC120-6E0, PC120-6J, PC120-6L, PC120-6M, PC120-6Z, PC120-6ZE, PC120-7, PC120-8, PC120-11, PC120-15, PC120B, PC120BE, PC120SC-6E, PC120SS-3, PC120UU, PC128, PC128LC, PC128-1, PC128-2, PC128U, PC128U-2, PC128US, PC128USLC, PC128USLC-2, PC128US-1, PC128US-1MB, PC128US-2, PC128US-2A, PC128US-2E0, PC128US-2E1, PC128US-2H, PC128US-2MB, PC128US-5, PC128US-6, PC128US-8, PC128US-10, PC128US-11, PC128USI-10, PC128UU, PC128UU-1, PC128UU-1E, PC128UU-1MB, PC128UU-1Y, PC128UU-2, PC128UU-2E0, PC128UU-6, PC128UU-8, PC128UU-15, PC128UUMB, PC130, PC130LC, PC130LC-6, PC130LC-7, PC130LC-8, PC130LC-11, PC130-3, PC130-5, PC130-5K, PC130-5S, PC130-6, PC130-6E, PC130-6K, PC130-6W, PC130-7, PC130-7K, PC130-8, PC130-11, PC130F-7, PC135, PC138, PC138LC, PC138LC-2, PC138US, PC138USLC, PC138USLC-2, PC138USLC-2E, PC138USLC-2E0, PC138USLC-3, PC138USLC-7, PC138USLC-8, PC138USLC-10, PC138US-2, PC138US-2E, PC138US-2E1, PC138US-8, PC138US-8NM, PC138US-10, PC138US-11, PC138US-11E0, PC150, PC150 HD, PC150 HD-3, PC150 HD-5, PC150 HD-5K, PC150LC, PC150LC-1, PC150LC-5, PC150 SE, PC150-1, PC150-3, PC150-3W, PC150C, PC150C-3, PC150C-6, PW150, PW150-6 |
| Link-Belt | 130 LX, 130 X2, 130 X3, 130 X4, 130 X4LC, 135 LX, 135 Spin Ace, 135 X3 SPIN, MS120, MS120-2 |
| Liugong | 913, 913E, 913F, 915D |
| Lonking | CDM6150 |
| Samsung | SE130LC, SE130LC-2, SE130LC-3, SE130LCM-2 |
| Sany | SY115, SY115C, SY125, SY125C PRO, SY130-1, SY135, SY135 IV, SY135-2, SY135-3A, SY135C, SY135C-9, SY135U, SY140C-9S, SY155W |
| Sumitomo | S260F2, SH120, SH120-1, SH120-3, SH120- 2, SH120-A3, SH125X-3, SH130-5, SH130-6, SH130LC-5, SH135X, SH135X-3, SH135X-3B, SH145X-6, SH145X-6B |
| Takeuchi | TB1140, TB2150R |
| Terex | TC125 |
21" Compaction Wheels for 11 - 15 Tons Excavator. 65mm Pins. Fits 11–15 t excavators, 65 mm pins, 220 mm ears, 408 mm pin centers. Price: $4,397.00, out of stock right now.
Introducing the 21" Compaction Wheels for 11 - 15 Tons Excavators. 65mm Pins – where power meets finesse in ground preparation. This 21" powerhouse is set to transform the way you approach soil compaction.
Key Features:
• Coverage Champion: The 21" width ensures rapid and uniform compaction, saving you time and effort on every project.
• Durability Defined: Forged from top-grade AR400 Steel for years of reliable service in the toughest conditions.
• Excavator Enhanced: Engineered to work in perfect harmony with your machine, maximizing its capabilities and your investment.
• Versatility Unleashed: From landscaping to road construction, conquer diverse compaction challenges with ease.
Experience the future of soil preparation. With the 21" Compaction Wheels for 11 - 15 Tons Excavators. 65mm Pins, you're not just compacting – you're crafting the perfect foundation for construction excellence.
Will it fit my machine?
Tell us your machine, we confirm the fit before shipping. Pin-on attachments are sized from your machine's pin diameter, pin-to-pin distance and ear width. If your machine has a quick coupler, is a long-reach model or was modified, measure those three and send them to us before you order. If we confirmed the fit from your accurate machine and coupler details and our recommendation is wrong, report it within 14 calendar days of delivery: the JMA Fitment Money-Back Promise gives a full product refund, outbound and return freight covered, no restocking fee.
How fast does it ship?
In-stock items ship from Miami, FL the same business day when ordered before 2 PM ET; orders after 2 PM ET, on weekends or on holidays ship the next business day. Carrier estimates for the lower 48, in business days from the ship date: parcels of 50 lb or less 5–7 standard or 2–4 expedited; LTL freight over 50 lb 7–10 standard or 4–6 expedited, usually with a delivery appointment and a signature. Outside the lower 48, shipping is quoted. Inspect it before you sign and note any damage on the delivery receipt.
What does the warranty cover?
Defects in materials and workmanship are covered for 2 years or 2,000 operating hours, whichever comes first: year 1 parts and pre-approved labor, year 2 parts only. Lifetime warranty on structural welds. Teeth, cutting edges, pins and bushings are wear items and are not covered. Get our written approval before any repair.
Can I return it?
Yes, for standard products: a refund within 14 calendar days of delivery, or store credit within 30, if it is unused, uninstalled, free of soil and grease, and in its original packaging with all hardware. Get a Return Authorization Number (RAN) from us first. The buyer pays return shipping unless the item was defective, damaged or wrong because of our error, or you can drop it off at our warehouse, 8068 NW 29th St, Doral, FL, Monday to Friday, 9 AM to 5 PM, with your RAN. A restocking fee applies to non-defective refunds; store credit has no restocking fee. Original outbound shipping is not refunded on change-of-mind returns. Installed or used attachments can't be returned.
