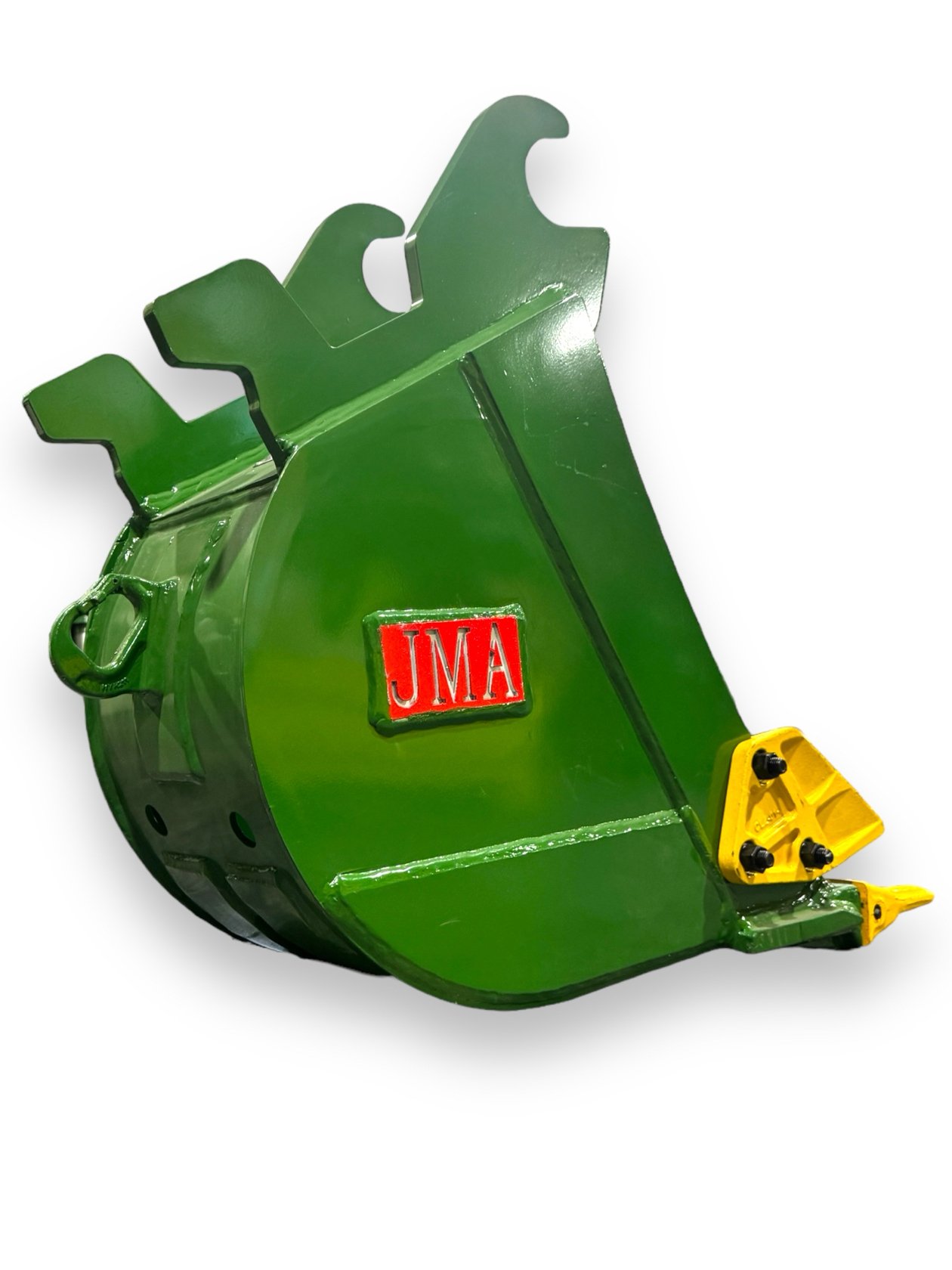

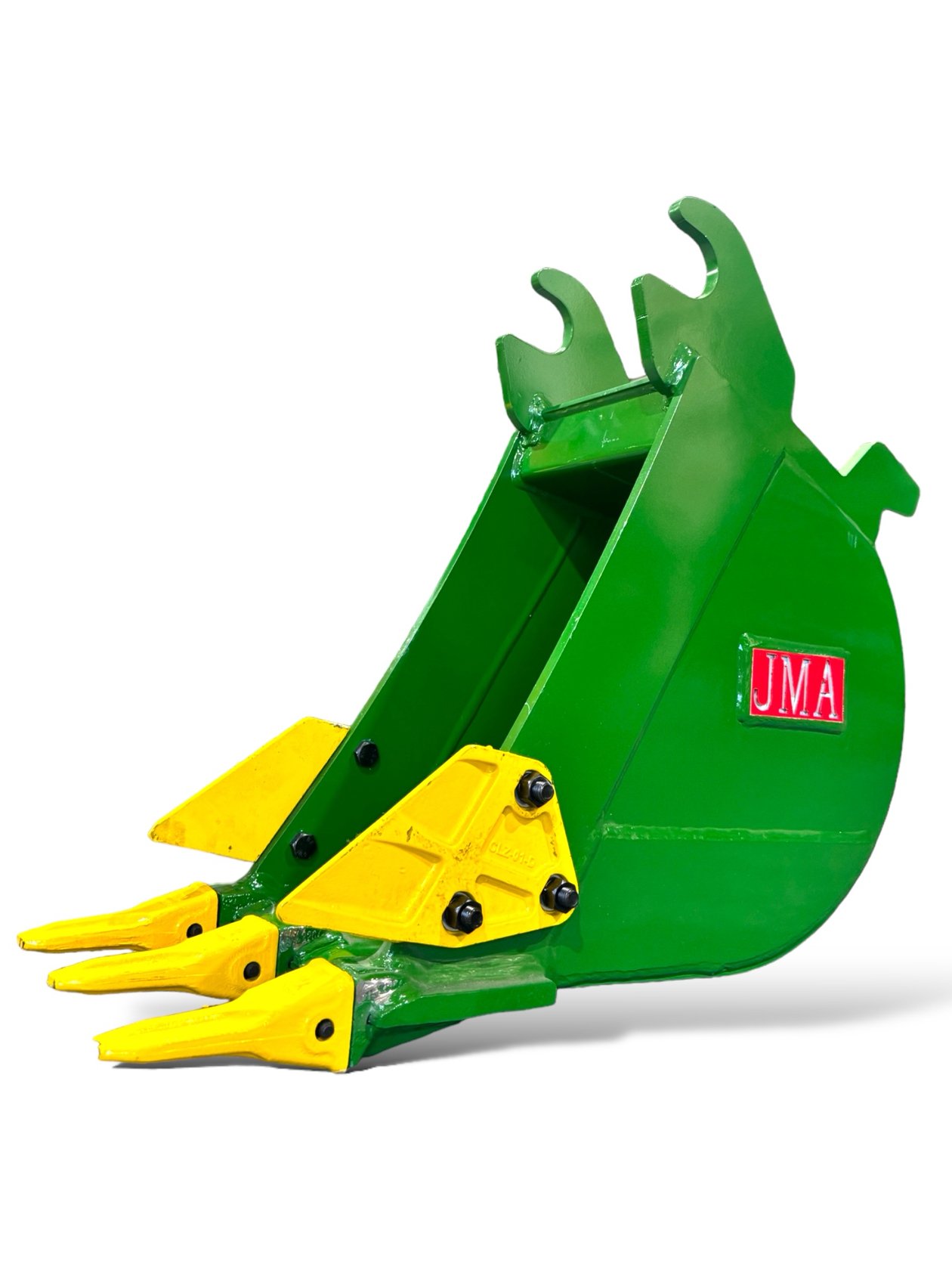

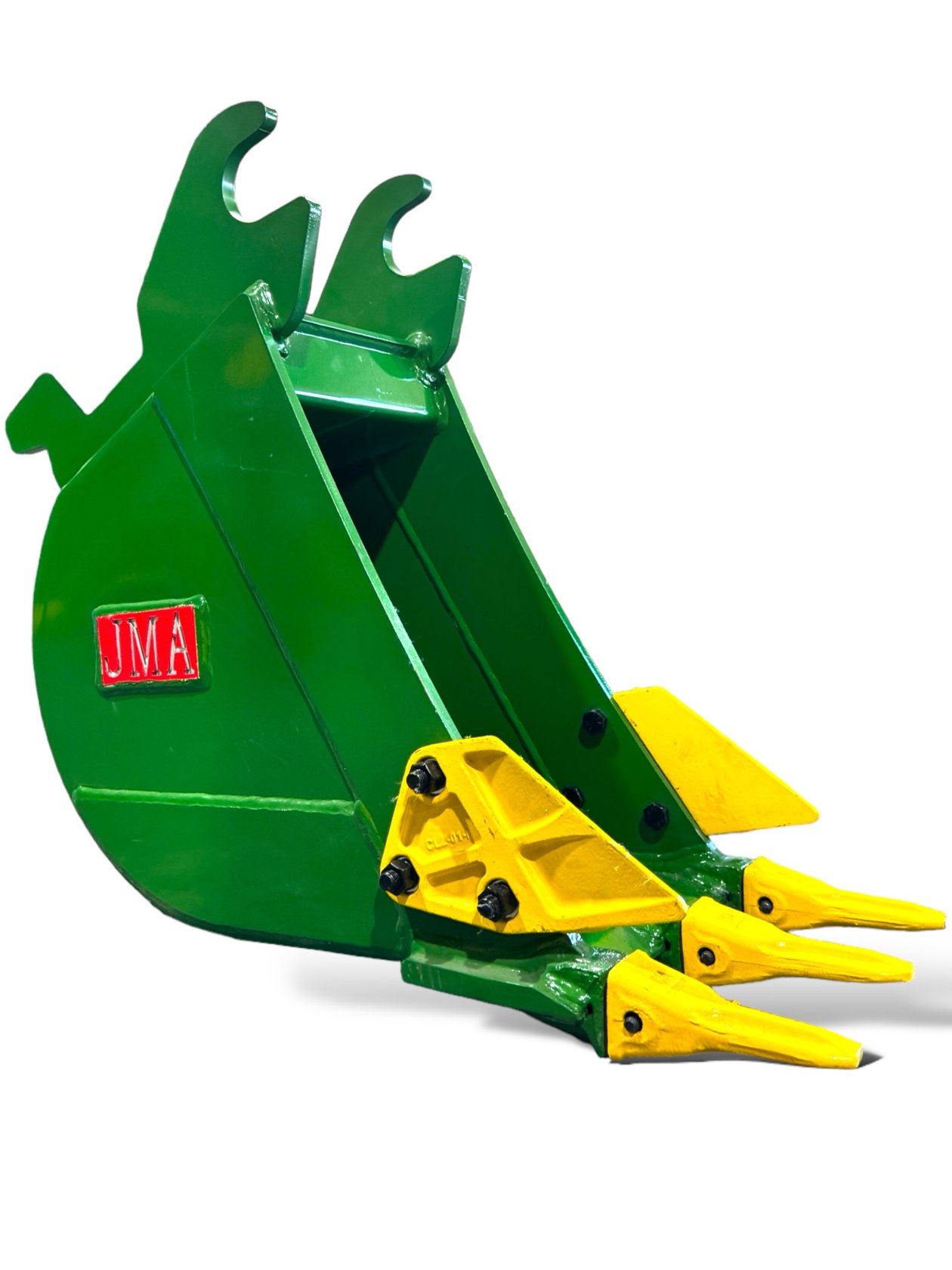

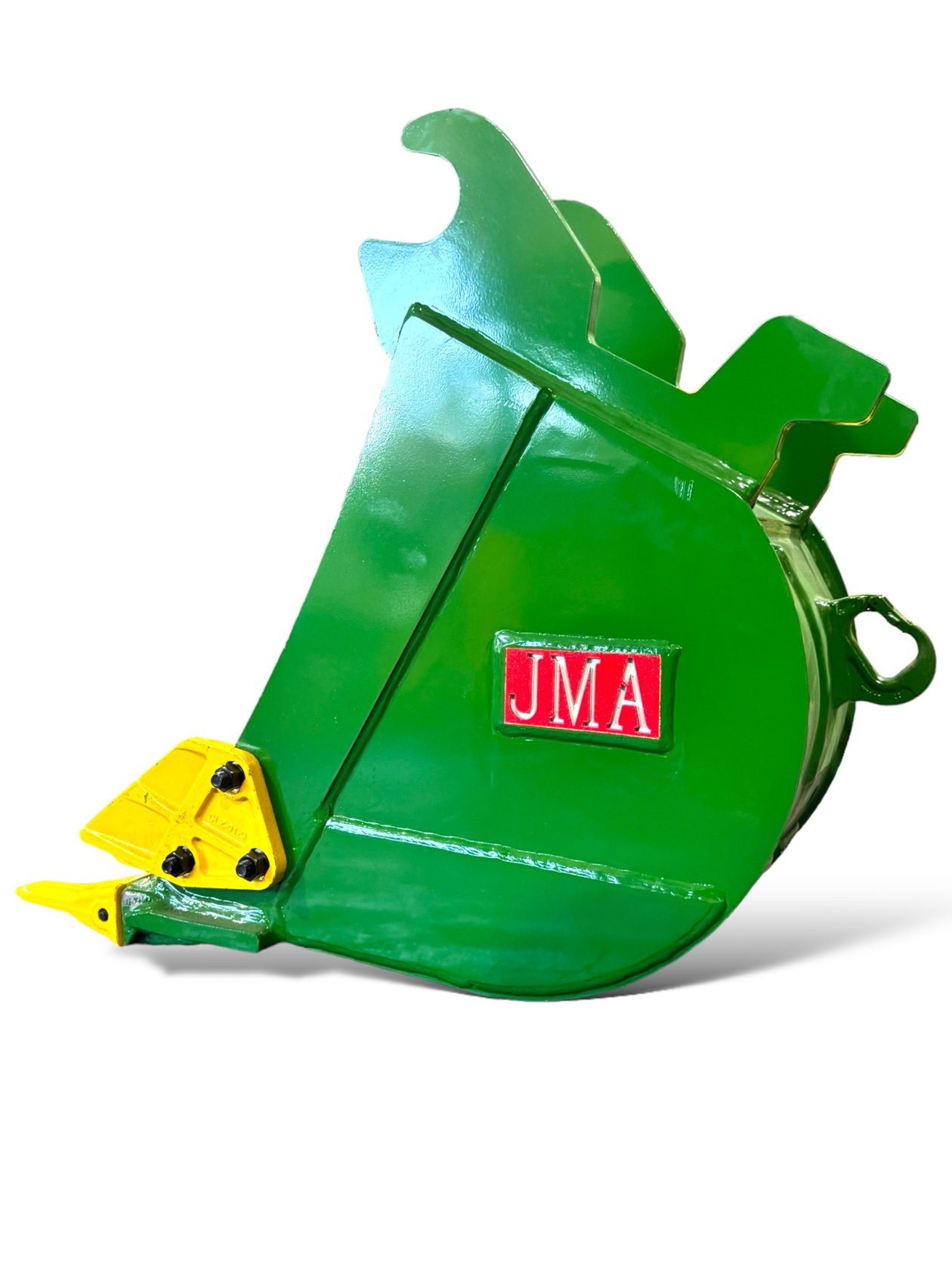

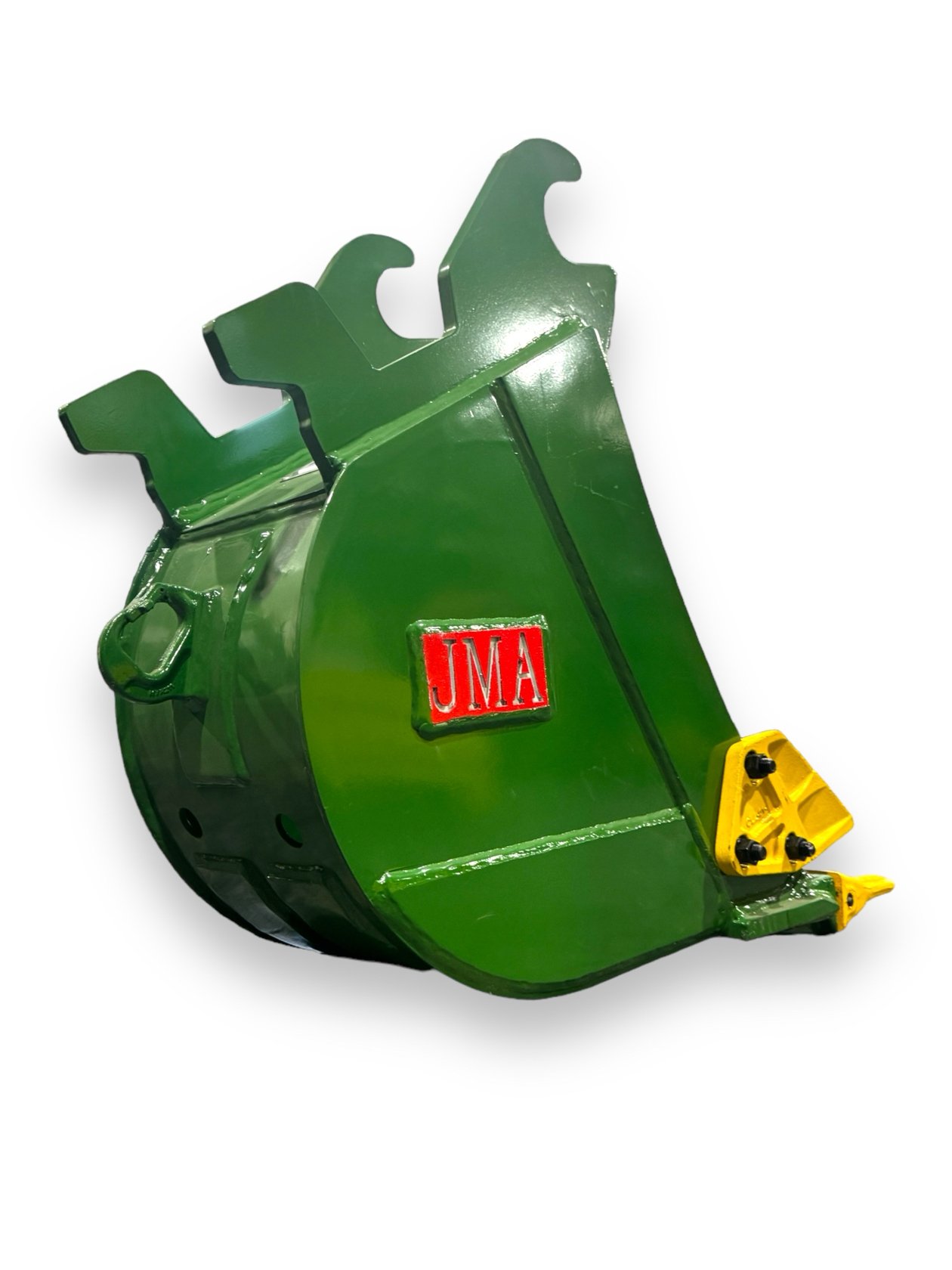

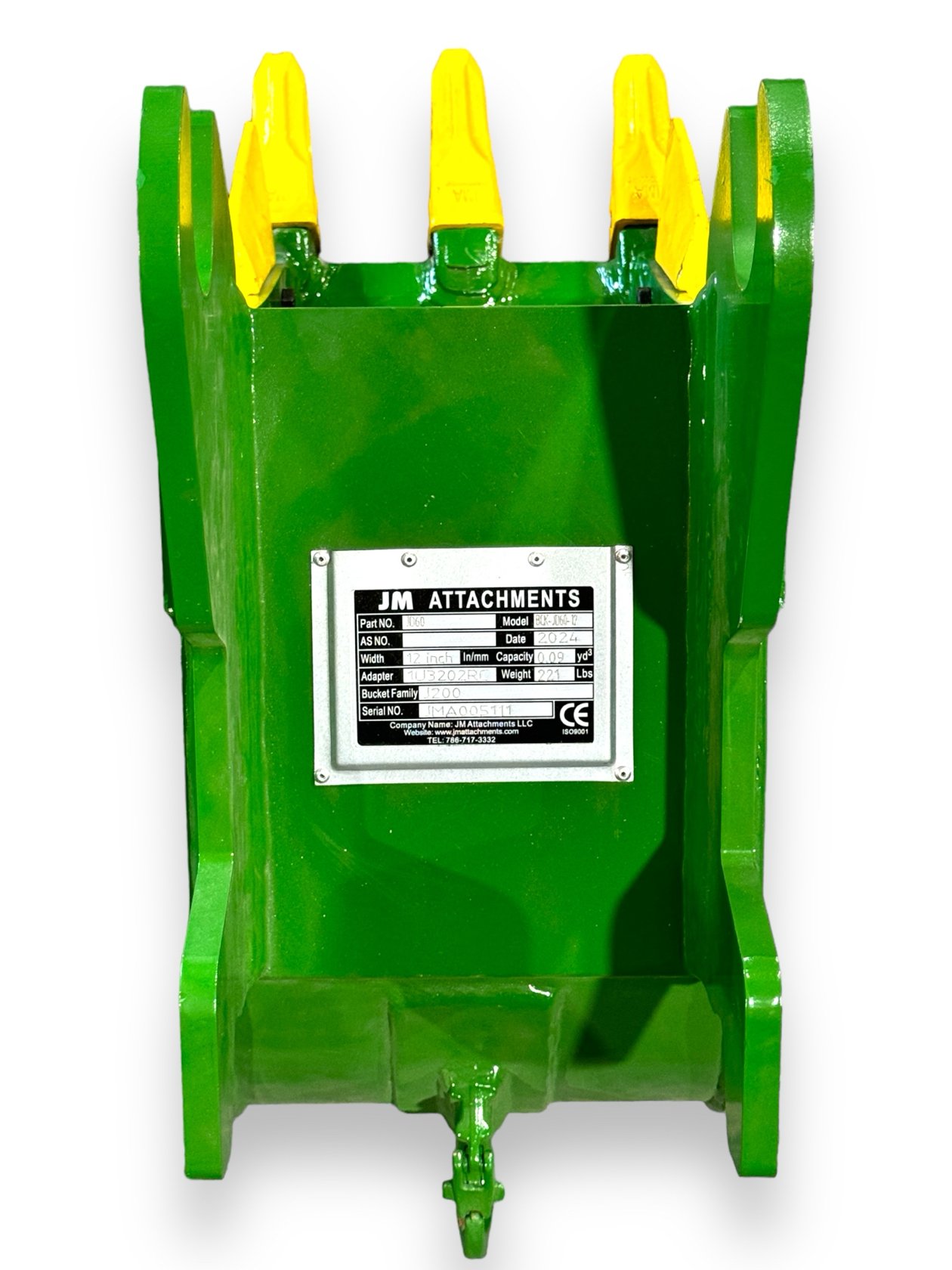

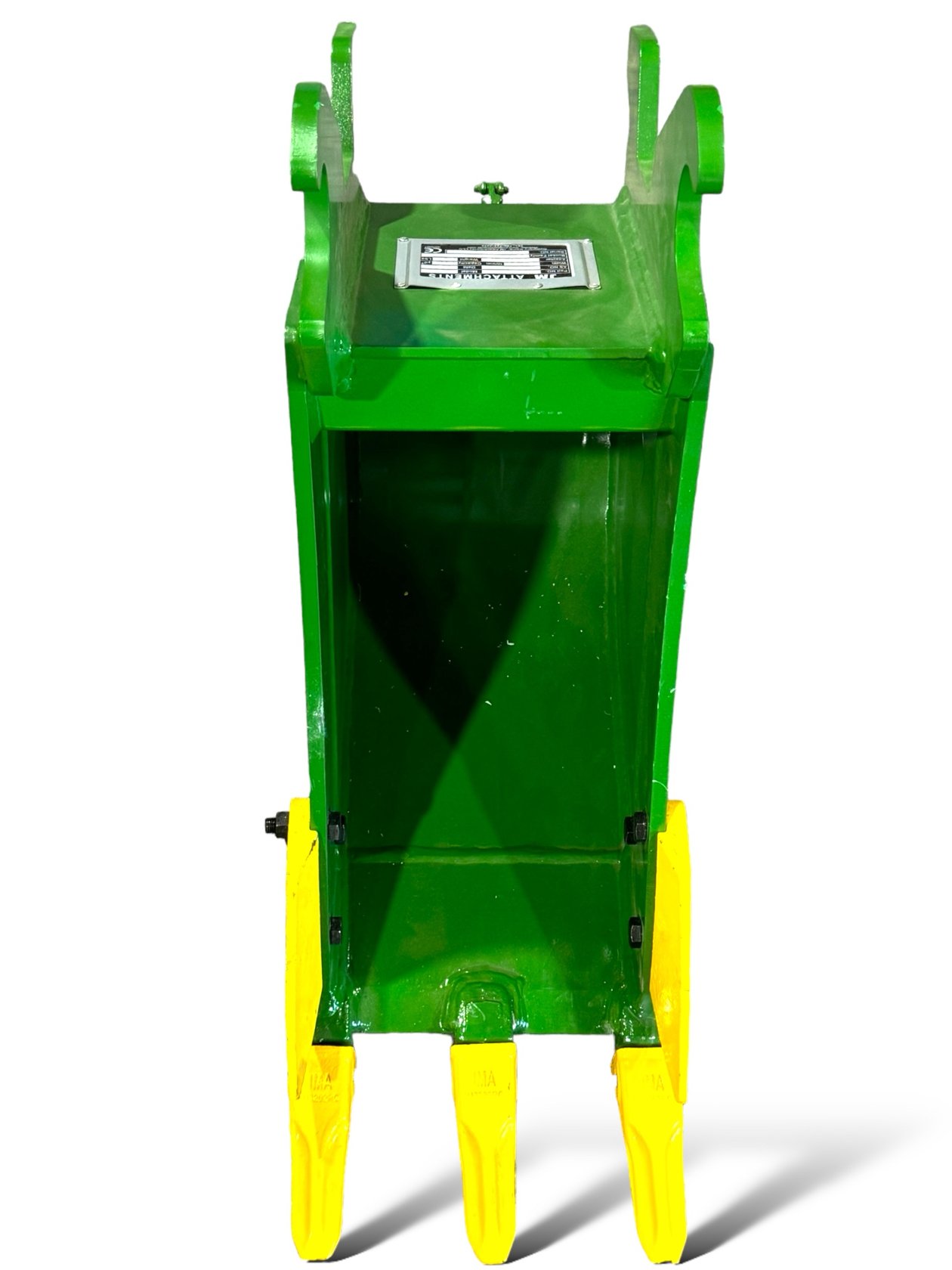

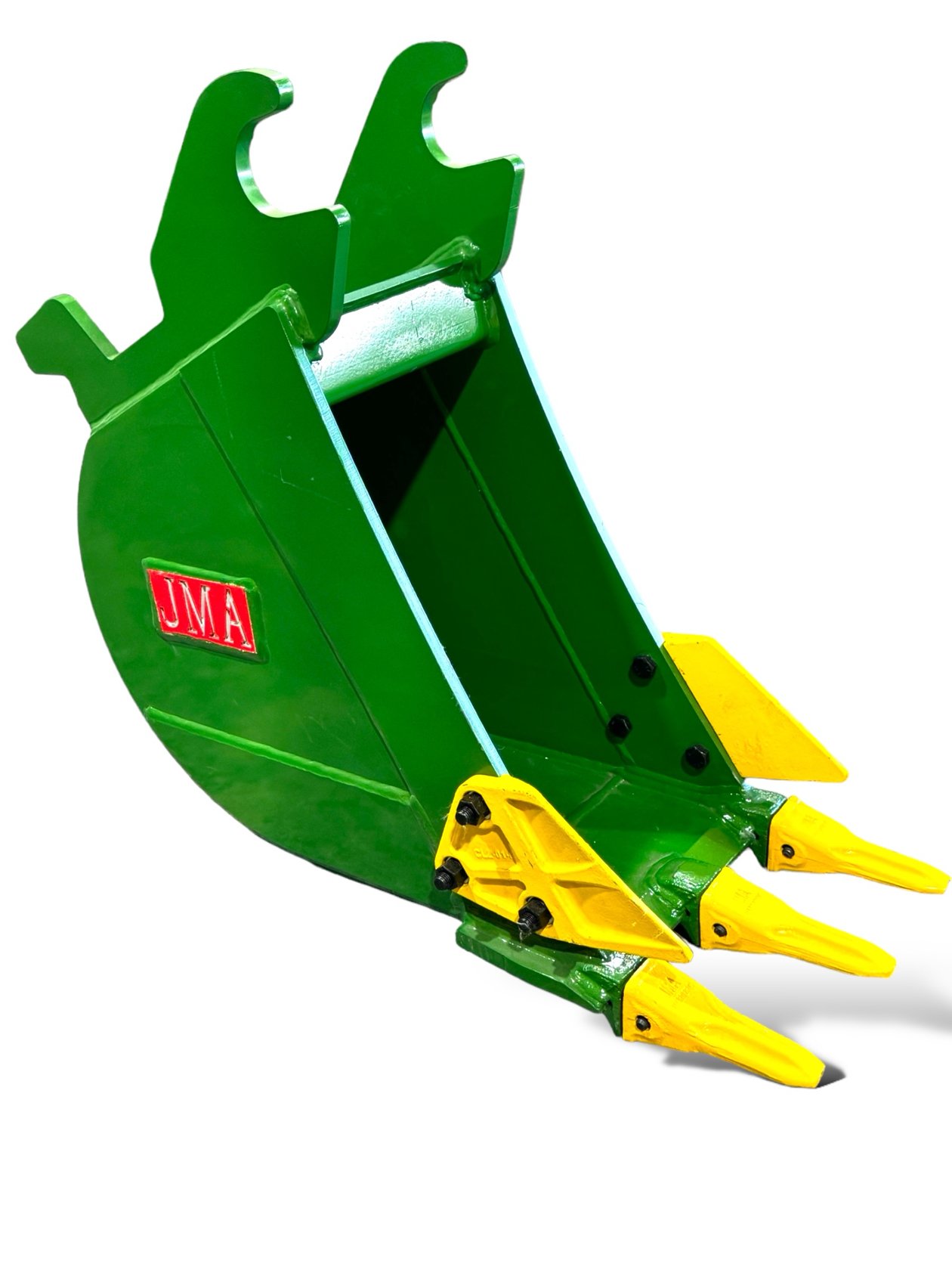

12″ Trenching Bucket John Deere Wedge Lock Coupler Style for 4 – 8.5 Tons Mini Excavators
- John Deere-style coupler · 4–8.5 ton class
- 12" wide (305 mm) · 0.10 m³ capacity · AR400 steel body · 14 mm side walls · 262 lb
- 3 teeth (1U3202RC) and 2 side cutters included
- Ships from Miami, FL · US-based support
- 2-year warranty · lifetime warranty on structural welds
Bucket Size: 12"
Availability: Out of Stock
Frequently Bought Together
| Coupler Type | John Deere Style |
|---|---|
| Carrier Weight Class (tn) | 4 - 8.5 tons |
| Carrier Weight Class (lb) | 8,000 - 17,000 lb |
| Bucket Depth (mm) | 460 mm |
| Capacity (m³) | 0.10 m³ |
| Tooth Retainer Part Number | 8E6209 |
| Drain Holes (ct.) | 2 ct. |
| Material Type | AR400 Steel |
| Finish | Powder-Coated Green |
| Features | 3x Reinforced Side Plates |
| Bucket Width (mm) | 305 mm |
| Rear Ear to Ear (mm) | 229 mm |
| Front Ear to Ear (mm) | 229 mm |
| Bucket Side Wall Thickness (mm) | 14 mm |
| Inner Bucket Height (mm) | 640 mm |
| Tooth (ct.) | 3 Teeth |
| Bucket Size | 12" |
| Bucket Type | Trenching Bucket |
| Product Weight (lbs) | 262.35 lb |
| Tooth Number | 1U3202RC |
| Tooth Pin Part Number | 9W7112 |
| Tooth Style | Rock Chisel Bucket Tooth |
| Airman | AX40, AX40U, AX40U-4, AX40U-5F, AX45, AX48U-5A, AX50, AX50-2, AX50U-4, AX50U-5F, AX55U-5A, AX55U-6A |
|---|---|
| Bobcat | 341, 341D, 341G, 430H, 430HAG, 430HGZHS, 435, 435AG, 435AGZHS, 435DZHS, 435EG, 435G, 435GZHS, 435H, 435HAG, 435HEGZHS, 435HG, 435ZHS, 442, 442A, 442B, 442C, 442D, 442E, 442G, 442R, 442X, E38, E40, E42, E42M, E42R2, E45, E45EM, E45M, E48, E48R2, E50, E50EM, E50M, E50R2, E50Z, E55, E55EM, E55M, E55R2, E55W, E55Z, E57W, E58, E60, E60A, E60EA, E60R2, E62, E62EM, E63, E63M, E65W, X335, X337, X337D, X337G, X341, X341D, X341G, X435, X435G, X435HAG, X435ZHS |
| Case | CX40, CX40B, CX47, CX50, CX50B, CX55, CX55B, CX57, CX57C, CX58, CX60, CX60C, CX65D |
| Caterpillar | 304, 304 CR, 304.5, 304C CR, 304D CR, 304E2, 304E2 CR, 305, 305 CR, 305 CR2, 305 SR, 305 SR II, 305.5, 305.5 SR, 305.5D CR, 305.5E, 305.5E2 CR, 305.5E CR, 305BR, 305C, 305C CR, 305D, 305D CR, 305E, 305E2 CR, 305E CR, 306, 306 CR, 306.5, 306D, 306E, 428MK1, 428MK2, E70, E70B |
| Daewoo | S50, S50 V, S055, S55 V PLUS, S55-V, S55V-G, S55W V, S75LC V, S75-V, Solar 55, Solar 55-V, Solar 75-V |
| Develon | DX42-7, DX50Z-7, DX55, DX55R-7, DX57W-7, DX60WN ECO, DX63-7 |
| Doosan | DH55, DH55-7, DH55-V, DH60-7, DH70, DH70-7, DH80, DH80-7, DX42, DX42-5, DX42-5K, DX50, DX50-5, DX50-5K, DX50Z, DX50Z-7, DX53W, DX55, DX55-5B, DX55-5K, DX55-9C, DX55-9CN ACE, DX55A, DX55E, DX55MT ACE, DX55MT-5, DX55R-7, DX55W, DX55W-5, DX55W-5K, DX55W-5L, DX55WA, DX55WACE, DX55WK, DX57W-5, DX57W-7, DX60, DX60-9C, DX60-9CN, DX60E-9C, DX60E-9CN, DX60E-10N, DX60R, DX60W, DX60W ECO, DX60W-9C, DX60WN ECO, DX62, DX62R-3, DX62R-7, DX63, DX63-3, DX65-9C, DX70-9C, DX75, DX75-5B, DX75-9C, DX75-9CN, DX75E-9CN, DX80, DX80R, DX85, DX85R, S55, S55 V PLUS, S55-V, S55W V, S70, S75, S75LC V, S75-V, SL55, Solar 70-III |
| Ford | 550, 555, 555A, 555B, 555C, 555D, 655, 655A, 655C, 655D |
| HItachi | ZX50 |
| Hanix | H45, H50, H50B, H50C, H56B, H56C |
| Hitachi | EX40, EX40-2, EX40U, EX45, EX45-2, EX50, EX50U, EX50UR, EX50URG, EX55UR, EX55UR-3, EX58, EX58MU, EX60-1, EX60-2, EX60-3, EX60LC, EX60UR, EX60WD, EX75UR-3, EX75UU, UE02, ZX40U, ZX40U-2, ZX40U-3, ZX40U-5A, ZX48U-2, ZX48U-2 -3, ZX48U-3, ZX48U-5A, ZX50-2, ZX50U, ZX50U-2, ZX50U-3, ZX50U-3F, ZX50U-5A, ZX55U-2, ZX55U-2 -3, ZX55U-3, ZX55U-5A, ZX55UR-3, ZX60, ZX60-2, ZX60-3, ZX60-5A, ZX60U, ZX60US, ZX60USB, ZX60USBLC, ZX60USB-3, ZX60USB-3CLR, ZX60USB-3F, ZX60USB-5, ZX60USB-5N, ZX60USBNA-3, ZX65USB-3, ZX65USB-3F, ZX65USB-5, ZX65USB-5A, ZX65USB-5A CLP, ZX65USB-5A CLR, ZX65USB-5ALC, ZX65USB-6 |
| Hyundai | R55-3, R55-7, R55-9, R55-9A, R60CR-9, R60CR-9A, R60W-9S |
| Ihi | 50NX, 50VX, 55N, 55N-2, 55NX, IS40, IS40-JX, IS45 |
| JCB | 2CX, 45Z, 45Z-1, 48Z, 48Z-1, 50Z-1, 50Z-2, 51R-1, 55Z, 55Z-1, 56Z-2, 57C-1, 60C-2, 65R, 65R-1, 67C, 67C-1, 85Z-2, 805.2, 8040, 8040 ZTS, 8045, 8045 ZTS, 8052, 8052C, 8055, 8055 RTS, 8055 ZTS, 8060, 8060C, 8065, 8065 RTS, 8080, 8080 ZTS |
| John Deere | 50, 50C, 50 ZTS, 50C ZTS, 50D, 50D ZTS, 50G, 55 ZTS, 60D, 60G, 70D |
| Kobelco | SK40SR, SK40SR-1, SK40SR-2, SK040SR-3, SK40SR-3, SK040SR-5, SK40SR-5, SK042, SK045, SK045-1, SK045-2, SK045-3, SK045SR, SK45SR-1, SK45SR-2, SK45SRX-6E, SK050, SK050SR-3, SK50SR-3, SK050SR-5, SK50SR-5, SK50UR, SK50UR-2, SK55SR-5, SK55SRX-6, SK55SRX-6E |
| Komatsu | PC40-7, PC40MR-2, PC40MR-3, PC40MRC-2, PC40MRX, PC40MRX-1, PC40R-8, PC45, PC45 MRX-1, PC45-1, PC45R-8, PC50 MR, PC50 MRX-2, PC50MR-2, PC50UU-1, PC50UU-2, PC50UU-3, PC50UUT, PC50UUT-2, PC55, PC55MR-3, PC58SF-1, PC58UU-3, WB91, WB91R, WB93, WB93R, WB93R-8, WB97, WB97R, WB97R-8 |
| Kubota | K045, KH28, KH191, KX040, KX040-4, KX057, KX057-4, KX057-5, KX060, KX060-5, KX75, KX121, KX121-3, KX121-4, KX121-5, KX151, KX161, KX161-2, KX161-3, U40, U45, U45-3, U48-4, U48-5, U50-3, U50-5, U55, U55-4, U56-6 |
| Link-Belt | MM40, MM55, MS070 |
| Liugong | 9045D, 9045E |
| Nagano | NS45-3, NS55-3, NS55R-5 |
| New Holland | E50.2SR, EH50 BSR, EH50.B |
| Sany | SY50, SY50C, SY50U, SY55C, SY55C PRO, SY55U, SY60, SY60C, SY60C PRO, SY65C, SY65W |
| Sumitomo | SWE40U, SWE45, SWE50, SWE55 |
| Takeuchi | EH50B, TB045, TB45, TB53FR, TB138FR, TB145, TB153, TB153FR, TB240, TB250, TB250-2, TB260 |
| Terex | TC48, TC50, TC60 |
| Volvo | BL71 PLUS, EC50, EC50/W, EC55, EC55B, EC55B PRO, EC55C, EC55D, EC60BLC, EC60C, EC60D, EC60E, ECR38, ECR58, ECR58D, ECR58F, MX55/W, SE50-3, ECR40 |
| Wacker Neuson | 50Z, 50Z3, 6003, 6503, EZ50, EZ53 |
| XCMG | XCG60-8 |
| Yanmar | SV40, SV60, VIO40, VIO40-2, VIO40-3, VIO40-7, VIO45-5, VIO45-5B, VIO45-6A, VIO45-6B, VIO50, VIO50-2, VIO50-6A, VIO50-6B, VIO50B50, VIO55, VIO55-5, VIO55-5B, VIO55-6A, VIO55-6B, VIO57, VIO57-6B, YC45-7 |
12" Trenching Bucket John Deere Wedge Lock Coupler Style for 4 - 8.5 Tons Mini Excavators. Fit: John Deere-style coupler, 4–8.5 ton class. Included: 3 teeth (1U3202RC) and 2 side cutters. Price: $1,567.00, out of stock right now.
Transform your John Deere's trenching operations with the 12" Trenching Bucket John Deere Wedge Lock Coupler Style for 4 - 8.5 Tons Mini Excavators. Crafted for demanding professionals, this cutting-edge 12" Trenching Bucket sets new benchmarks in efficiency for utility and infrastructure projects.
Advanced Features:
• 3x Reinforced Side Plates ensuring unmatched durability and functionality
• Robust AR400 Steel construction for superior strength and longevity
• Exceptional digging power with 3 Teeth rugged teeth
• Efficient 0.13 yd³ capacity for rapid trenching progress
• Powder-Coated Green finish for seamless integration with John Deere equipment
• Optimized for ZTS Manual Wedge Quick Coupler attachment
Revolutionize your approach to specialized excavation tasks with your John Deere. The 12" Trenching Bucket John Deere Wedge Lock Coupler Style for 4 - 8.5 Tons Mini Excavators isn't just a bucket - it's your strategic advantage in conquering the most demanding trenching projects with unparalleled precision and efficiency.
Will it fit my machine?
Tell us your machine and your coupler, we confirm the fit before shipping. If we confirmed the fit from your accurate machine and coupler details and our recommendation is wrong, report it within 14 calendar days of delivery: the JMA Fitment Money-Back Promise gives a full product refund, outbound and return freight covered, no restocking fee.
How fast does it ship?
In-stock items ship from Miami, FL the same business day when ordered before 2 PM ET; orders after 2 PM ET, on weekends or on holidays ship the next business day. Carrier estimates for the lower 48, in business days from the ship date: parcels of 50 lb or less 5–7 standard or 2–4 expedited; LTL freight over 50 lb 7–10 standard or 4–6 expedited, usually with a delivery appointment and a signature. Outside the lower 48, shipping is quoted. Inspect it before you sign and note any damage on the delivery receipt.
What does the warranty cover?
Defects in materials and workmanship are covered for 2 years or 2,000 operating hours, whichever comes first: year 1 parts and pre-approved labor, year 2 parts only. Lifetime warranty on structural welds. Teeth, cutting edges, pins and bushings are wear items and are not covered. Get our written approval before any repair.
Can I return it?
Yes, for standard products: a refund within 14 calendar days of delivery, or store credit within 30, if it is unused, uninstalled, free of soil and grease, and in its original packaging with all hardware. Get a Return Authorization Number (RAN) from us first. The buyer pays return shipping unless the item was defective, damaged or wrong because of our error, or you can drop it off at our warehouse, 8068 NW 29th St, Doral, FL, Monday to Friday, 9 AM to 5 PM, with your RAN. A restocking fee applies to non-defective refunds; store credit has no restocking fee. Original outbound shipping is not refunded on change-of-mind returns. Installed or used attachments can't be returned.
