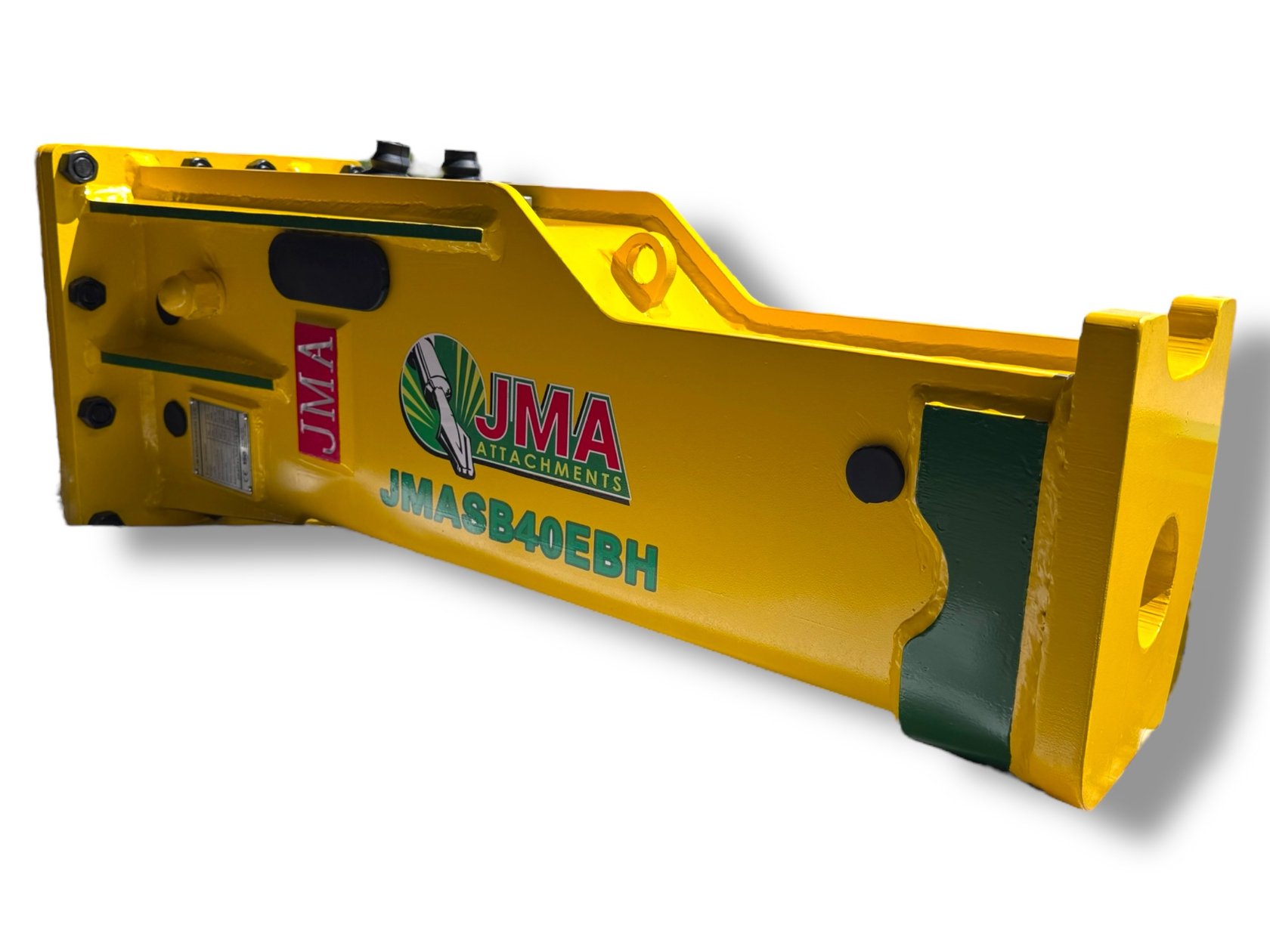

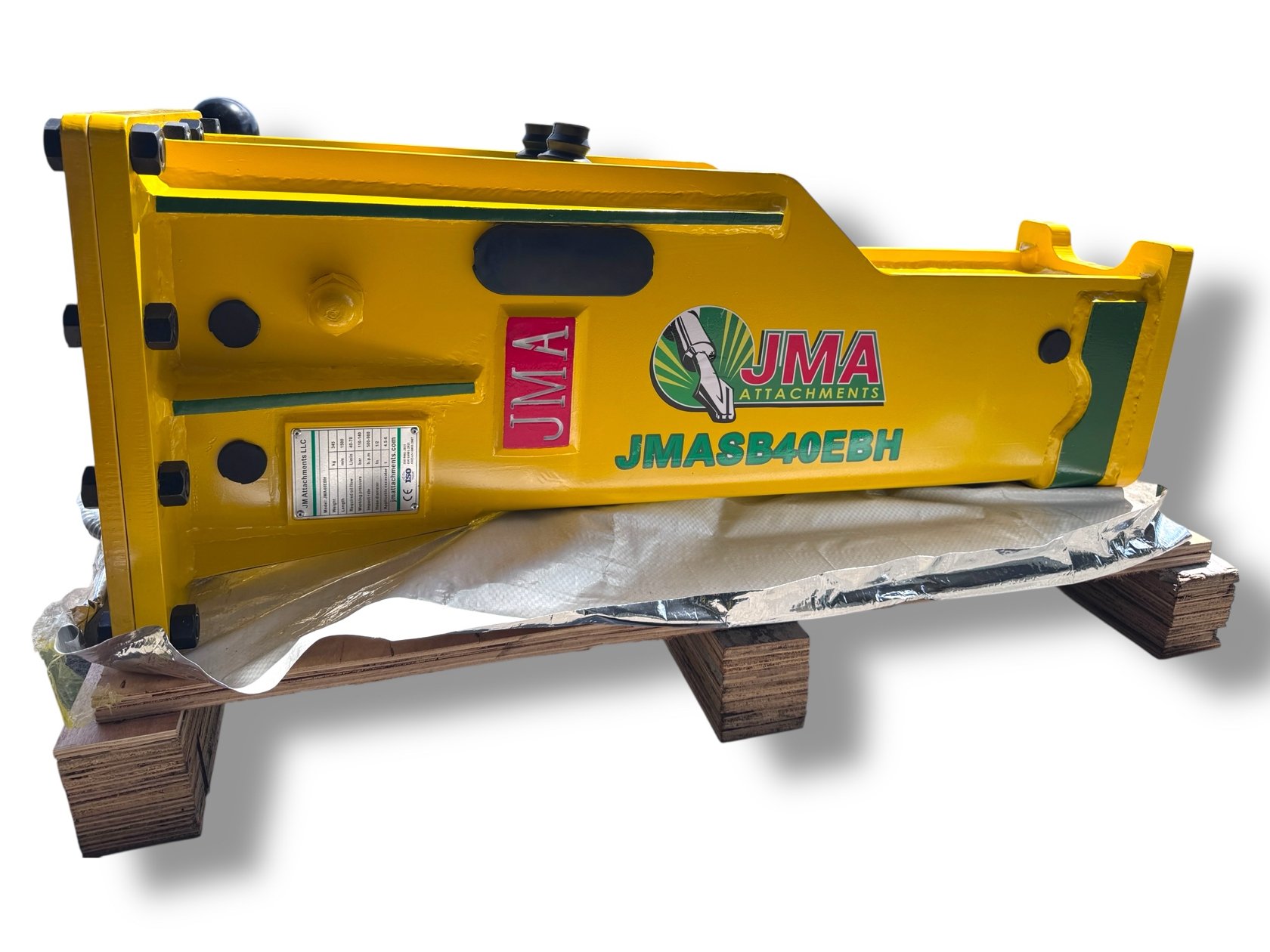

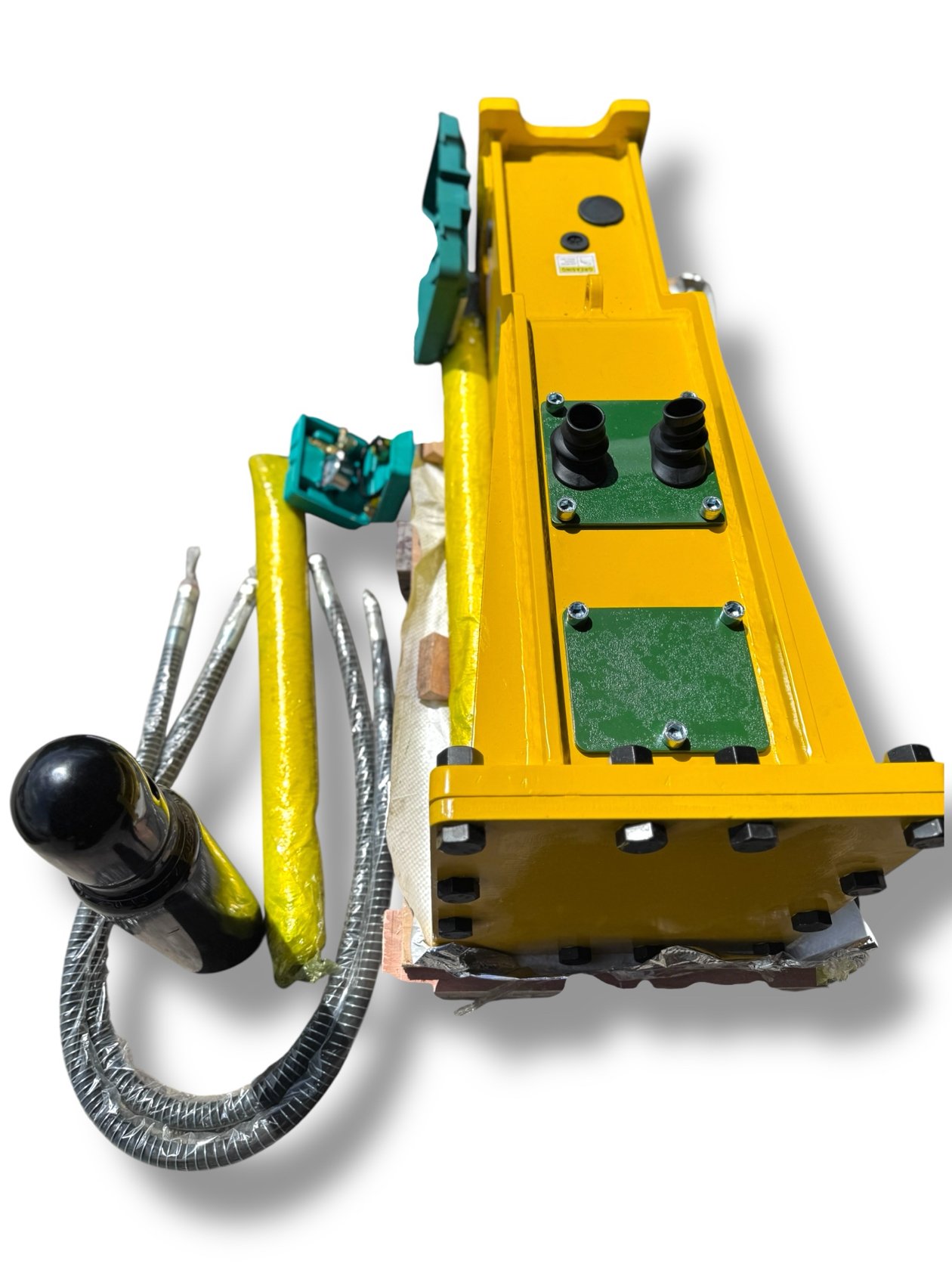

1,018 Joules Hydraulic Hammer for 4 – 7 Tons Mini Excavators
- Fits 4–7 ton mini excavators · bolt-on mount matched to your machine's pins
- 1,018 J · 500–900 BPM · 10.6–18.5 GPM at 1,565–1,991 psi · AR400 steel

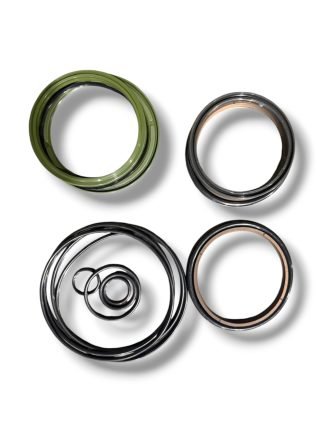

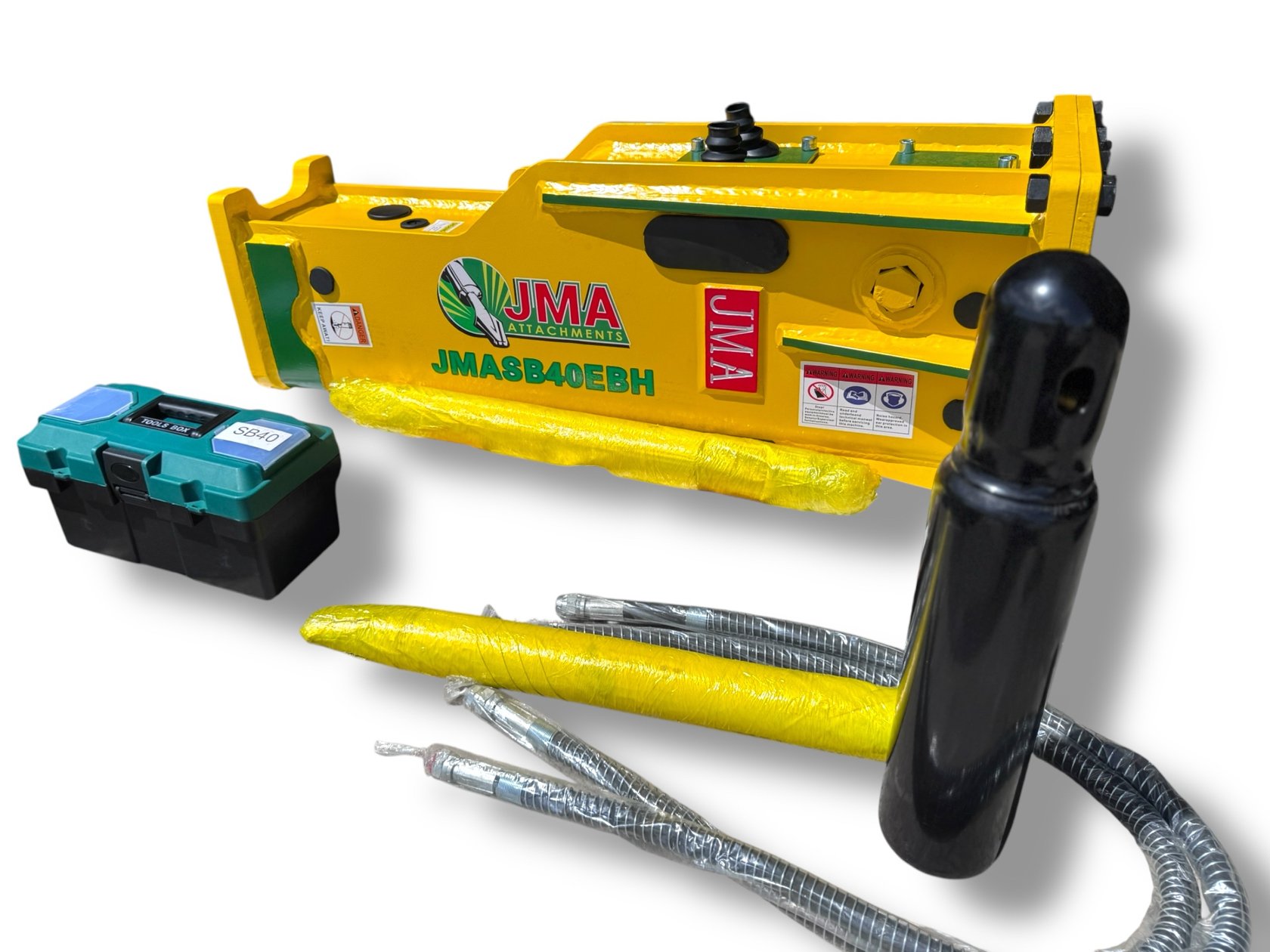

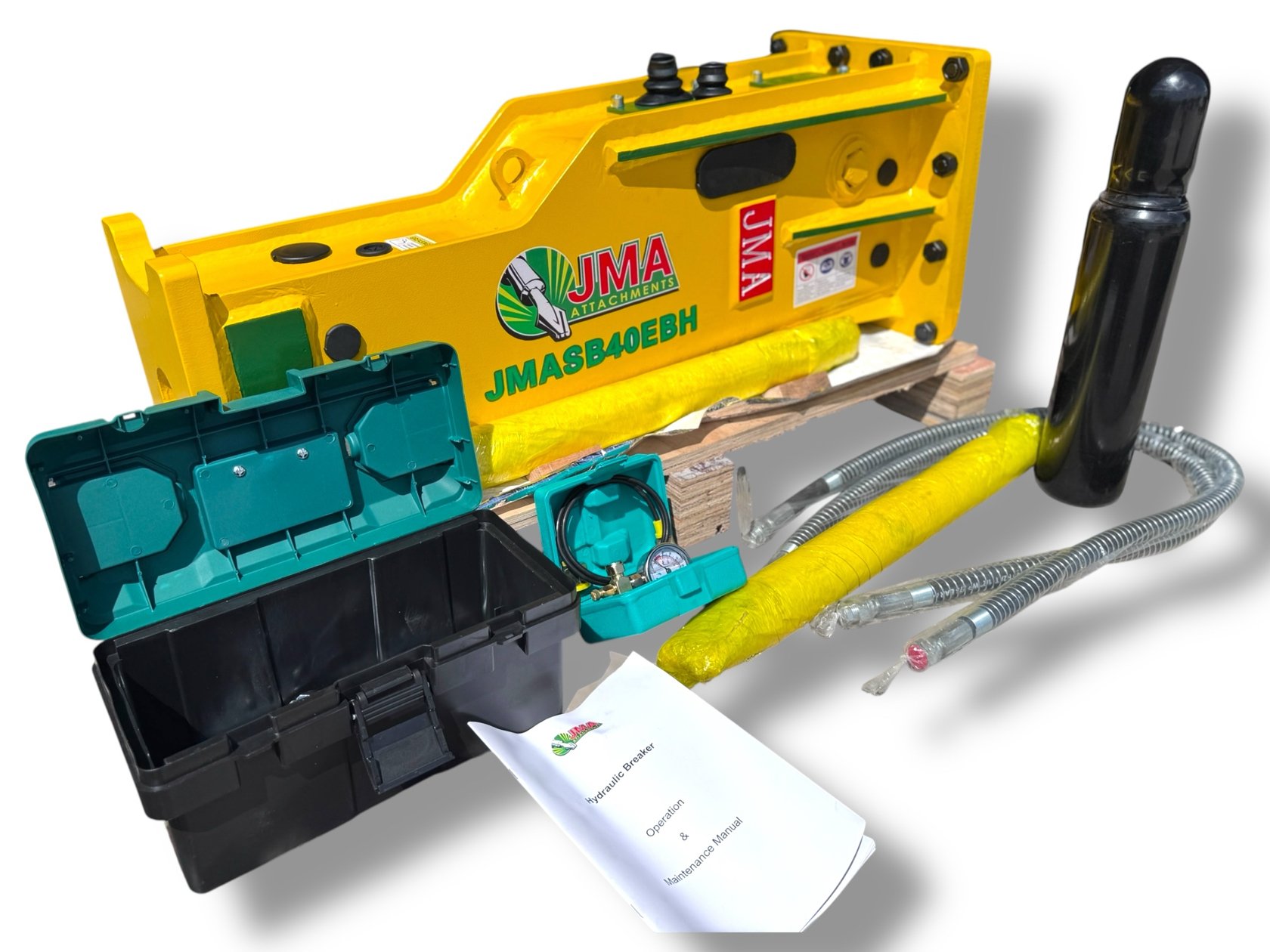

- Box: mount with pins, 2 hoses, moil + wedge chisel, tool box, N2 bottle + gauges, seal kit
- Ships from Miami, FL the same business day when ordered before 2 PM ET · US-based support
- 24-month warranty · coverage varies by component
Build your JMASB40EBH hammer kit
The JMASB40EBH is rated for 4–7 t carriers. Pick your machine and we show the mount that fits.
1Pick your machine
Your machine
Brand and model. We match the mount to your pins.
Not sure?
45 mm pins
Included Extra head: Original price was: $977.00.$781.60Current price is: $781.60.
50 mm pins
Included Extra head: Original price was: $977.00.$781.60Current price is: $781.60.
Your kit
- JMASB40EBH hammer$6,597.00
- Mount (included): pick your machine
- Chisel: not selected
Kit total$6,597.00
Before freight. Freight is quoted in the cart.

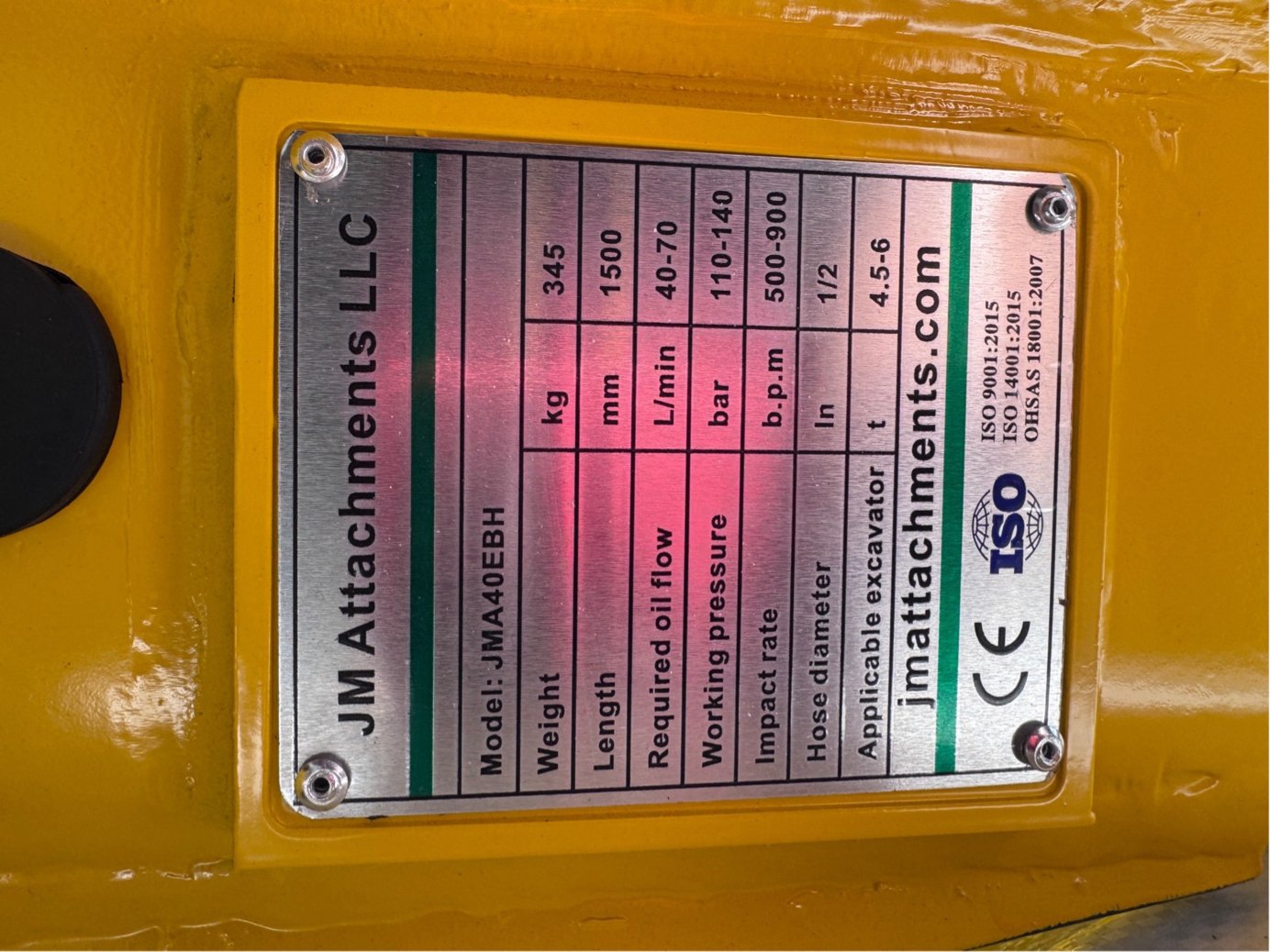

| Coupler Type | Pin On Style |
|---|---|
| Carrier Weight Class (tn) | 4 - 7 tons |
| Carrier Weight Class (lb) | 9,000 - 15,000 lb |
| Chisel Bit Length (mm) | 700 mm |
| Hydraulic Hoses Diameter | 1/2" |
| Material Type | AR400 Steel |
| Finish | Powder-Coated Green |
| Energy Class (J) | 1,018 Joules |
| Operating Pressure (psi) | 1,565 - 1,991 psi |
| Operating Pressure (kg/cm²) | 110 - 140 kg/cm² |
| Oil Flow (LPM) | 40 - 70 lpm |
| Oil Flow (GPM) | 10.6 - 18.5 gpm |
| Chisel Bit Diameter (mm) | 68 mm |
| Hammer Type | Hydraulic Hammer |
| Impact Frequency (bpm) | 500 - 900 bpm |
| Working Weight (kg) | 512 kg |
| Working Weight (lb) | 1,129 lb |
| Airman | AX50, AX50-2, AX50U-4, AX50U-5F, AX55U-5A, AX55U-6A |
|---|---|
| Bobcat | 341, 341D, 341G, E50, E50EM, E50M, E50R2, E50Z, E55, E55EM, E55M, E55R2, E55W, E55Z, E57W, E58, E60, E60A, E60EA, E60R2, E62, E62EM, E63, E63M, E65W, X337, X337D, X337G, X341, X341D, X341G |
| Case | CX50, CX50B, CX55, CX55B, CX57, CX57C, CX58, CX60, CX60C, CX65D |
| Caterpillar | 305, 305 CR, 305 CR2, 305 SR, 305 SR II, 305.5, 305.5 SR, 305.5D CR, 305.5E, 305.5E2 CR, 305.5E CR, 305BR, 305C CR, 305D, 305D CR, 305E, 305E2 CR, 305E CR, 306, 306 CR, 306.5, 306D, 306E, E70 |
| Daewoo | S50, S50 V, S055, S55 V PLUS, S55-V, S55V-G, S55W V, Solar 55, Solar 55-V |
| Develon | DX50Z-7, DX55, DX55R-7, DX57W-7, DX60WN ECO, DX63-7 |
| Doosan | DH55, DH55-7, DH55-V, DH60-7, DX50, DX50Z, DX50Z-7, DX53W, DX55, DX55-5B, DX55-5K, DX55-9C, DX55-9CN ACE, DX55A, DX55E, DX55MT ACE, DX55MT-5, DX55R-7, DX55W, DX55W-5, DX55W-5K, DX55W-5L, DX55WA, DX55WACE, DX55WK, DX57W-5, DX57W-7, DX60, DX60-9C, DX60-9CN, DX60E-9C, DX60E-9CN, DX60E-10N, DX60R, DX60W, DX60W ECO, DX60W-9C, DX60WN ECO, DX62, DX62R-3, DX62R-7, DX63, DX63-3, DX65-9C, S55, S55 V PLUS, S55-V, S55W V, SL55 |
| Ford | 550, 555, 555A, 555B, 555C, 555D, 655D |
| HItachi | ZX50 |
| Hanix | H56B, H56C |
| Hitachi | EX50, EX50U, EX50UR, EX50URG, EX55UR, EX55UR-3, EX58, EX58MU, EX60-1, EX60-2, EX60-3, EX60-5, EX60LC, EX60UR, UE02, ZX48U-5A, ZX50-2, ZX50U, ZX50U-2, ZX50U-3, ZX50U-3F, ZX50U-5A, ZX55U-2, ZX55U-2 -3, ZX55U-3, ZX55U-5A, ZX55UR-3, ZX60, ZX60-2, ZX60-3, ZX60-5A, ZX60U, ZX60US, ZX60USB, ZX60USBLC, ZX60USB-3, ZX60USB-3CLR, ZX60USB-3F, ZX60USB-5, ZX60USB-5N, ZX60USBNA-3, ZX65USB-3, ZX65USB-3F, ZX65USB-5, ZX65USB-5A, ZX65USB-5A CLP, ZX65USB-5A CLR, ZX65USB-6 |
| Hyundai | R55-3, R55-7, R55-9, R55-9A, R60CR-9, R60CR-9A, R60W-9S |
| Ihi | 50VX, 55N, 55N-2, 55NX, 65NX, IS50, IS50G, IS55, IS55J, IS55N, IS65 |
| JCB | 2CX, 50Z-1, 51R-1, 55Z, 55Z-1, 56Z-2, 57C-1, 60C-2, 805.2, 8052, 8052C, 8055, 8055 RTS, 8055 ZTS, 8060, 8060C, 8065 |
| John Deere | 50 ZTS, 50C ZTS, 50D, 50D ZTS, 50G, 55 ZTS, 60D, 60G, 60P, 70D |
| Kato | 250SE, HD307, HD307US |
| Kobelco | SK45SRX-6E, SK050SR-3, SK50SR-3, SK050SR-5, SK50SR-5, SK50UR, SK50UR-2, SK55SR-5, SK55SRX-6, SK55SRX-6E, SK60-2, SK60-3, SK60-5, SK60MK5, SK60SR |
| Komatsu | PC50 MR, PC50 MRX-2, PC50MR-2, PC50UU-2, PC50UU-3, PC50UUT, PC50UUT-2, PC55, PC55MR-3, PC58SF-1, PC58UU-3, PC60, PC60LC, PC60LC-5, PC60-1, PC60-2, PC60-3, PC60-4, PC60-5, PC60-6, PC60-6B, PC60-6BL, PC60-6S, PC60-7, PC60-7A, PC60-7B, PC60-7BE, PC60-7BH, PC60-7BK, PC60-7BL, PC60-7C, PC60-7C BL, PC60-7E, PC60-7S, PC60-8, PC60-9, PC60B, PC60B-7, PC60BL, PC60L, PC60L-1, PC60L-2, PC60L-3, PC60L-5, PC60S, PC60SC-7, PC60SS, PC60SS-1, PC60U, PC60U-1, PC60U-2, PC60U-3, PC60U-5, PC60U-8, PC60UU-5 |
| Kubota | KH28, KH191, KX057, KX057-4, KX057-5, KX060, KX060-5, KX75, KX151, KX161, KX161-3, U50-3, U50-5, U55, U55-4, U56-6 |
| Link-Belt | MM55 |
| Liugong | 906D, 906F |
| Lonking | CDM6065, CDM6065E |
| Nagano | NS55-3, NS55R-5 |
| New Holland | EH50 BSR |
| Sany | SY50, SY50C, SY50U, SY55C, SY55C PRO, SY55C-9, SY55U, SY60, SY60C, SY60C PRO, SY60C-9, SY65, SY65C, SY65W |
| Sumitomo | SH60, SH60-2, SH60B, SH60B-3, SWE50 |
| Takeuchi | TB53FR, TB153, TB153FR, TB250-2, TB260 |
| Terex | TC50, TC60 |
| Volvo | EC50, EC50/W, EC55, EC55B, EC55B PRO, EC55C, EC55D, EC60BLC, EC60C, EC60D, EC60E, ECR58, ECR58D, ECR58F, MX55/W, SE50-3 |
| Wacker Neuson | 50Z, 50Z3, 6003, 6503, EZ53 |
| XCMG | XCG60-8 |
| Yanmar | SV60, VIO50, VIO50-2, VIO50B50, VIO55, VIO55-5, VIO55-5B, VIO55-6A, VIO55-6B, VIO57, VIO57-6B |
1,018 Joules Hydraulic Hammer for 4 - 7 Tons Mini Excavators. Fits 4–7 ton mini excavators, bolt-on mount matched to your machine's pins. Included: mount with pins, 2 hoses, moil + wedge chisel, tool box, N2 bottle + gauges, seal kit. Price: $6,597.00, in stock, ships from Miami, FL the same business day when ordered before 2 PM ET.
Dominate the demolition landscape with the 1,018 Joules Joules Hydraulic Hammer for 4 - 7 Tons Mini Excavators.. Engineered for excavators, this hydraulic hammer accelerates project timelines and delivers consistent results.
Premium Features:
• Forceful Impact: 1,018 Joules energy class
• Rapid Strikes: 500 - 900 BPM impact rate
• Rugged Resilience: AR400 Steel build
• Minimal Recoil: Operator-friendly design

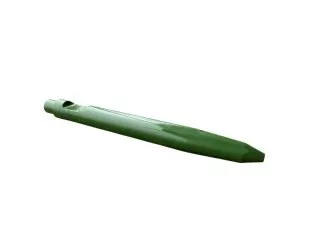

• Complete Kit: 2 Hydraulic Hoses,1 Moil Rock Chisel Bit, 1 Wedge Rock Chisel Bit, Tool Box, Nitrogen Gauge, Nitrogen Bottle, Repair Seal Kit | 1,565 - 1,991 psi operating pressure
Unleash the full potential of your excavator. The 1,018 Joules Joules Hydraulic Hammer for 4 - 7 Tons Mini Excavators. is your competitive edge in breaking and demolition.

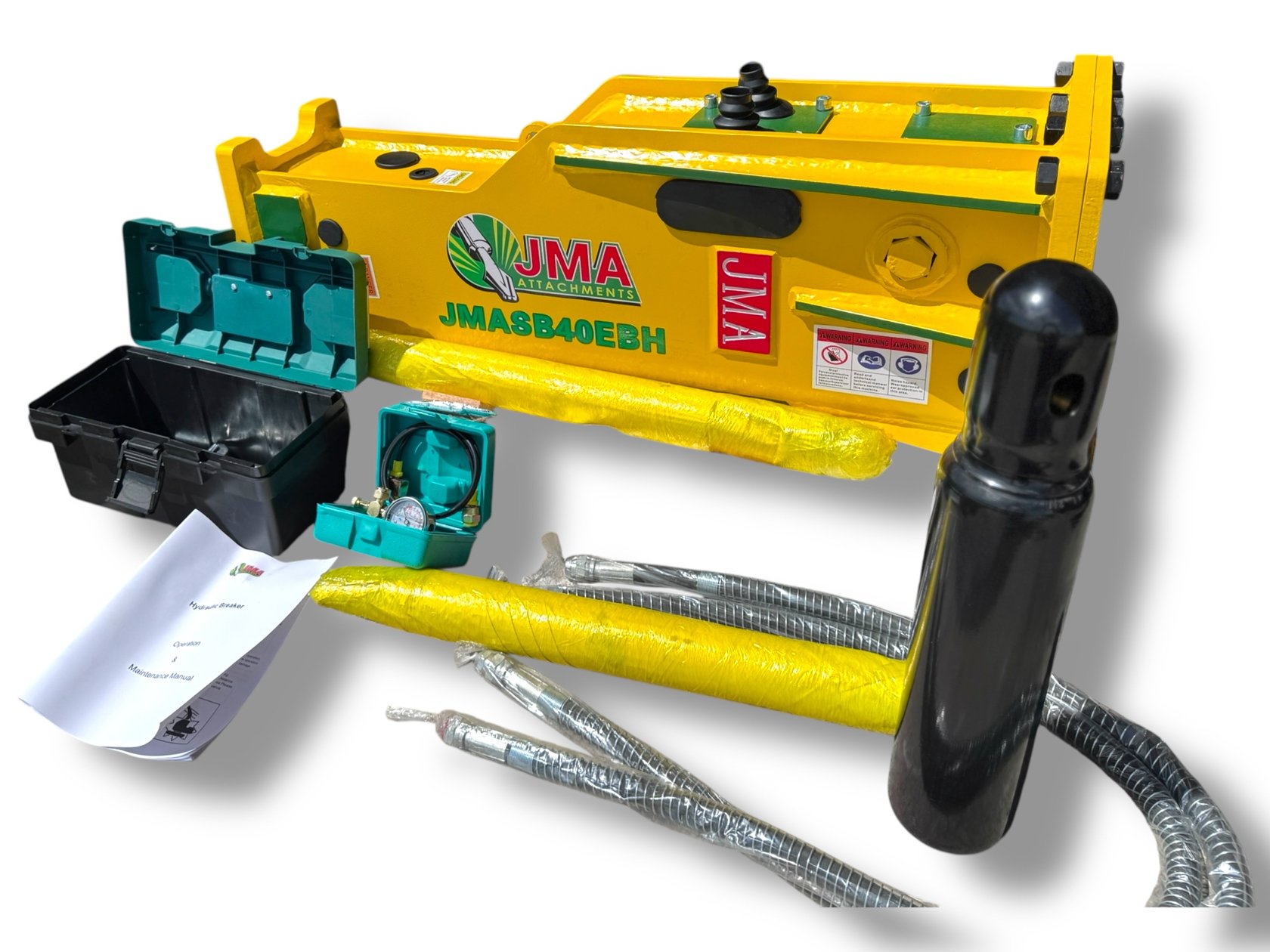

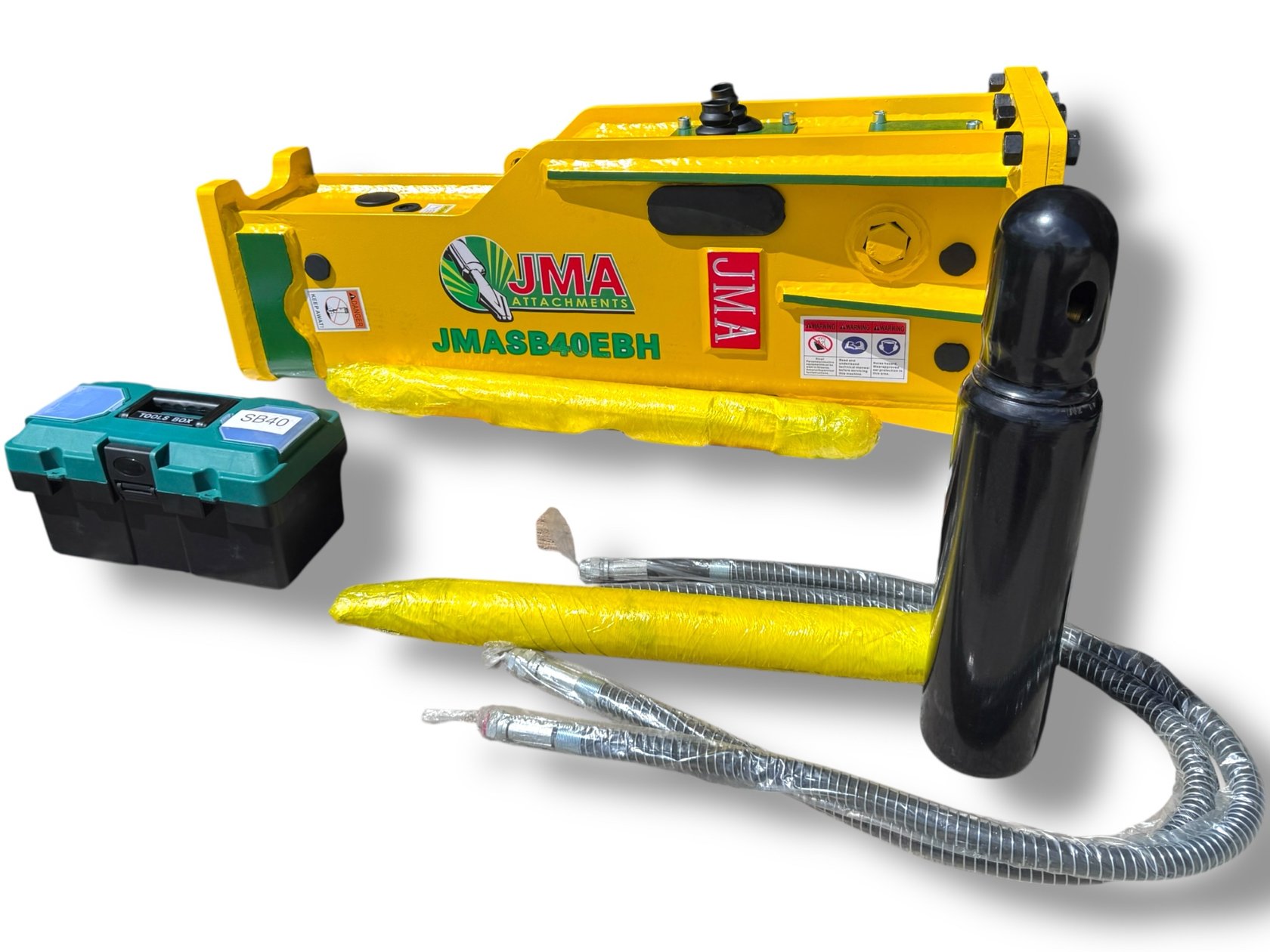

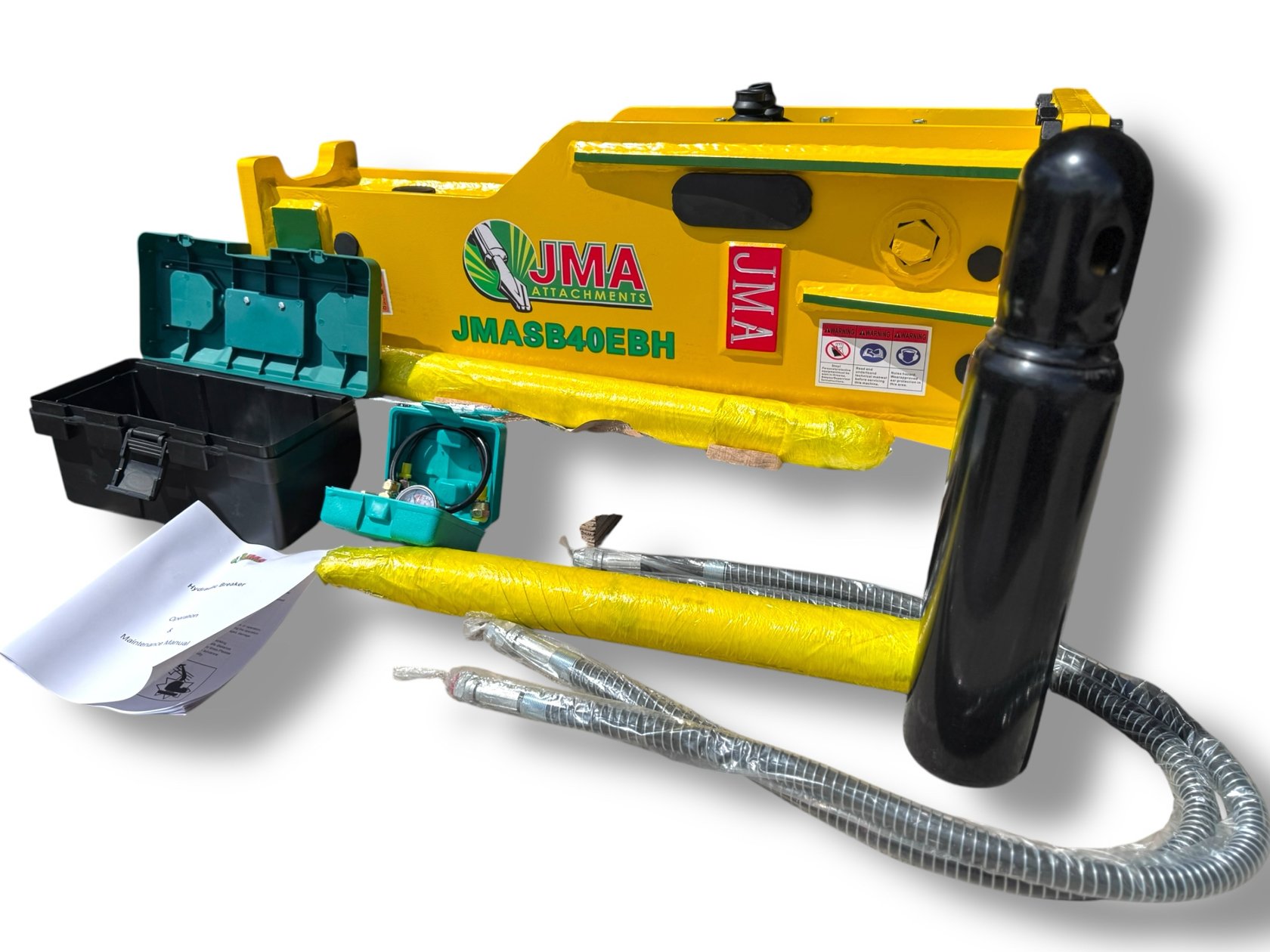

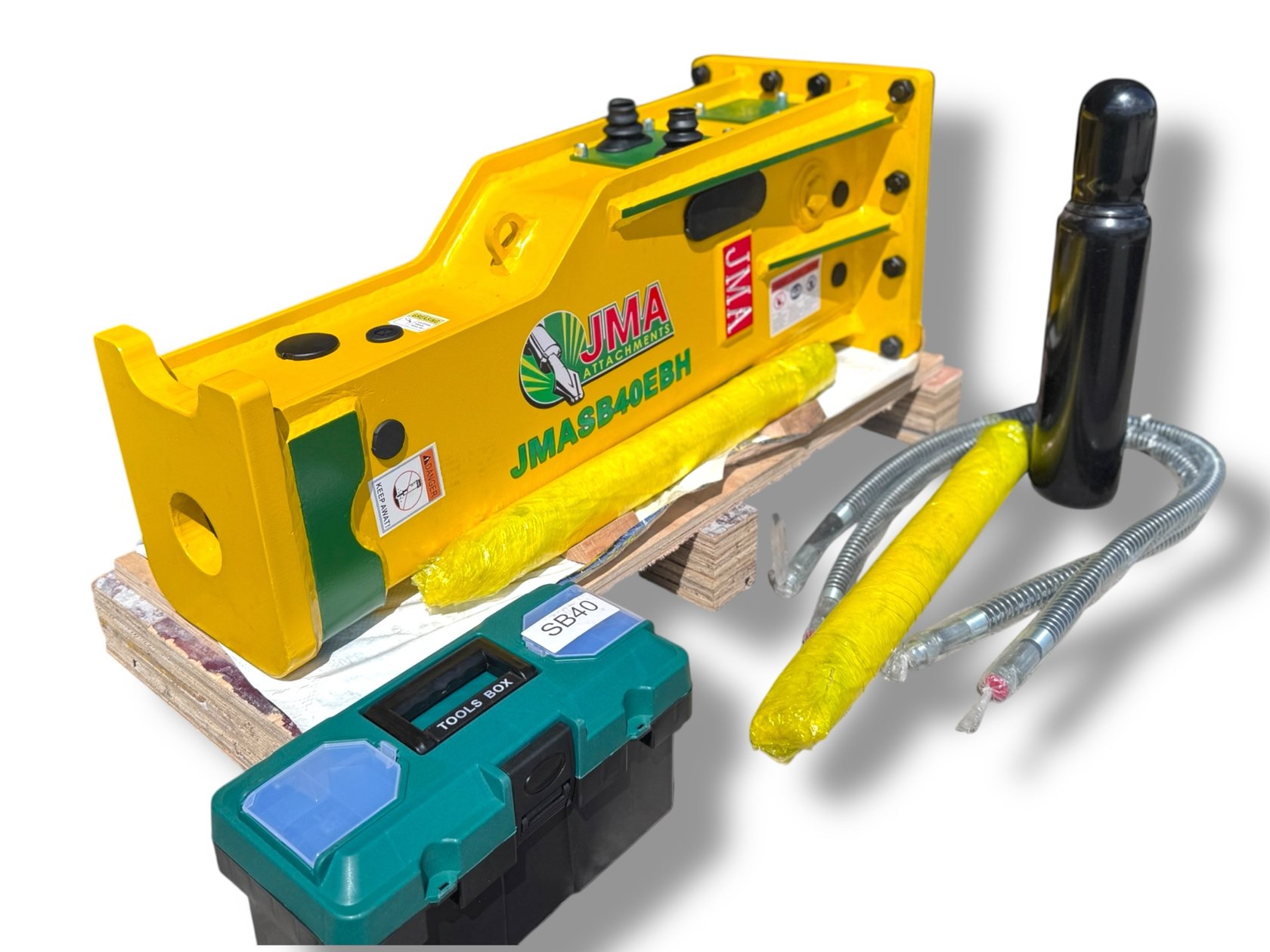

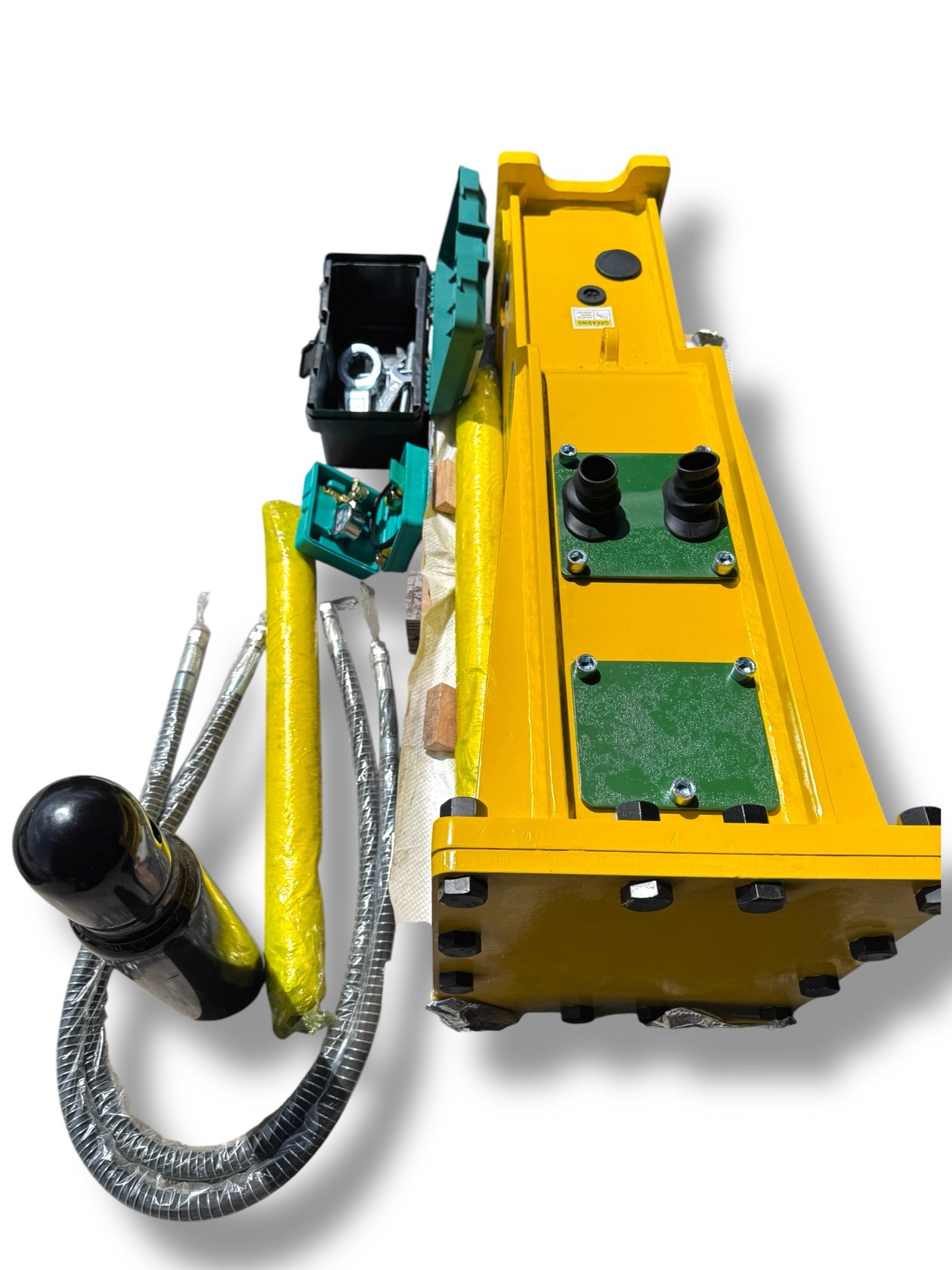

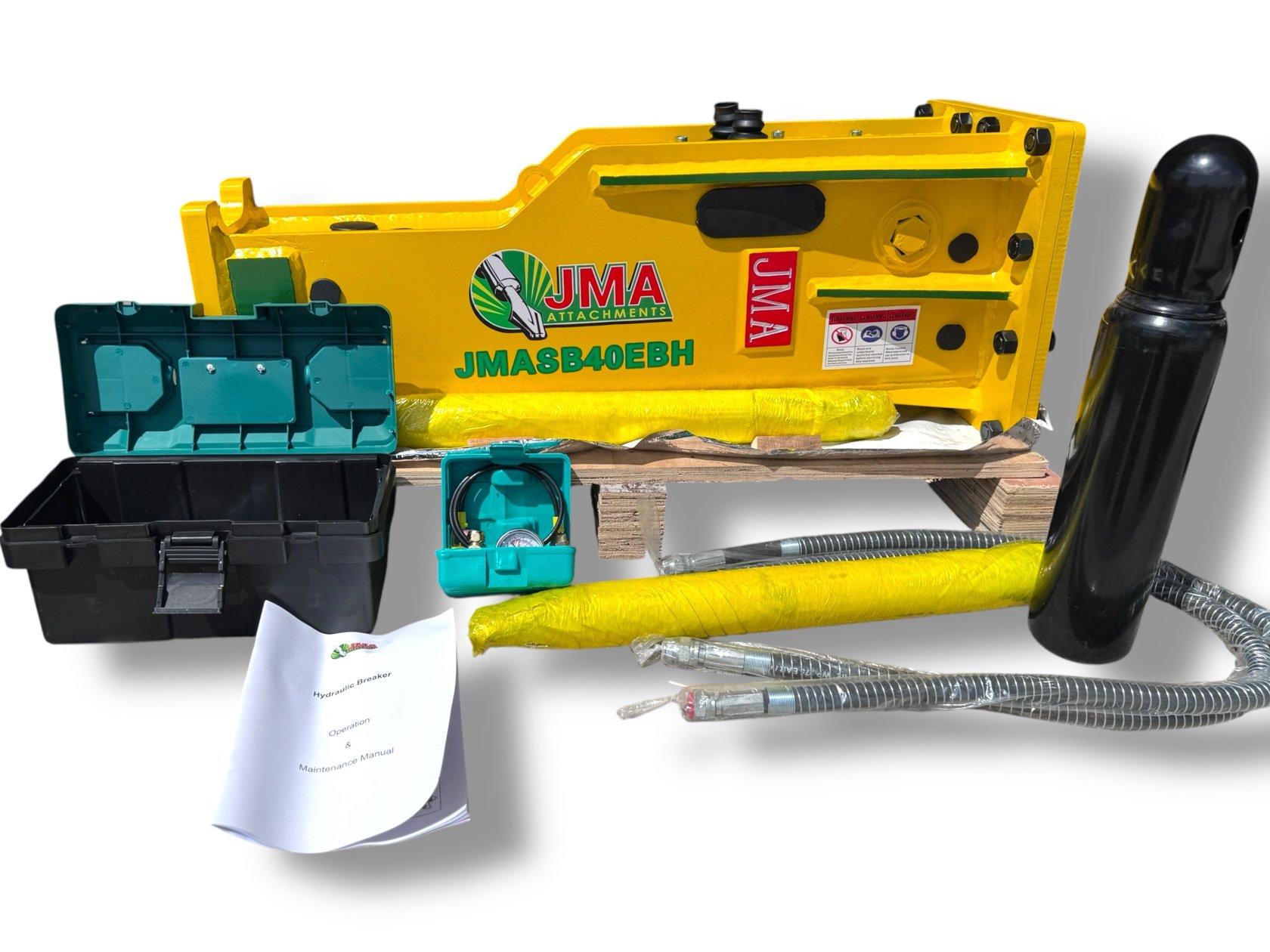

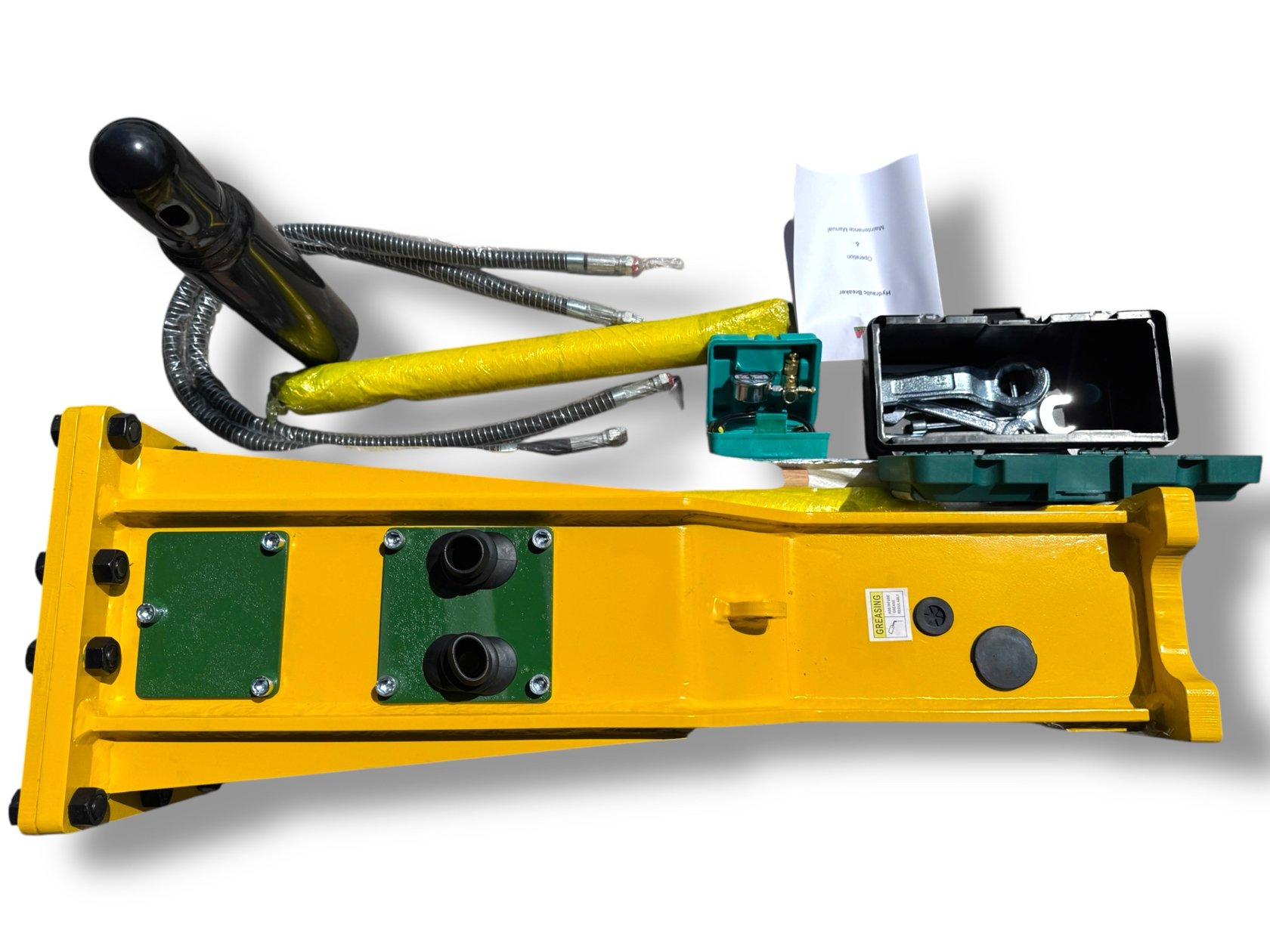

What comes in the box?

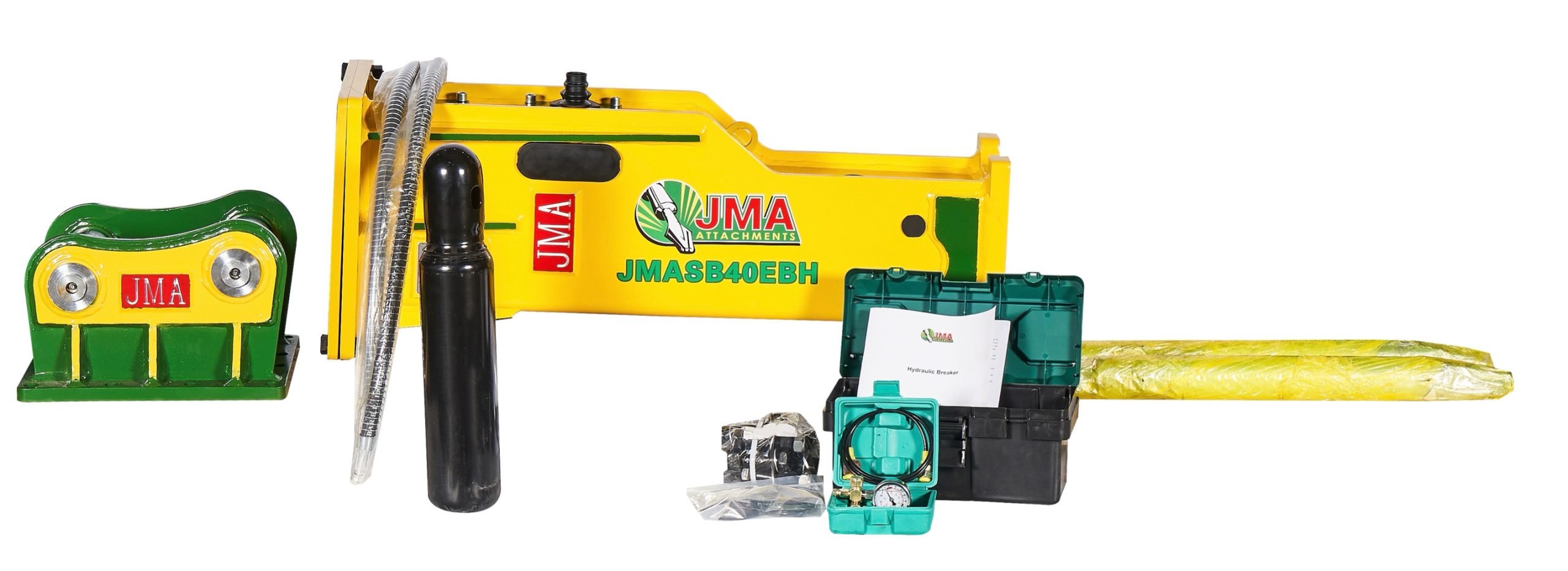

One mount (head) for your machine with pins, 2 hydraulic hoses, a moil chisel and a wedge chisel, a tool box, a nitrogen bottle with gauges and a repair seal kit.
Will it fit my machine?
Tell us your machine, we confirm the fit before shipping. Pin-on attachments are sized from your machine's pin diameter, pin-to-pin distance and ear width. If your machine has a quick coupler, is a long-reach model or was modified, measure those three and send them to us before you order. If we confirmed the fit from your accurate machine and coupler details and our recommendation is wrong, report it within 14 calendar days of delivery: the JMA Fitment Money-Back Promise gives a full product refund, outbound and return freight covered, no restocking fee.
How fast does it ship?
In-stock items ship from Miami, FL the same business day when ordered before 2 PM ET; orders after 2 PM ET, on weekends or on holidays ship the next business day. Carrier estimates for the lower 48, in business days from the ship date: parcels of 50 lb or less 5–7 standard or 2–4 expedited; LTL freight over 50 lb 7–10 standard or 4–6 expedited, usually with a delivery appointment and a signature. Outside the lower 48, shipping is quoted. Inspect it before you sign and note any damage on the delivery receipt.
What does the warranty cover?
JMA Attachments hydraulic hammers carry a 24-month warranty; coverage varies by component and hammer class, and the Warranty page lists each part. Through bolts, bushings and rod pins: 2 months. Seal kits and diaphragm: 3 months. Chisels follow the manufacturer's standard. Get our written approval before any repair.
Can I return it?
Yes, for standard products: a refund within 14 calendar days of delivery, or store credit within 30, if it is unused, uninstalled, free of soil and grease, and in its original packaging with all hardware. Get a Return Authorization Number (RAN) from us first. The buyer pays return shipping unless the item was defective, damaged or wrong because of our error, or you can drop it off at our warehouse, 8068 NW 29th St, Doral, FL, Monday to Friday, 9 AM to 5 PM, with your RAN. A restocking fee applies to non-defective refunds; store credit has no restocking fee. Original outbound shipping is not refunded on change-of-mind returns. Installed or used attachments can't be returned.
