SKU: 7987660

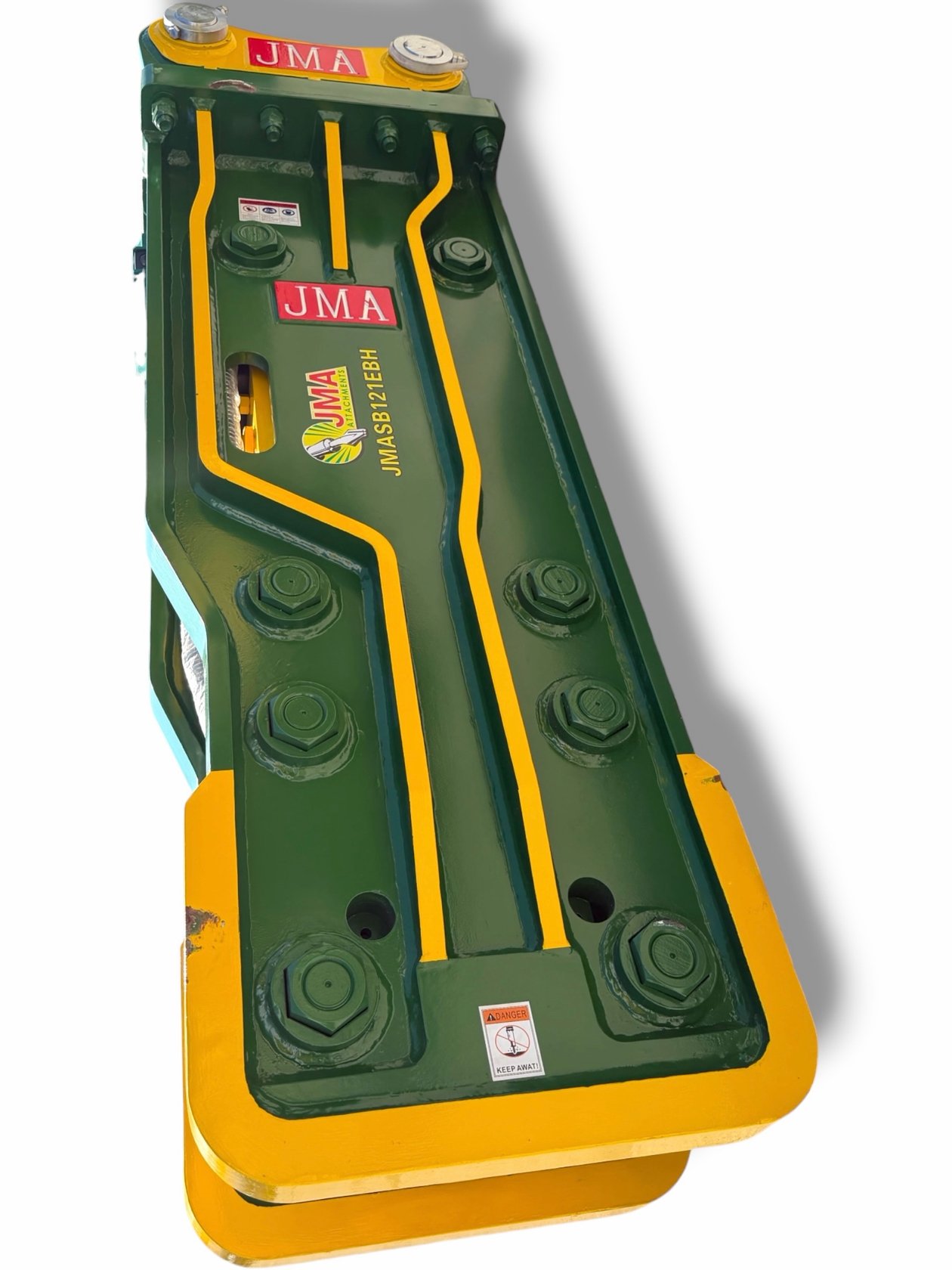

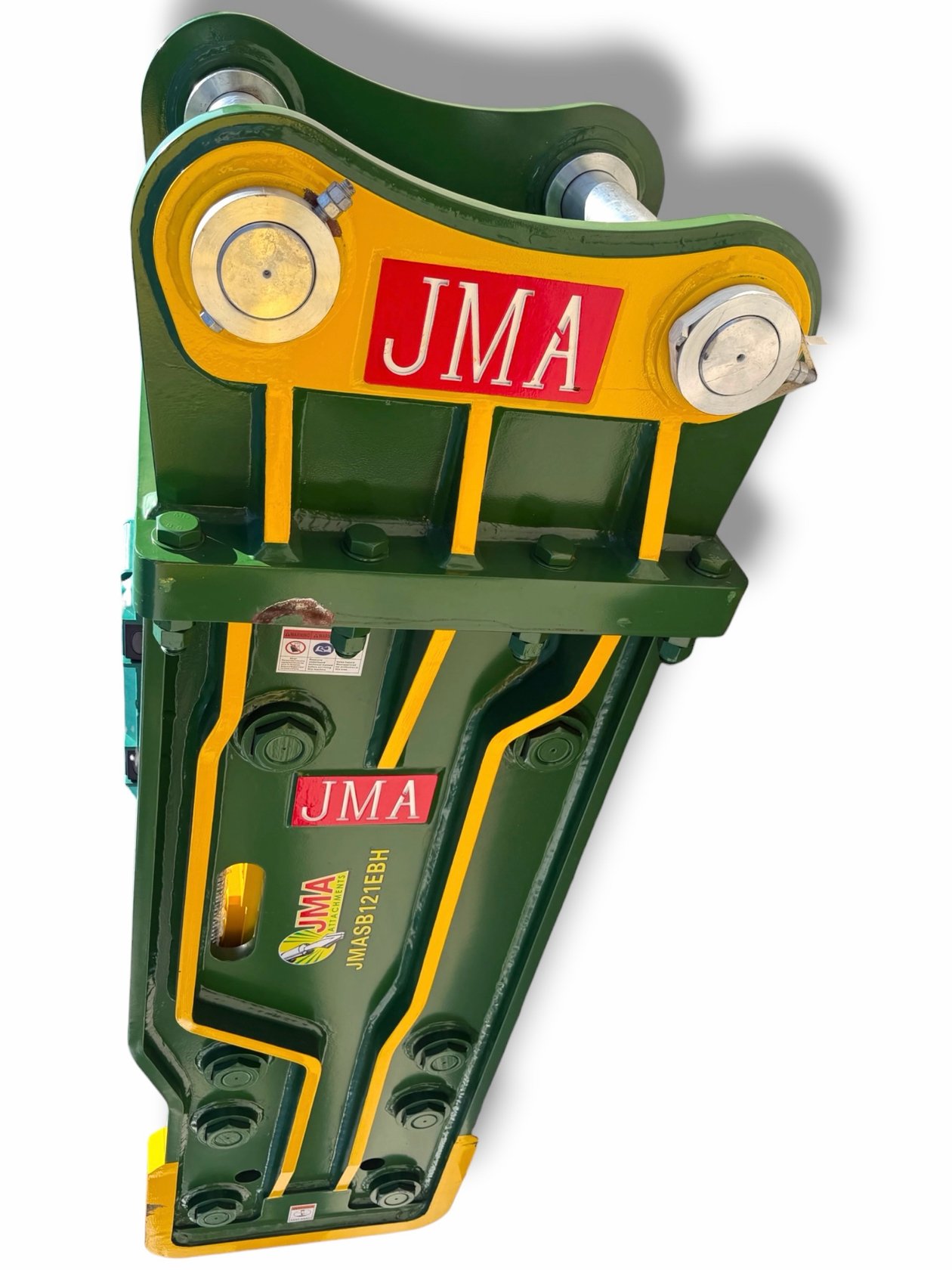

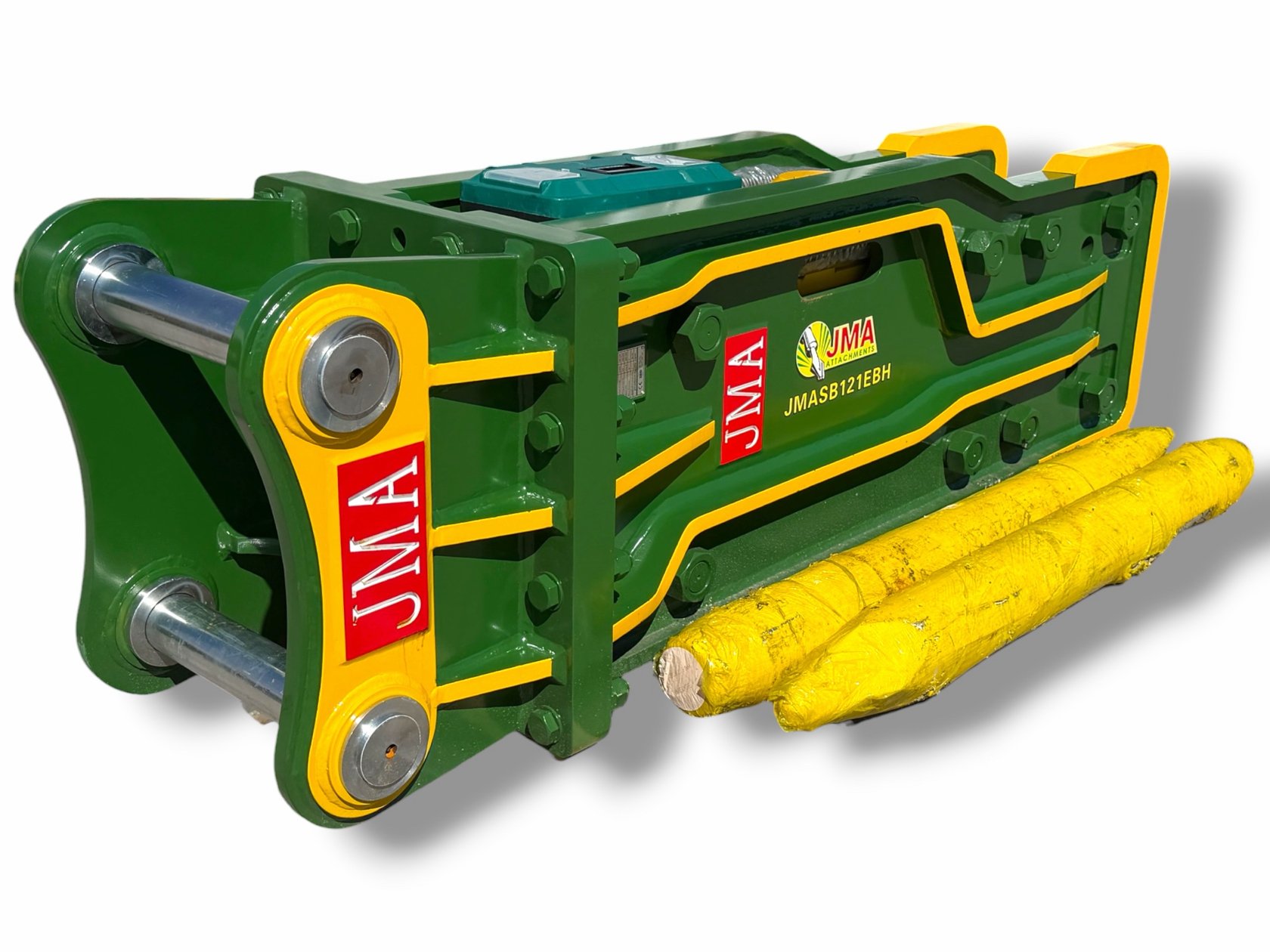

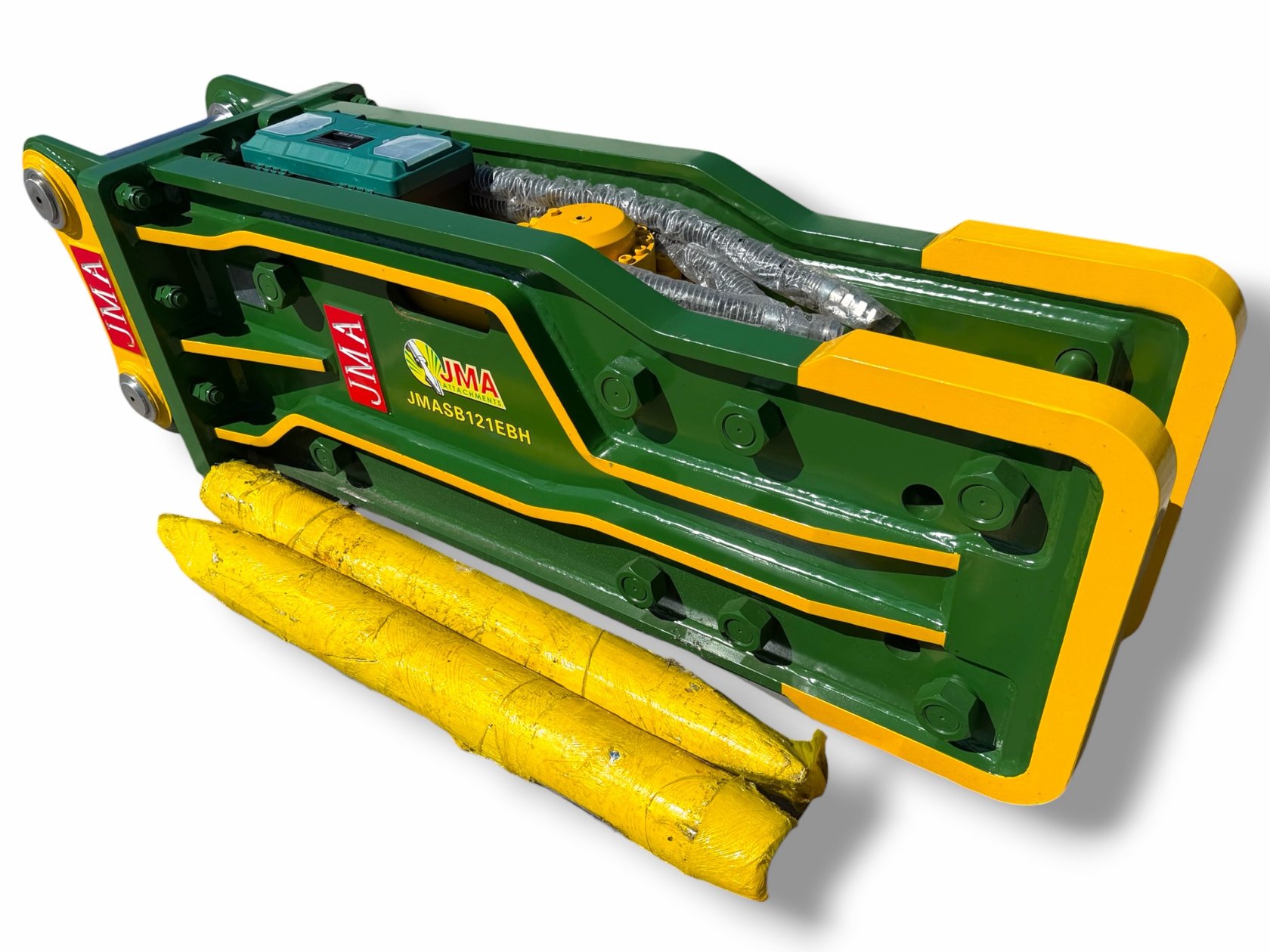

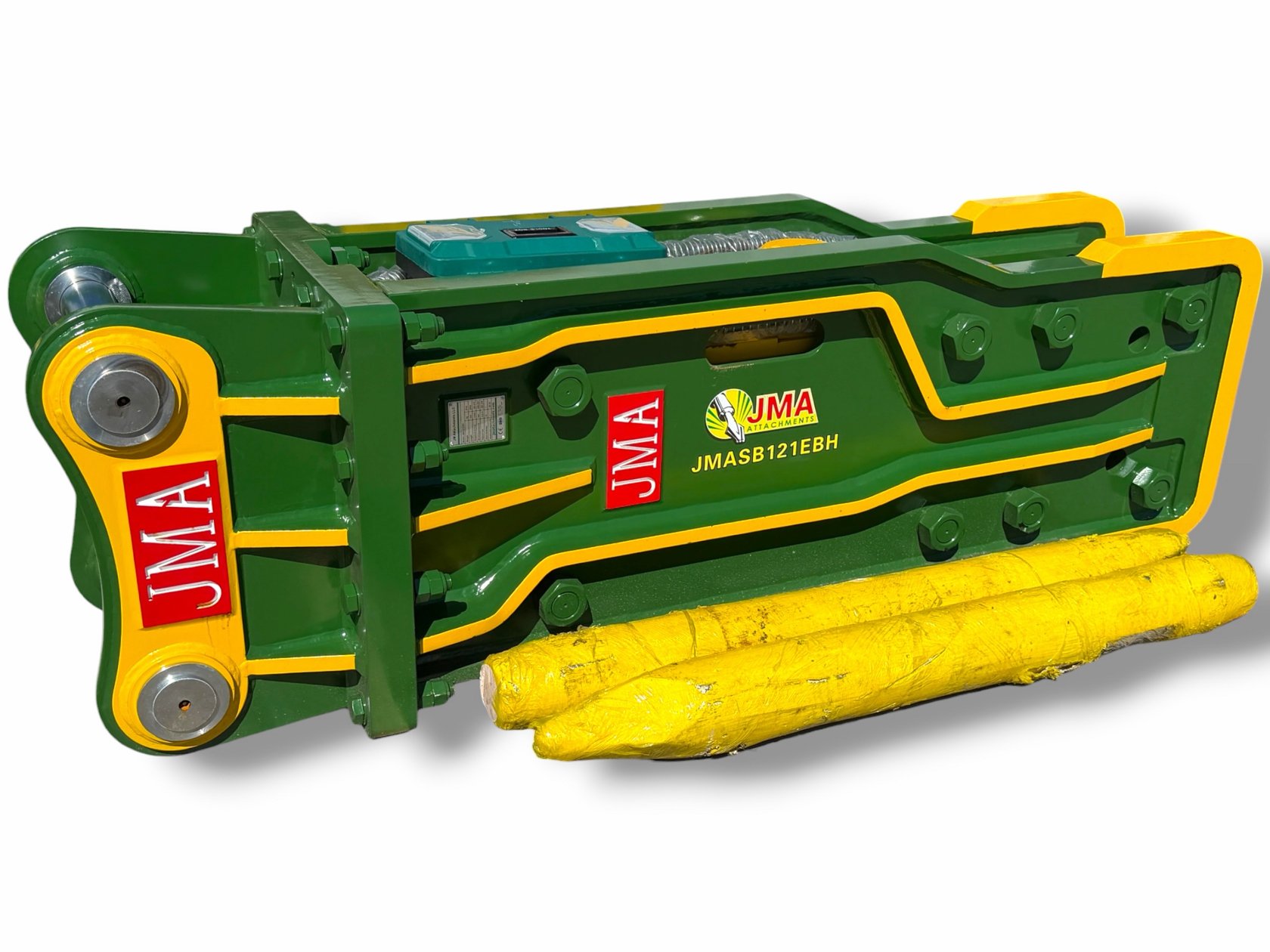

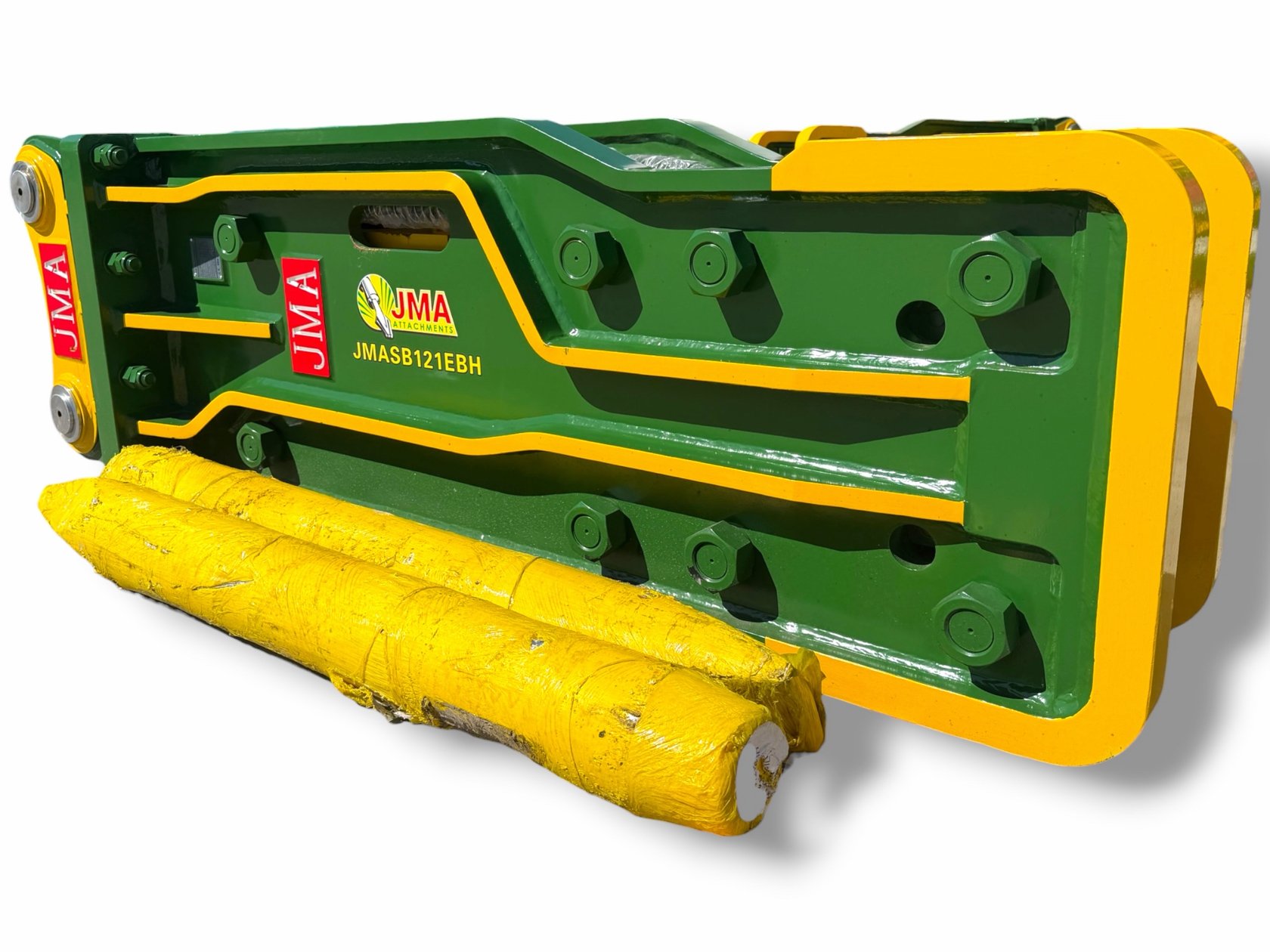

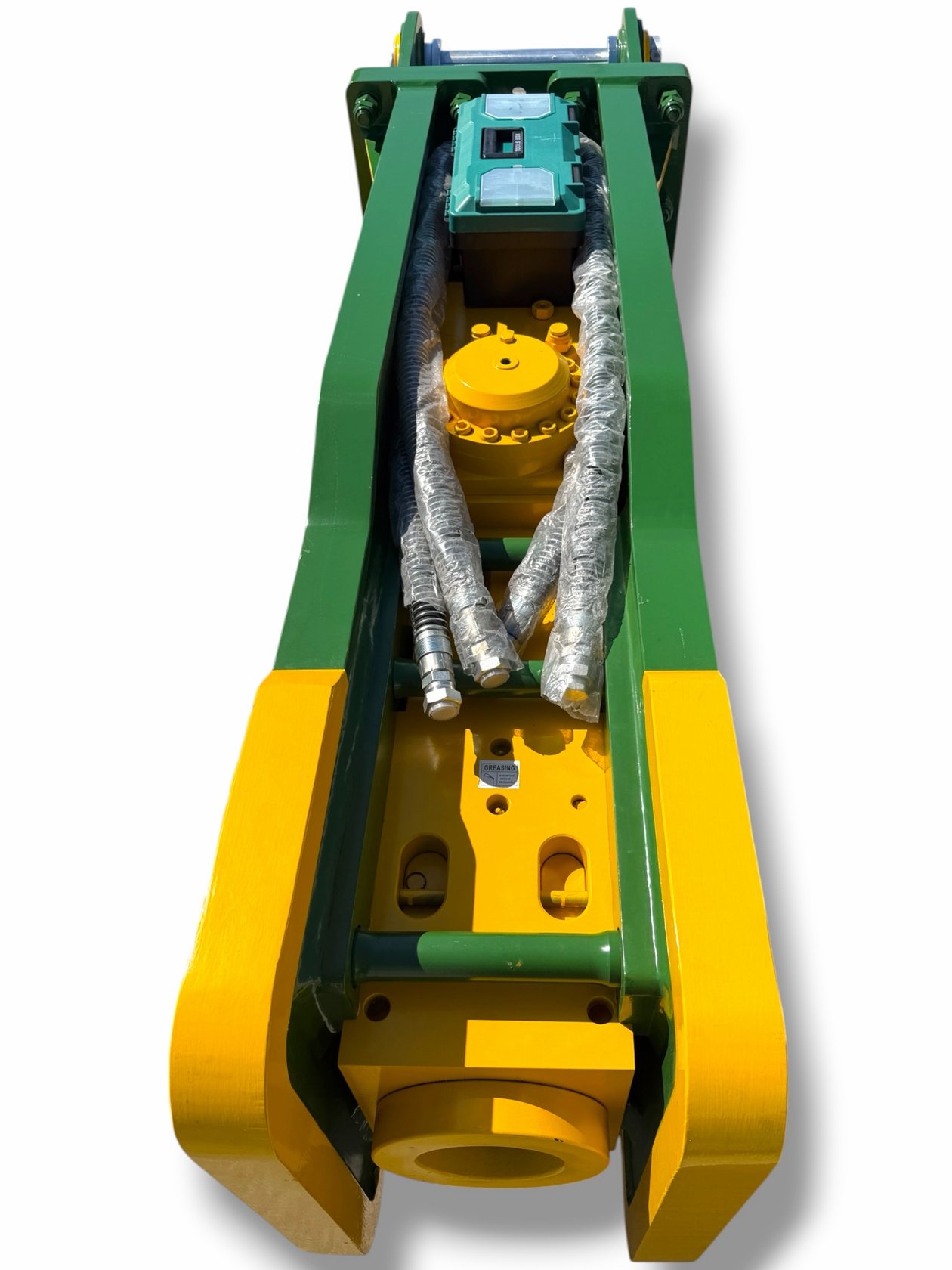

10,178 Joules Hydraulic Hammer for 26 – 35 Tons Excavators

$28,597.00

Note: Pins are included.

Fits 26–35 ton excavators · bolt-on mount matched to your machine's pins
10,178 J · 300–450 BPM · 47.6–63.4 GPM at 2,276–2,560 psi · AR450 steel

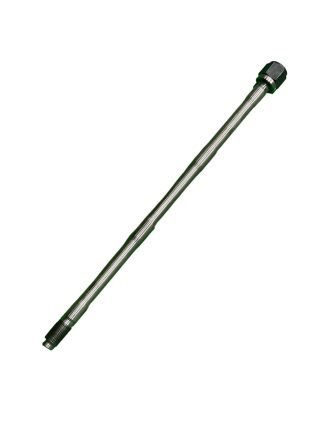

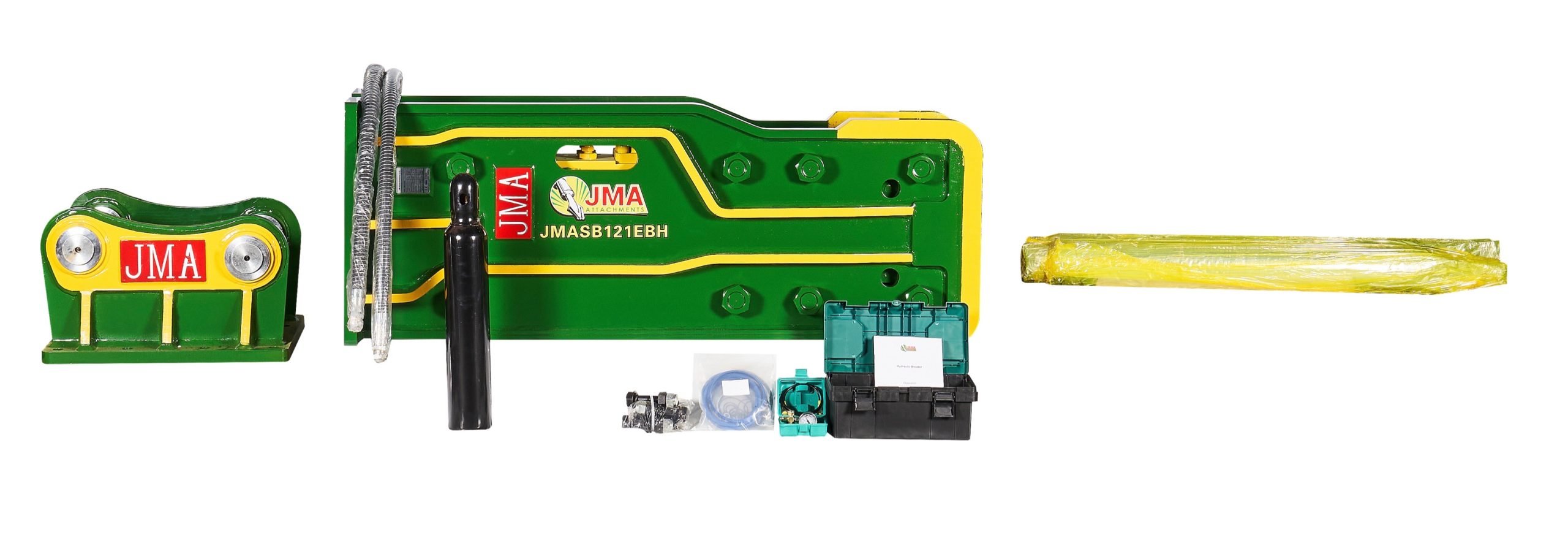

Box: mount with pins, 2 hoses, moil + wedge chisel, tool box, N2 bottle + gauges, seal kit
Ships from Miami, FL the same business day when ordered before 2 PM ET · US-based support
24-month warranty · coverage varies by component

View More Details

Build your JMASB121EBH hammer kit

1Pick your machine

Your machine

Brand and model. We match the mount to your pins.

Brand Model

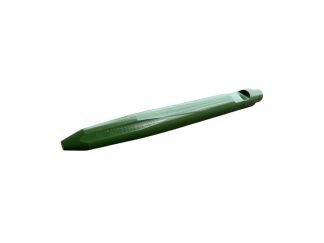

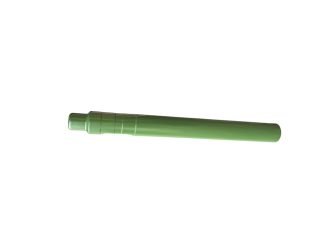

Blunt chisel

155 mm

$4,197.00

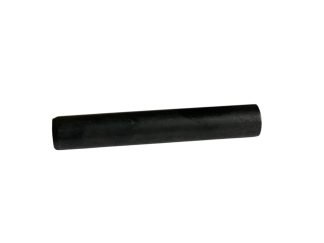

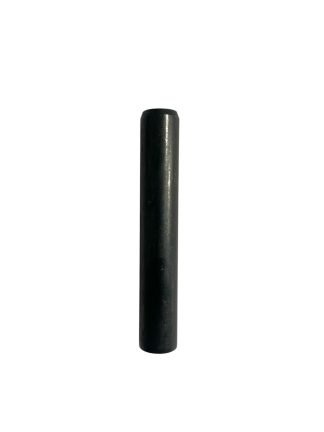

Grooved chisel

155 mm

$4,197.00

All JMASB121EBH parts →

Your kit

JMASB121EBH hammer$28,597.00

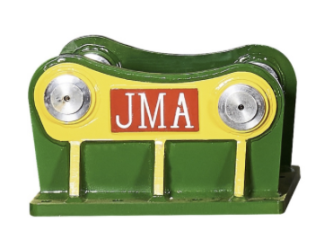

Mount (included): pick your machine
Chisel: not selected

Kit total$28,597.00

Before freight. Freight is quoted in the cart.

Specifications

Coupler Type	Pin On Style
Carrier Weight Class (tn)	28 - 35 tons
Carrier Weight Class (lb)	62,000 - 77,000 lb
Chisel Bit Length (mm)	1,500 mm
Hydraulic Hoses Diameter	1-1/4"
Material Type	AR450 Steel
Finish	Powder-Coated Green
Energy Class (J)	10,178 Joules
Operating Pressure (psi)	2,276 - 2,560 psi
Operating Pressure (kg/cm²)	160 - 180 kg/cm²
Oil Flow (LPM)	180 - 240 lpm
Oil Flow (GPM)	47.6 - 63.4 gpm
Chisel Bit Diameter (mm)	155 mm
Hammer Type	Hydraulic Hammer
Impact Frequency (bpm)	300 - 450 bpm
Working Weight (kg)	3,190 kg
Working Weight (lb)	7,033 lb

Fits To Case, Caterpillar, Daewoo, Develon, Doosan, Hitachi, Hyundai, John Deere, Kobelco, Komatsu, Link-Belt, Liugong, Samsung, Sany, Sumitomo, Volvo

Case	9050B, CX330, CX330LC, CX330B, CX350, CX350LC, CX350B, CX350C, CX350D, CX350D LR, CX350DNLC, CX360, CX360B, CX365E SR, CX370, CX370B, CX370C, CX370D, CX380C, CX380D, CX460, CX460LC, CX470B, CX470C, CX470C ME
Caterpillar	328 D, 330B, 330BL, 330C, 330C L, 330D, 330D2, 330D DB Linkage, 330D L, 330DL DB, 330E, 335, 335FL CR, 336, 336 GC, 336D, 336D2, 336D2 L, 336D L, 336E, 336E L, 336F, 336F L, 340, 340 GC, 340D, 340D2, 340D2 L, 340D L, 340F, 340F2, 340F2 L, 340F L, 345, 345B, 345B II, 345B LC, 345BLC II, 345BLC VG, 345BL, 345BL GMX, 345BL II, 345BL II UHD, 345BL LC VG, 345BL LR, 345BL ME, 345BL ME II, 345BL UHD, 345BLL, 345C, 345C LC, 345C LRE, 345CL, 345CL ME, 345CL VG, 345D, 345DL, 345DL ME, 345DL UHD, 345DL VG, 345F, 345F L, 345 GC, 345L, 349, 349 NEW GEN, 349D, 349D2, 349D2L ME, 349D2L, 349D L XE, 349DL ME, 349DL, 349E, 349EL ME, 349E LR, 349EL, 349EL VG, 349F, 349F L XE, 349FL, 349L, 350, 350 LF, 350 ME, 350 MEL, 350 V2, 350 V2L, 350BL, 350L, 350L ME, 350L V2, 350LL, 352, 352F, 352F LRE, 352F UHD, 352F XE, 352FL, 352L, 352LRE, 355
Daewoo	DX420LC V, S330, S340LC-V, S370LC-V, S400, S400LC-111, S420LC-V, S450, S470LC-V, S500LC V, Solar 330LC-V, Solar 340LC-V, Solar 370LC-V, Solar 400LC-III, Solar 400LC-V, Solar 420LC-V, Solar 450-III, Solar 450LC-V, Solar 470LC-V, Solar 500LC-V
Develon	DX350LC-7, DX350LCR-7, DX360LC-7M, DX420LC-5, DX420LC-7, DX450LC-7M, DX490LC-7, DX530LC-7M
Doosan	DH370LC-7, DH370LC-9, DH420LC-7, DH500LC-7, DX300LC-7, DX340LC-3, DX340LC-5, DX340LC-9C, DX340LC-HD, DX340 LCA, DX340LC, DX350, DX350LC, DX350LC-3, DX350LC-5, DX350LC-7, DX350 LCA, DX360LC, DX360LC-7M, DX360 LCA, DX380LC, DX380LC-3, DX380LC-5, DX380LC-7, DX380LC-9C, DX380 LCA, DX380LL-5, DX400LC-5, DX400LC-7M, DX420LC-3, DX420LC-5, DX420LC-7, DX420LC-9, DX420LC-9C, DX420 LCA, DX420LC, DX450LC-7M, DX450LC-9C, DX450 LCA-7M, DX480 LCA, DX480LC, DX490LC-3, DX490LC-5, DX490LC-7, DX500LC-9C, DX500 LCA, DX520LC-9C, DX520 LCA, DX520LC, DX530LC-3, DX530LC-5, DX530LC-5B, DX530LC-7M, DX530LCA-7M, S330LC V, S330LC, S400LC V, S420LC, S450LC V, S470LC, S500LC V, Solar 330LC-V, Solar 400LC-V, Solar 420LC-V, Solar 450LC-V, Solar 470LC-V, Solar 500LC-V
Hitachi	EX370, EX370-5, EX400, EX400-1, EX400-3, EX400-5, EX400LC-3, EX400LC-5, EX550, EX550-3, EX550-5, UH23, ZX330, ZX330LC, ZX330LC-2, ZX330LC-3, ZX330LC-3G, ZX330LC-5, ZX330LC-5B, ZX330LC-7, ZX330 LCH, ZX330-6, ZX345USLC-6, ZX345USLC-6N, ZX345USLC-7, ZX345USLC-7H, ZX350, ZX350LC, ZX350LC-3, ZX350LC-5, ZX350LC-5B, ZX350LC-5G, ZX350LC-5N, ZX350LC-6, ZX350LC-6N, ZX350LC-7, ZX350 LCD-1, ZX350 LCD-3, ZX350 LCH, ZX350 LCH-3, ZX350 LCH-5, ZX350 LCK, ZX350 LCK-3, ZX350 LCN, ZX350 LCN-1, ZX350 LCN-3, ZX350 LCN-5, ZX350 LCN-5B, ZX350 LCN-6, ZX350 LCN-7, ZX350-3, ZX350-3G, ZX350-5B, ZX350F, ZX350G, ZX350H, ZX350H-1, ZX350H-3, ZX350H-5A, ZX350H-5B, ZX350H-5G, ZX350K, ZX350K-3, ZX350K-6, ZX350M, ZX360, ZX360LC, ZX360LC-5B, ZX360 LCH-5B, ZX360 LX, ZX360H-3, ZX360H-3G, ZX360H-5A, ZX370, ZX370LC, ZX370F-3, ZX370MTH, ZX380LC-5, ZX380LC-5N, ZX380LC-6, ZX380LC-6N, ZX380HH, ZX400-3, ZX400LCH-3, ZX450, ZX450LC, ZX450-3, ZX450LC-3
Hyundai	R350, R350LC-7, R350LC-7A, R350LC-9, R350LC-9A, R360LC-3, R360LC-7, R360LC-7A, R360LC-9, R360LC-9A, R380LC-9, R380LC-9A, R380LC-9SH, R420, R420LC-7, R420LC-7A, R420LC-9, R420LC-9A, R450LC, R450LC-3, R450LC-7, R450LC-7A, R480LC-9, R480LC-9A, R480LC-9S, R500, R500LC-7, R500LC-7A, R520LC-9, R520LC-9A, R520LC-9S
John Deere	330, 330LC, 330CLC, 345GLC, 350, 350 P-Tier, 350DLC, 350GLC, 360 P-TIER, 370, 370C, 380, 380 P-TIER, 380G, 380GLC, 450LC, 450CLC, 450DLC, 470 P-TIER, 470GLC
Kobelco	SK330-8, SK330-9, SK330-10, SK330LC-8, SK330LC-9, SK330LC-10, SK330LC-V1, SK330LC-VI, SK330NLC-V1, SK330NLC-VI, SK350LC-8, SK350LC-9, SK350LC-10, SK350LC-11, SK400, SK400LC, SK400LC Mark IV, SK480LC-6, SK480LC-8, SK480LC-9, SK480LC-10
Komatsu	HB335LC-1, HB365LC-1, HB365LC-3, HB365LC-3EO, HB365 NLC-1, HB365 NLC-3, HB365-3, PC290LL-11, PC300 HDLC-5, PC300 HD-5, PC300 HD-5L, PC300 HD-6, PC300 HD-6E, PC300 HD-6L, PC300 HD-6LC, PC300 HD-6LE, PC300 HD-6SL, PC300 HD-7, PC300 HD-7E0, PC300 HD-7L, PC300 HD-8, PC300LC-8L, PC300LC-8M0, PC300LC-10, PC300LL-6, PC300LL-7, PC308, PC308LC, PC308LC-3, PC308LC-7, PC308USLC, PC308USLC-3, PC308USLC-3E0, PC330LC, PC330-3, PC340, PC340 HRD-7E0, PC340LC, PC340LC-6, PC340LC-6K, PC340LC-6KJ, PC340LC-7, PC340LC-7E0, PC340LC-7K, PC340LC-8, PC340 LCD-7, PC340-6, PC340-6K, PC340-7, PC340NLC, PC340NLC-6, PC340NLC-6K, PC340NLC-6KJ, PC340NLC-7, PC340NLC-7E0, PC340NLC-7K, PC350, PC350 HD-8, PC350LC, PC350LC-6, PC350LC-6E, PC350LC-6Z, PC350LC-7, PC350LC-7E, PC350LC-7E0, PC350LC-8, PC350LC-8K, PC350LC-8M0, PC350LC-10, PC350LC-11, PC350-6, PC350-6E, PC350-6Z, PC350-7, PC350-7E0, PC350-8, PC350-8M0, PC350-10, PC350NLC-8, PC350NLC-8K, PC350NHRD-8, PC360, PC360LC, PC360LC-3, PC360LC-5K, PC360LC-6K, PC360LC-10, PC360LC-11, PC360LC-11E0, PC360 LCI-11, PC360 LCI-11EO, PC360-3, PC360-5, PC360-7, PC360-8M0, PC360-11M0, PC360LC-5, PC360NLC-10, PC360NLC-11, PC360NLC-11E0, PC380, PC380LC-6, PC380LC-6K, PC380LC-6KJ, PC380LC-7, PC380 LCD, PC380U, PC390LC-8M0, PC390LC-10, PC390LC-11, PC390 LCI-11, PC390HRD-11, PC400, PC400 EX, PC400 HD, PC400 HDLC, PC400 HD-3, PC400 HD-3LC, PC400 HD-5, PC400 HD-5LC, PC400 HD-6, PC400 HD-6LC, PC400 HD-6 LK, PC400 HD-6 LM, PC400LC, PC400LC-1, PC400LC-2, PC400LC-3, PC400LC-4, PC400LC-4L, PC400LC-5, PC400LC-5A, PC400LC-5C, PC400LC-5E, PC400LC-5K, PC400LC-5L, PC400LC-5LC, PC400LC-5N, PC400LC-6, PC400LC-6BL, PC400LC-6C, PC400LC-6E, PC400LC-6H, PC400LC-6K, PC400LC-6L, PC400LC-6LC, PC400LC-6LE, PC400LC-6LK, PC400LC-6LM, PC400LC-6M, PC400LC-6Z, PC400LC-7, PC400LC-7E, PC400LC-7E0, PC400LC-7L, PC400LC-8, PC400LC-8LK, PC400-5, PC400-7EO, PC400-8, PC400-8R, PC400LC-8E0, PC450-7EO, PC450-8, PC450LC-8
Link-Belt	330 LX, 330 X4, 350 X2, 350 X3, 350 X4, 355 X4S, 460 LX, 460 X2, 470 X3, 470 X4, 490 X4, LS330LX, LS4300Q
Liugong	936, 936E, 936F, 939, 939E, 939F, 942E, 945, 945E, 948, 948E, 950E, 952E
Samsung	SE350LC, SE350LC-2, SE350LC-3
Sany	SY335, SY335C, SY335CLC, SY335C-9, SY335H, SY350, SY360C, SY365, SY365C, SY365CLC, SY365H, SY365H-9, SY365HC-9, SY375, SY375H, SY375H-S, SY380C-10HD, SY385C, SY385H, SY390H, SY395, SY395H, SY405C, SY415, SY415H, SY420C, SY465C, SY485, SY485H, SY500, SY500H, SY550, SY550H, SY550HD
Sumitomo	SH300LC-2, SH330-3, SH330-5, SH330-6, SH330LC-3, SH330LC-5, SH330LC-6, SH450, SH450HD-3, SH450LC-3, SH460, SH460HD-5, SH480, SH480LHD-5
Volvo	EC320BLC, EC320C, EC320C L, EC320D L, EC330, EC330LC, EC330B, EC330BLC, EC330C, EC330CL, EC340, EC340LC, EC340BLC, EC340D, EC340DL, EC350D, EC350DL, EC350E, EC350EL, EC360, EC360LC, EC360B, EC360BLC, EC360BL, EC360C, EC360CL, EC360D, EC360DL, EC380, EC380CL, EC380D, EC380DL, EC380E, EC380EL, EC460, EC460B, EC460BLC, EC460C, EC460C L, EC480, EC480D, EC480D L, EC480E, EC480E HR, EC480E L, ECR305C, ECR305C L, MX365LS, MX455LS, SE360LC-3, SE460LC-3

Product Overview

10,178 Joules Hydraulic Hammer for 26 - 35 Tons Excavators. Fits 26–35 ton excavators, bolt-on mount matched to your machine's pins. Included: mount with pins, 2 hoses, moil + wedge chisel, tool box, N2 bottle + gauges, seal kit. Price: $28,597.00, in stock, ships from Miami, FL the same business day when ordered before 2 PM ET.

Experience breakthrough performance with the 10,178 Joules Hydraulic Hammer for 26 - 35 Tons Excavators.. Tailored for excavators, this hydraulic hammer unlocks unparalleled productivity in demanding applications.

Elite Performance Features:
• Powerful Breaking Force: 10,178 Joules energy class
• Rapid-Fire Action: 300 - 450 BPM
• Built for Extremes: AR450 Steel construction
• Versatile Use: Primary/secondary breaking, recycling
• Comprehensive Toolkit: 2 Hydraulic Hoses,1 Moil Rock Chisel Bit, 1 Wedge Rock Chisel Bit, Tool Box, Nitrogen Gauge, Nitrogen Bottle, Repair Seal Kit | 2,276 - 2,560 psi operating pressure

Elevate your demolition game. The 10,178 Joules Hydraulic Hammer for 26 - 35 Tons Excavators. delivers tangible returns through speed and reliability.

FAQ

What comes in the box?

One mount (head) for your machine with pins, 2 hydraulic hoses, a moil chisel and a wedge chisel, a tool box, a nitrogen bottle with gauges and a repair seal kit.

Will it fit my machine?

Tell us your machine, we confirm the fit before shipping. Pin-on attachments are sized from your machine's pin diameter, pin-to-pin distance and ear width. If your machine has a quick coupler, is a long-reach model or was modified, measure those three and send them to us before you order. If we confirmed the fit from your accurate machine and coupler details and our recommendation is wrong, report it within 14 calendar days of delivery: the JMA Fitment Money-Back Promise gives a full product refund, outbound and return freight covered, no restocking fee.

How fast does it ship?

In-stock items ship from Miami, FL the same business day when ordered before 2 PM ET; orders after 2 PM ET, on weekends or on holidays ship the next business day. Carrier estimates for the lower 48, in business days from the ship date: parcels of 50 lb or less 5–7 standard or 2–4 expedited; LTL freight over 50 lb 7–10 standard or 4–6 expedited, usually with a delivery appointment and a signature. Outside the lower 48, shipping is quoted. Inspect it before you sign and note any damage on the delivery receipt.

What does the warranty cover?

JMA Attachments hydraulic hammers carry a 24-month warranty; coverage varies by component and hammer class, and the Warranty page lists each part. Through bolts, bushings and rod pins: 2 months. Seal kits and diaphragm: 3 months. Chisels follow the manufacturer's standard. Get our written approval before any repair.

Can I return it?

Yes, for standard products: a refund within 14 calendar days of delivery, or store credit within 30, if it is unused, uninstalled, free of soil and grease, and in its original packaging with all hardware. Get a Return Authorization Number (RAN) from us first. The buyer pays return shipping unless the item was defective, damaged or wrong because of our error, or you can drop it off at our warehouse, 8068 NW 29th St, Doral, FL, Monday to Friday, 9 AM to 5 PM, with your RAN. A restocking fee applies to non-defective refunds; store credit has no restocking fee. Original outbound shipping is not refunded on change-of-mind returns. Installed or used attachments can't be returned.
